Super Simple Lego Technic RC Quadcopter Frame

Hi, I share the simple instructions to create a frame for quadcopters, using the famous Lego technic.

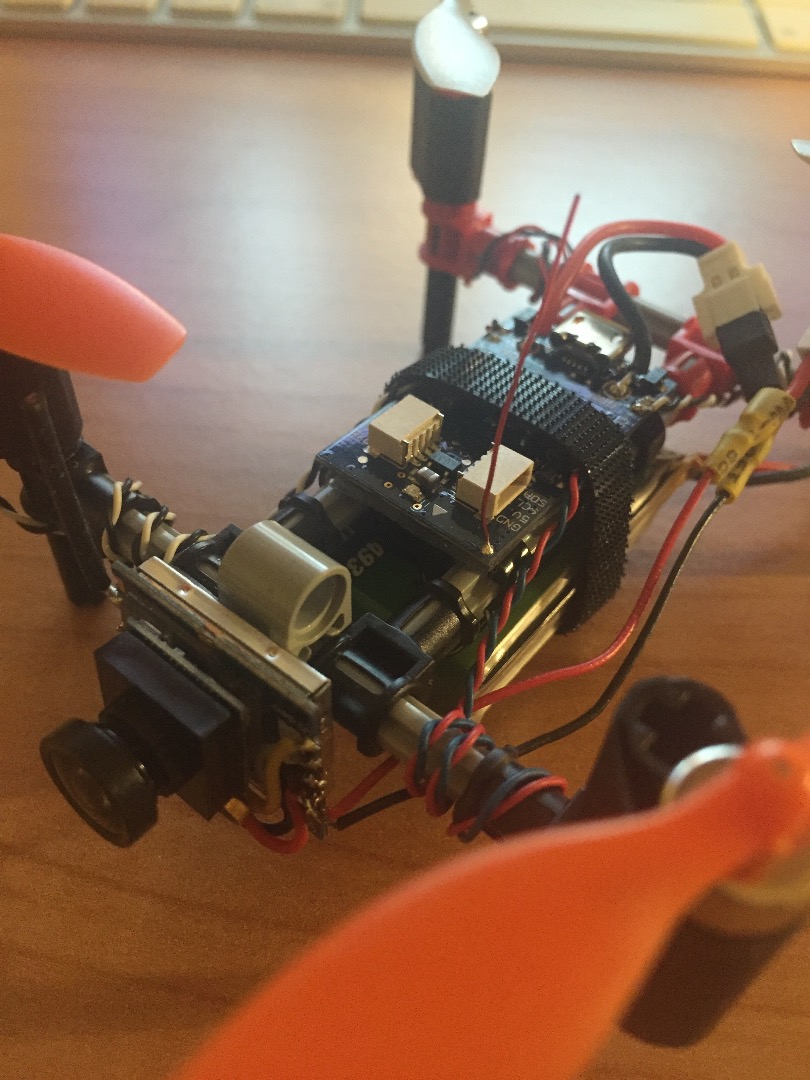

The photo shows my setup:

• brushed motors 8mm.

• propellers 60mm.

• Quanum Pico 32bit Brushed Flight Control Board.

But you can install whatever you want.

P.S. The gray brick on the front side, is used to mount the camera "FPV".

• black axles lenght 4 (lego dimensions)
• gray axles lenght 7

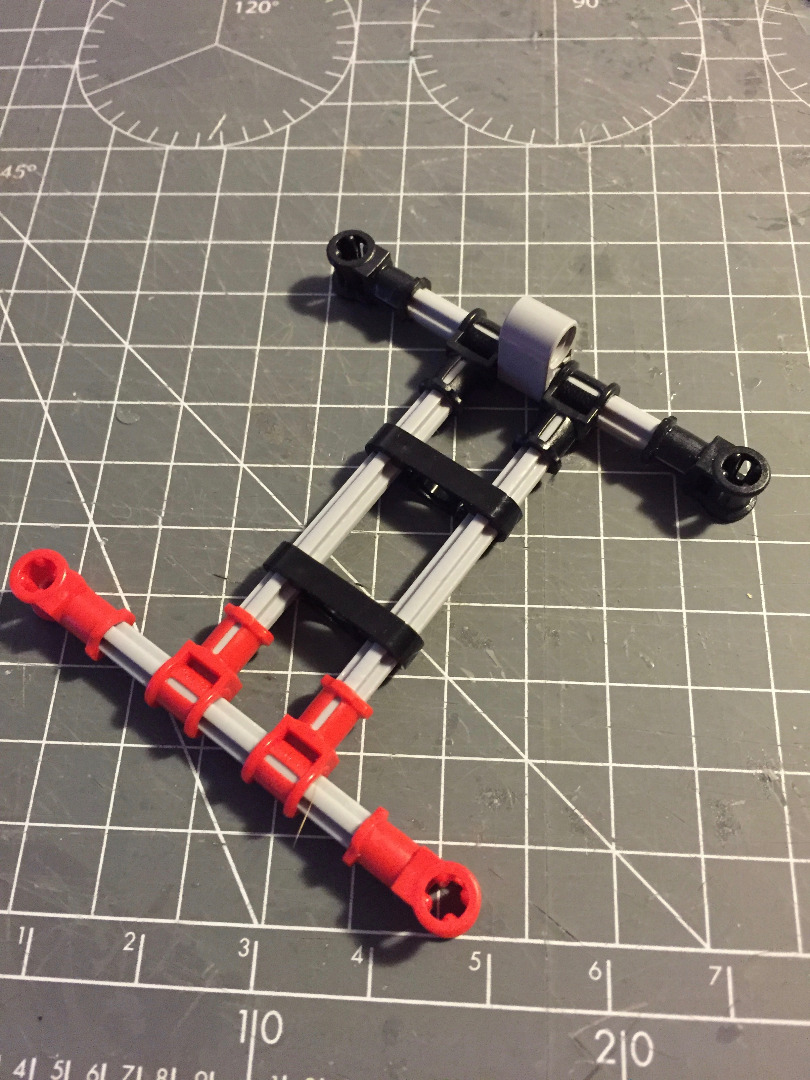

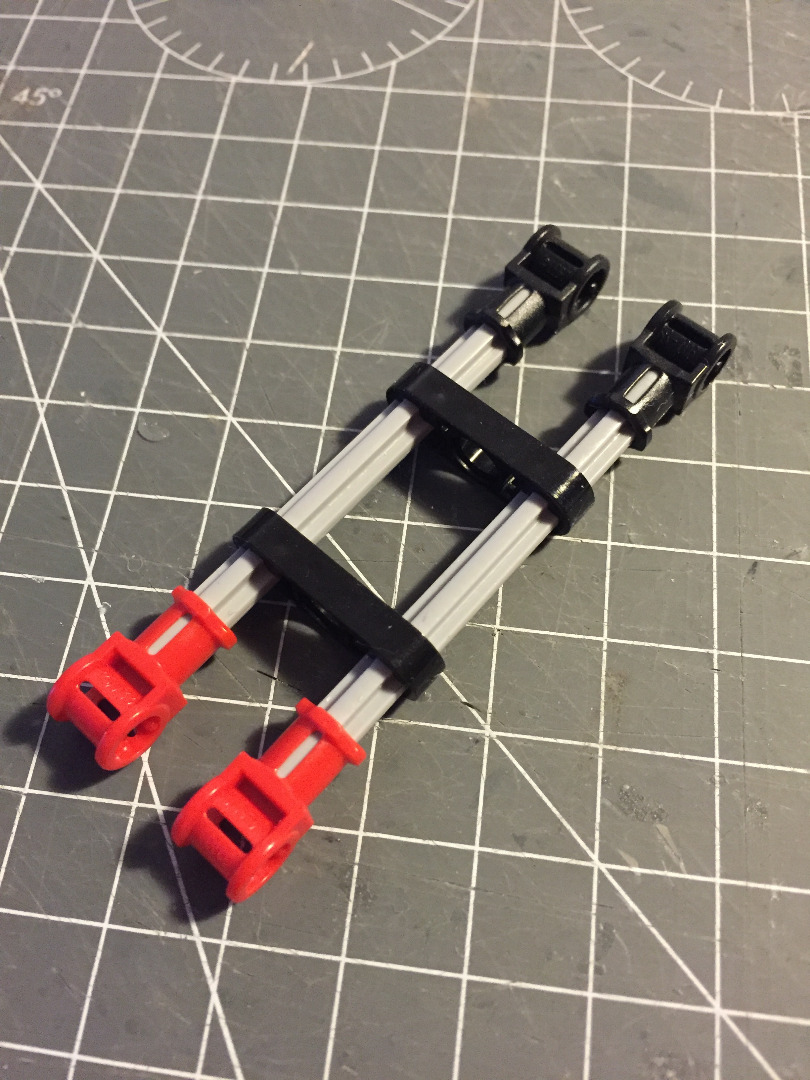

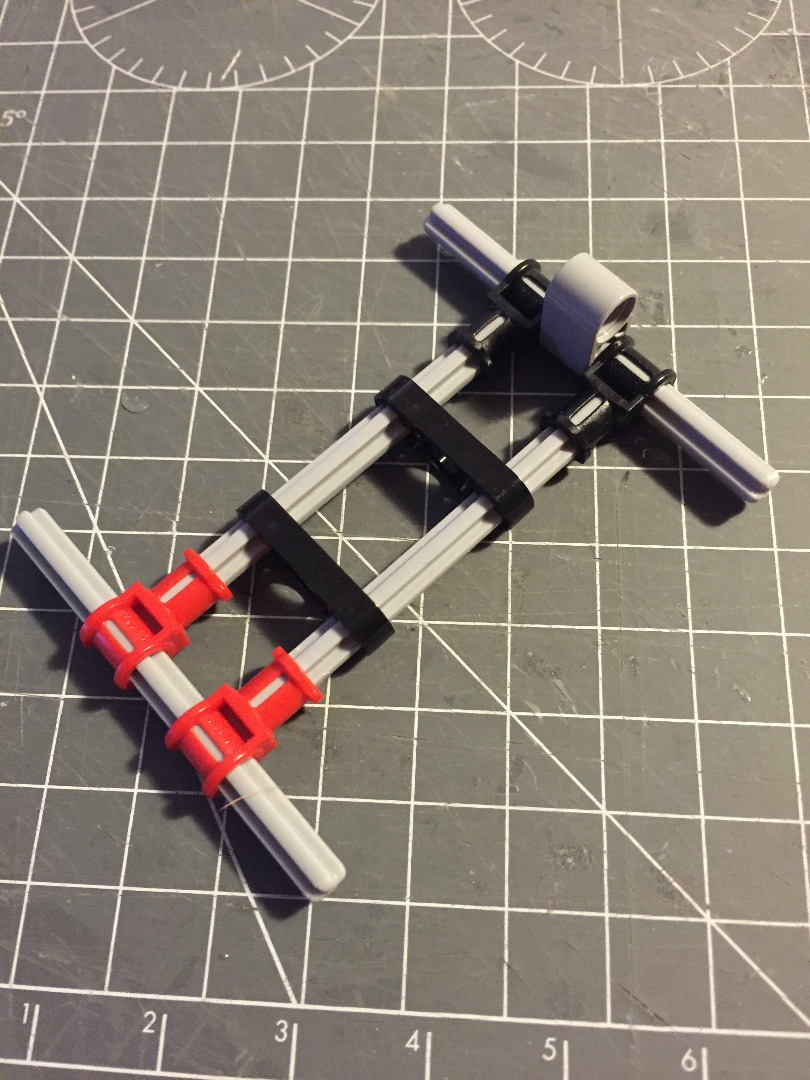

Assemble the frame as shown.

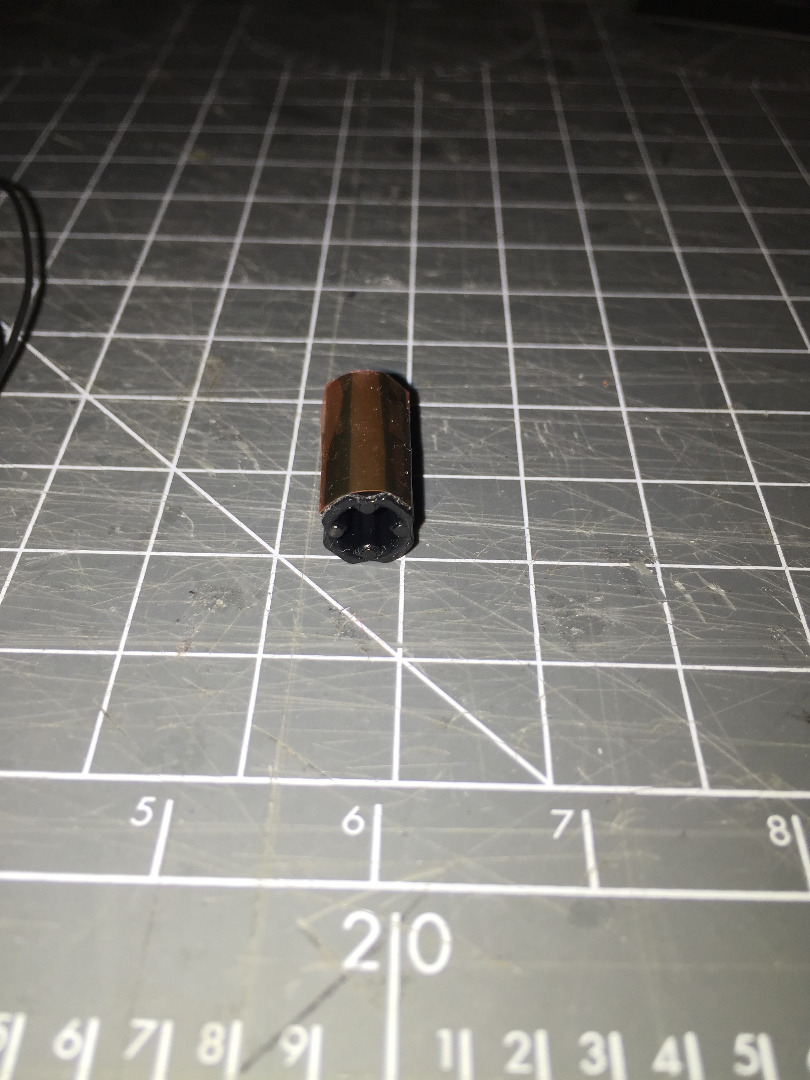

To complete the frame, in addition to the lego shown in the pictures, we need a heatshrink of suitable diameter, (in my case diameter 13mm), and a doublesided tape.

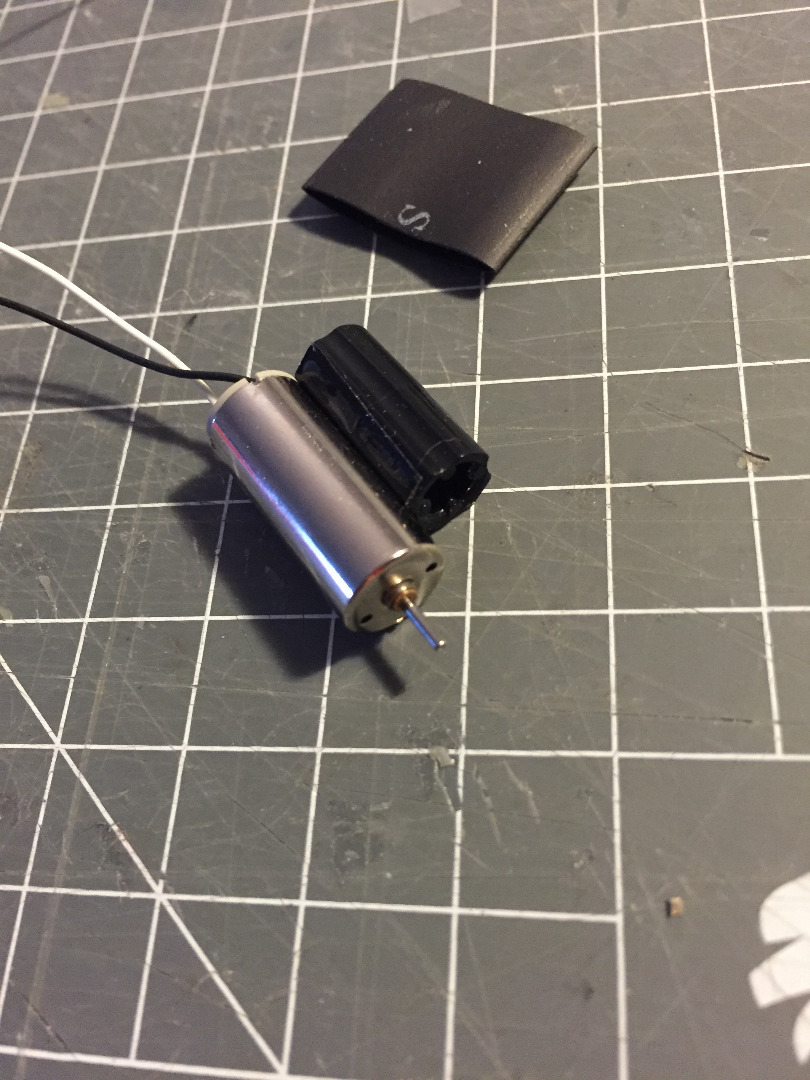

• Cut 1 pieces of heatshrink (lenght 15mm).

• Cut 1 pieces of doublesided tape (15x5mm).

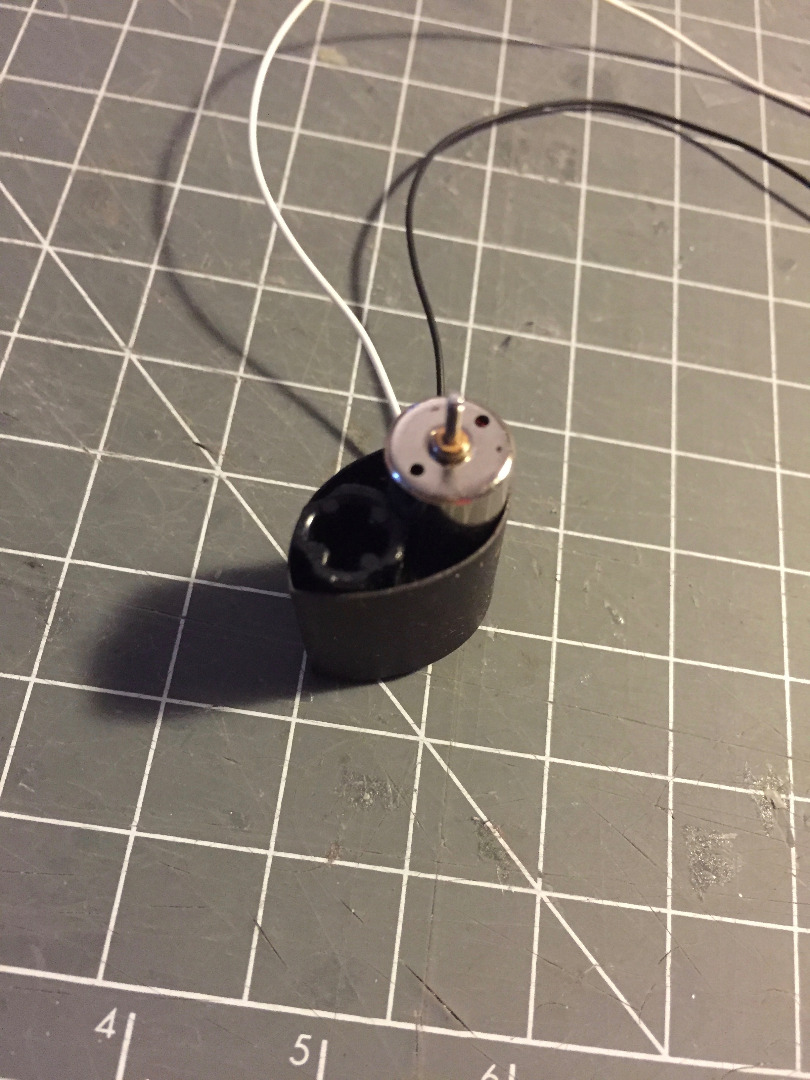

• Applying double-sided adhesive on the lego part, and attach the engine, as shown in the picture.

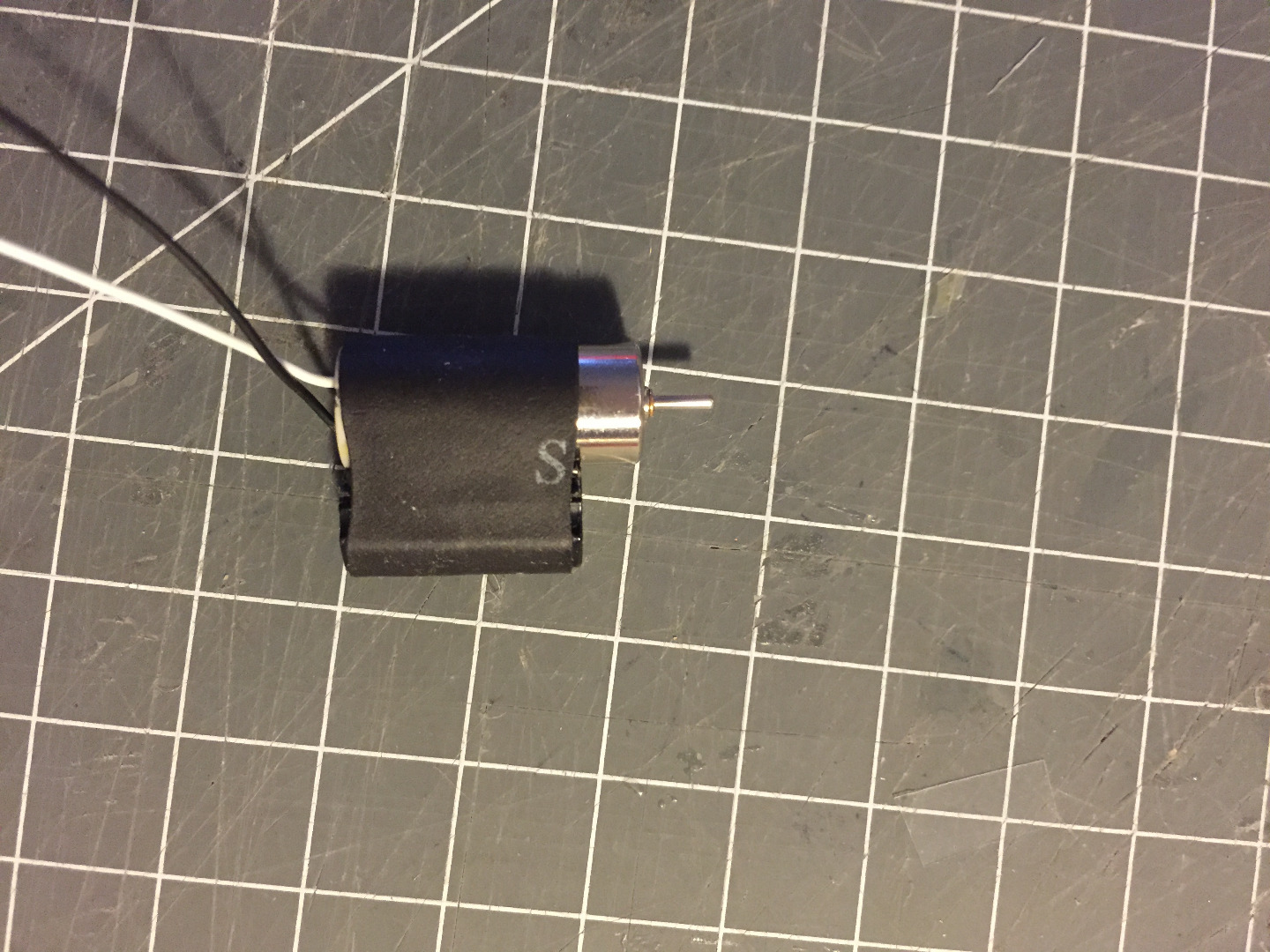

• Finally block with heatshrink.

repeat for the remaining motors.

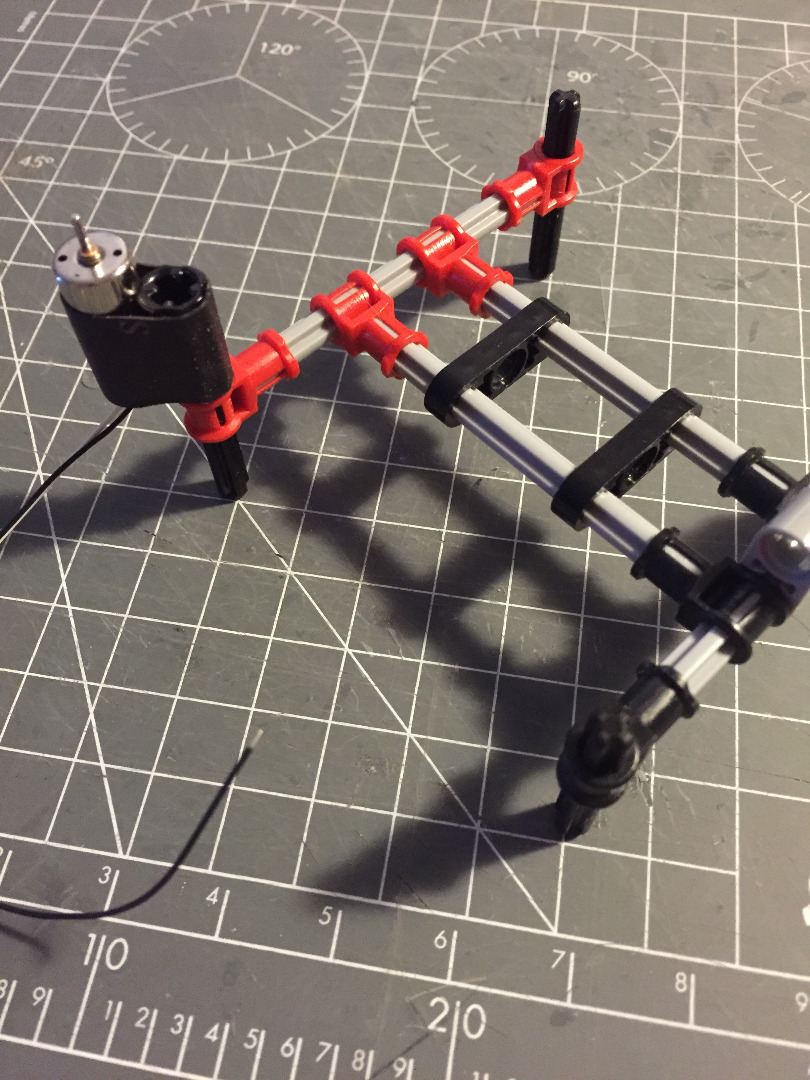

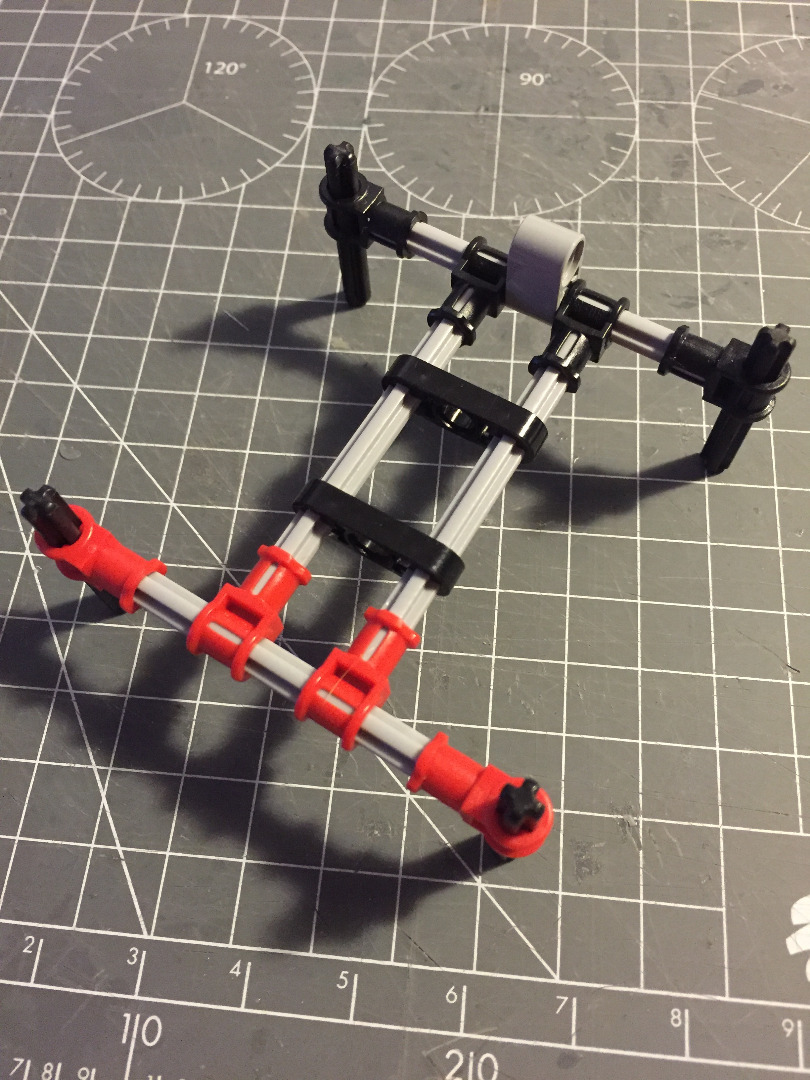

Assemble the four motor-mounts as shown, and after all the electronics.

That's all.
(Sorry for my bad English)

enjoy it.
