Hey everyone, I wanted to share a project I just finished up. I built a super secret locking box for my girlfriends little brother. He has a knack for creative lego building so I thought it would be a good idea to open him up to the Arduino as soon as possible. The super secret locking box will only open for those with right password or there is a hidden way to reset the passcode so that no prying little sister would ever be able to figure it out. That is, unless she finds this instructable. The secret method involves using some capacitive touch sensing.

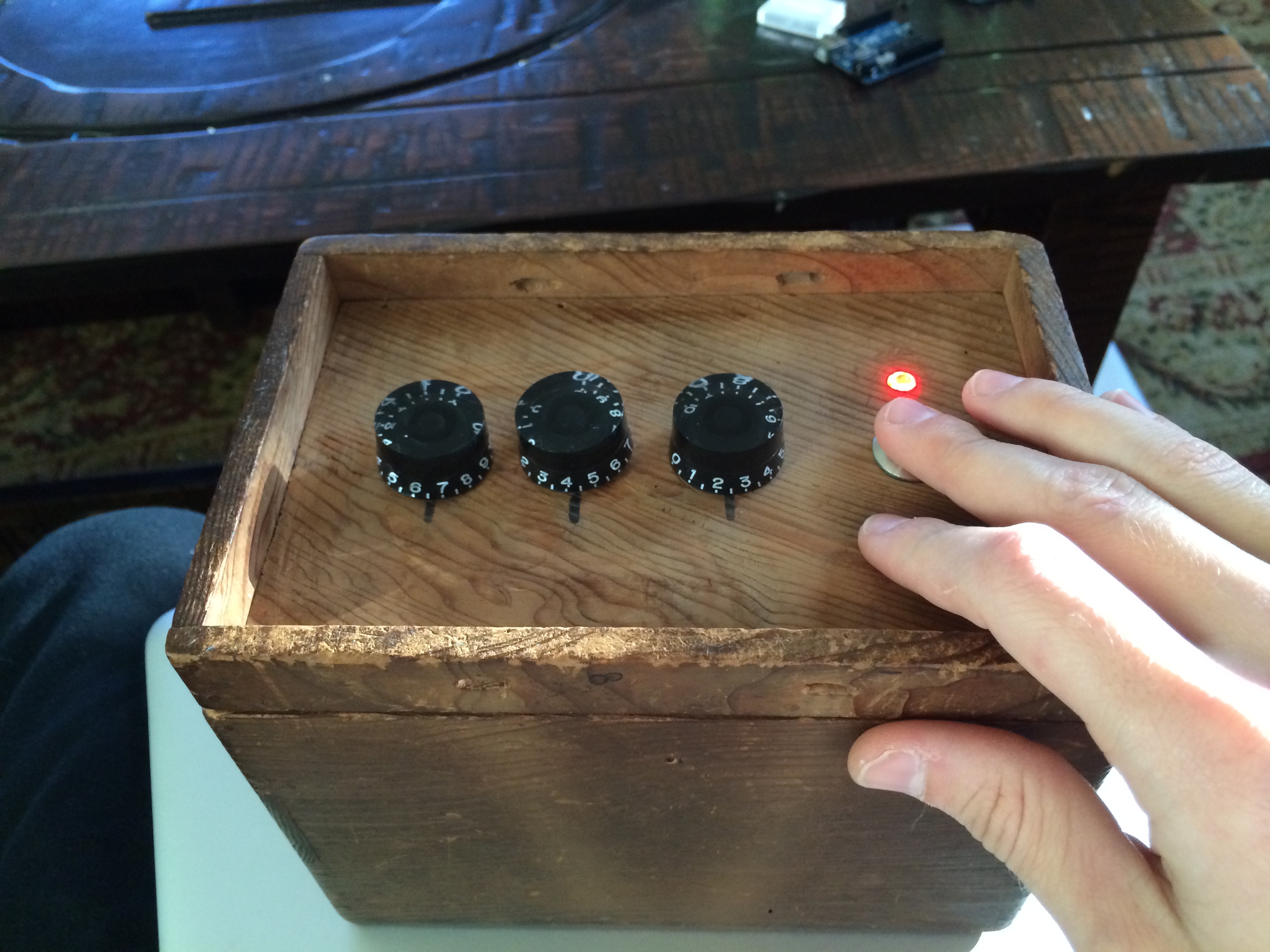

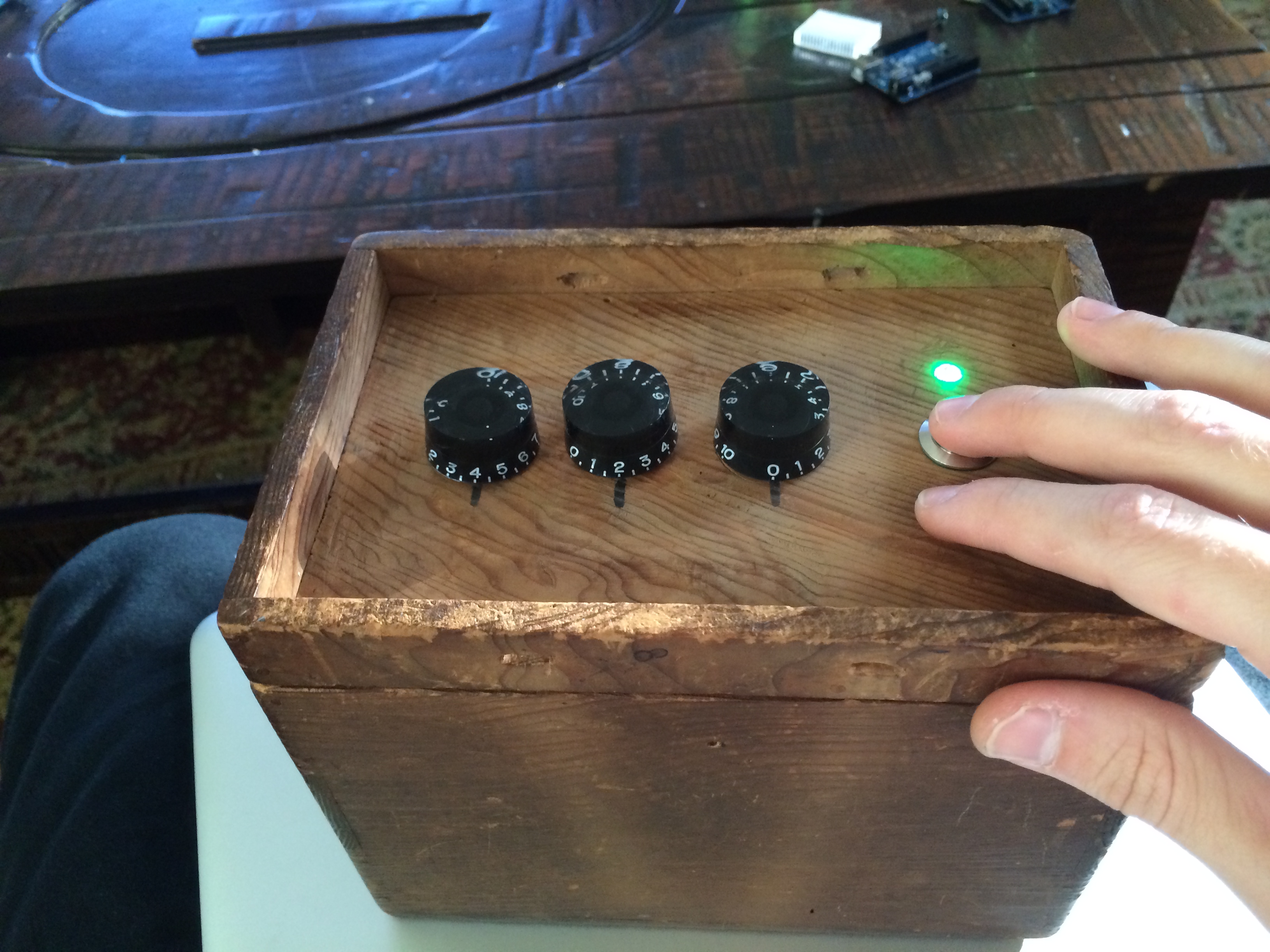

The Arduino stays asleep to conserve battery and only wakes when the button is pressed. Upon waking, there are two paths to go down, flash the green LED, unlock, and go back to sleep OR light up the red LED and wait for 20 seconds for the right passcode, then go to sleep. In the period before it goes to sleep, if you touch(not press) the button for 5 seconds, the passcode will be set to whatever the code is currently. It will then unlock and go back to sleep. The 20 seconds timer restarts every time the button is pressed.

Parts
ATmega168/328 on a PCB or an Arduino with a breadboard
Wood Box
small servo
3x Potentiometers & knobs
push button
RGB LED
2x 100 ohm resistors
150 ohm resistors
battery pack
wire
depending on how you make the latch, these parts will be up to you, I used 1/4" square dowels to make the latch and supports

Tools
Skills with a Dremmel
Soldering Iron
Hot Glue Gun
Wood Glue (I recommend Gorilla Wood Glue, the non-foaming kind)

If anyone can decipher the suspected Japanese characters, I would really love to know the original purpose of the box.


UPDATE:
He loved it!

Cut and Wire It Up!

Screen Shot 2013-12-19 at 3.50.38 PM.png

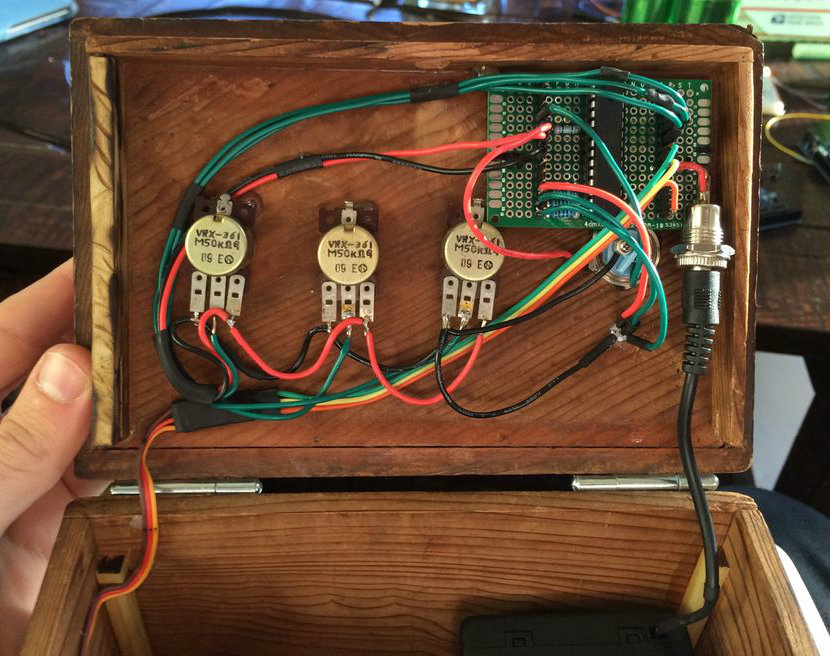

You will need to measure out where to cut 5 holes for the pots, LED, and button. Make sure to leave space for either the Arduino or a breadboard/pcb standalone. I chose to use an ATmega 328P-PU standalone running 8MHz internal clock to minimize battery consumption. On sleep mode, theoretically should only draw a few uA which is worlds better that the 25mA the UNO was consuming.
If you plan to use the arduino development board instead of a standalone version, be sure to bypass the 5V regulator by using the 5V pin to power it instead of VIN or the barrel jack. Trying to conserve any battery is pointless if it is being used.

Connect 5V, GND and data lines to the appropriate pins. Remember to use resistors on the LED, red needs 150 ohms while blue and green need 100 ohm resistors.

Remember, the pots must be connect to analog pins.

Whichever battery pack you choose must output a max voltage of 5.5V and a minimum of 4.5v. (3AA wired in series should work). The ATmega328 will run nicely anywhere from 1.8 to 5.5v but the servo requires a bit more juice. The data sheet for a 9g servo says 4.8v minimum. Since it is more common to find packs with 4 batteries which would produce 6v, a Shottkey diode can be used to drop to voltage to 5.6v. I don't think an extra .1v will damage the ATmega.

EDIT:
3x 1.5v alkaline AA wired in series = 4.5v
I used 4x 1.2v lithium batteries for 4.8v




Downloads

Code

photo 3.JPG
photo 2.JPG

Interrupts can be tricky, digital pin 2 is also PCINT0. that is why the button is connected to pin 2 but the interrupt is attached to 0.


#include <Servo.h>

#include <CapacitiveSensor.h>

#include <avr/sleep.h>


const byte red = 6;
const byte green = 7;
const byte blue = 8;

const byte pot1 = A0;
const byte pot2 = A1;
const byte pot3 = A2;

const byte button = 2;

int code1 = 1;
int code2 = 1;
int code3 = 1;

int pot_val1 = 0;
int pot_val2 = 0;
int pot_val3 = 0;

int button_val = 0;

int touch;

unsigned long currentMillis = 0;
unsigned long codeMillis = 0;
unsigned long buttonMillis = 0;
unsigned long sleepMillis = 0;

CapacitiveSensor cs_10_11 = CapacitiveSensor(3,4);

Servo myservo;

int sleepCounter = 0;
boolean state = LOW;

void setup()
{
Serial.begin(9600);
pinMode(red, OUTPUT);
pinMode(green, OUTPUT);
pinMode(blue, OUTPUT);
pinMode(button, INPUT);
pinMode(pot1, INPUT);
pinMode(pot2, INPUT);
pinMode(pot3, INPUT);
cs_10_11.set_CS_AutocaL_Millis(20000);
digitalWrite(button, HIGH);
attachInterrupt(0, interrupt, RISING);

}
void loop()
{
getPots(); //read in pot values
mapAllPots(); //adjust them to the correct scale
if(pot_val1 == code1 && pot_val2 == code2 && pot_val3 == code3) //if password is correct
{
Serial.println("Success!");
g(); //light green led
unlock(); //unlock the latch
sleepNow(); //go to sleep
}
else
{
Serial.println("Failure");
r(); //turn on red led
}

currentMillis = millis();
button_val = !digitalRead(button); //read the button value
//Serial.println(button_val);
//Serial.println(sleepCounter);


if(button_val == 1) //if button is pressed, reset the timers.
{
sleepMillis = currentMillis;
codeMillis = currentMillis;
}

if((currentMillis - sleepMillis) > 20000) //if timer expires, go to sleep
{
sleepMillis = currentMillis;
sleepNow();
}


touch = highLow(cs_10_11.capacitiveSensor(30)); //read touch capacitance and map it to binary HIGH or LOW
Serial.println(touch);
currentMillis = millis();
if(touch == 1)
{
if((currentMillis - codeMillis) > 5000) //if touch is 1 for 5 seconds
{
b(); //light th blue led
storeCode(); //store code from pot values
delay(300);
codeMillis = currentMillis;
}
}
if(touch == 0) //if no touch reset timer to prevent time accumulation
{
codeMillis = currentMillis;
}



}

//end of loop
////////////////////////////////




void interrupt()
{
currentMillis = millis();

if((currentMillis - buttonMillis) > 200)
{

buttonMillis = currentMillis;
}
}
void sleepNow() // here we put the arduino to sleep
{
off(); //turn off all leds

set_sleep_mode(SLEEP_MODE_PWR_DOWN); // sleep mode is set here

sleep_enable(); // enables the sleep bit in the mcucr register
// so sleep is possible. just a safety pin


attachInterrupt(0, interrupt, RISING); // use interrupt 0 (pin 2) and run function
// wakeUpNow when pin 2 gets LOW
MCUCR = bit (BODS) | bit (BODSE); // turn on brown-out enable select
MCUCR = bit (BODS); // this must be done within 4 clock cycles of above

sleep_mode(); // here the device is actually put to sleep!!
// THE PROGRAM CONTINUES FROM HERE AFTER WAKING UP

sleep_disable(); // first thing after waking from sleep:
// disable sleep...
detachInterrupt(0); // disables interrupt 0 on pin 2 so the
// wakeUpNow code will not be executed
// during normal running time


}
int highLow(unsigned long x)
{
if(x >= 300)
{
return 1;
}
else
{
return 0;
}

}

void getPots()
{
pot_val1 = analogRead(pot1);
pot_val2 = analogRead(pot2);
pot_val3 = analogRead(pot3);
}
void mapAllPots()
{
pot_val1 = mapPot(pot_val1);
pot_val2 = mapPot(pot_val2);
pot_val3 = mapPot(pot_val3);
}
int mapPot(int in)
{
if(in > 1010){
return 1;
}
else if(in > 950){
return 2;
}
else if(in > 900){
return 3;
}
else if(in > 630){
return 4;
}
else if(in > 480){
return 5;
}
else if(in > 190){
return 6;
}
else if(in > 80){
return 7;
}
else if(in > 30){
return 8;
}
else if(in > 3){
return 9;
}
}
void storeCode()
{
code1 = pot_val1;
code2 = pot_val2;
code3 = pot_val3;
}
void r()
{
digitalWrite(red, HIGH);
digitalWrite(green, LOW);
digitalWrite(blue, LOW);
}
void g()
{
digitalWrite(red, LOW);
digitalWrite(green, HIGH);
digitalWrite(blue, LOW);
}
void b()
{
digitalWrite(red, LOW);
digitalWrite(green, LOW);
digitalWrite(blue, HIGH);
}
void off()
{
digitalWrite(red, LOW);
digitalWrite(green, LOW);
digitalWrite(blue, LOW);
}
void unlock()
{
myservo.attach(9);
myservo.write(75);
delay(750);
myservo.write(96);
delay(250);
myservo.detach();
}

Latch

photo 5.JPG
There are many latch systems out there. I almost went with the chopstick between the cup hooks methods used in this project http://arduiniana.org/projects/the-reverse-geo-cache-puzzle/. The problem with the chopstick method is that it must wait for the box to close before it can go back to sleep. I wanted int to sleep as soon as possible and waste no time waiting on an indecisive moment. So I combined the two ideas from that project and this one https://www.instructables.com/id/Super-Secret-Lock-Box/

In my latch, the servo is not connected to the latch. It simply pushes it and hold it open for a brief period. A clothespin style spring I bent from a paper clip keeps the latch down and locked at all times. You will have to mess with the tension of the spring so that it doesn't fight the servo too hard but still remains securely latched.

I used wood glue to join pieces of 1/4" dowel rods together and carved them with a dremmel to make the latch system. It is secured to the box with wood glue.
