Super Effects With LED Strip and LED Circuit

Hii friend,

Today I am going to make a circuit of super effects light with LED Strip and LED.

Let's get started,

Components required -

(1.) IC - LM555 x1

(2.) LED Strip

(3.) LED - 3V x1

(4.) Resistor - 330 ohm x1

(5.) Resistor - 220 ohm x1

(6.) Capacitor - 25V 220uf x1

(7.) Power supply - 12V DC

(8.) Battery - 9V x1

(9.) Battery clipper

Firstly we have to short the pins of ic.

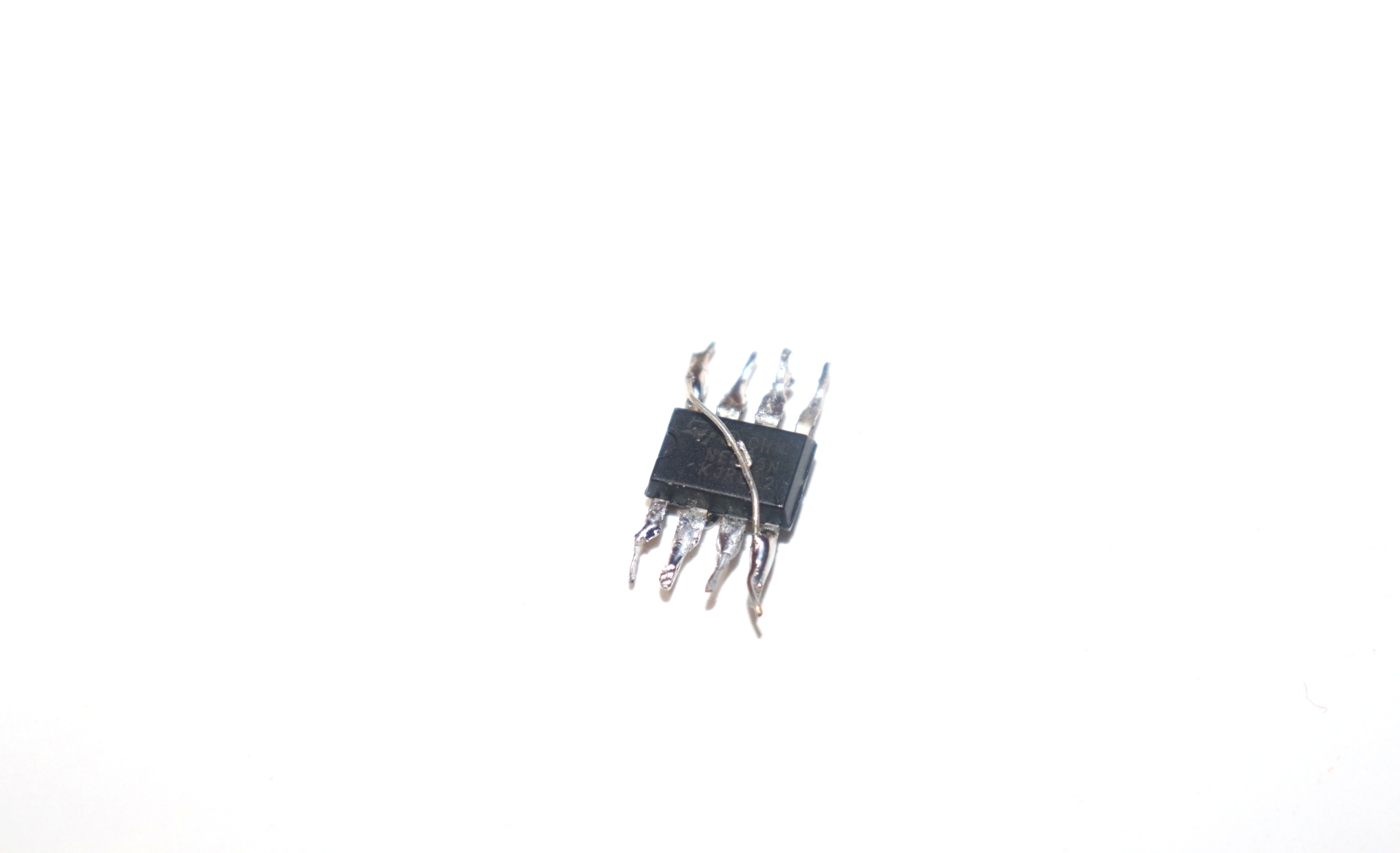

Connect pin-2 to pin-6 of the IC as solder in the picture.

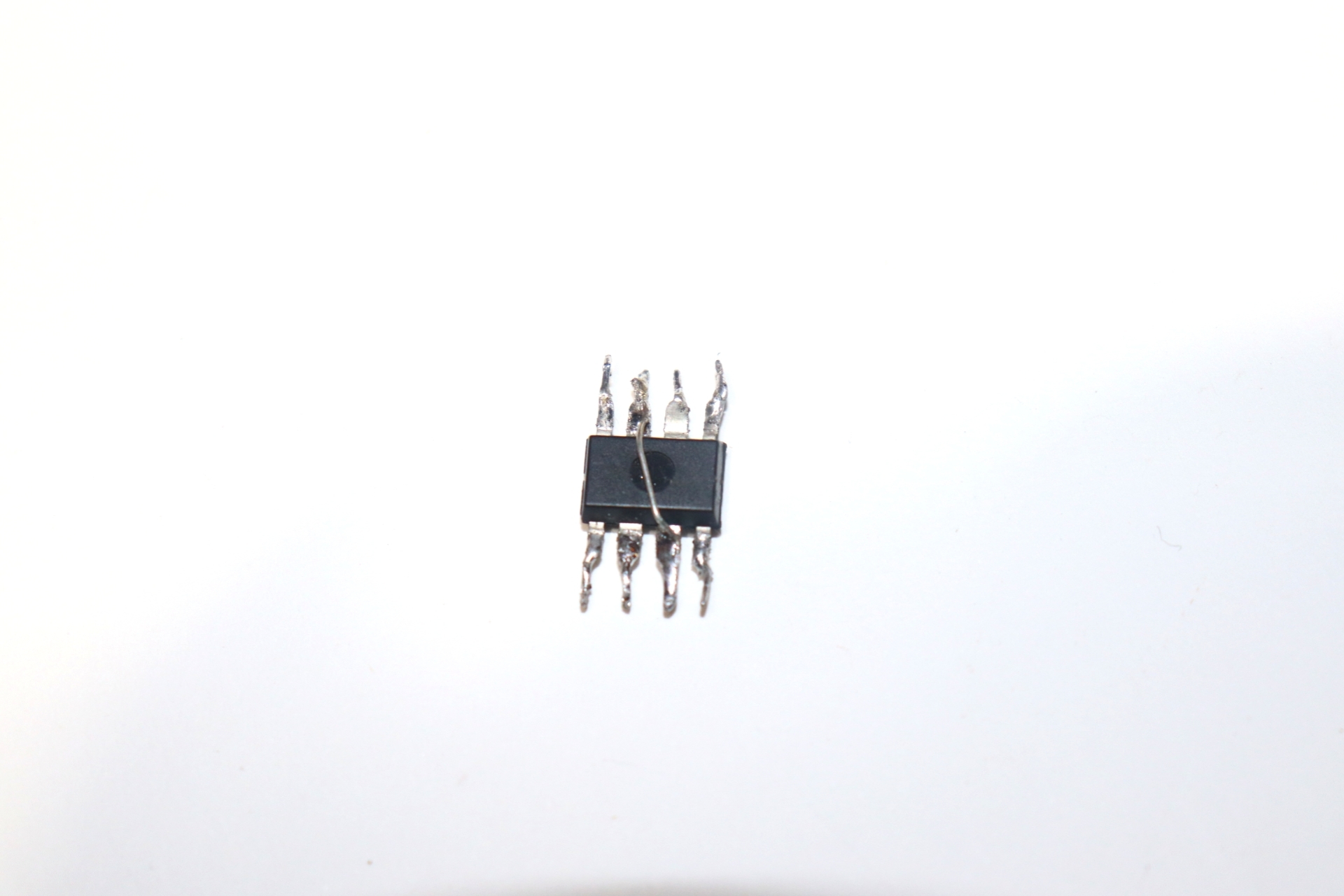

Next we have to solder pin-4 to pin-8 of the IC as you can see in the picture.

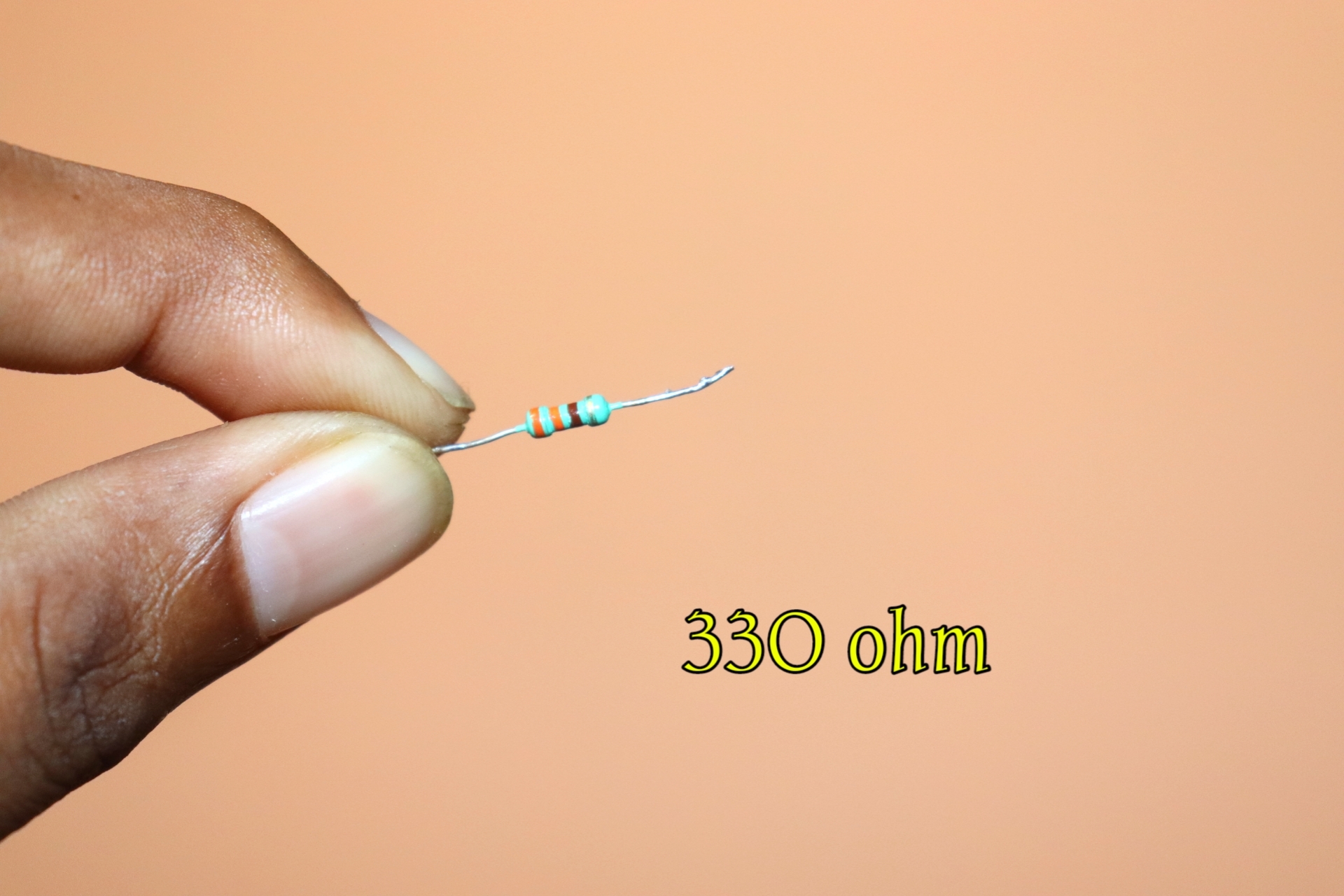

Next connect 330 ohm resistor between pin-7 to pin-8 of the IC as you can see in the picture.

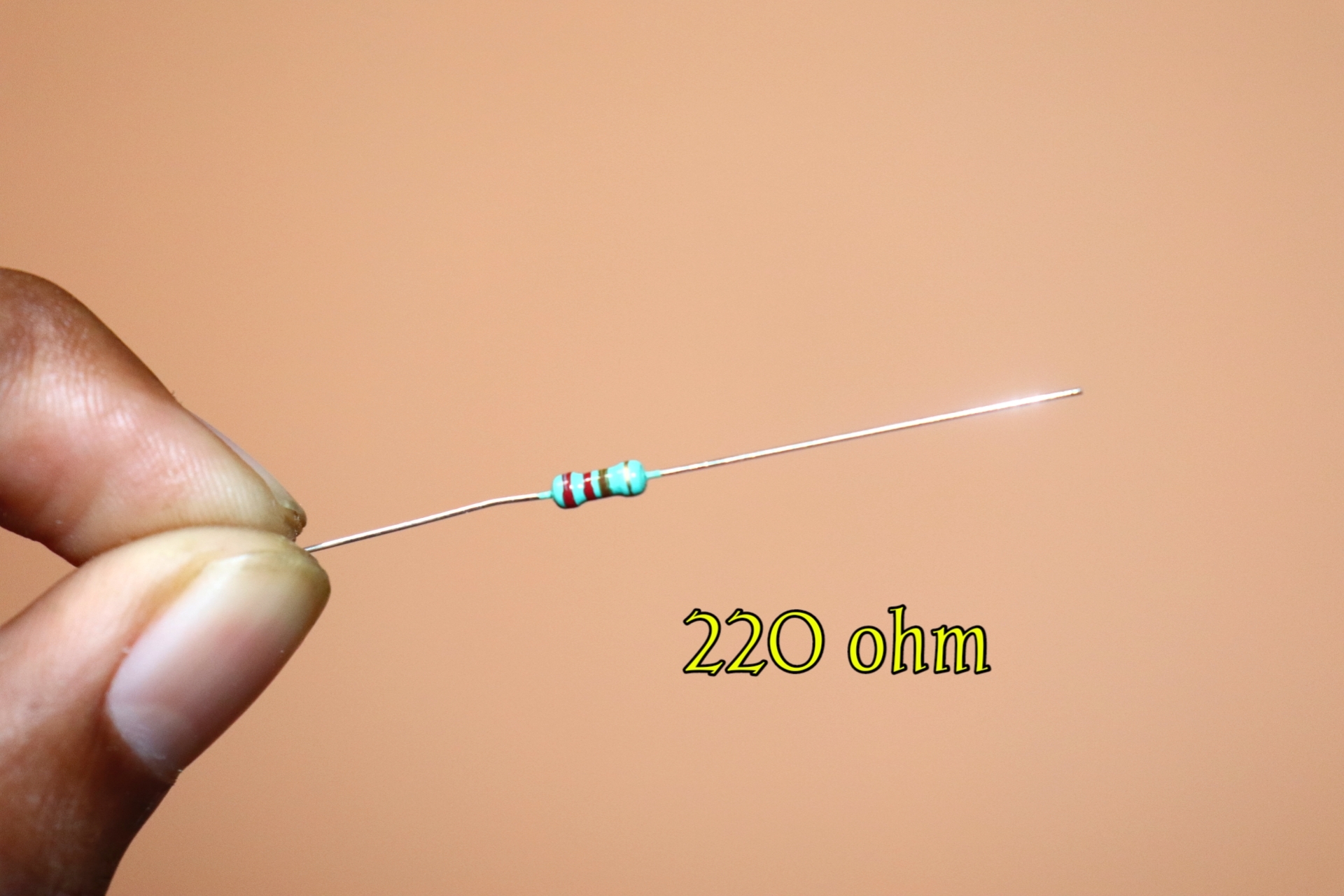

Solder 220 ohm resistor between pin-6 to pin-7 of the IC.

Next we have to connect 220uf electrolytic capacitor to the circuit.

>> Solder +ve pin of capacitor to pin-2 of the IC and

solder -ve pin of capacitor to pin-1 of the ic as you can see in the picture.

Next solder +ve leg of LED to pin-4 of the IC and

solder -ve leg of LED to pin-3 of the IC as you can see in the picture.

Solder +ve wire of battery clipper to pin-8 of the IC and

Solder -ve wire of Battery clipper to pin-1 of the IC as solder in the picture.

Now connect battery to battery clipper and the result will occur LED is blinking.

NOTE : We can connect LED Strip instead of LED but LED Strip should be of 4-5V then LED Strip will glow with super effects.

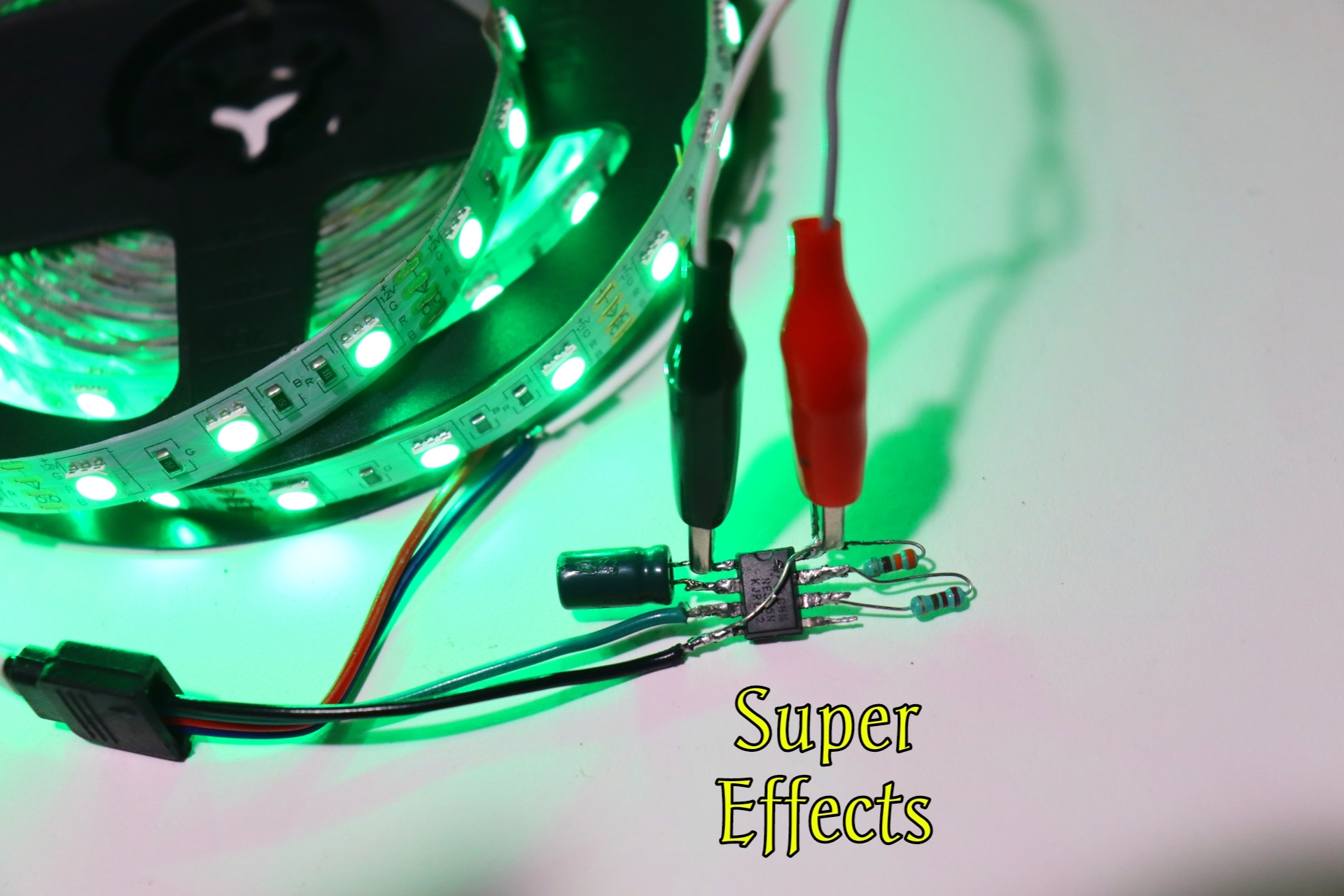

Next Connect LED Strip to the circuit instead of LED.(Polarity of LED Strip will be same as LED)

If LED Strip is not glowing with 9V Battery then connect 12V DC power supply to the circuit and now LED Strip will give super effects,

But with 12V power supply this circuit can't access for long time.After some time IC will be dead.So use this circuit with 9V DC.

Thank you
