Super Easy Laser Trip Wire / Alarm / Coilgun Switching

by -Selfmade- in Circuits > Electronics

1718 Views, 33 Favorites, 0 Comments

Super Easy Laser Trip Wire / Alarm / Coilgun Switching


Switch your coilgun coils, protect your home or hook it up to a counter.

The most simple lightgate out there, yet very reliable!

All Parts You Need:


- 9V clip

- 10k resistor 0.25W (to transistor)

- 300 Ohm resistor (for a blue LED)

- Photo-transistor SFH 309

- BUZ 11 transistor

- Small SCR

- Slide switch (main switch)

- Momentary switch (reset button)

- Wire

- Board

- Solder

- Soldering iron

- Laser pointer (cheap key chain laser will do)

The Steps:

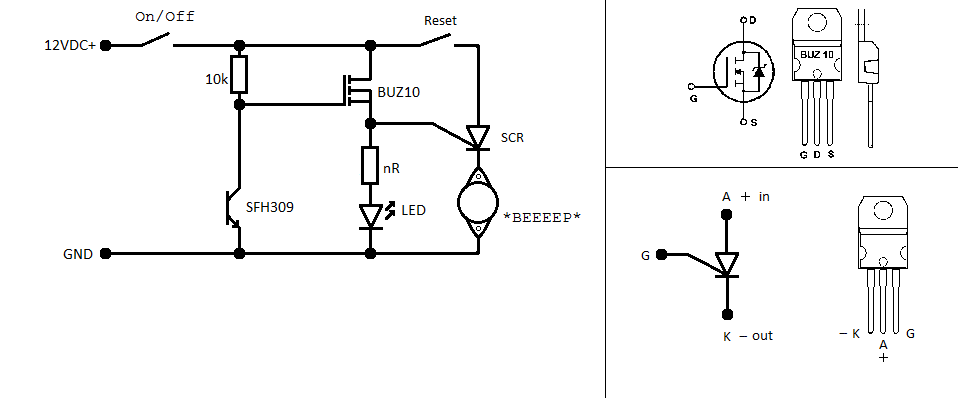

If you are unexperienced with electronics, just copy the schematic 1:1

and put it on a board.

Hook up the laser to a separated battery, make it hit the phototransistor,

then switch on the board. Break the beam and the LED should light up.

EASY was not a lie, thats it. You can now switch a multistage coilgun with it,

protect your room or door.

Instructional Video

How to: Super Easy Laser Trap / Coilgun switching / Trip wire

Bit of explanation and demonstrating the set up.
