Super Cap Led 100 000 Micro Farads
11217 Views, 24 Favorites, 0 Comments
Super Cap Led 100 000 Micro Farads
![0mmm.JPG](/proxy/?url=https://content.instructables.com/FGC/IUMC/FVDBZNZW/FGCIUMCFVDBZNZW.jpg&filename=0mmm.JPG)
![1.JPG](/proxy/?url=https://content.instructables.com/FFN/ISNX/FVDBZO00/FFNISNXFVDBZO00.jpg&filename=1.JPG)

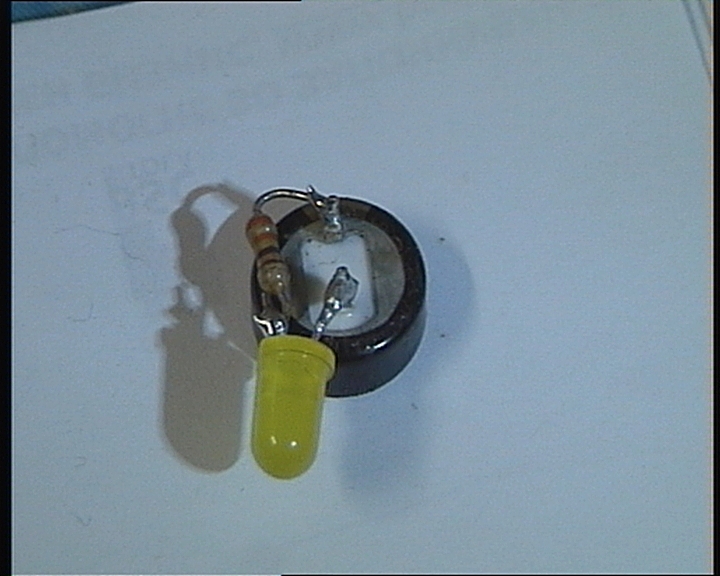

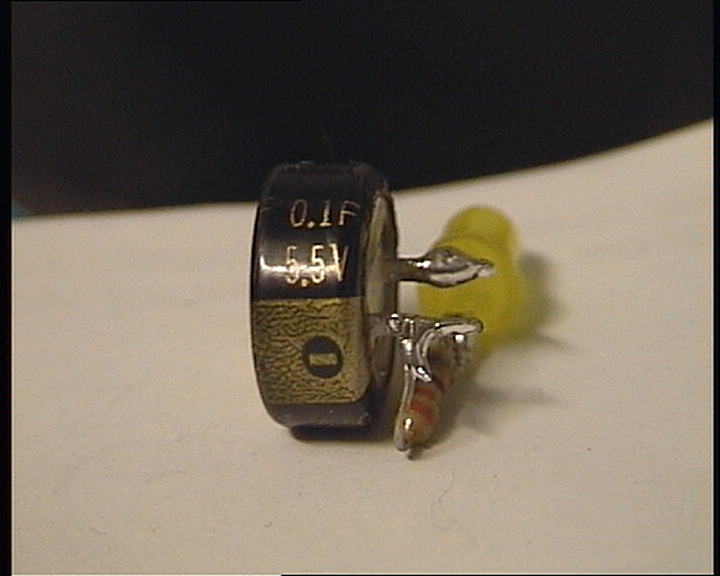

Super Capacitor with 100 000 micro farads is conected to led with resistor,and capacitor is charge it with DC power for a vile,about 30 seconds,and then the led wil shine about 5 min
here is pictures how to build this
here is pictures how to build this
What You Need
![scheme super cap led.JPG](/proxy/?url=https://content.instructables.com/F6N/1MP6/FVDBZO0A/F6N1MP6FVDBZO0A.jpg&filename=scheme super cap led.JPG)
![2.JPG](/proxy/?url=https://content.instructables.com/FM6/235Y/FVDBZO05/FM6235YFVDBZO05.jpg&filename=2.JPG)
First you have to find a super capacitor,this kind of capacitor you may find in old vcr,this cap is use for memory for clock in the vcr.
Next part is led diode (any color) and resistor from 220 to 470ohm.
Conect the led diode to super cap,in the corect way-positive to positive,negative to negative
Below i s shown how to conect the parts.
Next part is led diode (any color) and resistor from 220 to 470ohm.
Conect the led diode to super cap,in the corect way-positive to positive,negative to negative
Below i s shown how to conect the parts.
