Super-Bright RGB Bluetooth Mood-Light

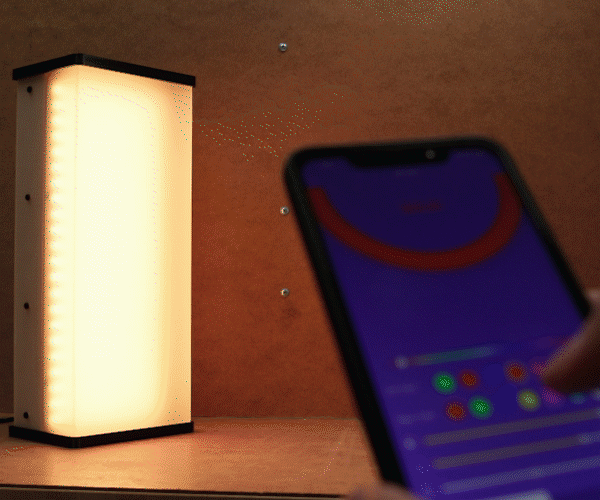

In this instructable/video, I will show you how I made this minimalistic design super bright and colorful RGB lamp. 💡

The lamp is made from plywood, plastic, aluminum, and 3D printed parts. Using an aluminum sheet to improve heat dissipation is essential as there are so many LEDs in a relatively small area. To make the plastic cover you will need to make a very simple but very useful bending tool - https://www.instructables.com/Acrylic-Bending-Too...

Provided Amazon links are affiliates. You can buy anything through them with no extra cost to you and support my work, thank you! ❤️

Main Tools:

• 3D printer https://amzn.to/3syckJk
• 12V drill https://amzn.to/2U5QQmL
• Drill press https://amzn.to/35f93nO
• Jigsaw https://amzn.to/2rg4uXx
• Speed square https://amzn.to/2Ee6lDh
• Combination square https://amzn.to/2oLYnwv
• Clamps https://amzn.to/2YKWmRS
• Small clamps https://amzn.to/39CliLU
• Soldering kit https://amzn.to/2X0eCVq
• Multimeter https://amzn.to/3bLuEIx
• Wire strippers https://amzn.to/2ZR3KJp
• Cutting pliers https://amzn.to/3qTLNWC

Main Components & Materials:

• Plywood https://amzn.to/2R1IsVL
• Wood glue https://amzn.to/2UvRrjX
• Aluminum sheet https://amzn.to/3xtGwb0
• WS2812B RGB LED strip https://amzn.to/3gsDn5S
• SP107E Controller https://amzn.to/2S03PKC
• Plexiglas https://amzn.to/3q1jtSD
• Frost glass spray https://amzn.to/3gv8u0I
• AC power cord with switch https://amzn.to/2SEH2UT

Other Things:

• Wires, electrical tape, screws, sanding sponge

Main features of the light:

• Minimalistic design

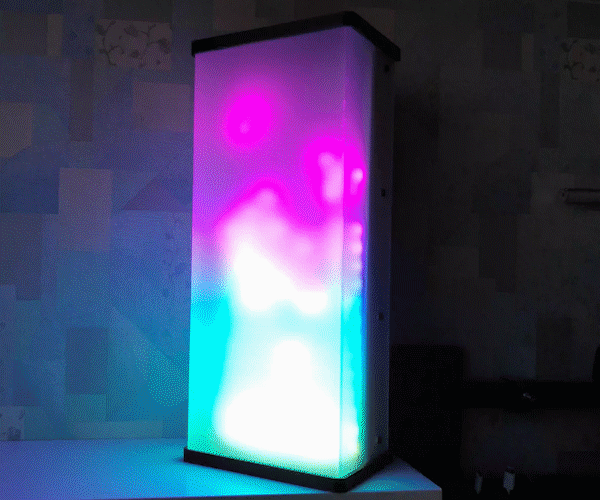

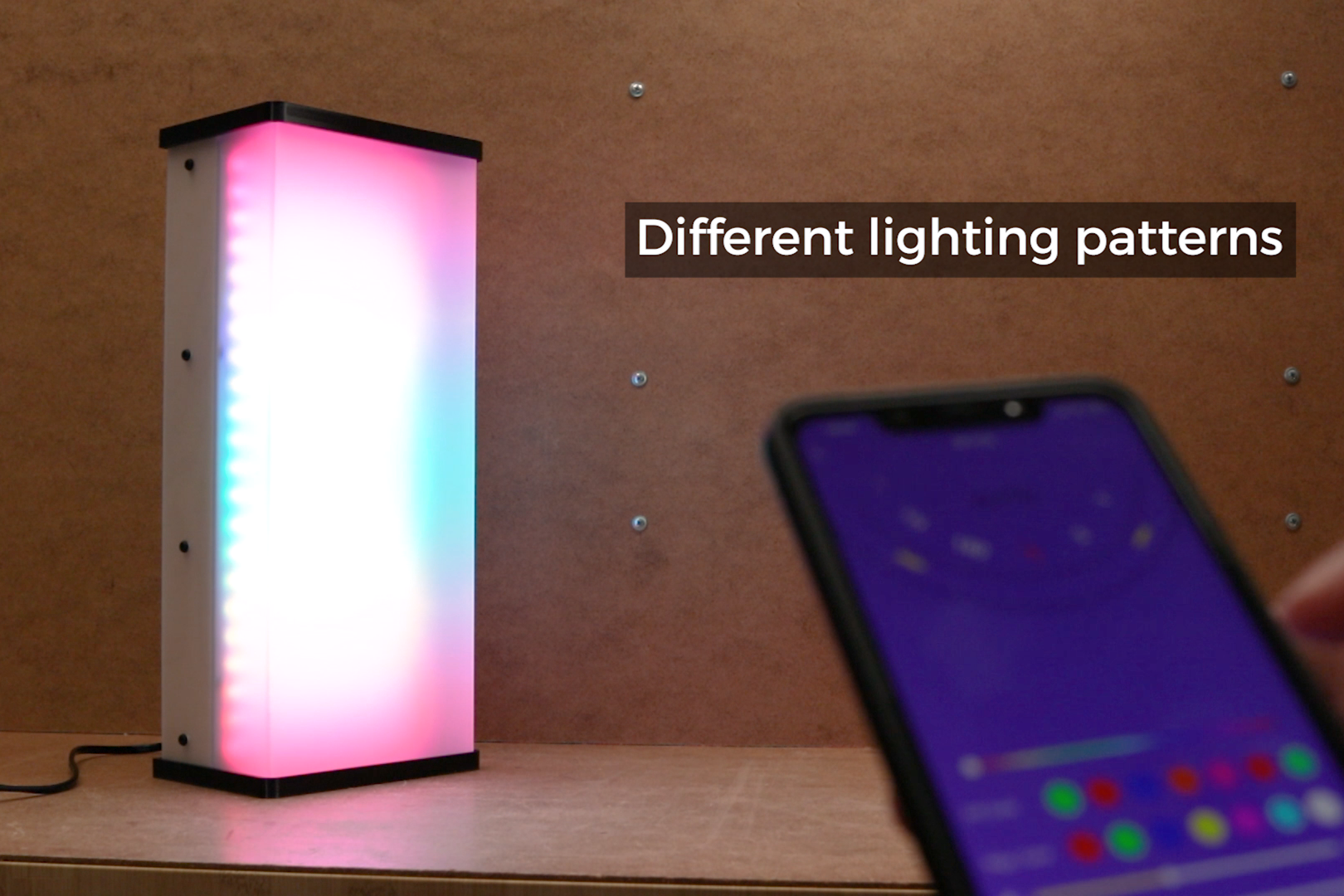

• Different lighting patterns

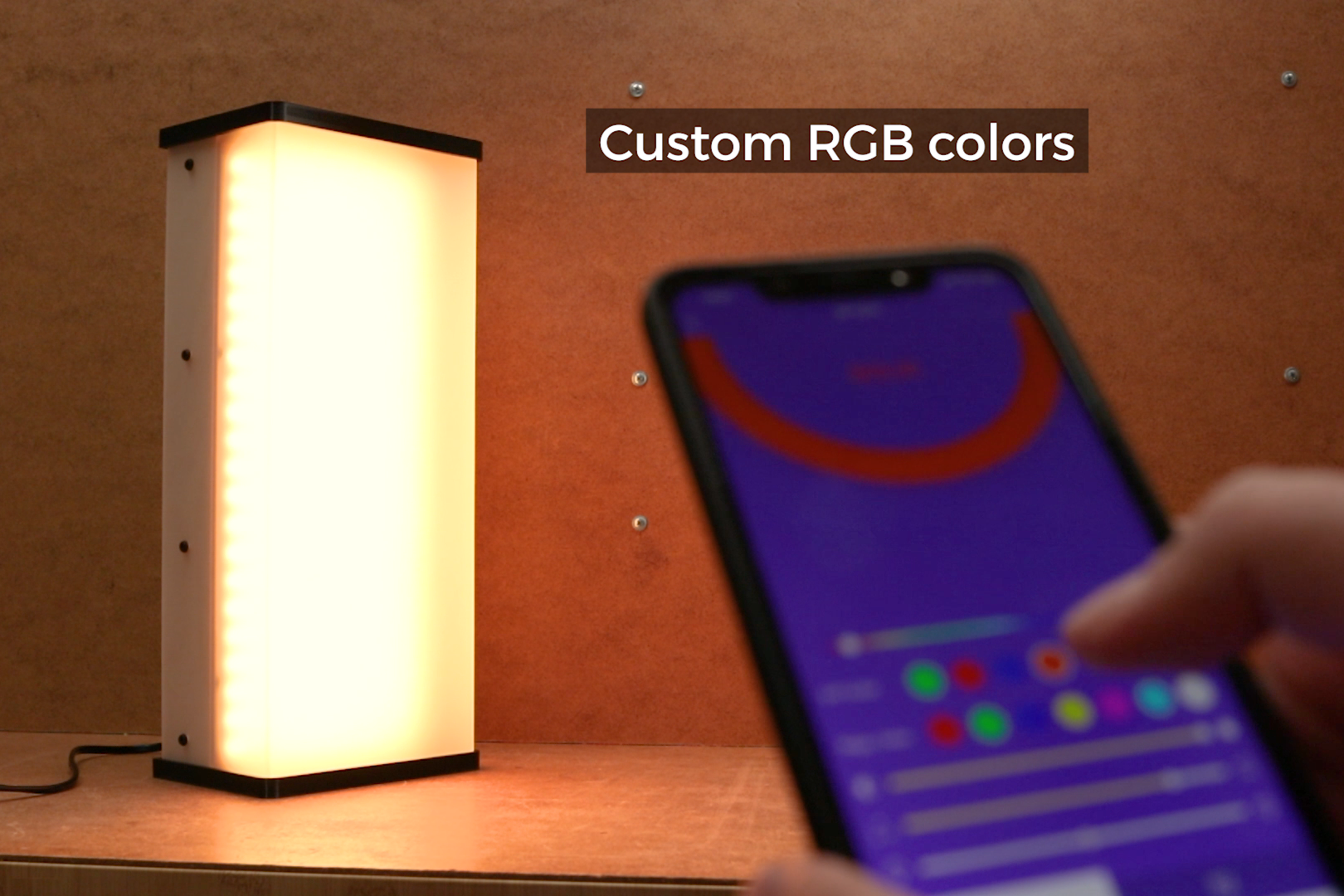

• Custom RGB colors
• Brightness adjustment
• Pattern speed adjustment
• Ability to connect audio input for reactive lighting

These are the main things that you will need:

• Aluminum sheet 2-3mm thick (150x380mm size in my case)
• 5m WS2812B 5V Addressable RGB LED strip
• SP107E Bluetooth Controller
• 5V 20A 100W PSU
• Plexiglas sheet 2mm thick (375x390mm final size in my case)
• Some scrap plexiglass to cover the back of the light
• Plywood (12mm thick in my case but it doesn't really matter)
• 3D modeling and 3D printing skills needed unless you want to make the top and bottom covers from plywood

The first step of the build is to calculate how many and how long strips will be. Cut them to length, clean the surface, and mark gluing guidelines. At the ends where the contacts of the strips will be, add insulation to prevent any accidental short circuit. You can see that I used a scrap aluminum piece, that's why it has so many unnecessary holes for this build. When gluing strips make sure that directional arrows on the stips facing the right direction. Basically, you want the first row to face up, next down, next up, next down, next up, and so on.

Soldering is super easy if you have a soldering paste that helps solder to stick instantly. And you will need to solder A LOT of wires, make sure you also have patience for it, haha!

The wiring here is super simple. If you glued the strips facing the right direction you can easily connect the Din/DAT/DATA (green) contacts in series like shown in the last picture.

And to power the strips you group all positive wires to one point and negative to another. After this, you will end up with only 3 wires.

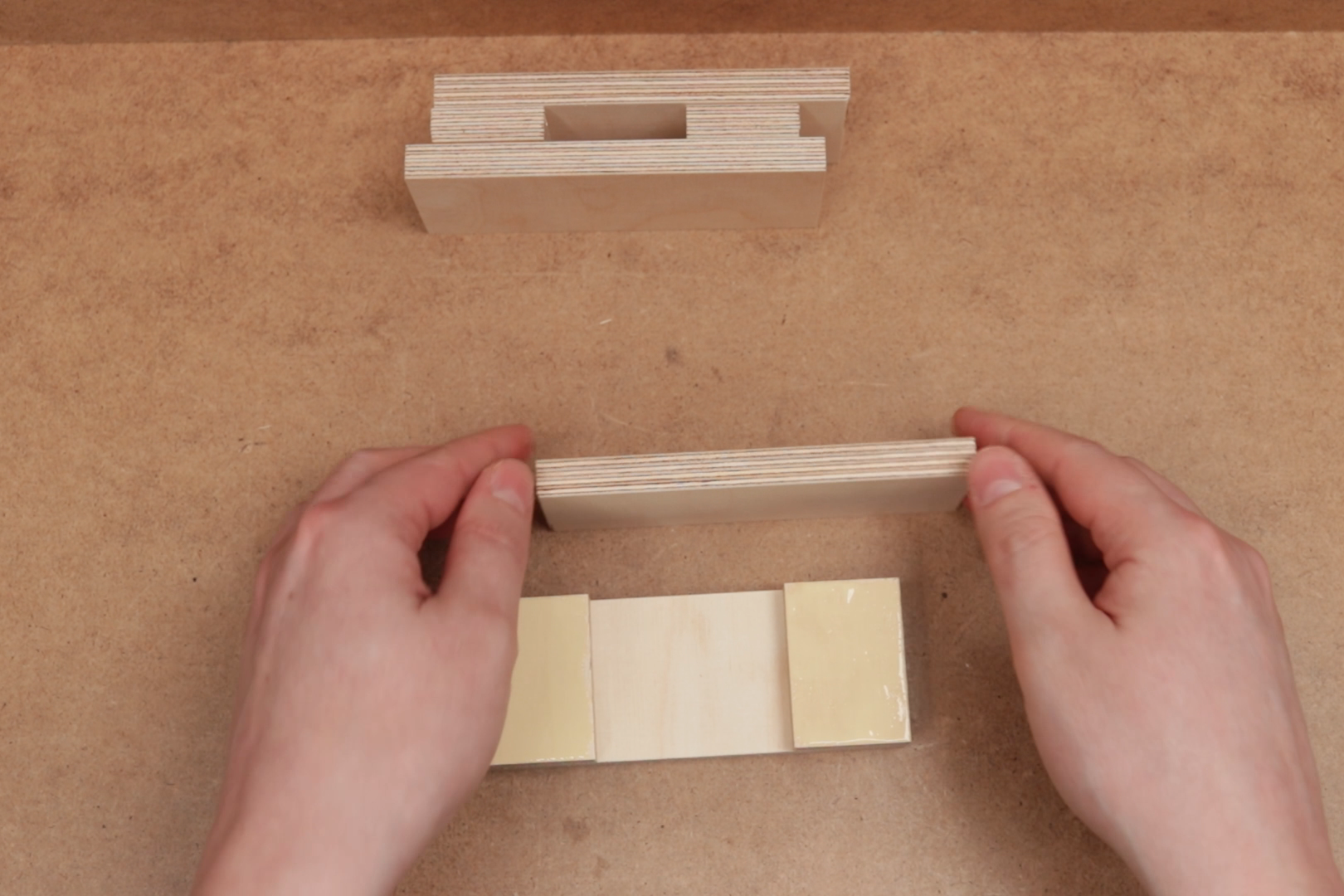

You will need to cut some parts and make a frame that will hold all the other parts. Using plywood here is probably the best solution.

Not much to say here. You just glue the pieces, make sure they are square, and clamp them, easy peasy.

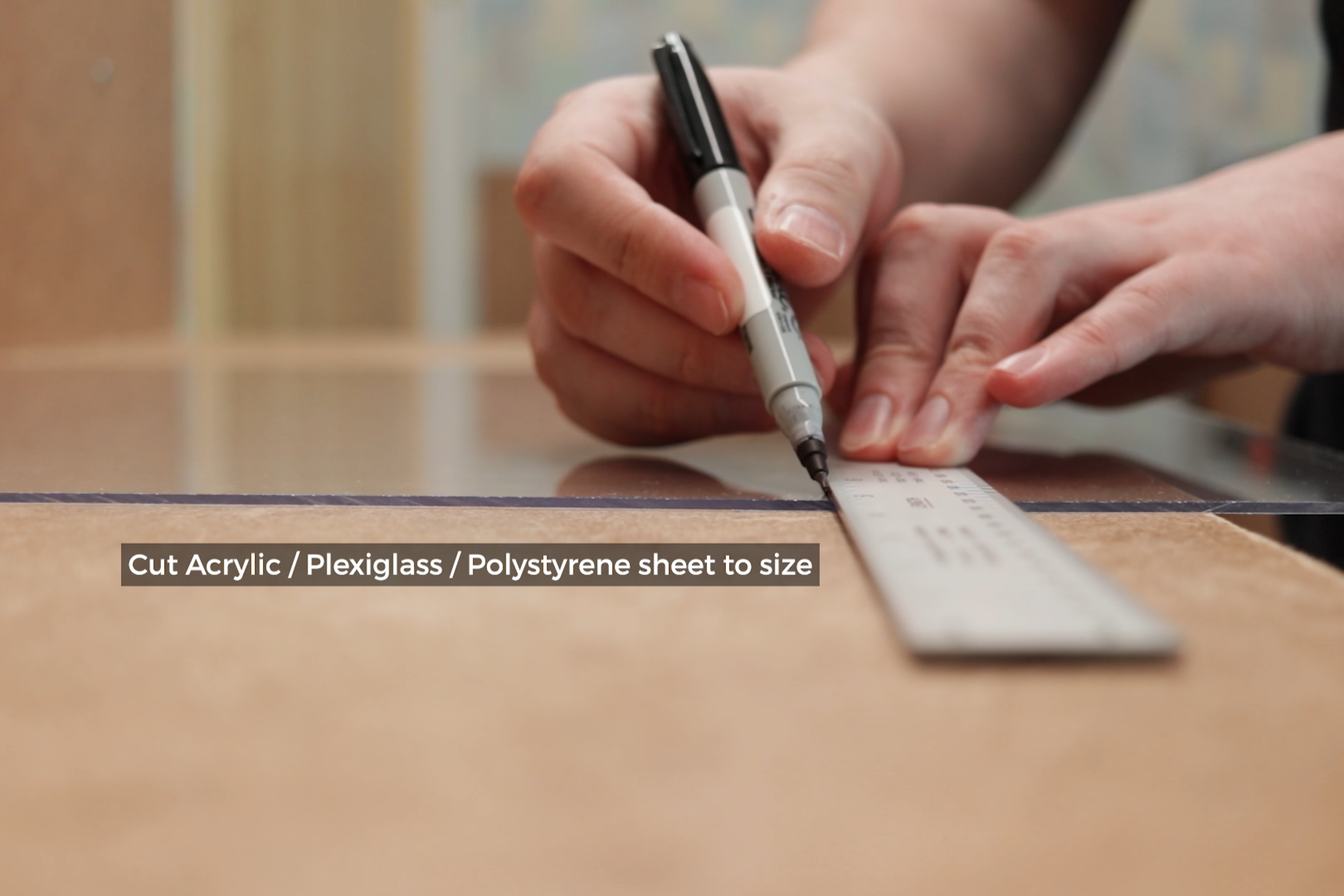

To make the front matt cover you will need to cut the plexiglass to size. Use an acrylic cutting knife and make a deep groove into the sheet. Then, just break it, easy.

Too bad the sheet is transparent. No problem. You can sand both sides with a sanding sponge.

Well, you will need to bent that sheet somehow. DIY bending tool makes it easy - https://www.instructables.com/Acrylic-Bending-Too... It is a very useful tool to have when working with plastic sheets, so if you still don't have anything similar, what are you waiting for? :)

I had to unscrew the hinges and bent the sheet manually with a scrap plywood piece and squares, as the piece was just a little bit too big for my made bending tool.

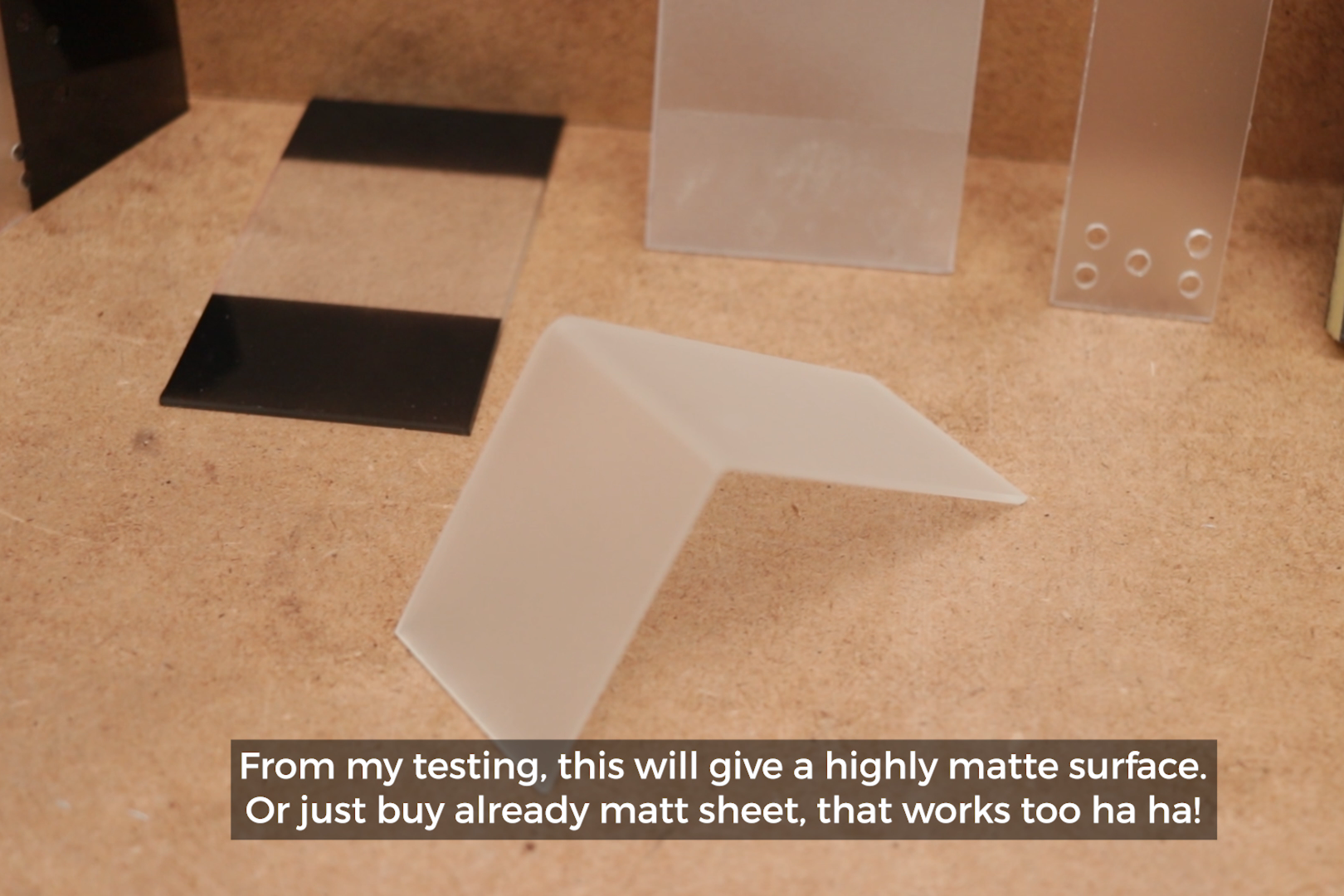

Heat smooths out the surface on the bends, so make sure to sand it. After this, you can finally spray the front cover with a glass frost spray. From my testing, sanding + the spay gave the most matt surface.

You will need to secure the aluminum sheet to the frame. The most reliable option here is to use threaded inserts. I additionally added epoxy to make an extra-strong bond. At this point, you can varnish the plywood. I used a polyurethane-based finish.

Now you can secure the aluminum sheet with bolts and spring washers. With LEDs mounted you can make custom holders for the power supply, disassemble the controller and secure it to the frame.

Next, secure your power supply in place and start cutting wires to connect LEDs to the power supply. The wiring here is straightforward, just make sure to use thick wires (for positive and negative connections) that can handle high current (10-15A).

Drill some holes and secure the cover to the frame. If you never drilled plexiglass/acrylic make sure to practice on a scrap piece first, as you can very easily crack it when drilling.

The last thing that you need to finish up the electronic wiring is the power cable with a switch. Connect it to the power supply to Live and Neutral connections (ideally, you want to use a cable that also has the Ground wire as it is an important safety feature).

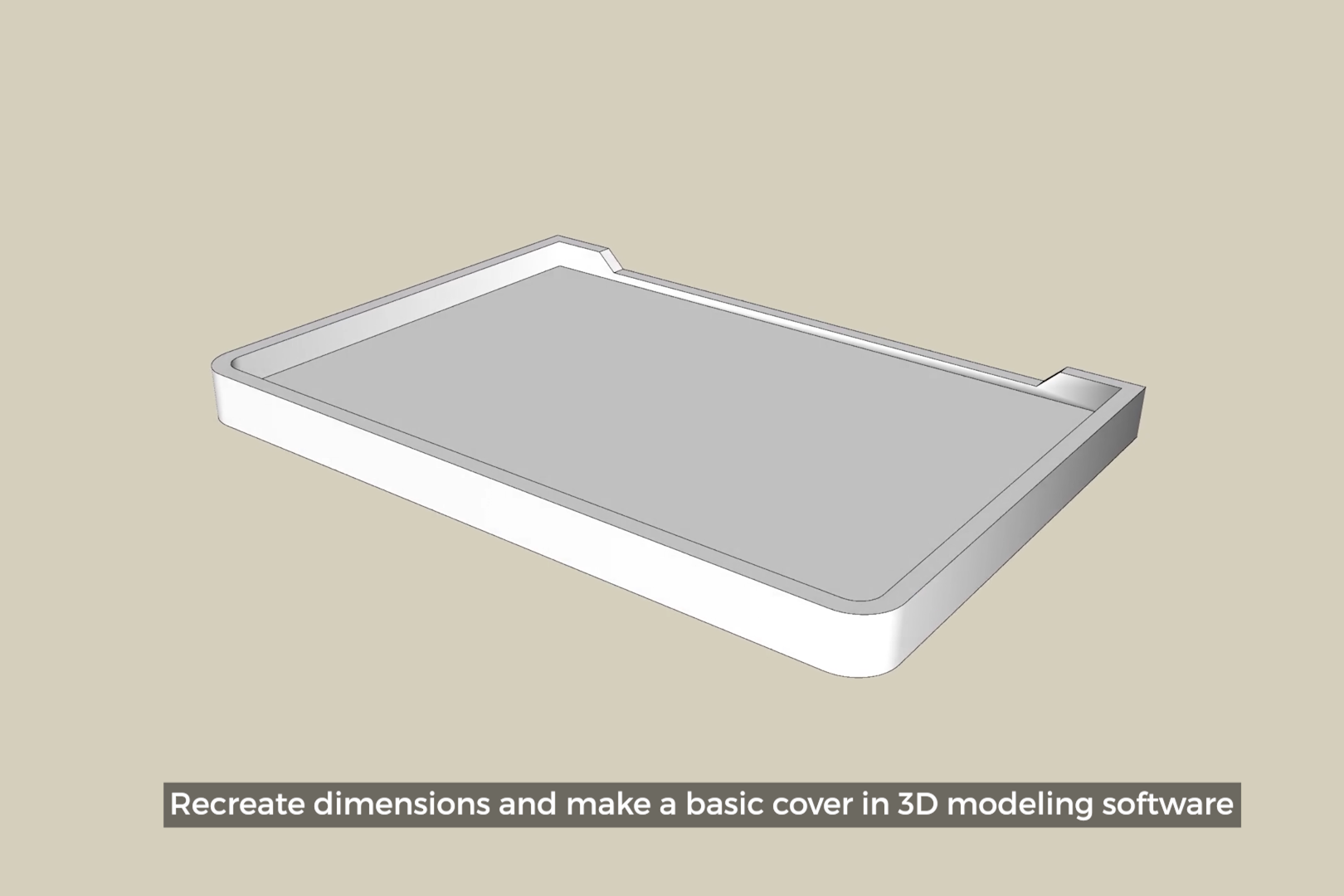

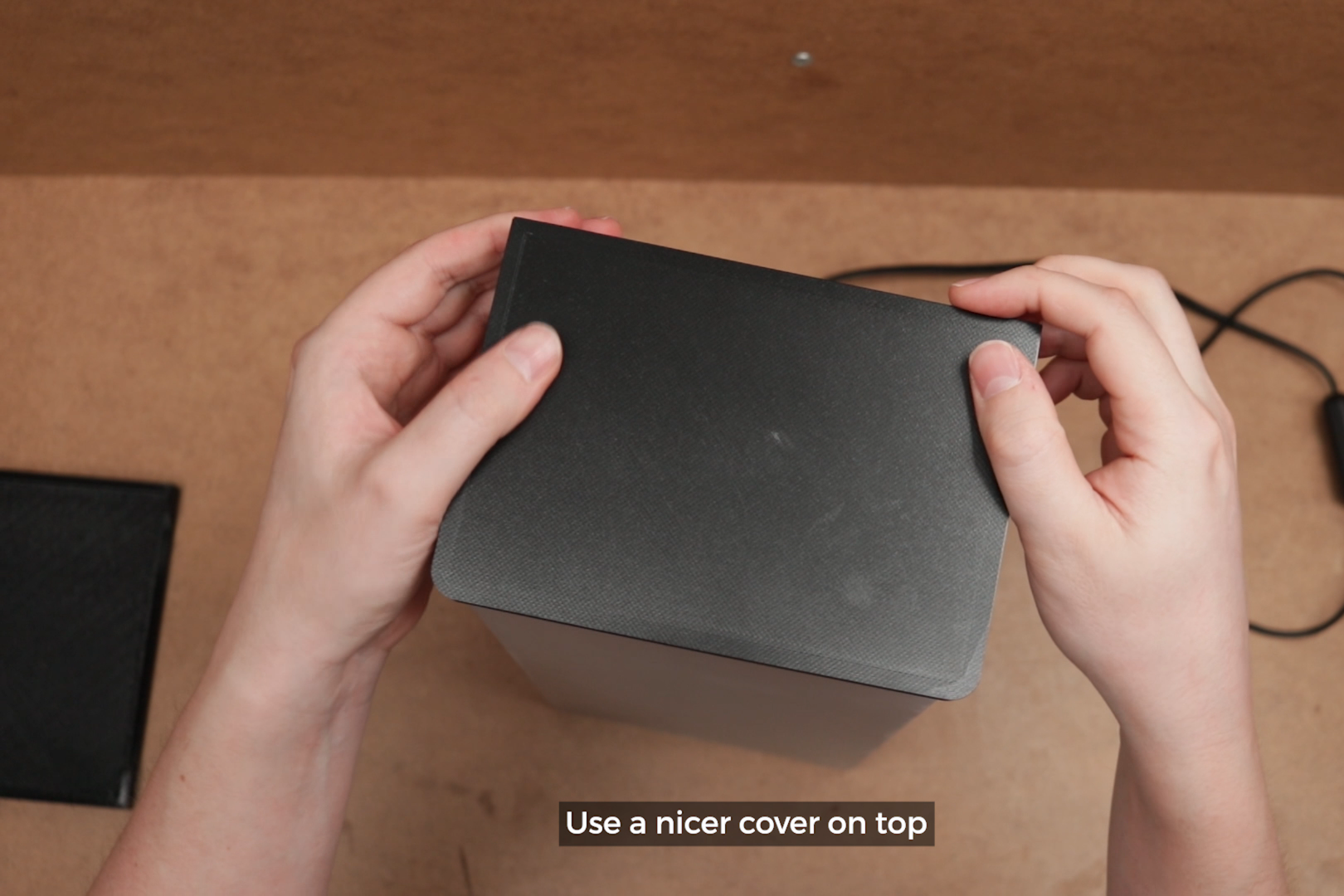

To finish the lamp, use any plastic sheet at the back for covering the electronics. To make the top and bottom covers, I transferred dimensions to SketchUp and made a basic cover, that I later 3D printed. If you don't have a 3D printer you can always make it from plywood with a router. Just make sure parts have a snug fit.

After spraying the cover with a glass frost spray I noticed these very weird "slashes". They are only visible when looking at an angle from top or bottom. I have no idea why. But if you do, please post it in the comment section.

To control the lamp you will need the LED Chord app. Turn on Bluetooth and Location. Open the app and connect to the controller. Select GRB WS2811. Select how many segments (individual strips) you have and enter the number of LEDs in one segment. And now you have full control of the settings.

The max power of the light is 60W when all RGB colors are at full brightness. But it is not recommended to use it as it produces a lot of heat. And the heat will degrade LEDs faster. All other colors and modes are perfectly fine at full brightness as those never go over 40W. Tested at 21-22C room temp.

When making the lamp, make sure to leave vents at the top and the bottom for air circulation. And that is pretty much it. One thing that I didn't cover is reactive music lighting. To make it, you just need to plug an audio cable into the controller with a provided audio jack splitter.
