Sun Concentrator for Plastic Injection

In order to provide you with energy independence in terms of heating, volks.eco offers you a solar and portable solution reaching up to 250 ° C (482 ° F). This device is intended for the production of recycled plastic injections, according to the project carried out in collaboration and presented by Plastok.ch. [https://www.instructables.com/id/Solar-Plastic-Injection]

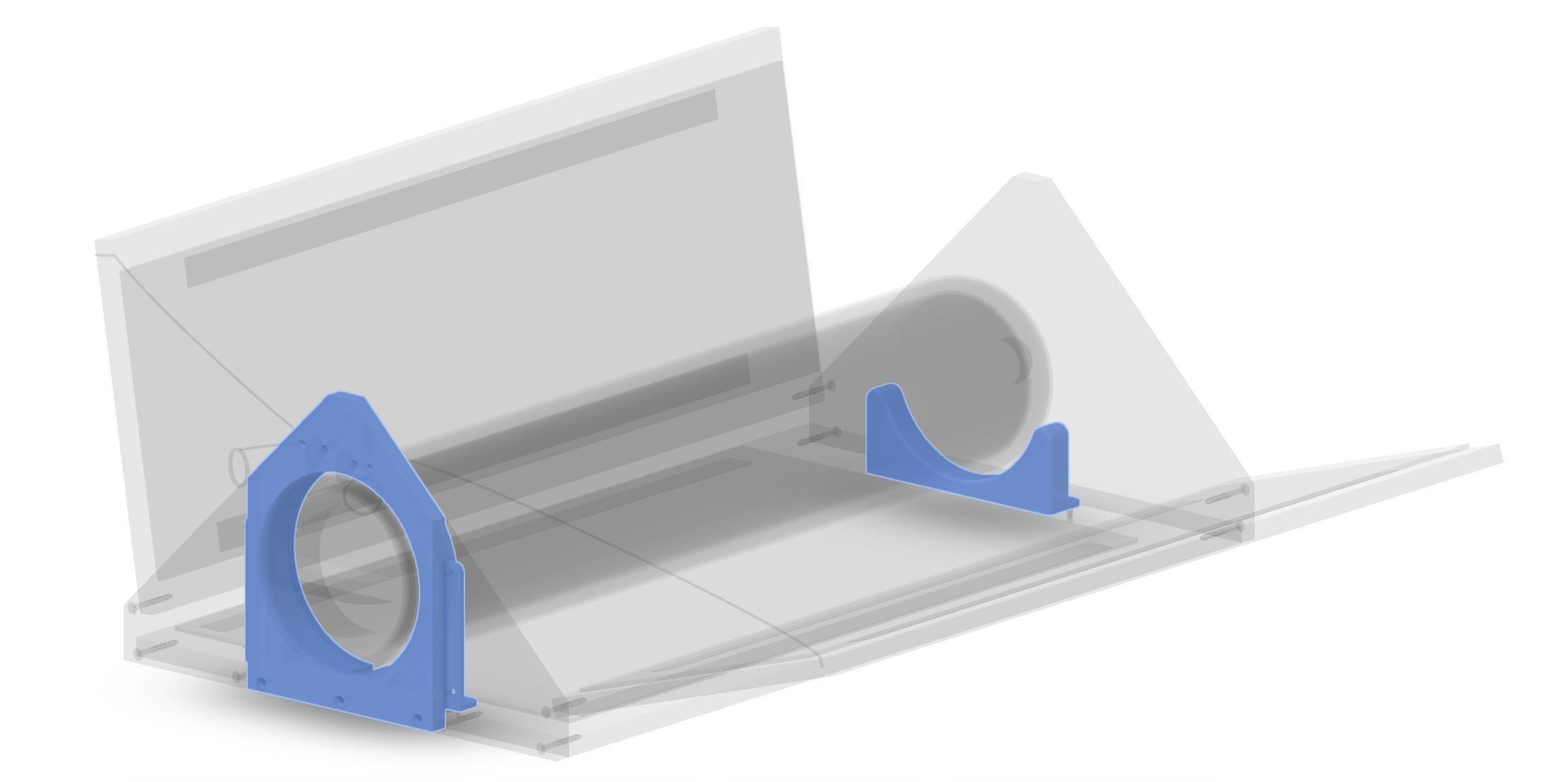

3D Model : https://a360.co/3ilST2c

Cut wooden planks 12 millimeters thick, according to the dimensions indicated in the attached pdf file

Cut the mirrors 4 millimeters thick, according to the dimensions indicated in the attached pdf file

Cut 6 double tape strips of 500 millimeters. If possible use a outdoor double tape

Assemble the mirrors and the wooden planks with double-sided tape according to the attached pdf plan. Please note the shutters are asymmetrical

Print the attached 3D files, preferably in ABS

The sun collector made is made of tempered glass and can provide temperatures above 250°C

To fixe the tube tighten the screws of the 3D printed front holder

The overall size is 660 mm (overall) X 127mm outside diameter. The approximate interior dimensions are: 584 mm X 101mm inner diameter.
