Successful Motorized Paper Plane

I found this beautiful module that converts any paper plane into motorized smartphone controlled plane.

I thought that I can make a simple replication of it.

Here is was I came up with.

Check out the PowerUp 3.0 Smartphone Controlled Paper Plane

=========================================================

Amazon US , Amazon UK , Amazon CA , Amazon DE , Amazon FR , Amazon ES , Amazon IT , Banggood ,

Aliexpress ,

eBay US , eBay UK , eBay NL , eBay IT , eBay IE , eBay FR , eBay ES , eBay DE , eBay CH , eBay CA , eBay BE ,

eBay AU , eBay AT

You can find this post on my blog:

http://idea-arabic.blogspot.com.eg/2017/09/successful-motorized-paper-plane.html

Here is my Channel on Youtube:

AeroArduino

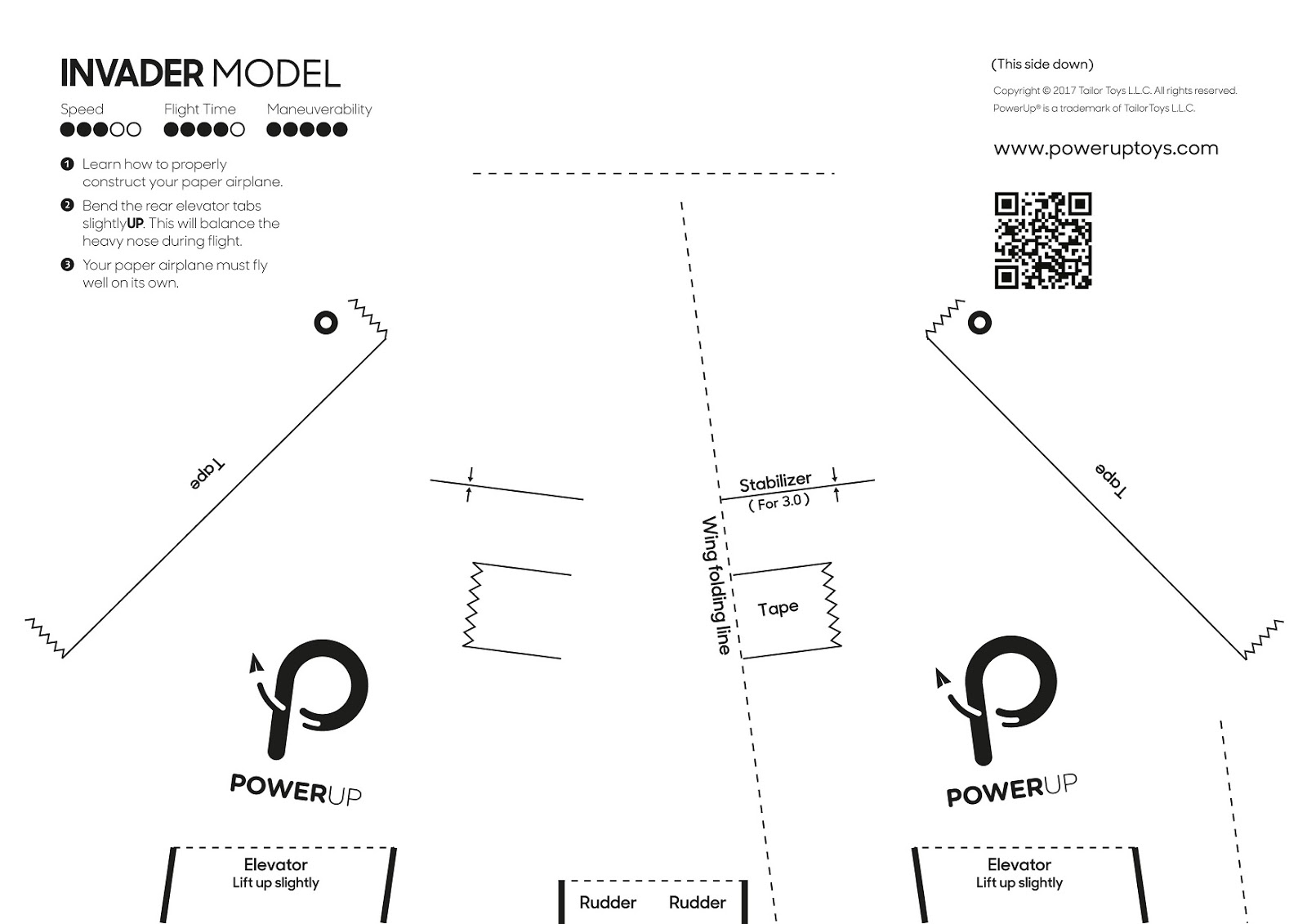

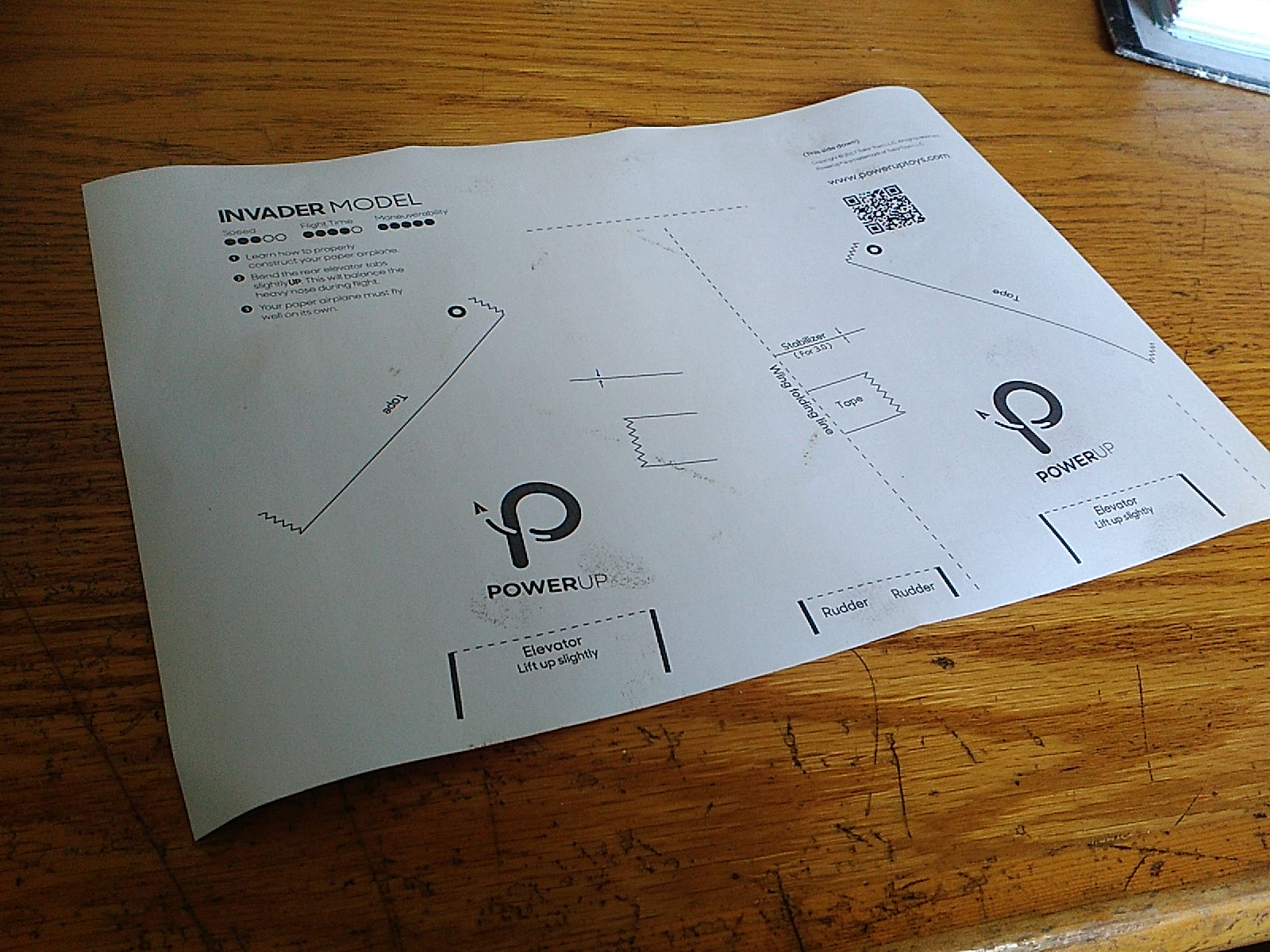

Get the template from Powerup website and print it on A4 paper.

Follow folding instructions to get the final paper plane airframe.

Check out the PowerUp 3.0 Smartphone Controlled Paper Plane.

=========================================================.

Amazon US , Amazon UK , Amazon CA , Amazon DE , Amazon FR , Amazon ES , Amazon IT , Banggood ,

Aliexpress ,

eBay US , eBay UK , eBay NL , eBay IT , eBay IE , eBay FR , eBay ES , eBay DE , eBay CH , eBay CA , eBay BE ,

eBay AU , eBay AT

Components:

Grill Stick

Amazon US , Amazon CA , Amazon UK , Amazon DE , Amazon FR , Amazon ES , Amazon IT , Banggood

7mm Coreless DC Motor with propeller

Amazon US , Amazon CA , Amazon UK , Amazon DE , Amazon FR , Amazon ES , Amazon IT , Banggood

3.7 Volt Li-Po (Lithium Polymer) Battery

Amazon US , Amazon CA , Amazon UK , Amazon DE , Amazon FR , Amazon ES , Amazon IT , Banggood

Tape

Some wires

Connection:

Cut the wooden grill stick to be the same length as the paper plane.

Use the other piece as the airframe stabilizer and tape it to the paper plane.

Use tape to fix the motor on the wooden grill stick.

Check out the PowerUp 3.0 Smartphone Controlled Paper Plane

=========================================================

Amazon US , Amazon UK , Amazon CA , Amazon DE , Amazon FR , Amazon ES , Amazon IT , Banggood ,

Aliexpress ,

eBay US , eBay UK , eBay NL , eBay IT , eBay IE , eBay FR , eBay ES , eBay DE , eBay CH , eBay CA , eBay BE ,

eBay AU , eBay AT

Insert the stick inside the paper plane between the two wings and get the motor wires outside the wings.
Use tape to fix the battery on the paper plane near the middle of the airframe to adjust the center of gravity.

Connect the motor terminals to the battery terminals so that its rotation gives outward thrust (pushes the air) but leave one terminal unconnected (so that the motor doesn’t rotate immediately) As I made the previous set up and tested the paper plane, I found that it could not fly. It falls just after I give it a push.

Although the paper plane can slightly glide with the motor and battery on-board but not working.

But for some reason, when I connect the motor to the battery, the motor thrust causes the paper plane unbalanced and tend to make a sudden Nose Up then stalls and falls. I’ve tried to adjust the elevator on the paper plane as advised on the poweruptoys.com website.

I’ve tried adjusting the elevator to make the paper plane balanced in both ways (Nose Up and Nose Down) but didn’t help.

Check out the PowerUp 3.0 Smartphone Controlled Paper Plane

=========================================================

Amazon US , Amazon UK , Amazon CA , Amazon DE , Amazon FR , Amazon ES , Amazon IT , Banggood ,

Aliexpress ,

eBay US , eBay UK , eBay NL , eBay IT , eBay IE , eBay FR , eBay ES , eBay DE , eBay CH , eBay CA , eBay BE ,

eBay AU , eBay AT

I was sure that the motor can lift itself and the battery. And I’ve made a quick check for this setup.

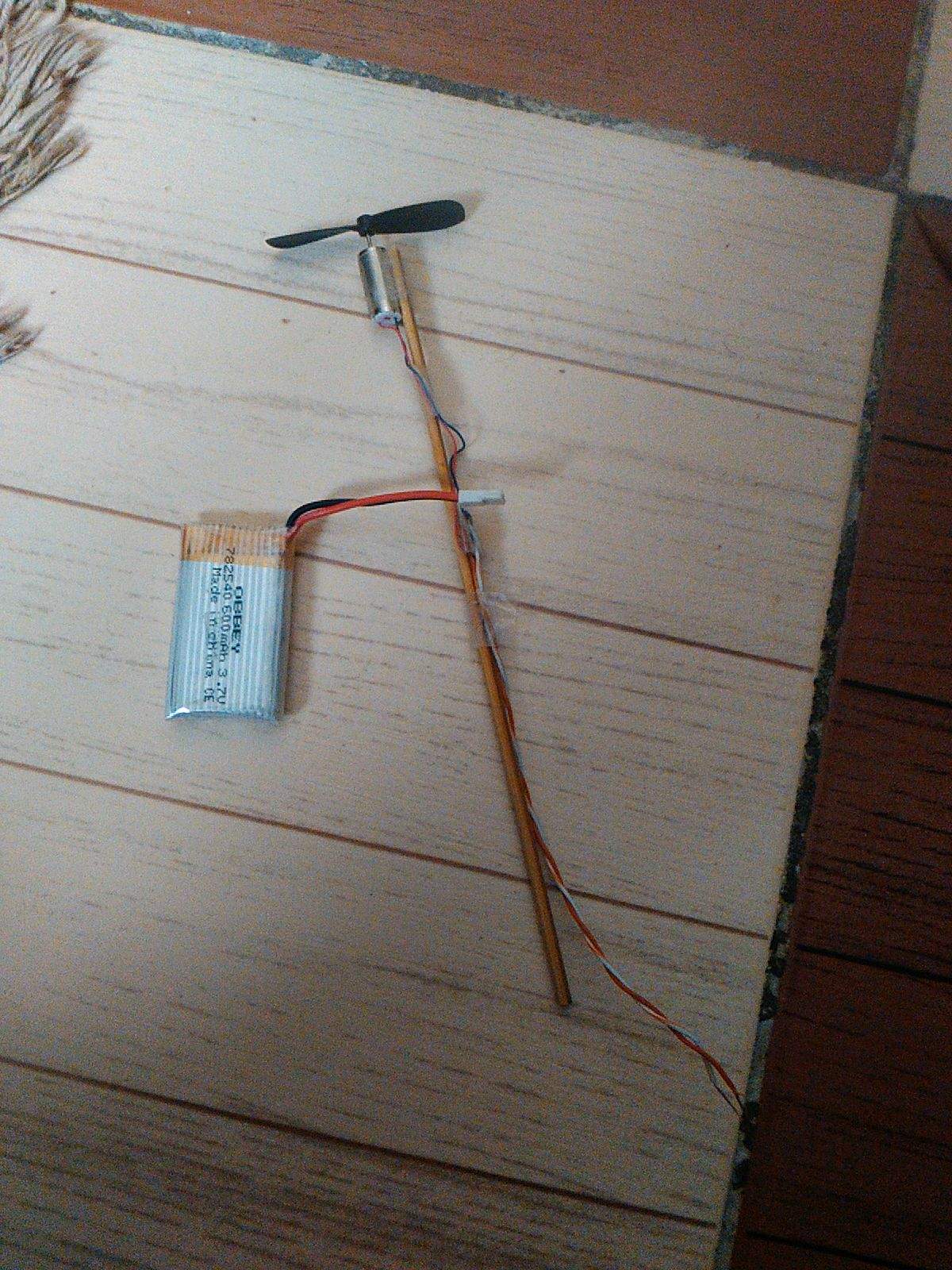

I connected the battery right to the grill stick using tape and connected the motor to the battery terminals to check how the motor thrust was doing.
