Styrofoam CUTTER
Hi!
This is my invention for cutting foam moldings.
It also works with polyurethane baseboards.

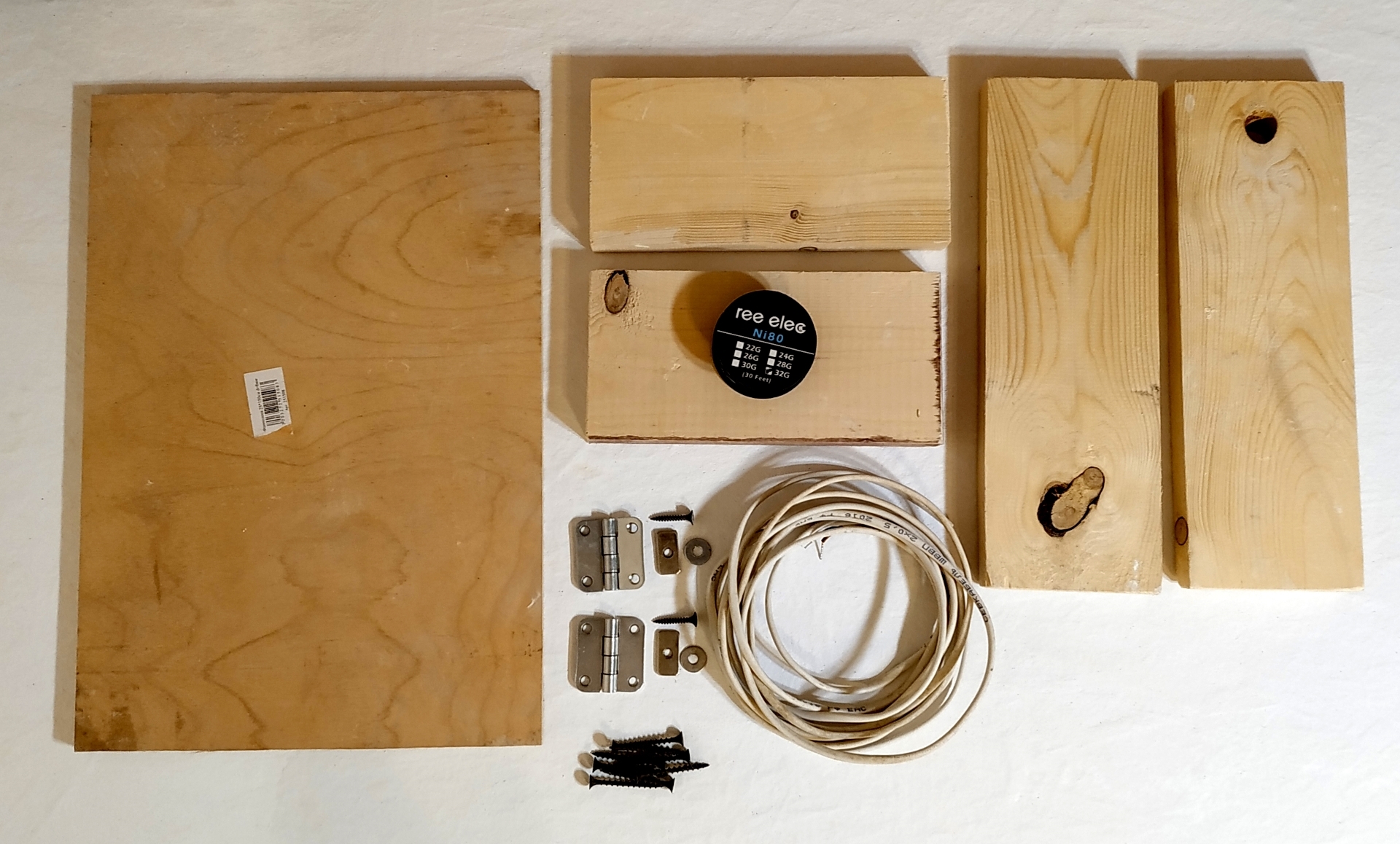

Parts
The main part is the heating nichrome wire 0.4 mm. I bought it on this online shop:
http://s.click.aliexpress.com/e/jL1nvwo
And of course the bench power supply from my last project:
Frame
I made a wooden frame from boards 100 x 20 mm. Just because I had had it :-)
I made a gap 5-10 mm for adjusting string tension. And a one screw for it.
Washers

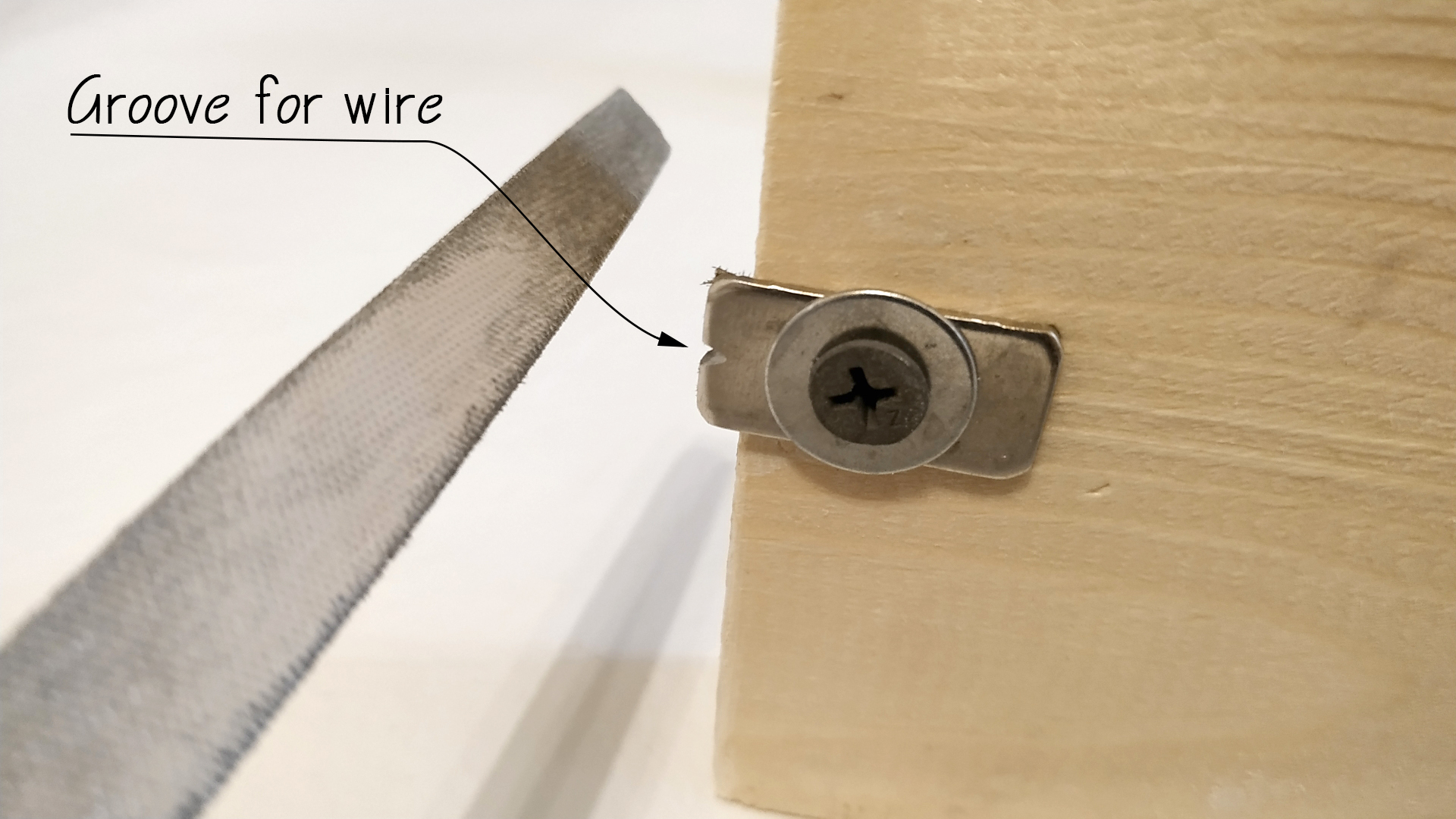

I used square and round washers and screws to fixing nichrome wire between them. And made small groove for wire.
Cable

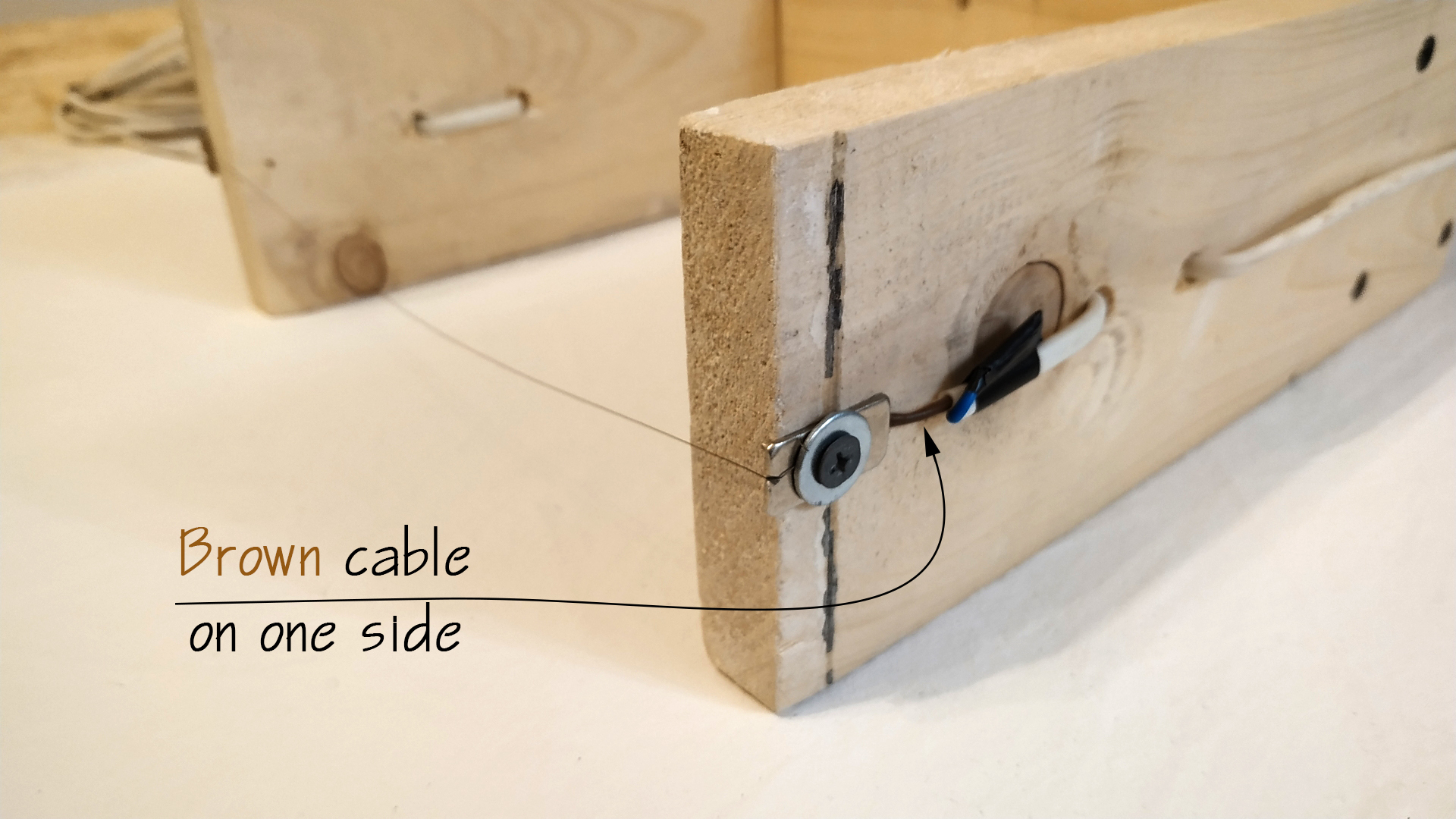

A cable is connected to the ends of the nichrome wires.
Base
The base is made from plywood and the simplest hinges.
On the base I marked lines for 90 and 45 deg angles.
Result

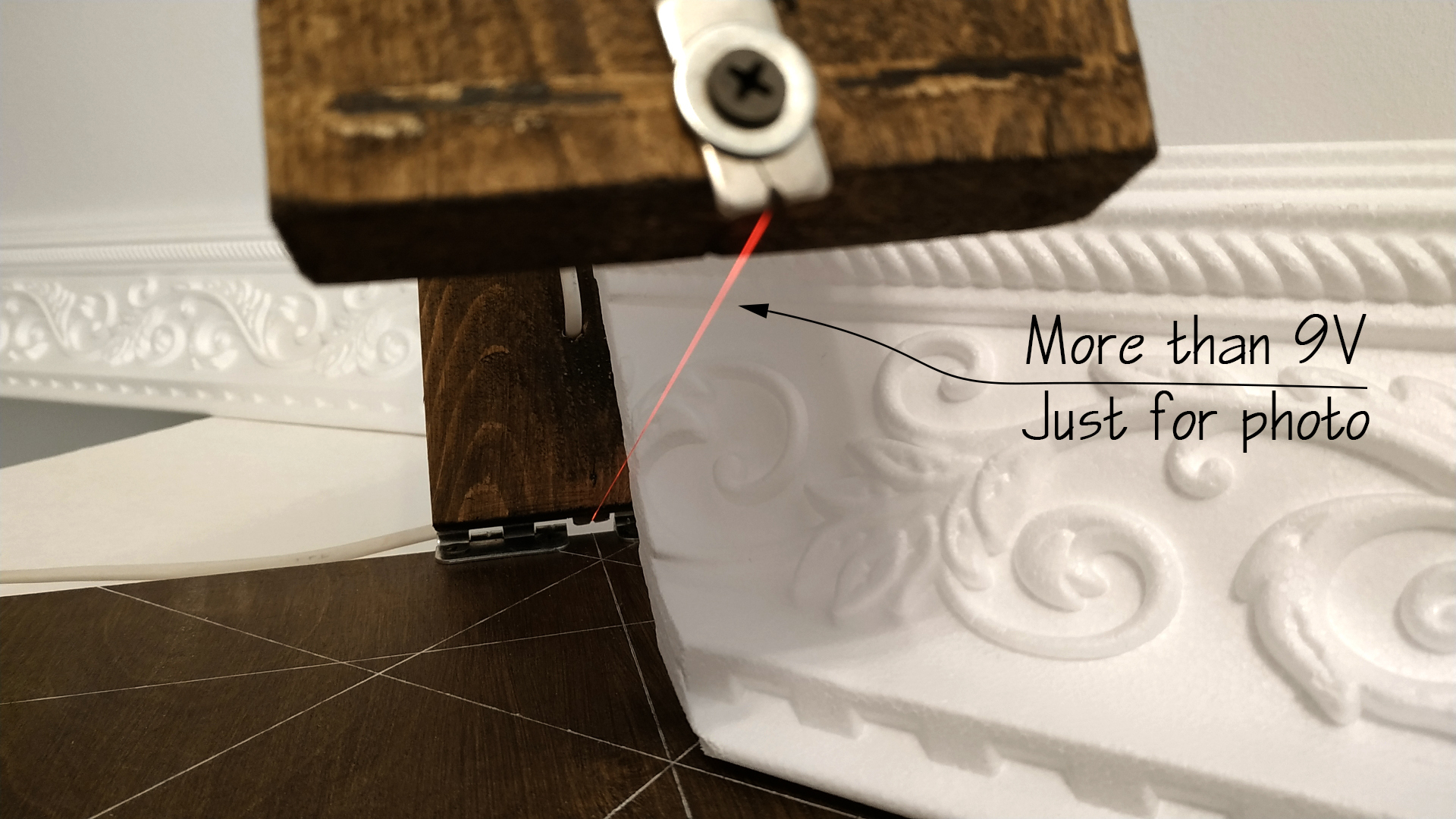

I provided 9V, 3.38A for foam cutting. In the picture is more for red light :-)
Done! Please, watch the video! Bye!
