Stylized Kitchen Table Organizer.

That is my story of #DIY project. I believe it may be helpful and will inspire people to create the designs for home with the soul.

Please enjoy and find me on Twitter!

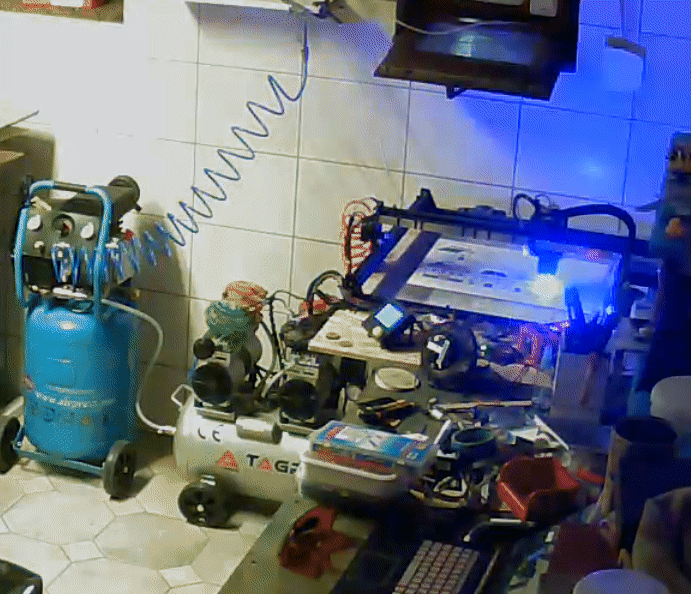

Made from 600x400mm 3mm double sided laminated MDF/HDF (x2 sheets) with @LightBurnLaser & #endurancelasers (10W module with G7 lenses and v2 air assist nozzle) + some cheap Chinese laser engraver with DIY air assist system. Engraving & cutting time was near 9-10 hours in total.

I finished my #weekendproject!

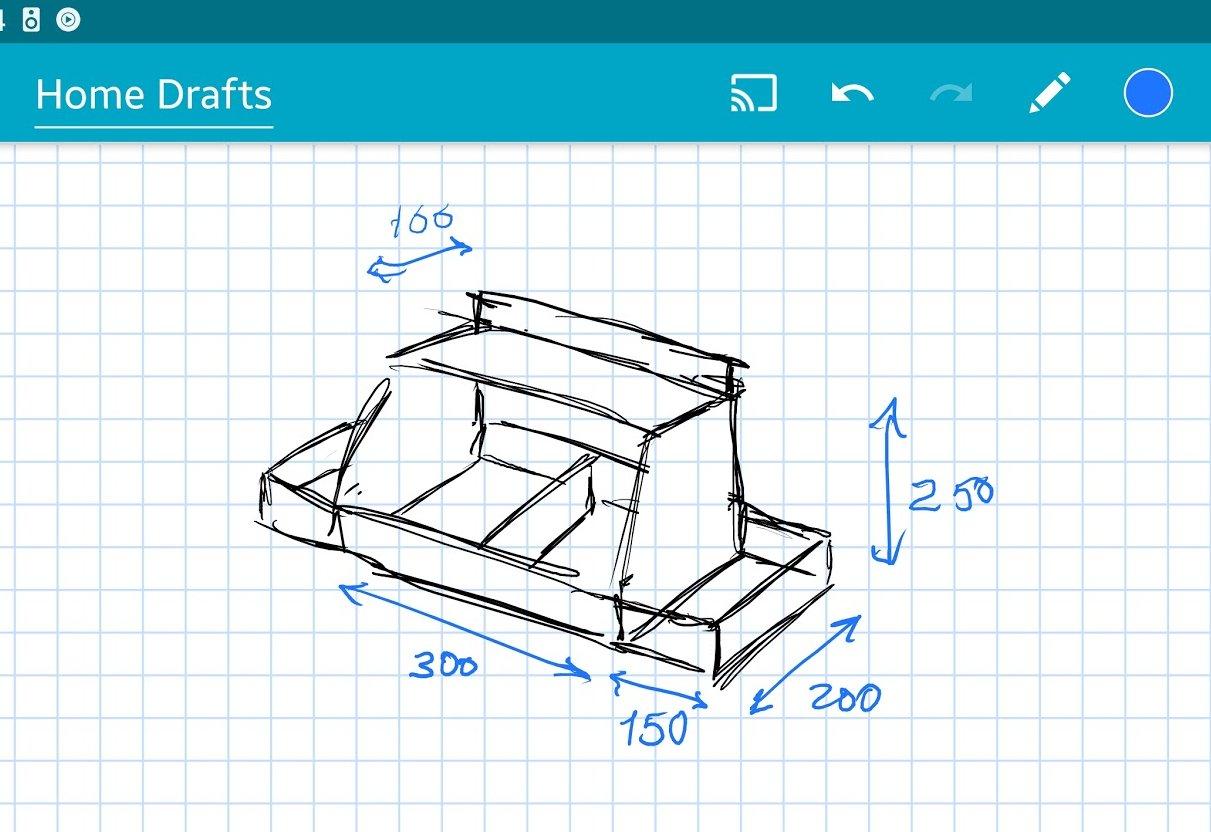

This time it is... some kind of table organizer for the kitchen. I want to put all small stuff from kitchen table into some boxes to keep everything in place. I chose #lasergraver and laminated 3mm MDF/HDF.

I never created models for #lasercutting (and never learned how to build) so I tried to develop my own approach as this is the first, but not the last model I will make.

I’ve been thinking a lot about how to make the groove cuts and how to make them parametric so you can edit all at once and make the process repeatable in the future. I think I found a way.
PS: I still have no control of cut tolerance, so need to test a few approaches next time.

All the cuts are in place, the has been model assembled. I had to change the design and dimensions a bit, but this was to be expected. And although the model uses expressions it was not so difficult to adjust it.

I used #ShaperUtilities to export 3d models layout as a 2d vector sketch. Now it is ready for some magic

I googled for some images to make the box more attractive. I were low quality raster images, so I scaled them up and vectorized. And after a few hours I prepared nice themed scheme for cut and engrave.

I set the engraving and cutting parameters and did a test run. And almost immediately discovered that the MDF is quite fragile and I need to be careful when assembling it.

I chose a double sided white laminated MDF with a thickness of 3mm and a size of 600x400mm per sheet. So I had to split the model into two parts. And here’s the first part.

On second sheet I make some minor changes to final design.

Couple drops of a white glue and parts attaching one by one. The easiest and the most enjoyable part of the job.
PS: White glue is not the best option for laminated surfaces, so I will use something else next time.
