Studer Speaker DIY

So I am a Recording Engineer and I want to make my mixes tighter, and at the moment I dont have the space to make a set of Auratones, so I am going to build a Studer A810 Monitor Speaker into an enclosure for Referencing when I mix songs.

Parts Needed:

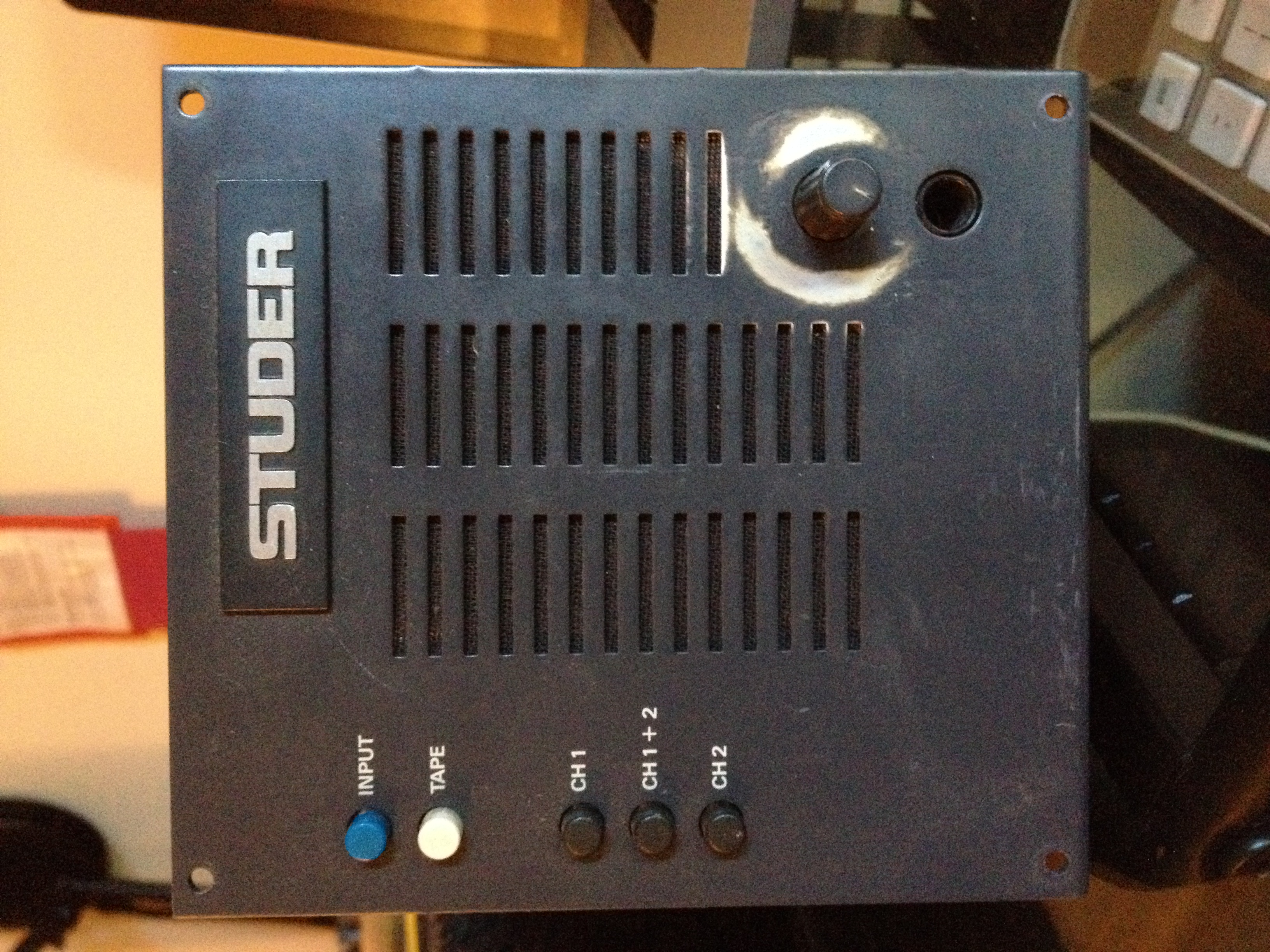

1 x Studer A810 Monitor Speaker with Amp Card

2 x Perfboard

1 x 2.1mm AC Power Jack

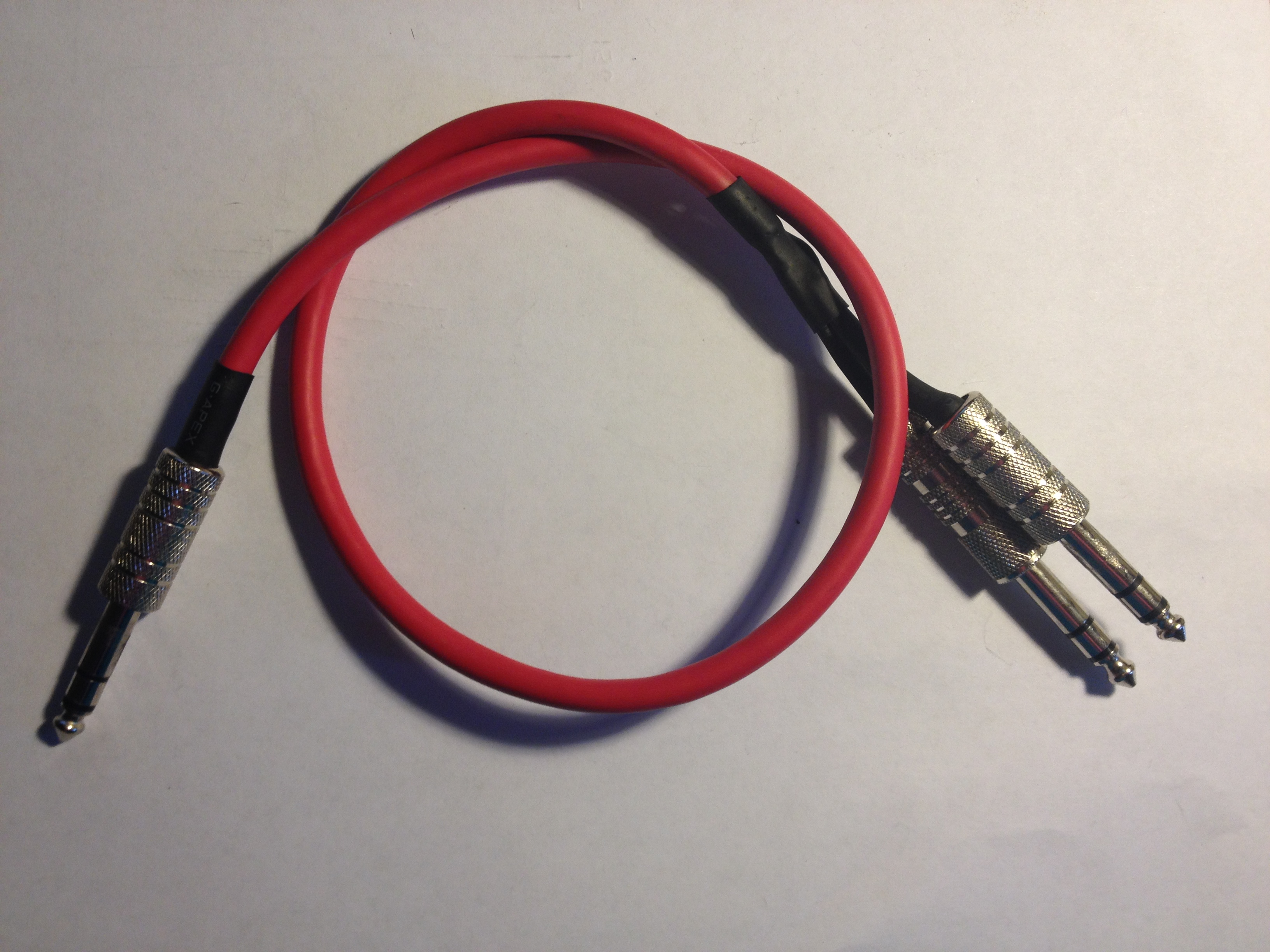

2 x 1/4" TRS Jacks

1 x 18v 888mA AC (THIS IS IMPORTANT) Wall Wart

1 x 16 Pin 1mm Pitch Wire-to-Board Connector

1 x 1"x10" - 4' Common Board

---------------------------------------------------------------

Miscellaneous Wire

Nails

Carpet - Optional (I'm going cover mine with some leftover carpeting i have from building my subwoofer box)

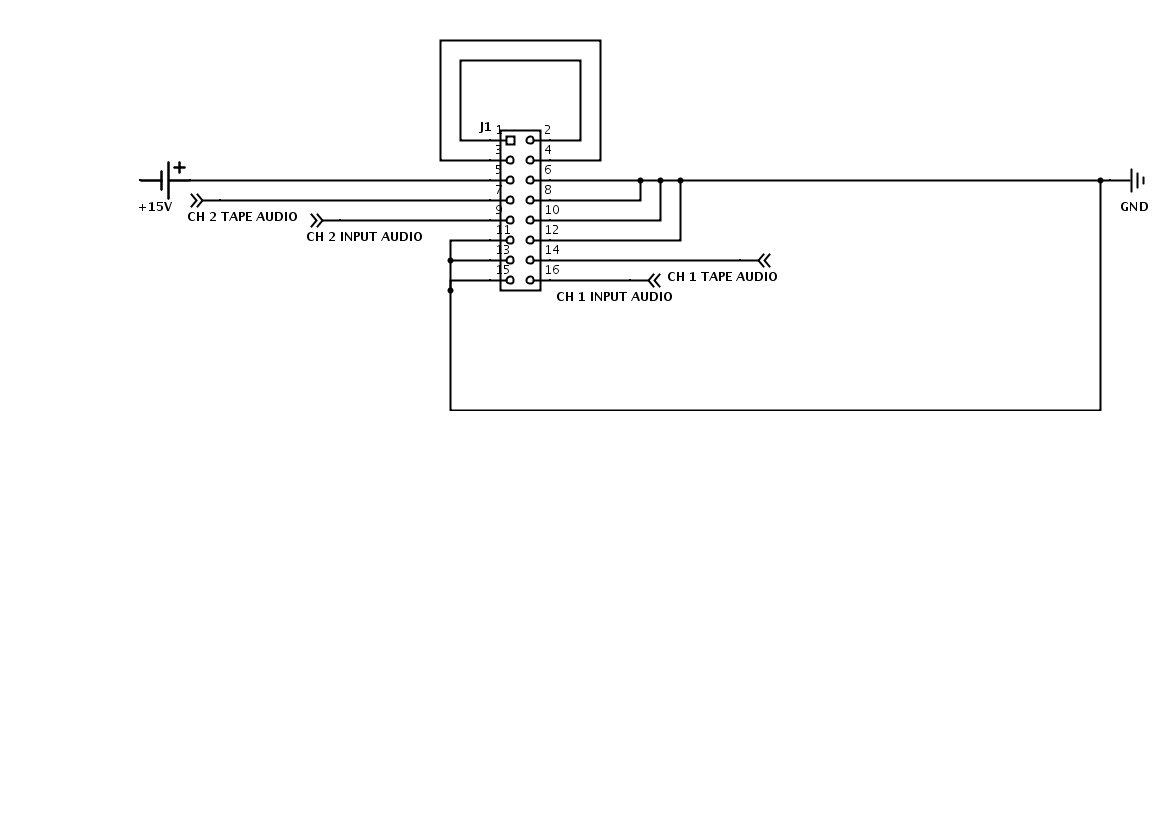

So I have the schematic attached, and the pinout is as follows

+15V on pin 5
-15V on pin 6

CH 1 input audio on pin 16 (Left of TRS Jack 1)
CH 2 input audio on pin 9 (Right of TRS Jack 1)
CH 1 tape audio on pin 14 (Left of TRS Jack 2)
CH 2 tape audio on pin 7 (Right of TRS Jack 2)

pin 1 connected to pin 2
pin 3 connected to pin 4

Once you have this all soldered up, follow this Instructble to build the proper power supply.

https://www.instructables.com/id/Power-Supply/

So now, lay out the back plate, where you want the TRS inputs, the power supply port, switch and LED to go. I used a ruler to make everything nice and neat and level.
