Strong Worm Gearbox on 3d Printer

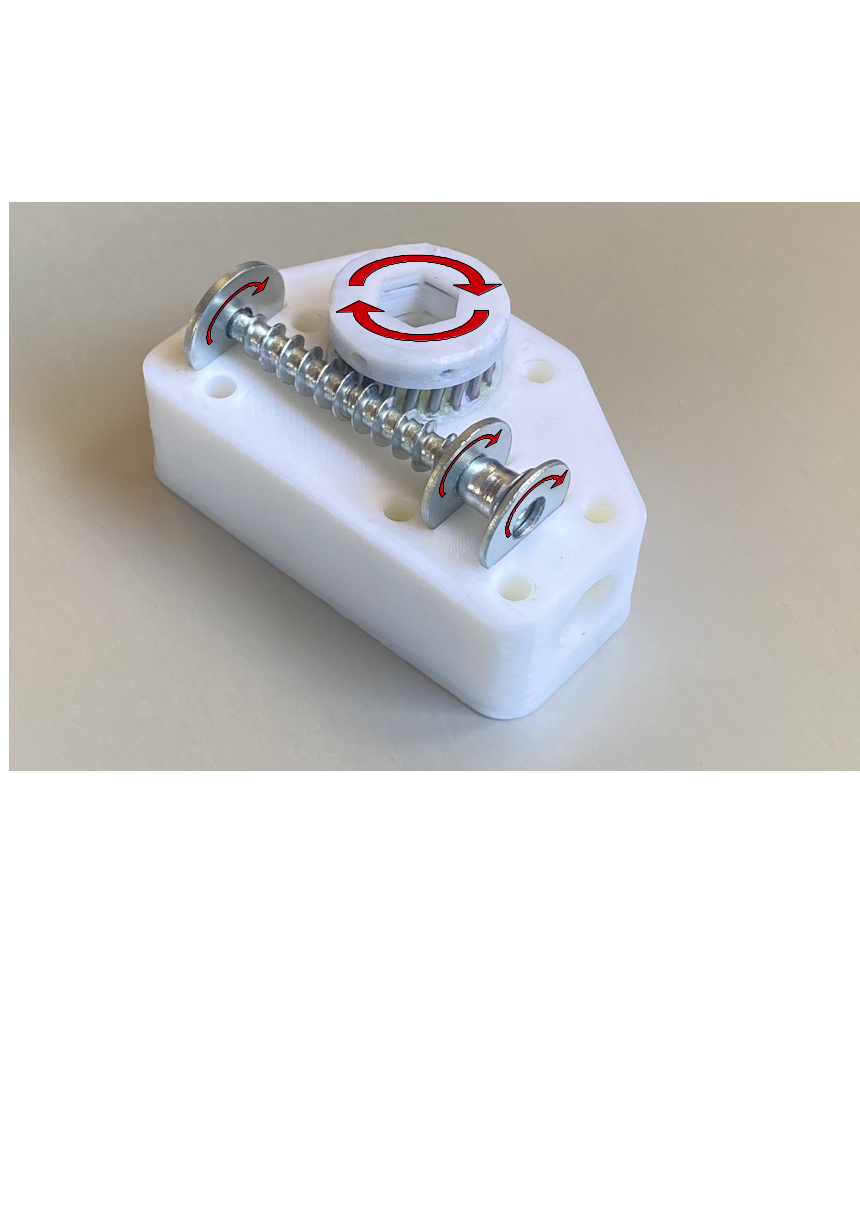

Strong Worm Gear 1:20 with metal worm and metal reinforcements.

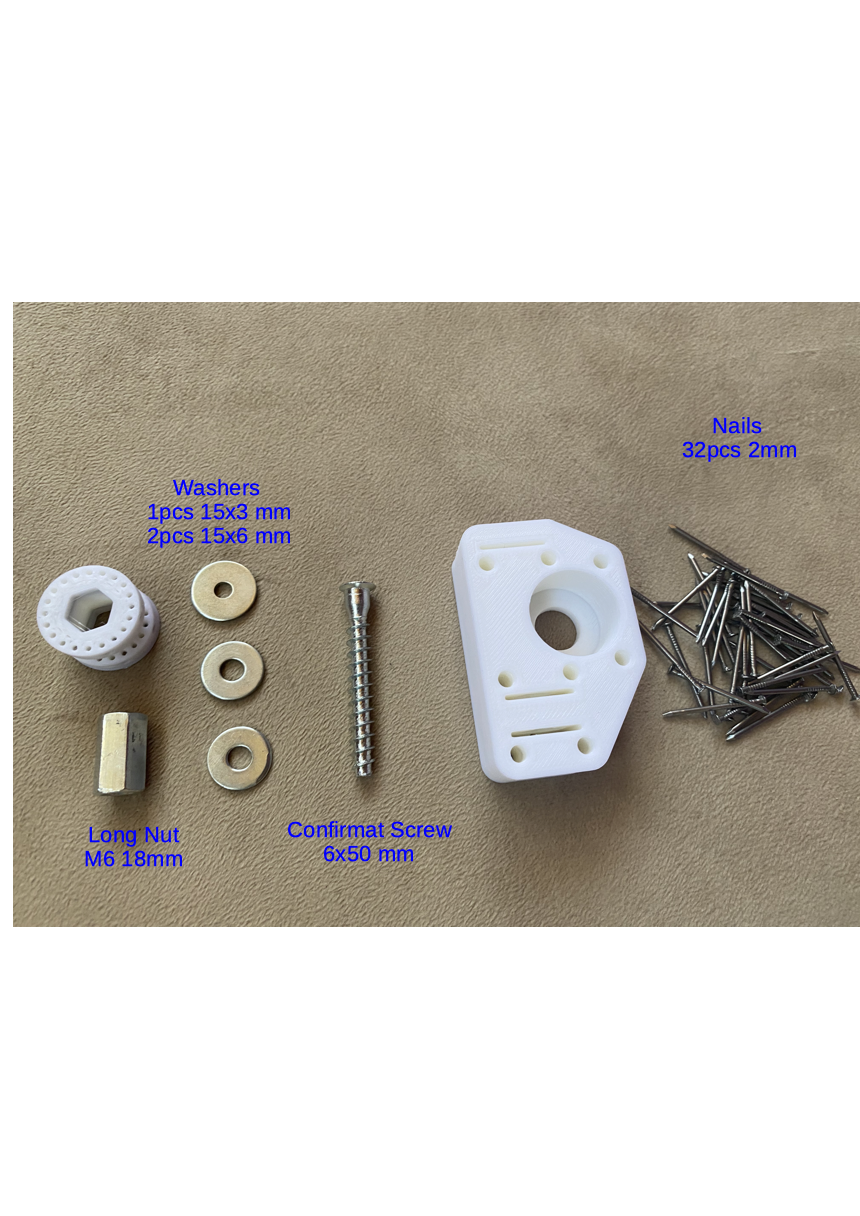

• Confirmat Screw 6x50 mm
• Washers
• 1 pcs D outer 15mm, D inner 3 mm
• 2 pcs D outer 15mm, D inner 6 mm
• Nails 32 pcs D 2 mm, length at least 20mm
• Long Nut M6
• Plastic PLA/PETG/ABS... ~ 50g
• Lubricant

Download models from https://www.thingiverse.com/thing:5414478 and print them.

For the wheel, I would recommend specifying 3mm for walls to make it as strong as possible. The box walls should be at least 2mm (3-4 mm would be better).

In order to make the wheel stronger, you can reinforce it with nails.

Cut off 12 nail tails in 5-6 mm length and put them into special slots inside the wheel.

Nails are used as gear teeth. Teeth hook the worm and rotate the wheel.

Prepare 20 nail shanks in 12-13 mm without tips.

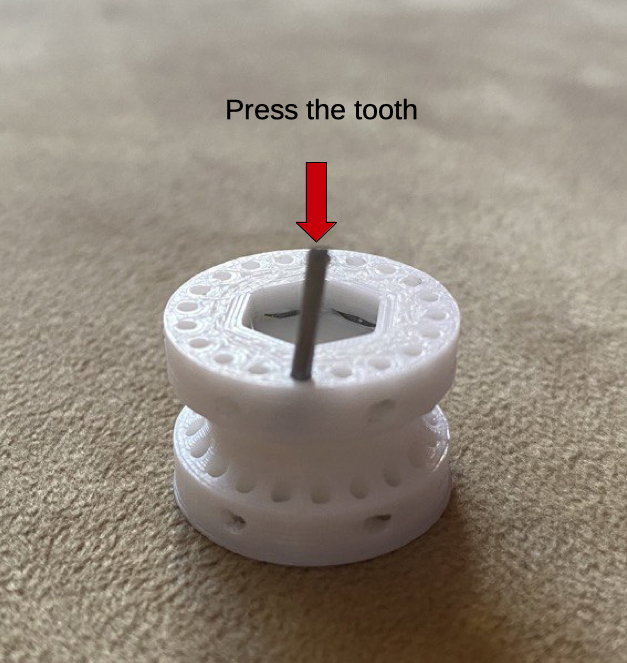

Insert all teeth into the wheel.

Use a file to avoid burrs on the teeth.

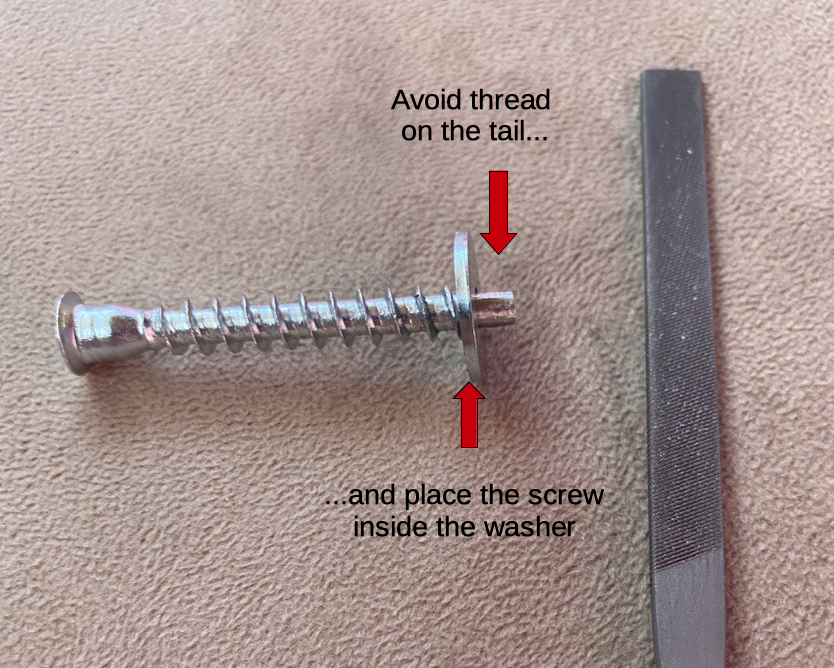

Confirmat screw is used as a worm. The tail of the screw has to be round (without thread) to be placed inside a washer 15x3 mm. Use a file to avoid thread on the screw tail.

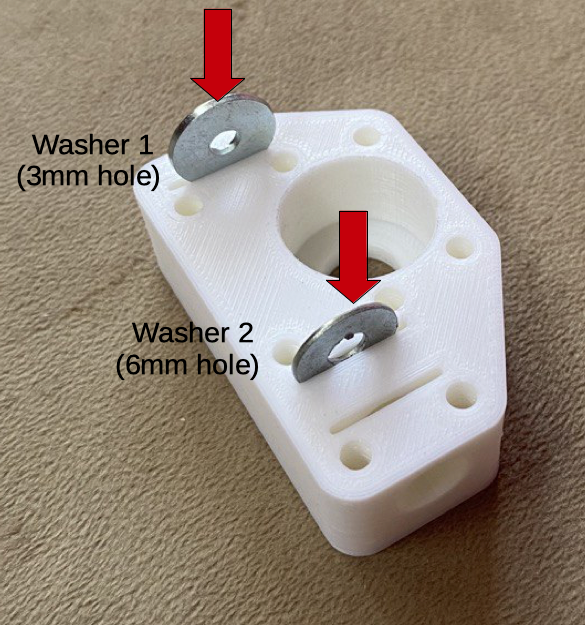

1. Put washers 1 and 2 into the box
2. Lubricate the wheel
3. Insert the wheel
4. Lubricate the confirmat screew

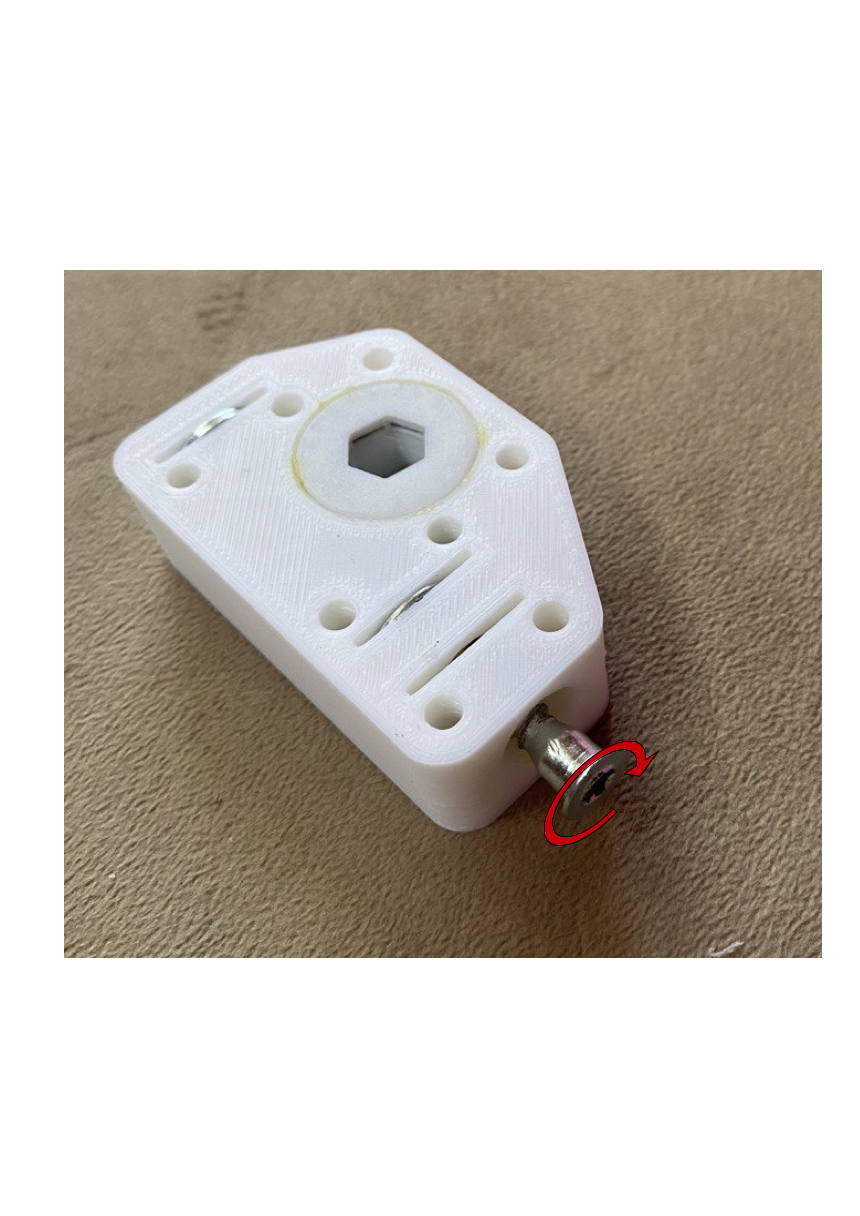

5. Screw the confirmat in
6. Put the washer 3 into the box

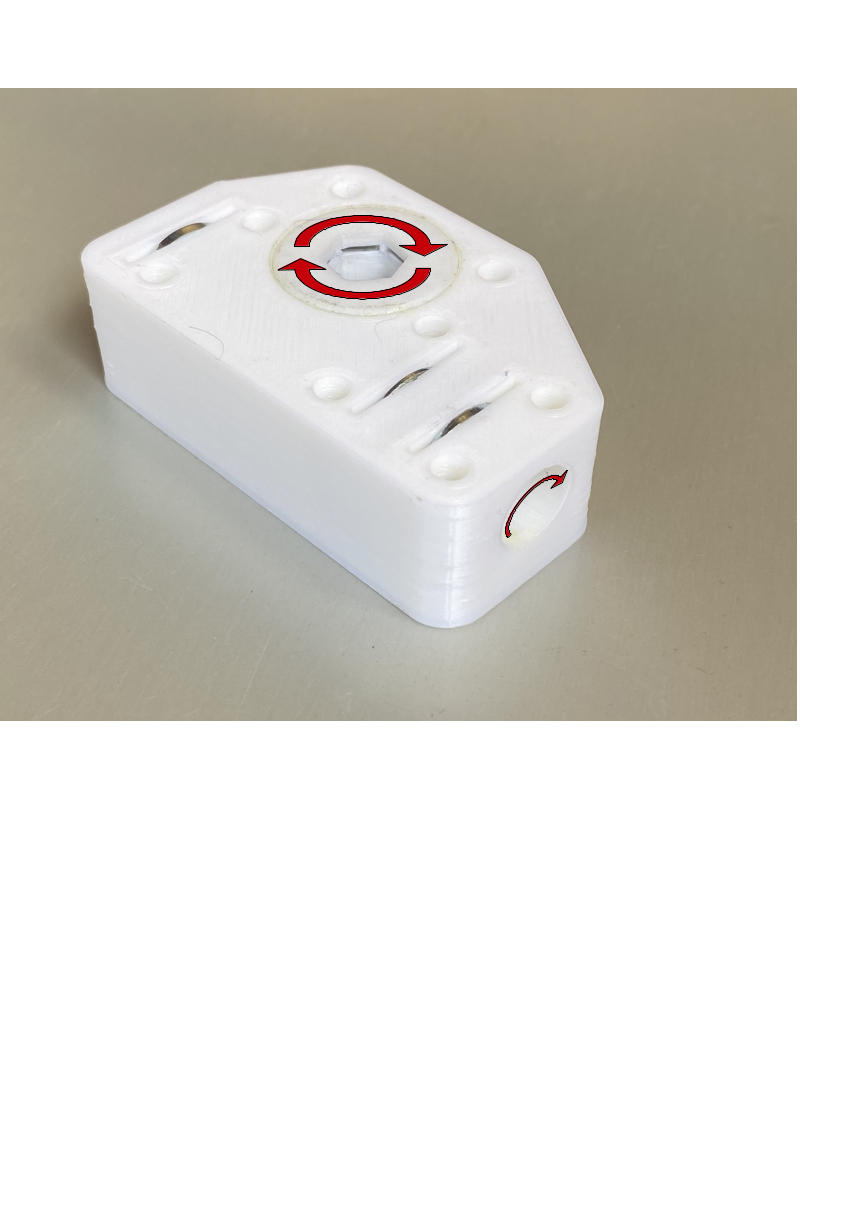

Here you can see my test of the gearbox by my screwdriver.
