Storage Shelf/heavy Duty Rack Attachments
by keep_IT_simple in Workshop > 3D Printing
748 Views, 12 Favorites, 0 Comments
Storage Shelf/heavy Duty Rack Attachments
![IMG_20200717_135650.cleaned.jpg](/proxy/?url=https://content.instructables.com/FHZ/KW6T/KCP1X8LI/FHZKW6TKCP1X8LI.jpg&filename=IMG_20200717_135650.cleaned.jpg)
![IMG_20200717_132905.cleaned.jpg](/proxy/?url=https://content.instructables.com/F33/ZVNN/KCP1X8J6/F33ZVNNKCP1X8J6.jpg&filename=IMG_20200717_132905.cleaned.jpg)
![IMG_20200717_133109.cleaned.jpg](/proxy/?url=https://content.instructables.com/F6Y/XVZ8/KCP1X8JH/F6YXVZ8KCP1X8JH.jpg&filename=IMG_20200717_133109.cleaned.jpg)
![IMG_20200717_132630.cleaned.jpg](/proxy/?url=https://content.instructables.com/FQD/HHM1/KCP1X8H5/FQDHHM1KCP1X8H5.jpg&filename=IMG_20200717_132630.cleaned.jpg)
If you like to use these heavy duty racks you get here some attachments that will use space you wouldnt know is there.

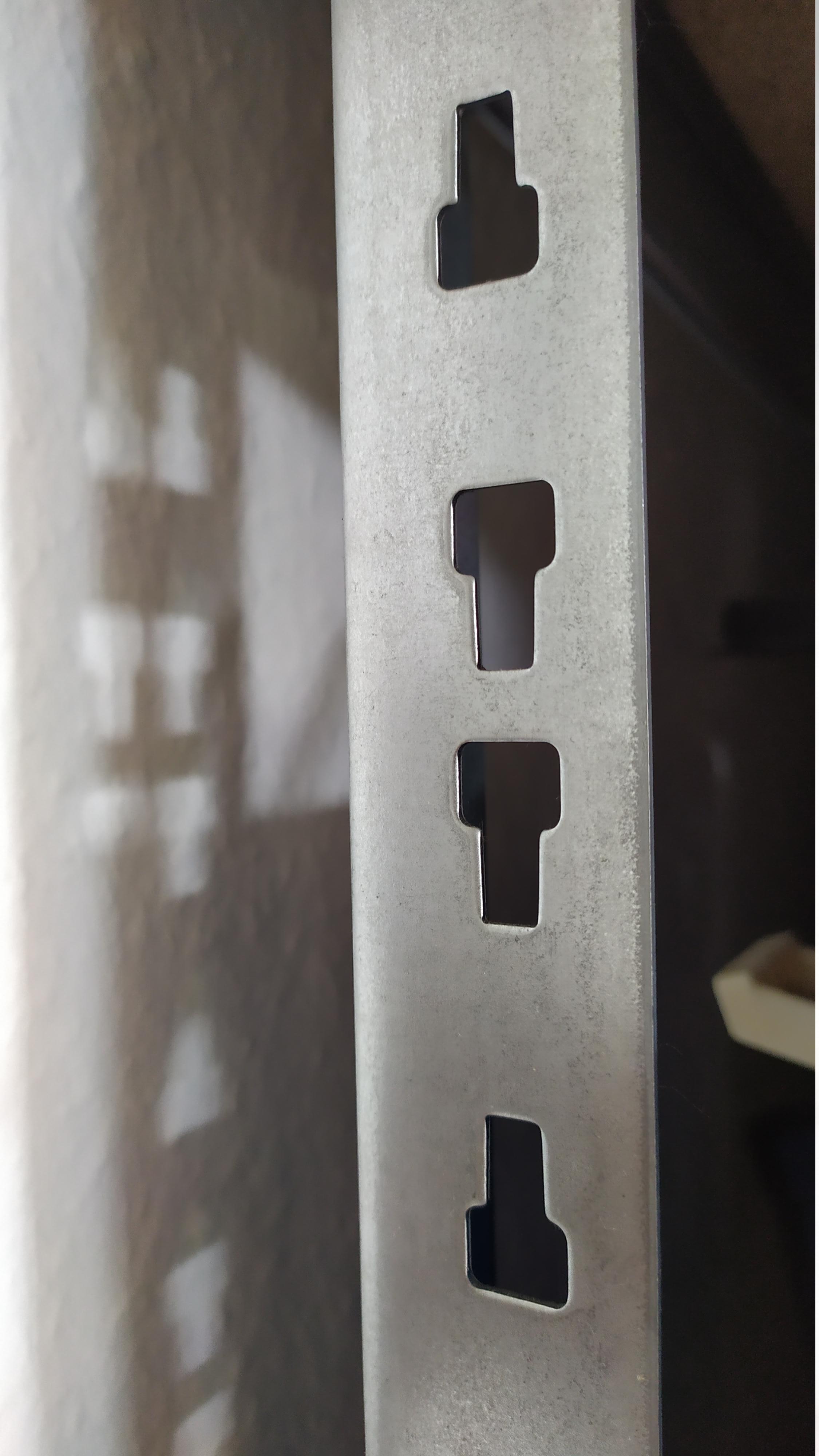

I made some attachments that use the holes in the bars and the bended frames.
Its made for shelfs with the quadratic holes and if you got round holes i dondt know if it will work as well (but if you tell me the diameter of the upper and lower holes i could add these variations here)
So what can you print:
Holder for screwdrivers.
Holder in two sizes for T-shaped tools like hammers.
Holder in two sizes for tools like a folding rule.
Holder for the holes or the frames for plant pots
A simple hook in two sizes.
On the pictures you see only the smaller version of the holders.
Attention: Scale the objects to 50% before printing! Use PLA+ for the plant pot holder!
If you got a wish for a special holder for the holes or the frames i would like to hear!
Supplies
3D-Printer
PLA+

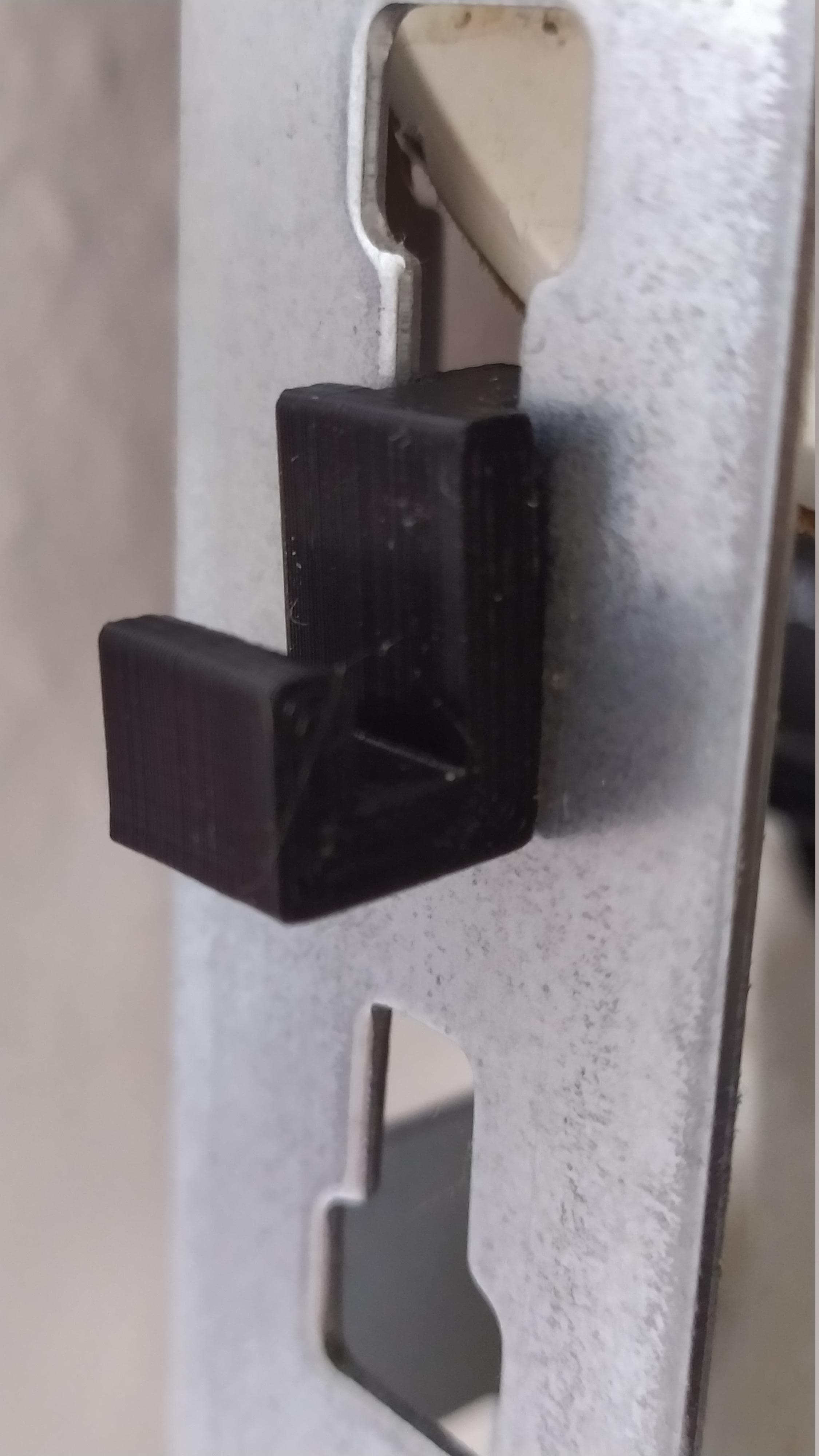

The Hook
![IMG_20200717_132555.cleaned.jpg](/proxy/?url=https://content.instructables.com/FRV/Z1UY/KCP1X8FZ/FRVZ1UYKCP1X8FZ.jpg&filename=IMG_20200717_132555.cleaned.jpg)
Simple hook for the bar holes.
On the picture is the small version.

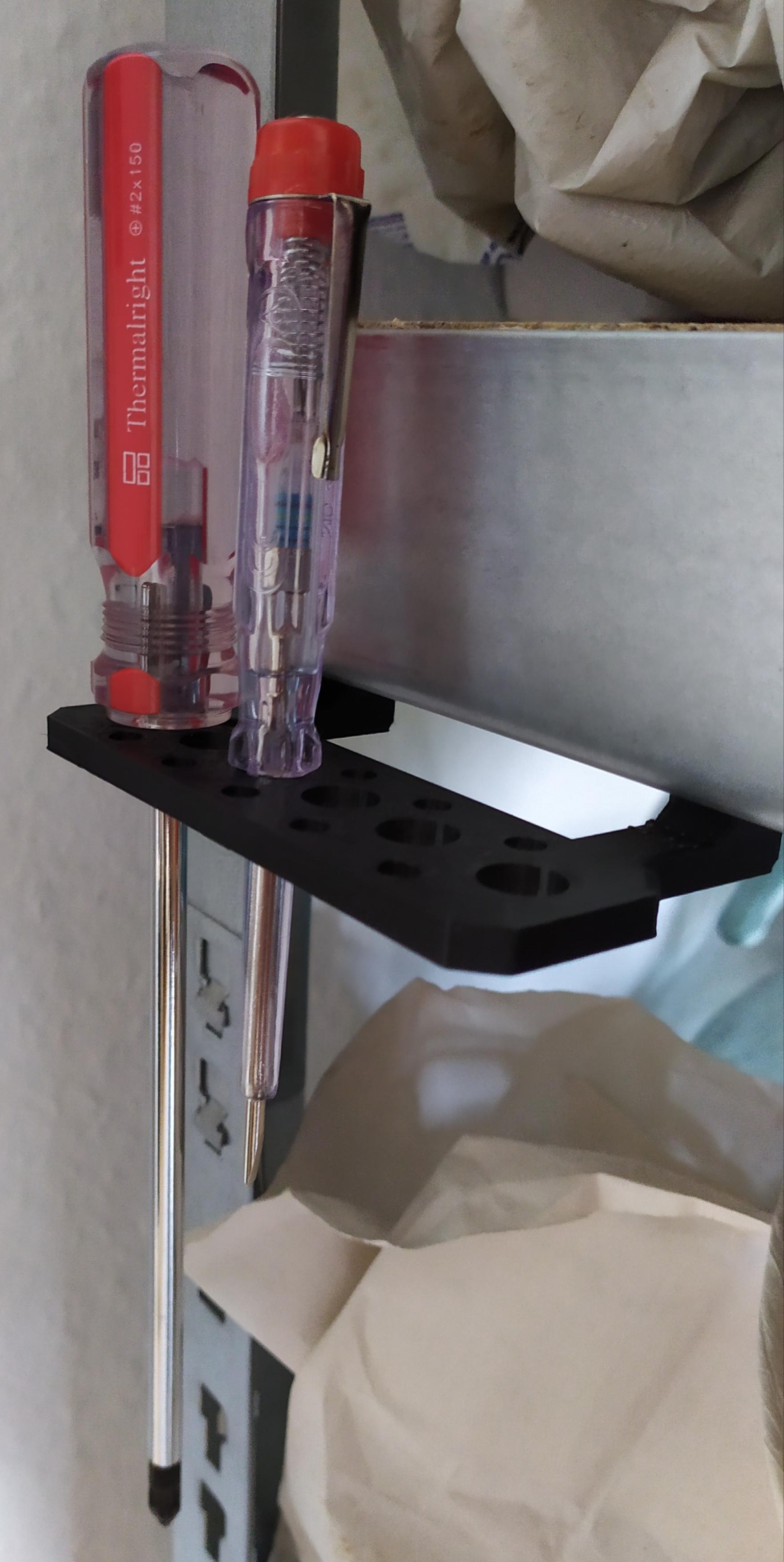

Screwdriver Frame Attachment
![IMG_20200717_132905.cleaned.jpg](/proxy/?url=https://content.instructables.com/FRO/R7NN/KCP1XBLY/FROR7NNKCP1XBLY.jpg&filename=IMG_20200717_132905.cleaned.jpg)
![IMG_20200717_135756.cleaned.jpg](/proxy/?url=https://content.instructables.com/FG0/RVHR/KCP1X8MK/FG0RVHRKCP1X8MK.jpg&filename=IMG_20200717_135756.cleaned.jpg)
Comes with 6 big holes for screwdrivers.
Will only work if your storage rack got a bended frame as seen on the picture.
Downloads
Folding Rule Attachment
![IMG_20200717_132836.cleaned.jpg](/proxy/?url=https://content.instructables.com/FXC/H4KN/KCP1X8HG/FXCH4KNKCP1X8HG.jpg&filename=IMG_20200717_132836.cleaned.jpg)
On the picture you see the small version.

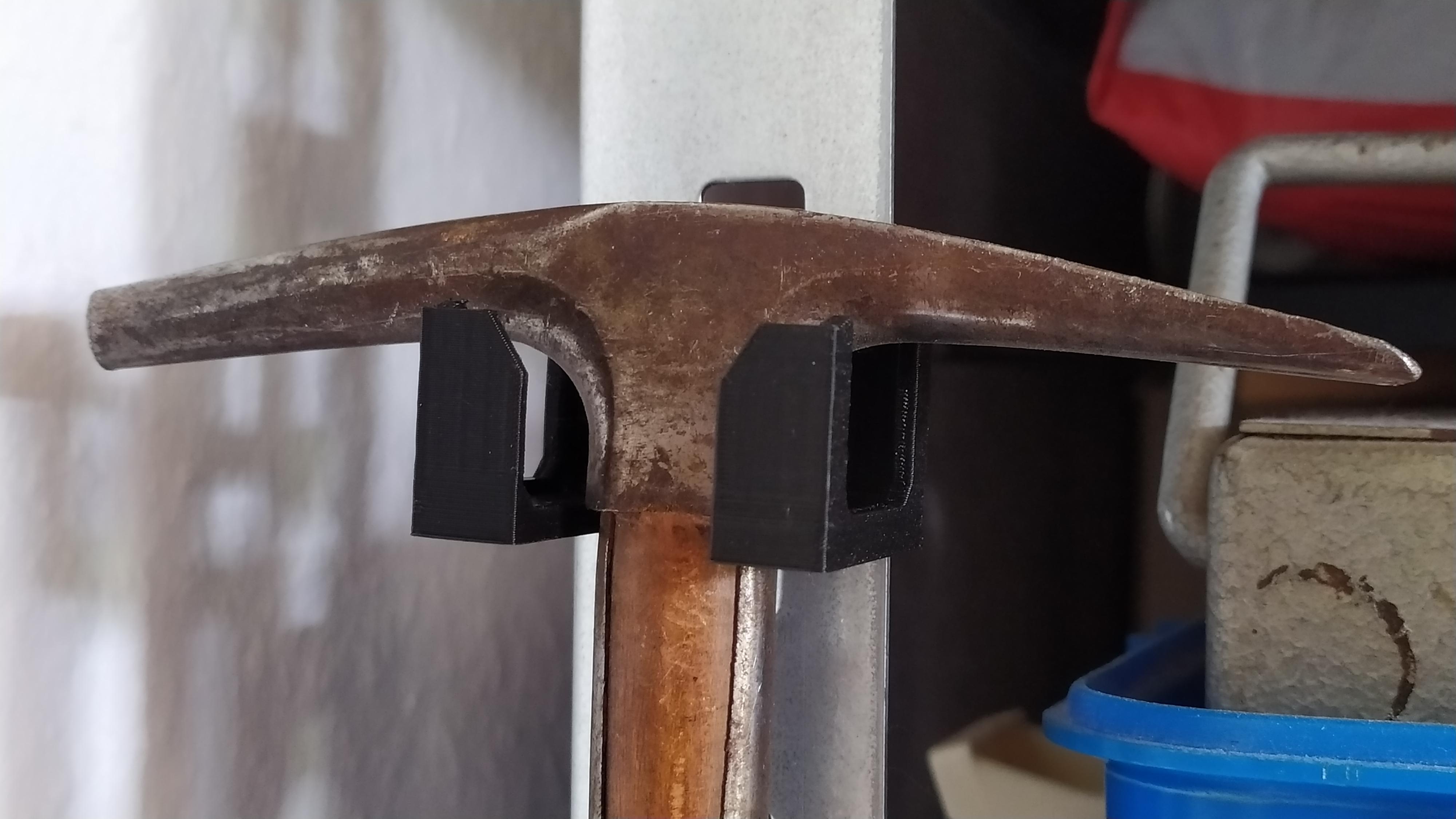

Hammer Holder
![IMG_20200717_132630.cleaned.jpg](/proxy/?url=https://content.instructables.com/F1A/JOF8/KCP1XBKW/F1AJOF8KCP1XBKW.jpg&filename=IMG_20200717_132630.cleaned.jpg)
On the picture you see the small version.
You also could use it as a double hook or to store thin wires/cables.
Plant Pot Holder
![IMG_20200717_133238.cleaned.jpg](/proxy/?url=https://content.instructables.com/FBO/UKDK/KCP1X8L7/FBOUKDKKCP1X8L7.jpg&filename=IMG_20200717_133238.cleaned.jpg)
![IMG_20200717_135800.cleaned.jpg](/proxy/?url=https://content.instructables.com/FK8/JEKI/KCP1X8MY/FK8JEKIKCP1X8MY.jpg&filename=IMG_20200717_135800.cleaned.jpg)
Two versions for the plant pot holder.
One version you can use to put in the bar holes. The other version is for the frame so check if you got a bended frame.
I highly recommend to use PLA+ for the plant pot holder. I didnt try it with normal PLA.
It might bend a little but its really durable. Its got a inner diameter of 11,5 centimeter. The pots you use should have a bigger diameter at the top so they fit properly.
