Stool Made From Bike Parts and Crutches

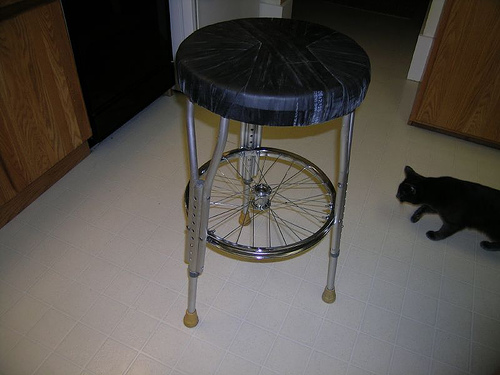

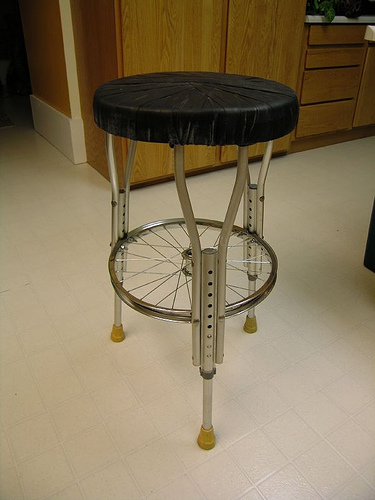

Take a few metal crutches, a couple of bicycle wheels and inner tubes, and a few bolts along with some insulation and a piece of plywood and you have the makings for a stool. An adjustable height stool.

Mention of this project should acknowledge Ryan McFarland with a link to zieak.com as well as Instructables and this project page.

You will need:

3 - 4 crutches
2 bicycle wheels with a 16" diameter (BMX bike size)
4 inner tubes from a 26" tire (Mountain bike type)
Sheet metal screws
Carriage bolts, washers and nuts
Rigid insulation
Plywood

Tools:
Drill and drill bits
Hacksaw
Ratchet and sockets
Sabre saw
Marker
Scissors
Rags
WD-40

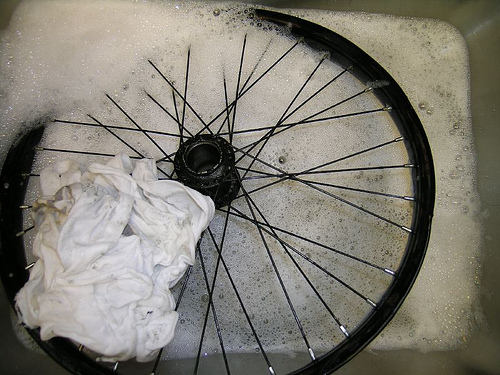

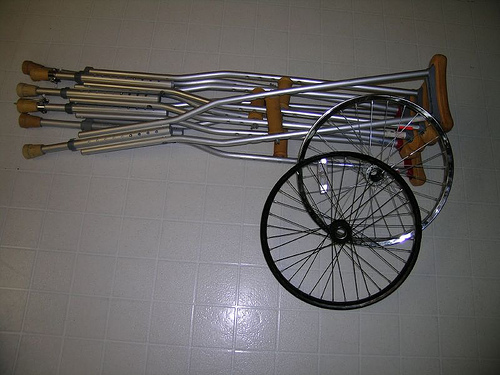

I purchased the metal crutches from the local thrift store. They were $2 per pair. Try to get two pairs that are as close to identical as possible. (You might consider buying an extra pair that fit you in case you need them some day. A few years ago i tore a muscle in my leg and was charged $80 for a pair.) Remove the handles from the crutches. The bicycle rims don't need to be perfectly straight - the ones i used were in horrible shape. I didn't bother trying to true the wheel - i wanted to see if this idea would work first. You can probably get the wheels and inner tubes at any bike shop for free. You'll want to remove the axles. Wash the grease off of the hubs.

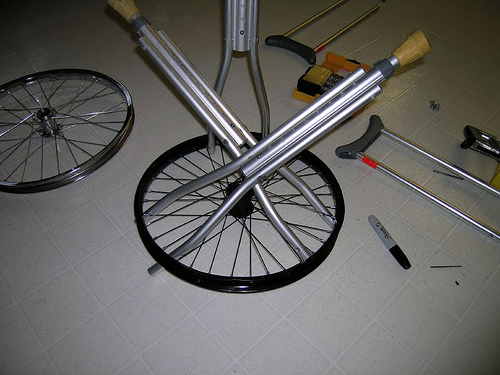

Use the hacksaw to cut the crutches off. Set the crutch to the shortest height and then measure 22" up. Mark that spot with the marker and cut at the nearest hole. That will give the leg strength where the rim attaches. I used 22" because that was the height of a stool that i have. I wanted this to start at that height and go higher.

I used three legs but in hindsight four would have been better. Three legs is a little tippy when the stool is high and a person is getting on or off of it.

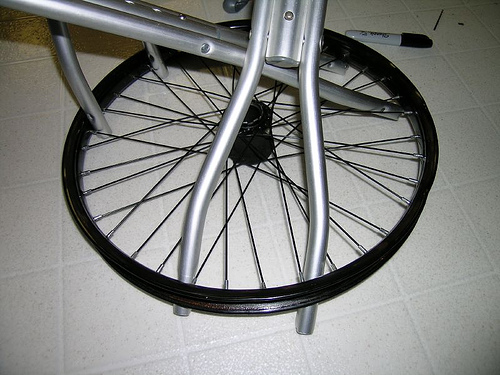

Starting where the opening for the inner tube valve stem is, count the spokes on the rim you plan on being the seat. Mine was 36. I divided that by 3 and used that number to space each of the crutches out 12 spokes. Note that since each leg has two attachment points that the spacing will be from one leg "Y" to the corresponding "y" of the next leg. Mark the locations of the six attachment points with the marker.

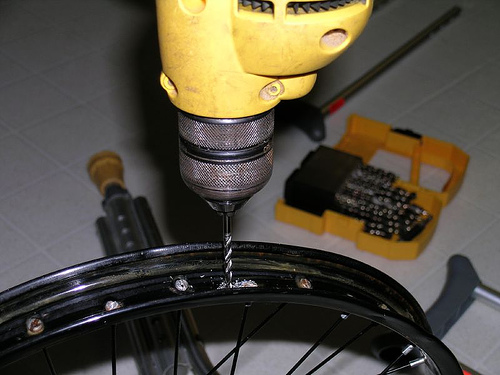

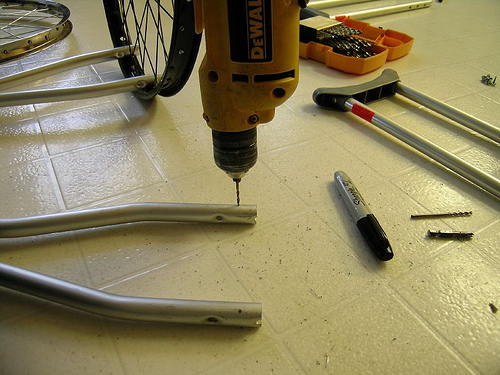

I drilled a hole slightly smaller than the threads of the screws i used through the steel rim and then an even smaller bit for the pilot holes in the aluminum of the crutch leg. This is a safe place to experiment because it will be covered up unless you "upholster" the stool differently than i did. I also used the scrap pieces from the crutches to get a feel of how far i could put the screw into the aluminum before the screw stripped the hole. If you have problems with this then just bore the holes out and bolt through like the bottom rim will be.

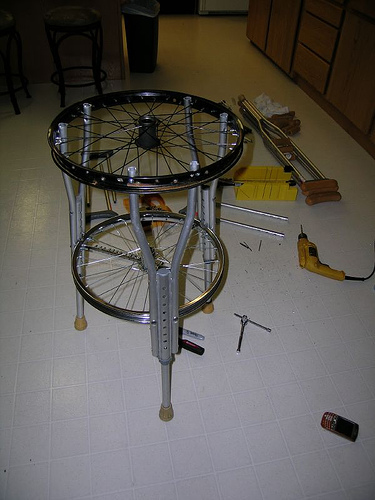

Put the screws in and admire the progress! Now measure 16" down from that rim and mark the inside of each of the legs. This is a comfortable distance (for me) to have my feet resting on the bottom rim. If you have a favorite stool measure the distance to find what works well for your leg length. By attaching the rim here the distance will stay where we like it no matter what height the stool is adjusted to.

After a bit of trial and error i found that it was important to notch out a section of at least the top flange of the bottom rim to allow the crutch to adjust in height while bolting the legs on securely. I drilled through either side of the adjustable leg portion and through the corresponding part of the rim. Then by sliding a few of the carriage bolts in i could mark the sections of the rim that needed to be trimmed back. I used the marker to also blacken the end of the bolt that was closest to the valve stem opening of the rim. That made sure i didn't have to fiddle with the rim and the legs trying to get bolts through misaligned holes. Cut the areas out for the center section of the leg. This could be done with a hacksaw and some frustration or you can use an angle grinder. Making a smaller cut on the bottom flange of the rim isn't a bad idea - if you tighten the rim and legs together too far the rim might press into the crutch leg and restrict the adjustment of the height.

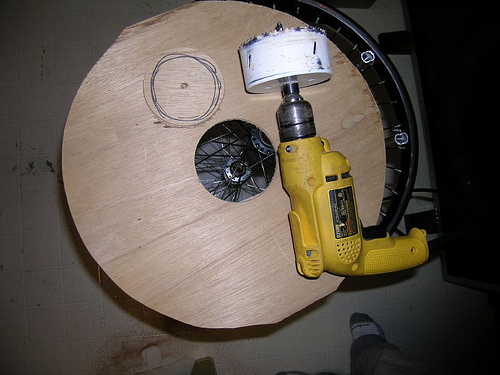

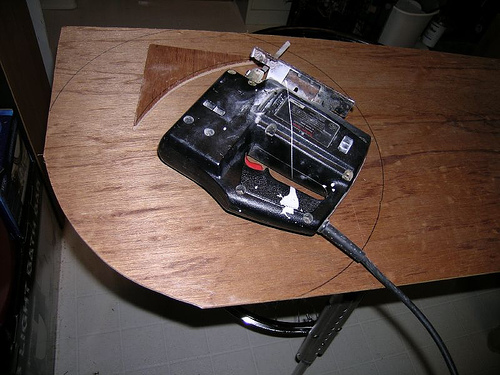

Use the rim as a template to cut a piece of rigid insulation or a thick foam pad. Then use that to mark plywood and cut the shape with a sabre saw. Cut out a 3" hole in the center of the board. This will let the hub pass through and allow the wood to lay a bit flatter. Using a sabre saw would work but a 3" hole saw worked fantastically.

Cut the valve stems off of the inner tube and then cut along the full length. If there are lines on the rubber to follow use them to keep a straight line. Tie a knot in one end of the inner tube and tuck it under one of the spokes. Stretch the inner tube over the top and wrap under until you have gone across the top three times - rotating around the seat as you go. Tie another knot in the end and tuck under another spoke. Repeat three more times but switch the direction of the wraps on each inner tube to prevent the wraps from forming a fan shape.

I used WD-40 to clean the inner tubes but just about any cleaner certainly would work. Especially something designed for rubber.
