Stereo Tube Amp Built Into a Vintage Cashbox
1384 Views, 9 Favorites, 0 Comments
Stereo Tube Amp Built Into a Vintage Cashbox
![IMG_1164.jpg](/proxy/?url=https://content.instructables.com/FFG/V1Y7/KUL8NI4A/FFGV1Y7KUL8NI4A.jpg&filename=IMG_1164.jpg)
![tizphoneoct21 412.JPG](/proxy/?url=https://content.instructables.com/FW3/UJF0/KUL8NAMZ/FW3UJF0KUL8NAMZ.jpg&filename=tizphoneoct21 412.JPG)
![tizphoneoct21 456.JPG](/proxy/?url=https://content.instructables.com/F6F/NLL2/KUL8NAP4/F6FNLL2KUL8NAP4.jpg&filename=tizphoneoct21 456.JPG)
![tizphoneoct21 431.JPG](/proxy/?url=https://content.instructables.com/FQ9/MYS4/KUL8NAQ6/FQ9MYS4KUL8NAQ6.jpg&filename=tizphoneoct21 431.JPG)

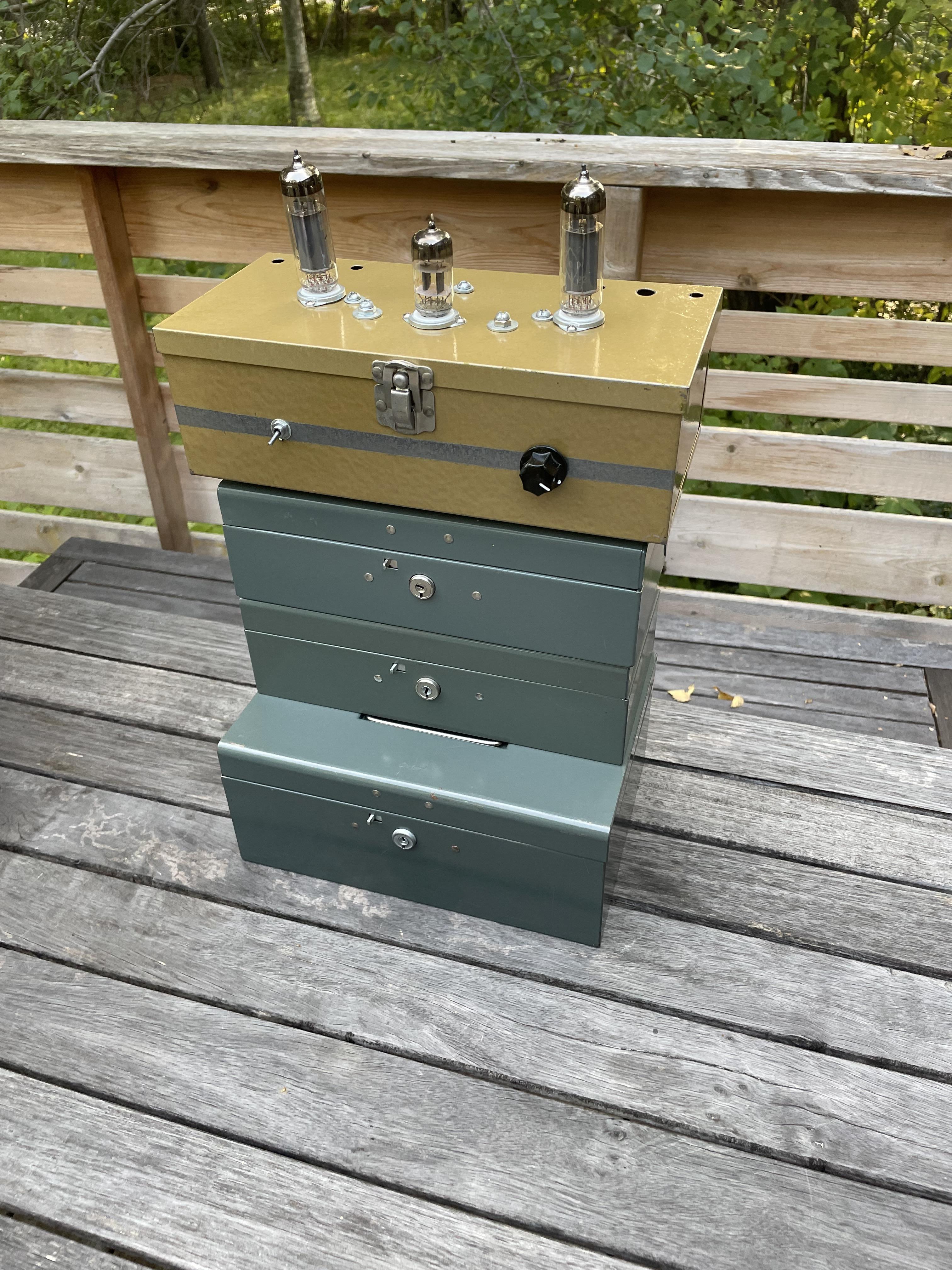

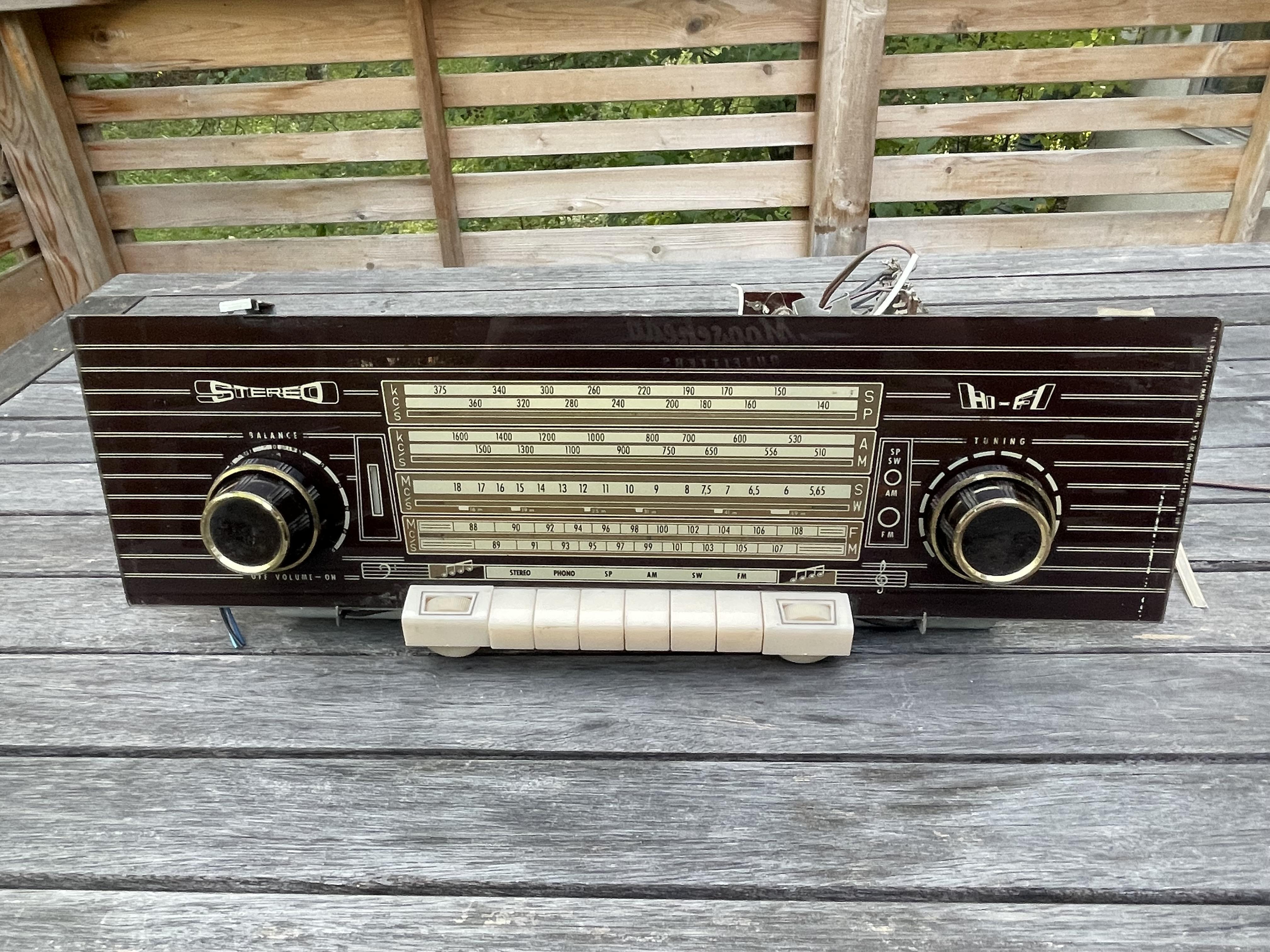

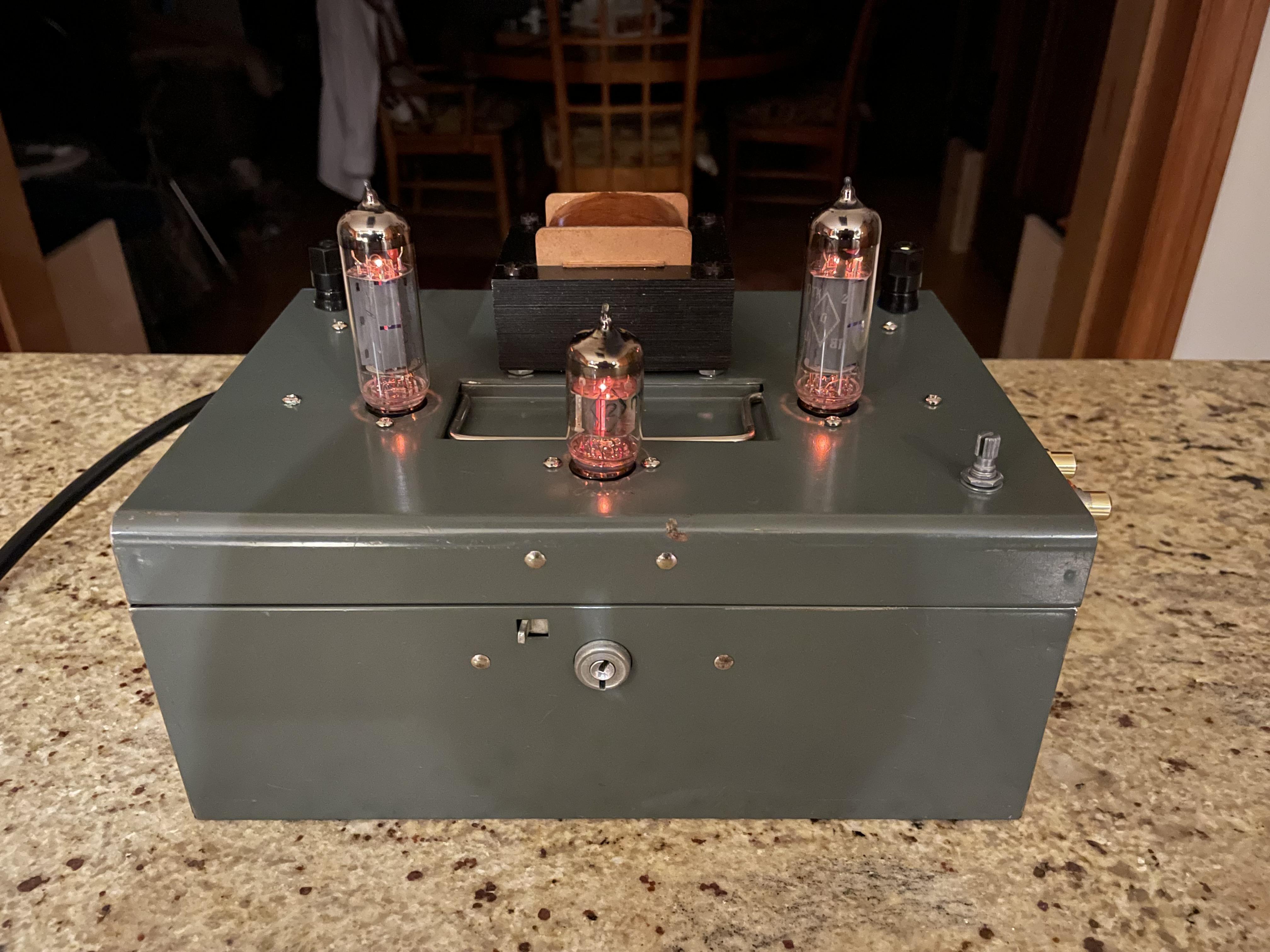

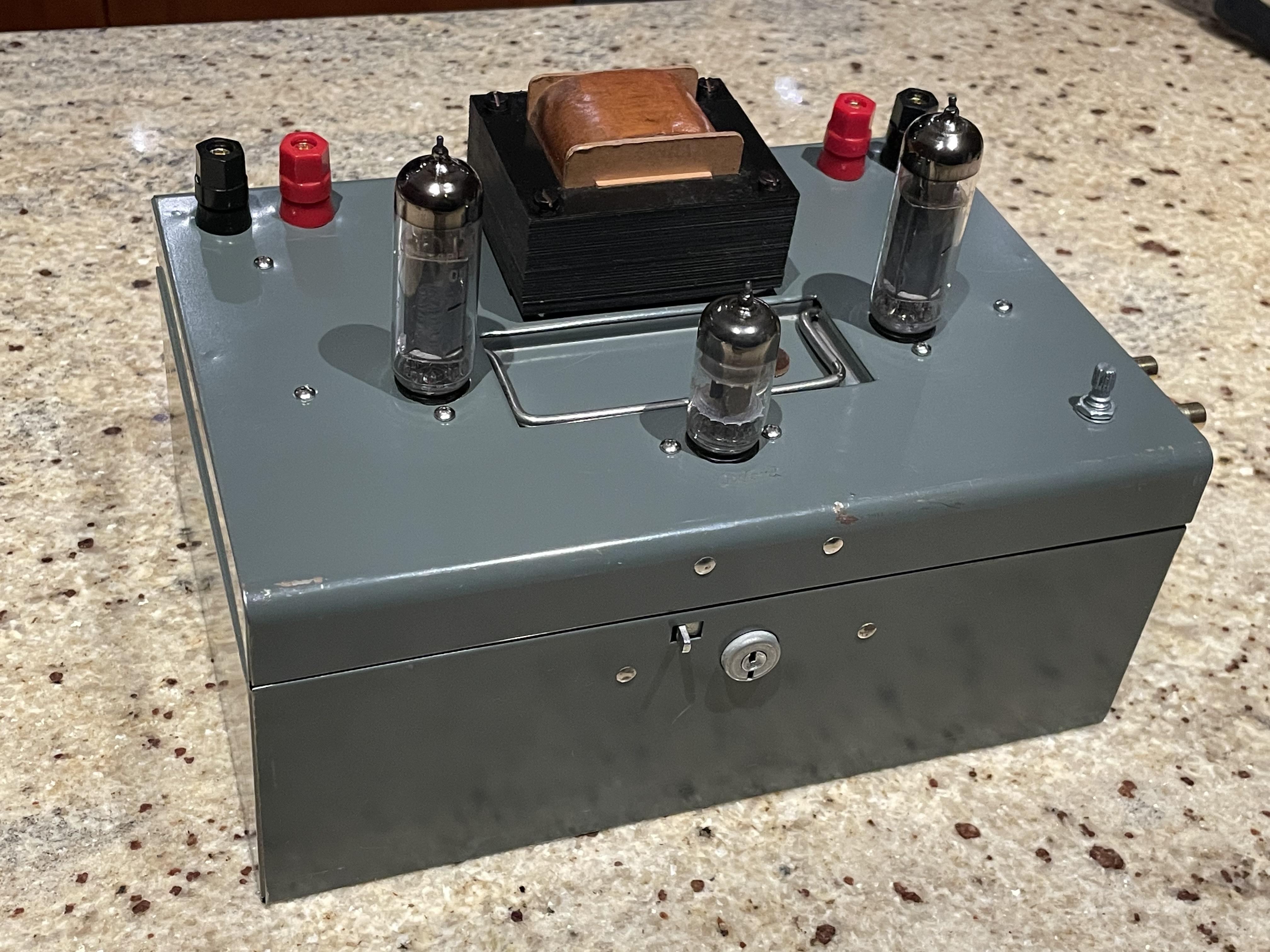

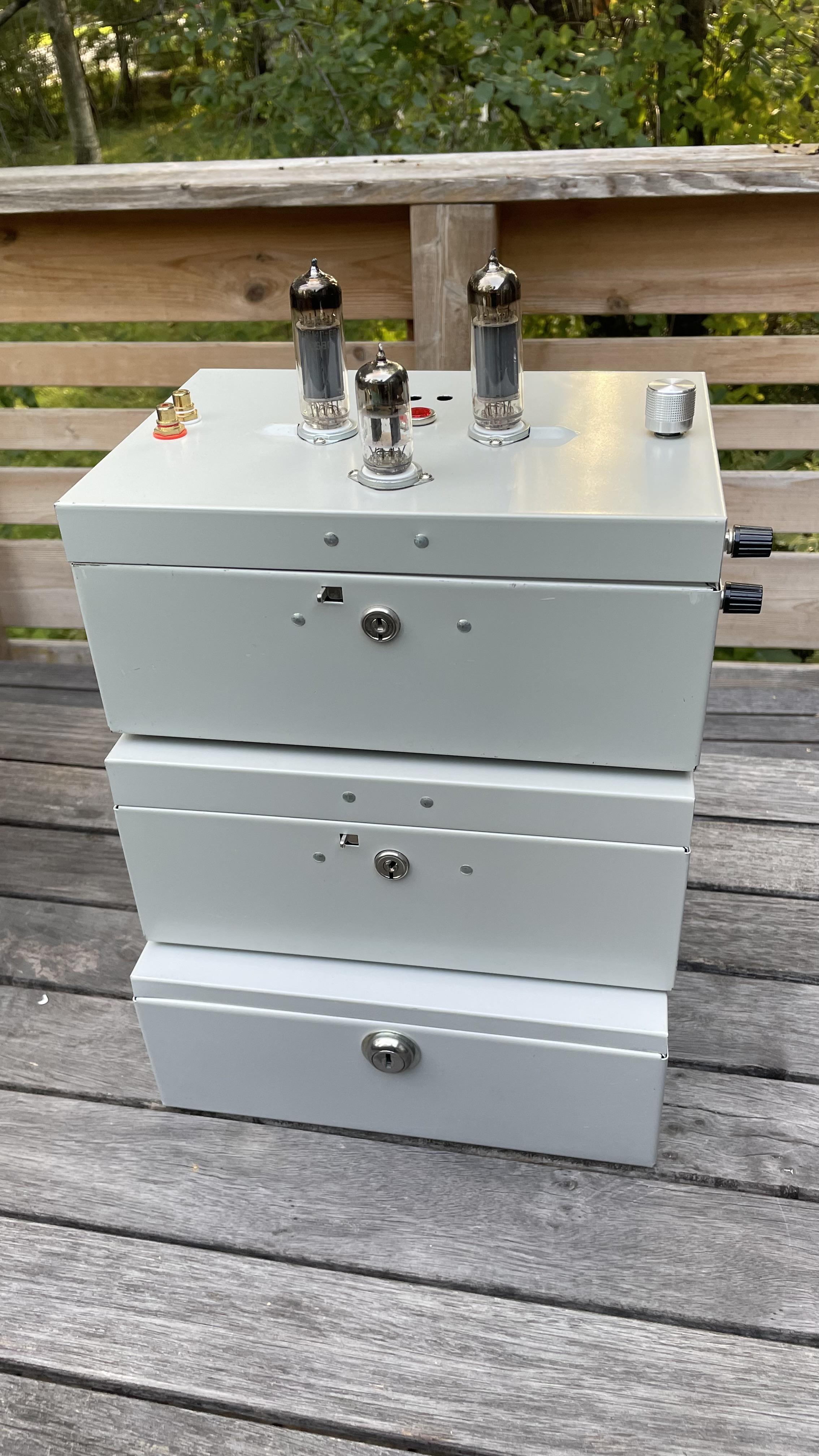

This Instructable shows how to build a stereo tube amplifier using a vintage cashbox and the parts from an old tube radio.
Supplies
![tizphoneoct21 555.JPG](/proxy/?url=https://content.instructables.com/FBU/VJD1/KUL8NCEM/FBUVJD1KUL8NCEM.jpg&filename=tizphoneoct21 555.JPG)
![tizphoneoct21 558.JPG](/proxy/?url=https://content.instructables.com/F9U/XW5P/KUL8NCEW/F9UXW5PKUL8NCEW.jpg&filename=tizphoneoct21 558.JPG)
![tizphoneoct21 563.JPG](/proxy/?url=https://content.instructables.com/FTF/6VP1/KUL8NCFU/FTF6VP1KUL8NCFU.jpg&filename=tizphoneoct21 563.JPG)
![tizphoneoct21 504.JPG](/proxy/?url=https://content.instructables.com/FOP/YFZL/KUL8NCFV/FOPYFZLKUL8NCFV.jpg&filename=tizphoneoct21 504.JPG)
![tizphoneoct21 506.JPG](/proxy/?url=https://content.instructables.com/F2H/EP4S/KUL8NCFW/F2HEP4SKUL8NCFW.jpg&filename=tizphoneoct21 506.JPG)
![tizphoneoct21 633.JPG](/proxy/?url=https://content.instructables.com/F2A/9UHU/KUL8NCY3/F2A9UHUKUL8NCY3.jpg&filename=tizphoneoct21 633.JPG)
![tizphoneoct21 644.JPG](/proxy/?url=https://content.instructables.com/F7Z/3VX6/KUL8OQ46/F7Z3VX6KUL8OQ46.jpg&filename=tizphoneoct21 644.JPG)
![tizphoneoct21 660.JPG](/proxy/?url=https://content.instructables.com/FC8/1DN7/KUL8OQ52/FC81DN7KUL8OQ52.jpg&filename=tizphoneoct21 660.JPG)
![tizphoneoct21 666.JPG](/proxy/?url=https://content.instructables.com/FJQ/OR9A/KUL8OQ5F/FJQOR9AKUL8OQ5F.jpg&filename=tizphoneoct21 666.JPG)
This Instructable requires the following:
- familiarity with high voltage circuits is a must have, as the circuit has 300+ Volts in it, and these voltages can kill.
- a donor stereo tube amplifier. Most of my donor amps were bought at hamfests, estate sales and from online classified websites. The donor amplifier provides the power and output transformers needed, and can also provide many of the passive components if you choose to use the original circuit.
- a circuit to implement if you choose something other than the original circuit.
- a cashbox to serve as the chassis for the amp.
- soldering iron and solder.
- electric drill, step bits and drill bits.
- a Dremel or similar tool to cut square holes in chassis.
- all passive components required for the circuit chosen. This includes all resistors, capacitors and inductors needed.
- RCA inputs, speaker outputs, a volume potentiometer and volume knob.
- a power inlet with integrated fuse and a power switch.
Harvest the Power and Output Transformers From the Donor Chassis
![tizphoneoct21 562.JPG](/proxy/?url=https://content.instructables.com/FZ1/G04J/KUL8NJ7P/FZ1G04JKUL8NJ7P.jpg&filename=tizphoneoct21 562.JPG)
![tizphoneoct21 690.JPG](/proxy/?url=https://content.instructables.com/F4P/6V9N/KUL8NIV2/F4P6V9NKUL8NIV2.jpg&filename=tizphoneoct21 690.JPG)
![tizphoneoct21 693.JPG](/proxy/?url=https://content.instructables.com/F2E/G08N/KUL8NIW5/F2EG08NKUL8NIW5.jpg&filename=tizphoneoct21 693.JPG)
![tizphoneoct21 558.JPG](/proxy/?url=https://content.instructables.com/FLF/JCKN/KUL8NJFL/FLFJCKNKUL8NJFL.jpg&filename=tizphoneoct21 558.JPG)
![tizphoneoct21 695.JPG](/proxy/?url=https://content.instructables.com/FJG/X11P/KUL8NJI4/FJGX11PKUL8NJI4.jpg&filename=tizphoneoct21 695.JPG)

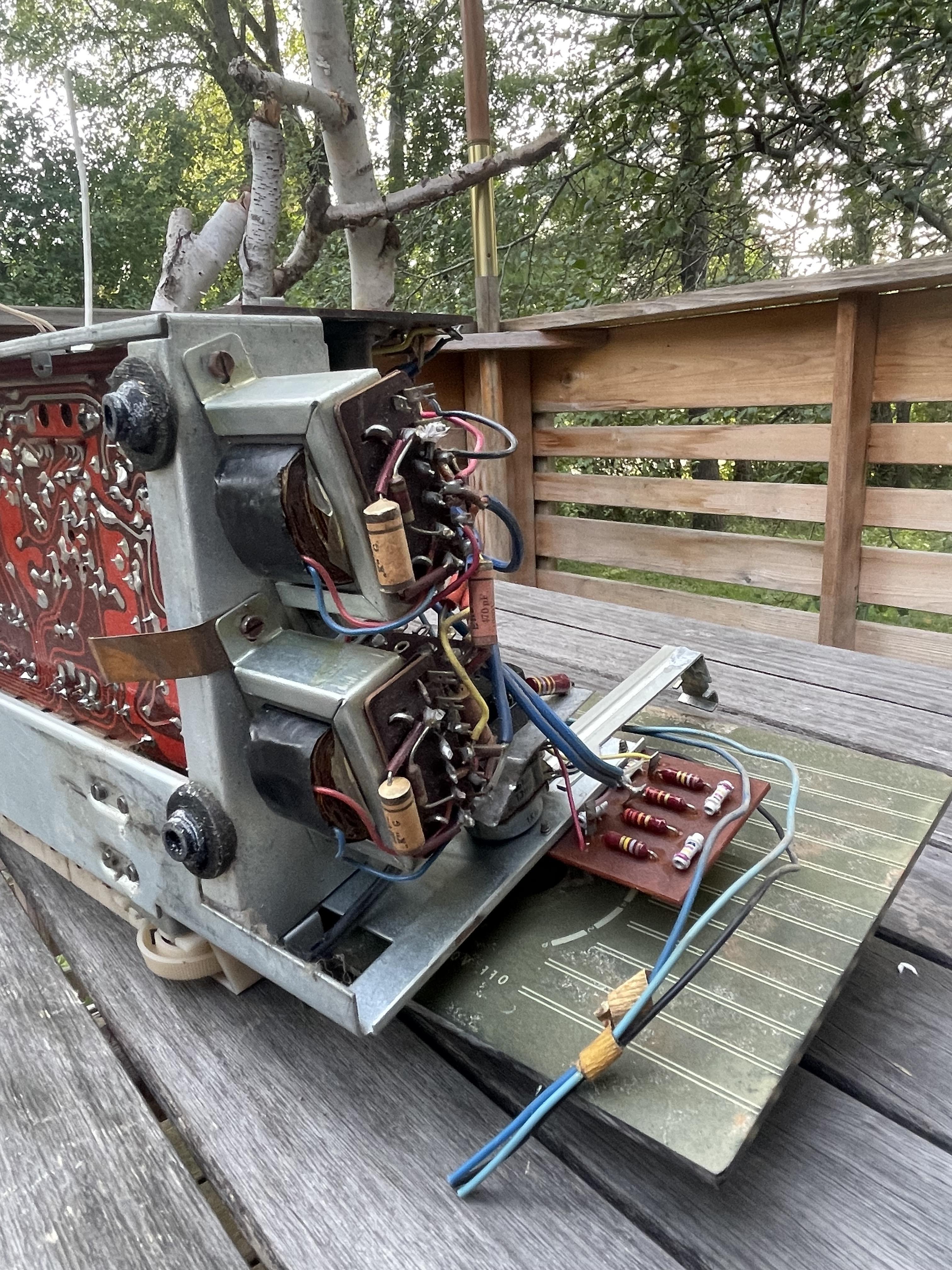

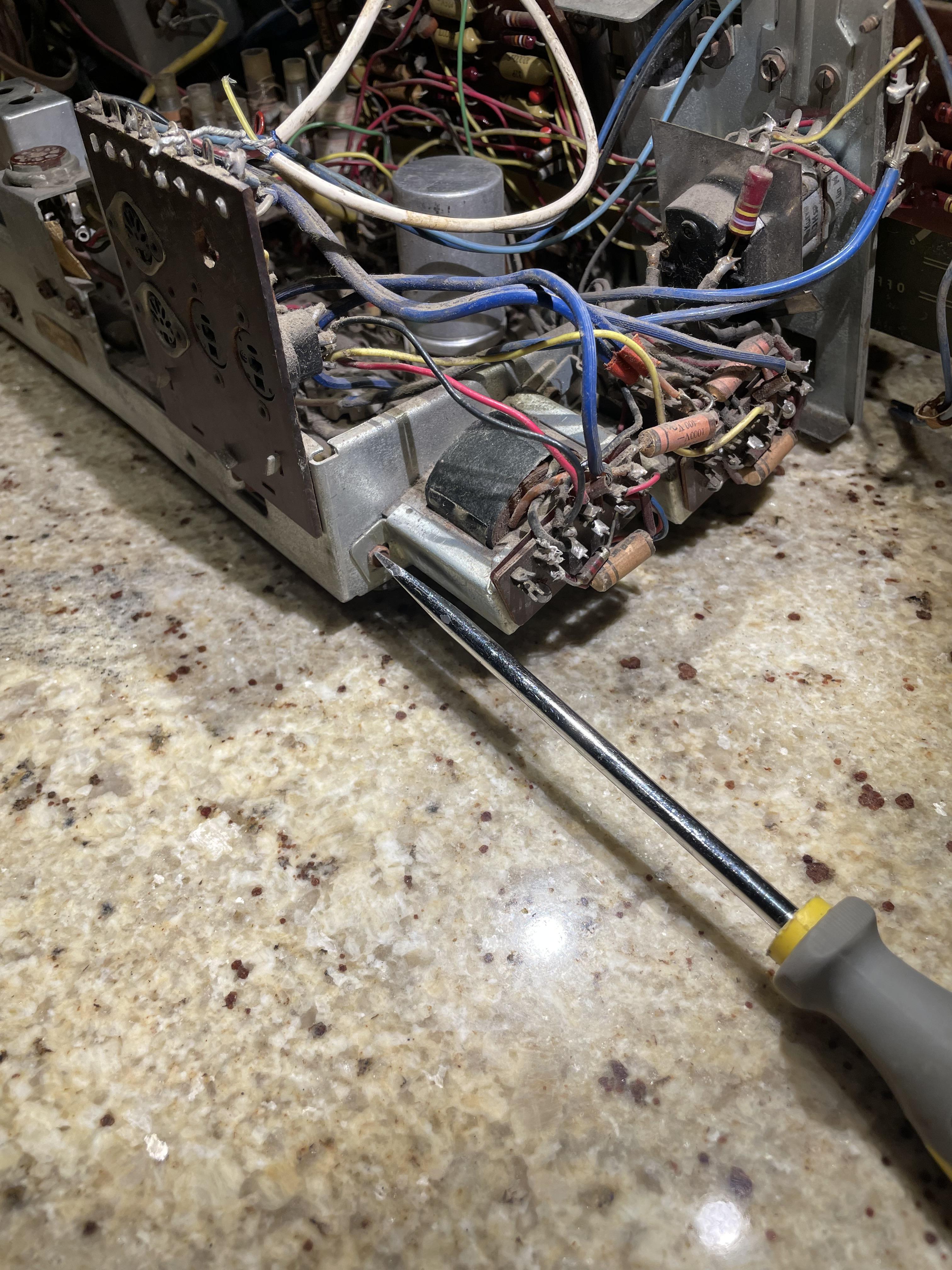

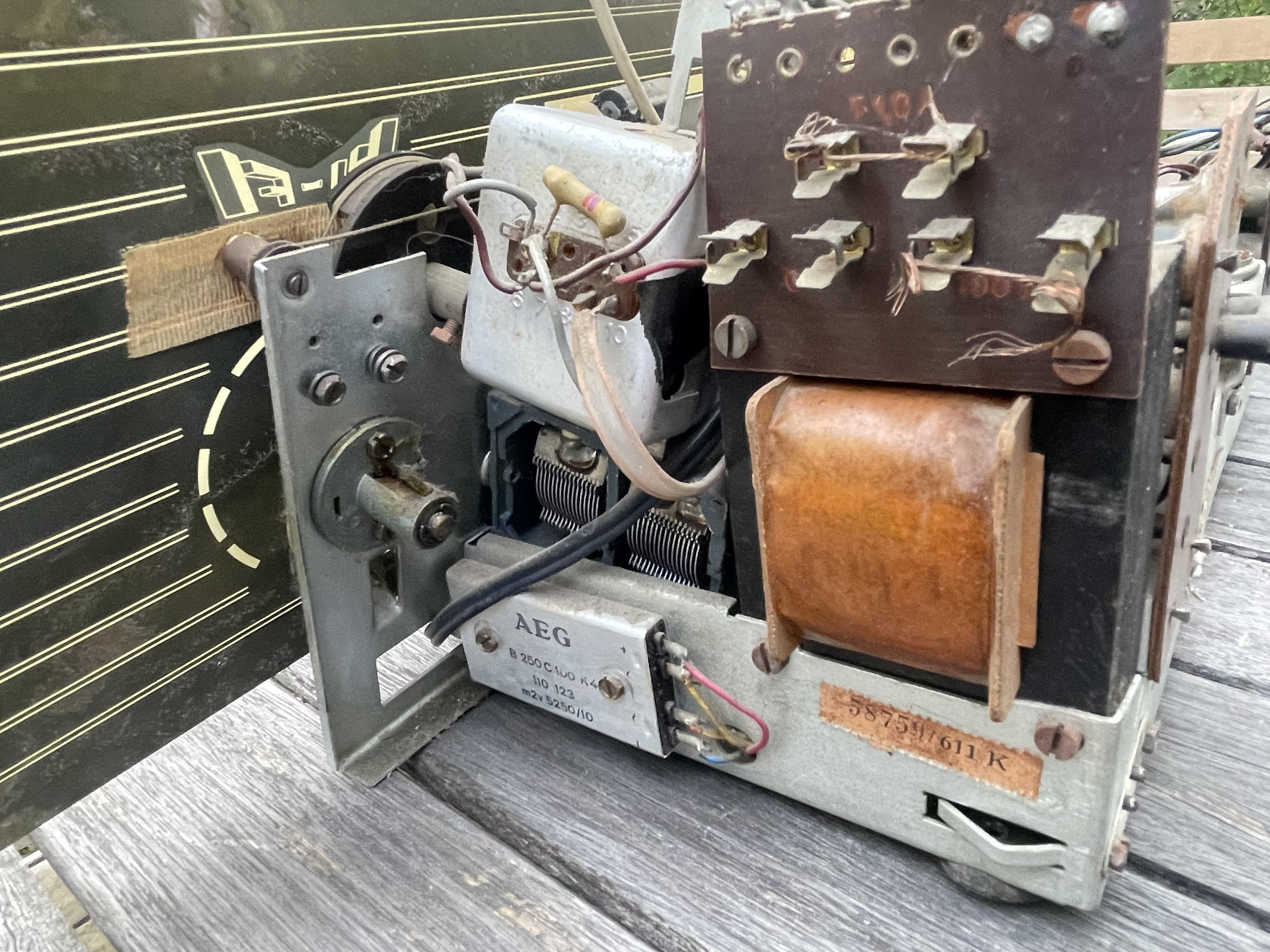

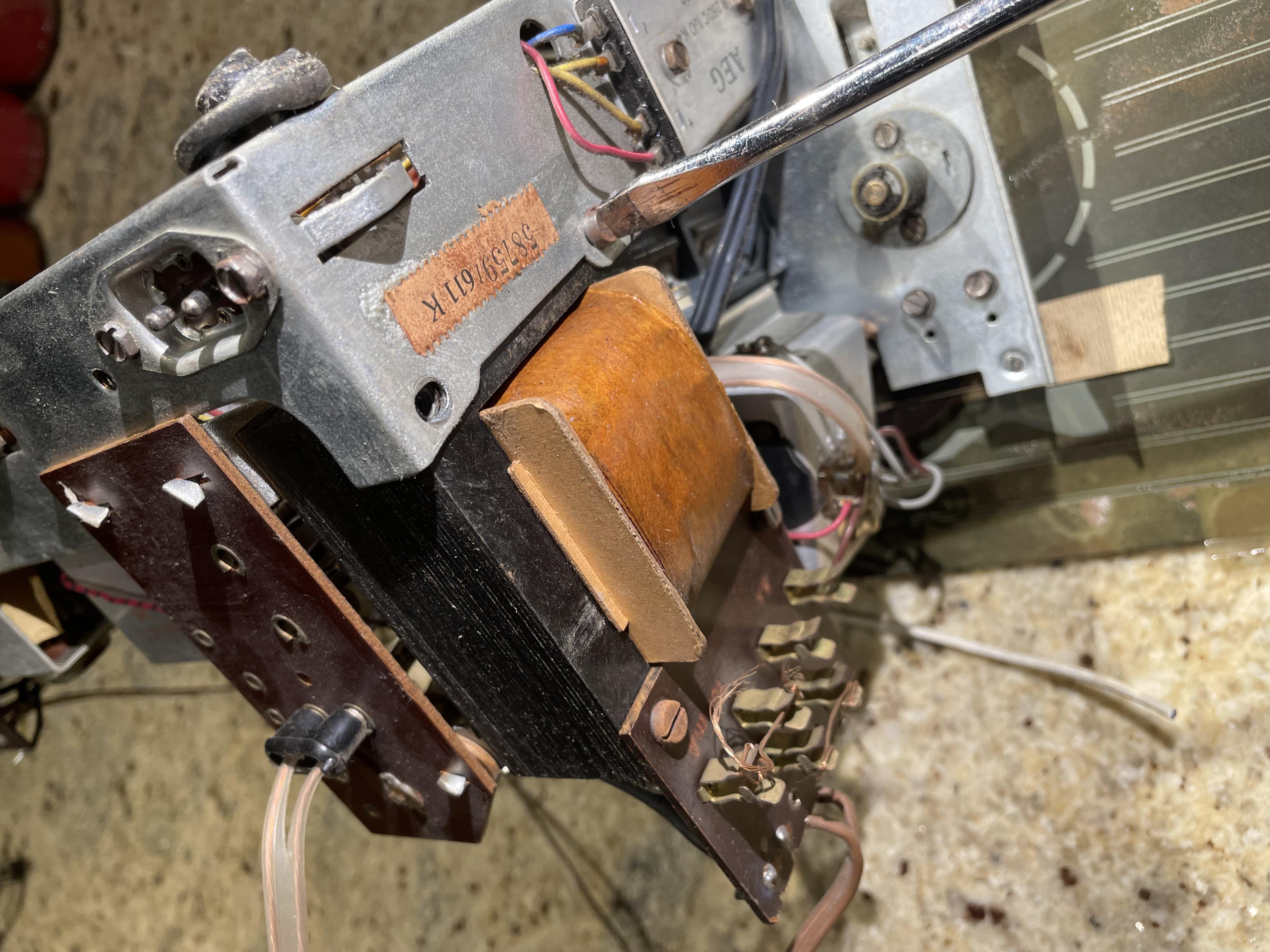

Remove the two output transformers and the power transformer from the donor chassis.
Drill and Cut All Holes and Install Chassis Parts
![tizphoneoct21 722.JPG](/proxy/?url=https://content.instructables.com/FUJ/6GAX/KUL8NKII/FUJ6GAXKUL8NKII.jpg&filename=tizphoneoct21 722.JPG)
![tizphoneoct21 726.JPG](/proxy/?url=https://content.instructables.com/FQ9/POK0/KUL8NLWJ/FQ9POK0KUL8NLWJ.jpg&filename=tizphoneoct21 726.JPG)
![tizphoneoct21 731.JPG](/proxy/?url=https://content.instructables.com/FO1/7N30/KUL8NLB2/FO17N30KUL8NLB2.jpg&filename=tizphoneoct21 731.JPG)
![tizphoneoct21 736.JPG](/proxy/?url=https://content.instructables.com/FRV/4LHD/KUL8NLB3/FRV4LHDKUL8NLB3.jpg&filename=tizphoneoct21 736.JPG)
![tizphoneoct21 737.JPG](/proxy/?url=https://content.instructables.com/FRW/MN8B/KUL8NLB5/FRWMN8BKUL8NLB5.jpg&filename=tizphoneoct21 737.JPG)
![tizphoneoct21 757.JPG](/proxy/?url=https://content.instructables.com/FWA/6B7Y/KUL8NLB6/FWA6B7YKUL8NLB6.jpg&filename=tizphoneoct21 757.JPG)
![tizphoneoct21 790.JPG](/proxy/?url=https://content.instructables.com/FUI/HAX9/KUL8NLJP/FUIHAX9KUL8NLJP.jpg&filename=tizphoneoct21 790.JPG)
![tizphoneoct21 775.JPG](/proxy/?url=https://content.instructables.com/F9W/29FL/KUL8NLJQ/F9W29FLKUL8NLJQ.jpg&filename=tizphoneoct21 775.JPG)
![tizphoneoct21 798.JPG](/proxy/?url=https://content.instructables.com/F2I/C77U/KUL8NLJR/F2IC77UKUL8NLJR.jpg&filename=tizphoneoct21 798.JPG)
![tizphoneoct21 809.JPG](/proxy/?url=https://content.instructables.com/FSR/LAR4/KUL8NLJS/FSRLAR4KUL8NLJS.jpg&filename=tizphoneoct21 809.JPG)

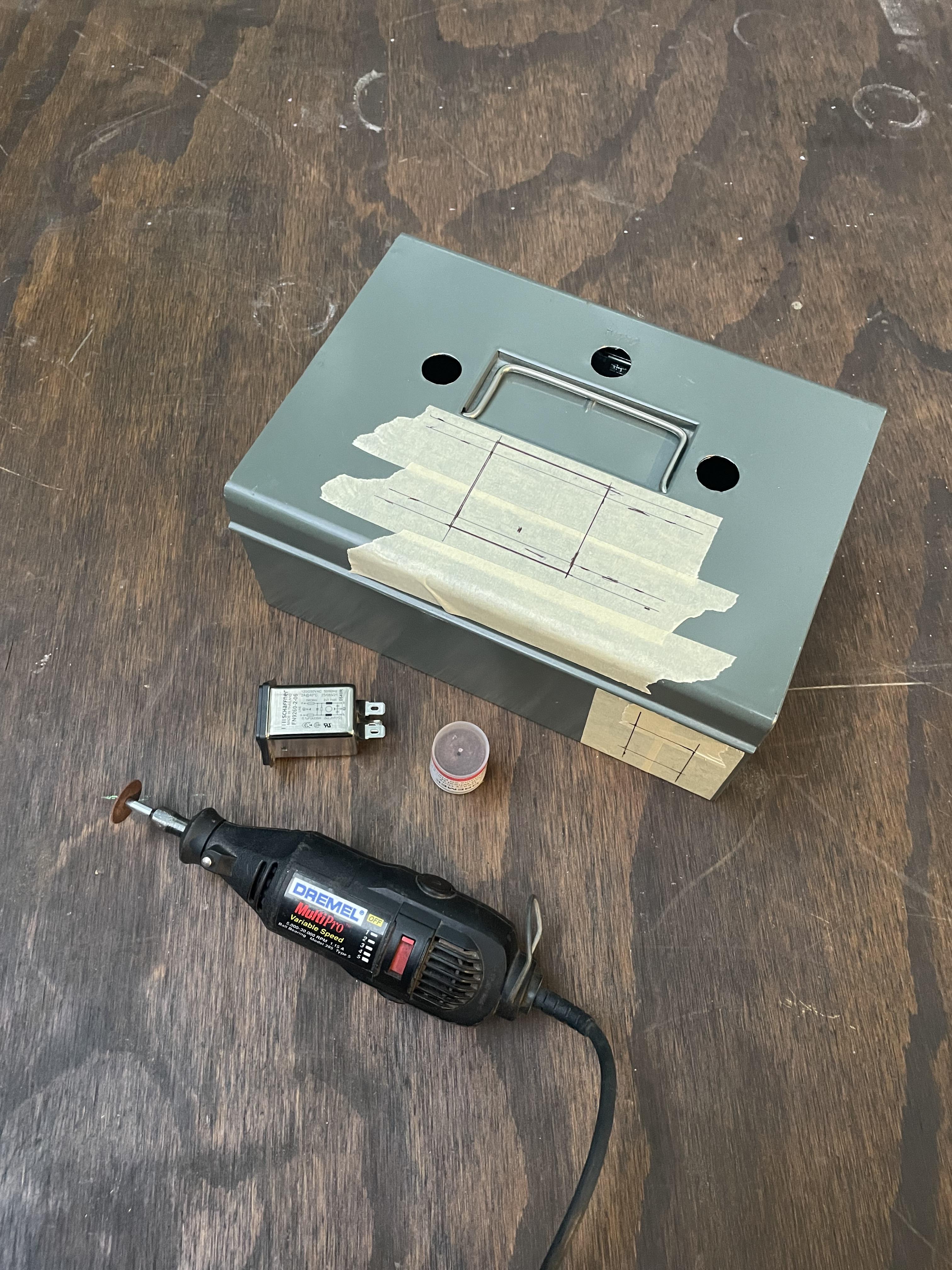

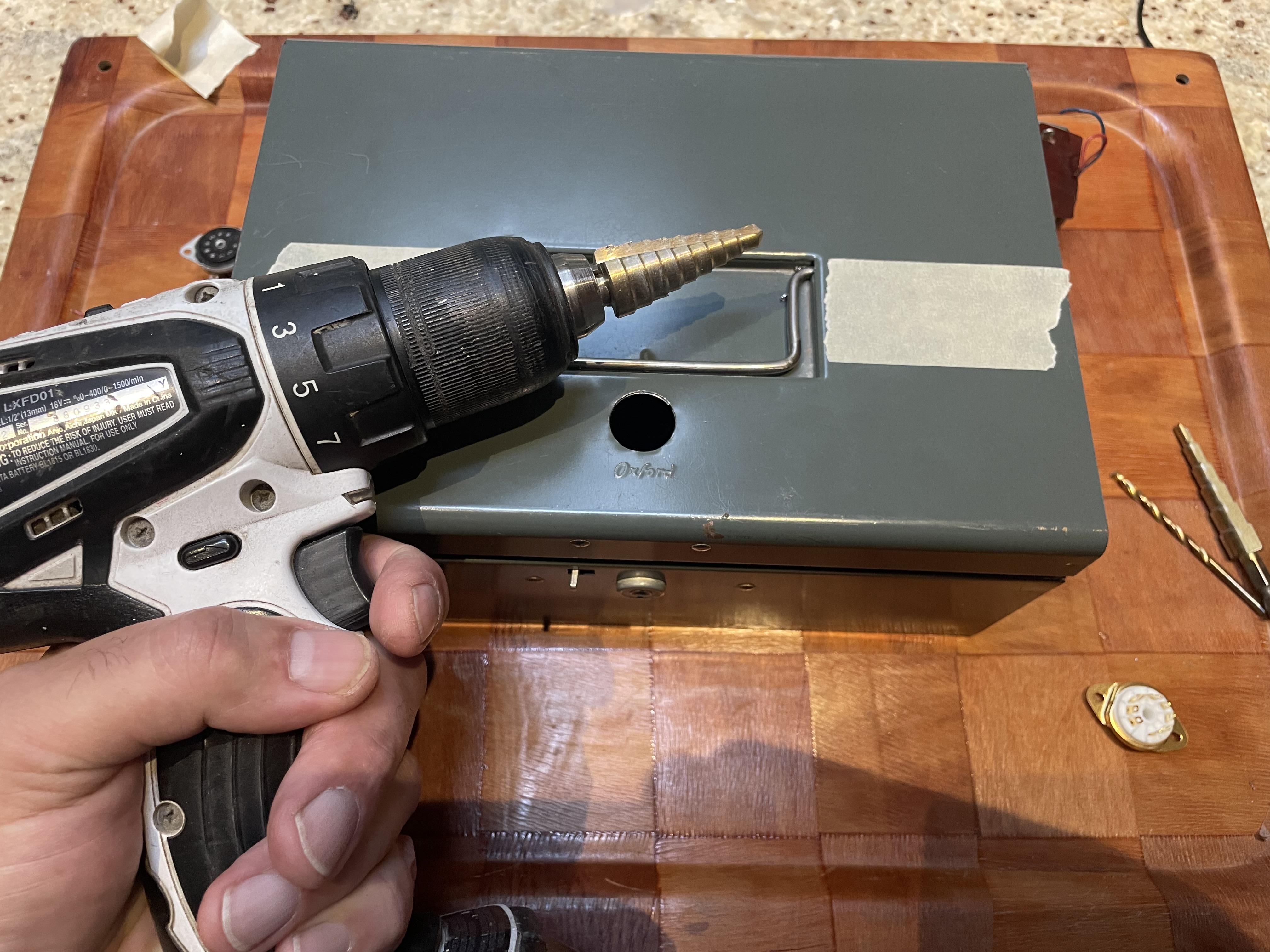

Mark your chassis for tube sockets, power transformer hole, power inlet hole, RCA inputs, speaker outputs, output transformer mounting screws and power switch. Make all required holes and install all components on the chassis. The amp now looks complete...
Install the Circuit
![tizphoneoct21 855.JPG](/proxy/?url=https://content.instructables.com/FQH/ATCR/KUL8NYLD/FQHATCRKUL8NYLD.jpg&filename=tizphoneoct21 855.JPG)
![tizphoneoct21 858.JPG](/proxy/?url=https://content.instructables.com/FDK/C1EA/KUL8NYNZ/FDKC1EAKUL8NYNZ.jpg&filename=tizphoneoct21 858.JPG)
![tizphoneoct21 861.JPG](/proxy/?url=https://content.instructables.com/FFT/B3YR/KUL8NYQD/FFTB3YRKUL8NYQD.jpg&filename=tizphoneoct21 861.JPG)
![tizphoneoct21 865.JPG](/proxy/?url=https://content.instructables.com/FYR/9Z7J/KUL8NYXQ/FYR9Z7JKUL8NYXQ.jpg&filename=tizphoneoct21 865.JPG)
![tizphoneoct21 878.JPG](/proxy/?url=https://content.instructables.com/FVL/QMPK/KUL8NZ2S/FVLQMPKKUL8NZ2S.jpg&filename=tizphoneoct21 878.JPG)
![tizphoneoct21 881.JPG](/proxy/?url=https://content.instructables.com/F16/OZHE/KUL8NZ2T/F16OZHEKUL8NZ2T.jpg&filename=tizphoneoct21 881.JPG)
![tizphoneoct21 890.JPG](/proxy/?url=https://content.instructables.com/FBF/JQ4R/KUL8NZ2X/FBFJQ4RKUL8NZ2X.jpg&filename=tizphoneoct21 890.JPG)
![tizphoneoct21 892.JPG](/proxy/?url=https://content.instructables.com/FU1/UXQ0/KUL8NZ5B/FU1UXQ0KUL8NZ5B.jpg&filename=tizphoneoct21 892.JPG)
![tizphoneoct21 897.JPG](/proxy/?url=https://content.instructables.com/F0R/PH9K/KUL8NZA4/F0RPH9KKUL8NZA4.jpg&filename=tizphoneoct21 897.JPG)
![tizphoneoct21 895.JPG](/proxy/?url=https://content.instructables.com/FK8/LPDK/KUL8NZGB/FK8LPDKKUL8NZGB.jpg&filename=tizphoneoct21 895.JPG)
![IMG_1171.jpg](/proxy/?url=https://content.instructables.com/FNQ/1REF/KUL8N03I/FNQ1REFKUL8N03I.jpg&filename=IMG_1171.jpg)

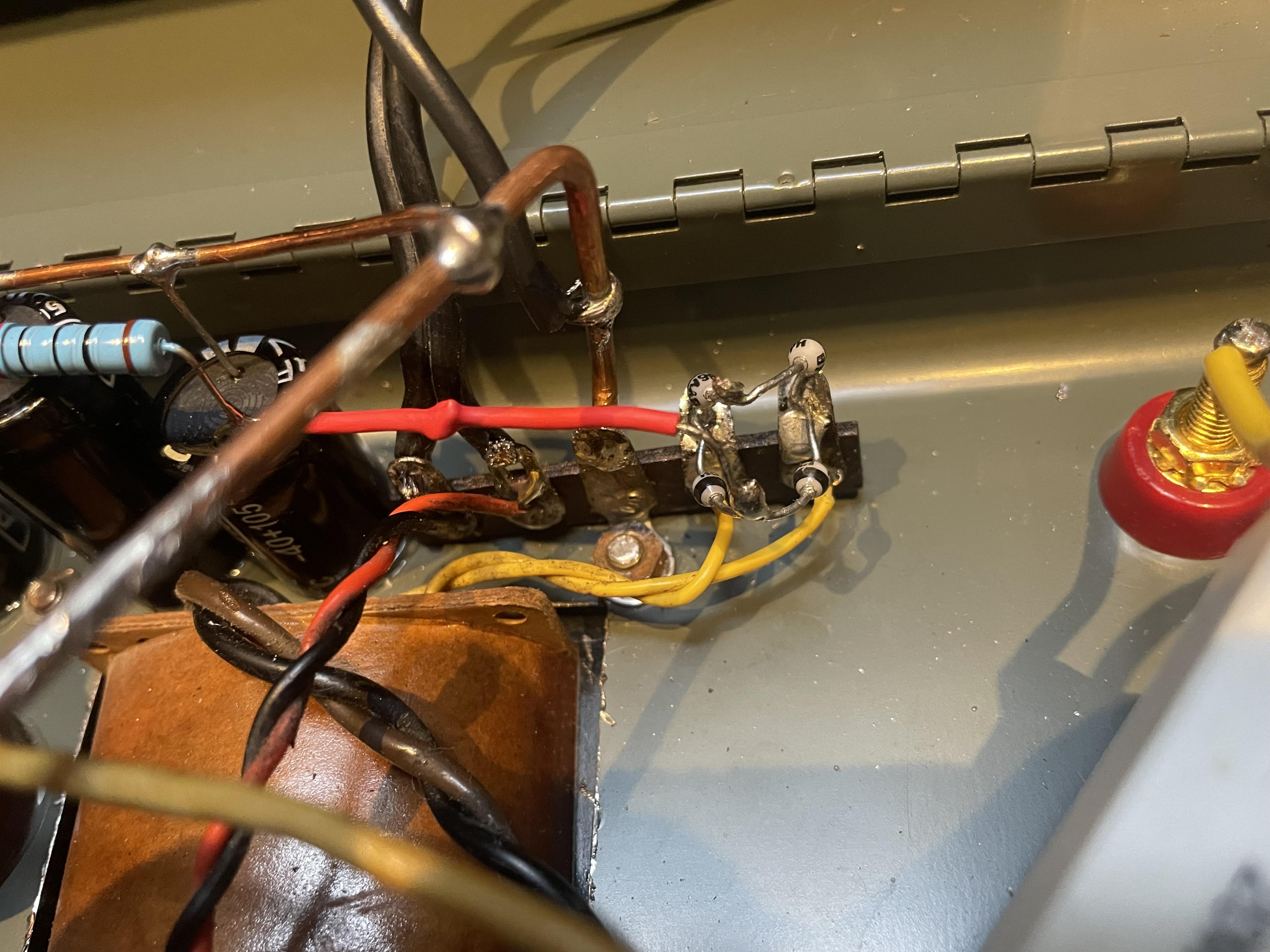

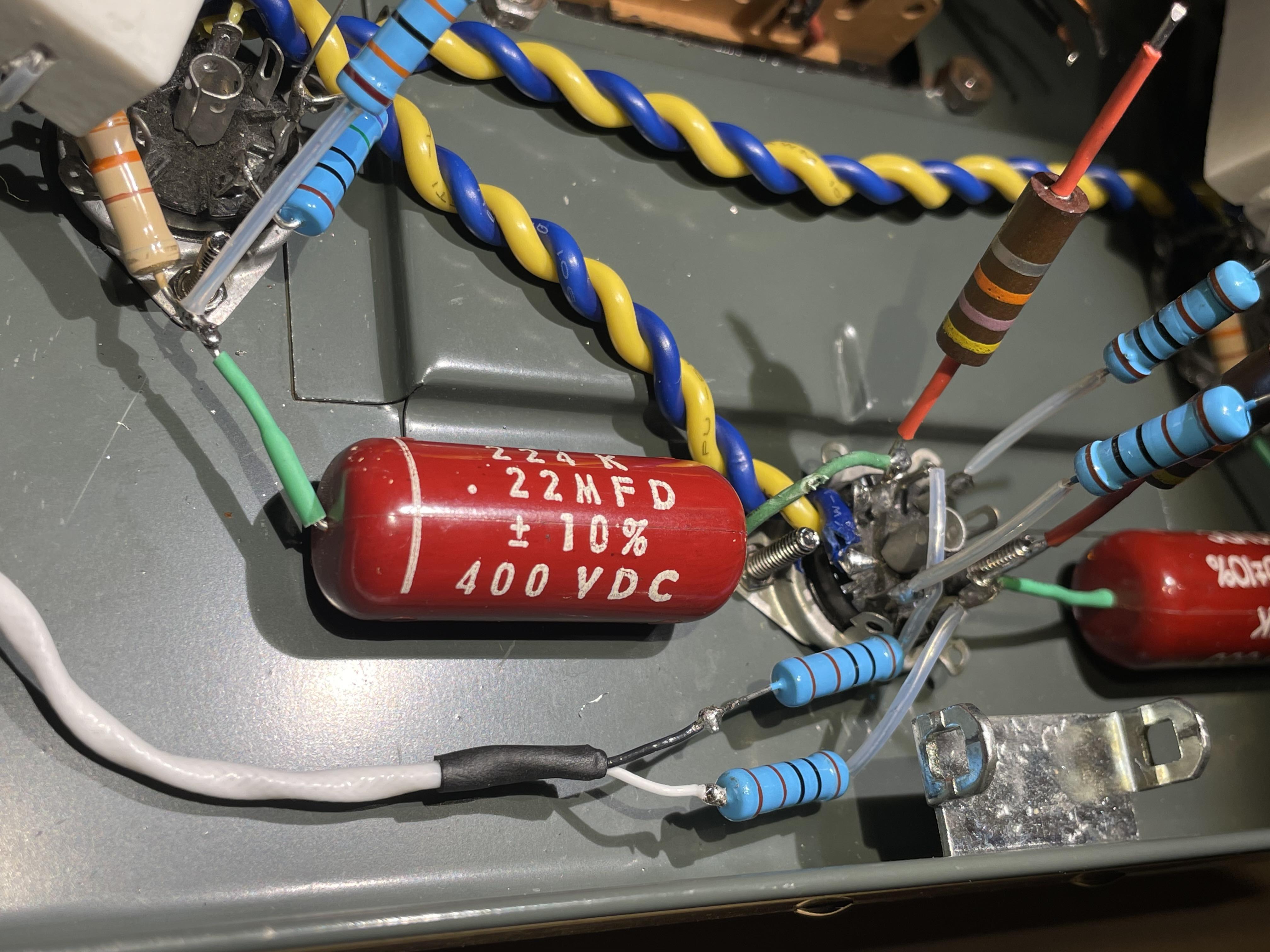

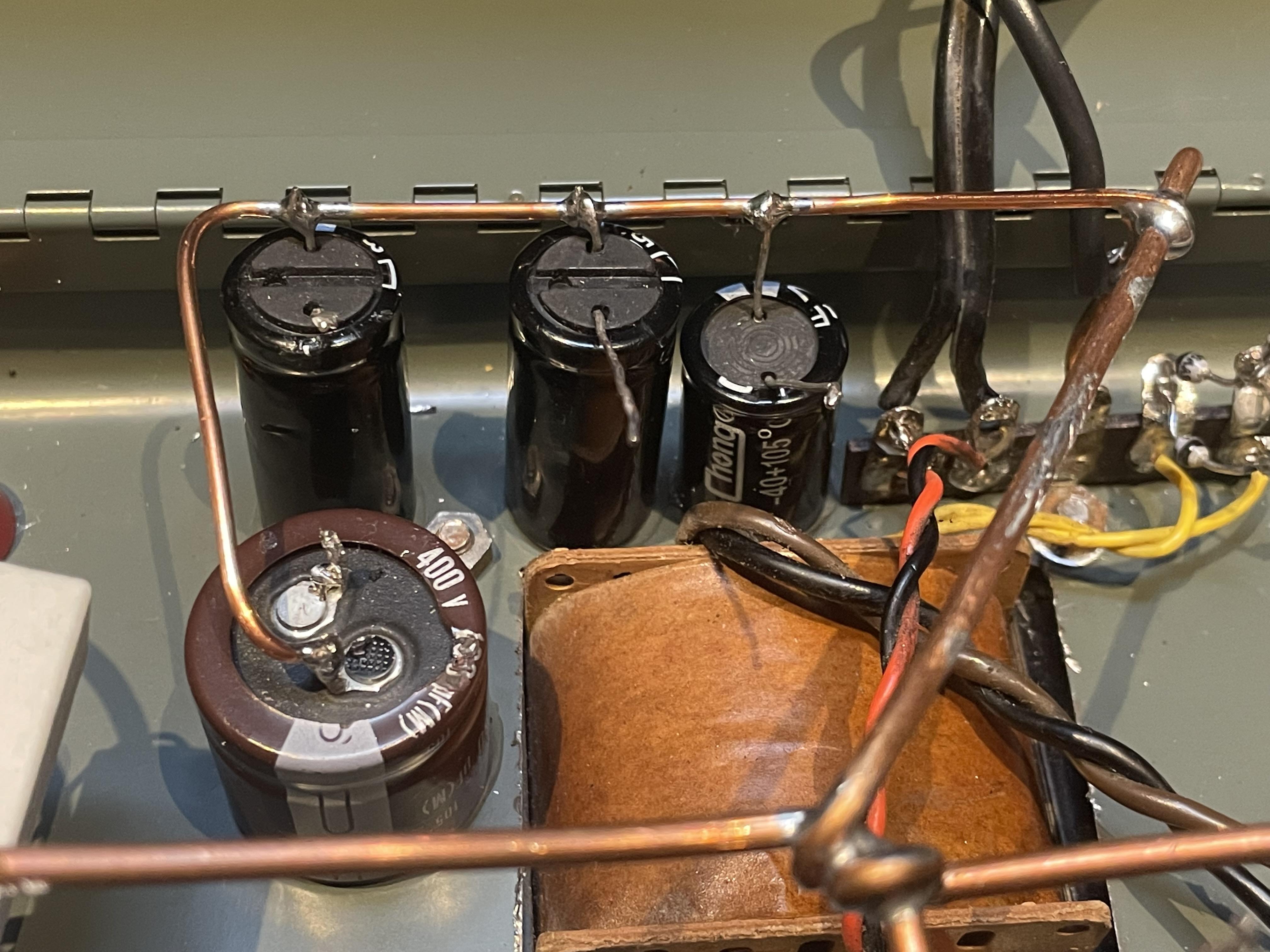

Install your chosen circuit into the chassis. I chose a different circuit from the one originally in the amp. The original amp used a pair of ECL86 tubes which have a triode and a pentode in one tube. The new amp uses a 6N1P-EV, 6922 or 6DJ8 preamp tube and 6P15P-EV or EL84 output tube on each channel.
Make sure that when the box is closed, there is no shorting of components due to the two halves coming together!
Test the Amplifier
![tizphoneoct21 903.JPG](/proxy/?url=https://content.instructables.com/FR1/QJHJ/KUL8O42H/FR1QJHJKUL8O42H.jpg&filename=tizphoneoct21 903.JPG)
![tizphoneoct21 900.JPG](/proxy/?url=https://content.instructables.com/FEU/0N52/KUL8O428/FEU0N52KUL8O428.jpg&filename=tizphoneoct21 900.JPG)
![tizphoneoct21 909.JPG](/proxy/?url=https://content.instructables.com/F1N/1UEQ/KUL8O44V/F1N1UEQKUL8O44V.jpg&filename=tizphoneoct21 909.JPG)
![tizphoneoct21 913.JPG](/proxy/?url=https://content.instructables.com/FFU/T6NZ/KUL8O47H/FFUT6NZKUL8O47H.jpg&filename=tizphoneoct21 913.JPG)
![tizphoneoct21 917.JPG](/proxy/?url=https://content.instructables.com/FV0/OXUB/KUL8O49V/FV0OXUBKUL8O49V.jpg&filename=tizphoneoct21 917.JPG)
![tizphoneoct21 925.JPG](/proxy/?url=https://content.instructables.com/FBU/IM74/KUL8O4CT/FBUIM74KUL8O4CT.jpg&filename=tizphoneoct21 925.JPG)
![tizphoneoct21 918.JPG](/proxy/?url=https://content.instructables.com/F4C/ACGS/KUL8O4GZ/F4CACGSKUL8O4GZ.jpg&filename=tizphoneoct21 918.JPG)
![IMG_1168.jpg](/proxy/?url=https://content.instructables.com/FRZ/NR8F/KUL8OP7L/FRZNR8FKUL8OP7L.jpg&filename=IMG_1168.jpg)

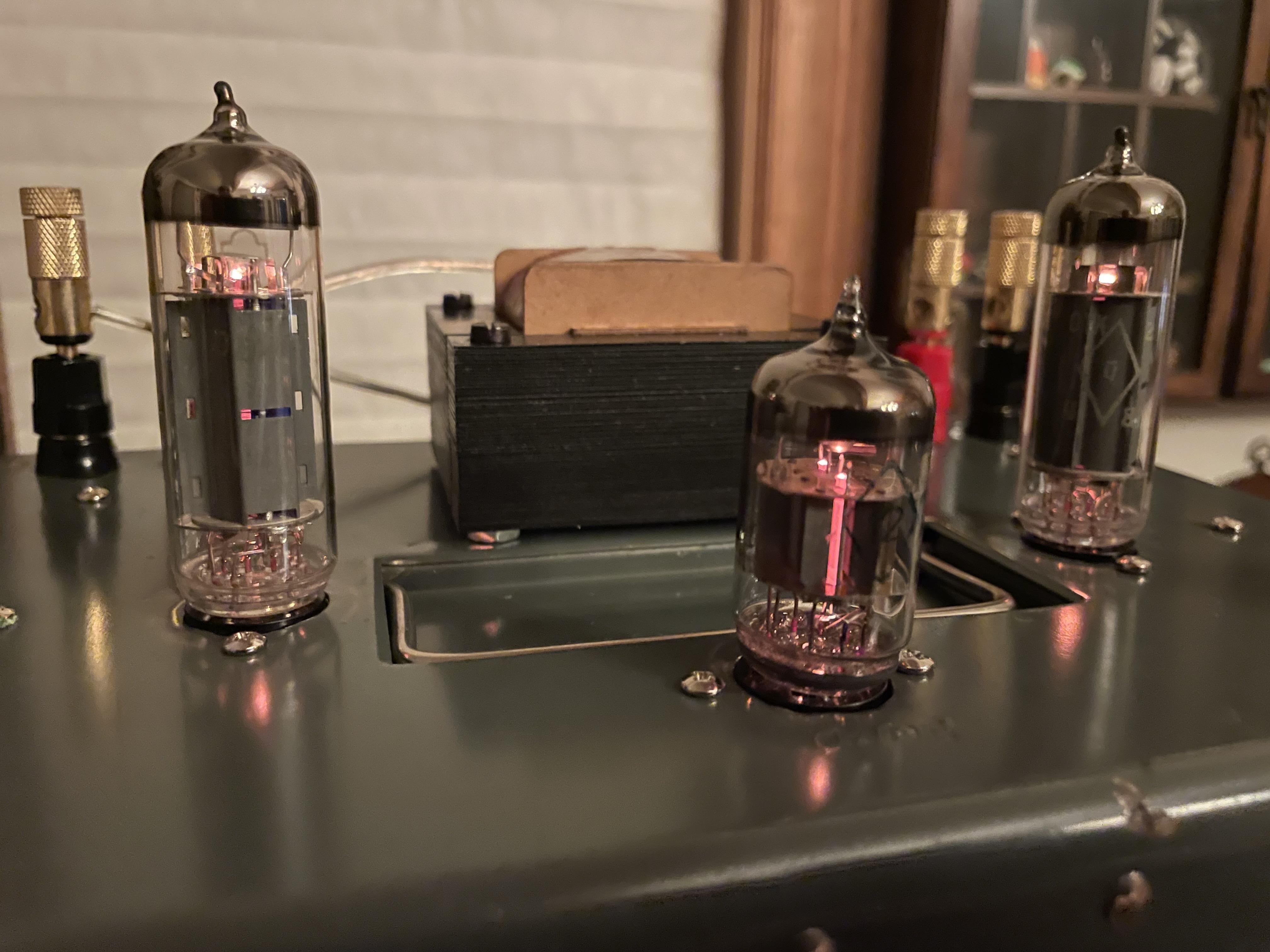

Test the amplifier using a dim bulb tester. A dim bulb tester is a must have for all electronics hobbyists. If you don't have one, look up the plans for one online and build one. In the event of a short, the bulb gets bright and saves the circuit from damage. The test showed no shorts, so I plugged the amp directly into a regular power outlet and took some measurements. The measured voltages were very close to those predicted by my PSUD II simulations. Please see the attached schematic for details. I plugged the amp into my living room system, and it sounds very good.
