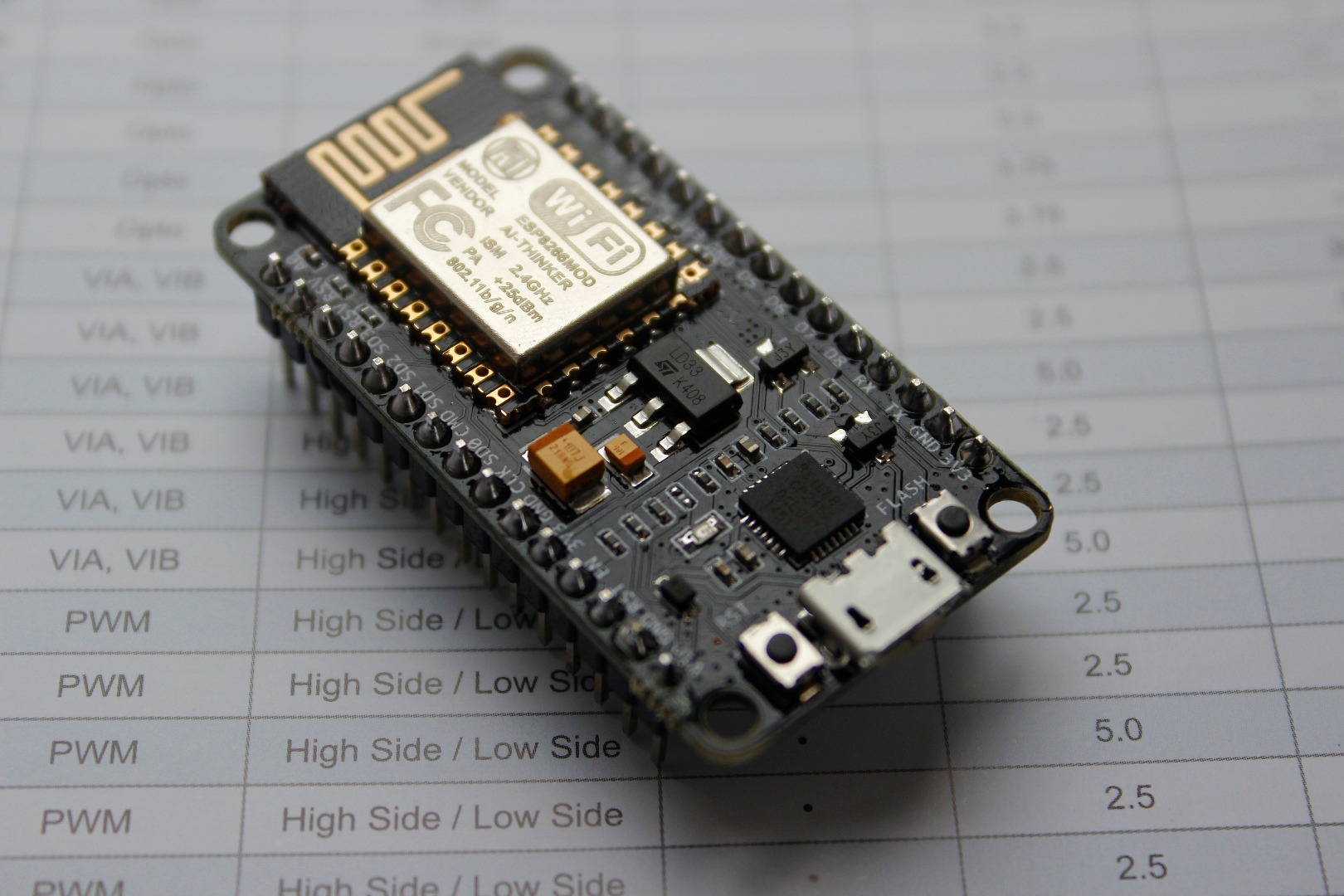

Steps to Setup Arduino IDE for NODEMCU ESP8266

In the below Instructable we will learn how to install Arduino IDE for ESP8266 so by the end of this Instructable we can run arduino code on ESP8266

Install Arduino IDE software from the link http://www.arduino.cc/en/main/software

After installing Arduino IDE icon is created on the Desktop as show in the figure

Click on the Icon to open the Arduino window as shown in the figure

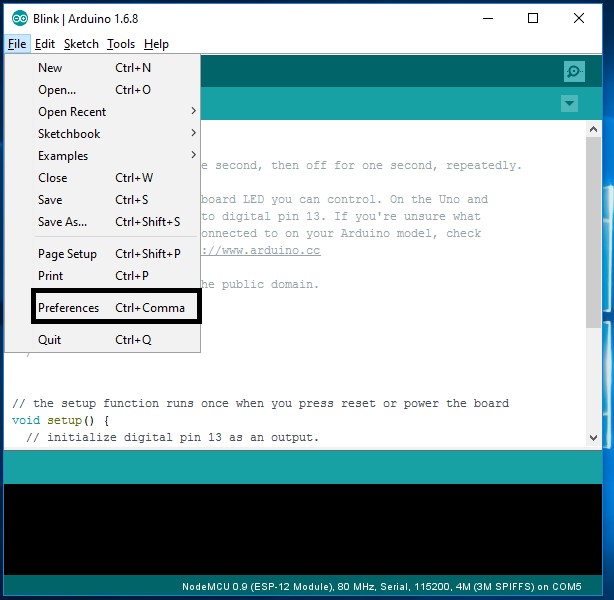

Open the File and click on the Preferences as shown in the figure

In the Additional Boards Manager enter below URL.

http://arduino.esp8266.com/stable/package_esp8266com_index.json

As highlighted in the figure and enter OK.

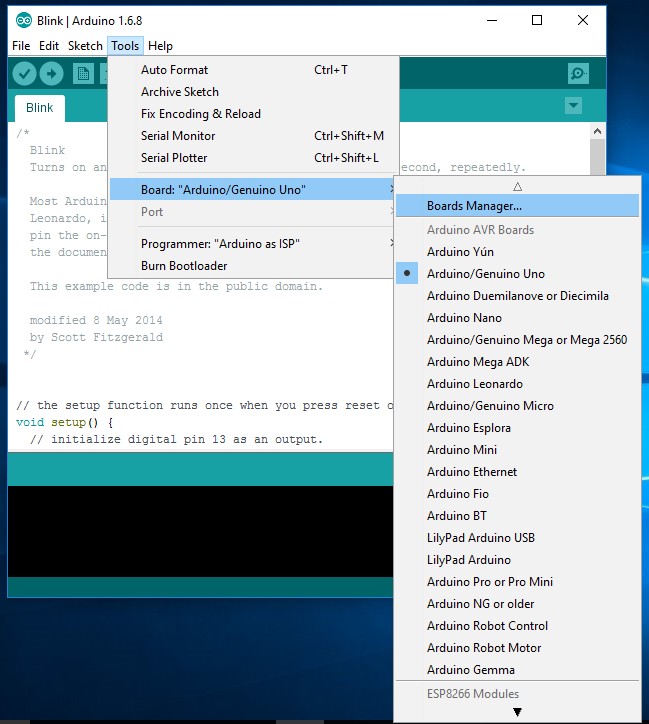

Now open the tools in that select Board: “Arduino/Genuino Uno” and click on the Boards Manager as shown in the figure

The Boards Manager window opens, scroll the window page to bottom till you see the module with the name ESP8266. Once we get it, select that module and select version and click on the Install button. When it is installed it shows Installed in the module as shown in the figure and then close the window.

To run the esp8266 with Arduino we have to select the Board: “Arduino/Genuino Uno” and then change it to NodeMCU 1.0 (ESP-12E Module) or other esp8266 modules depending on what you have .This can be done by scrolling down, as shown in the figure

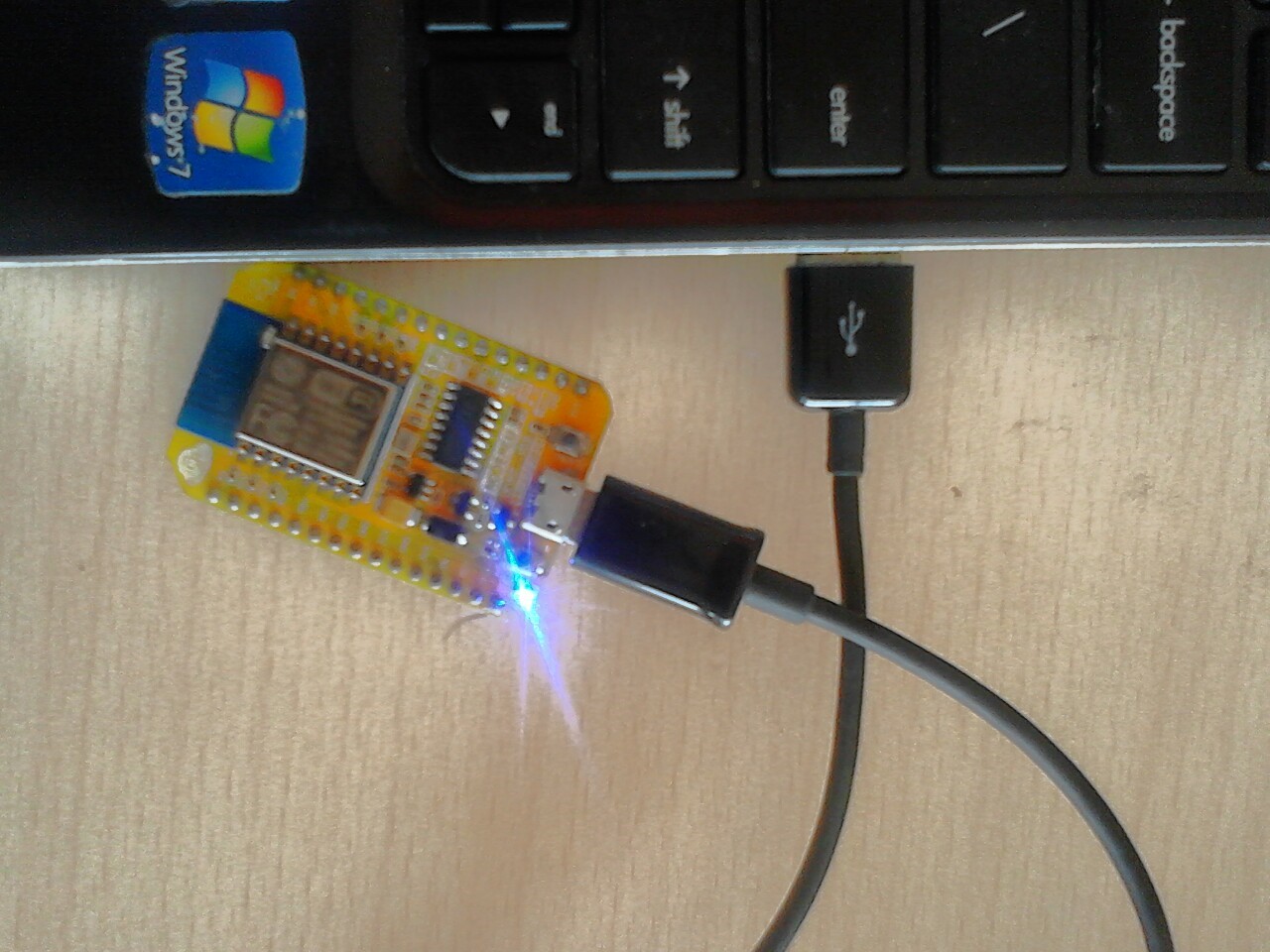

Now Let’s connect the ESP8266 module to your computer through USB cable as shown in the figure. When module is connected to the USB, COM port is detected eg: here COM5 is shown in the figure.

Now open the File tab in that go to the Examples in that enter into Built-in example, go to 01.Basics and click on Blink to open the window

The Blink example will open on a new window , click on tools to select the port: “COM” based on which esp8266 module is connected to your respected COM port of the computer. To select COM port refer previous steps.

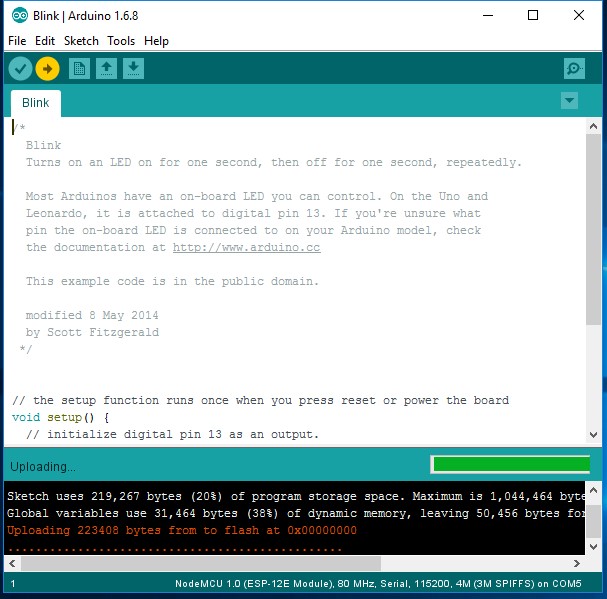

On the blink example code change all number 13 to number 16 and then click on the right arrow shown in the figure to upload the program to the module. This will start blinking the on board led on the nodemcu module

void setup()

{
// initialize digital pin 16 as an output.

pinMode(16, OUTPUT);

}

// the loop function runs over and over again forever

void loop()

{

delay(10);

digitalWrite(16, HIGH); // turn the LED on (HIGH is the voltage level)

delay(1000); // wait for a second

digitalWrite(16, LOW); // turn the LED off by making the voltage LOW

delay(1000); // wait for a second

}

In case you need to add the libraries to the Arduino follow the example path is shown in the figure i.e C:\Users\Armtronix\Documents\Arduino\libraries. Enter into the libraries folder then paste the file in that as shown below.

https://github.com/esp8266/Arduino

https://github.com/armtronix/Wifi-Triac-SSR/tree/master/Arduino_Code/SSR/SSR_WiFiSwitch_PIR_Sensor
