Step-By-Step Guide to Create a Counter Using 74LS90

74ls90 in counters.jpg

Creating a counter using a 74LS90 integrated circuit (IC) can be an exciting project for electronics enthusiasts. Whether you're new to the realm of electronics or a seasoned hobbyist looking for a quick project, this guide will take you through every step of the way.

Supplies

  • A Breadboard
  • Jumper Wires
  • A 9V Battery
  • LEDs (Light Emitting Diodes)
  • Resistors (10K ohms)
  • A 74LS90 IC

Understanding the 74LS90 IC

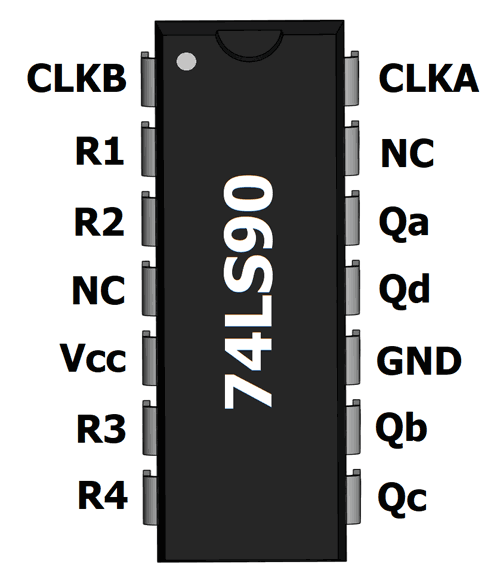

74ls90 in counters.png

Before you start plugging in wires and components, it's essential to understand what you're working with. The 74LS90 is a 4-bit decade counter, which means it can count from 0 to 9 (decade counter mode) or from 0 to 15 (binary counter mode). The IC has 14 pins, and each pin serves a specific function in the circuit.

Preparing the Breadboard


Place your breadboard on a flat surface, ensuring that it's clean and devoid of any metal particles that might cause short circuits. Once your workspace is ready, organize your components, so they're within easy reach.

Inserting the 74LS90 IC Into the Breadboard

Carefully insert the 74LS90 IC into the breadboard. Ensure the pins go into the right slots without bending. Usually, there's a small notch or dot on the IC, indicating pin 1; keep this in mind when placing it.

Wiring the Circuit

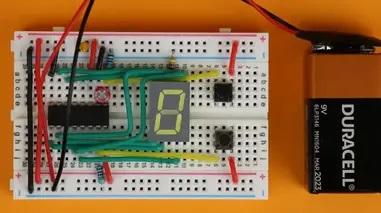

Contador 74LS90 en BCD | utsource

Now comes the fun part—wiring the circuit. Here are the connections you'll need to make:

  1. Connect pin 14 (Vcc) of the 74LS90 IC to the positive terminal of your 9V battery. This pin is for power supply.
  2. Connect pin 7 (GND) to the negative terminal of your battery for ground.
  3. Connect pin 1 (Reset A) and pin 2 (Reset B) to ground. These pins are used to reset the counter.
  4. Connect an LED to pin 12 (Output A), another to pin 9 (Output B), another to pin 8 (Output C), and the last one to pin 11 (Output D). These pins give the output count.
  5. Connect a 10K ohm resistor from Vcc to pin 14 and pin 7 to ground. These resistors act as pull-up and pull-down resistors.

Powering Up the Circuit

Once your connections are in place, double-check to ensure everything is correctly wired. After confirming, connect your 9V battery to power up the circuit.


Testing the Counter

When you power up the circuit, the LEDs connected to the output pins should light up sequentially, indicating the counter is working. If the LEDs aren't lighting up as expected, refer back to the troubleshooting section for guidance.

Celebrate Your Success

Congratulations, you've built a counter using a 74LS90 IC! You can now explore more complex projects and perhaps even incorporate this counter into other systems.

And that wraps up our step-by-step guide! Pretty straightforward, right? If you follow these steps carefully, you'll have a fully functional counter up and running in no time. Happy tinkering!


Bonus: Troubleshooting Tips

If things aren't working as they should, don't fret. Here are some common troubleshooting steps:

  1. Check the Wiring: The most common issue is usually incorrect or loose wiring.
  2. Check the IC Orientation: Make sure the IC is placed correctly on the breadboard.
  3. Check the Battery: Ensure it has adequate voltage.
  4. Check the LED: Make sure it's working by connecting it directly to the battery.

And there you go! Feel free to go back and tweak the circuit or expand it for more advanced applications.
