Steering Wheel Shop Clock

I needed a clock in my garage/shop, since I had an extra steering wheel just laying around I thought it would be the perfect candidate to convert into a time keeper.

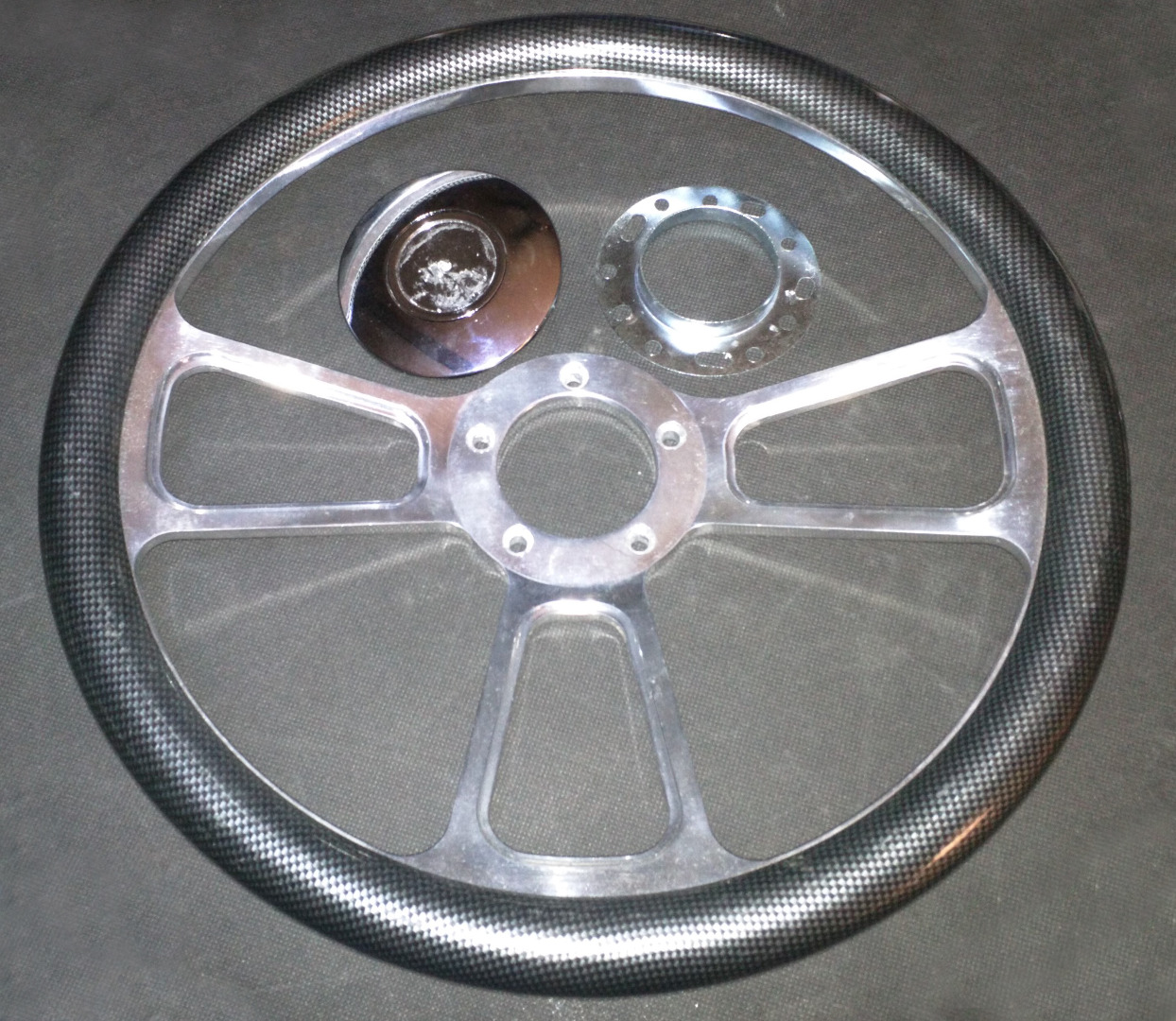

I started off by removing the adapter hub from the steering wheel, That's when I noticed something was broken off in one of the hex screw heads... yep an old hex head wrench tip broken off inside, I guess that's why Dave gave it to me. Thanks anyway Dave!

The clockworks wouldn't completely fit into the hub assembly, so I took it apart to see what I could do to make it smaller and found out that about 1/2 inch of the top-most portion of the clockwork's case was completely empty...

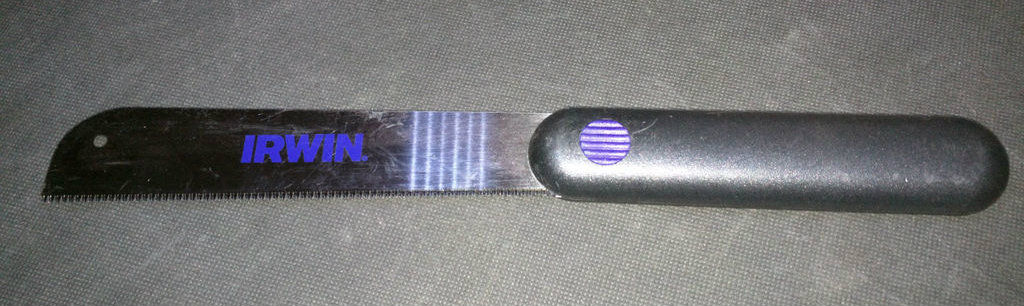

So I used a hand saw and cut off the little bit that was too big. Perfectly centered. nice fit now.

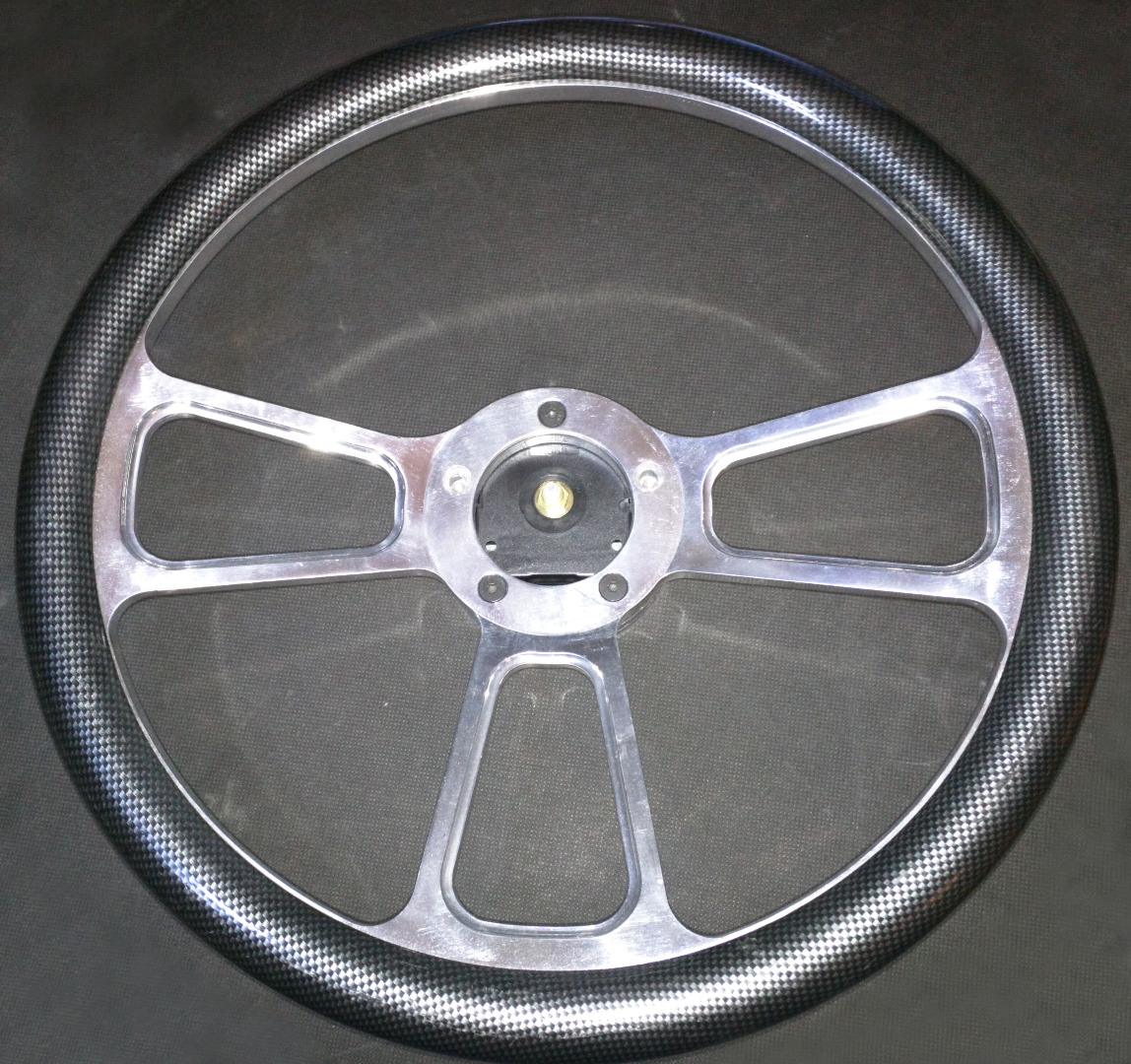

Take the horn button and corresponding hardware off, put aside. Screw the hub/clockwork assembly to the wheel now, I only used 3 screws because that's all you need.

Take the horn button mounting bracket and trace it's circumference onto a piece of leather, carefully cut your freshly drawn circle out, make a hole in the center of the leather big enough for the clock's shaft to fit through.

To finish off the leather, I used 400 grit sand paper and some bees wax to darken it, I placed the leather on a cutoff wheel adapter and used it with my drill to spin the leather piece against the sandpaper then spun the leather on the bees wax on a block if wood to polish the wax.

I fit the leather piece over the clock hand shaft ( is that what it's called ? ) and used a countersunk Washer in place of the brass nut to hold the leather in place, replace the hands, set the time, wipe off your dirty fingerprints and you're done.

Thanks for stopping by, don't forget to throw a vote my way if you enjoyed this ible, have a great day.
