This project uses a blue water bottle with the bottom cut out for a lampshade and standard plumbing fittings for the base. It casts a lovely blue light with some direct light reflecting off the table top. It has an inline dimmer switch. It uses a bulb that has LED's but is made to resemble a squirrel cage bulb. If you prefer, you can easily swap out an incandescent squirrel cage bulb or even a straight long (fishtank) bulb.
Parts and Tools
- Tools used
- screwdriver for the inline dimmer switch
- butane torch
- ice-water bucket
- lazy susan turn-table (optional but helpful)
- bottle-cutting jig
- wire cutters
- drill with 1/4 inch metal bit and sanding disk with 60, 150, 220 grit or higher sanding paper
- Materials
- plug and cord
- inline dimmer switch (optional)
- 1/2 plumbing fittings (create your own configuration). Mine used mostly 3" for the legs and for the uprights a total of 14" but you will have to adapt it to your own bottle's height
- 1/4 inch threaded pipe for the stem going into the bottle. Again, the length will depend on your bottle. Mine was 2 1/2 inches.
- 1/2 to 1/4 inch reducer
- two or more rubber washers for the top of the lamp socket to cushion it against the bottle
- lamp socket with 1/4 inch base
- Ikea LED Squirrel Cage Light bulb
Cut the Bottle
![2018-01-27_14-21-57_614.jpeg](/proxy/?url=https://content.instructables.com/FW5/1BMI/JCUUHB36/FW51BMIJCUUHB36.jpg&filename=2018-01-27_14-21-57_614.jpeg)
![2018-01-27_14-22-00_151.jpeg](/proxy/?url=https://content.instructables.com/F4U/D0F0/JCUUHB3A/F4UD0F0JCUUHB3A.jpg&filename=2018-01-27_14-22-00_151.jpeg)
![2018-01-27_14-22-05_159.jpeg](/proxy/?url=https://content.instructables.com/F3W/3OLV/JCUUHB3F/F3W3OLVJCUUHB3F.jpg&filename=2018-01-27_14-22-05_159.jpeg)
![2018-01-27_14-22-09_331.jpeg](/proxy/?url=https://content.instructables.com/FJT/YG4B/JCUUHB4L/FJTYG4BJCUUHB4L.jpg&filename=2018-01-27_14-22-09_331.jpeg)
![2018-01-27_14-22-53_369.jpeg](/proxy/?url=https://content.instructables.com/FQ0/FRY3/JCUUHB4O/FQ0FRY3JCUUHB4O.jpg&filename=2018-01-27_14-22-53_369.jpeg)
![2018-01-27_14-24-04_911.jpeg](/proxy/?url=https://content.instructables.com/F3Z/E76G/JCUUHB4R/F3ZE76GJCUUHB4R.jpg&filename=2018-01-27_14-24-04_911.jpeg)
![2018-01-27_14-26-18_783.jpeg](/proxy/?url=https://content.instructables.com/FID/KLG6/JCUUHB51/FIDKLG6JCUUHB51.jpg&filename=2018-01-27_14-26-18_783.jpeg)
![2018-01-27_14-26-14_182.jpeg](/proxy/?url=https://content.instructables.com/FPZ/3P1G/JCUUHB4X/FPZ3P1GJCUUHB4X.jpg&filename=2018-01-27_14-26-14_182.jpeg)
![2018-01-27_14-27-14_461.jpeg](/proxy/?url=https://content.instructables.com/FU2/CJBQ/JCUUHB53/FU2CJBQJCUUHB53.jpg&filename=2018-01-27_14-27-14_461.jpeg)
![2018-01-27_14-30-30_885.jpeg](/proxy/?url=https://content.instructables.com/FS5/CVZ7/JCUUHB6C/FS5CVZ7JCUUHB6C.jpg&filename=2018-01-27_14-30-30_885.jpeg)
![2018-01-27_14-30-37_925.jpeg](/proxy/?url=https://content.instructables.com/F94/M8JC/JCUUHB6F/F94M8JCJCUUHB6F.jpg&filename=2018-01-27_14-30-37_925.jpeg)

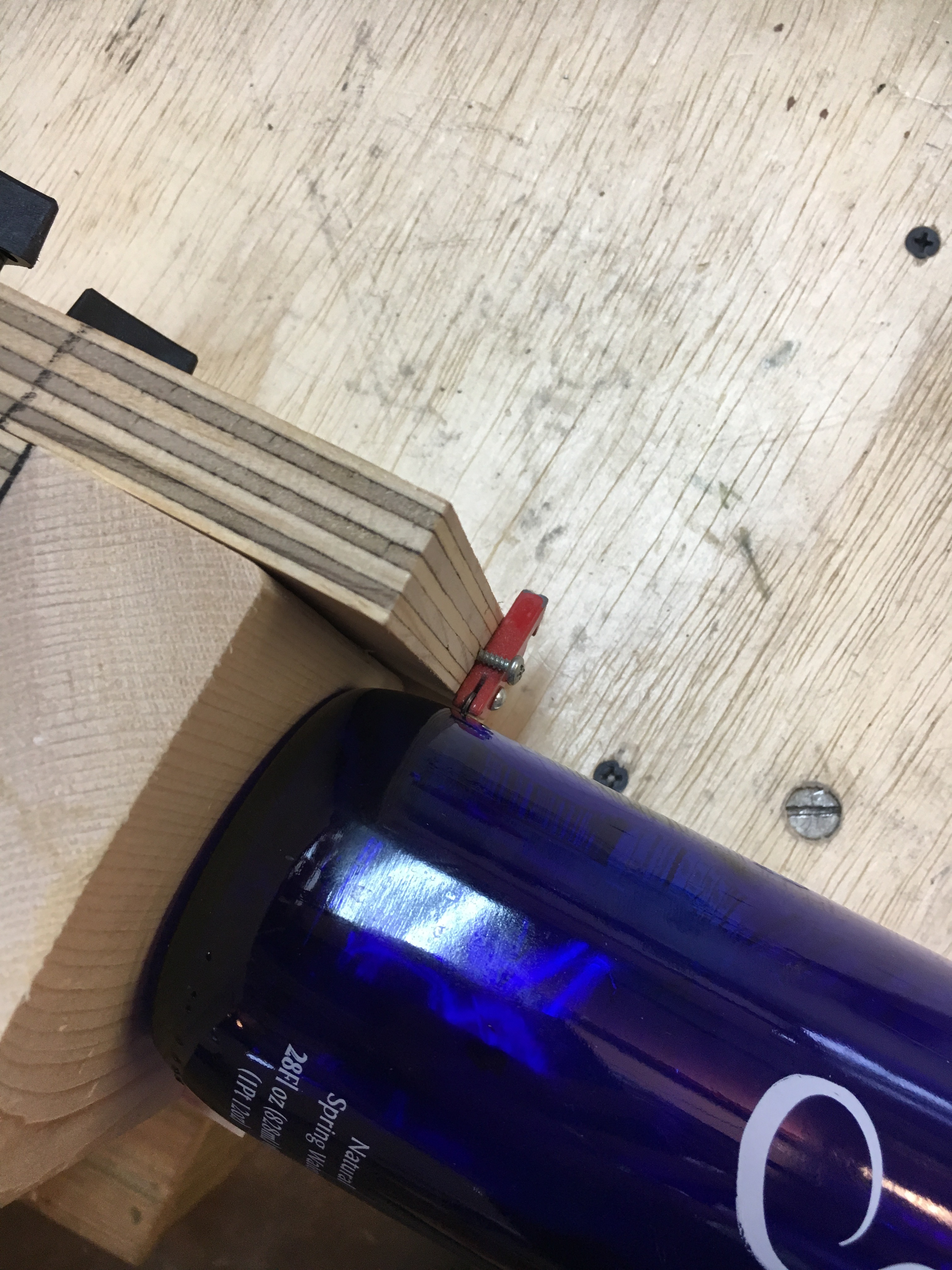

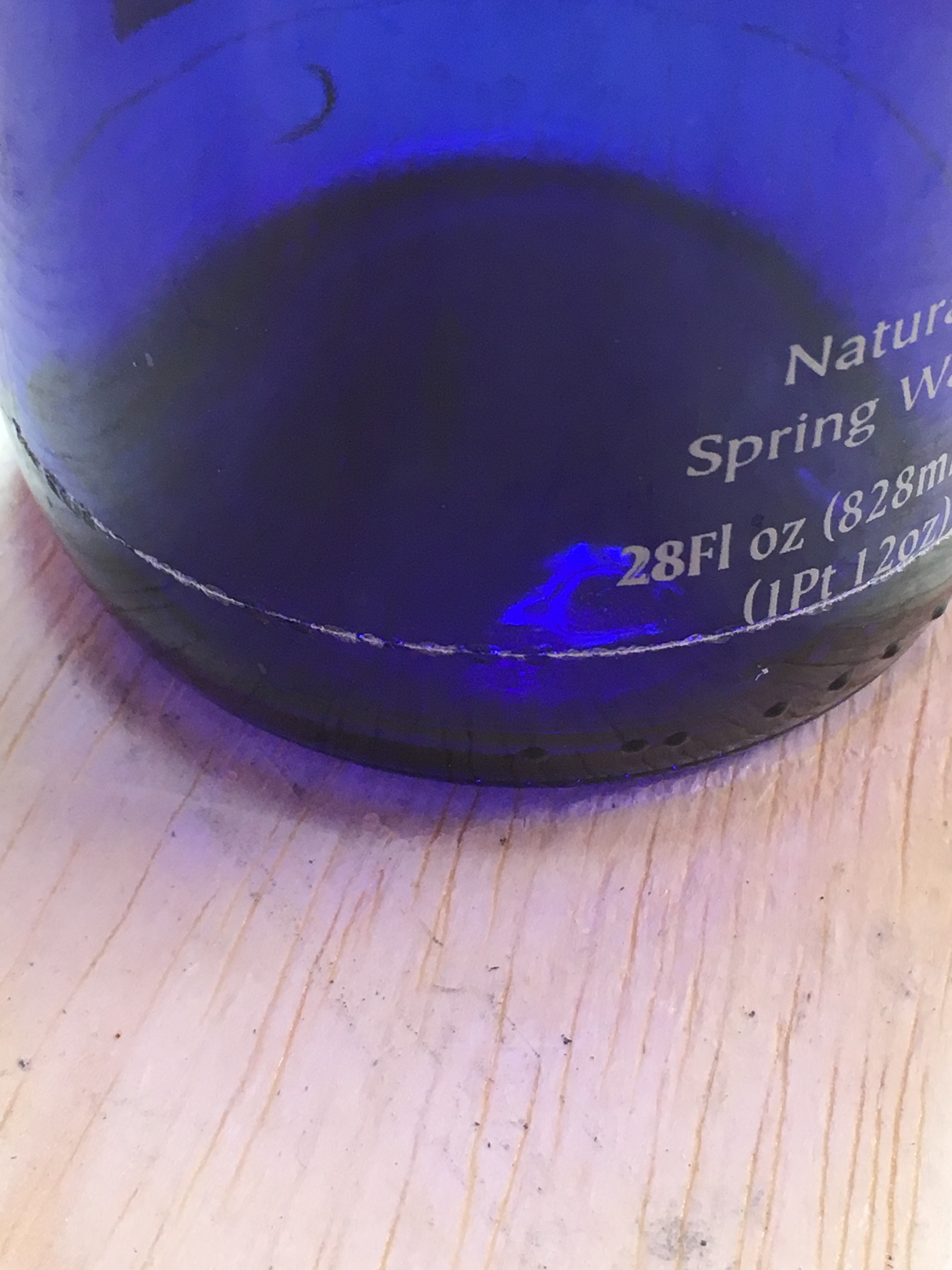

- First score the bottle using a bottle cutter. There are a lot of different bottle cutting jigs. You can see mine. It is based on a design I saw here on Instructables.
- Fill a bucket with 5 inches of ice water
- use a butane torch to gently heat the bottle but turning it whilst holding the torch about 1 inch from the glass. You will begin to see the scoring whiten
- Plunge into the ice water
- Gently tap it on the side

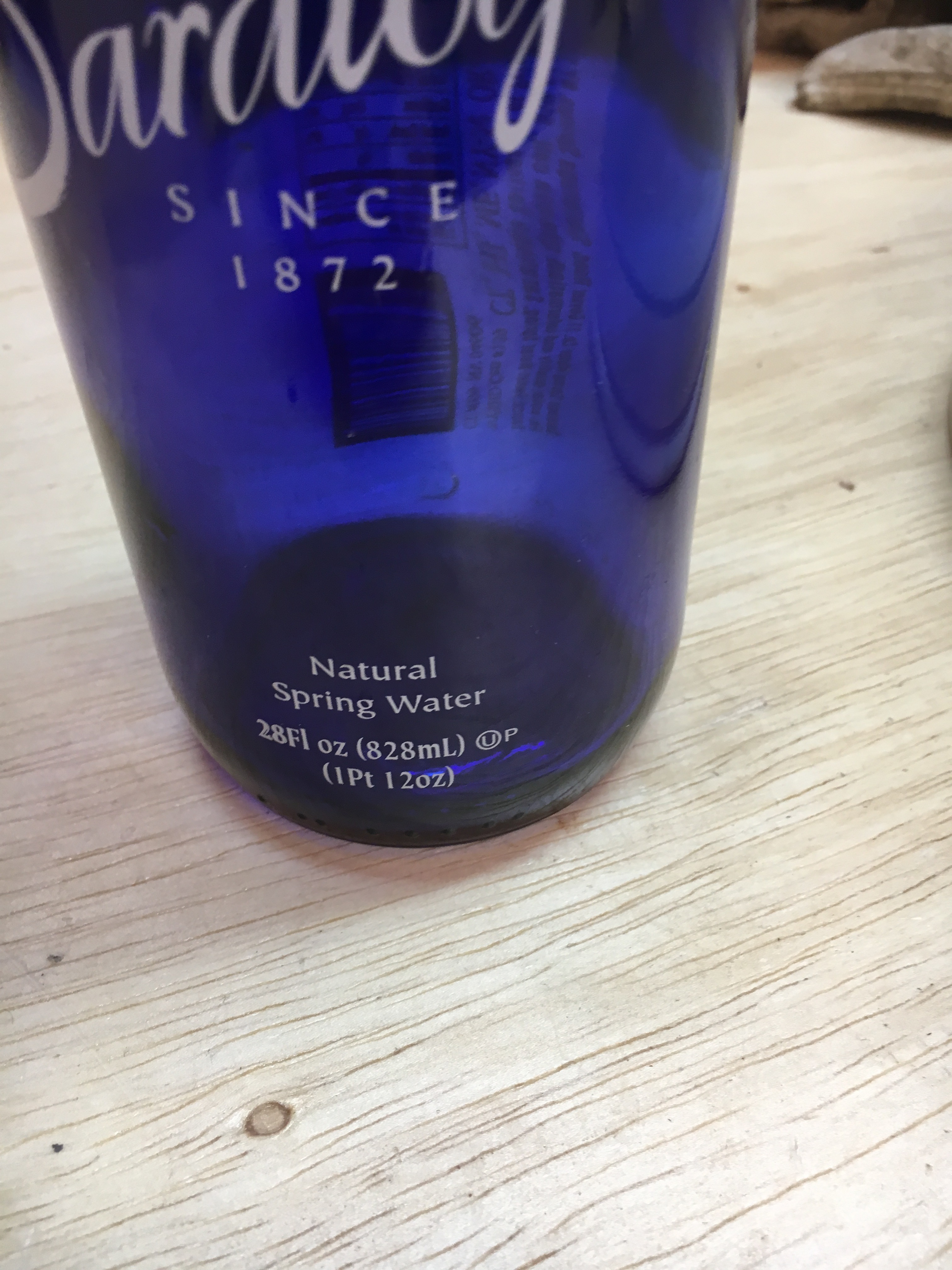

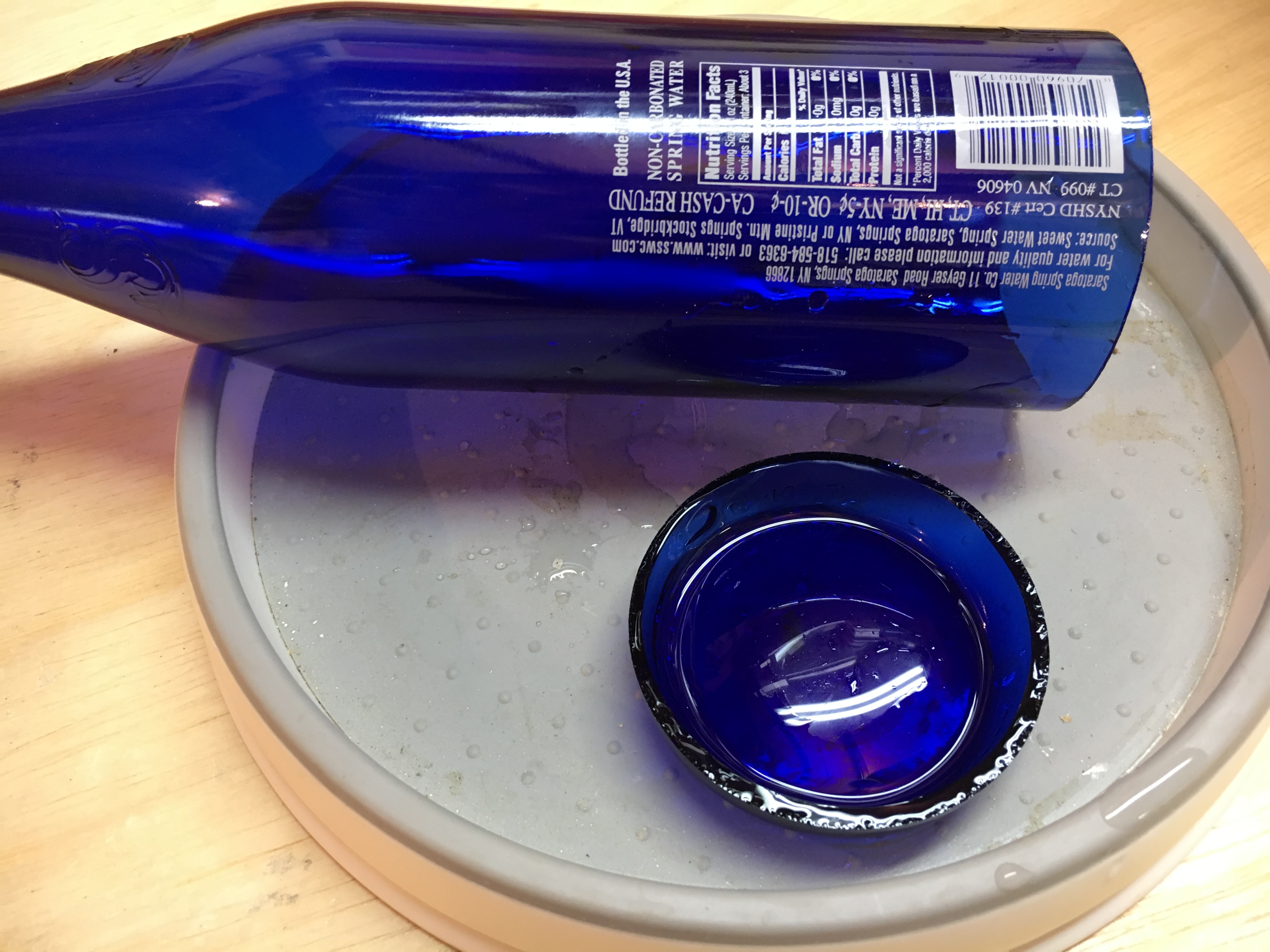

- Keep repeating steps 3-5 until the bottom pops off. It should be rather smooth and not jagged.
Sand the Bottle Until Smooth
![2018-01-27_14-32-47_735.jpeg](/proxy/?url=https://content.instructables.com/F54/K88I/JCUUHB7M/F54K88IJCUUHB7M.jpg&filename=2018-01-27_14-32-47_735.jpeg)
![2018-01-27_14-34-16_242.jpeg](/proxy/?url=https://content.instructables.com/FZZ/WQEL/JCUUHB8V/FZZWQELJCUUHB8V.jpg&filename=2018-01-27_14-34-16_242.jpeg)
![2018-01-27_14-37-17_479.jpeg](/proxy/?url=https://content.instructables.com/FJH/PR51/JCUUHBA0/FJHPR51JCUUHBA0.jpg&filename=2018-01-27_14-37-17_479.jpeg)
![2018-01-27_14-55-19_065.jpeg](/proxy/?url=https://content.instructables.com/FPK/7DBW/JCUUHBCD/FPK7DBWJCUUHBCD.jpg&filename=2018-01-27_14-55-19_065.jpeg)
- Begin with the 60 grit paper.
- USE EYE AND HAND PROTECTION AND WEAR A DUST MASK. YOU DON'T WANT TO BREATHE IN THE SILICA DUST!
- Hold the bottle flat against the sandpaper and continue to sand until you don't see any more shiny areas on the bottom of the bottle. Is should look like a smoothly polished glass surface.
- Tilt the bottle inward and outwards to sand the edges
- Repeat with 150 and 220 grit papers
Build the Base
![2018-01-27_14-57-23_696.jpeg](/proxy/?url=https://content.instructables.com/F9I/FB19/JCUUHBDK/F9IFB19JCUUHBDK.jpg&filename=2018-01-27_14-57-23_696.jpeg)
![2018-01-27_14-59-06_609.jpeg](/proxy/?url=https://content.instructables.com/FB7/43I8/JCUUHBET/FB743I8JCUUHBET.jpg&filename=2018-01-27_14-59-06_609.jpeg)
![2018-01-27_15-10-08_622.jpeg](/proxy/?url=https://content.instructables.com/FWZ/WZMU/JCUUHBIC/FWZWZMUJCUUHBIC.jpg&filename=2018-01-27_15-10-08_622.jpeg)
![2018-01-27_14-59-27_615.jpeg](/proxy/?url=https://content.instructables.com/FMS/V5OR/JCUUHBG0/FMSV5ORJCUUHBG0.jpg&filename=2018-01-27_14-59-27_615.jpeg)
![2018-01-27_15-20-26_970.jpeg](/proxy/?url=https://content.instructables.com/F5E/EG95/JCUUHBJJ/F5EEG95JCUUHBJJ.jpg&filename=2018-01-27_15-20-26_970.jpeg)
![2018-01-27_15-21-28_953.jpeg](/proxy/?url=https://content.instructables.com/FCH/6B5I/JCUUHBKQ/FCH6B5IJCUUHBKQ.jpg&filename=2018-01-27_15-21-28_953.jpeg)
![2018-01-27_15-21-32_356.jpeg](/proxy/?url=https://content.instructables.com/FM2/XHQN/JCUUHBLX/FM2XHQNJCUUHBLX.jpg&filename=2018-01-27_15-21-32_356.jpeg)
![2018-01-27_15-01-34_404.jpeg](/proxy/?url=https://content.instructables.com/F2Z/5P1M/JCUUHBH5/F2Z5P1MJCUUHBH5.jpg&filename=2018-01-27_15-01-34_404.jpeg)
![2018-01-27_15-55-55_000.jpeg](/proxy/?url=https://content.instructables.com/FL7/YZYK/JCUUHBOK/FL7YZYKJCUUHBOK.jpg&filename=2018-01-27_15-55-55_000.jpeg)
![2018-01-27_15-22-35_315.jpeg](/proxy/?url=https://content.instructables.com/FFE/A7PE/JCUUHBN4/FFEA7PEJCUUHBN4.jpg&filename=2018-01-27_15-22-35_315.jpeg)

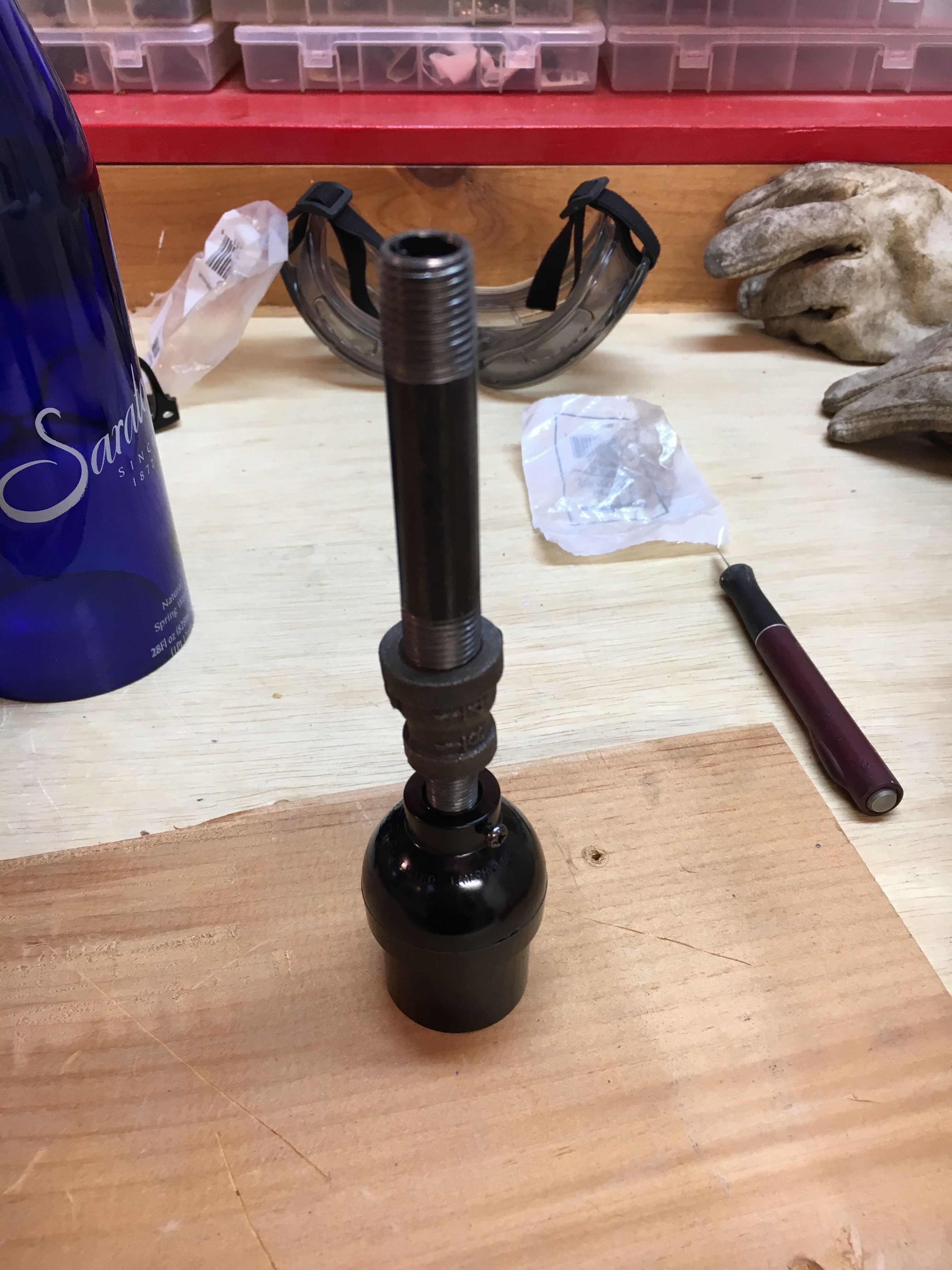

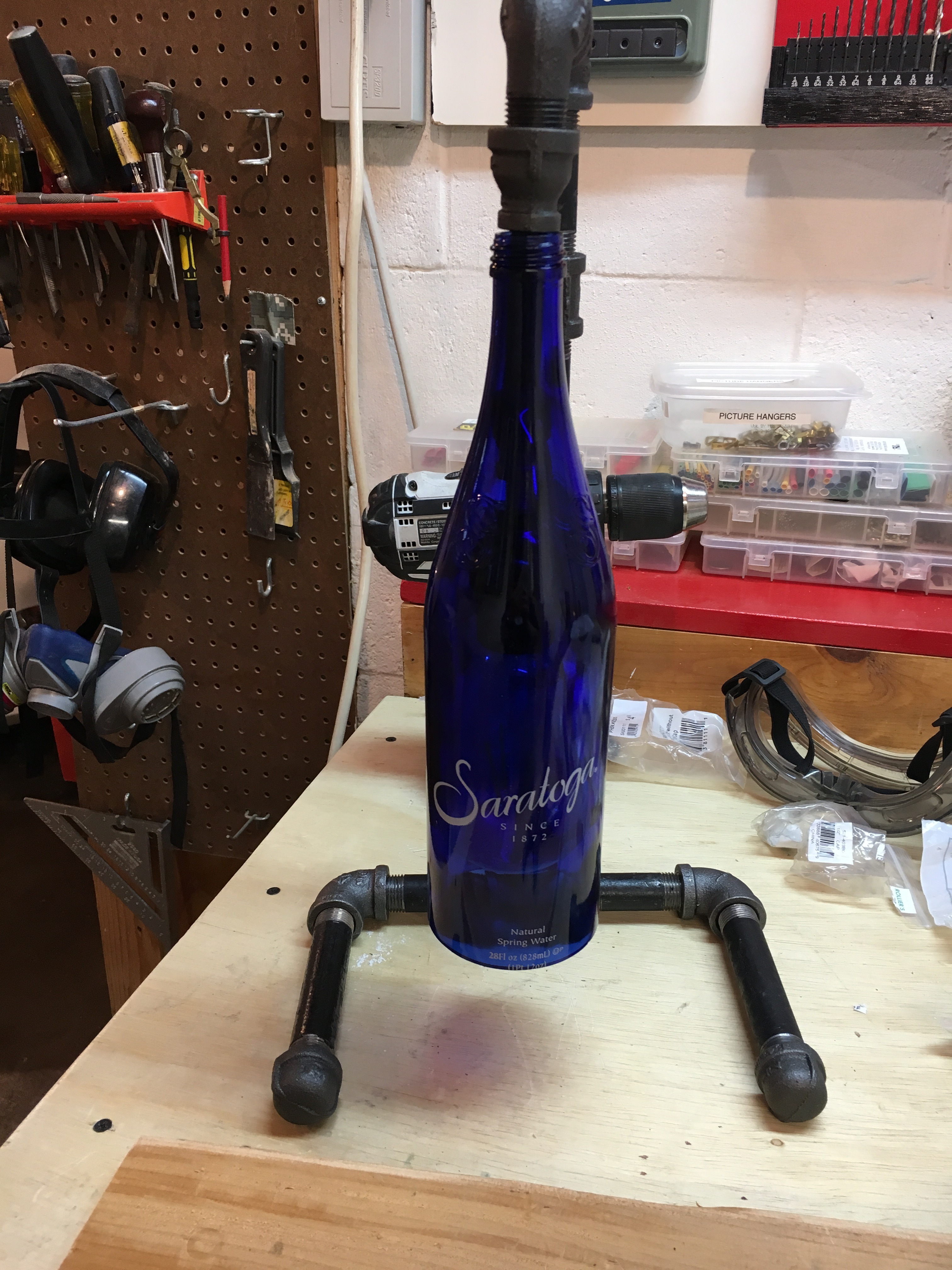

- Basically screw together the piping in any configuration that suits your fancy.
- You will need to disassemble parts when you pass the power cord thru.
- Drill a 1/4 inch hole in the upright to get the cord into the pipe and sand that through. You want no rough edges to snag the power cord

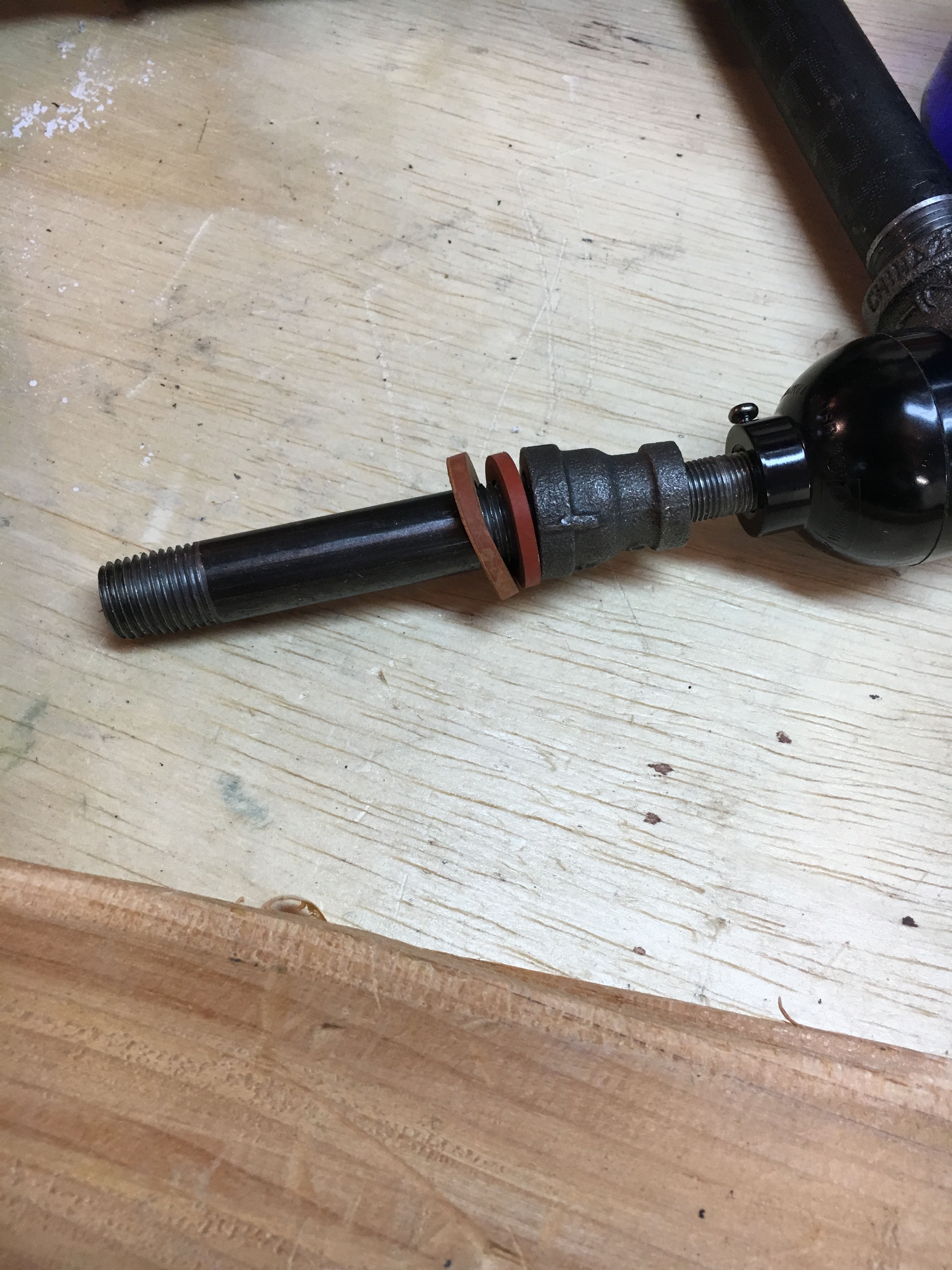

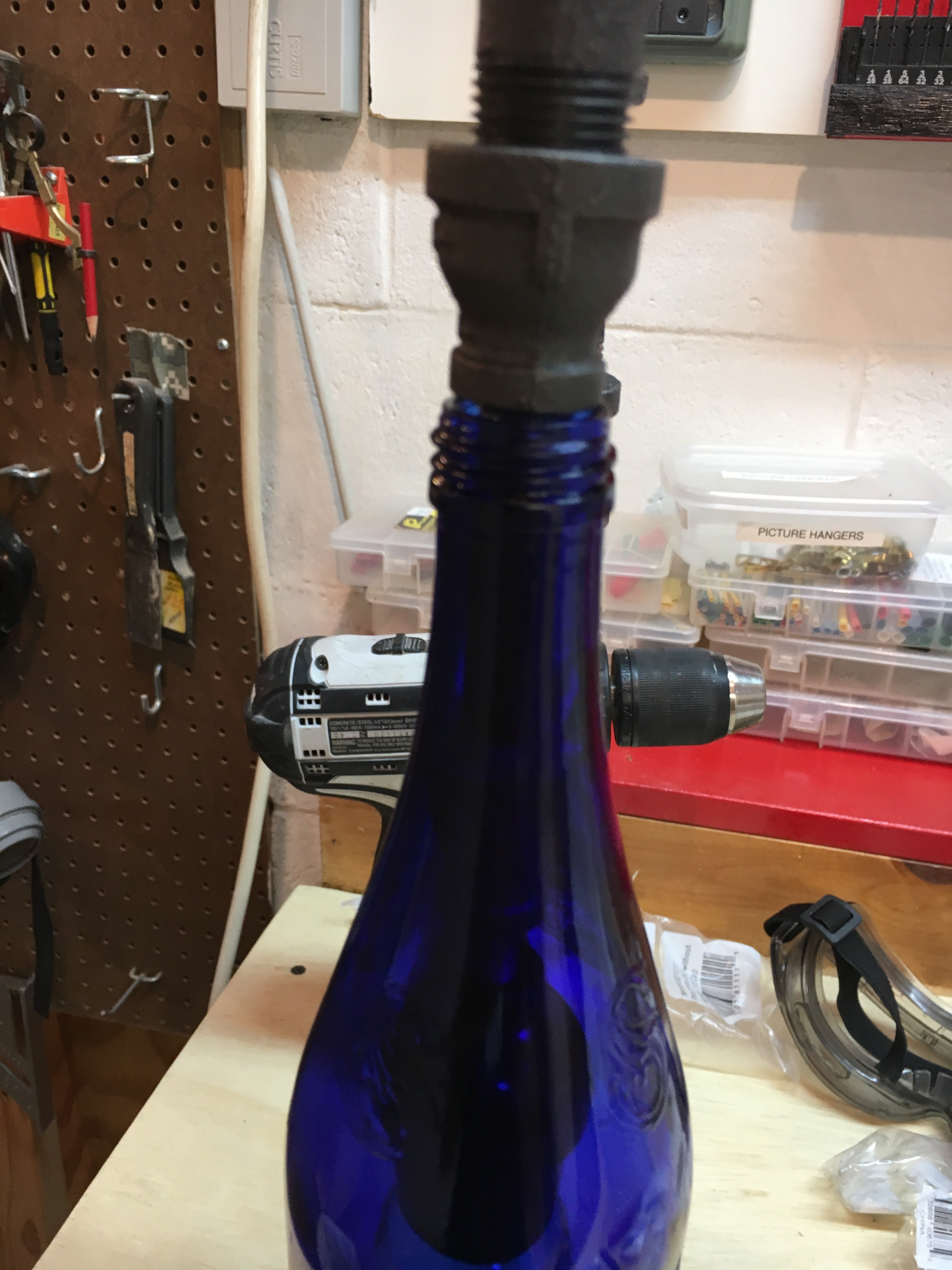

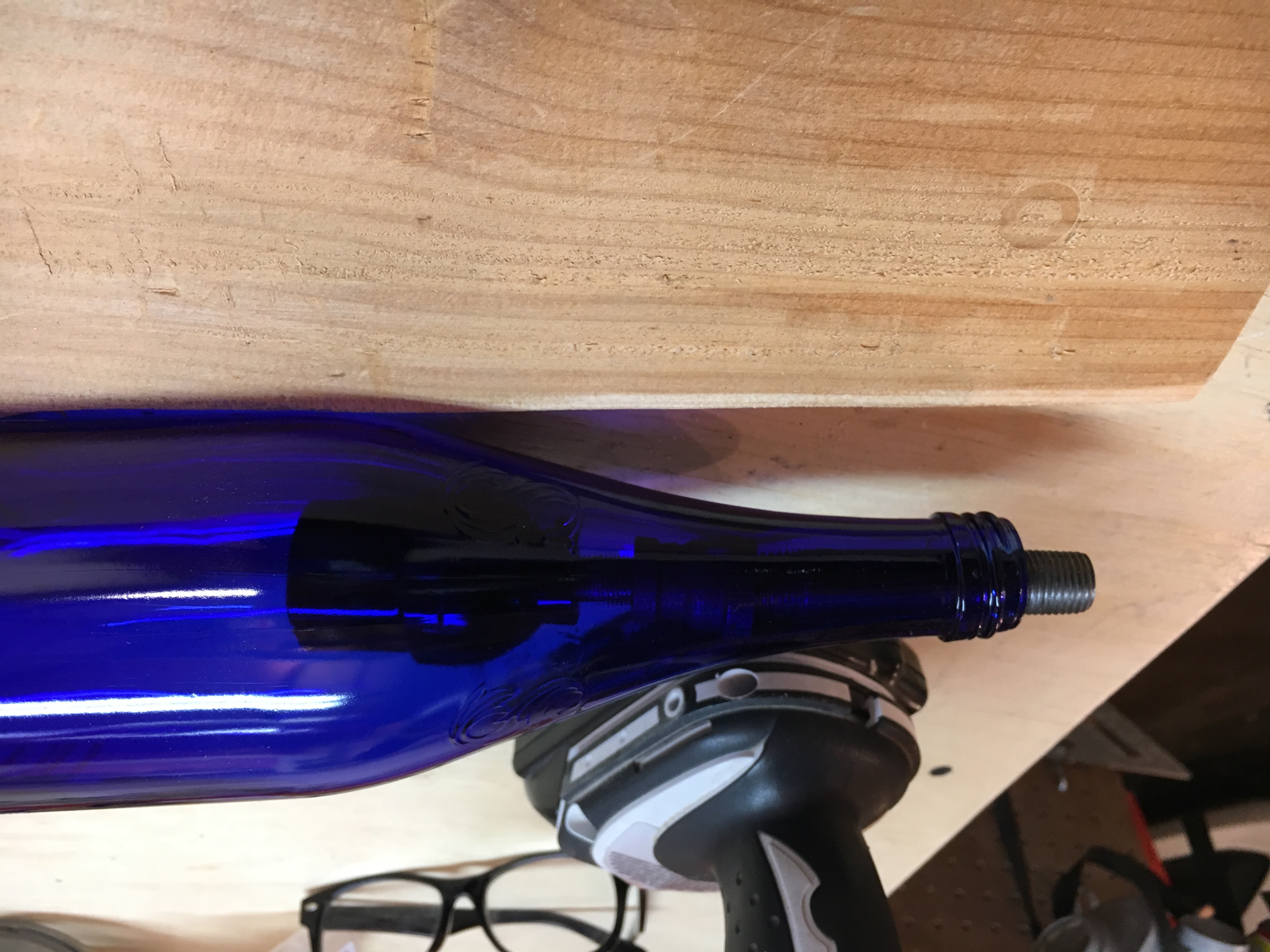

- pass the 1/4 inch pipe through the bottle neck and attach to the reducing fitting on top
- I wired an inline dimmer switch but you can use a simple on off or no switch at all
Enjoy Your Creation
![2018-01-27_15-55-49_008.jpeg](/proxy/?url=https://content.instructables.com/F11/W05C/JCUUHBOH/F11W05CJCUUHBOH.jpg&filename=2018-01-27_15-55-49_008.jpeg)
![2018-01-27_15-41-41_180.jpeg](/proxy/?url=https://content.instructables.com/F8Y/LW0E/JCUUHBOB/F8YLW0EJCUUHBOB.jpg&filename=2018-01-27_15-41-41_180.jpeg)
![2018-01-27_15-55-18_402.jpeg](/proxy/?url=https://content.instructables.com/F2R/SRKW/JCUUHBOE/F2RSRKWJCUUHBOE.jpg&filename=2018-01-27_15-55-18_402.jpeg)
- It's a nice project
- It's a great gift
I hope you enjoy this Instructable and hope you will share with me your own creations!
