Steampunk LED Color Mixer Lamp

by BadJer Maker in Circuits > Gadgets

2674 Views, 38 Favorites, 0 Comments

Steampunk LED Color Mixer Lamp

IMG_2527 - Copy.JPG
IMG_2531 - Copy.JPG
IMG_2540 - Copy.JPG
IMG_2544 - Copy.JPG
IMG_2543 - Copy.JPG
IMG_2542 - Copy.JPG
IMG_2528 - Copy.JPG
IMG_2529 - Copy.JPG
IMG_2530 - Copy.JPG
IMG_2536 - Copy.JPG
IMG_2533 - Copy.JPG
IMG_2545 - Copy.JPG
IMG_2539 - Copy.JPG
IMG_2537 - Copy.JPG

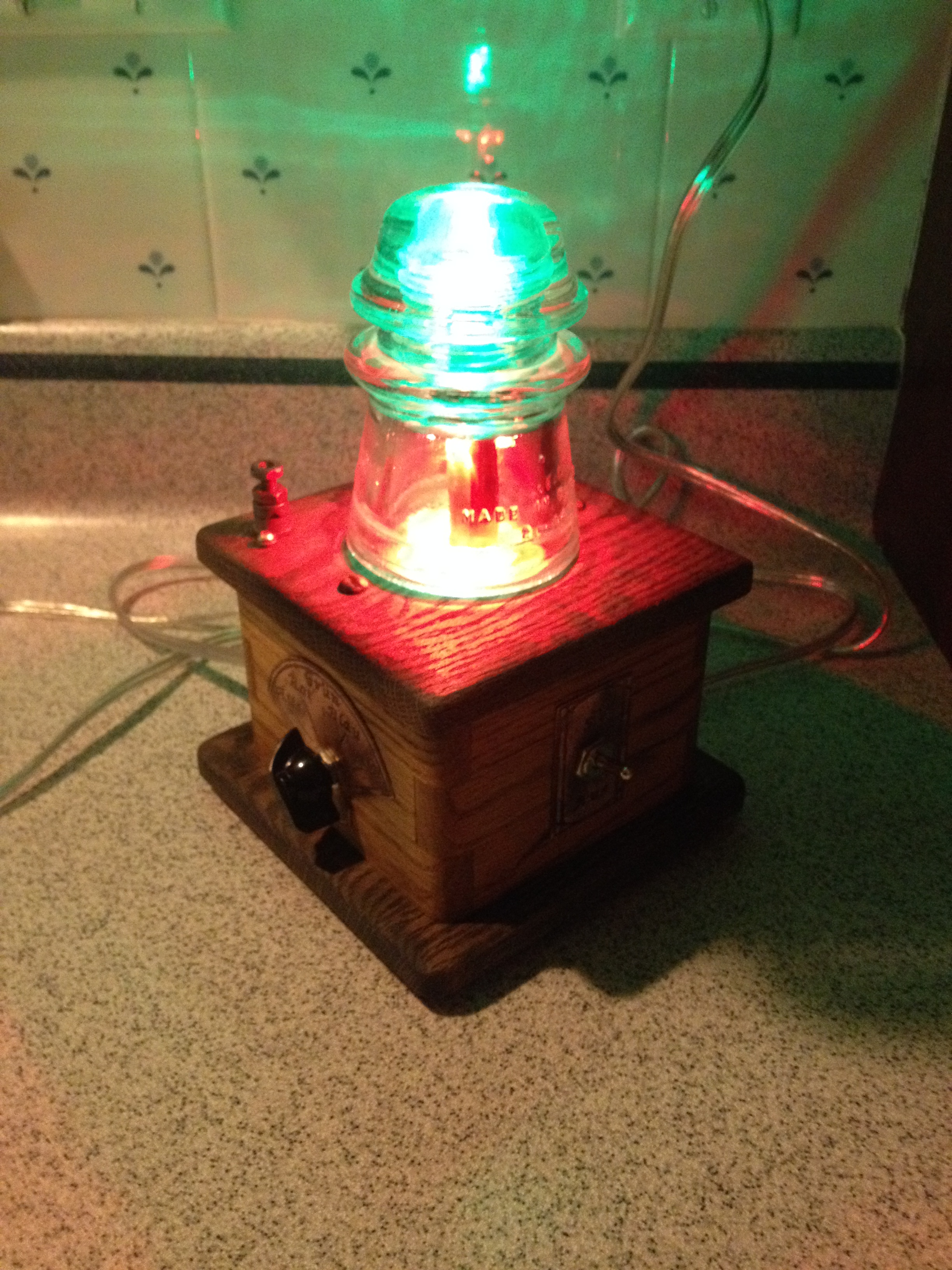

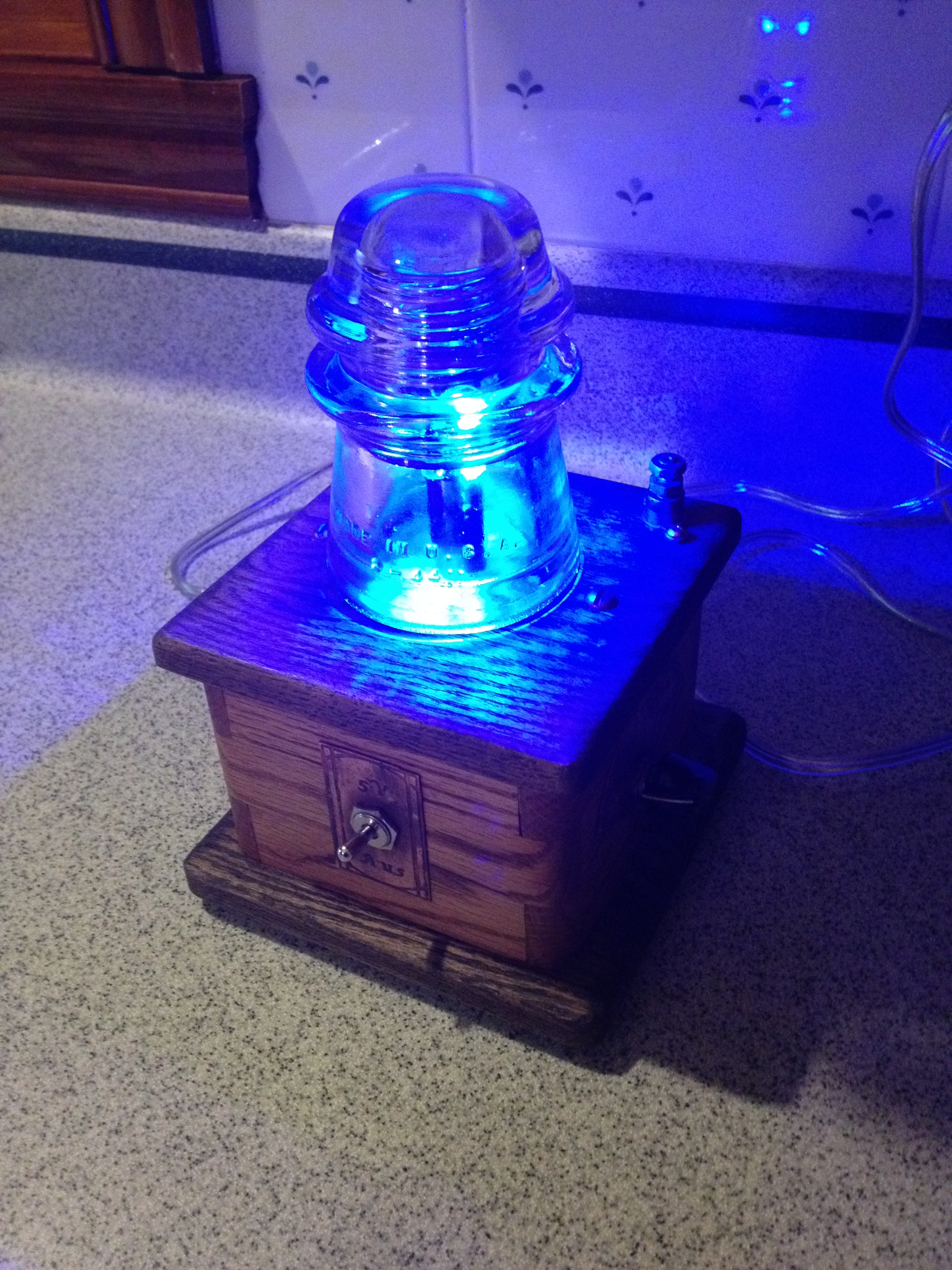

I decided to make an artist friend of mine a LED lamp that can mix colors and have USB charging port for their phone.  Basically it is a steampunk insulator night light that uses RGB LEDs.  The top and bottom halves can be independently lit up with RGB or white light, or turned off.

I made the base out of oak strips so I could get a finger joint look.  The copper plates were etched with the laser printer mask method and muriatic acid.  The 5 vdc supply was from an old cell phone charger.

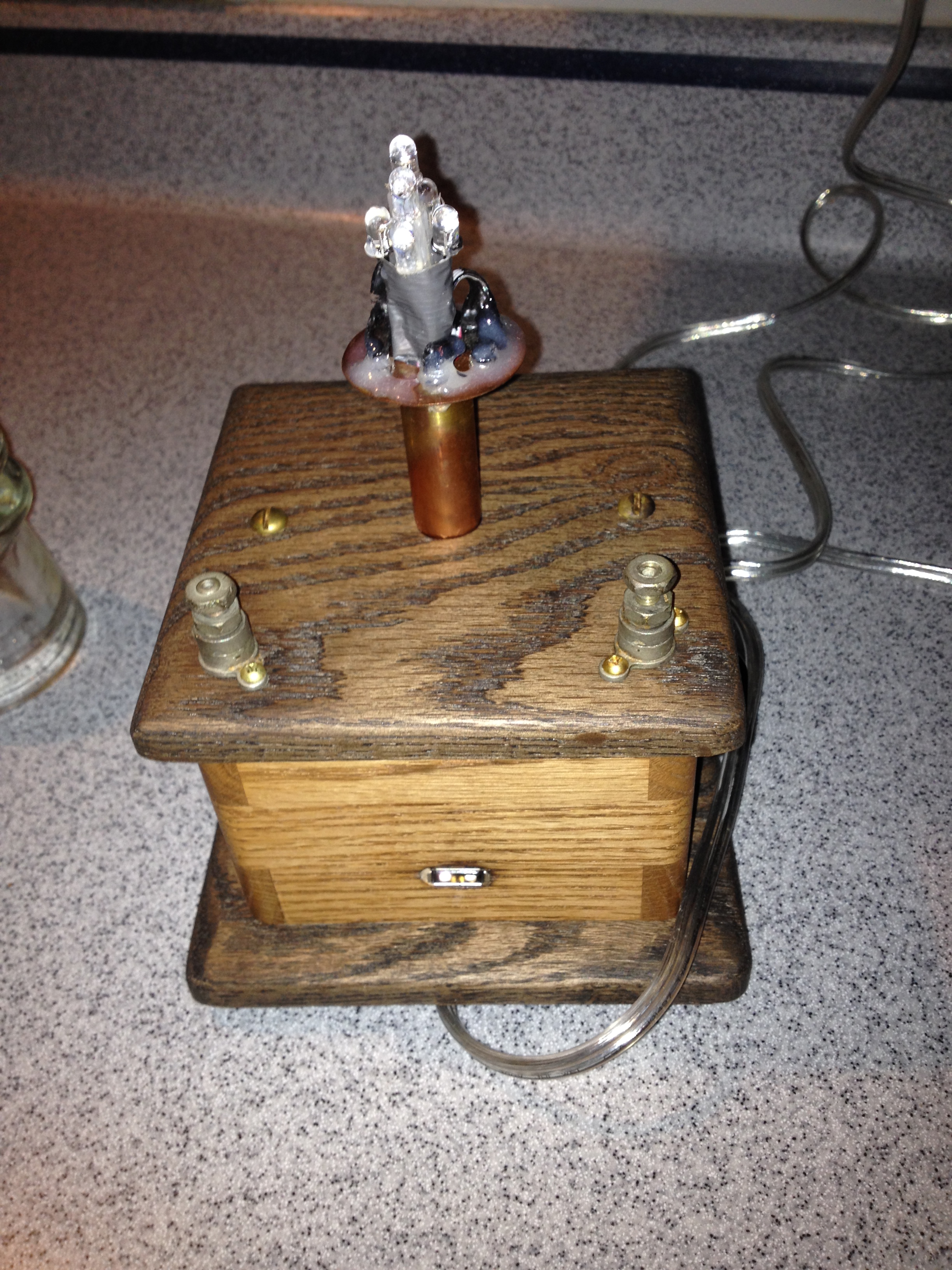

The hard part was cramming a number of LEDs in the top half and bottom half of the copper pipe insulator support.

Stain and plain old carnuba wax finished it all off.
