Stargate Inspired Arduino NeoPixel 3D Printed Clock
by gg2inc in Workshop > 3D Printing
15593 Views, 176 Favorites, 0 Comments
Stargate Inspired Arduino NeoPixel 3D Printed Clock



The Stargate DHD clock will display the time using NeoPixel LED’s oriented around a simulated clock face. The clock provides an hourly and half hour chime that can be turned on and off. The hours and minutes can be set via pushbuttons located on rear of the clock base. The center crystal on the DHD clock will illuminate on the hour and half hour for one minute. The illumination of the crystal is provided via a color changing RGB LED.
The hour is represented by a NeoPixel LED changing to red, the minute is represented by a NeoPixel LED changing to green and the seconds are represented by the NeoPixel LEDs changing to a blue color as the second’s increment. Using this method, reading the clock is very intuitive. As the seconds increase, each LED will change to a blue color. The Red (Hour) LED or Green (Minute) LED will not be overwritten by the Blue seconds LEDs.
The clock is 3D printed and utilizes one Arduino Uno, four NeoPixel rings and a real time clock. The Clock is controlled by an Arduino microcontroller. The Arduino handles the interface to the NeoPixels, chime speaker, LED center crystal and the four clock management pushbuttons.
The .stl files for printing the clock parts and the Arduino Uno code are located here and can also be found at http://www.guarnero.com. The included Arduino code also utilizes a pitches.h file that should be located in the same directory as the Arduino code.
The 3D clock dial and base are based upon the work of Techno35 at http://www.thingiverse.com/thing:49627
The dhd (dial home device) dial was resized so that it can print on a Lulzbot Mini printer and the dhd (dial home device) base was resized and heavily modified to provide a housing for the electronics.
The .stl files include the dial, base, ring sections for mounting the NeoPixels, crystal LED mount/cover, base cover and the crystal lens. The entire clock was printed with HIPS filament with the exception of the crystal lens which was printed with clear ABS. The clock is painted so any color filament will suffice.
A complete parts list is provided at the end of this instructable.
Components - Arduino Uno R3 Controller

Components - Arduino Proto Screwshield

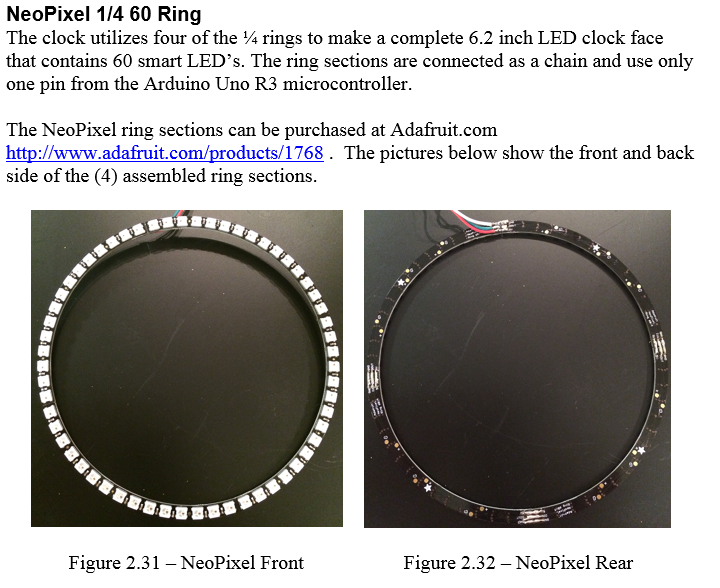

Components - NeoPixel 1/4 60 Ring


Purchased at:

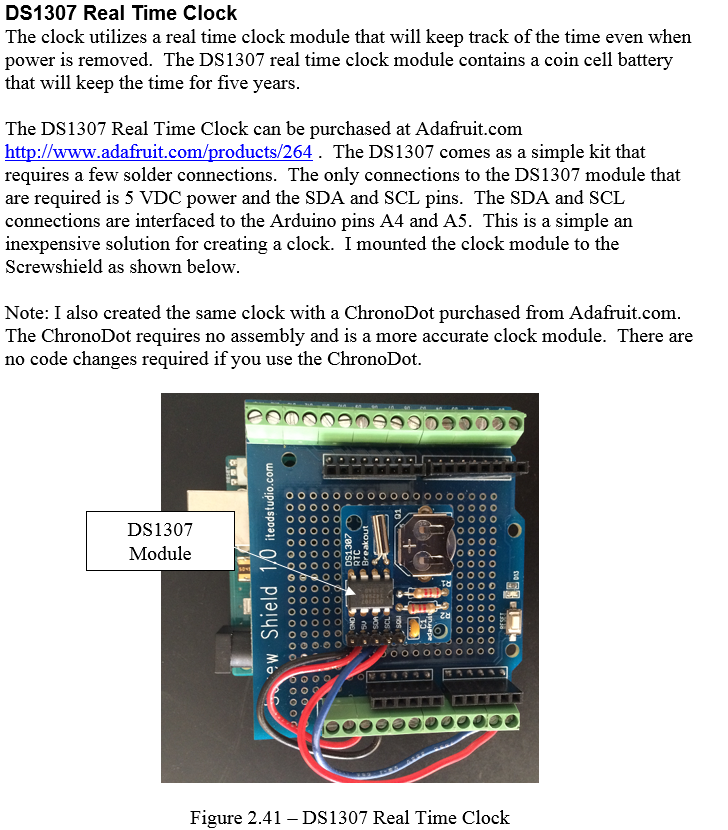

Components - DS1307 Real Time Clock

Purchased at:

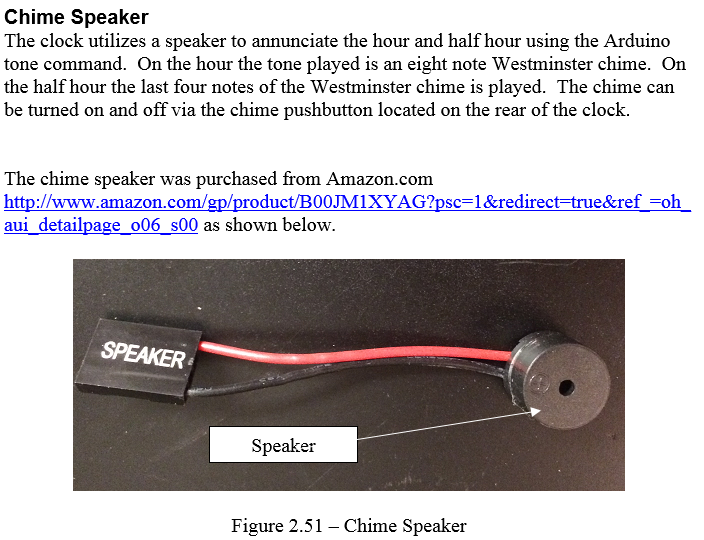

Components - Chime Speaker

Components - Pushbuttons

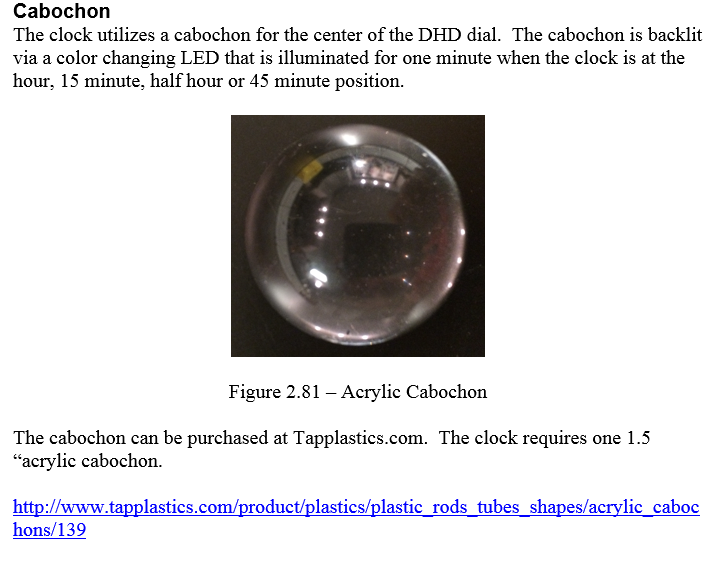

Components - Cabochon

Components - Cabochon LED
The cabochon is illuminated using a slow changing RGB LED. The LED will cycle between colors by just applying 5 VDC through a 200 ohm resistor on it.
The LED was purchased from Amazon.com
http://www.amazon.com/gp/product/B007RO9X82?psc=1&redirect=true&ref_=oh_aui_detailpage_o08_s00
The color changing LED that is illuminated for one minute when the clock is at the hour, 15 minute, half hour or 45 minute position.

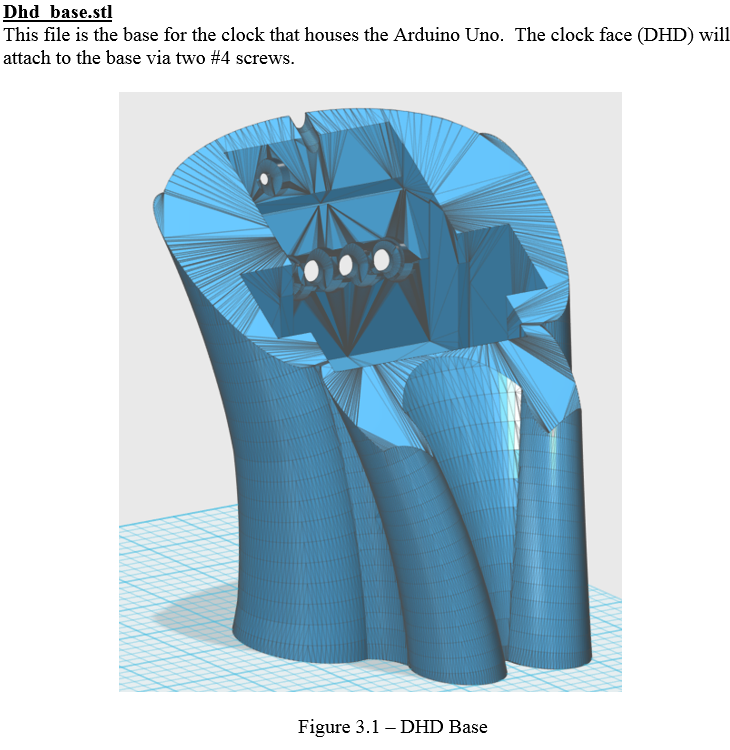

3D Printing - Base

The entire clock was printed using a Lulzbot Mini 3D printer. The clock pieces were scaled and sized so they could be printed on the smaller print bed of the Lulzbot Mini. I used HIPS material for printing all parts.

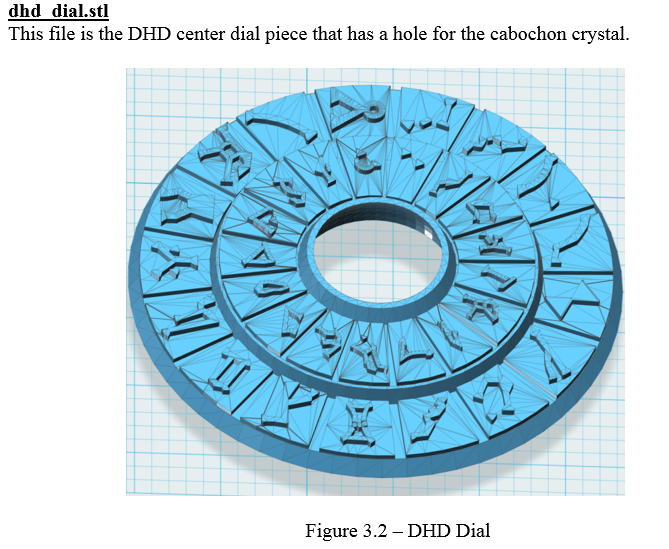

3D Printing - Dial

3D Printing - Dial Ring

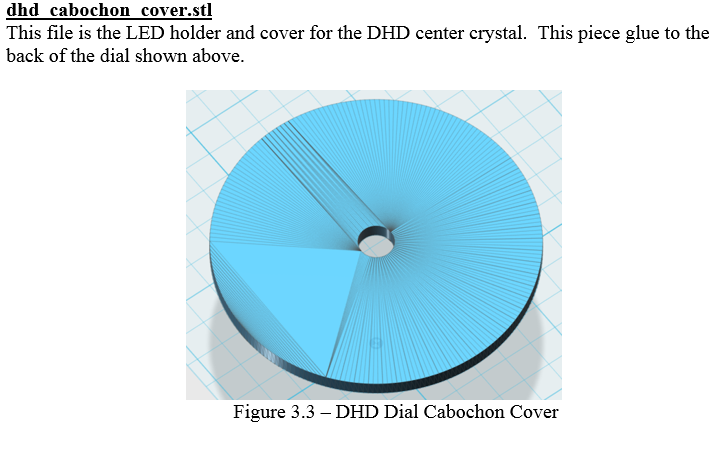

3D Printing - Cabochon/LED Holder

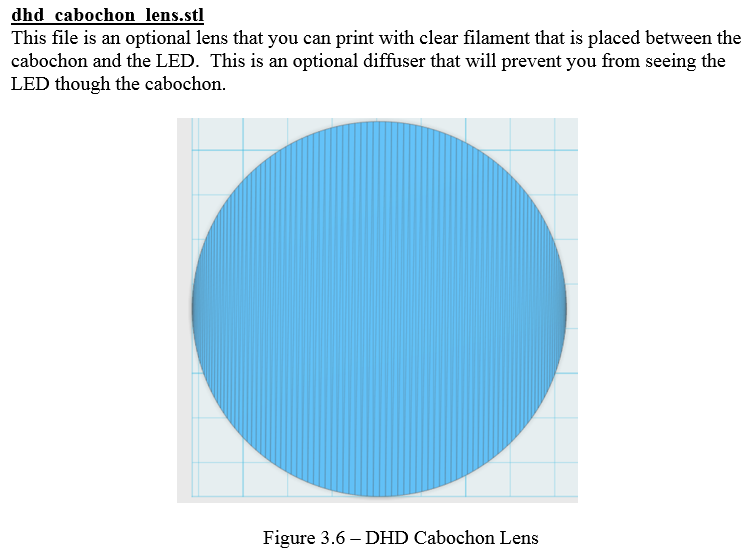

3D Printing - Cabochon Lens

3D Printing - Base COver

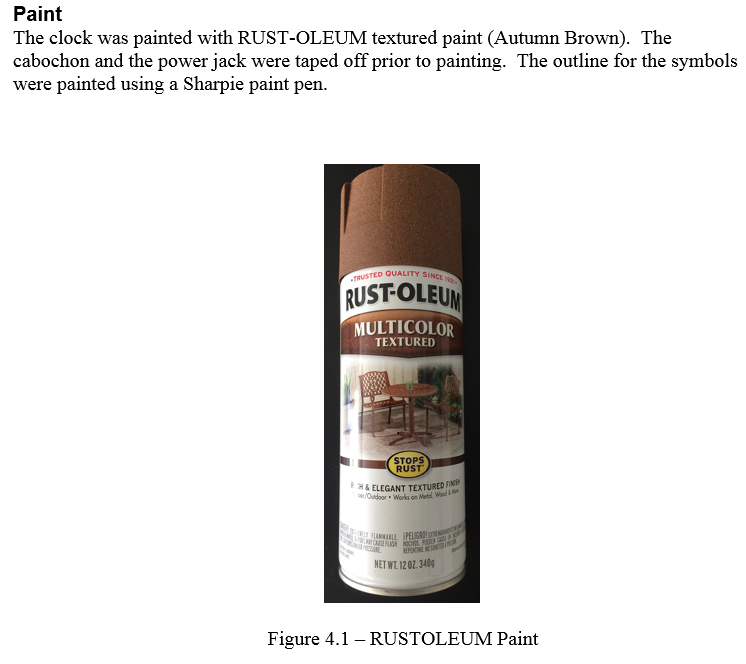

Paint

Construction - Glue the Four Dial Rings

Construction - Glue the Dial to the Four Dial Rings

Construction - Prepare the Parts for Painting

Construction - Paint the DHD Base and Dial

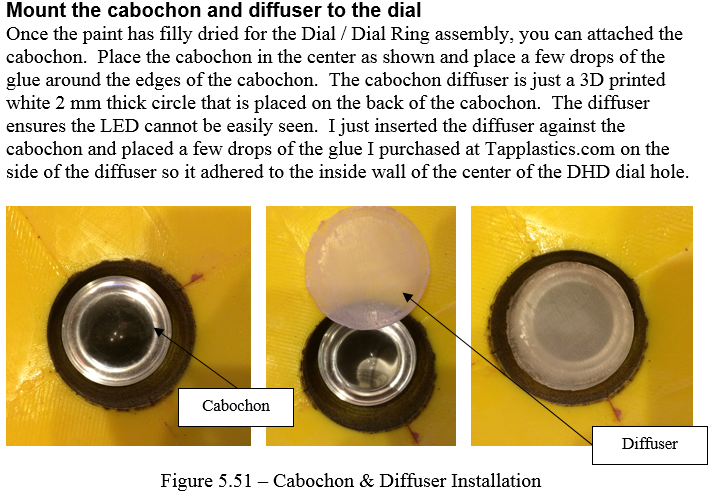

Construction - Mount the Cabochon and Diffuser to the Dial

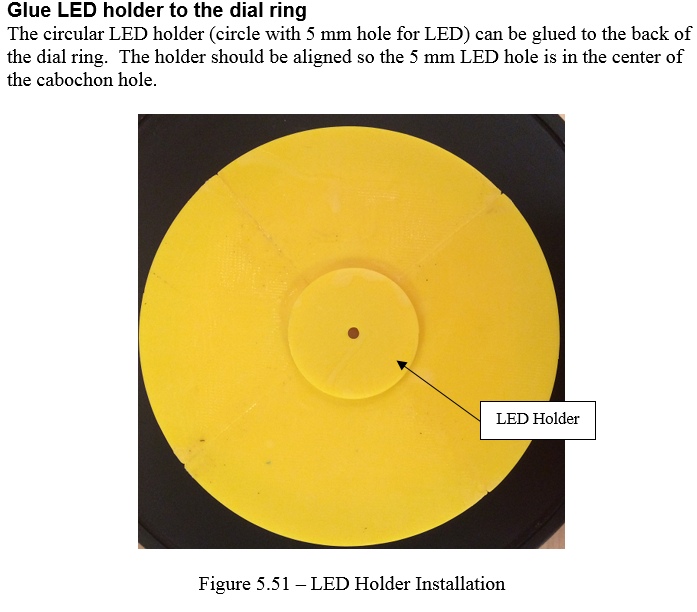

Construction - Glue LED Holder to the Dial Ring

Construction - Wire the LED

Construction - Paint the Dial Back

Construction - Install the LED

Construction - Install Pushbuttons

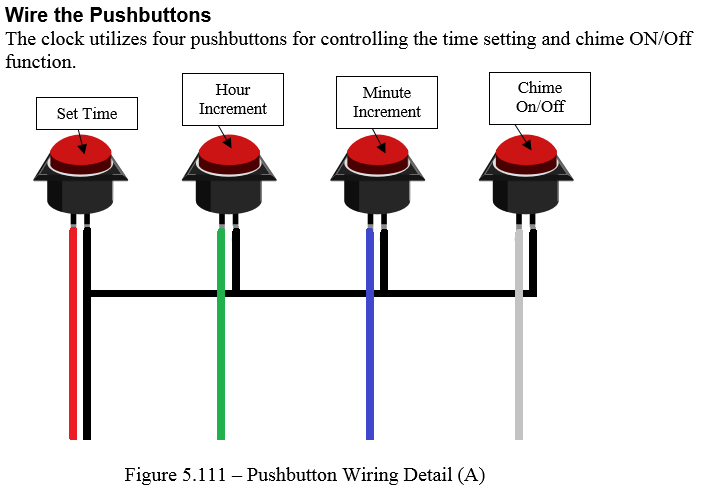

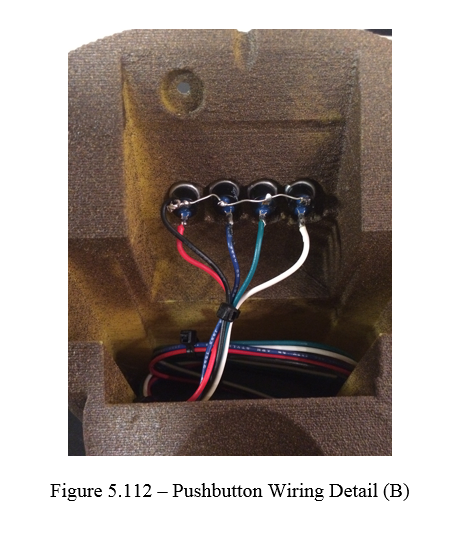

Construction - Wire the Pushbuttons

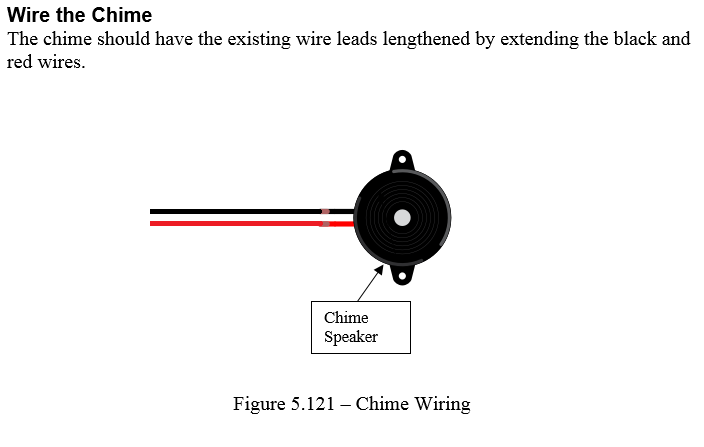

Construction - Wire the Chime

Construction - Install the Chime

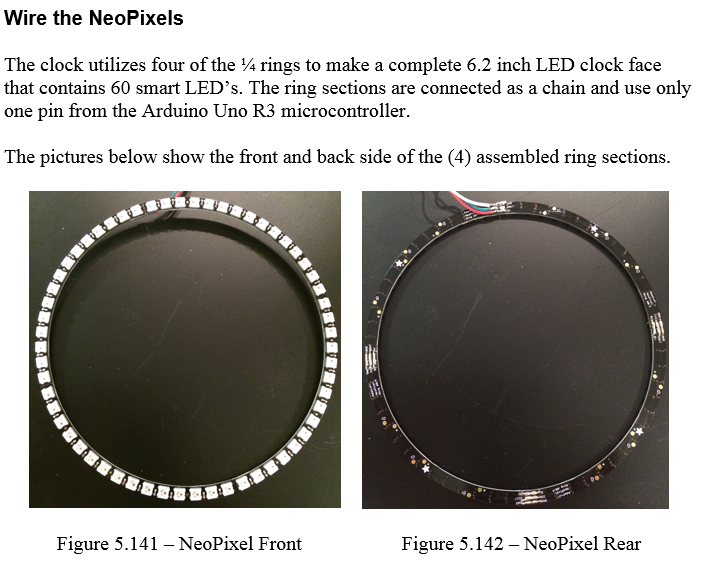

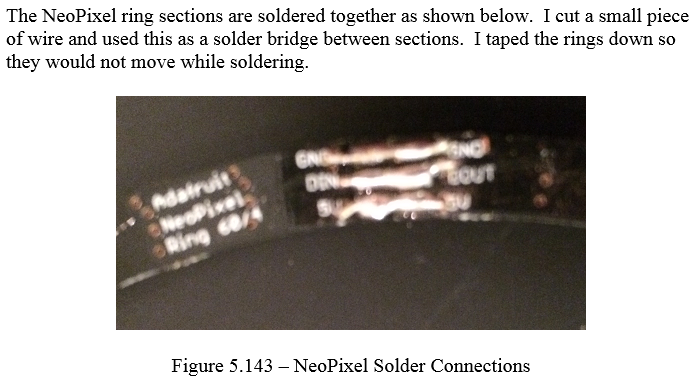

Construction - Wire the NeoPixels

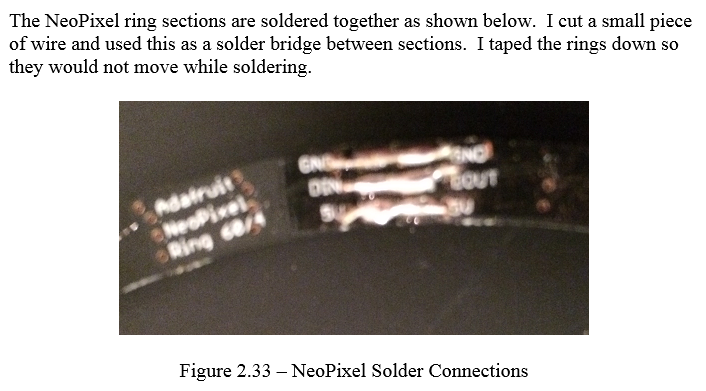

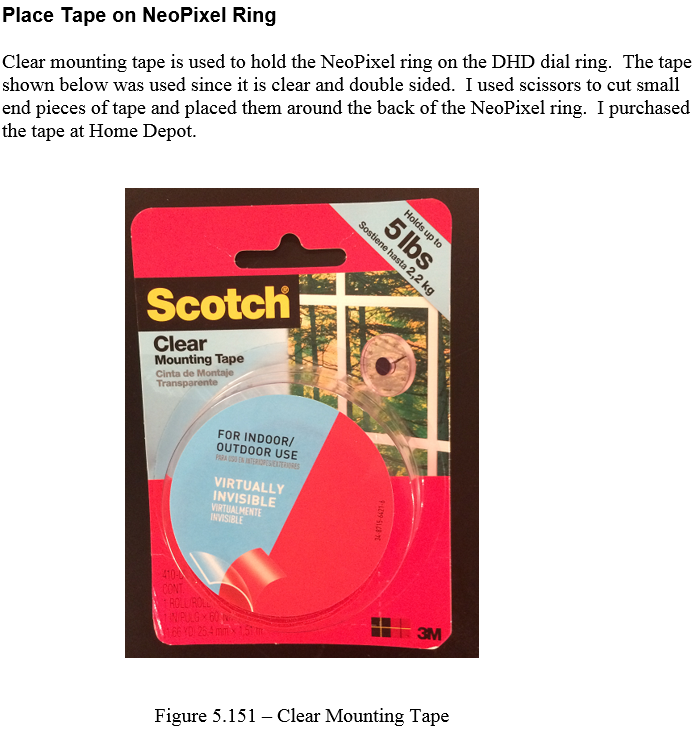

Construction - Place Tape on NeoPixel Ring

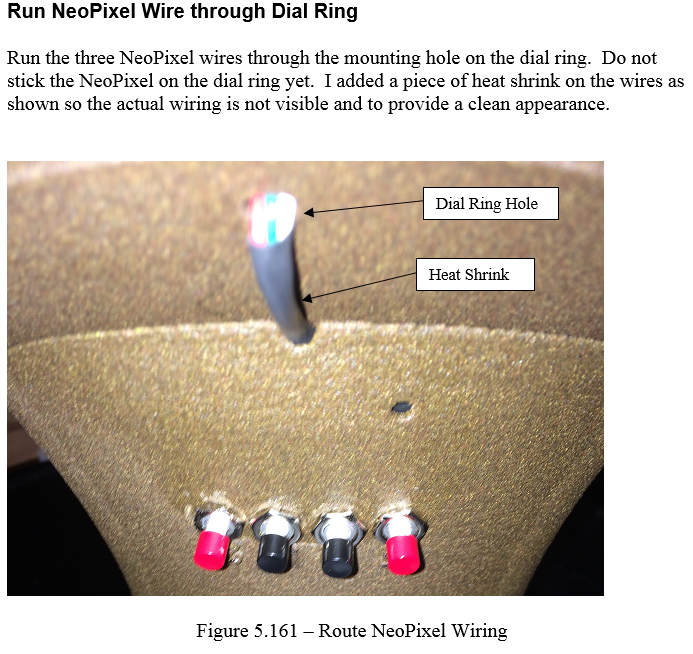

Construction - Run NeoPixel Wire Through Dial Ring

Construction - Mount Dial Assembly to Base

Construction - Wire Power Connection

Purchased at:
DC Power Jack Panel Connectors
http://www.amazon.com/gp/product/B00W8U70XU?psc=1&redirect=true&ref_=oh_aui_detailpage_o08_s00
DC Right Angle Extension
http://www.amazon.com/gp/product/B00QJCU580?psc=1&redirect=true&ref_=oh_aui_detailpage_o00_s00
Construction - Wire Arduino to Components

Construction - Program Arduino and Attach Mounting Base Plate / Bumpers

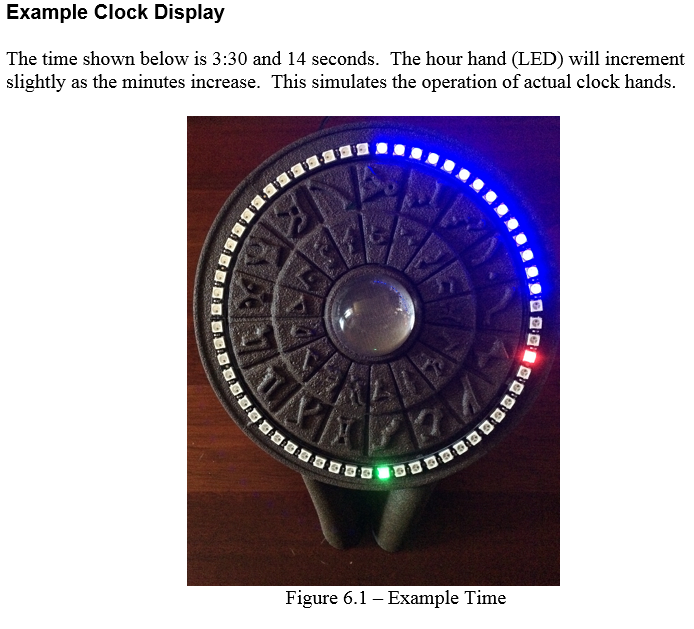

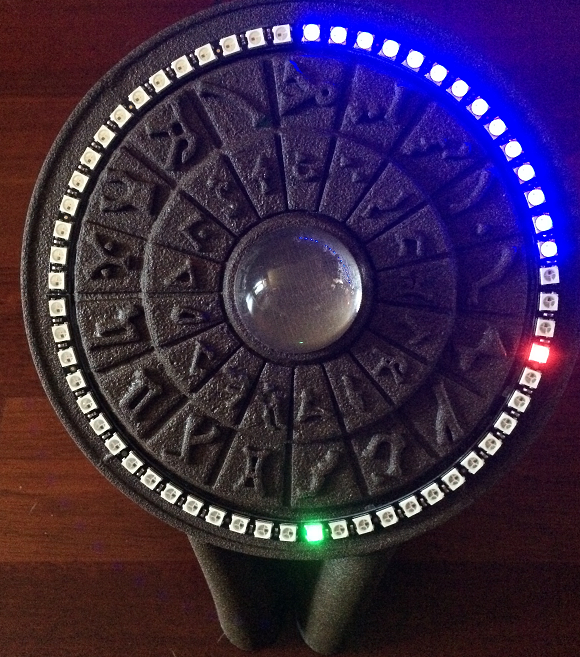

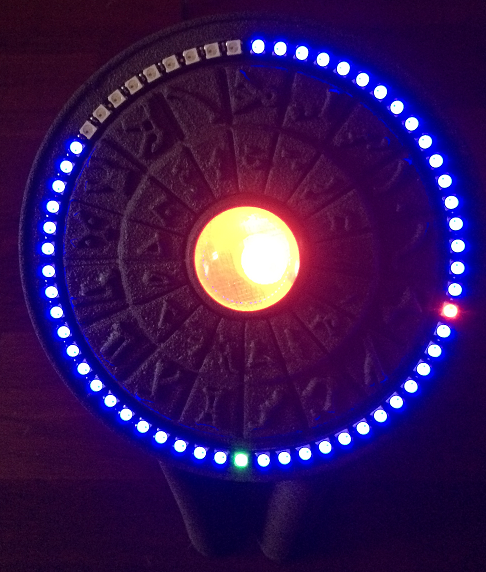

Example Display

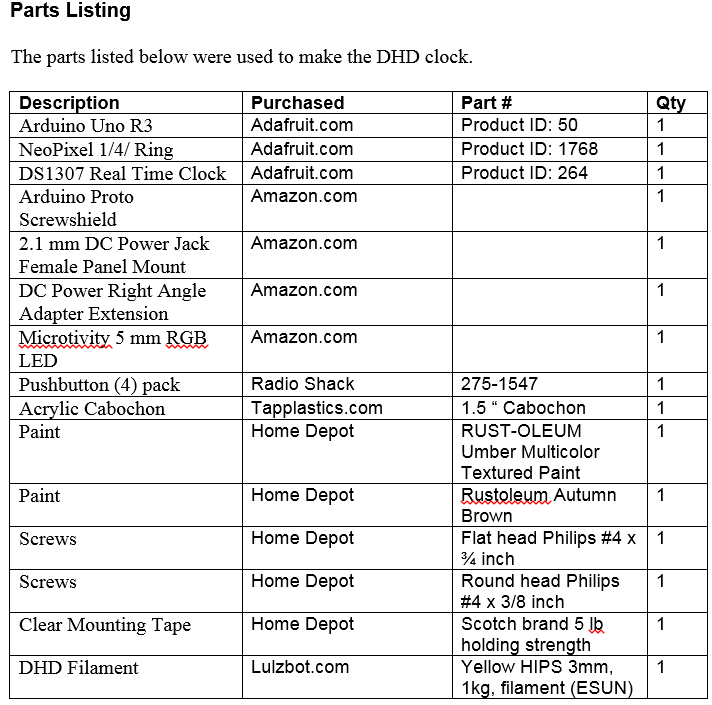

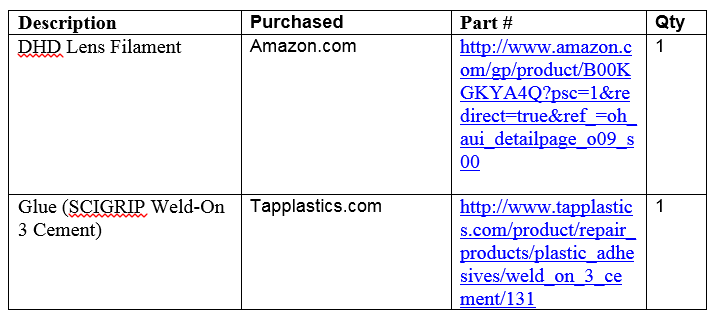

Parts Listing
