Star Wars Theme Song With LED

In a workshop far away an Instuctable was created...

Hello Everyone!!!

This is a simple Instructable for beginners (and everyone who loves Star Wars).What you need is:

x1 Arduino or other compatible board

x1 Breadboard

x1 LED

x1 Buzzer/Piezo or Speaker

Couple of cables

Lets get Started! Simply connect the components like the image.When selecting a "sound device" ,speaker or piezo, pay attention to the Ω (Ohm resistance) proposed by the manufacture(Mine is a strong one so i don't need a resistor).The only purpose of the LED is to "animate" the sound with light (remove if you want to).It's real simple so lets move to the next step.

Pay attention as you add the speaker/piezo to the circuit.You connect the + end of it, with the red cable (the power supply), and the - with the black one (the ground).

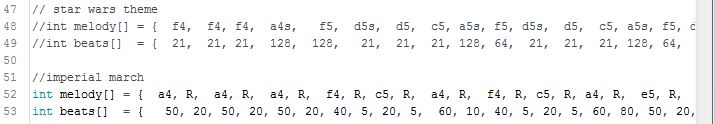

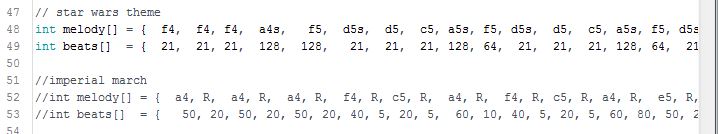

I have 2 iconic theme songs to play: the Opening Theme and the Imperial March.Choose one and comment the other (// melody[ ] and //beats[ ]).Download the code below and upload it to the board!

You are ready to roll! Connect the board with your computer and ...

May the force be with you!
