Star Wars Figure Display Box

by backwards lamb in Living > Toys & Games

27487 Views, 174 Favorites, 0 Comments

Star Wars Figure Display Box

2013 10:39 PM.jpg
2013 10:39 PM.jpg
I have a collection of vintage Star Wars figures and up until now they have all just sat on a shelf in no organized fashion and you can't really appreciate them fully all jumbled up so I decided to put them in a frame or display case for them.

i couldn't find any thing that I felt was nice or that matched my other picture frames etc. so I decided to make one myself.

This instruct able is how I went about doing that.

Tools and Materials.

2013 10:39 PM.jpg
2013 10:39 PM.jpg
2013 10:39 PM.jpg
2013 10:39 PM.jpg
2013 10:39 PM.jpg
Tools.

- Saw
- Drill
- Screwdriver.

Materials.

- Wooden picture frame
- 25mm x 50mm wooden baton
- clear Perspex
- Mirrored Perspex.
- Glue.
- Paint.
- L brackets.
- Screws.
- Glue.

Extending the Frame.

2013 10:39 PM.jpg
2013 10:39 PM.jpg
First I measured the inside of the frame edge to create the box out the back of the frame.

I cut the wooden battening to fit inside the rear of the frame.

I used the L brackets to assemble the frame.

I used the wood glue to secure the joins in the frame.

Choosing the Figure Layout.

2013 10:39 PM.jpg
Once I had the rear box frame made I knew how much space I had to play with.

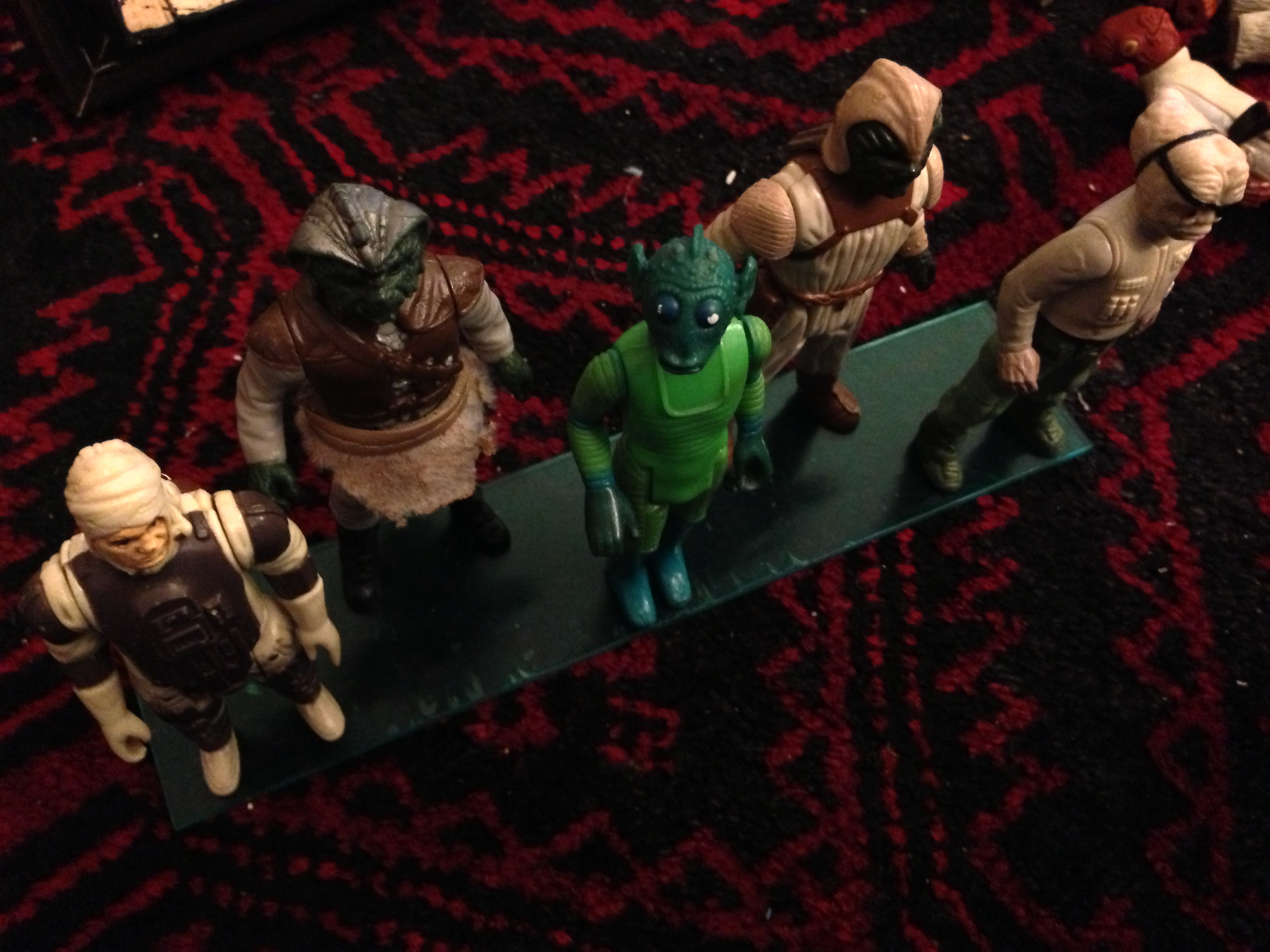

So I placed my action figures so they all fit inside the frame.

This allowed me to work out how many shelves and at what spacing I needed.



Extending the Frame Part 2

2013 10:39 PM.jpg
2013 10:39 PM.jpg
2013 10:39 PM.jpg
2013 10:39 PM.jpg
I painted the rear boxing black.

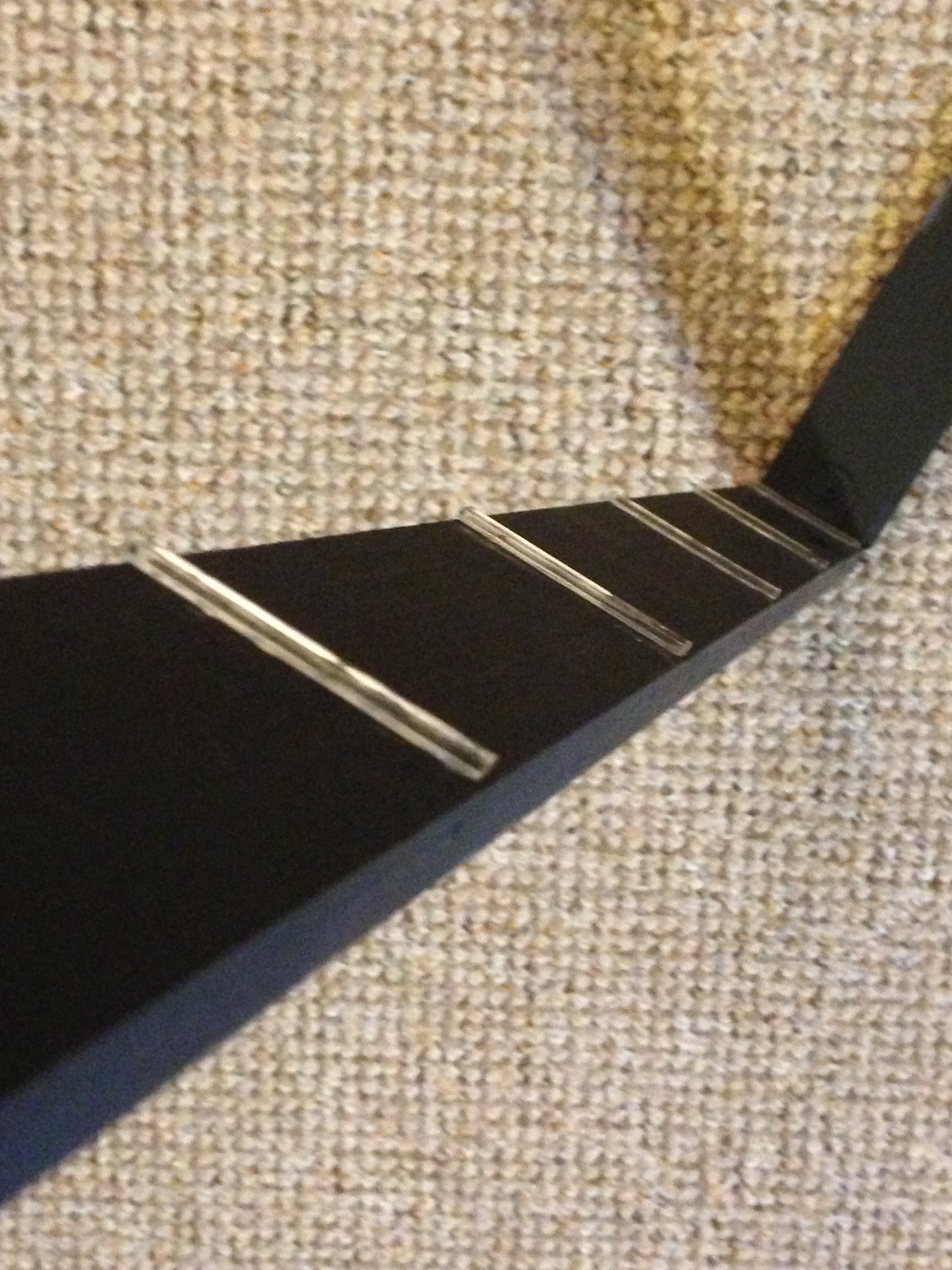

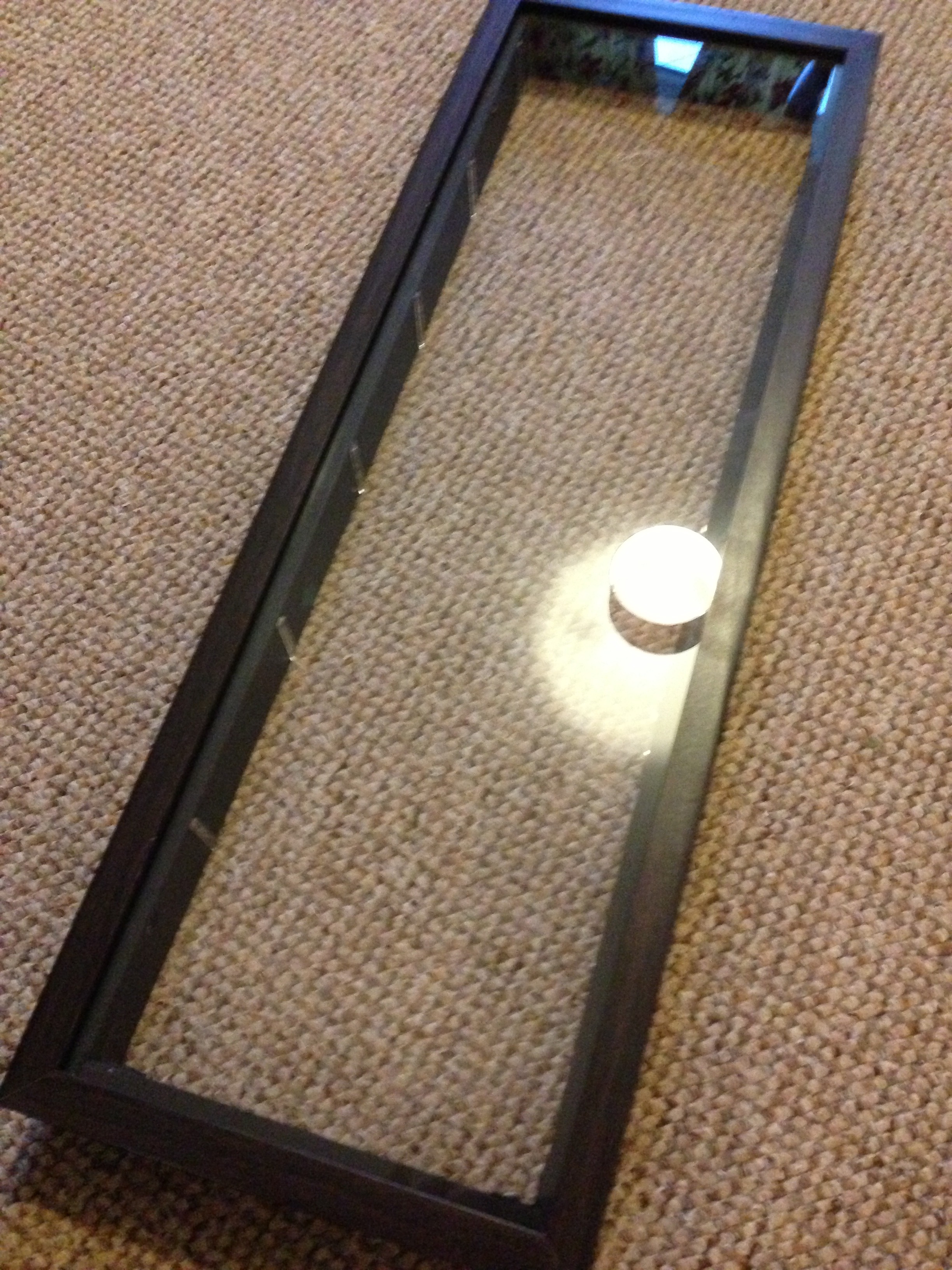

Using the measurements and spacing from laying out the figures I glued small runners made from plastic to hold up the shelves.

I then screwed the rear boxing into the front frame.

Adding the Figures.

2013 10:39 PM.jpg
2013 10:39 PM.jpg
2013 10:39 PM.jpg
2013 10:39 PM.jpg

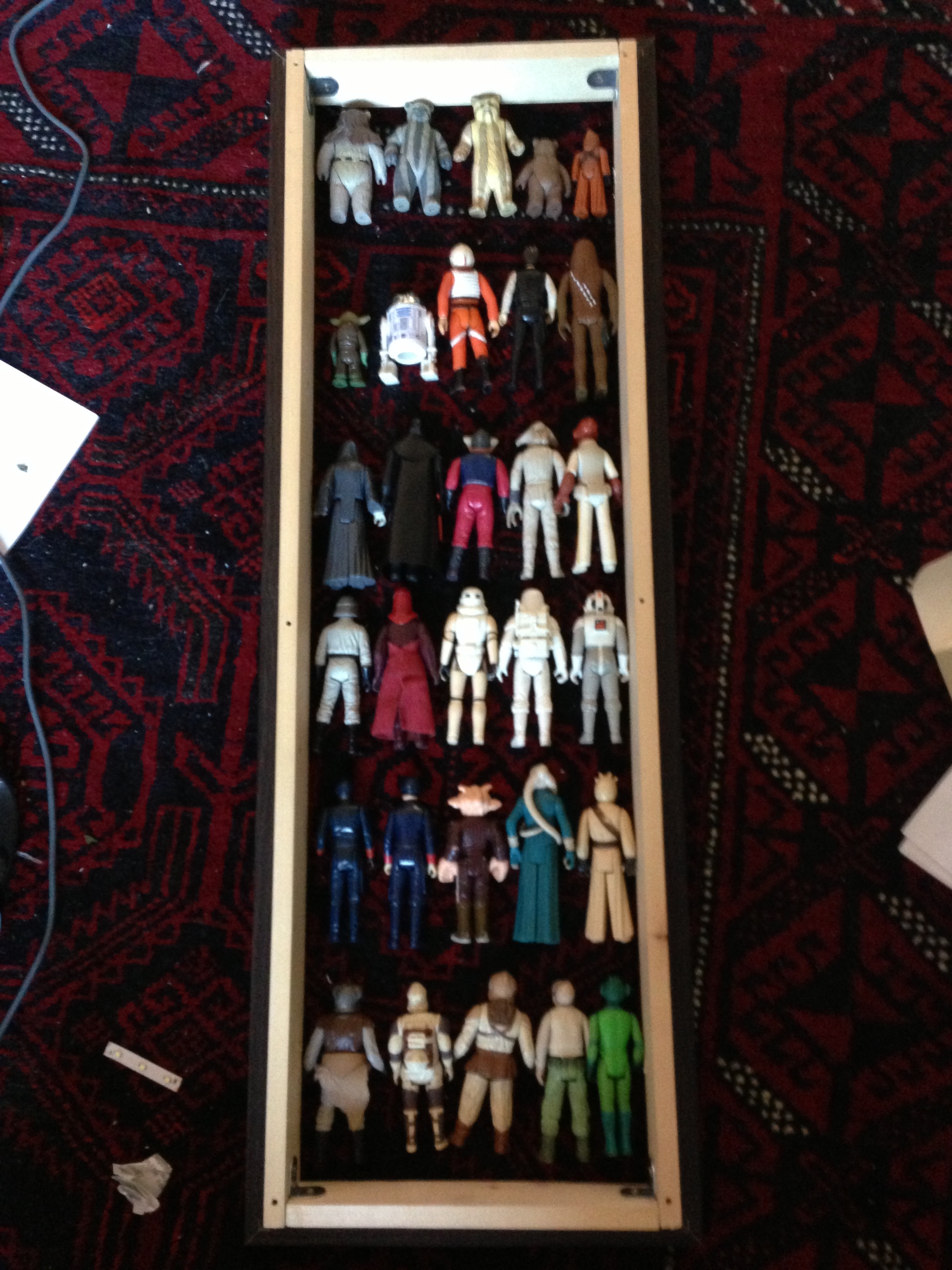

I arranged the figures on each layer.

I added a small amount of double sided tape to the feet of each figure after working out where the will stand and then stuck them to the shelf and added them to the frame.

I repeated this for each shelf and filled the frame up.

Closing the Frame Up.

2013 10:39 PM.jpg
2013 10:39 PM.jpg
I added a layer of mirrored acrylic to the back of the frame, this was just so you can see the back of your figures.

Finished Frame.

2013 10:39 PM.jpg

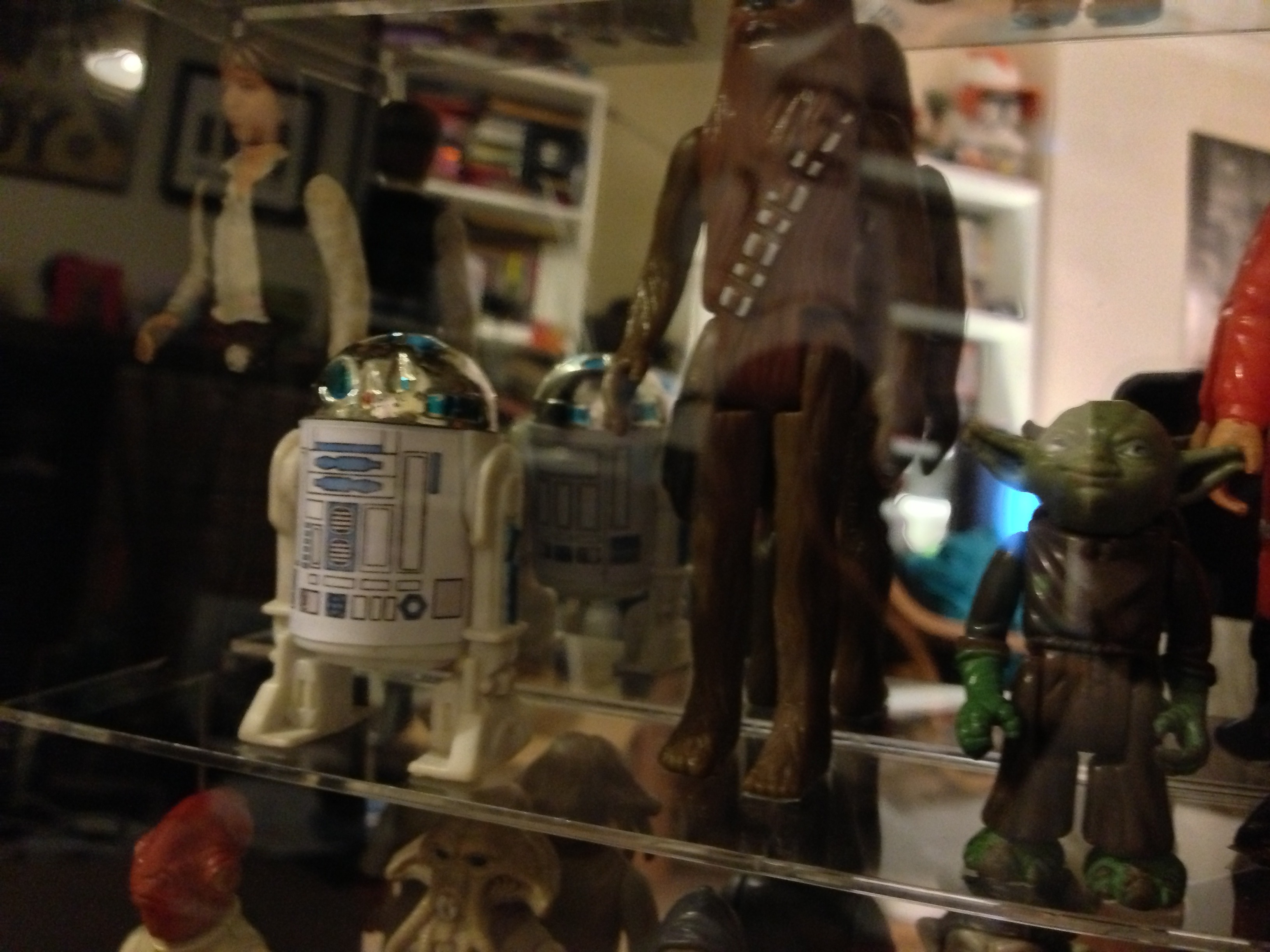

Once all the figures are in the frame and the back is on its time to stand back and marvel at your collection of vintage Star Wars action figures.
