Standing desks are all the rage these days, and justifiably so. When I'm standing at my desk, I feel on top of my work! It's a great feeling, and I get a lot more done! So I just had to make one!
I designed my desk around these three principles
- Minimized profile
- Adjustable height
- Modern looking
In a sense, I wanted the desk to look like it was floating. That's why the legs and frame are steel. You don't have to use a ton of steel for the desk to be strong. I wanted to be able to adjust the height of the desk so if someone else was using it, it could work for them too. Finally, I didn't want this desk to look like every other desk out there, so I went a little crazy with the end grain!
*EDIT: I removed the control panel from my treadmill and turned this desk into a standing treadmill desk :) https://youtu.be/txqNWRGJWB8?t=1m28s
Why Read When You Can Watch?
![Standing Epoxy Pallet Desk](/proxy/?url=https://content.instructables.com/FS6/UZQD/IN7OPEIM/FS6UZQDIN7OPEIM.jpg&filename=Standing Epoxy Pallet Desk)
![A Look Into the Design Flaws of My Standing Desk](/proxy/?url=https://content.instructables.com/F1M/L22P/IN7OQIJY/F1ML22PIN7OQIJY.jpg&filename=A Look Into the Design Flaws of My Standing Desk)
![How to RECLAIM PALLET WOOD with a Table Saw](/proxy/?url=https://content.instructables.com/FTQ/ZO75/IPFREOXK/FTQZO75IPFREOXK.jpg&filename=How to RECLAIM PALLET WOOD with a Table Saw)
I would recommend watching the video before reading this instructable. It will help give a visual overview of just how hefty this project is!

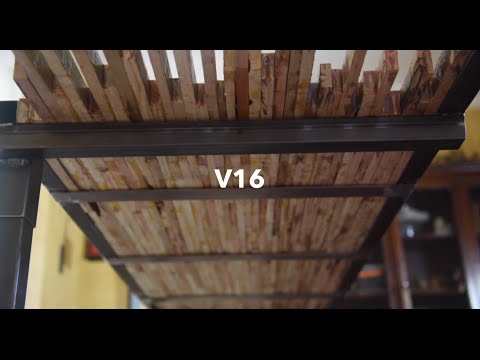

The second video is a short 3 minute talk about design flaws and motivations.
The third video gives a rundown on how to remove whole pallet boards and pallet nails.
What You'll Need
![Screen Shot 2016-04-19 at 7.57.50 PM.png](/proxy/?url=https://content.instructables.com/FEY/F49V/IN7OPVXT/FEYF49VIN7OPVXT.png&filename=Screen Shot 2016-04-19 at 7.57.50 PM.png)
![Screen Shot 2016-04-19 at 7.58.05 PM.png](/proxy/?url=https://content.instructables.com/F5R/2JRB/IN7OPVX4/F5R2JRBIN7OPVX4.png&filename=Screen Shot 2016-04-19 at 7.58.05 PM.png)
- Somewhere in the neighborhood of 12 pallets
- 5 @ 1.5"X84" 16 Gauge Square Steel Tube
- 2 @ 1.75"X23" 16 Gauge Square Steel Tube
- 2 @ 2"X5" 16 Gauge Square Steel Tube
- 3 @ 2"x30" 14 Gauge Flat Steel Bar
- 1 @ 16Oz Wood glue
- 2 @ 32Oz Super Glaze Resin Epoxy
- 1 @ Rust-Oleum Clear Coat
- 18 @ 1/4" 20 thread/inch bolt 1/2" long
- 2 @ 3/8" 20 thread/inch bolt 2" long
- 4 @ 2" caster wheels

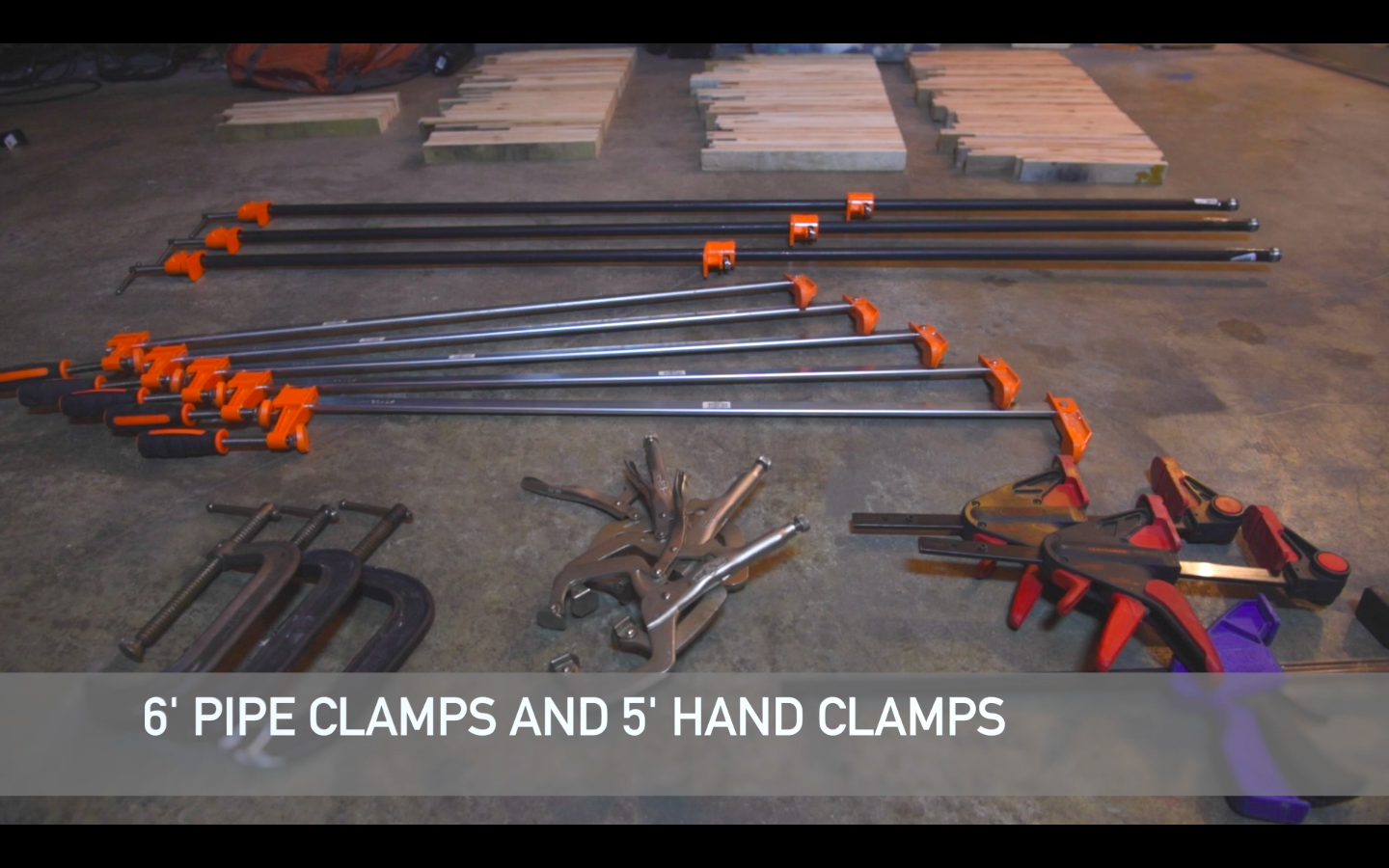

- 3 foot clamps. The more the better
- Table Saw
- Belt sander
- Mig Welder
- 1/4" Tap
The Pallets
![Screen Shot 2016-04-19 at 7.57.30 PM.png](/proxy/?url=https://content.instructables.com/FYV/HDJS/IN7OPW0G/FYVHDJSIN7OPW0G.png&filename=Screen Shot 2016-04-19 at 7.57.30 PM.png)
![Screen Shot 2016-04-19 at 7.56.25 PM.png](/proxy/?url=https://content.instructables.com/FGY/M5C4/IN7OPW79/FGYM5C4IN7OPW79.png&filename=Screen Shot 2016-04-19 at 7.56.25 PM.png)
![Screen Shot 2016-04-19 at 7.56.32 PM.png](/proxy/?url=https://content.instructables.com/FOM/PY2M/IN7OPW71/FOMPY2MIN7OPW71.png&filename=Screen Shot 2016-04-19 at 7.56.32 PM.png)
![Screen Shot 2016-04-19 at 7.56.55 PM.png](/proxy/?url=https://content.instructables.com/FAW/5V71/IN7OPW2L/FAW5V71IN7OPW2L.png&filename=Screen Shot 2016-04-19 at 7.56.55 PM.png)
![Screen Shot 2016-04-19 at 7.57.02 PM.png](/proxy/?url=https://content.instructables.com/FVK/99UE/IN7OPW2G/FVK99UEIN7OPW2G.png&filename=Screen Shot 2016-04-19 at 7.57.02 PM.png)
![Screen Shot 2016-04-19 at 7.57.10 PM.png](/proxy/?url=https://content.instructables.com/FHH/R3U2/IN7OPW1H/FHHR3U2IN7OPW1H.png&filename=Screen Shot 2016-04-19 at 7.57.10 PM.png)
![Screen Shot 2016-04-19 at 7.57.37 PM.png](/proxy/?url=https://content.instructables.com/FBC/UNMM/IN7OPW0F/FBCUNMMIN7OPW0F.png&filename=Screen Shot 2016-04-19 at 7.57.37 PM.png)
Removing nails from the pallets is just silly, it's too time consuming. Instead using a circular (skill saw) cut the slats out. Be really careful not to cut into any nails. Nails can cause the saw to jump violently. This takes some time, so be patient

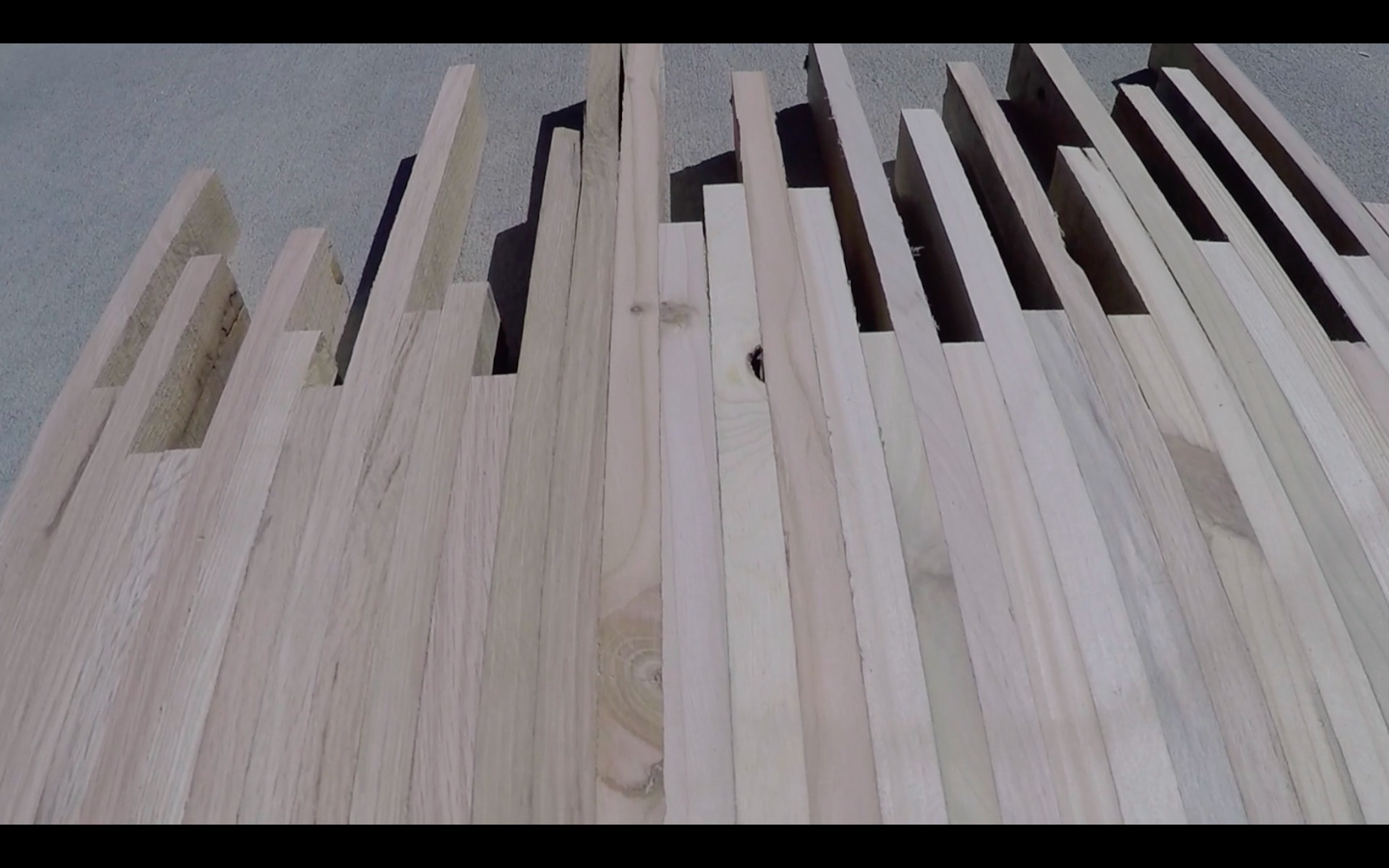

Now that you have a bunch of slats, take them to the table saw. We will be using the table saw to square off all of the boards and cut off the rotten ends. Set you guard to cut off as little as possible. Then run each board through so each side is square. This takes even more time!
Finally set the guard to the width you want your table to be. In our case, that is 1.5". Run every board through this so you end up with a bunch of 1.5" wide boards of varying lengths. As you cut them down, you want to organize them into similarly thick groups. This will save time later during the gluing.
Gluing the Boards Together
![Screen Shot 2016-04-19 at 7.58.23 PM.png](/proxy/?url=https://content.instructables.com/FEL/SKQK/IN7OPVX1/FELSKQKIN7OPVX1.png&filename=Screen Shot 2016-04-19 at 7.58.23 PM.png)
![Screen Shot 2016-04-19 at 7.59.58 PM.png](/proxy/?url=https://content.instructables.com/FDE/YAF6/IN7OPVSV/FDEYAF6IN7OPVSV.png&filename=Screen Shot 2016-04-19 at 7.59.58 PM.png)
![Screen Shot 2016-04-19 at 8.00.03 PM.png](/proxy/?url=https://content.instructables.com/FEM/UJ9R/IN7OPVRW/FEMUJ9RIN7OPVRW.png&filename=Screen Shot 2016-04-19 at 8.00.03 PM.png)
![Screen Shot 2016-04-19 at 8.01.26 PM.png](/proxy/?url=https://content.instructables.com/FZY/TPV6/IN7OPVP0/FZYTPV6IN7OPVP0.png&filename=Screen Shot 2016-04-19 at 8.01.26 PM.png)
![Screen Shot 2016-04-19 at 8.01.41 PM.png](/proxy/?url=https://content.instructables.com/FXU/7KEE/IN7OPVNX/FXU7KEEIN7OPVNX.png&filename=Screen Shot 2016-04-19 at 8.01.41 PM.png)
![Screen Shot 2016-04-19 at 8.01.47 PM.png](/proxy/?url=https://content.instructables.com/FCJ/8821/IN7OPVMW/FCJ8821IN7OPVMW.png&filename=Screen Shot 2016-04-19 at 8.01.47 PM.png)

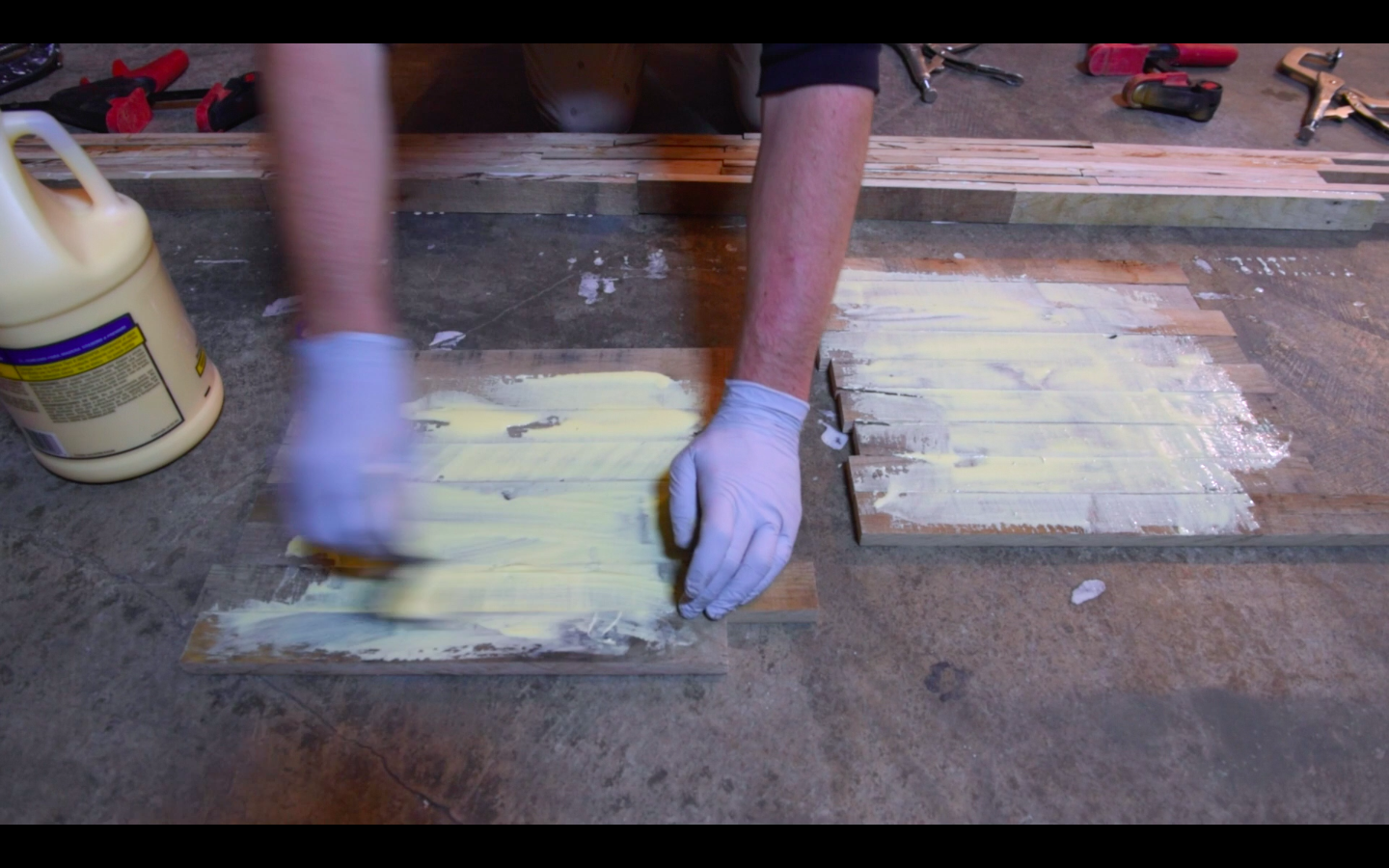

This is is the messy part. You will need your clamps, all of your boards and wood glue. You can use any type of wood glue. I used type 2 Tite Bond.
Take your boards of equal widths and lay them down flat, so you have a "floor" of boards. Grab your glue and spread it over all of the boards. You really want to spread the glue over every single board at once. You only need to do one side of the boards but be generous with the glue. Use a brush to spread the glue evenly across the boards.
Starting with those closest to you, stand the boards up on end and press them against each other. You will do this row by row, pressing the glued side of the row to the backside of the row in front of it. As you do this, you want to make sure that the butt joints of two boards in one row don't align with those in an adjacent row. This is important not only for aesthetics but also for rigidity. Basically, the joints should be staggered all the way down the surface. Also take note of how far your boards stick off the end, you can always trim them down, but you don't really want them to stick out more than 12 inches.

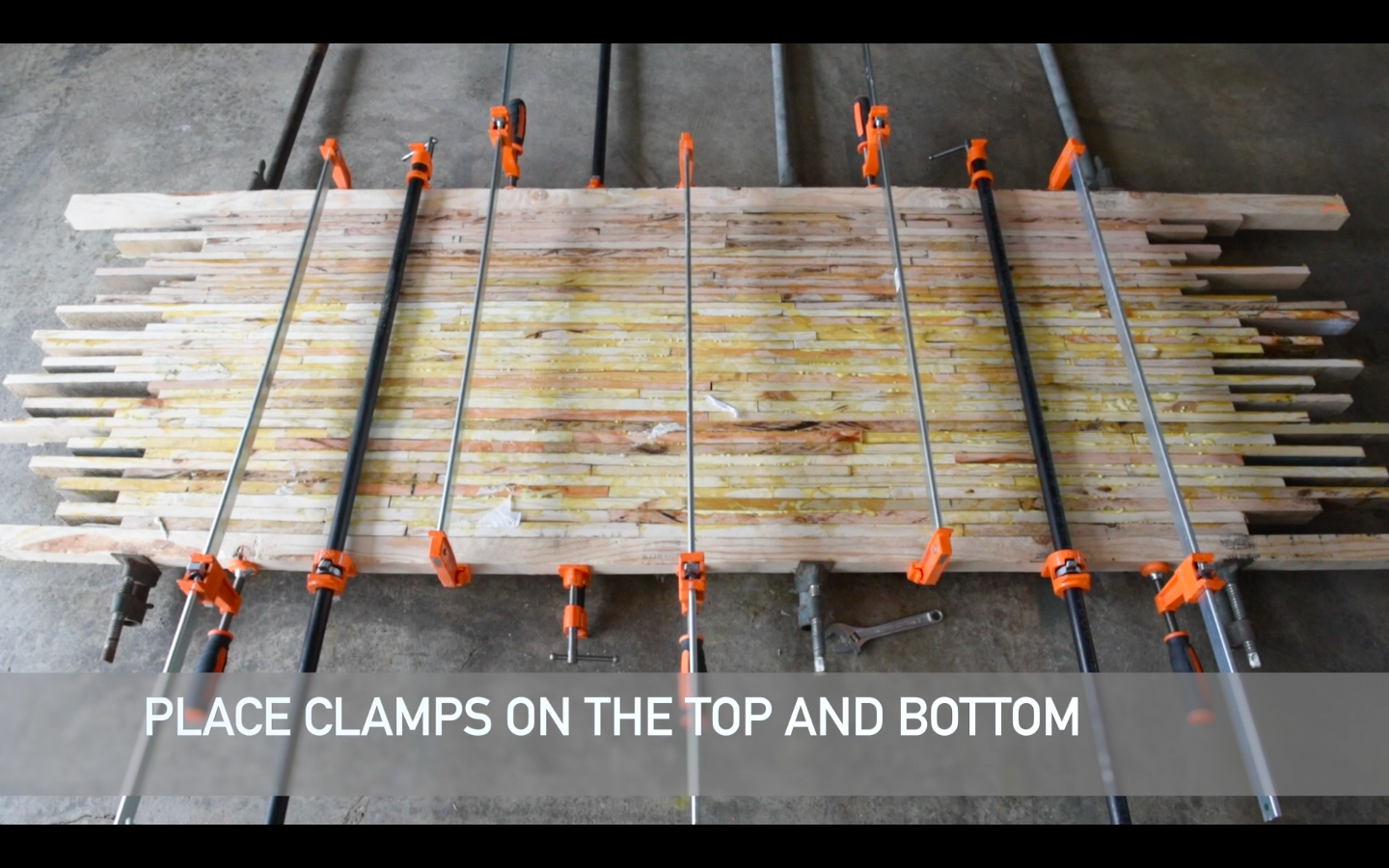

Once all of the boards are glued, line the table with 2 long, unglued boards and use them to clamp the glued boards together. I used 2"x2" in the video but I wish I had used steel. It would have made for more even pressure along he boards. You want 1/2 of you clamps to be on one side of the table and the other half on the other side. This is to stop the clamps from bowing the table as it dries because the clamps will be pulling against each other.
Wait 24 hours for the glue to fully cure, and before removing any of the clamps.
Planing the Surface
![Screen Shot 2016-04-19 at 8.02.09 PM.png](/proxy/?url=https://content.instructables.com/FZA/F5KK/IN7OPVL8/FZAF5KKIN7OPVL8.png&filename=Screen Shot 2016-04-19 at 8.02.09 PM.png)
![Screen Shot 2016-04-19 at 8.02.41 PM.png](/proxy/?url=https://content.instructables.com/FHN/TQA2/IN7OPVJ4/FHNTQA2IN7OPVJ4.png&filename=Screen Shot 2016-04-19 at 8.02.41 PM.png)
![Screen Shot 2016-04-19 at 8.03.00 PM.png](/proxy/?url=https://content.instructables.com/F7Y/CEXA/IN7OPVHW/F7YCEXAIN7OPVHW.png&filename=Screen Shot 2016-04-19 at 8.03.00 PM.png)
![Screen Shot 2016-04-19 at 8.03.04 PM.png](/proxy/?url=https://content.instructables.com/F3G/HNE0/IN7OPVGT/F3GHNE0IN7OPVGT.png&filename=Screen Shot 2016-04-19 at 8.03.04 PM.png)
![Screen Shot 2016-04-19 at 8.03.10 PM.png](/proxy/?url=https://content.instructables.com/FCW/PVEW/IN7OPVFX/FCWPVEWIN7OPVFX.png&filename=Screen Shot 2016-04-19 at 8.03.10 PM.png)

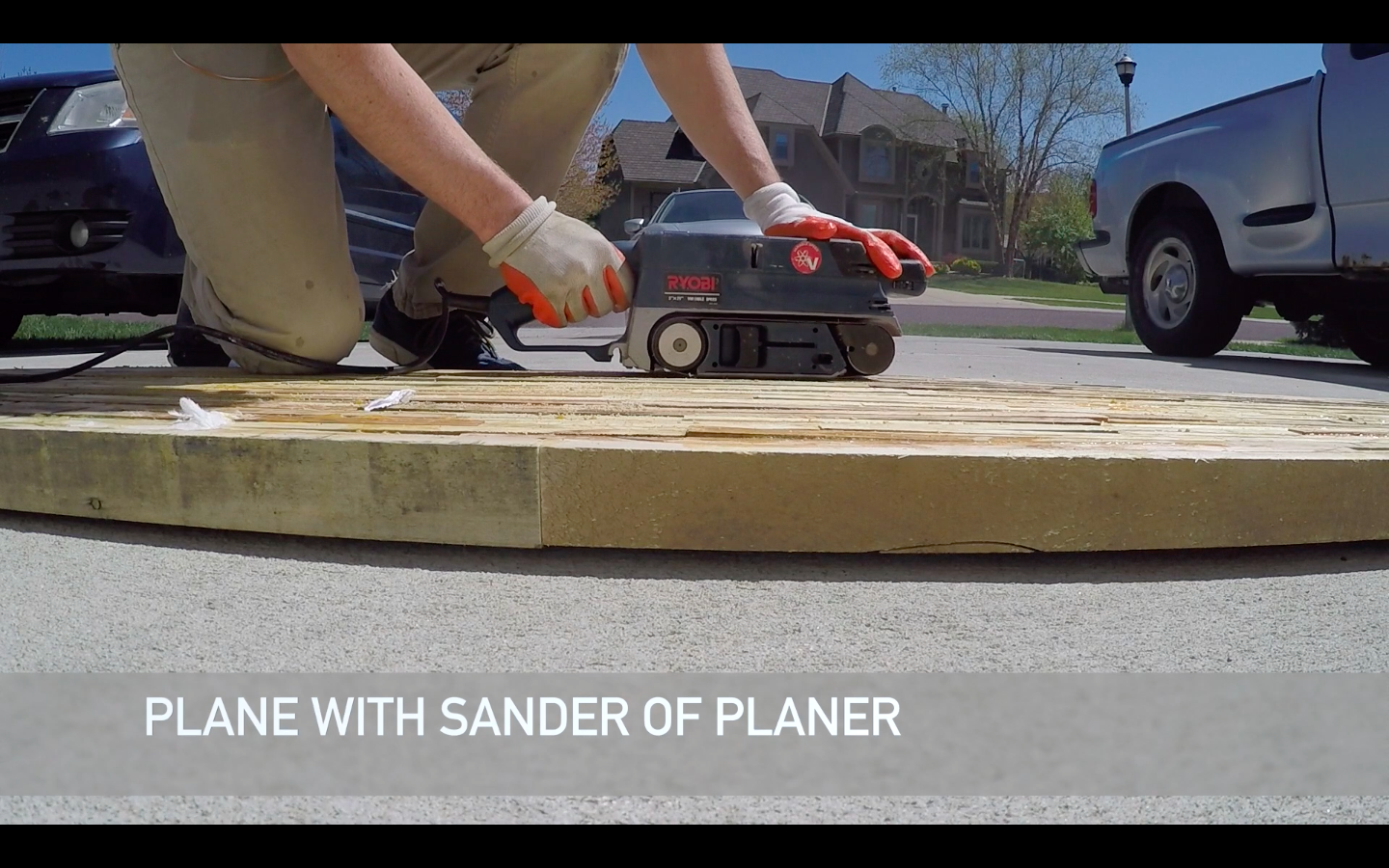

After 24 hours remove the clamps and take your table outside. Grab a hand scraper (or planer) and remove the excess glue. I used the scraper to plane down some particularly warped boards. A hand planer would work wonders here, but I don't have one. So instead I used 36 grit sand paper and sanded for about 2 hours! Yea it was a long process! I also only sanded the one side because I wanted to leave the ruggedness of the underside.
Fill in any and all holes with wood filler. Sand the surface with 80 grit then 120 the 240 grit sand paper to get a really smooth finish. Wipe the surface down with a microfiber cloth to remove all the dust then take the table inside.
Apply the Epoxy
![How to Apply Super Glaze Epoxy Resin on Tile/Wood/Canvas](/proxy/?url=https://content.instructables.com/FQG/5ETB/IN7OPG98/FQG5ETBIN7OPG98.jpg&filename=How to Apply Super Glaze Epoxy Resin on Tile/Wood/Canvas)
![Screen Shot 2016-04-19 at 8.03.47 PM.png](/proxy/?url=https://content.instructables.com/F1H/RAPA/IN7OPVE4/F1HRAPAIN7OPVE4.png&filename=Screen Shot 2016-04-19 at 8.03.47 PM.png)
![Screen Shot 2016-04-19 at 8.03.53 PM.png](/proxy/?url=https://content.instructables.com/F6Y/QKJ6/IN7OPVD3/F6YQKJ6IN7OPVD3.png&filename=Screen Shot 2016-04-19 at 8.03.53 PM.png)
![Screen Shot 2016-04-19 at 8.04.11 PM.png](/proxy/?url=https://content.instructables.com/FZL/PJQV/IN7OPVC1/FZLPJQVIN7OPVC1.png&filename=Screen Shot 2016-04-19 at 8.04.11 PM.png)
![Screen Shot 2016-04-19 at 8.04.37 PM.png](/proxy/?url=https://content.instructables.com/F12/1XYW/IN7OPVBM/F121XYWIN7OPVBM.png&filename=Screen Shot 2016-04-19 at 8.04.37 PM.png)
First off watch this 70 second video on how to apply epoxy.

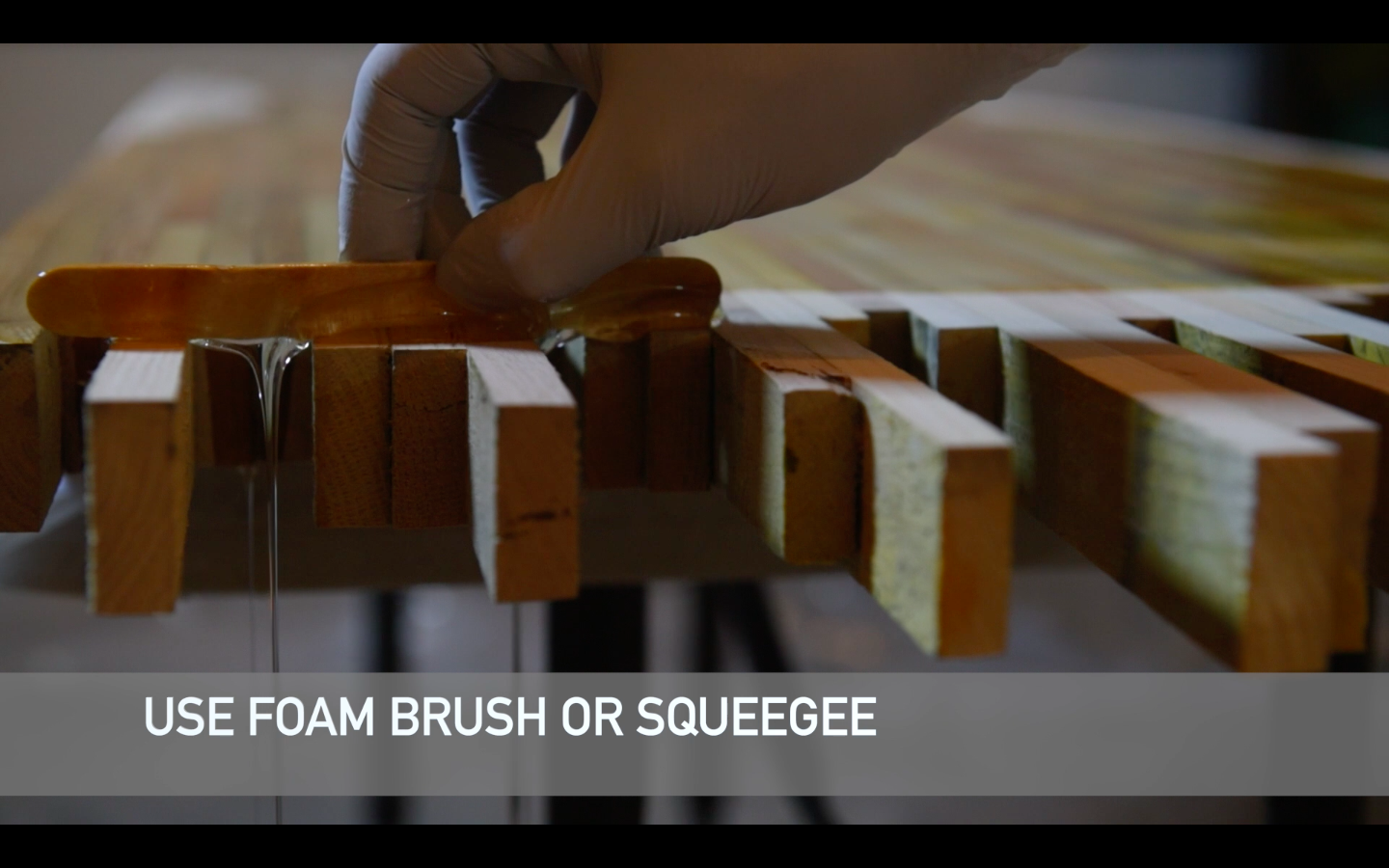

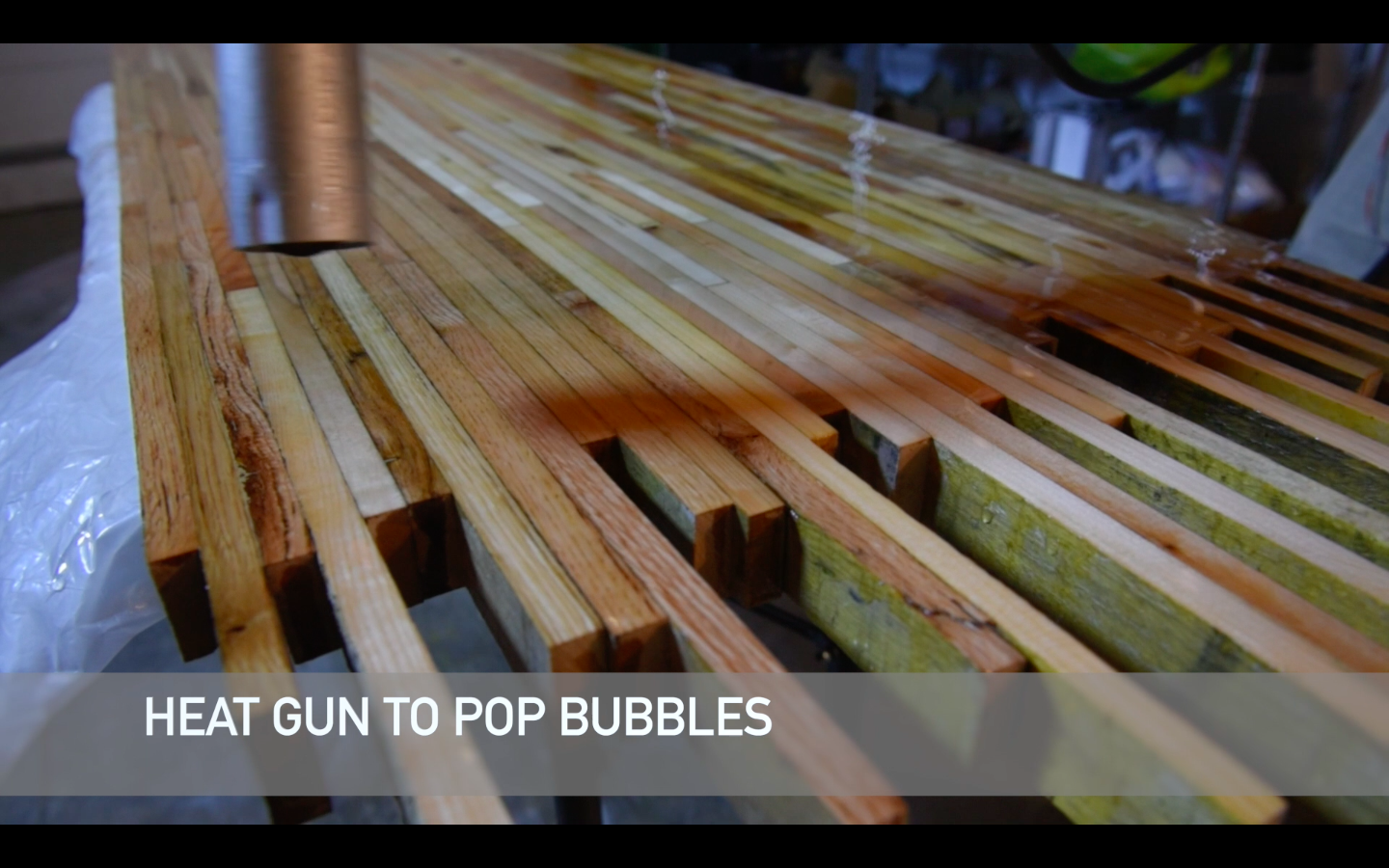

One Home Depot box of Super Glaze Epoxy: 32 Ounces will do a coat on your 5 foot by 2.5 foot table. Mix the epoxy and apply it according to the video above.
If you mess up a little bit, don't sweat it, you can always do another coat of epoxy.
Leave the epoxy for 72 hours for it to fully cure. Then you'll want to scrape off the epoxy drips on the underside of the table.
Framing the Table in Steal
![Screen Shot 2016-04-19 at 8.04.48 PM.png](/proxy/?url=https://content.instructables.com/FUV/ZFF6/IN7OPVAS/FUVZFF6IN7OPVAS.png&filename=Screen Shot 2016-04-19 at 8.04.48 PM.png)
![Screen Shot 2016-04-19 at 8.05.09 PM.png](/proxy/?url=https://content.instructables.com/FY0/NDWJ/IN7OPV2Q/FY0NDWJIN7OPV2Q.png&filename=Screen Shot 2016-04-19 at 8.05.09 PM.png)
![Screen Shot 2016-04-19 at 8.05.38 PM.png](/proxy/?url=https://content.instructables.com/FFO/B559/IN7OPV0H/FFOB559IN7OPV0H.png&filename=Screen Shot 2016-04-19 at 8.05.38 PM.png)
![Screen Shot 2016-04-19 at 8.06.15 PM.png](/proxy/?url=https://content.instructables.com/FXF/43VG/IN7OPUYC/FXF43VGIN7OPUYC.png&filename=Screen Shot 2016-04-19 at 8.06.15 PM.png)
![Screen Shot 2016-04-19 at 8.05.49 PM.png](/proxy/?url=https://content.instructables.com/FXE/WLGN/IN7OPUYE/FXEWLGNIN7OPUYE.png&filename=Screen Shot 2016-04-19 at 8.05.49 PM.png)

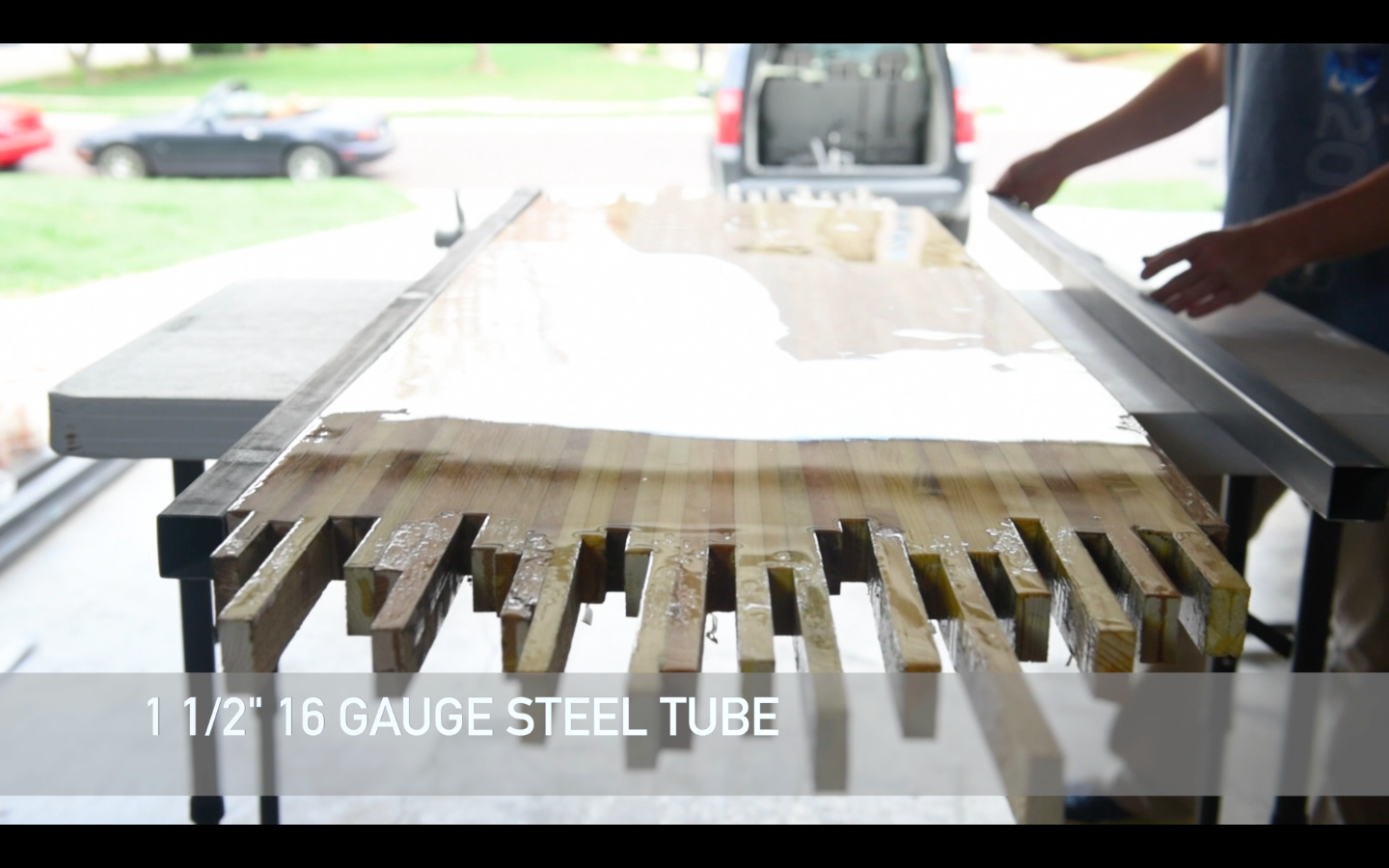

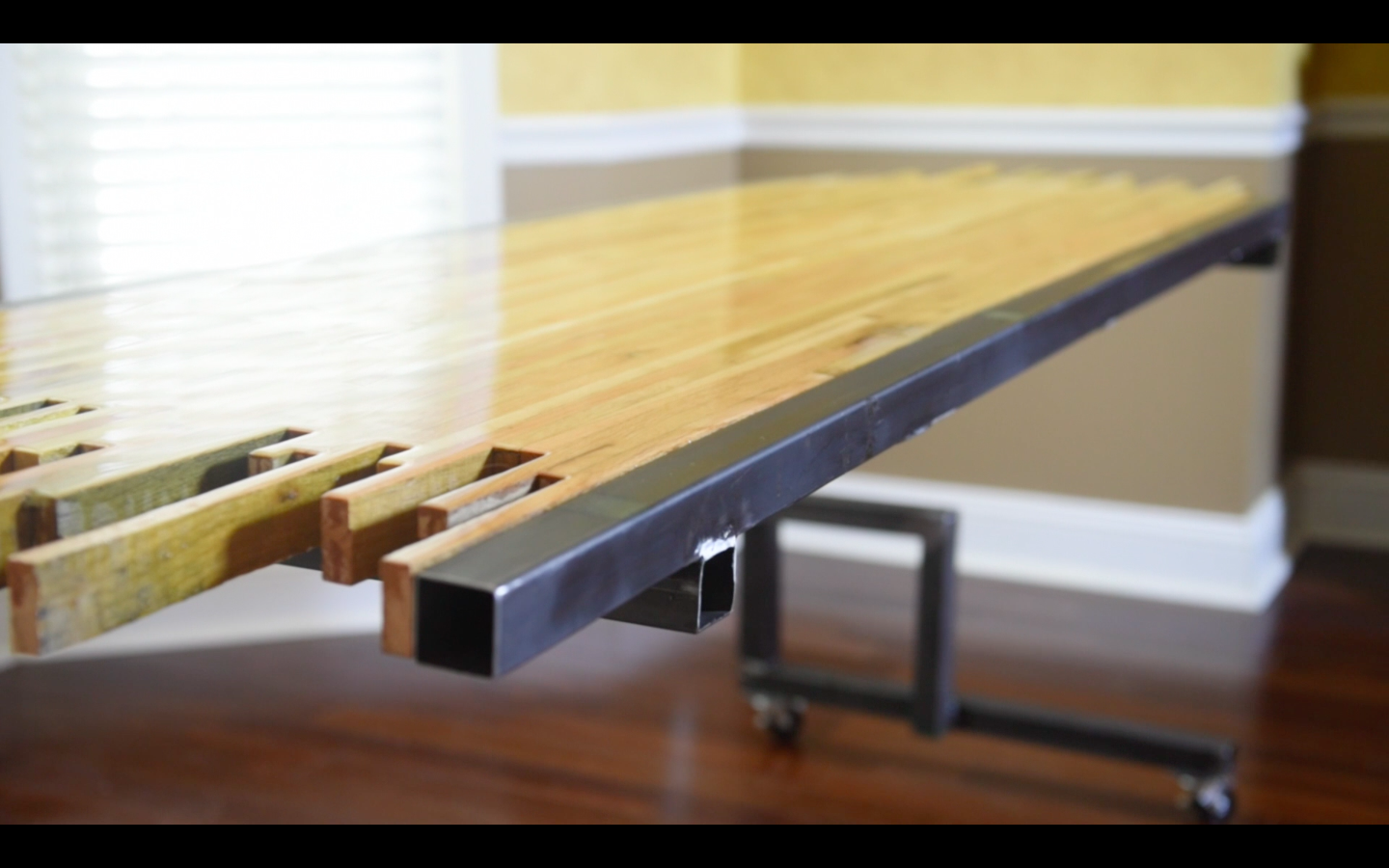

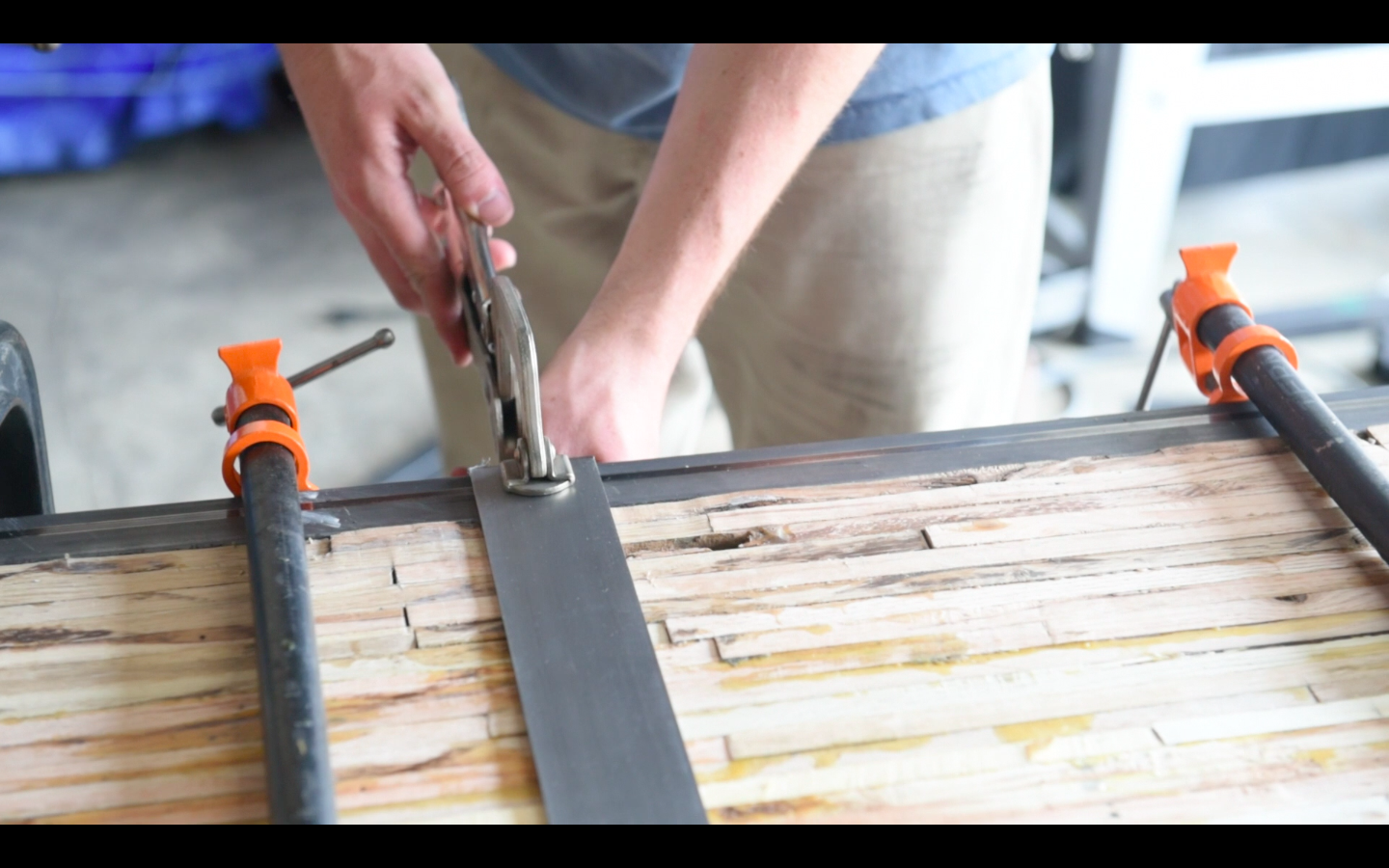

Cut two pieces of 1.5" 16 Gauge square steel tube to the length of the front and back edge of your table. You want them to line up just right so it looks professional. Clamp them to the wood using your large bar clamps. Now take two more 1.5" 16 Gauge square tube cut to the exact width of the table and clamp them to the front and back steel tubes. I positioned these shorter pieces near the ends of the table, but still completely underneath so when you looked in between the pallet slats, you could still see straight to the floor. Now weld them in place to the front and back steel tubes. Make sure and cover the epoxy finish so you don't mess it up with the sparks.

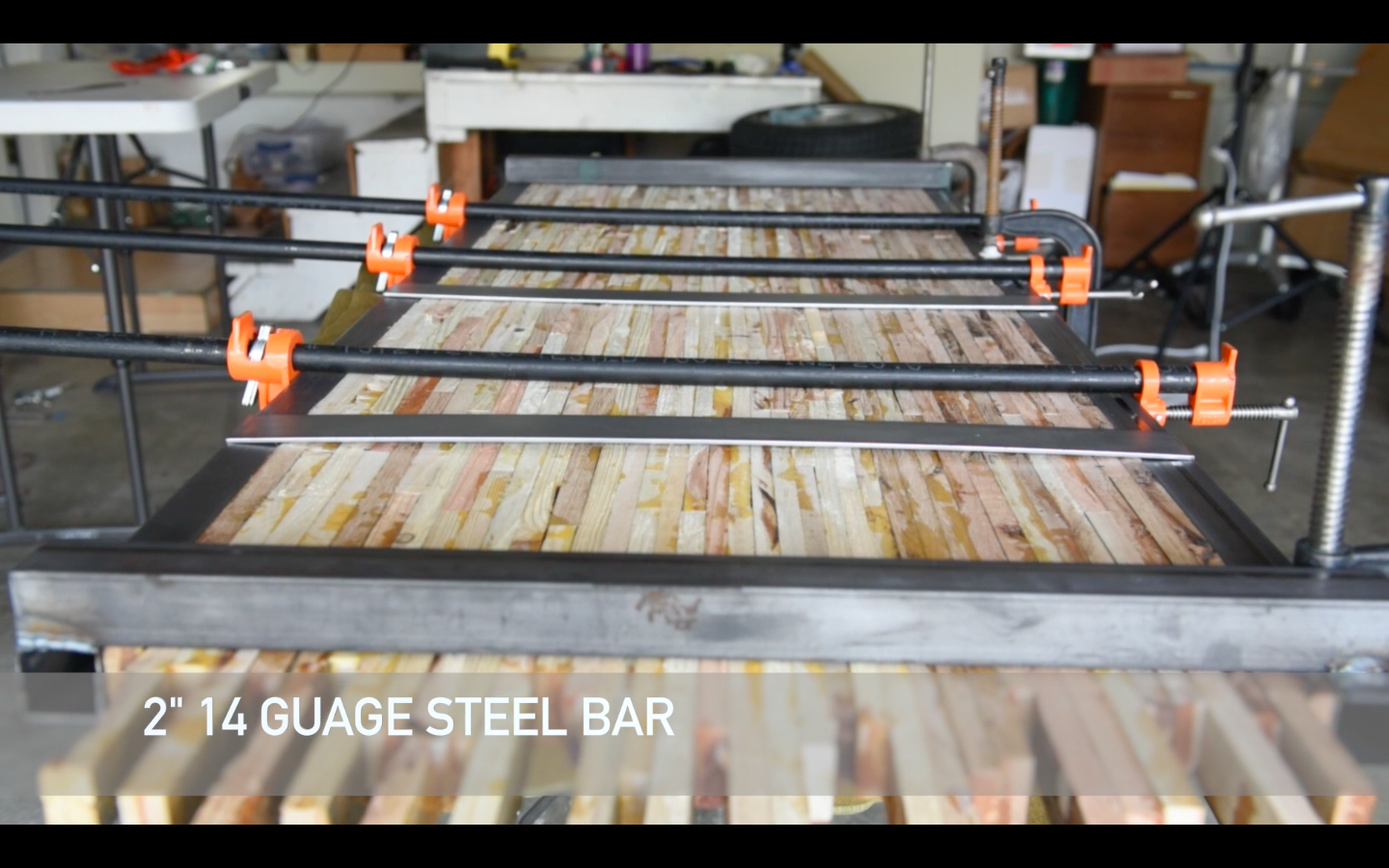

Take three 2" wide 14 Gauge steel bars cut to the width of the table and lay them on the underside of the table. Space these bars equidistant from each other and the side running steel tubes we just welded. Clamp the bars in place and weld them. These bars are used for extra strength in holding the pallet table up.
Grind Down All Joints
![Screen Shot 2016-04-19 at 8.06.31 PM.png](/proxy/?url=https://content.instructables.com/F1W/RDSM/IN7OPUW4/F1WRDSMIN7OPUW4.png&filename=Screen Shot 2016-04-19 at 8.06.31 PM.png)
![Screen Shot 2016-04-19 at 8.06.41 PM.png](/proxy/?url=https://content.instructables.com/FP3/NRKU/IN7OPUU2/FP3NRKUIN7OPUU2.png&filename=Screen Shot 2016-04-19 at 8.06.41 PM.png)
You don't want any nasty welds cutting your hand, so grind them all down smooth!
Making the Legs
![Screen Shot 2016-04-19 at 8.07.08 PM.png](/proxy/?url=https://content.instructables.com/FWQ/QD5G/IN7OPULB/FWQQD5GIN7OPULB.png&filename=Screen Shot 2016-04-19 at 8.07.08 PM.png)
![Screen Shot 2016-04-19 at 8.06.45 PM.png](/proxy/?url=https://content.instructables.com/FAS/PXVI/IN7OPUT8/FASPXVIIN7OPUT8.png&filename=Screen Shot 2016-04-19 at 8.06.45 PM.png)
![Screen Shot 2016-04-19 at 8.06.52 PM.png](/proxy/?url=https://content.instructables.com/FYD/OVJL/IN7OPUQD/FYDOVJLIN7OPUQD.png&filename=Screen Shot 2016-04-19 at 8.06.52 PM.png)
![Screen Shot 2016-04-19 at 8.06.55 PM.png](/proxy/?url=https://content.instructables.com/FBL/AGJ0/IN7OPUQA/FBLAGJ0IN7OPUQA.png&filename=Screen Shot 2016-04-19 at 8.06.55 PM.png)
![Screen Shot 2016-04-19 at 8.07.01 PM.png](/proxy/?url=https://content.instructables.com/F9C/O233/IN7OPUNE/F9CO233IN7OPUNE.png&filename=Screen Shot 2016-04-19 at 8.07.01 PM.png)
You will need the following steel pieces for the legs:
- 2 @ 2" 16 Gauge Steel Tube: 5" long
- 2 @ 1.75" 16 Gauge Steel Tube: 23" long
- 2 @ 1.5" 16 Gauge Steel Tube: 23" long
- 2 @ 1.5" 16 Gauge Steel Tube: 25" long
- 4 @ 1.5" 16 Gauge Steel Tube: 10" long
Construct two "L" shapes with one 1.5" X 23" tube and one 1.5" X 25" tube. You want the 23" tube to rest against the side of the 25" tube. Weld the two L pieces.

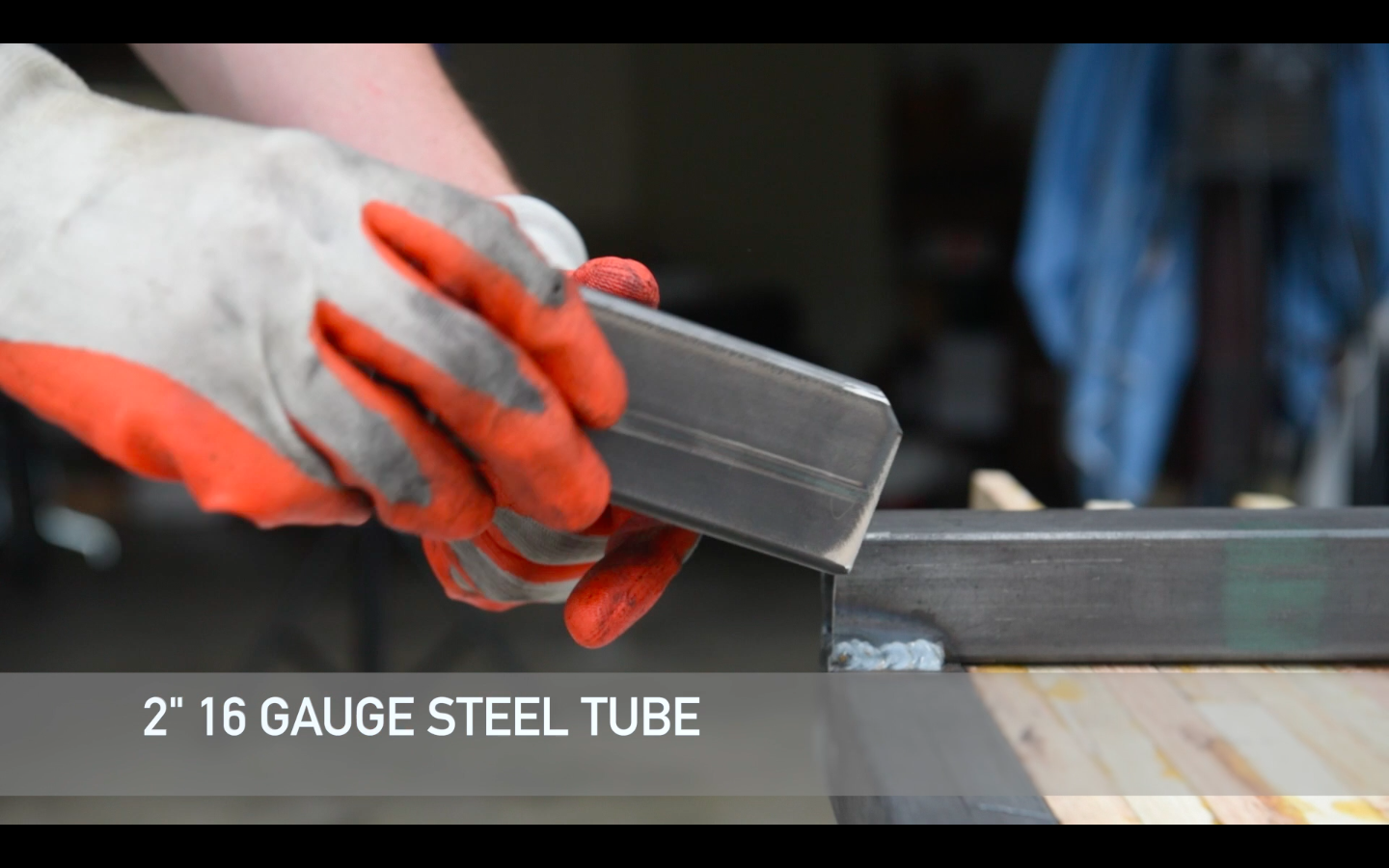

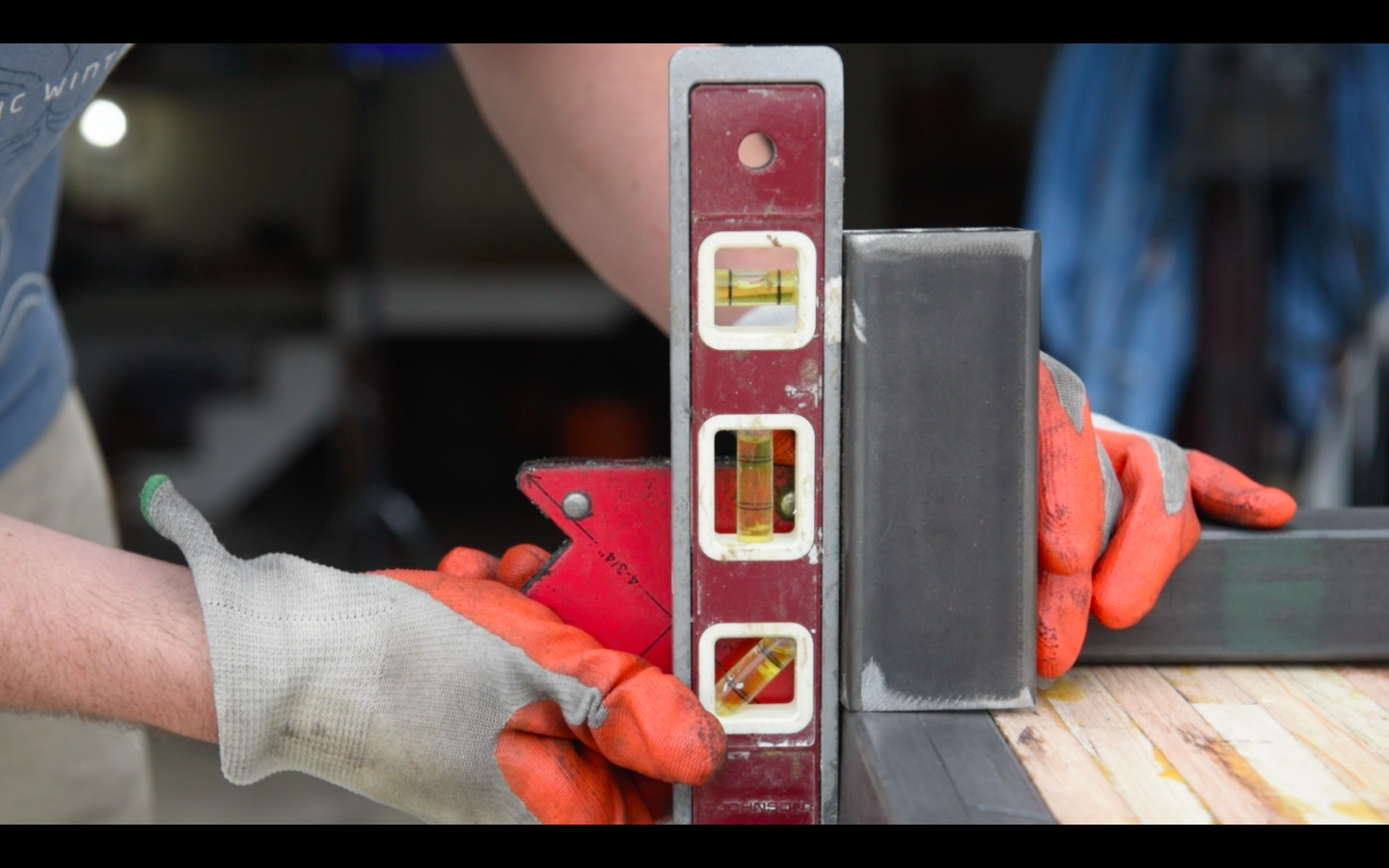

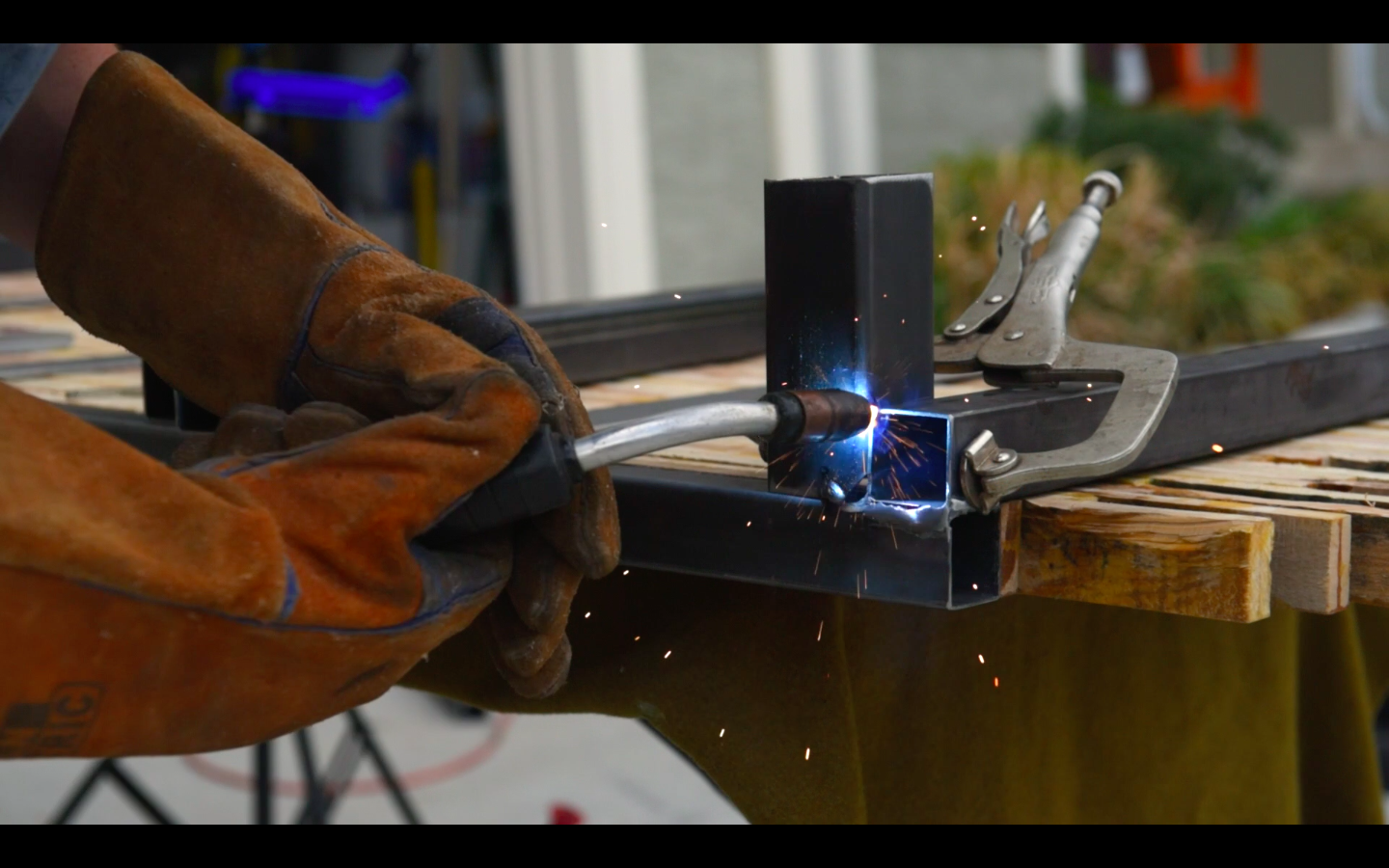

Flip the pallet table on it's epoxied side and grab the 2" X 5" tubes. Where the back steel bar and the under bar meet, place the 2" X 5" tubes. These will be where the legs nest into the pallet table. Make sure these pieces are perpendicular to the table, then tilt them a little bit out so they still out the back of the table just slightly. Weld them in place.
Modifying the Legs
![Screen Shot 2016-04-19 at 8.07.26 PM.png](/proxy/?url=https://content.instructables.com/FMC/ZSF9/IN7OPUGB/FMCZSF9IN7OPUGB.png&filename=Screen Shot 2016-04-19 at 8.07.26 PM.png)
![Screen Shot 2016-04-19 at 8.07.45 PM.png](/proxy/?url=https://content.instructables.com/FWX/ON9X/IN7OPUD6/FWXON9XIN7OPUD6.png&filename=Screen Shot 2016-04-19 at 8.07.45 PM.png)
![Screen Shot 2016-04-19 at 8.08.23 PM.png](/proxy/?url=https://content.instructables.com/F4J/9KXZ/IN7OPTZ6/F4J9KXZIN7OPTZ6.png&filename=Screen Shot 2016-04-19 at 8.08.23 PM.png)
![Screen Shot 2016-04-19 at 8.08.07 PM.png](/proxy/?url=https://content.instructables.com/F0E/6KIS/IN7OPU71/F0E6KISIN7OPU71.png&filename=Screen Shot 2016-04-19 at 8.08.07 PM.png)
![Screen Shot 2016-04-19 at 8.08.19 PM.png](/proxy/?url=https://content.instructables.com/FN3/HW8T/IN7OPU24/FN3HW8TIN7OPU24.png&filename=Screen Shot 2016-04-19 at 8.08.19 PM.png)

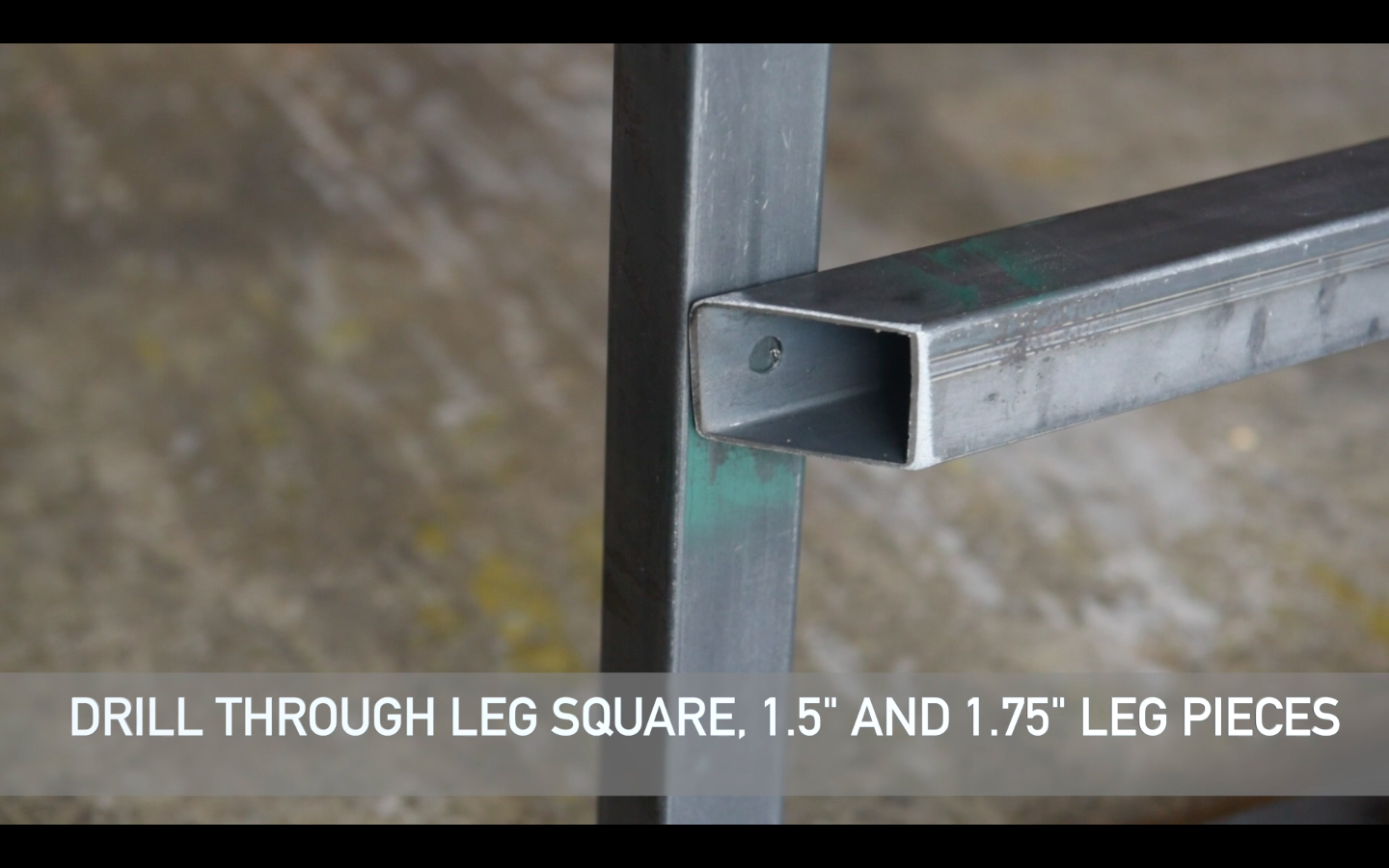

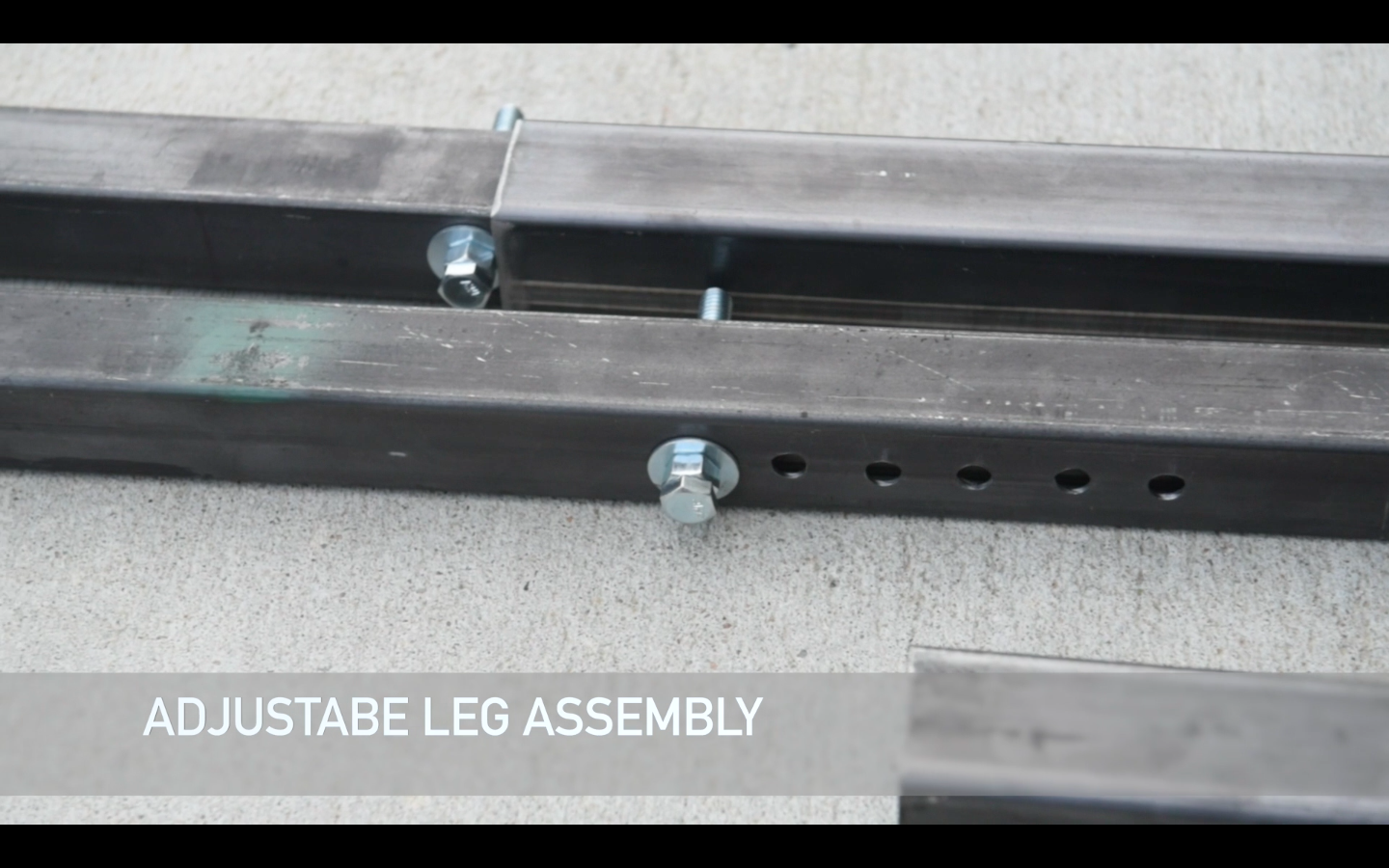

Now we need to drill holes in the 1.5" X 23" part of our "L" shaped legs. These holes will be used for our bolt to hold to the table at a certain height. Start 5" down from the top of the tube (top of the "L") and drill a 6-9 holes 1" apart. The number of holes depends on how much adjustment room you want. if you allow the legs to completely telescope into a closed position, the table will be 29 inches tall. Thus if your top hole is 5" from the top of the "L", then you will have a range of: 29" - 47".
For the bolt, I used a 3/8" bolt because it looked beefy! Anything smaller and it will throw off the look of your table.
Lastly, I decided that I didn't like the simple "U" shape of the table so I cut and added steel squares on the legs. I didn't want this to mess with the telescoping legs so I only welded the bottom of the square to the leg and bolts the top part. That way, if I wanted to drop the table al the way down, all I had to do was take out the bolt.
Finishing Touches
![Screen Shot 2016-04-19 at 8.08.33 PM.png](/proxy/?url=https://content.instructables.com/F1O/779K/IN7OPTY4/F1O779KIN7OPTY4.png&filename=Screen Shot 2016-04-19 at 8.08.33 PM.png)
![Screen Shot 2016-04-19 at 8.08.30 PM.png](/proxy/?url=https://content.instructables.com/FWV/URRN/IN7OPTYC/FWVURRNIN7OPTYC.png&filename=Screen Shot 2016-04-19 at 8.08.30 PM.png)

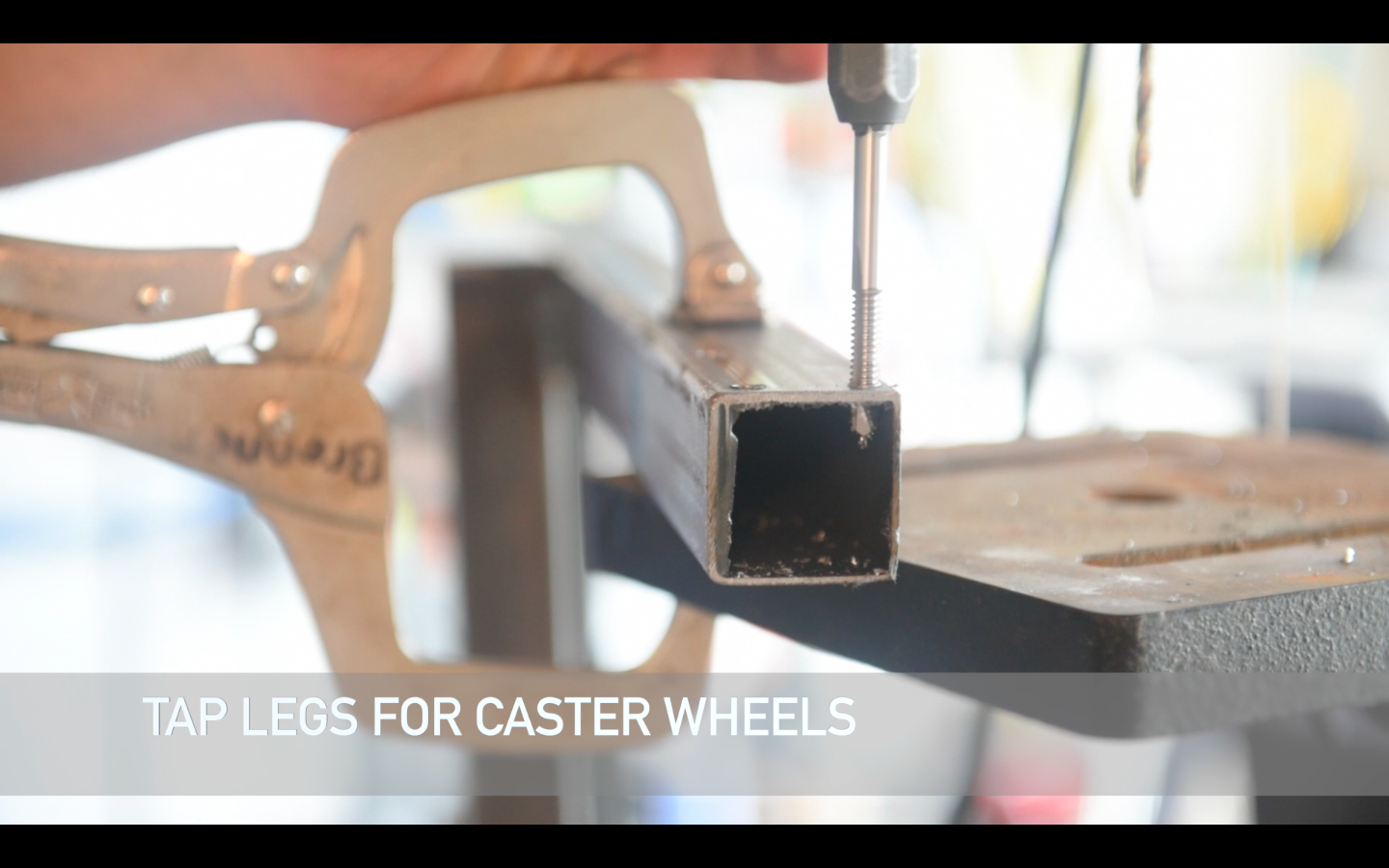

Since this table is so heavy, I added 4 locking caster wheels on the legs. I did this by drilling 13/64" holes and then tapping the holes with a 1/4" tap.
I rubbed all of the steel down with acetone then used Rust-Oleum's clear coat sealer for steal.
Stand and Work
![Screen Shot 2016-04-19 at 7.55.40 PM.png](/proxy/?url=https://content.instructables.com/F7Z/8S96/IN7OPW9I/F7Z8S96IN7OPW9I.png&filename=Screen Shot 2016-04-19 at 7.55.40 PM.png)
![Screen Shot 2016-04-19 at 7.55.52 PM.png](/proxy/?url=https://content.instructables.com/FHS/DTQF/IN7OPW8O/FHSDTQFIN7OPW8O.png&filename=Screen Shot 2016-04-19 at 7.55.52 PM.png)
![Screen Shot 2016-04-19 at 8.09.24 PM.png](/proxy/?url=https://content.instructables.com/F50/24QY/IN7OPTOS/F5024QYIN7OPTOS.png&filename=Screen Shot 2016-04-19 at 8.09.24 PM.png)
![Screen Shot 2016-04-19 at 8.08.45 PM.png](/proxy/?url=https://content.instructables.com/FR6/13RM/IN7OPTSY/FR613RMIN7OPTSY.png&filename=Screen Shot 2016-04-19 at 8.08.45 PM.png)
![Screen Shot 2016-04-19 at 8.08.52 PM.png](/proxy/?url=https://content.instructables.com/F2Q/HAI5/IN7OPTOV/F2QHAI5IN7OPTOV.png&filename=Screen Shot 2016-04-19 at 8.08.52 PM.png)

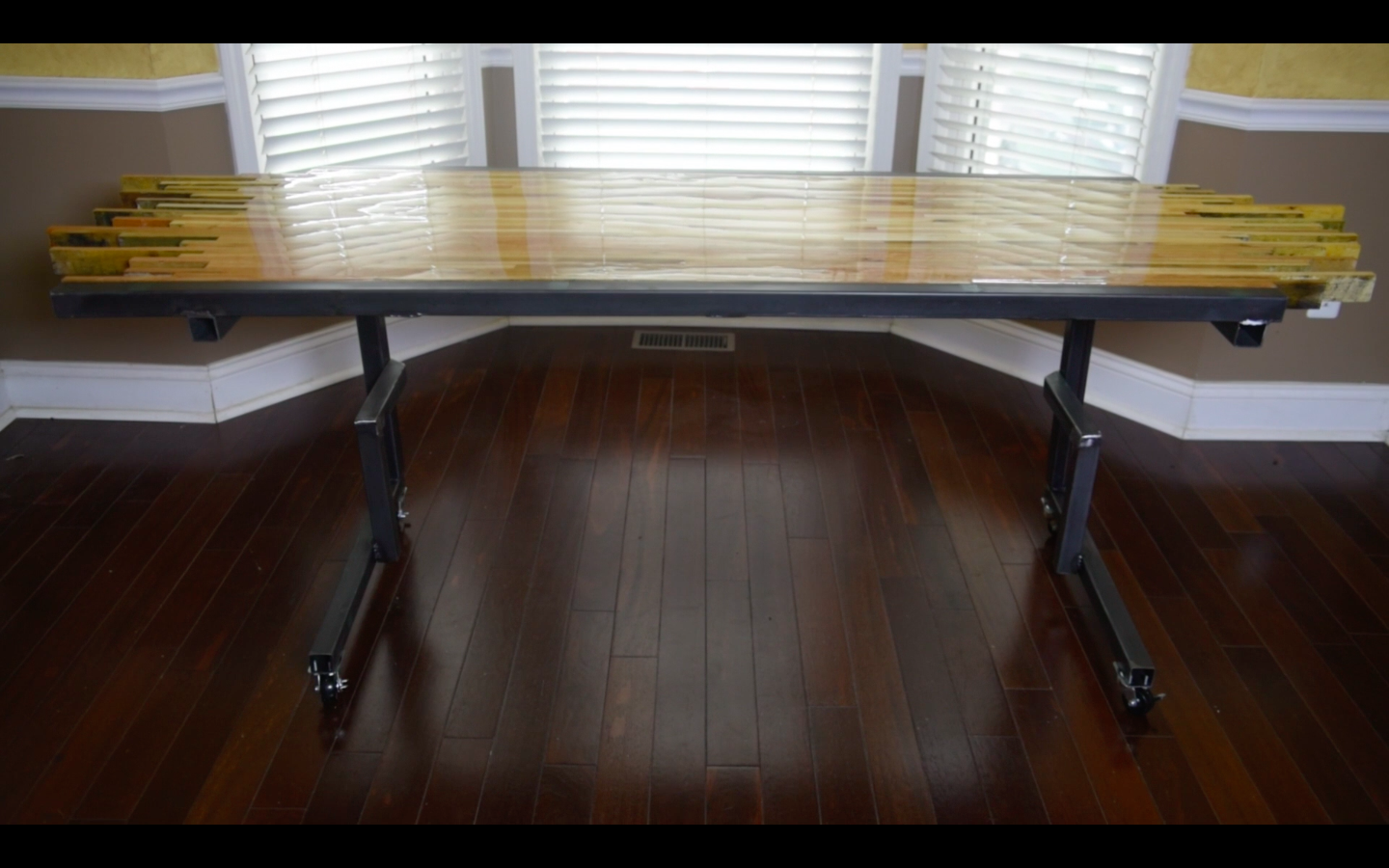

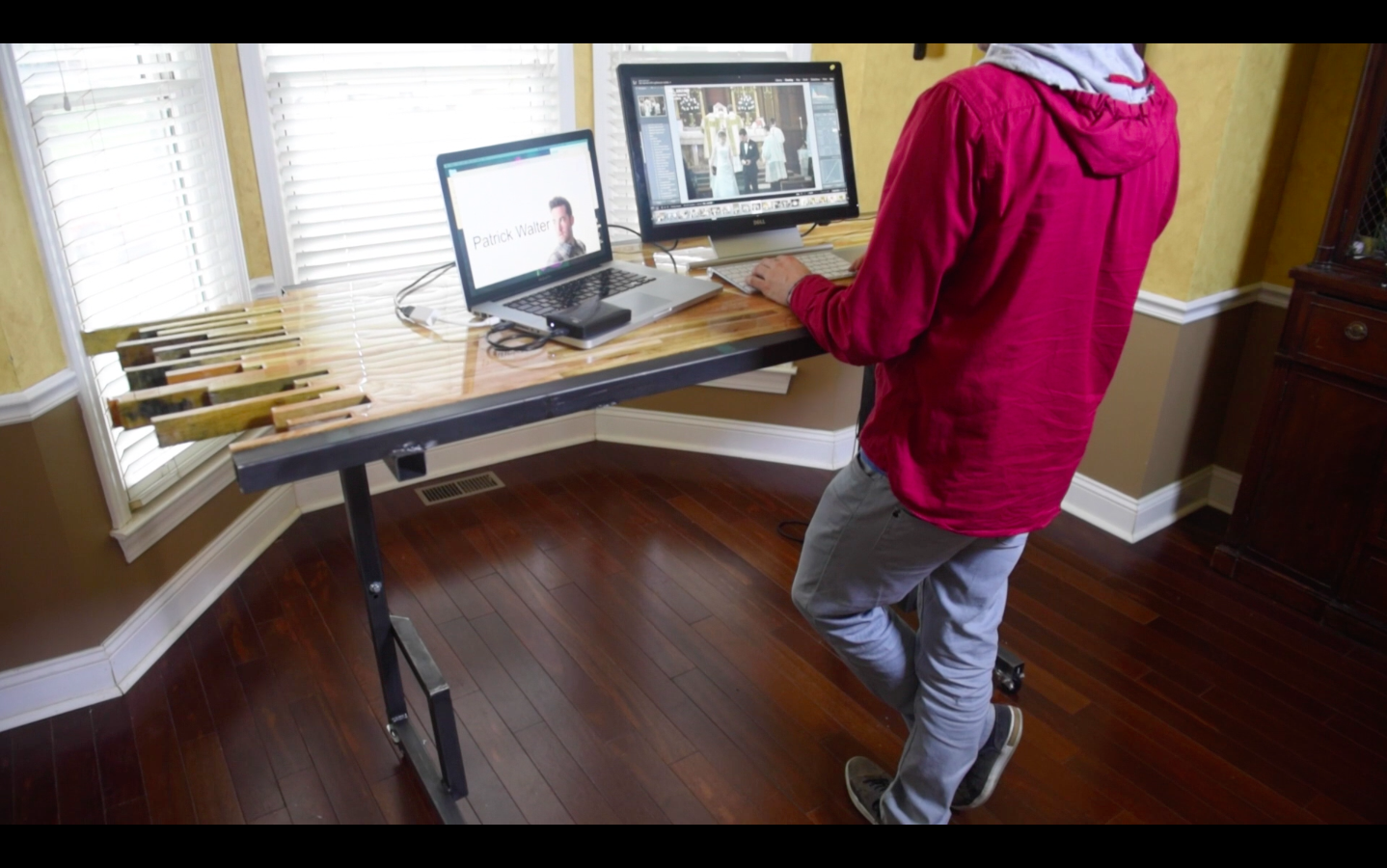

Now you are all done and you can stand and work! I totally want to raise this thing up and put my treadmill underneath it!
