Standing Desk/Shelving


This is a beautiful, sturdy, easy to make, custom standing desk that can be used as a table or shelving among other things.

Supplies

You will need:

2 Pieces of Wood: 4' x 11 1/2"

4 Galvanized Steel Pipes: 40" length 1/2" in diameter

8 Flange Fittings: 1/2"

3 Metal Plates

1" Screws (about 40)

Wood Finish

Sandpaper

Purchase Materials


Materials are not exactly cheap but they are easily accessible at any hardware store. We went to Home Depot and bought all our supplies.

8 Flange Fittings

4 Galvanized Steel Pipes

2 Pieces of Pine Wood

Sandpaper

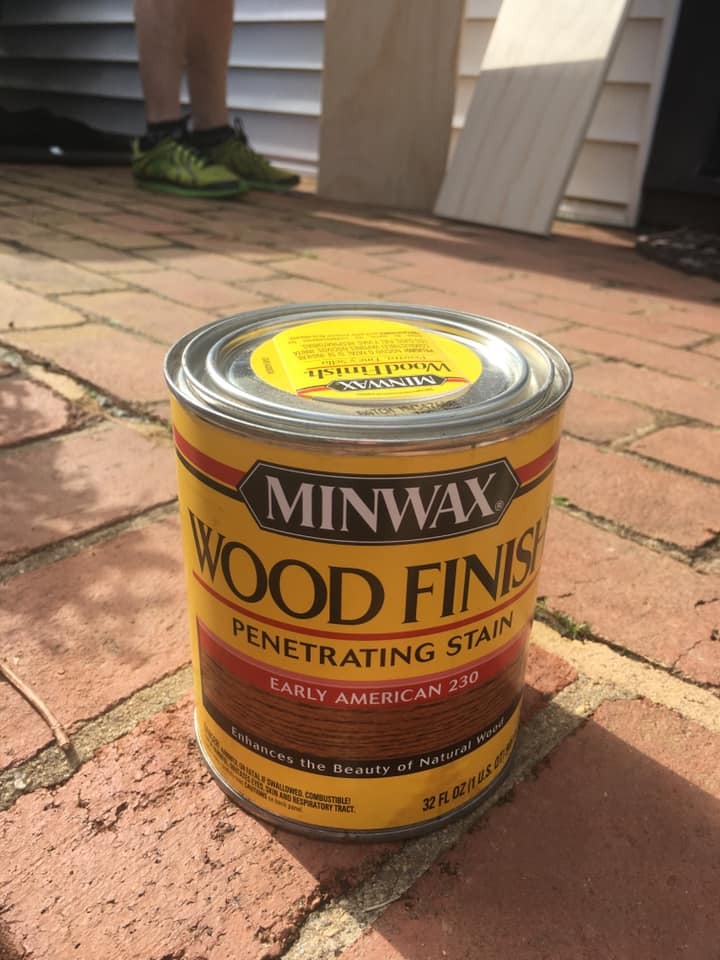

Wood Finish

Sand


Sand the wood until it is smooth as a babies bottom

Paint on Wood Finish


Using Paint Brushes, paint the Wood Finish onto the wood (all sides)

Stand to Dry


Let the Wood Finish sit for at least an hour. It will likely still feel wet after an hour but it will be dry enough to proceed to next step.

Screw in Flange Fittings


Measure about 3.5" from end and 5.5" from the side of the Wooden Board.

Screw in Flange with 1 inch screws.

Repeat until there are four flanges screwed into the wood

Note: This is the bottom of the Desk, so choose the least pretty side

Screw in Metal Plates


Line up the two boards exact

Screw in the Plates, starting on one end.

Screw in the far end.

Then, Screw in the middle.

Make sure to keep the boards aligned.

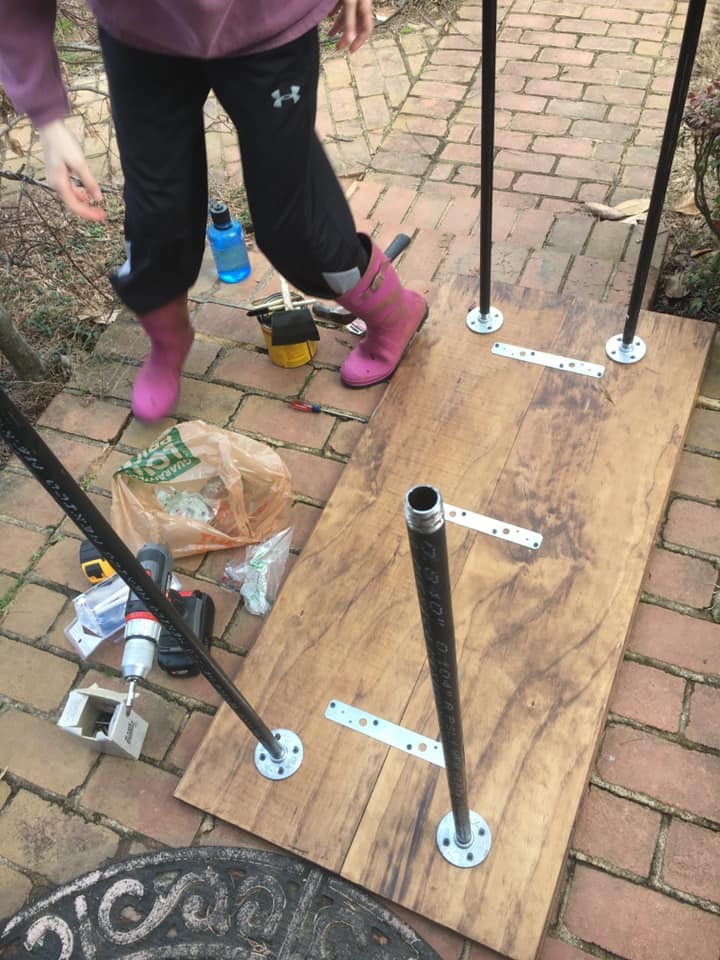

Screw in the Galvanized Steel Legs


Screw in the Galvanized Steel Legs

Repeat until all four are screwed in

Screw in the Flange Footings


Screw in the Flange Footings

Note: These can be adjusted to make sure your desk is level. Pretty cool, huh!

Flip


Flip Desk.

and Voila

Your Desk/Shelf Is Complete


Let Desk Dry

You are done!
