Standalone RGB PC Fan Module

by SALMAN SALEEM in Circuits > Computers

270 Views, 1 Favorites, 0 Comments

Standalone RGB PC Fan Module

WhatsApp Image 2021-04-14 at 4.02.51 PM.jpeg

This project was created upon experiencing thermal throttling on my laptop and found usb cooling pads as not effective, and those which were effective were highly priced. So opted to use a good rgb PC fan instead, with a custom power supply for it so it can work as a standalone fan.

***NOTE***

Please check the pin numbers and pins for their connections of your fan before proceeding

Please take safety precautions before working on live wires and also beware of the hot soldering iron.

Supplies

RGB PC FAN -1

DC TO DC BOOST CONVERTER - 1

USB WIRE AND MOBILE CHARGER ADAPTER - 1

WIRES

MULTIMETER

SOLDERING IRON AND SOLDER

SPDT SWITCH - 1 (OPTIONAL)

MOLEX CONNECTOR FEMALE - 1 (OPTIONAL)

WORKING OF THE DESIGN

RGB FAN HAS MAINLY 2 COMPONENTS, RGB AND THE FAN.

RGB REQUIRES A 5V DC INPUT WHILE THE FAN REQUIRES 12V DC INPUT

USUALLY RGB FANS COME WITH A MOLEX CONNECTOR WHICH HAS 4 PINS

PIN MARKED 1 IS USUALLY A 12V AND PIN MARKED 4 IS A 5V .PIN 2 AND 3 ARE GROUND.

IN MY CASE ONLY PIN 2 WAS AVAILABLE AS COMMON GROUND SO I JOINED THE NEGATIVE WIRES OF 12V AND 5V TOGETHER AND CONNECTED TO PIN 2

CIRCUIT DIAGRAM

WhatsApp Image 2021-04-09 at 3.18.40 PM.jpeg

PROCEDURE

WhatsApp Image 2021-04-14 at 4.05.22 PM-3.jpeg

TAKE AN OLD USB-A CABLE AND CUT THE NON USB-A PART

REMOVE SHIELDING AND SEPARATE THE WIRES , KEEPING ONLY THE POWER WIRES WHICH ARE RED=POSITIVE AND BLACK= GROUND, CUT THE OTHER CABLES WHICH ARE DATA CABLES .

NOW STRIP THE RED AND BLACK WIRES, CONNECT THEM TO THE MULTIMETER AND CONNECT THE USB TO POWER AND CHECK IF U GET 5V , IF YES THEN PROCEED.

BOOST CONVERTER SETUP

WhatsApp Image 2021-04-14 at 4.05.22 PM-2.jpeg
WhatsApp Image 2021-04-14 at 4.05.22 PM.jpeg

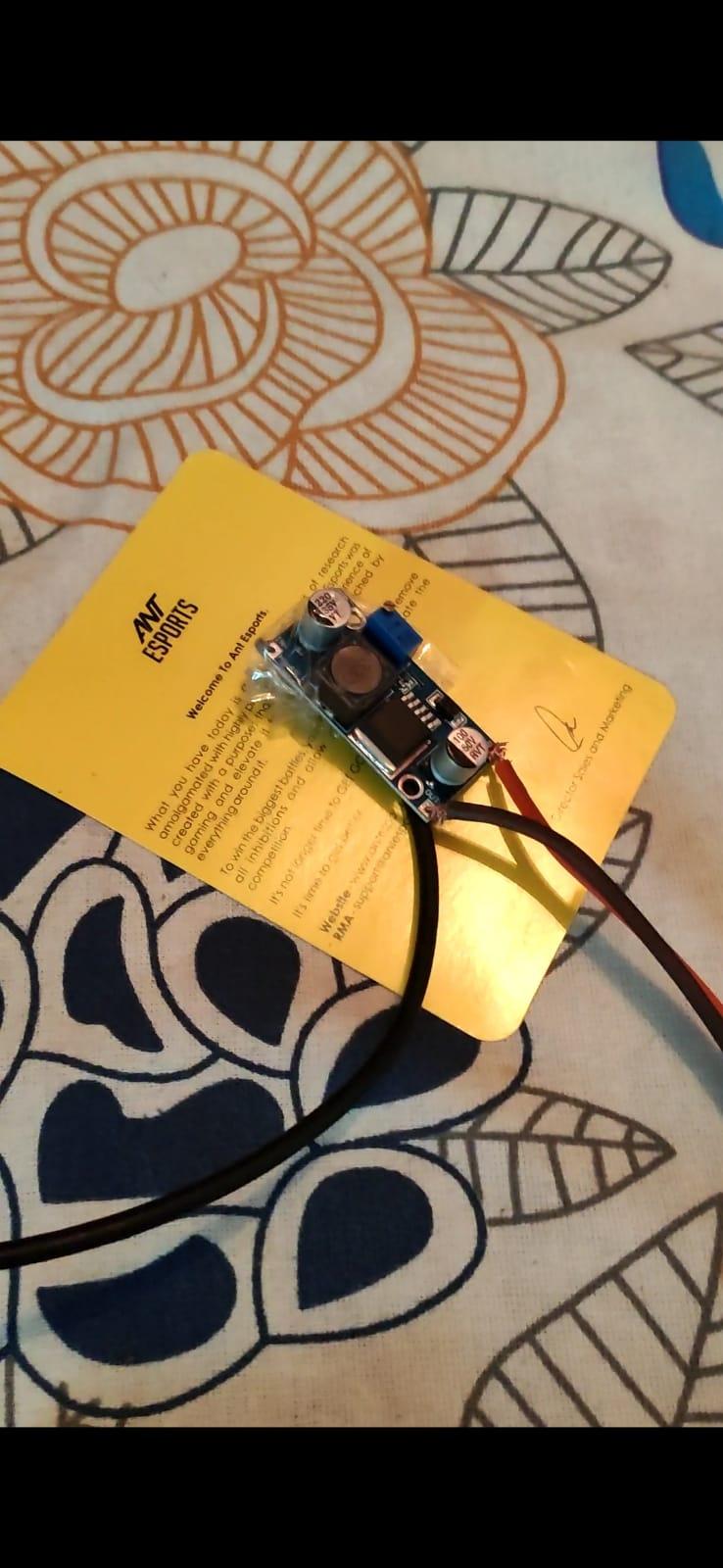

TAKE 2 WIRES AND CONNECT THEM TO THE OUTPUT TERMINALS OF THE BOOST CONVERTER

CONNECT THE USB WIRES TO THE INPUT TERMINALS OF THE BOOST CONVERTER

CONNECT THE USB TO THE POWER

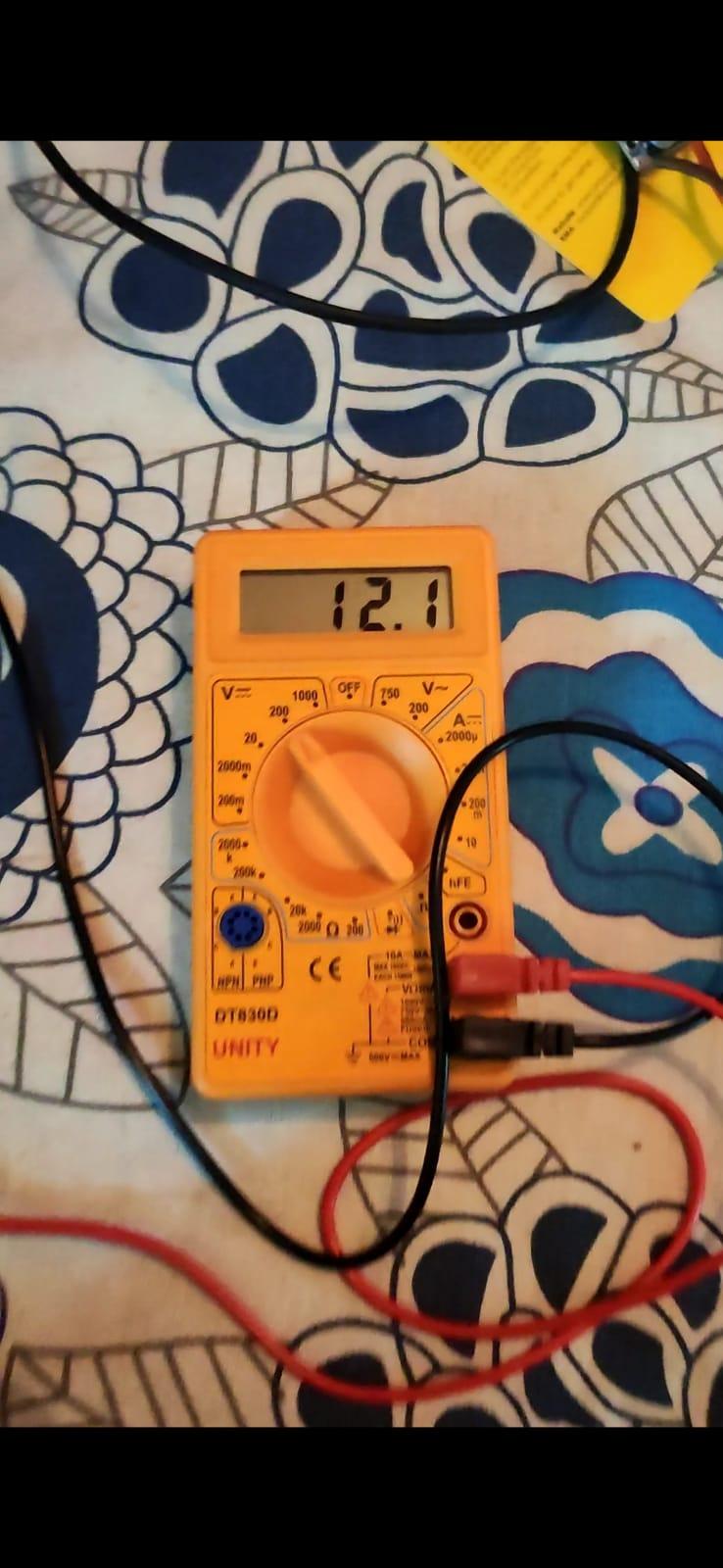

CONNECT THE MULTIMETER TO THE OUTPUT WIRES AND MEASURE THE OUTPUT VOLTAGE

USING THE SCREW ON THE POTENTIOMETER SET THE VOLTAGE TO 12V.

12V AND 5V SUPPLY

TAKE 2 WIRES AND CONNECT THEM TO THE INPUT 5V TERMINALS OF BOOST CONVERTER .

SOLDER ALL THE WIRES ON THE BOOST CONVERTER.

(OPTIONAL) CUT THE POSITIVE 5V WIRE IN TWO PEICES CONNECT A SWITCH IN BETWEEN THEM .

YOU SHOULD BE LEFT WITH 4 LOOSE WIRES 2 COMING FROM INPUT OF BOOST CONVERTER (5V)AND 2 COMING FROM OUTPUT OF BOOST CONVERTER(12V)

NOW THE HARD PART..... MOLEX CONNECTOR!!πŸ€¦β€β™‚οΈ

WhatsApp Image 2021-04-14 at 4.02.51 PM-2.jpeg

DON'T WORRY YOU CAN DO ITπŸ‘

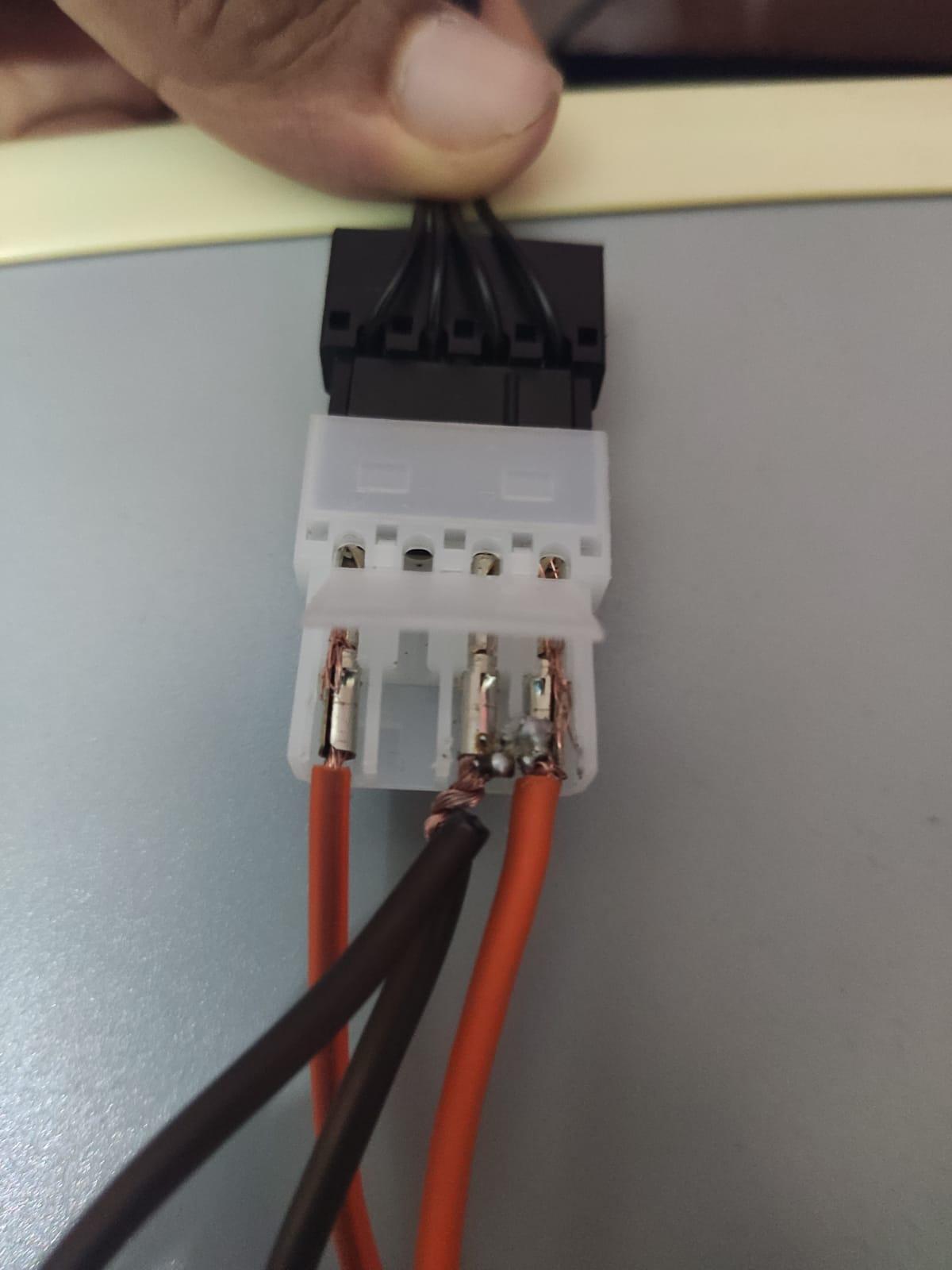

(OPTIONAL) TAKE A MOLEX FEMALE CONNECTOR AND ATTACH

POSTIVE 12 V TO PIN 1

POSITIVE 5V TO PIN 4

AND GROUNDS TO PIN 2 AND 3 OR JOIN THE THE TWO GROUND WIRES TOGETHER AND CONNECT TO EITHER 2 OR 3 PIN

OR

JUST SOLDER THE WIRES TO THE MOLEX CONNECTER OF THE FAN

POSTIVE 12 V TO PIN 1

POSITIVE 5V TO PIN 4

AND GROUNDS TO PIN 2 AND 3 OR JOIN THE THE TWO GROUND WIRES TOGETHER AND CONNECT TO EITHER 2 OR 3 PIN

GIVE YOURSELF a PAT ON THE BACK!!! COZ YOU DESERVE IT!!

WhatsApp Image 2021-04-14 at 4.02.51 PM-3.jpeg

WE ARE ALL SET!!!✨

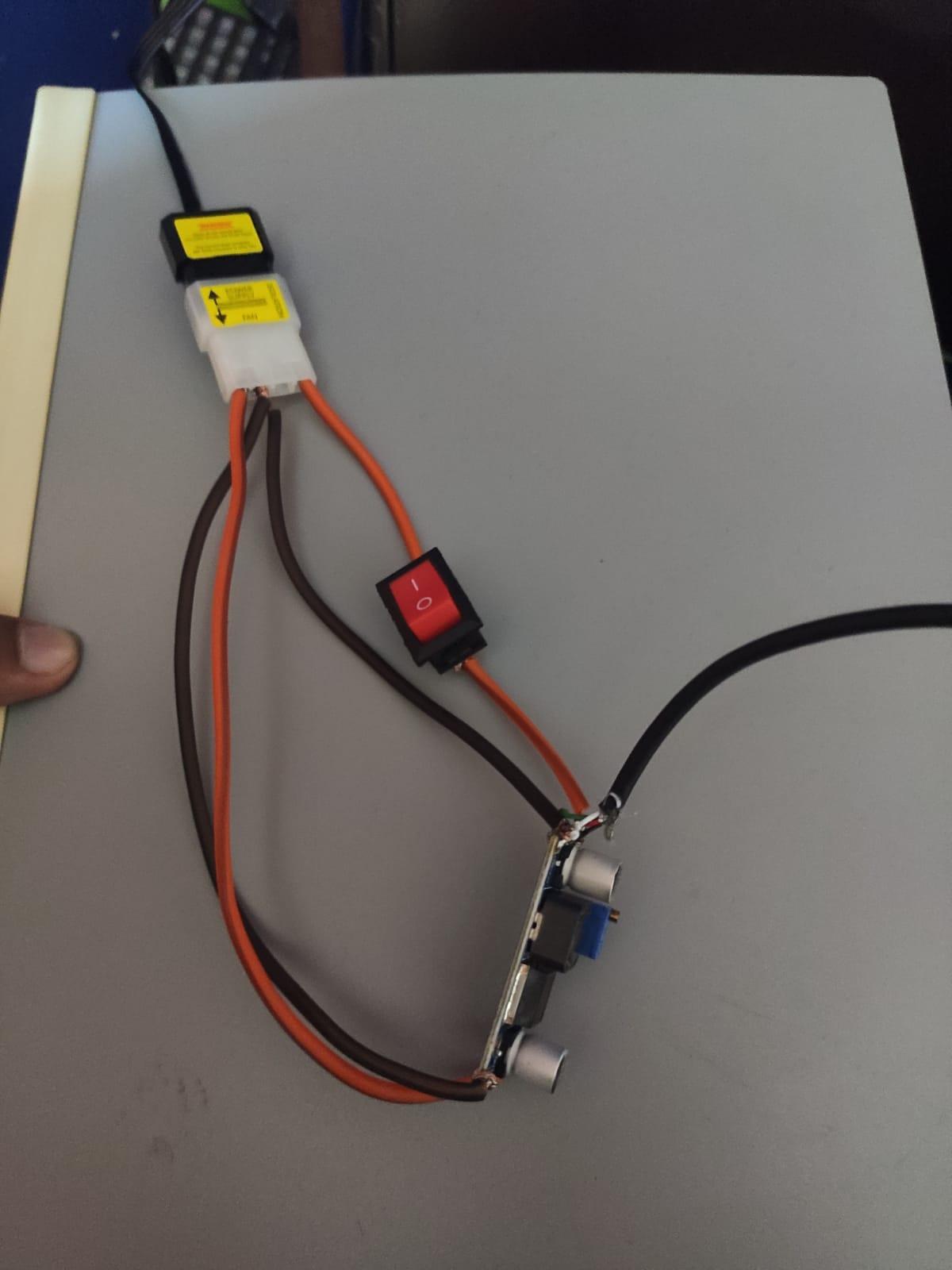

GIVE THE USB POWER AND VERIFY, ALSO TEST THE OPTIONAL SWITCH WHICH TURNS OFF ONLY THE RGB AND LETS ONLY THE FAN WORK.

AFTER TESTING, TIDY UP ALL THE WIRES, MAKE THE CIRCUIT AS CONCISE AS POSSIBLE AND PLACE THE CIRCUIT IN A SMALL BOX AND GLUE IT SHUT.

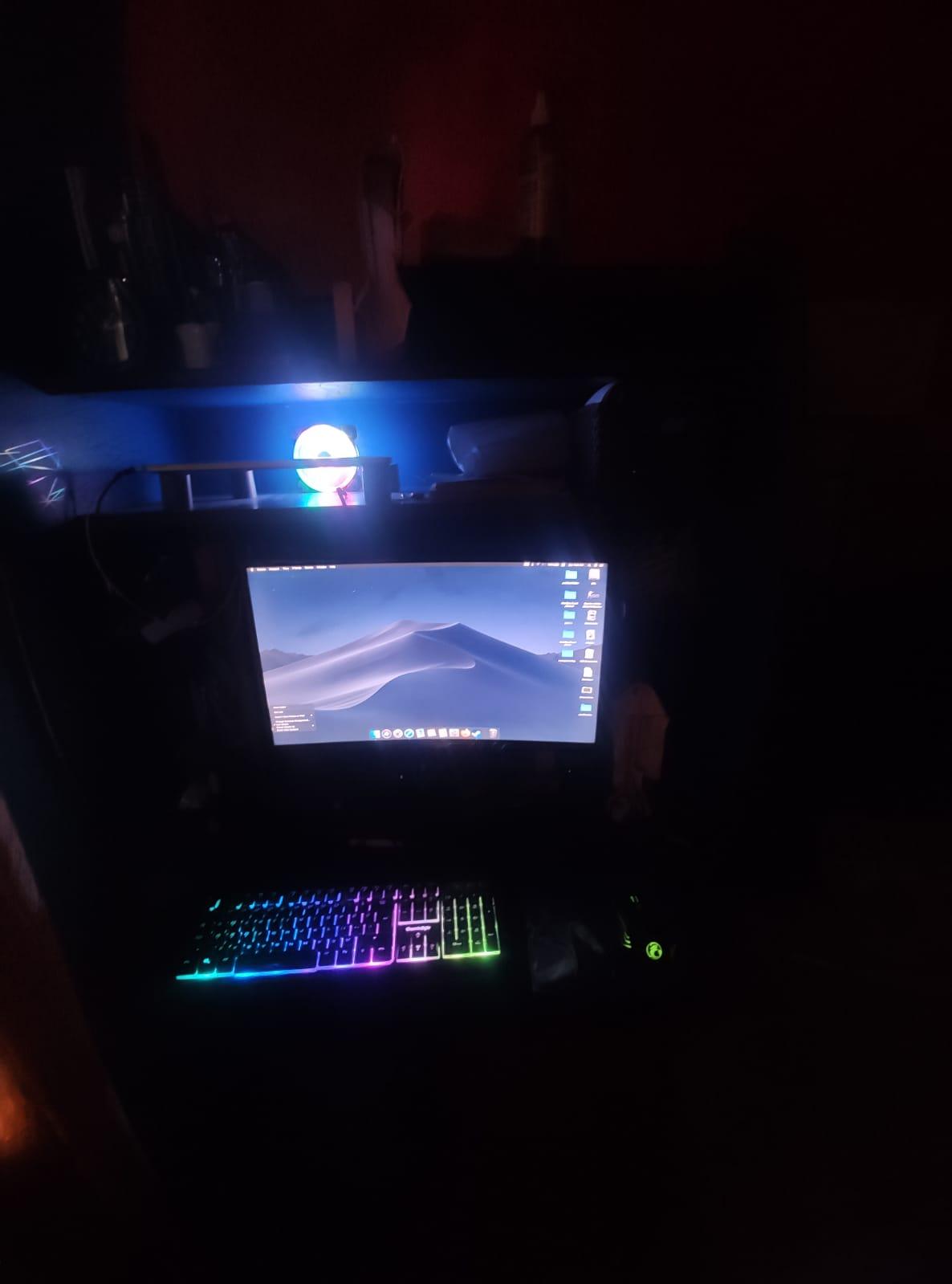

END RESULT:

WhatsApp Image 2021-04-14 at 4.02.51 PM.jpeg

NOW YOU HAVE A STANDALONE RGB PC FAN WHICH CAN BE POSITIONED HOWEVER YOU LIKE ACCORDING TO YOUR SETUP/LAPTOP, WHICH WORKS ON USB AND COOLS YOUR LAPTOP TREMENDOUSLY AND SAVES YOUR LAPTOP FROM THERMAL BOTTLENECK.

I HAVE NOTICED LESS FPS DROPS IN GAMES BY USING JUST ONE FAN!!πŸ‘Š

PROJECT COST

THIS WHOLE PROJECT COST ME AROUND RS 600(INR)

RGB FAN(ANT ESPORTS) - RS 500

BOOST CONVERTER - RS 100

WIRES, USB CABLE- SALVAGED FROM OLD CABLES SO RS 0

ENOJOY AND GOOD LUCK!!!
