Stand and Handle for Wheelchair DIY Instractions
by adi95peery in Outside > Sports
187 Views, 1 Favorites, 0 Comments
Stand and Handle for Wheelchair DIY Instractions
This is a stand for storing balls and grips for Boccia games. The stand attaches to the user's wheelchair

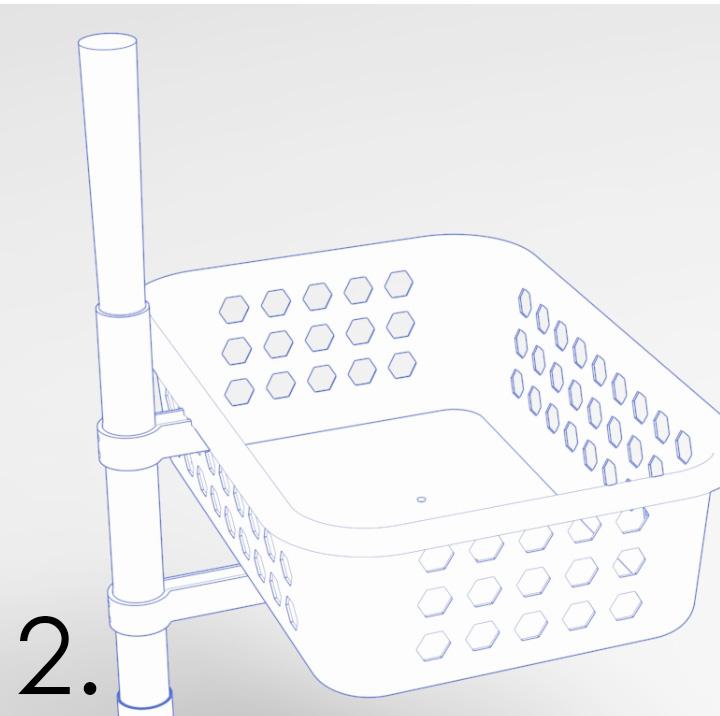

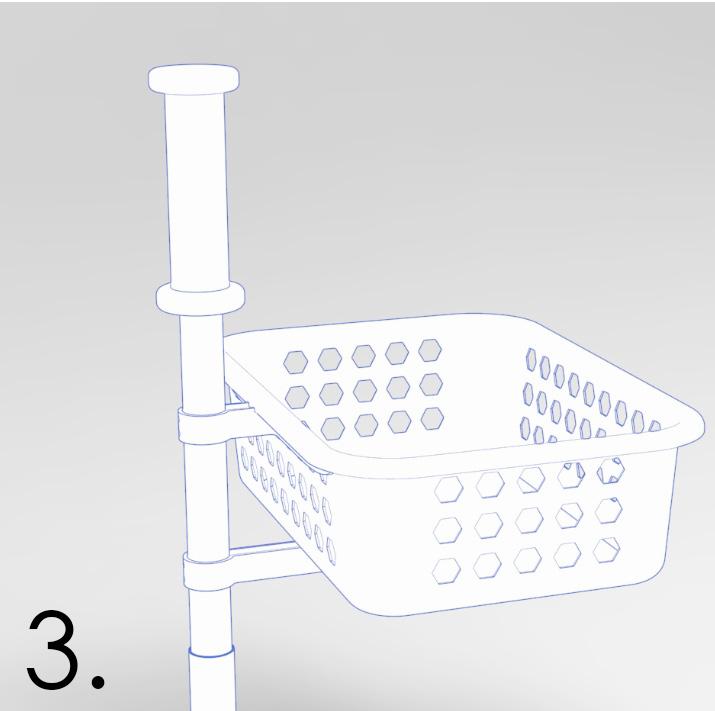

The Final Product and Its Components

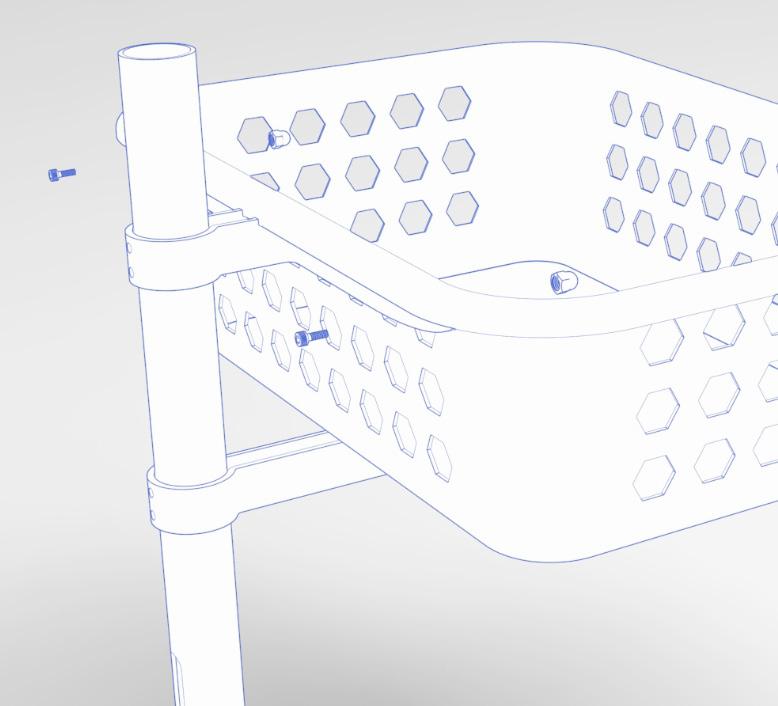

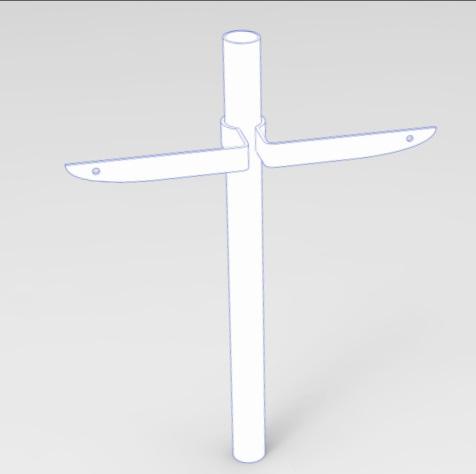

A first look at the product in a complex and exploded state

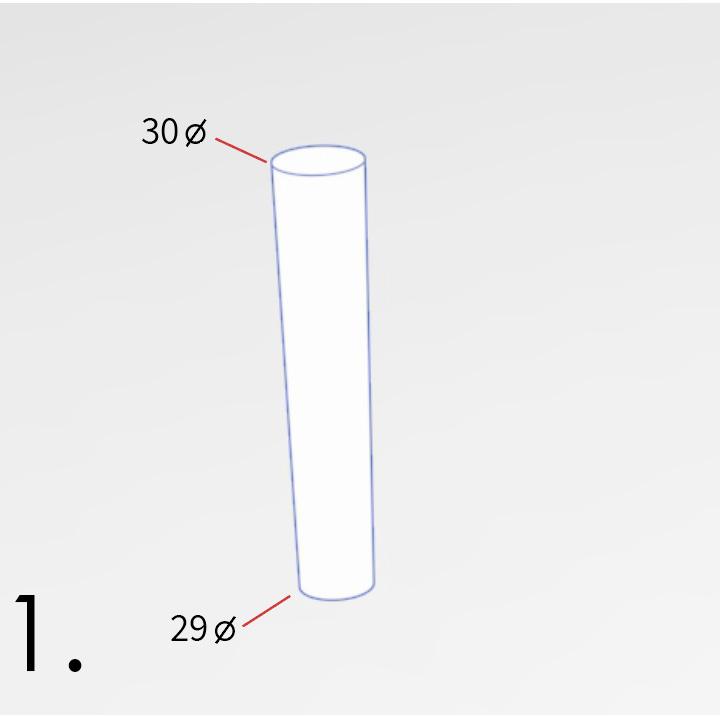

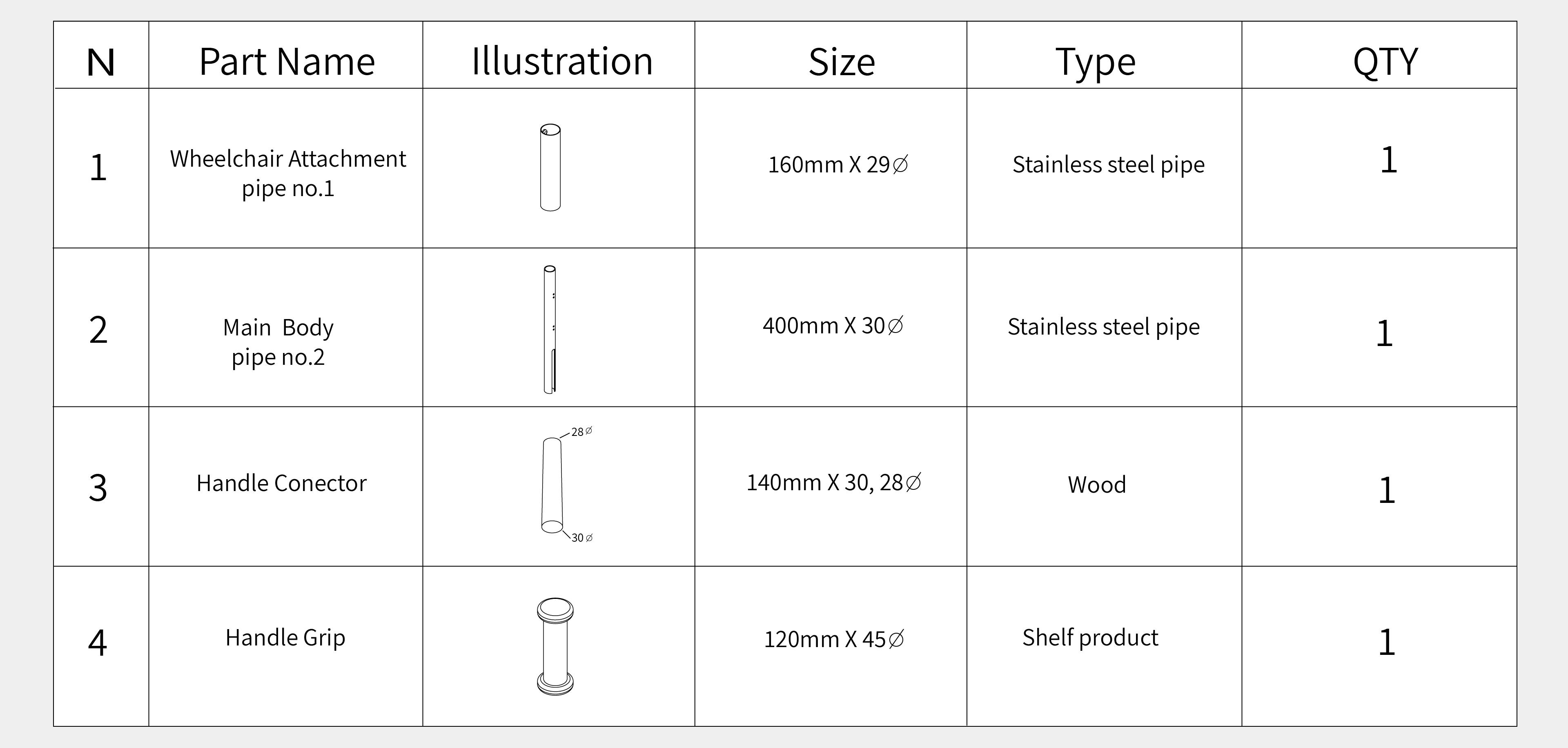

Get the Necessary Parts According to the BOM
Link to grip handles : https://www.amazon.com/s?k=Bike+Grips&i=sporting&r...
Get the Necessary Parts According to the BOM
Link to plastic box: https://www.amazon.com/s?k=Plastic+basket&ref=nb_s...
Downloads

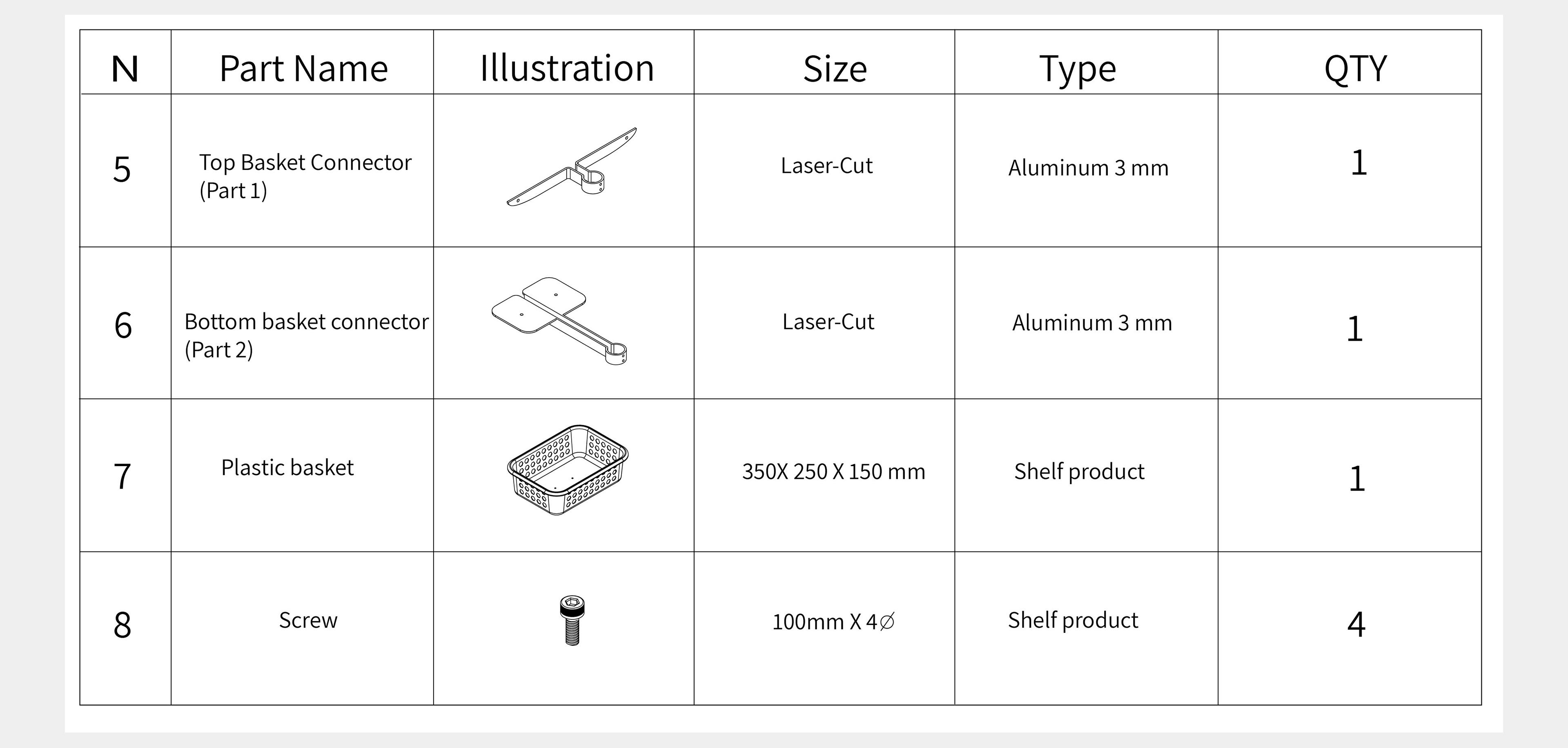

Get the Necessary Parts According to the BOM

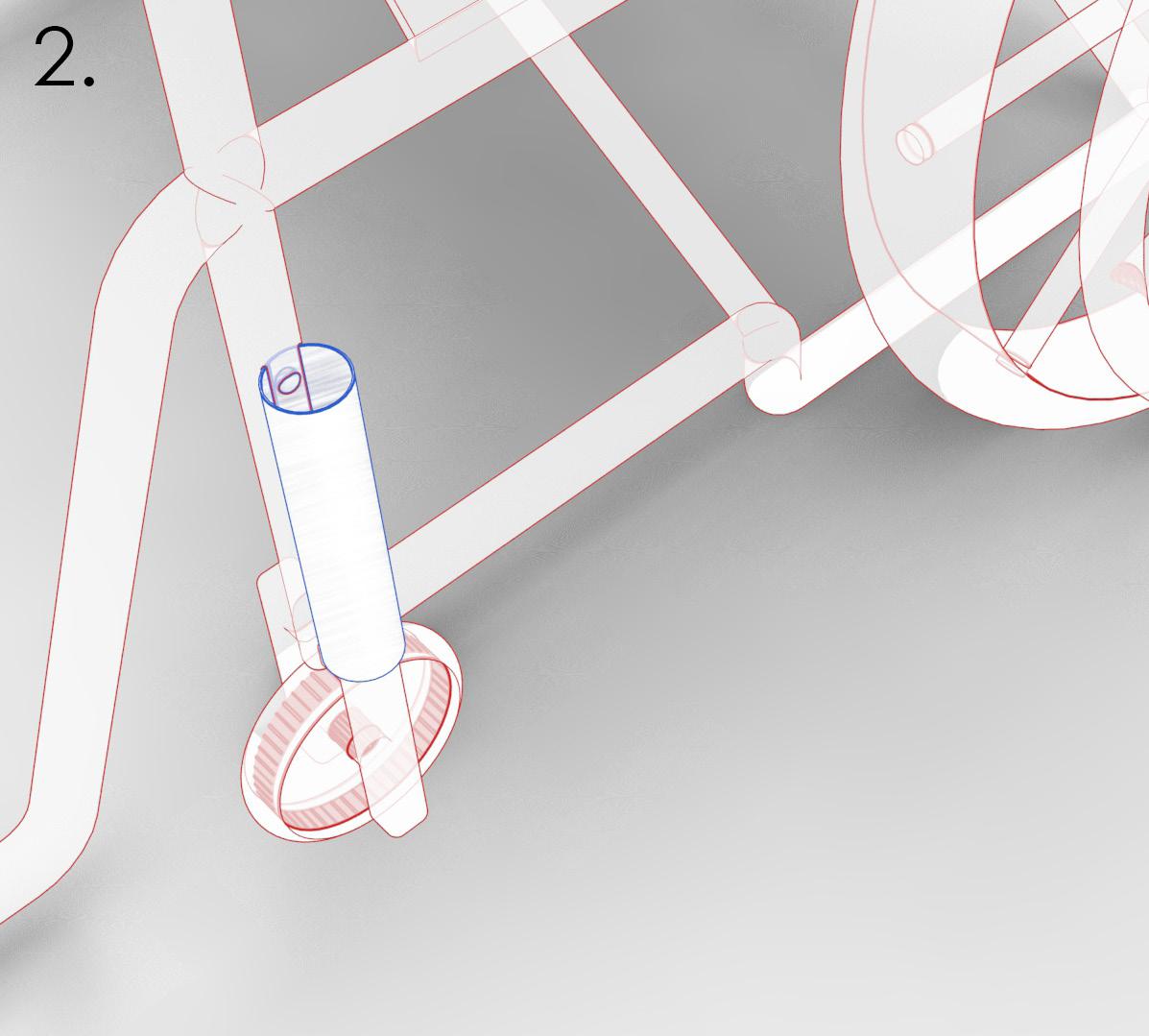

Connecting the Metal Pipe (no.1) to the Wheelchair With a Screw

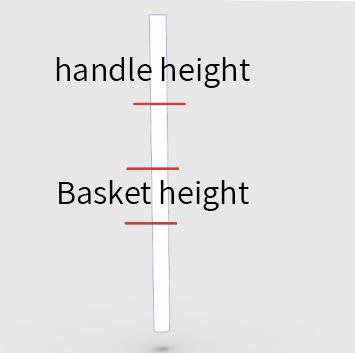

Mark the Height of the Basket and the Handle on Pipe (no. 2)
7.Cut the Pipe at the Desired Height

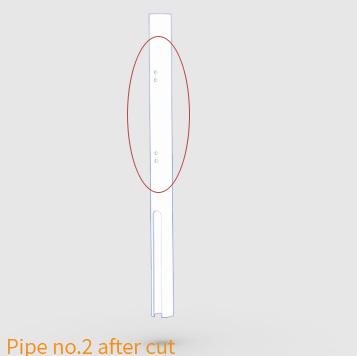

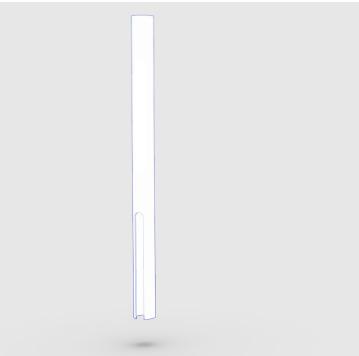

Milling Pipe No. 2, 15 Cm Long, Screw Width
Drilling Holes for Preparation for Connection to the Basket

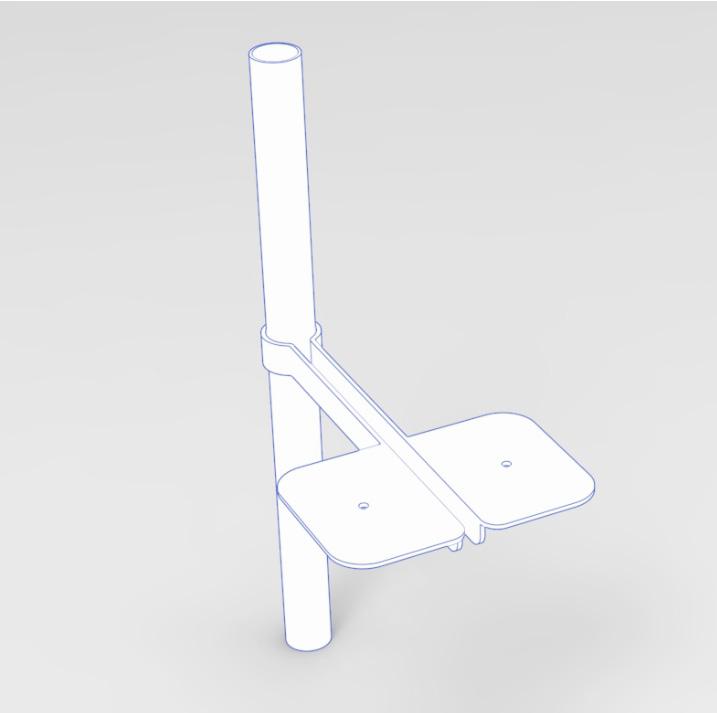

Performing Laser Cutting in Aluminum 3 Mm Thick for the Basket Connectors
Downloads
Bending the Sheet Over a Tube- Part 1
Connecting Parts With Rivets- Part 1
90 Degree Bending of the Lateral WingsBending the Sheet Over a Tube - Part 2
Connecting Parts With Rivets- Part 2
Create Holes in the Basket According to the Holes of the Conectors
Attach the Basket to the Two Parts by Screws and a Dome Nut
Milling a Wooden Dowel(Handle Conector) to the Desired Diameter That Will Enter the Pipe(no.1) Under Pressure and From the Other Side That Will Enter the Handle.
*The use of the wooden dowel is made as our solution to the problem of finding a handle grip in the diameter of the pipe.
Good Luck !
