Srikar's Speaker - Kid's Best Friend

Hello Everyone, My name is B.S.S.SRIKAR I am 12 years old. My parents also allowed me to do this project

I created this project on my own and named as 'Srikar's Speaker - Kid's best friend'

I created this project because I used to play My Talking Tom game since my childhood and got addicted to it and also got spectacles, so for this spectacles problem not to repeat for our future generation kids. I have created a prototype and an offline version of my My Talking Tom Game. It is also budget-friendly and also costs only around 200 Indian Rupees(INR) or 2 U.S Dollars(USD).

For contact and commercial and funding purposes, mail srikar1705@gmail.com

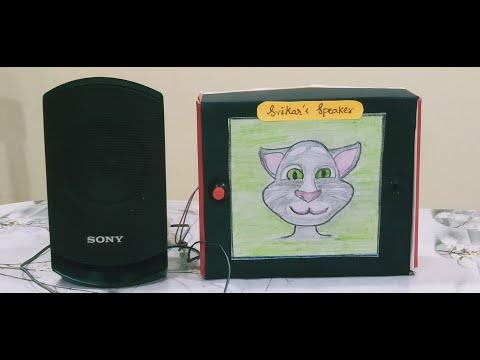

Demo of my project

• Small Cardboard Box
• Two-Sided Tape
• ISD1820 Voice Recording & Playback Module
• Speaker(Included with ISD1820 Module)
• Push Button
• Slide Switch
• Breadboard
• Wires Male-Male & Male-Female
• Battery

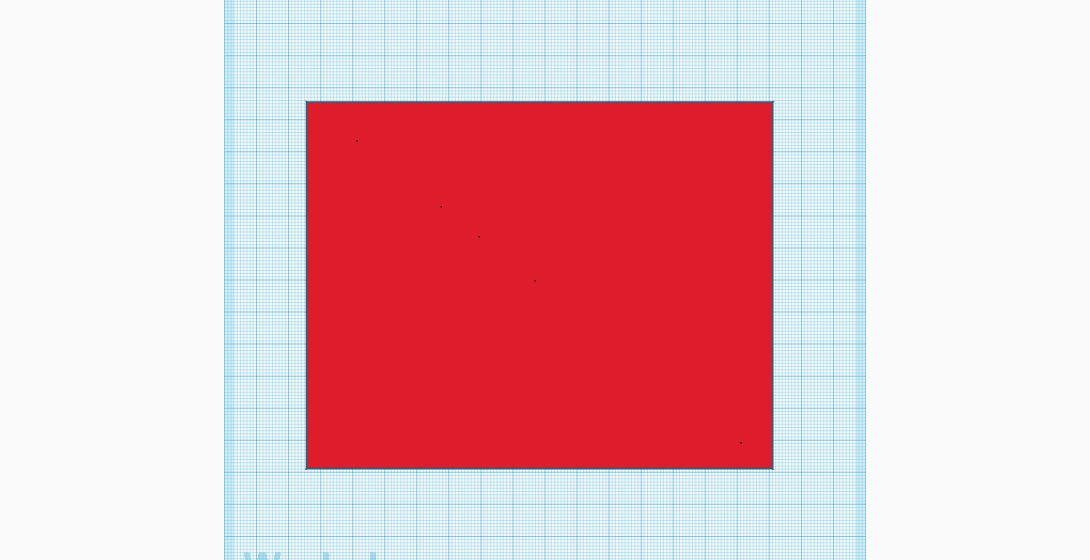

Take a cardboard box of your choice, take the one which can be opened from the top just like a suitcase.

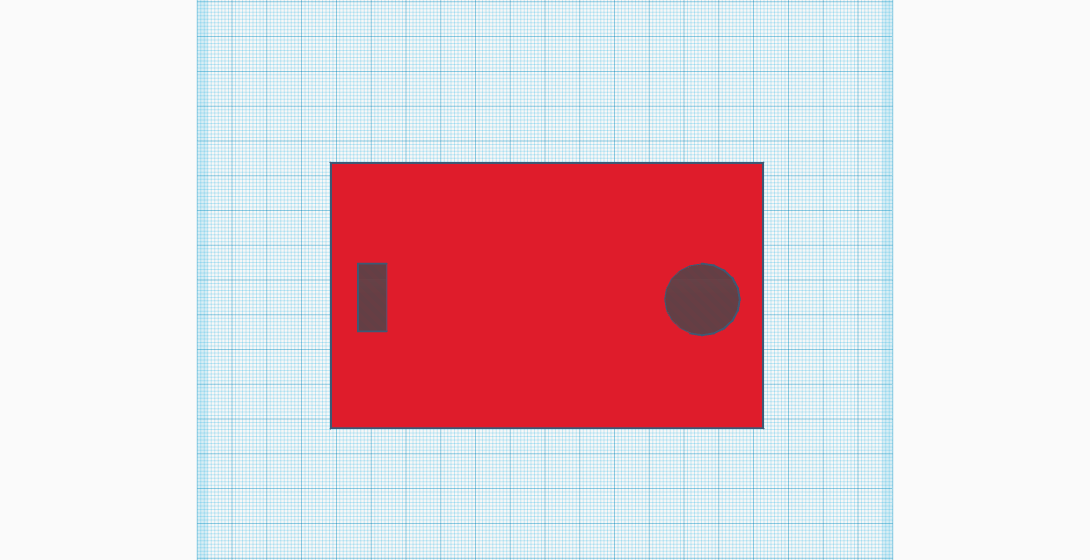

Now, make two holes on the top of the box for the Slide Switch and Push Button.

The Left hole for the Slide Switch

The Right Hole for the Push Button

Now we should make a hole on the right or on the left of the box for the speaker wires to come out of the box

Now attach the Push Button in its circle place & Also the Slide Switch in its position

Now open the box and carefully put the circuit in the box and stick all the components with two-sided tape.

Also, get the speaker wires out of the box from the small opening we made on the side of our box.

You can also decorate them with coloured paper and label them too.

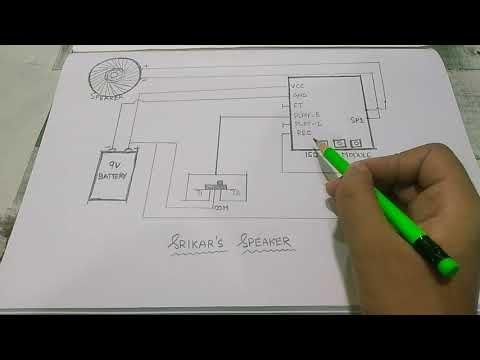

Connections:

Positive of the battery ~ Common of the Slide Switch

Terminal 1 of the Slide Switch ~ PlayE of ISD1820 Module

Terminal 2 of the Slide Switch ~ PlayE of ISD1820 Module

Positive of the battery ~ Terminal 1 of the Push Button

Terminal2 of the Push Button ~ REC of ISD1820 Module

Positive of the battery ~ VCC of ISD1820 Module

Negative of the battery ~ GND of ISD1820 Module

I hope you all like my project if you did like it please favourite this post.

Also, share this project with your friends.

Please comment your opinion.

For contact, commercial and funding purposes, mail srikar1705@gmail.com

Thank You,

B.S.S.SRIKAR
