Squirrel Picnic Table (pallet Wood)

by twimh in Workshop > Woodworking

970 Views, 28 Favorites, 0 Comments

Squirrel Picnic Table (pallet Wood)


Easy and great project made on pallet wood.


Supplies


materials.

2 boards of pallet wood

wood stain paint

spray can paint

wood screws

wood glue


tools (YOU CAN BUILD THIS PROECT WITH A HAND SAW )

-Drill

-Table saw

-Mitter saw

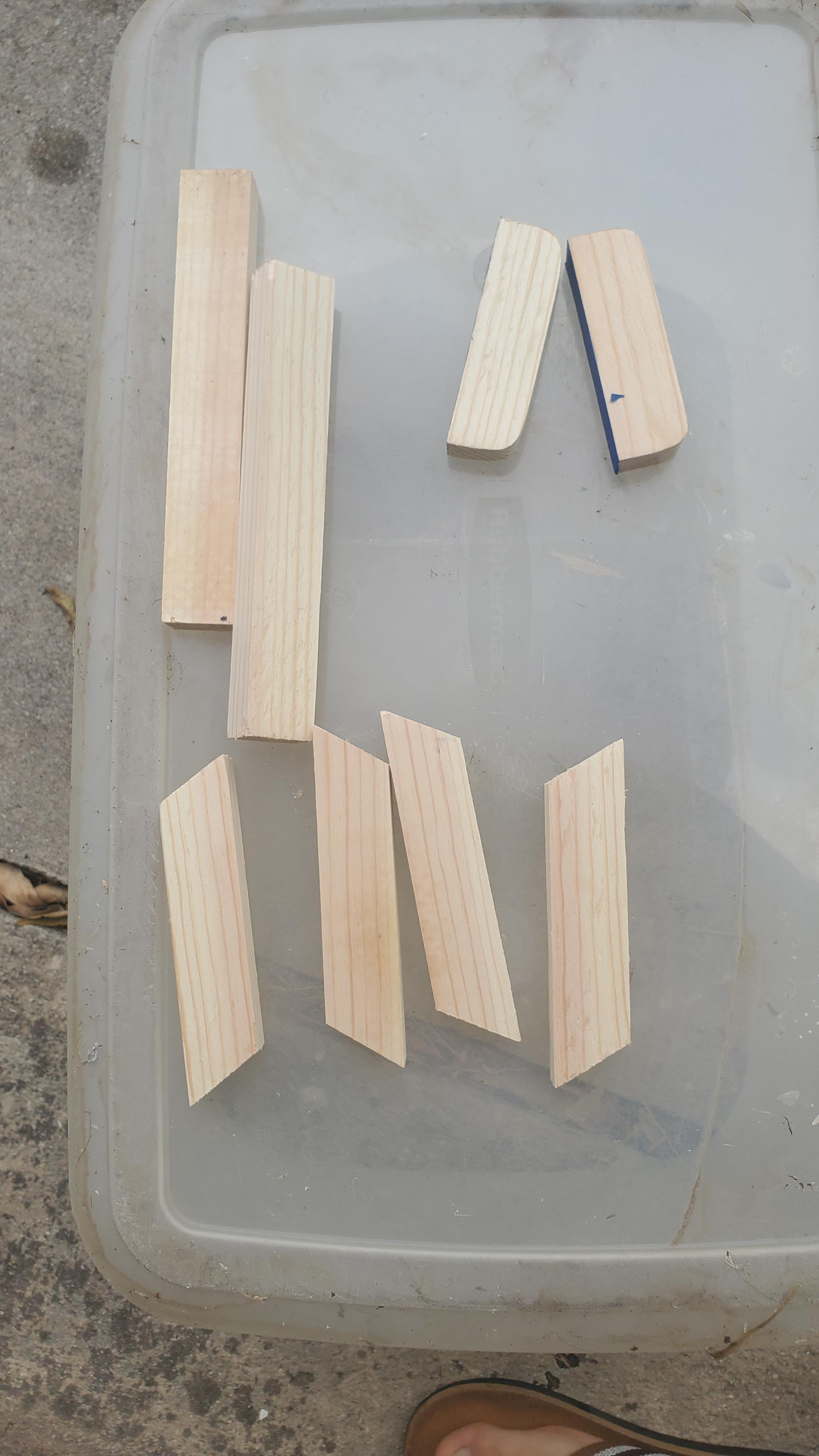

Cutting the Pieces


to start the project we going to have to cut the pallet wood

on 3 boards

1 of 1"

1 of 1.75"

1 of 3.5"


then we going to follow the list of pieces on the first picture


the 4 pieces of 4.5" x 1"

going to need to be cut on angle of 30* on the short sides like the picture numbre 5

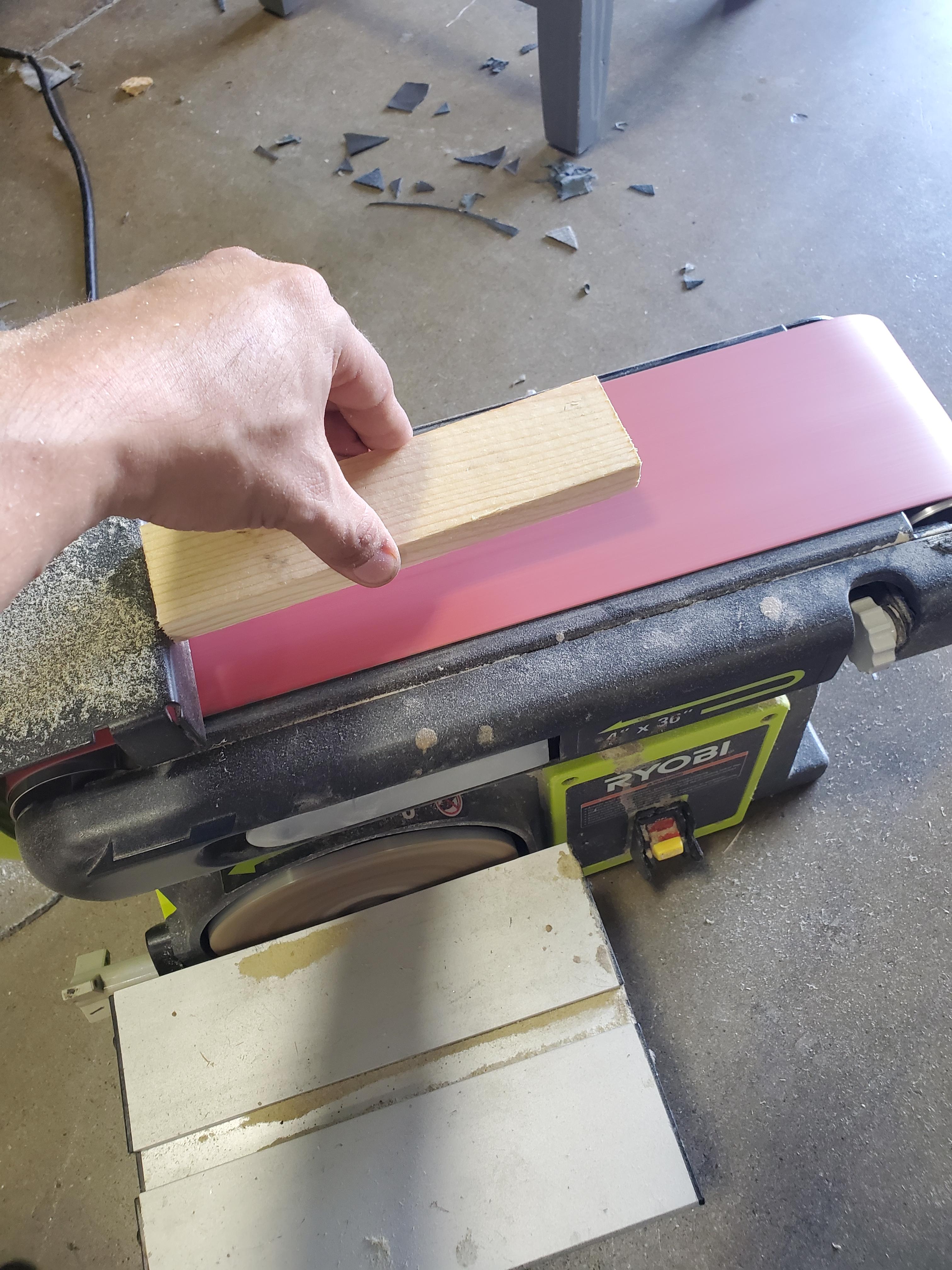

Sand the Pieces


we have to fix the surface of the pieces before the paint

most of the time the pallet wood has a horrible texture.

Detail (optional)


using the table saw .

make some cut of 1/8" deep to make the detail of multiple boards


pieces

3.5" x 7"

1.75" x 7"

Tape It (optional)


use the painter tape to cover the glue areas of the table top and the legs support ( 3.5" x 1")

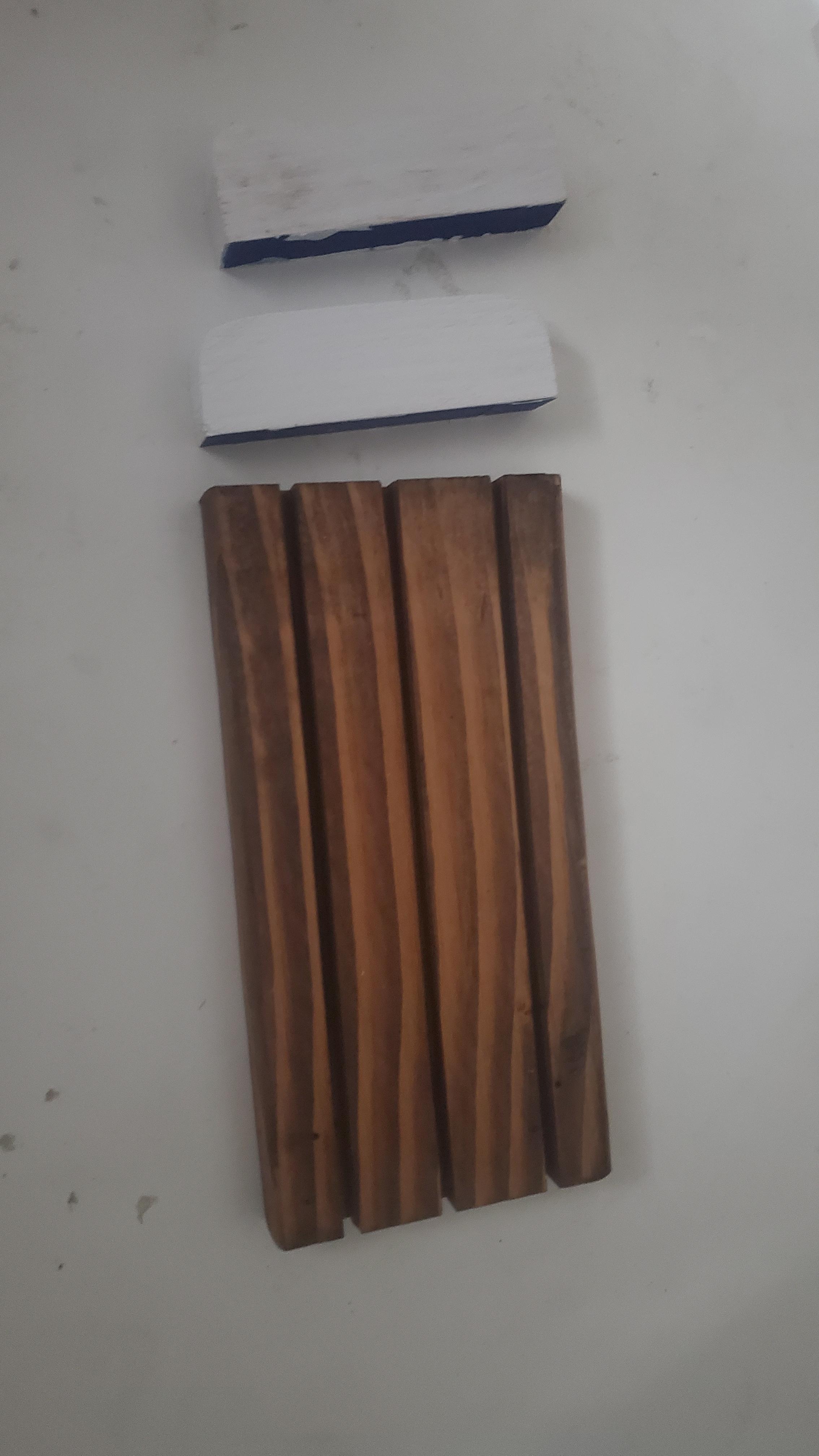

Paint Them


paint the pieces on the first picture

4 left parts- stain

8 right parts - white ( or the color you choose)

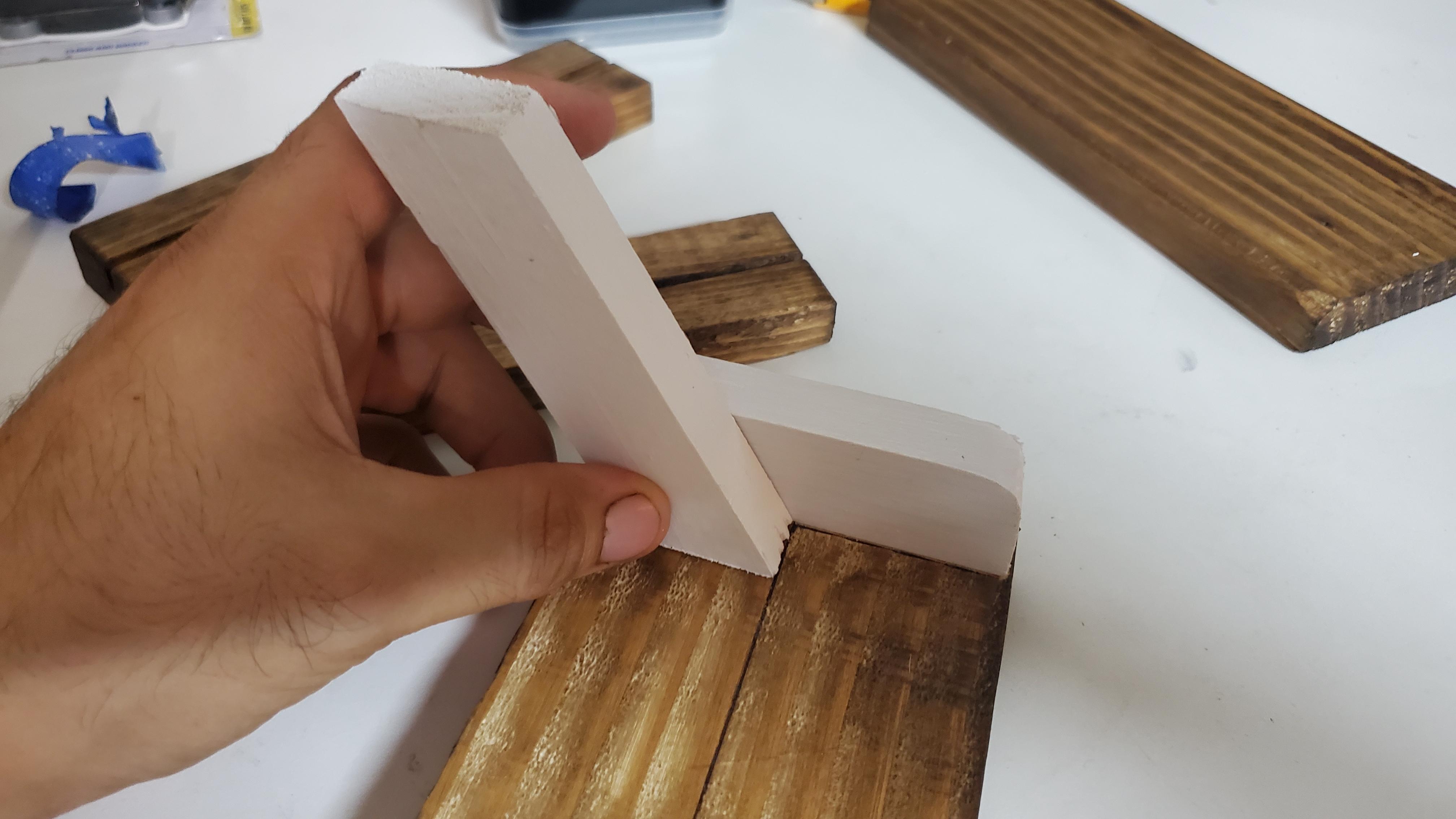

Assemble


start to assemble the pieces. you going to need wood Glue.

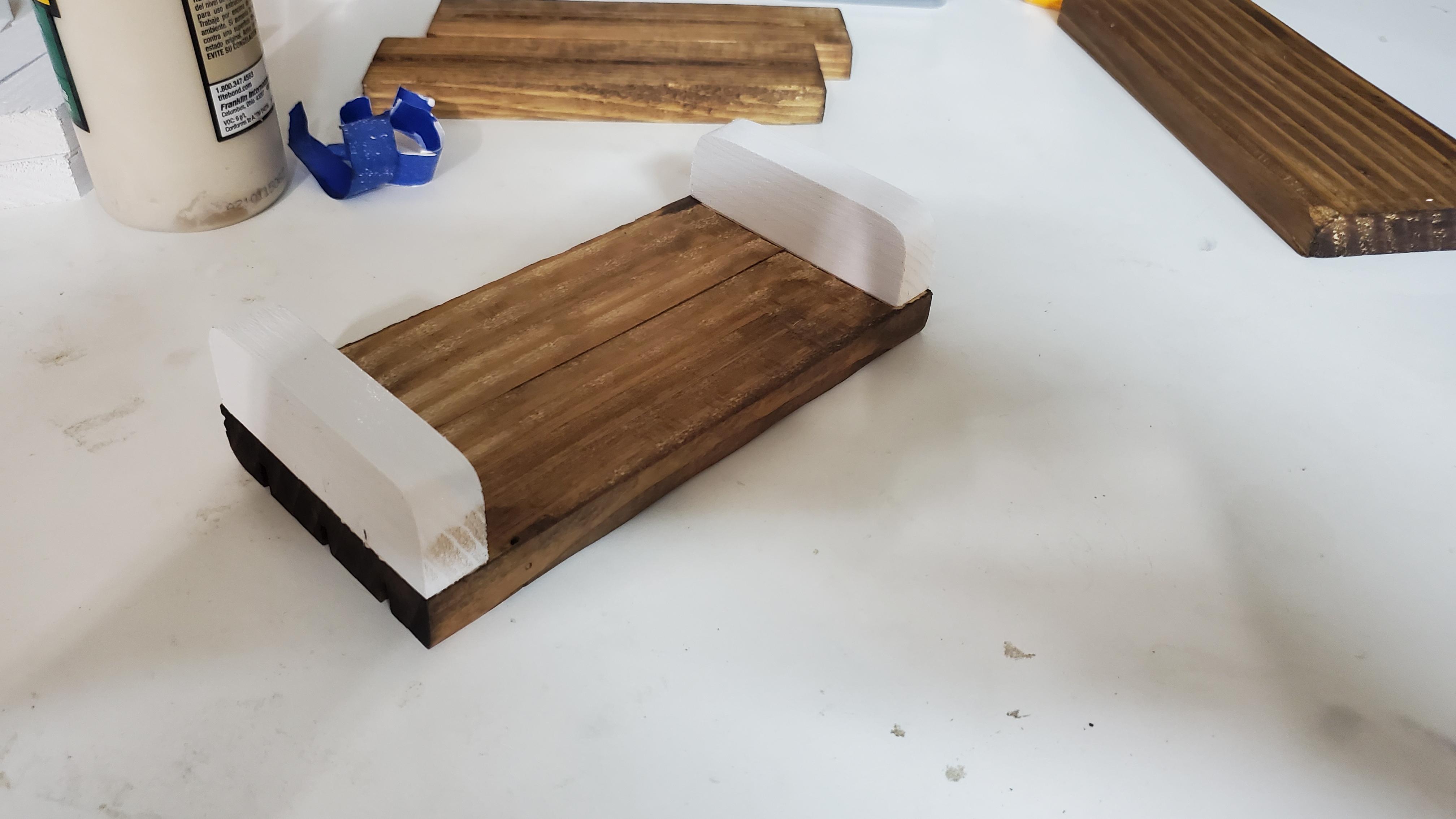

first table top with the legs support (3.5" x 1") picture 3 & 4


table top+legs support with the legs (30* angle parts) like the picture 5 & 6


using the the seat parts (1.75" x 7") fit the seat support on the legs ( picture 7 and 8)


YOU GOING TO HAVE TO USE NAILS OR SCREWS ON THE JOINTS TO KEEP IT ASSAMBLE. GLUE IS NOT ENOUHT.

Final Details and Done


to finish screw the big board ( 8.5" x 3.5)

whit the table like the picture 2,3 & 4


It's done.

you can screw it to the fence or to the tree.

GOOD LUCK!!!!
