Squareline Begin With Arduino

SquareLine Studio is a visual tool that uses the LVGL graphics library for UI development and supports multiple platforms, such as MacOS, Windows, and Linux. In this tool, we can add and move widgets on the screen by dragging and dropping, and it's very easy to work with images and fonts, and we can build an Arduino graphics project that allows us to quickly understand how Squraeline designs graphics.

SquareLine Studio is free for individual users, but with some restrictions, you can use up to five screens and 50 controls per project. Additional pricing information is available at SquareLine.

We chose 30 days free, which eliminates the problem of applying for an account if users can.

SquareLine Studio's official website is https://squareline.io/

SquareLine Studio official documentation:https://docs.squareline.io/docs/squareline/

• MaTouch_ESP32-S3 Round SPI TFT with Touch 1.28"
• Software support: Arduino, Squareline

Note: In this project the Squareline version is 1.3.0, and the Arduino version is 1.8.19

Squareline introduction:

In the picture, we can see the Squareline interface. let's create a new project in it.

We set the hardware parameters according to ESP32-S3 1.28" display with Touch.

For example: Resolution is 240*240, shape is Circle, and color depth is 16 bit, and project name and path need to setting for yourself. when all configurations are complete, click the "CREATE".

When the Squareline create a new project successfully, we can see the Squareline workspace interface.

An introduction to the working interface.

• Hierarchy:

In the Hierarchy Panel, you can find the scenes and the list of the widgets appearing on the scenes in hierarchical order. You can modify widget order, of course.

• Animations:

In the Hierarchy Panel, you can find the scenes and the list of the widgets appearing on the scenes in hierarchical order. You can modify widget order, of course.

• Widgets:

You can find widgets, which are the basic elements of UI, on the Widget Panel. Every widget has its own preference. You can add custom styles to widget components and you are allowed to configure them in different states.

• Assets:

Images and fonts, added to the project, appear in the Asset Panel. Having created a project, an Asset folder has also been created. If you copy the images needed to your project there(The format need to use "png"), the program will load them automatically listing them in the Asset Panel. Images are allowed in PNG and JPG format. If you double click on the image in the Asset Panel, it will be opened in the default image browser.

If you would like to add fonts to your project, you should copy them into the Asset/Fonts folder. Then the program will autoload them.

• Console:

You can find program logos and error massages in the Console Panel.

• Inspetor:

In the Inspector Panel, there are the parameters of the selected widgets. You can add styles and events to them.

• History:

There is a list of your actions in the History Panel. The program can record up to 200 actions into the list. Selecting any action on the list, the project sets back into that previous state. If you modify any element of your project after setting it back, actions after the selected one disappear.

• Font Manager

Use your operation system fonts in your embedded GUI, as well. LVGL applies UTF-8 encoding to display Unicode characters on any language. Here, you can generate a new font for your GUI project. With the font converter tool, you can create C array from any TTF or WOFF font. You can select ranges of Unicode characters and specify the bpp (bit-per-pixel).

The project code is already on GitHub.

• Squareline usage

In the picture, we can see the Squareline interface.

When we created a project, we choose the widgets depend on your own preference. we use the simple demo to display how to design a UI interface for ESP32-S3 1.28" with touch by Squareline and Arduino.

We choose a Switch and a Slider to show the project. set the Switch color in STYLE SETTINGS,

and click the "ADD FILE INTO ASSETS" to add the picture as background Within Assets, you can drag the image to Screen1.

Before the "create template project", users can click the >>file>>Project Settings to check whether the configuration is correct. Then click the >>export>>create template project.

• Library and program modifications

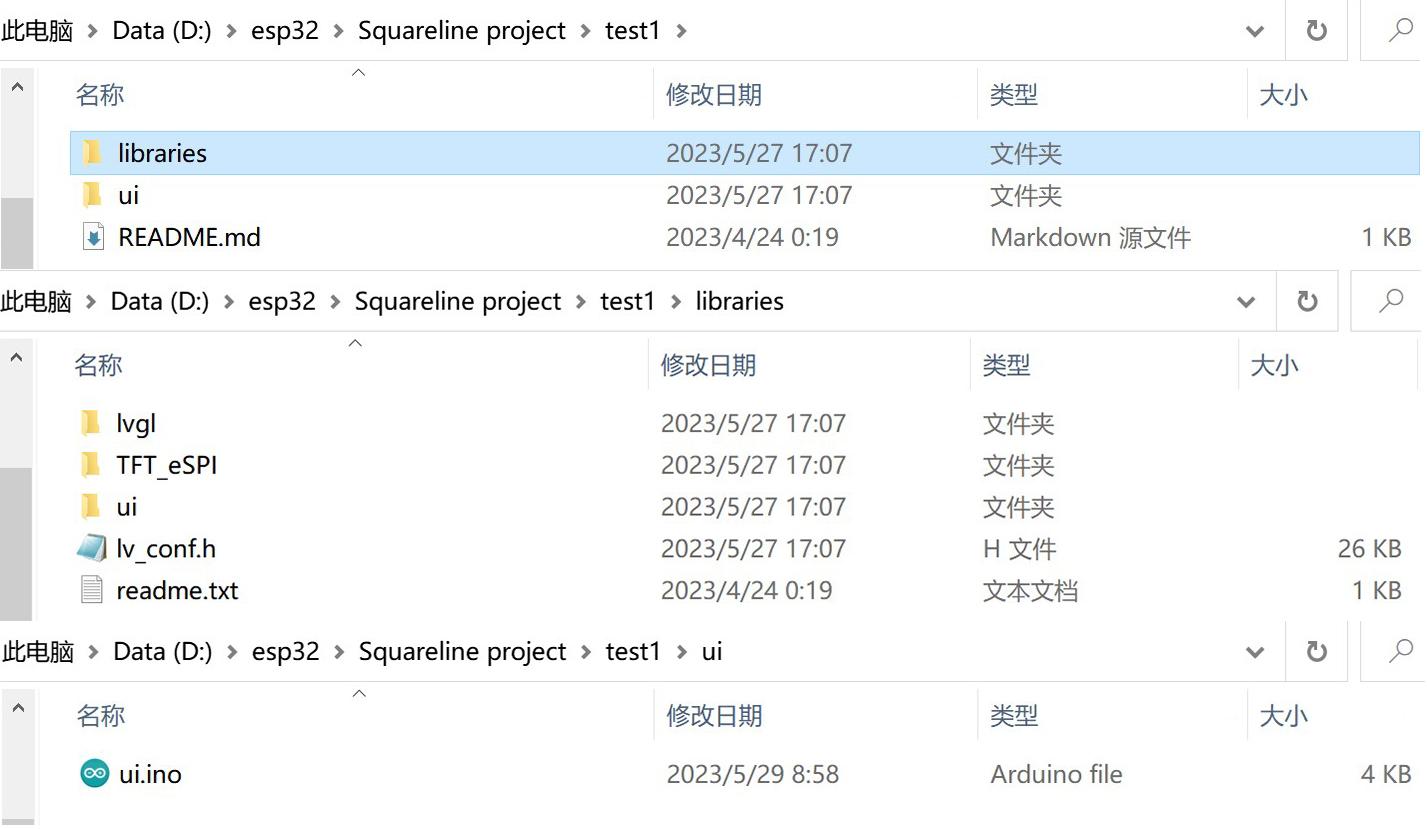

We find the program export path, can see 2 files named "ui" and "library", copy the files in the library to the Arduino library file.

The library file and three lib，"ui, TFT_eSPI, and lvgl," and a lvgl_conf.txt

Usually the ui library we don't need to modify.

①. The "TFT_eSPI" library

We mainly modified the TFT_eSPI and lvgl libraries. With "TFT_eSPI", we need to modify the "Users_Setup.h" file, because every development board has different screen drivers IC, The ESP32-S3 1.28" use the GC9A01 as drivers IC, So define this driver.

~~~

#define GC9A01_DRIVER

~~~



and define the efine the pixel width and height in portrait orientation to GC9A01



~~~

#define TFT_WIDTH  240 // ST7789 240 x 240 and 240 x 320

#define TFT_HEIGHT 240 // GC9A01 240 x 240

~~~



Then set the drive pin according to the schematic diagram

~~~

#define TFT_MOSI 13 // In some display driver board, it might be written as "SDA" and so on.

#define TFT_SCLK 14

#define TFT_CS   15  // Chip select control pin

#define TFT_DC   21  // Data Command control pin

#define TFT_RST  11  // Reset pin (could connect to Arduino RESET pin)

#define TFT_BL   45  // LED back-light

~~~

in Section 3. Define the fonts that are to be used here. We chose a variety of fonts to prevent them from being used without initializing them.

#define LOAD_GLCD   // Font 1. Original Adafruit 8 pixel font needs ~1820 bytes in FLASH

#define LOAD_FONT2  // Font 2. Small 16 pixel high font, needs ~3534 bytes in FLASH, 96 characters

#define LOAD_FONT4  // Font 4. Medium 26 pixel high font, needs ~5848 bytes in FLASH, 96 characters

#define LOAD_FONT6  // Font 6. Large 48 pixel font, needs ~2666 bytes in FLASH, only characters 1234567890:-.apm

#define LOAD_FONT7  // Font 7. 7 segment 48 pixel font, needs ~2438 bytes in FLASH, only characters 1234567890:-.

#define LOAD_FONT8  // Font 8. Large 75 pixel font needs ~3256 bytes in FLASH, only characters 1234567890:-.

//#define LOAD_FONT8N // Font 8. Alternative to Font 8 above, slightly narrower, so 3 digits fit a 160 pixel TFT

#define LOAD_GFXFF  // FreeFonts. Include access to the 48 Adafruit_GFX free fonts FF1 to FF48 and custom fonts



// Comment out the #define below to stop the SPIFFS filing system and smooth font code being loaded

// this will save ~20kbytes of FLASH

#define SMOOTH_FONT

Now the "Users_Setup.h" file had modified successfully.

②. The "lvgl" library

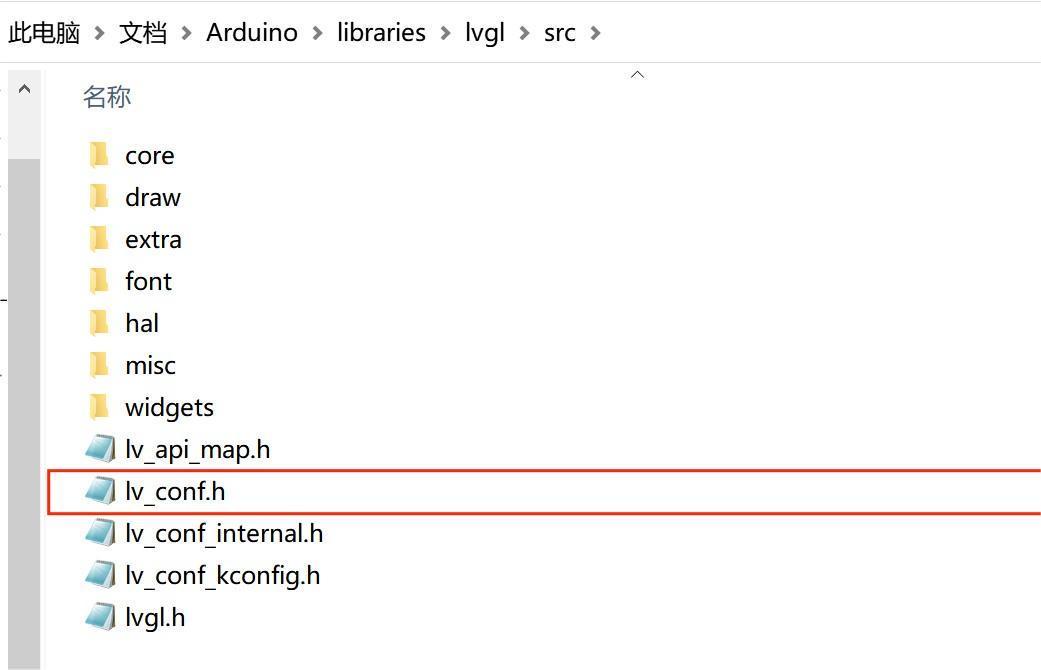

With the lvgl library, The lvgl conf.txt file is included in the exported library, we need to copy it to the >>lvgl>>src , and the lvgl file is successfully modified.

③. The ui.ino settings

Because ESP32-S3 1.28" Display with touch use the CST816S touch IC, so we need to add the CST816S library to the Arduino library file in Arduino. Open the ui.ino, click the >>tools>>manage libraries, Look for CST816S in the search box and install it. And the ESP32-S3 1.28" Display use USB serial port, so the serial port initialization needs to be written as USBSerial.

USBSerial.begin( 115200 );

Open the ui.ino, click the >>tools>>manage libraries Look for CST816S in the search box and install it.

Add <CST816S.h> file

define the TFT_BLK and touch pins



#include <CST816S.h>



#define TFT_BLK 45

#define TOUCH_INT 40

#define TOUCH_SDA 38

#define TOUCH_SCL 39

#define TOUCH_RST 16



CST816S touch(TOUCH_SDA, TOUCH_SCL, TOUCH_RST, TOUCH_INT); // sda, scl, rst, irq

In touchpad function ,you can copy the follow program to call library function. It calls the touch function of CST816S.

void my_touchpad_read(lv_indev_drv_t *indev_driver, lv_indev_data_t *data)

{

    uint16_t touchX = 0, touchY = 0;



    if (!touch.available())

    {

        data->state = LV_INDEV_STATE_REL;

    }

    else

    {

        data->state = LV_INDEV_STATE_PR;



        /*Set the coordinates*/

        data->point.x = touch.data.x;

        data->point.y = touch.data.y;



        USBSerial.print("Data x ");

        USBSerial.println(touchX);



        USBSerial.print("Data y ");

        USBSerial.println(touchY);

    }

}

In void setup function, initial the TFT_BLK and touch pins.

void setup()
{
    pinMode(TFT_BLK, OUTPUT);
    digitalWrite(TFT_BLK, 1);


    touch.begin();

Modify the landscape orientation. The default value is 3. You need to change it to 0

    tft.begin();        /* TFT init */

    tft.setRotation(0); /* Landscape orientation, flipped */

When the ui.ino is successfully modified, choose the "ESP32-S3 Dev module", flash size is 16MB, PSRAM is OPI PSRAM, and choose the com. verify and upload the code.

Please pay attention to the UI path when saving, it was easy to cover the previous design, and the different projects' UI library was incompatible.

key point: Screen backlight pin initialization

Touch library usage and initialization,

Replace the touch function to implement the touch function

ui Export library path Settings

Images can only be imported in ”png“ format.

TFT library display Angle Settings

Upon successfully uploading the application, users will be able to witness the Squareline UI showcased on the screen. Interacting with the UI can be accomplished by tapping or dragging the screen, thereby activating the touch functionality. This serves as the Squareline Basic Learning guide.
