I first saw this type of hinge on the Epilog Laser site, and I've been using it for some of my projects.

I'm going from CorelDraw to Autodesk Inventor to minimize the prototyping time when I design a new box.

A valuable technique I've been able to use is making the box top rotate around the box bottom to see how my drawings may need to be tweaked.

I've added a video of my ultimate goal here in Step 1 and also in Step 13.

I do my work at TechShop in San Jose...

Thank you for the Inventor insight, Mauricio!

Bring in the Box Sub-assemblies...

separated box.PNG
I built an assembly for the box bottom and one for the box top.

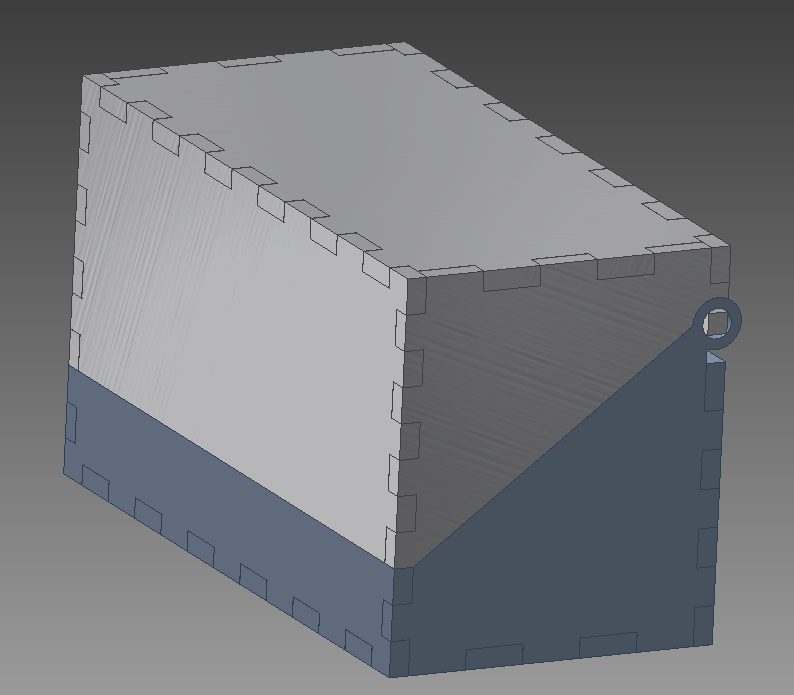

Here's a shot of them separated in space from one another.  To get them to align in the previous image, I set flush constraints around the box sides, then set a temporary mate constraint for the front edges on the top and bottom of the box that will touch one another.

The second image shows the box top and box bottom together with this temporary constraint.

Create a Sketch on the Hinge to Accept a Work Axis...

sketch for axis.PNG

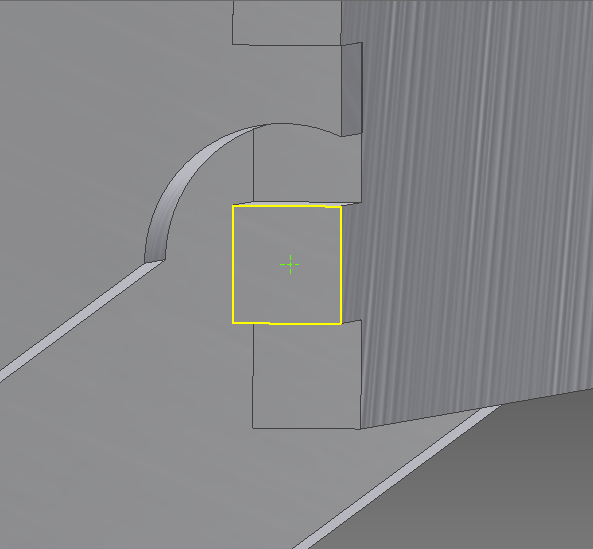

On the back component of the top, I created a fresh sketch.   This went on the square peg, facing the side of the box.

I put some construction lines in this fresh sketch to find the center of the square - this will serve as the point to place the axis.

In Ribbon: Sketch -> Draw -> Point

Place a Work Axis...

work axis.PNG

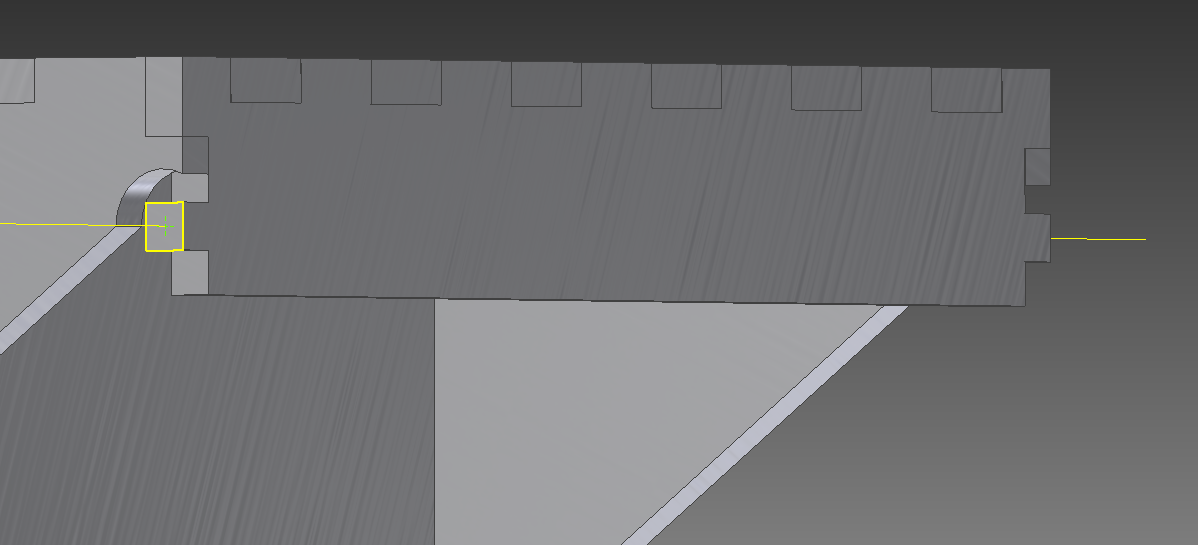

This goes at the center pont of the square face.

In the Ribbon:   Work Features -> Axis

Constrain the Hinge Axis to the Inner Surface of the Hinge Ring...

constraint one.PNG
It took me a bit of time to get comfortable with this, but a constraint can be placed on objects that do not intersect.   I eventually realized that with a parallel constraint, this is a common occurrence.


Constrain the hinge axis to the inner surface of the ring.

In the ribbon:  Constrain ->  Mate

Now Check How the Top of the Box Will Rotate About the Hinge...

into box.PNG
first video.PNG

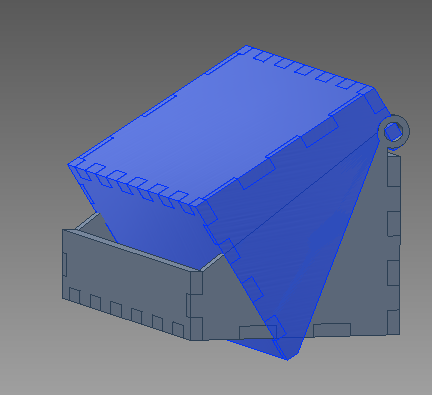

Without contact settings, the box top will be able to rotate through the box bottom when you drag the top with the cursor - not possible in any reality I've ever known...

The video will show how this looks.

I will next set up the parameters to make the box act like a real box...

Enable Contact Set on the Box Bottom Assembly...


In the browser, I right-click the box bottom assembly, then select the Contact Set option.  The short video shows this step.

Promote the Back Face of the Box Top

promoted back.PNG

This will allow the box top to stop when it rotates open and intersects the back face of the box bottom.

Right-click the part -> Component -> Promote

The video shows these steps.

A pop-up warning shows, but I accepted okay and the part gets promoted.

Enable Contact Set on the Back Face of the Top



Right-click this promoted part -> Contact Set

Promote the Front Face of the Box Top

This will allow the box top to stop when it rotates shut and intersects the front face of the box bottom.

Right-click the part -> Component -> Promote

The video shows these steps.

A pop-up warning shows, but I accepted okay and the part gets promoted.  There's a video coming up when setting this on the front face of the box top.

Enable Contact Set on the Front Face of the Box Top



Right-click this promoted part -> Contact Set

Check All Parts Necessary Have Contact Set

8-4-2013 2-18-36 PM.png

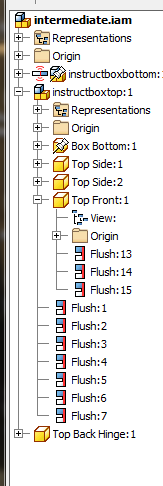

In the browser,  a new icon has appeared in front of the promoted parts and the box bottom assembly we've enabled for Contact Set.

Activate Contact Solver

contact solver.PNG

This step is needed to make the box top stop when it hits the box bottom.

On the Ribbon:  Inspect -> Interference -> Activate Contact Solver

Now Test That the Box Top Stops When It Intersects the Box Bottom


See the video...
