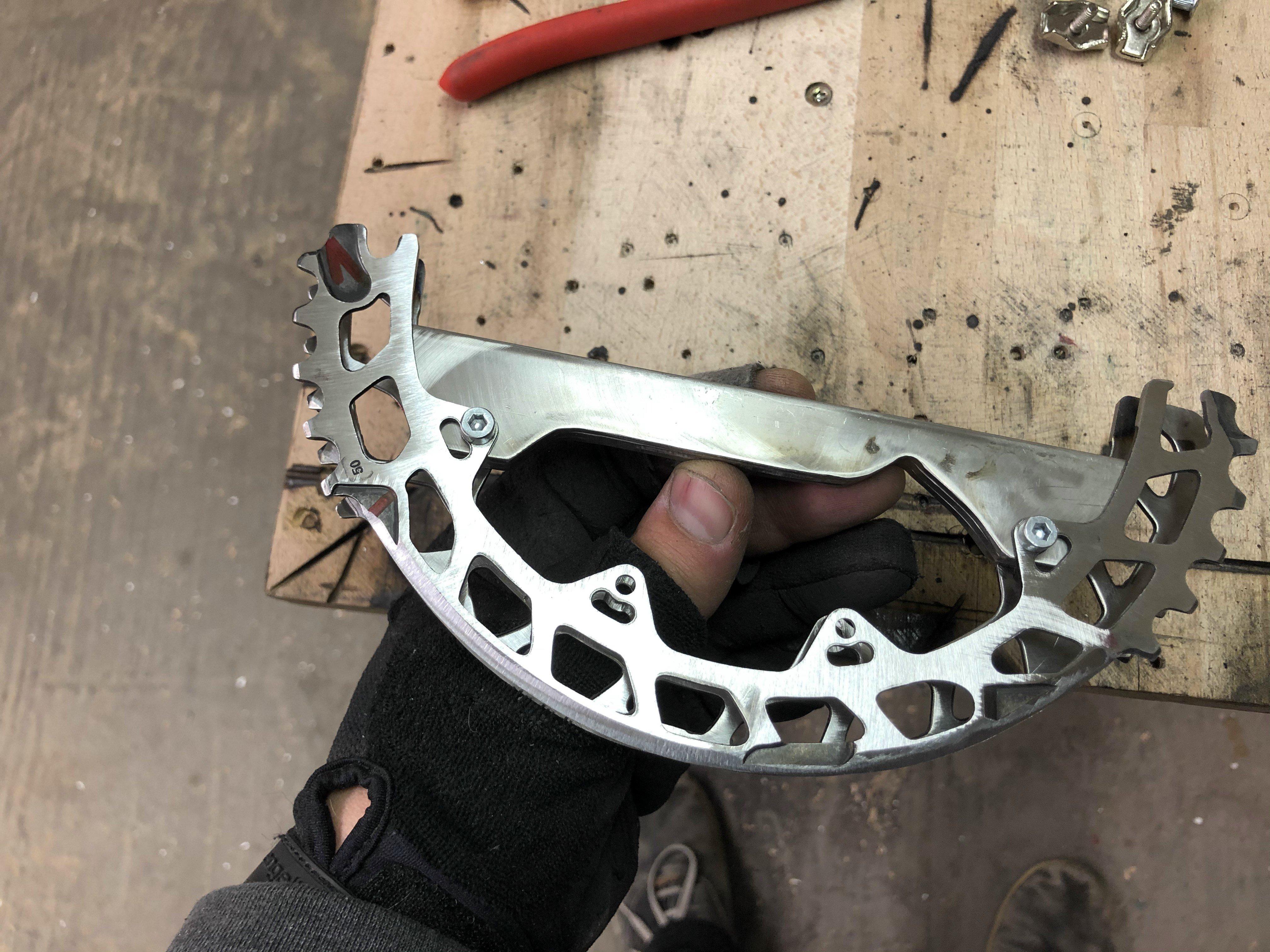

Sprocket Chopping Knife
![IMG_5259.HEIC.jpg](/proxy/?url=https://content.instructables.com/FSV/UWAP/KG54AA5N/FSVUWAPKG54AA5N.jpg&filename=IMG_5259.HEIC.jpg)
![IMG_5260.HEIC.jpg](/proxy/?url=https://content.instructables.com/F2Z/KSLG/KG54AA5O/F2ZKSLGKG54AA5O.jpg&filename=IMG_5260.HEIC.jpg)
![IMG_5261.HEIC.jpg](/proxy/?url=https://content.instructables.com/FO8/N80P/KG54AA5Q/FO8N80PKG54AA5Q.jpg&filename=IMG_5261.HEIC.jpg)

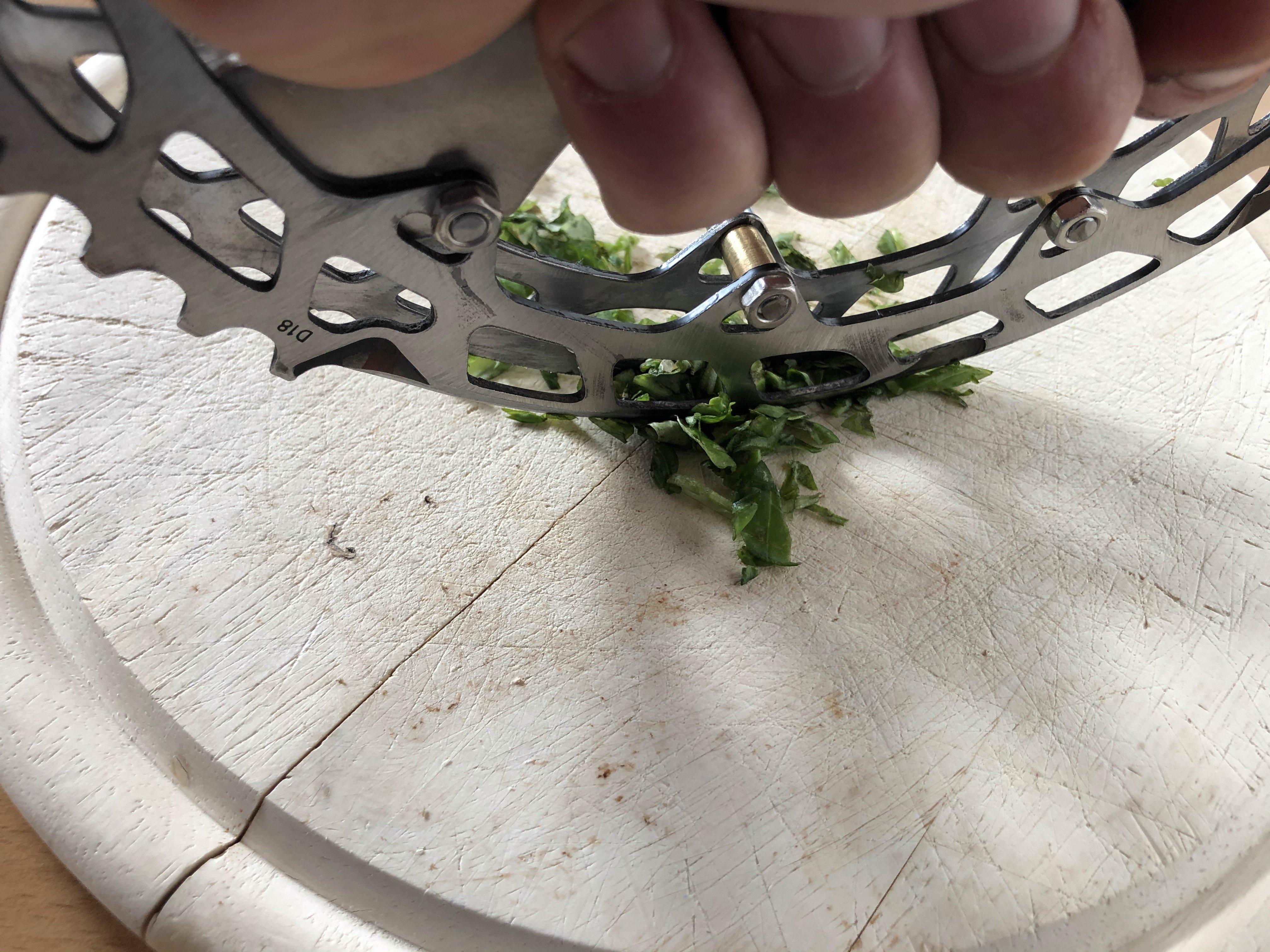

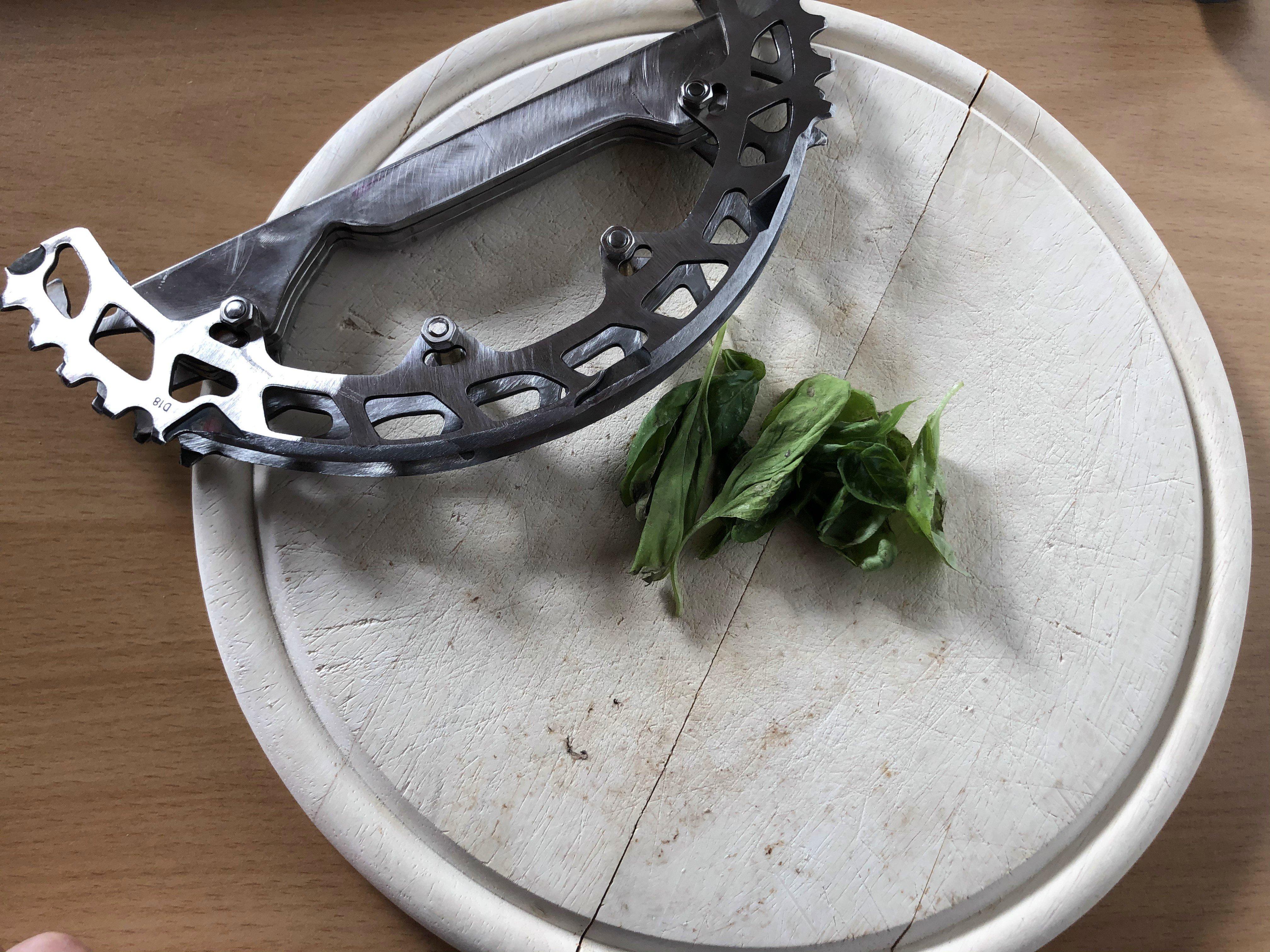

My wife wanted a Chopping Knife since forever while she was nagging about something I've scrolled through instructables... Accidentally I said Yes to something.
The idea was to build one out of a old sprocket from my bike. It Took me something about 3h to build it. I was supplied with two coffee from my wife and used only standard tools like a drill and a angle grinder.
Find Some Sprocket
![IMG_5218.HEIC.jpg](/proxy/?url=https://content.instructables.com/FMQ/DT0M/KG54A7S9/FMQDT0MKG54A7S9.jpg&filename=IMG_5218.HEIC.jpg)
![IMG_5217.HEIC.jpg](/proxy/?url=https://content.instructables.com/F73/TLFE/KG54A7RE/F73TLFEKG54A7RE.jpg&filename=IMG_5217.HEIC.jpg)
I dive something like 5000-6000Km every year with my bike. These are 3100-3700 freedom units. The chain and sprocket are changed ~once a year.
For this projekt I'm using a SRAM x12 set...
Preparing the Sprocket
![IMG_5219.HEIC.jpg](/proxy/?url=https://content.instructables.com/FDE/6RRB/KG54A7SB/FDE6RRBKG54A7SB.jpg&filename=IMG_5219.HEIC.jpg)
![IMG_5220.HEIC.jpg](/proxy/?url=https://content.instructables.com/FMM/Y57T/KG54A7SE/FMMY57TKG54A7SE.jpg&filename=IMG_5220.HEIC.jpg)
![IMG_5221.HEIC.jpg](/proxy/?url=https://content.instructables.com/FJH/60OV/KG54A7SF/FJH60OVKG54A7SF.jpg&filename=IMG_5221.HEIC.jpg)
![IMG_5222.HEIC.jpg](/proxy/?url=https://content.instructables.com/F65/23F8/KG54A7SG/F6523F8KG54A7SG.jpg&filename=IMG_5222.HEIC.jpg)

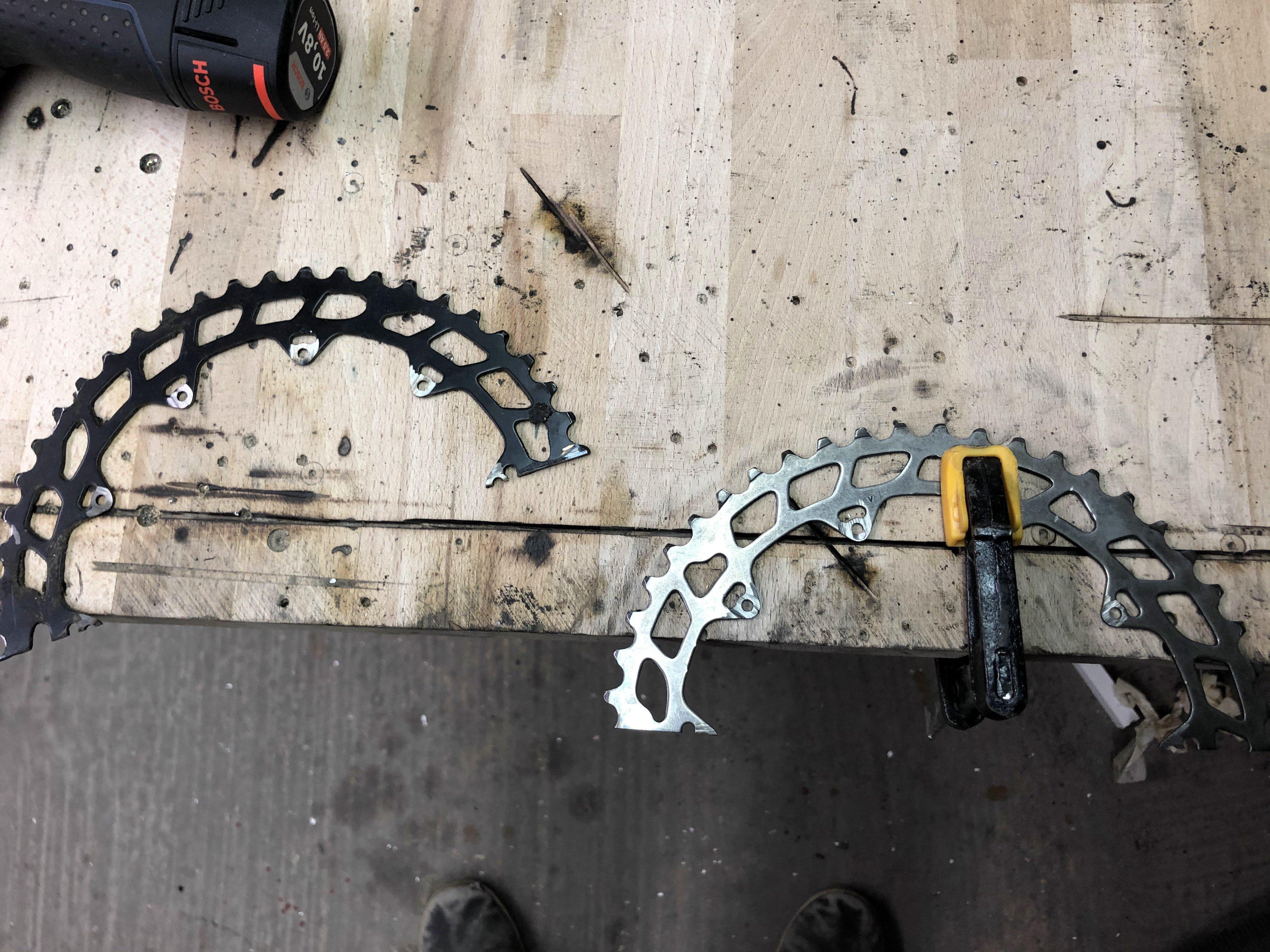

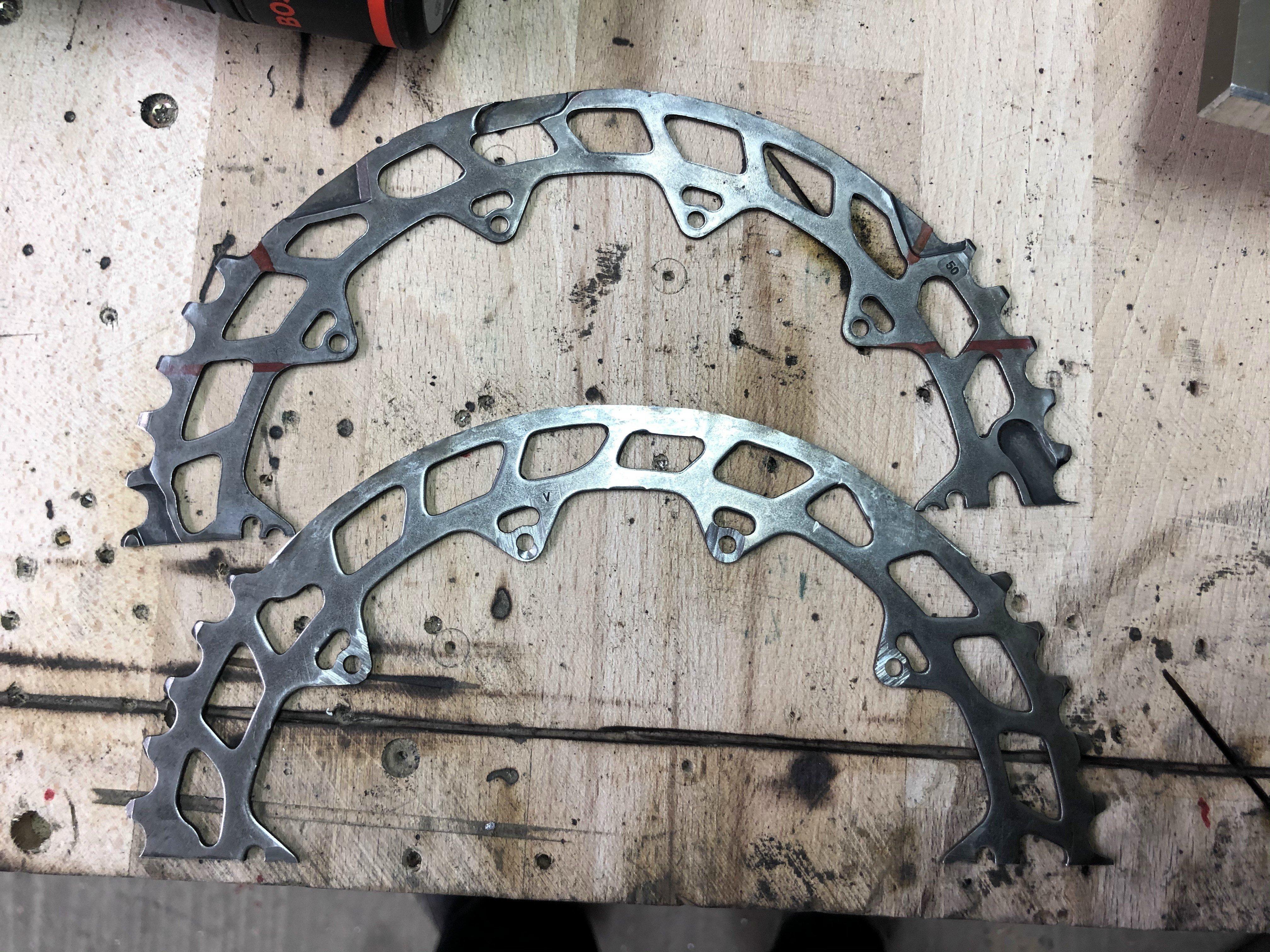

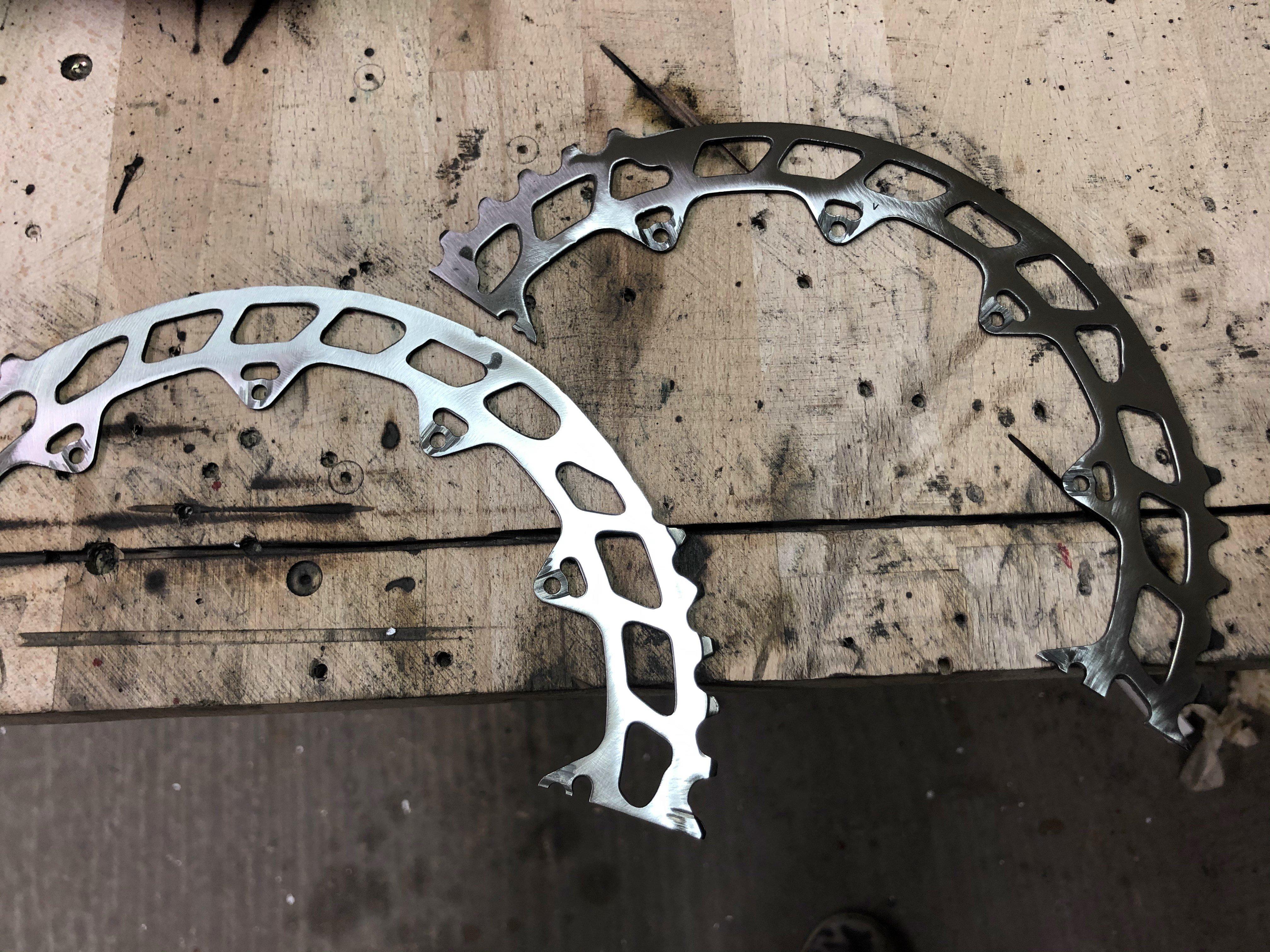

... especially the 50 teeth (the biggest). Therefore the rivets needed to be removed. Then the sprocket was mechanically cleaned halved.
Grind Away the Teeth
![IMG_5223.HEIC.jpg](/proxy/?url=https://content.instructables.com/FJG/PEFJ/KG54A7SH/FJGPEFJKG54A7SH.jpg&filename=IMG_5223.HEIC.jpg)
![IMG_5224.HEIC.jpg](/proxy/?url=https://content.instructables.com/FLN/T6RS/KG54A7SJ/FLNT6RSKG54A7SJ.jpg&filename=IMG_5224.HEIC.jpg)
For the cutting edge we need to remove the teeth.
Sharpen the Blade
![IMG_5225.HEIC.jpg](/proxy/?url=https://content.instructables.com/F2N/RPJY/KG54A7TE/F2NRPJYKG54A7TE.jpg&filename=IMG_5225.HEIC.jpg)
![IMG_5226.HEIC.jpg](/proxy/?url=https://content.instructables.com/FJY/YXSG/KG54A7TG/FJYYXSGKG54A7TG.jpg&filename=IMG_5226.HEIC.jpg)
![IMG_5227.HEIC.jpg](/proxy/?url=https://content.instructables.com/FW1/U6IX/KG54A7TH/FW1U6IXKG54A7TH.jpg&filename=IMG_5227.HEIC.jpg)

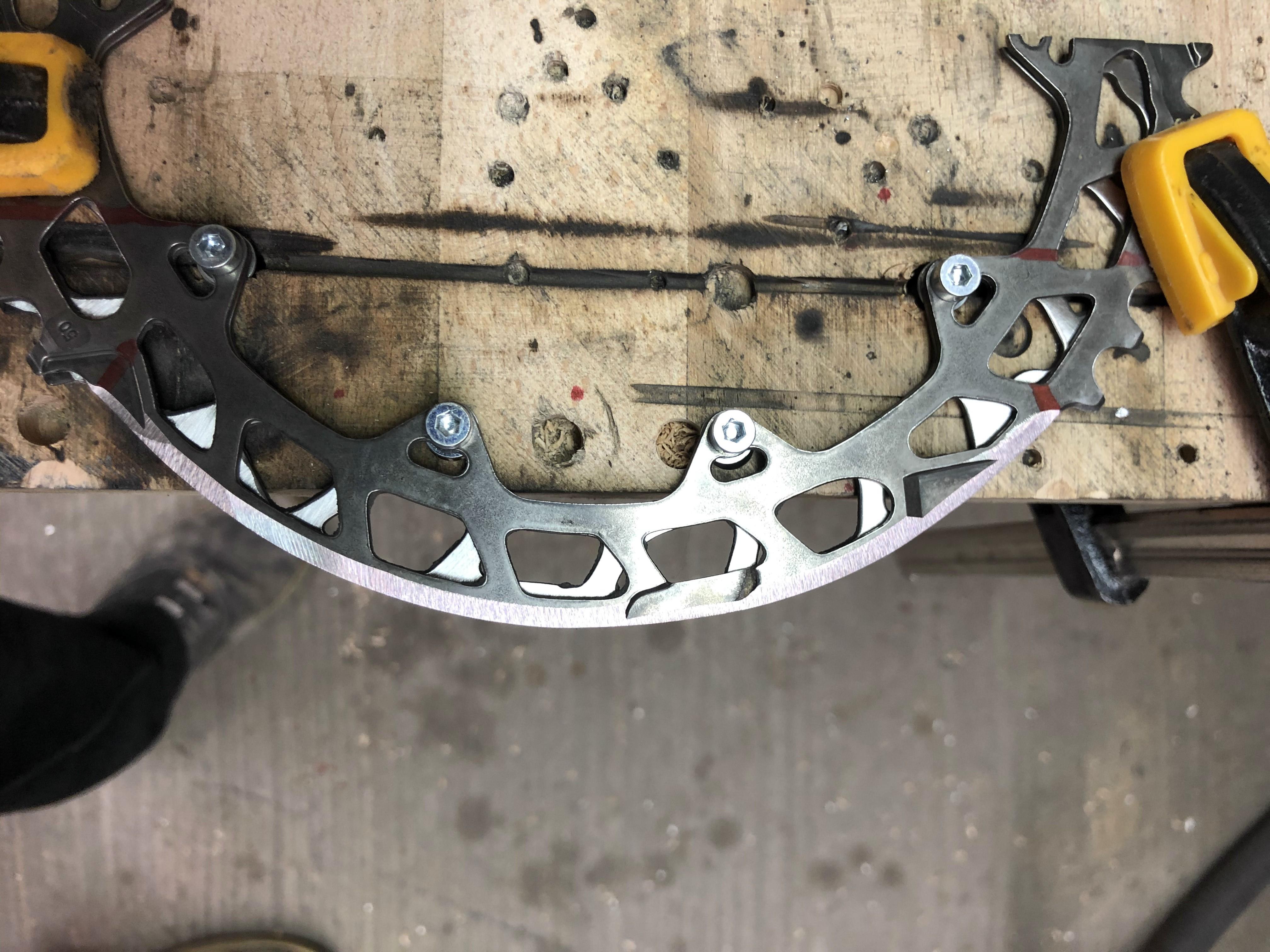

To ease the process of having two identical parts I've used some screws to hold everything together. Then I've used my angle grinder to grind on a first edge. With a sharpening stone I've finished the sharpening for now. (I'll try to harden the blade in the future to further increase the sharpness)
Crafting the Handle
![IMG_5228.HEIC.jpg](/proxy/?url=https://content.instructables.com/F87/M3FM/KG54A7TI/F87M3FMKG54A7TI.jpg&filename=IMG_5228.HEIC.jpg)
![IMG_5229.HEIC.jpg](/proxy/?url=https://content.instructables.com/FE1/XCJ8/KG54A7TL/FE1XCJ8KG54A7TL.jpg&filename=IMG_5229.HEIC.jpg)
![IMG_5254.HEIC.jpg](/proxy/?url=https://content.instructables.com/F80/7QT5/KG54A7TP/F807QT5KG54A7TP.jpg&filename=IMG_5254.HEIC.jpg)
![IMG_5255.HEIC.jpg](/proxy/?url=https://content.instructables.com/FJJ/GPC6/KG54A7TQ/FJJGPC6KG54A7TQ.jpg&filename=IMG_5255.HEIC.jpg)

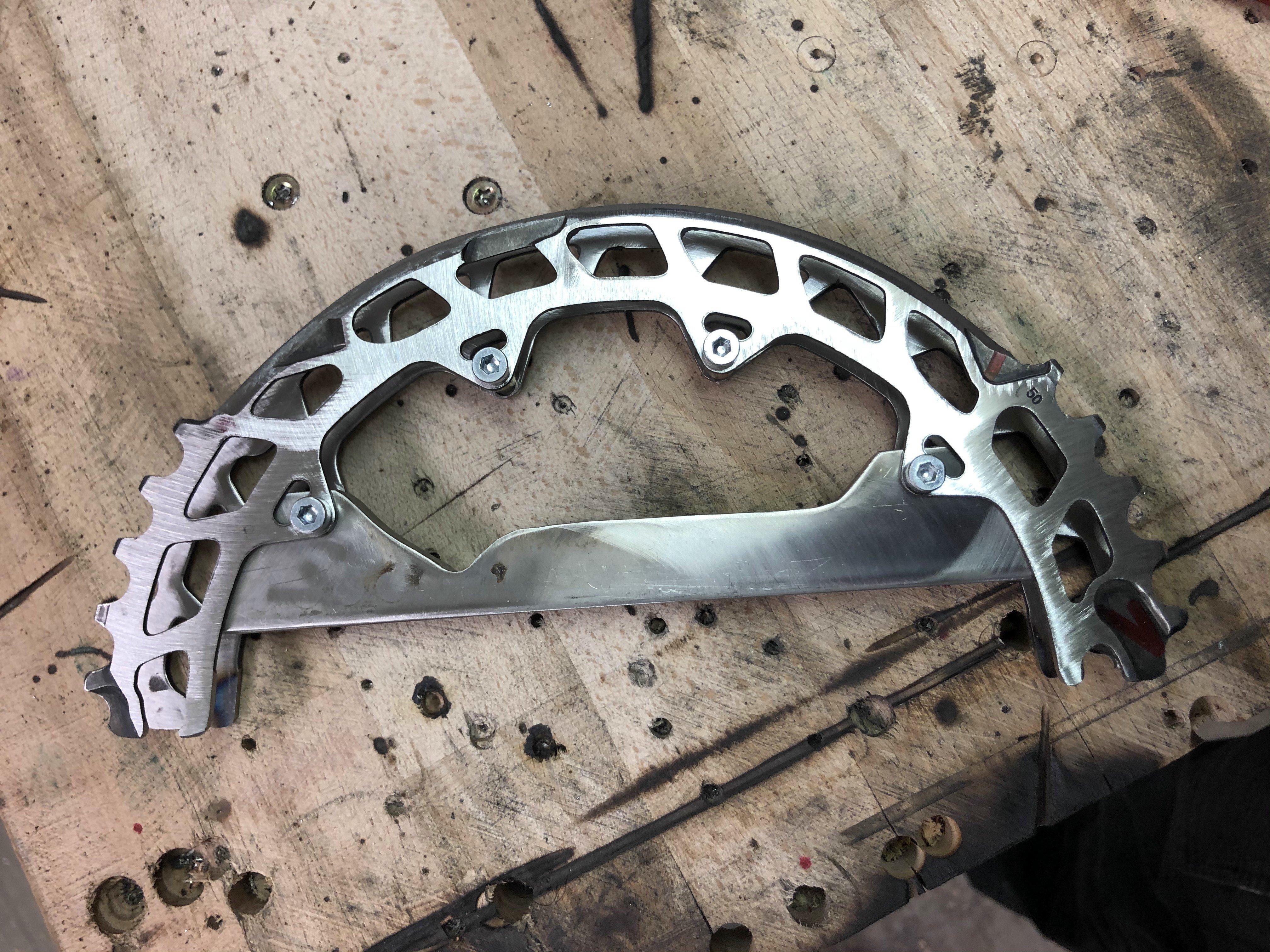

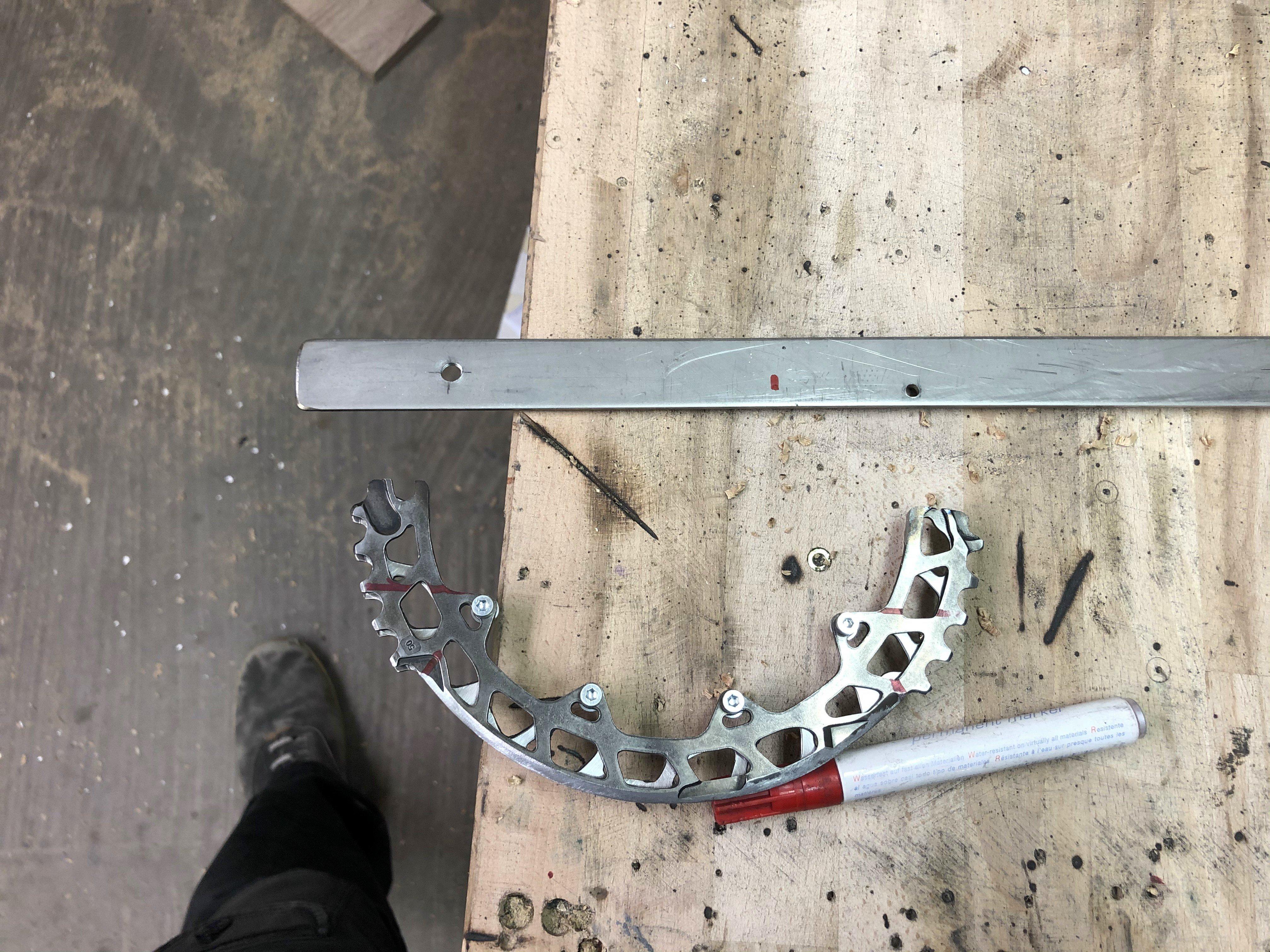

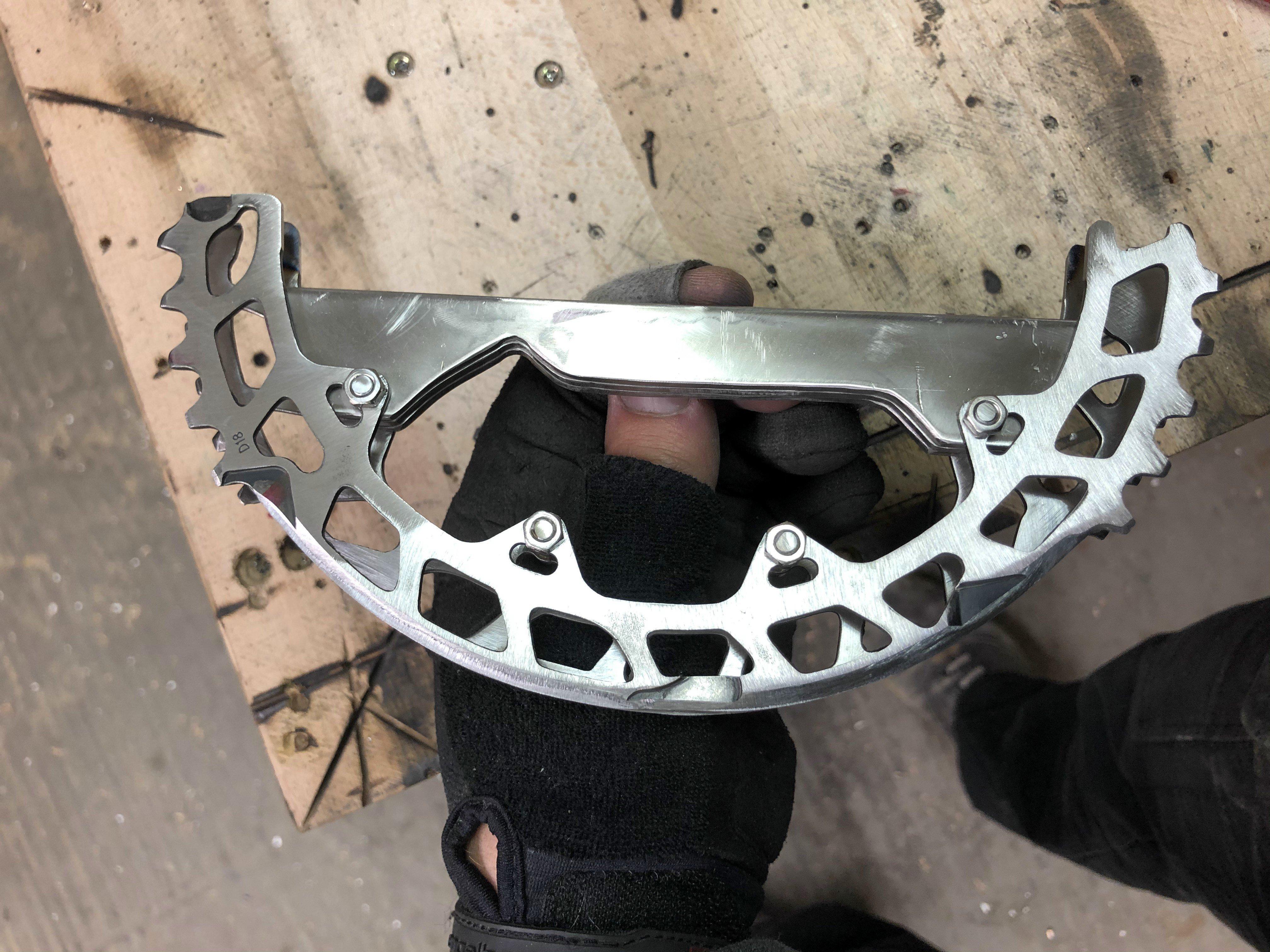

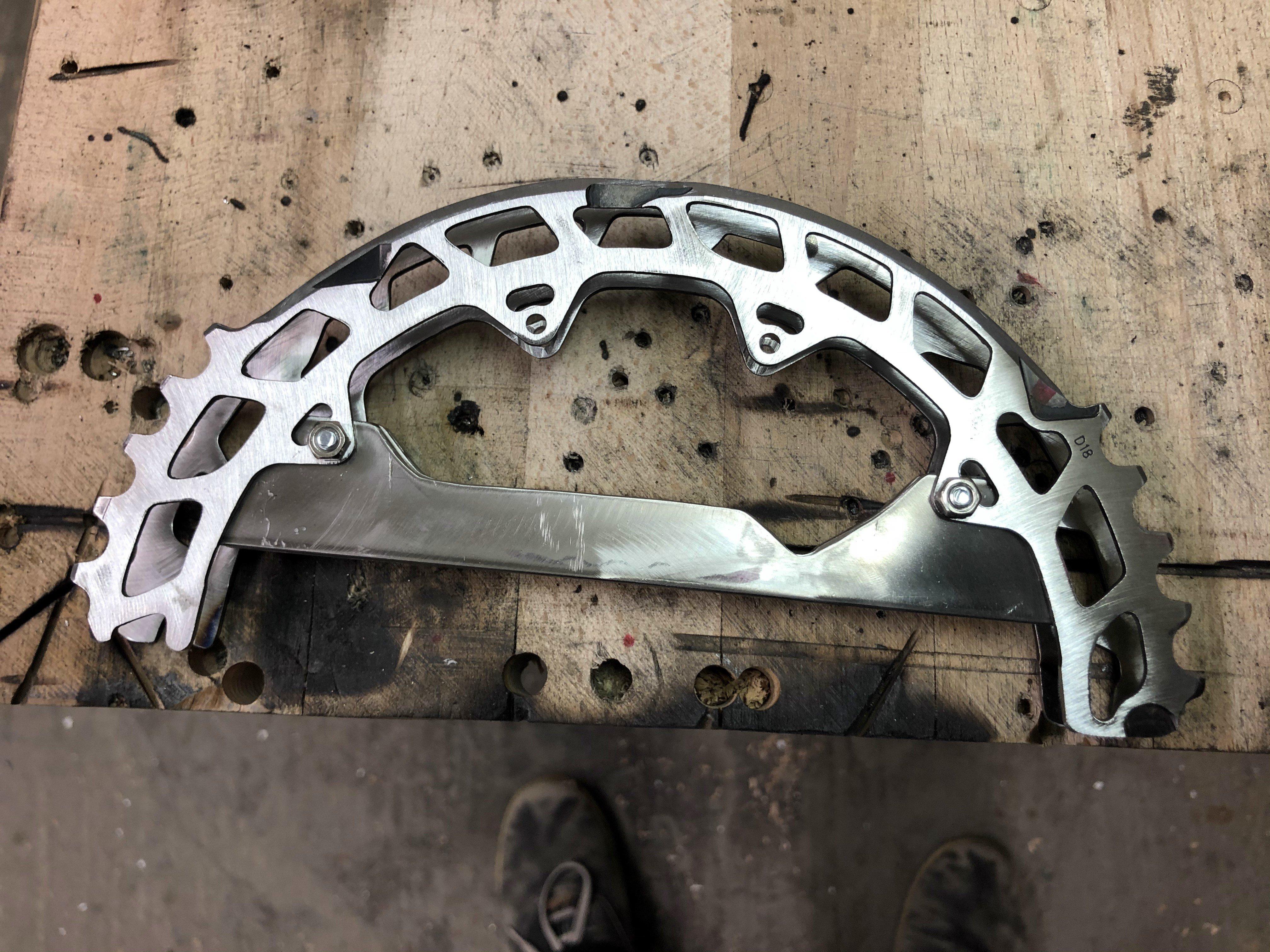

As a handle I'm using some V4A steel which i found in my garden... don't ask. To mount the handle to the sprocket the same holes like the rivets before were used.
Stiffen the Two Blades
![IMG_5256.HEIC.jpg](/proxy/?url=https://content.instructables.com/FID/QM0A/KG54A7TR/FIDQM0AKG54A7TR.jpg&filename=IMG_5256.HEIC.jpg)
![IMG_5257.HEIC.jpg](/proxy/?url=https://content.instructables.com/FEF/LYXO/KG54A7TS/FEFLYXOKG54A7TS.jpg&filename=IMG_5257.HEIC.jpg)
![IMG_5258.HEIC.jpg](/proxy/?url=https://content.instructables.com/FT8/UPJF/KG54A7UT/FT8UPJFKG54A7UT.jpg&filename=IMG_5258.HEIC.jpg)

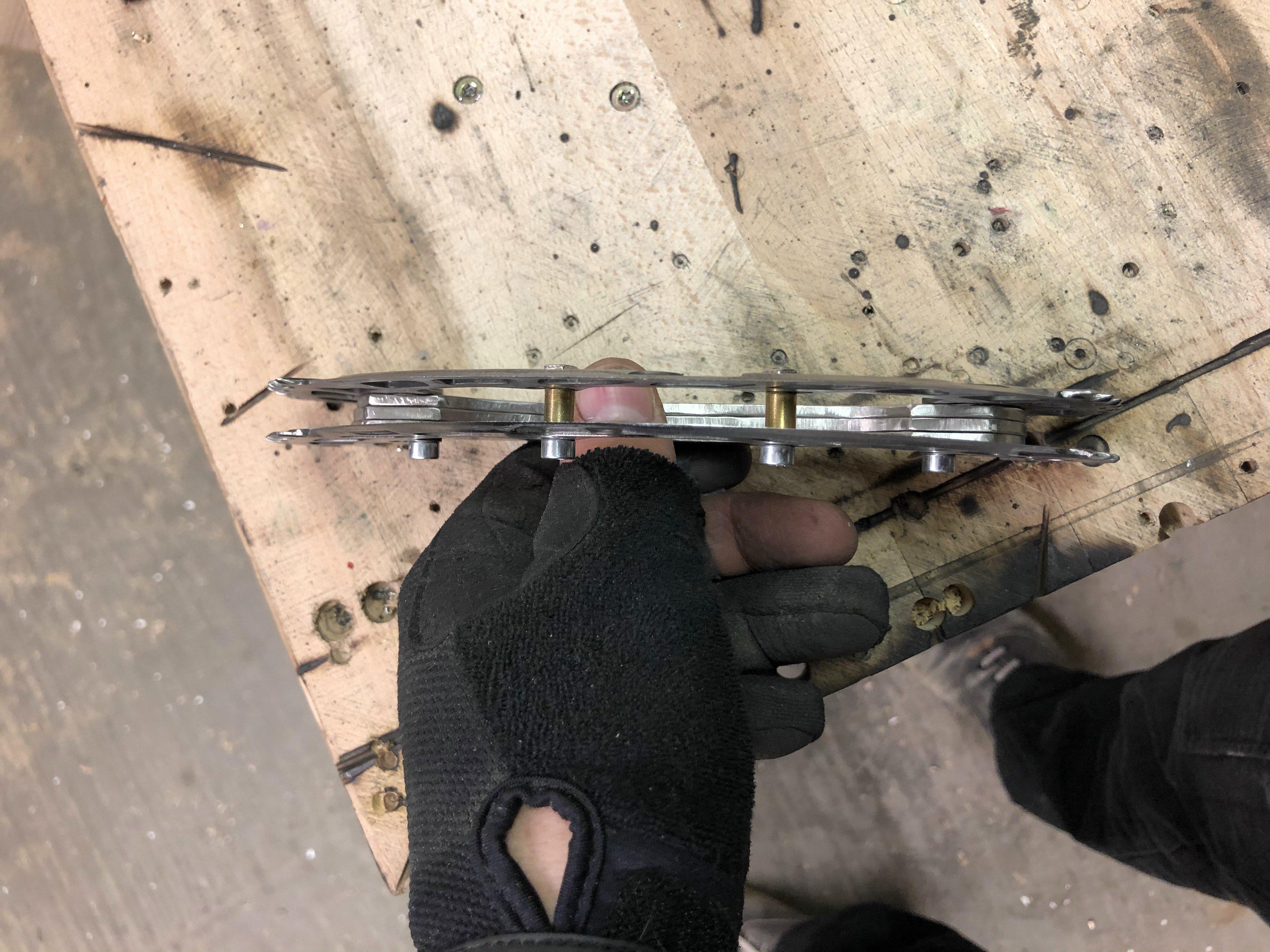

To make the two blades as stiff as possible I've cut down some brass tube and added some screws. This way I have more then enough structure added and it feal like a solid pice of metal, zero flexing.
