Splatoon Charger, Costume Prop
by SmkdSalmon in Craft > Costumes & Cosplay
1210 Views, 5 Favorites, 0 Comments
Splatoon Charger, Costume Prop
![IMG_6011.JPG](/proxy/?url=https://content.instructables.com/FJL/G3NL/KTSXVRQA/FJLG3NLKTSXVRQA.jpg&filename=IMG_6011.JPG)
![IMG_3681.JPG](/proxy/?url=https://content.instructables.com/FCD/TIOY/KTSXVR0N/FCDTIOYKTSXVR0N.jpg&filename=IMG_3681.JPG)
![IMG_3673.JPG](/proxy/?url=https://content.instructables.com/FGH/7IKO/KTSXVR0K/FGH7IKOKTSXVR0K.jpg&filename=IMG_3673.JPG)
![IMG_3674.JPG](/proxy/?url=https://content.instructables.com/FUA/UEBQ/KTSXVR0L/FUAUEBQKTSXVR0L.jpg&filename=IMG_3674.JPG)
This is a prop for an Inkling costume. It's a perfect prop for trick-or-treating to fill up with candy!
Inklings are the video game characters from the Nintendo WiiU game called Splatoon. In the game, you play as squid/kid character on a team of 4 to try and cover the ground in an arena with the most ink to win a match. Inklings use ink weapons to cover the ground and splat the opposing team which sends them back to the spawn point - allowing you more time to cover the ground. It's super fun, i highly recommend it! For our Inkling costumes we decided on: ink weapon, ink tank, and a hat for the tentacles. Regular clothes would do for us as in the game you can buy fairly regular clothes for your outfit: sneakers, boots, t-shirts, coats, various hats, we just picked from our regular clothes for likely Inkling wear.
The CHARGER is a sniper ink weapon to spat your opponents from a distance. I decided i could make a quick one these with PVC pipe.
Sorry not a lot of pictures, i was in a hurry making these, ink tanks, a roller, a charger, and an aerospray for Halloween (look for other instructables soon!).
[update, ok, not soon, it's been 6 years since that 2015 halloween, but better late than never! -SS]
Supplies
PARTS:
- 1" PVC pipe;
- 2 - PVC pipe caps;
- 1 - PVC connector 3-way with 45°;
- 1" thick ridged foam insulation;
- 2 - 50 Oz Smart water bottles;
- 1" dowels for charger sights.
TOOLS:
- Oscillating saw for cutting PVC and shaping foam;
- wood clamps for glueing foam together;
- hand or band saw for cutting sight pieces;
- Drill with 1" bit for drilling thru foam;
- Architects ruler to estimate scale;
- Utility knife.
SUPPLIES:
- gorilla glue or similar for foam;
- PVC cement;
- spray paint: plastic primer, blue, medium green, orange;
- duck tape, lime green;
- sand paper.
Measure & Planning
![IMG_3713.JPG](/proxy/?url=https://content.instructables.com/F85/O8UG/KTSXVR91/F85O8UGKTSXVR91.jpg&filename=IMG_3713.JPG)
![IMG_3792.JPG](/proxy/?url=https://content.instructables.com/FZR/QH9S/KTYDMHSN/FZRQH9SKTYDMHSN.jpg&filename=IMG_3792.JPG)

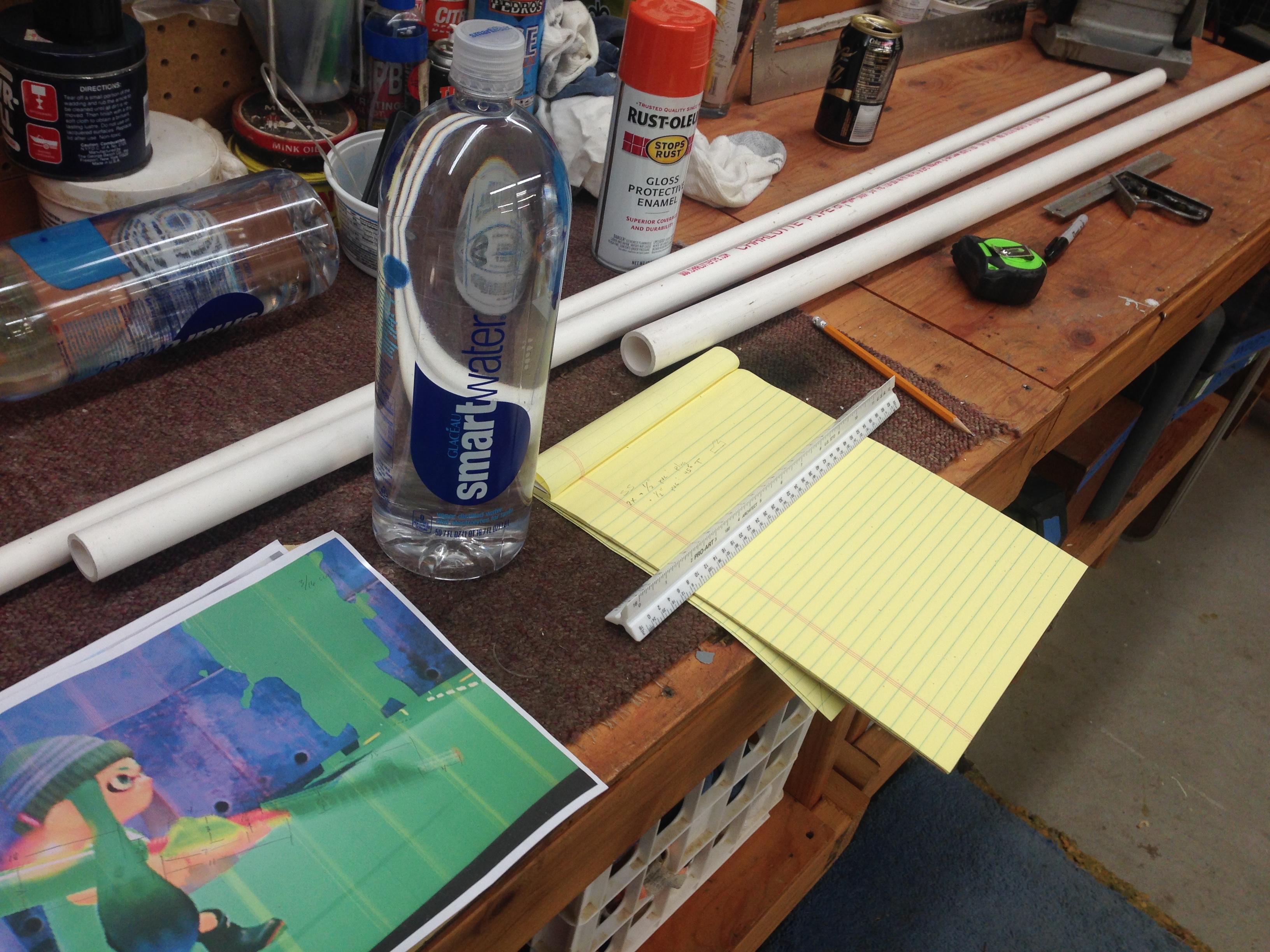

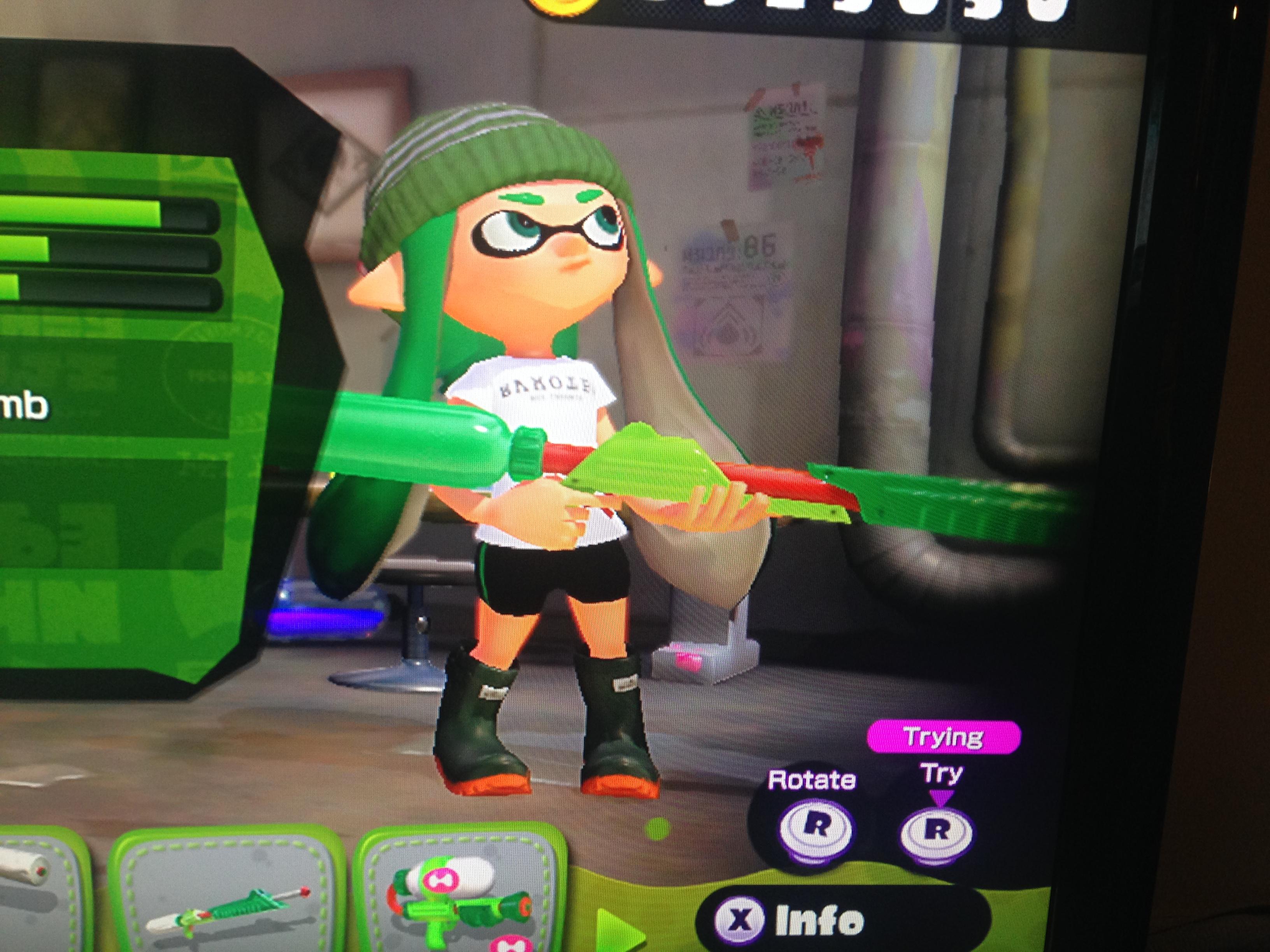

I printed out a screen capture of the charge to use in determining the scale and sizes of the parts to make. Using the architect's ruler, i would measure on the print out with the various scales (mine has 11 different inch scales) and compare measurement to real work items (ie: broom handle). for this, i settled on the 3/16" scale.
This is so the end product didn't look too big or too small for an actual human child!
Build Up Foam Parts
![IMG_3712.JPG](/proxy/?url=https://content.instructables.com/FN7/FK1H/KTSXVR4U/FN7FK1HKTSXVR4U.jpg&filename=IMG_3712.JPG)
![IMG_3715.JPG](/proxy/?url=https://content.instructables.com/FKU/L1LX/KTSXVR92/FKUL1LXKTSXVR92.jpg&filename=IMG_3715.JPG)

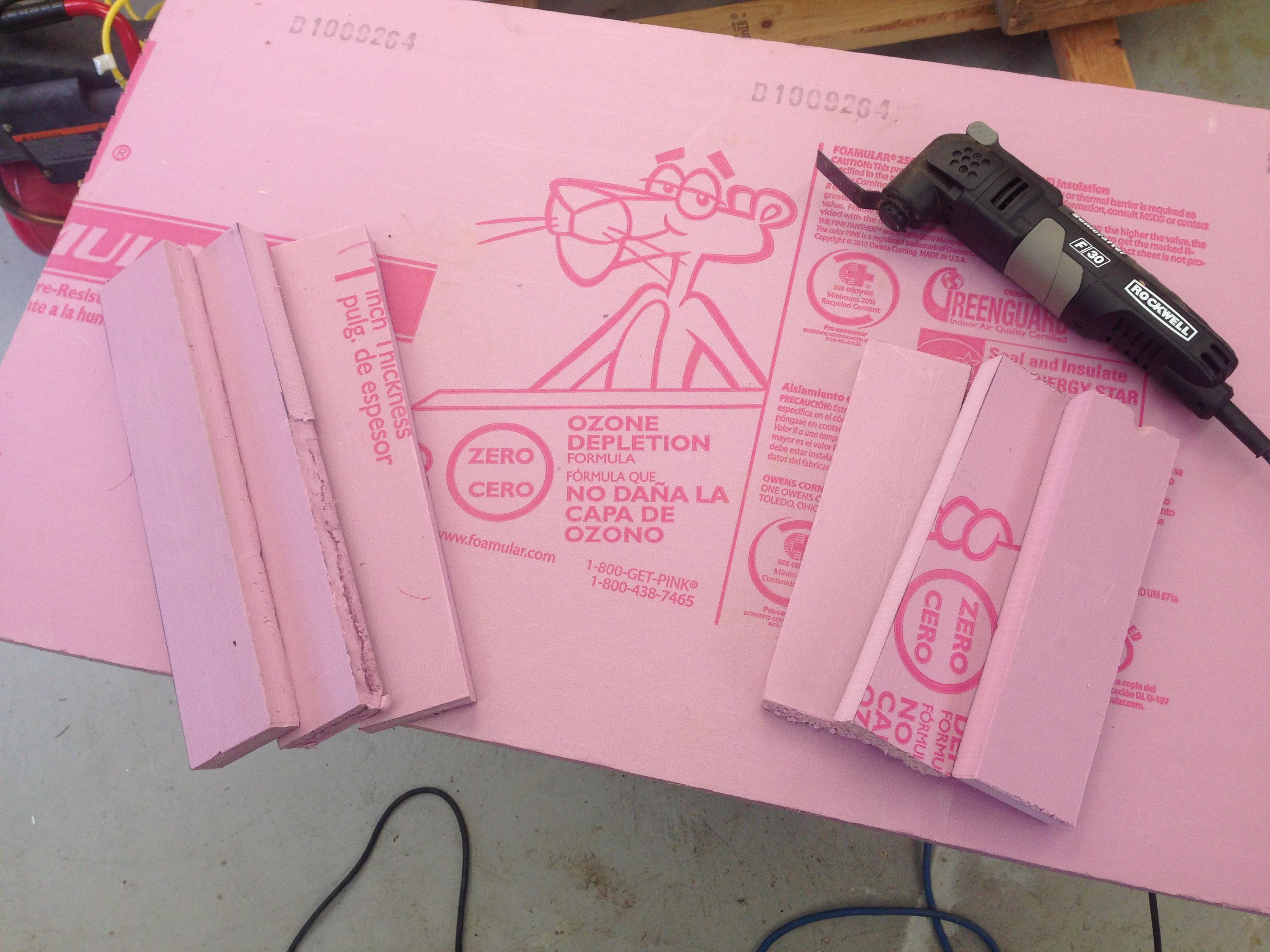

Foam is built up for 2 parts of the Charger: GRIP & MUZZLE
- GRIP is made from 3 - 3" x 11" pieces stacked up and glued together to make a block;
- MUZZLE is made for 3 - 3" x 15" pieces;
- Cut them out with an oscillating saw, cuts thru it like butter!
- Stack them up and glue together with gorilla glue (remember some water to activate it).
- clamp and let dry.
PVC Frame & Foam Parts
![IMG_3794.JPG](/proxy/?url=https://content.instructables.com/FX1/RGBG/KTSXVRHP/FX1RGBGKTSXVRHP.jpg&filename=IMG_3794.JPG)
![IMG_3791.JPG](/proxy/?url=https://content.instructables.com/FM7/SKA1/KTSXVRHK/FM7SKA1KTSXVRHK.jpg&filename=IMG_3791.JPG)
![IMG_3788.JPG](/proxy/?url=https://content.instructables.com/FO7/OHF9/KTSXVRDA/FO7OHF9KTSXVRDA.jpg&filename=IMG_3788.JPG)
![IMG_3787.JPG](/proxy/?url=https://content.instructables.com/F51/8XL5/KTSXVRD9/F518XL5KTSXVRD9.jpg&filename=IMG_3787.JPG)
![IMG_3790.JPG](/proxy/?url=https://content.instructables.com/FQE/8H85/KTSXVRHI/FQE8H85KTSXVRHI.jpg&filename=IMG_3790.JPG)

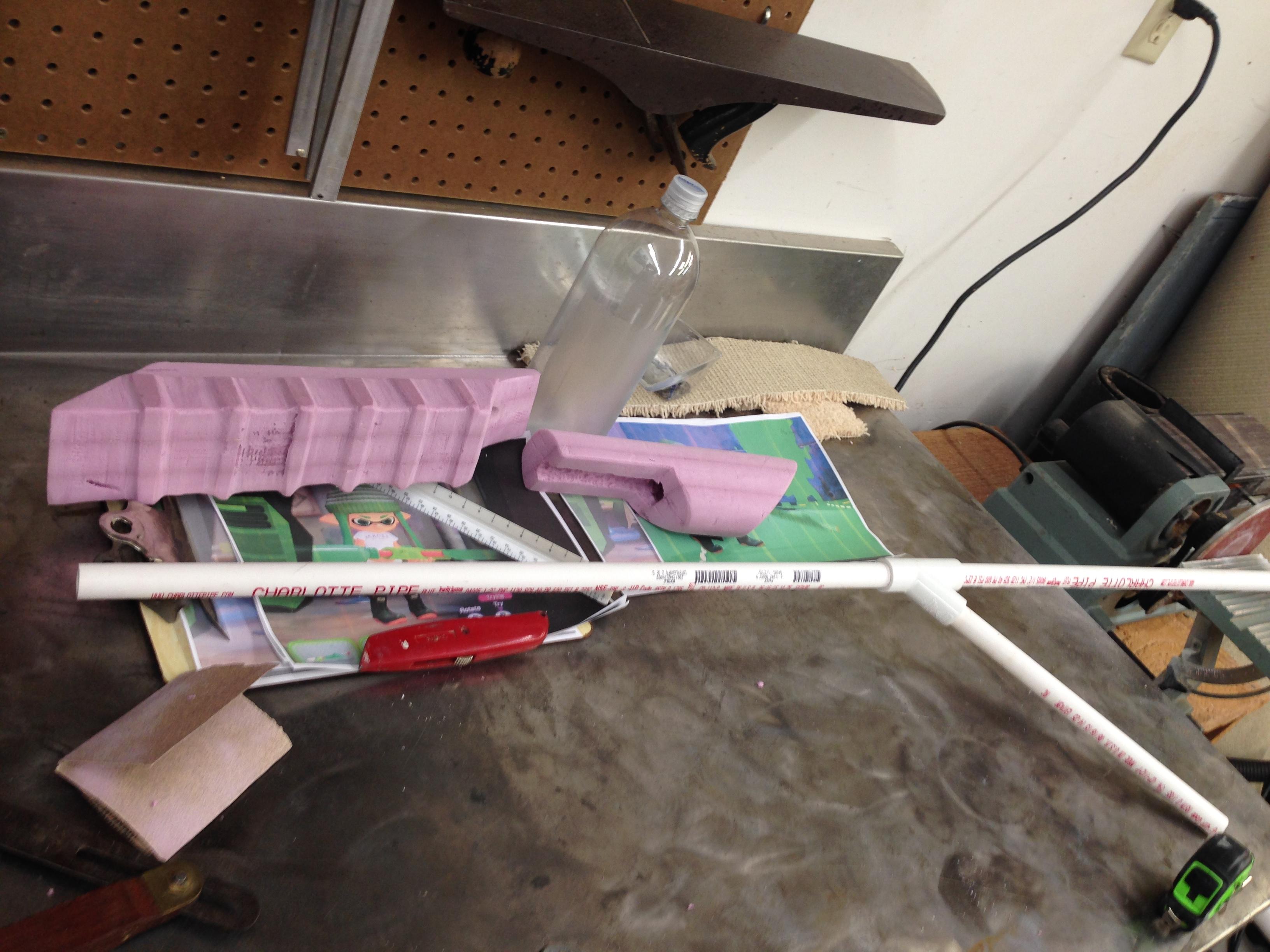

Cut your 3 PVC parts and glue together with the 3-way coupler.
For foam parts, first, drill a 1" hole (same size as your PVC pipe) through the length of both GRIP & MUZZLE. This is so you can shape these parts taking into account any inconsistency in a perfectly drilled hole.

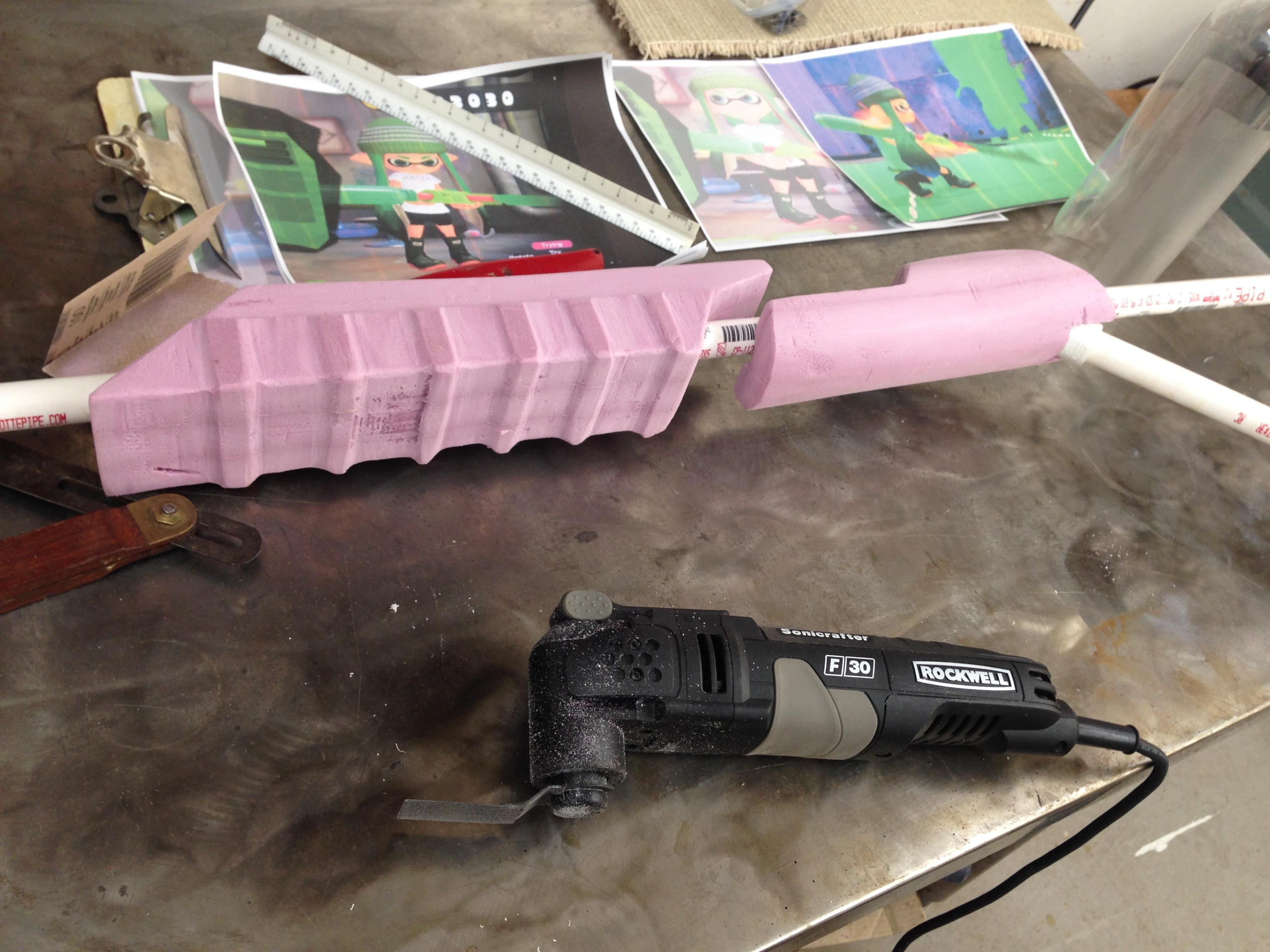

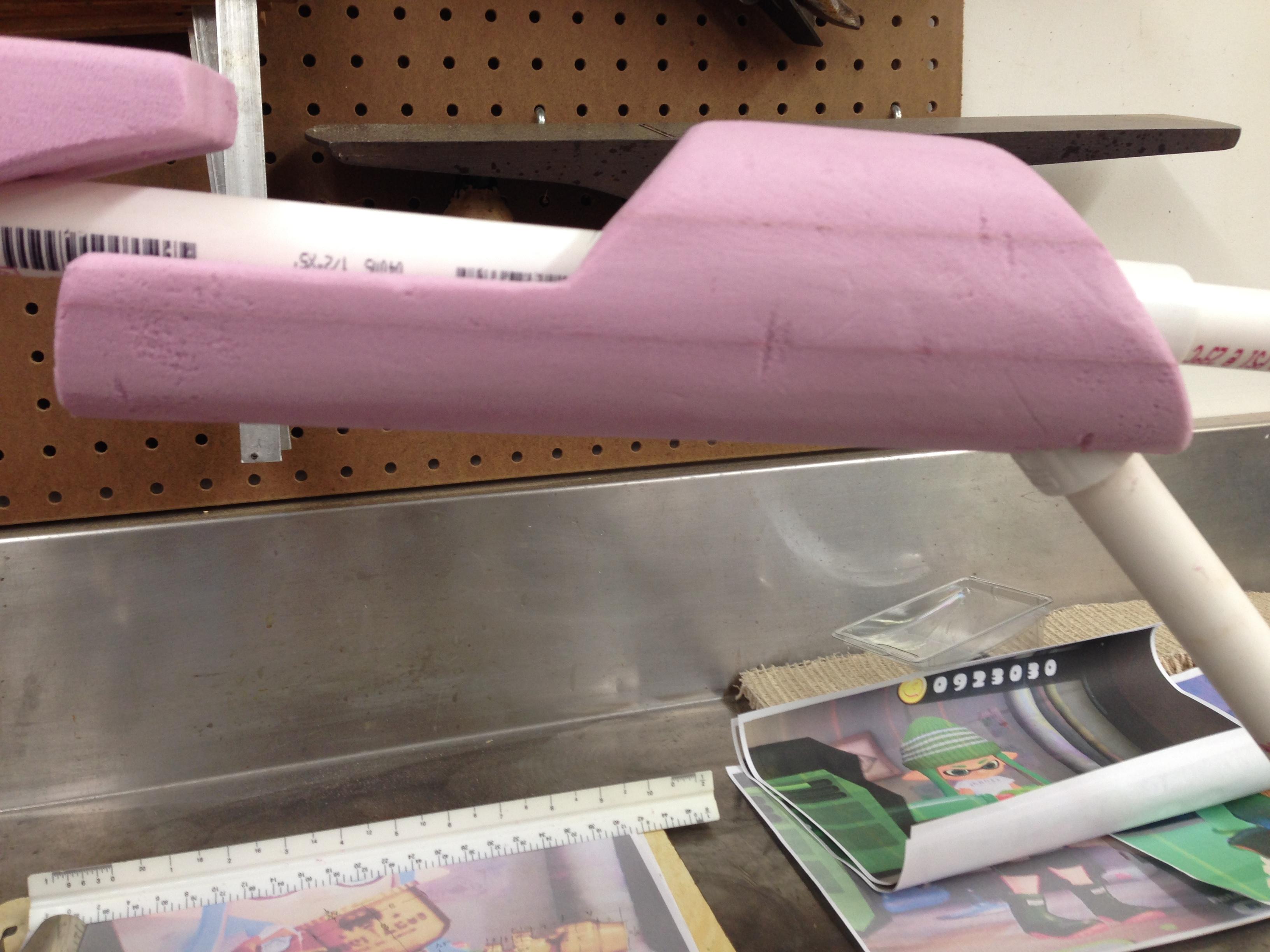

Based on the screen cap pictures, shape the GRIP & MUZZLE parts with oscillating saw, utility knife, and sand paper.
Reservoir
![IMG_6060.JPG](/proxy/?url=https://content.instructables.com/FIR/C95W/KTSXVRYW/FIRC95WKTSXVRYW.jpg&filename=IMG_6060.JPG)
![IMG_6059.jpg](/proxy/?url=https://content.instructables.com/FLU/S2BA/KTYDMH2C/FLUS2BAKTYDMH2C.jpg&filename=IMG_6059.jpg)
With you 2 empty water bottles, you're using them to make a capsule looking reservoir:
- Fastener side: cut off bottom and cut hole in bottle cap to fit the PVC pipe;
- End side: cut off the bottom and cut off the cap end including neck;
- using any left over bottle pieces, cut a small circle to fill/cover the hole made from cutting off the cap end;
- Place the bottles together from their bottom ends and glue together;
- Plastic primer your reservior, let dry
- then paint in your favorite ink color (here it's blue).
Paint
![IMG_3838.JPG](/proxy/?url=https://content.instructables.com/FMI/B76G/KTSXVRHQ/FMIB76GKTSXVRHQ.jpg&filename=IMG_3838.JPG)
![IMG_3852.jpg](/proxy/?url=https://content.instructables.com/FZO/5OQ6/KTYDMH2D/FZO5OQ6KTYDMH2D.jpg&filename=IMG_3852.jpg)
![IMG_6062.JPG](/proxy/?url=https://content.instructables.com/F0M/03KC/KTSXVS38/F0M03KCKTSXVS38.jpg&filename=IMG_6062.JPG)

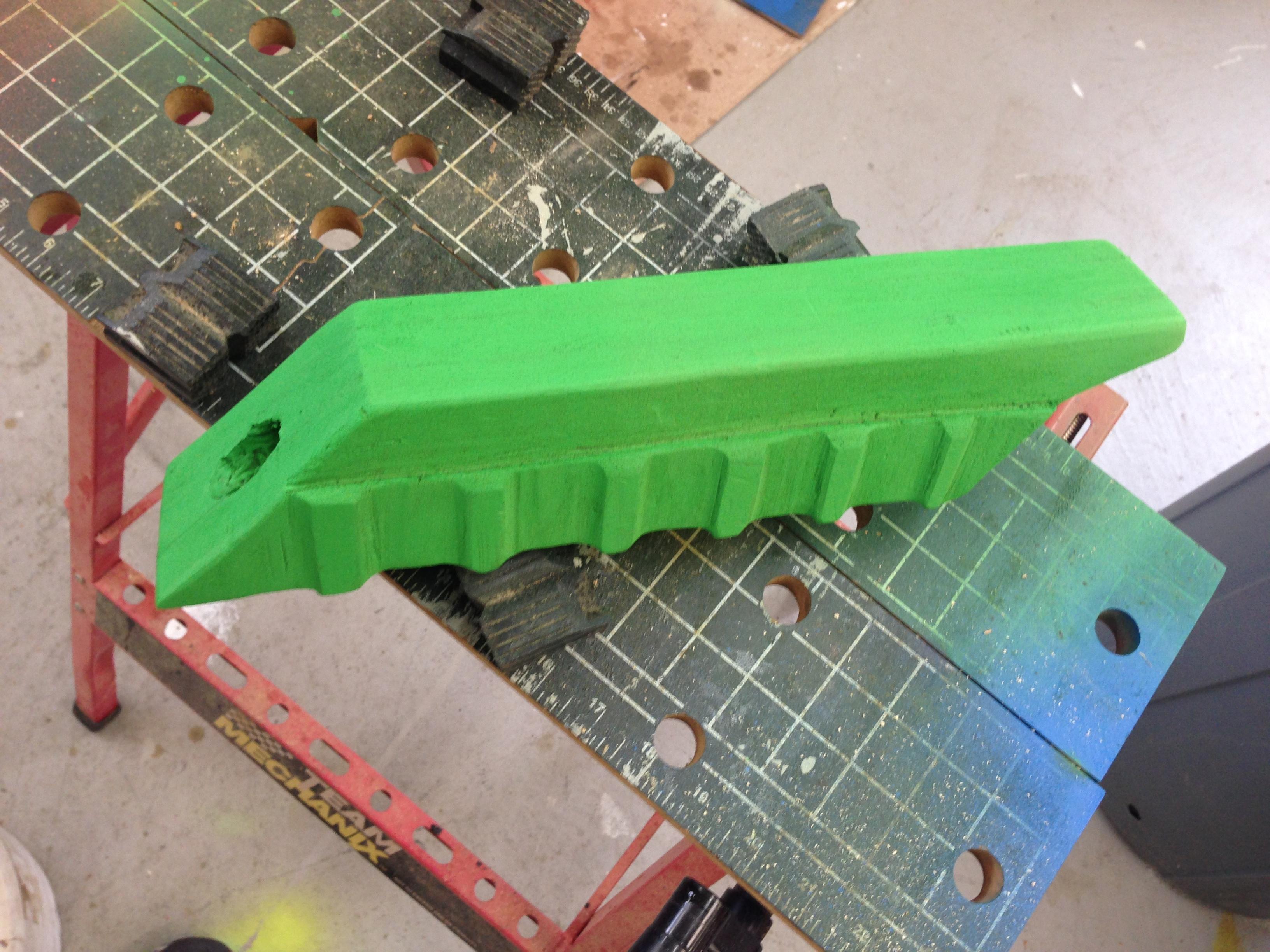

- Spray paint the MUZZLE in medium green;
- Plastic primer the frame middle and 2 PVC caps in orange, let dry;
- then overcoat with orange;
- I also made some 1/2 moon sights from 1" dowel for the MUZZLE, paint green too.
Grip
![IMG_6061.JPG](/proxy/?url=https://content.instructables.com/FXX/CMGJ/KTSXVRYY/FXXCMGJKTSXVRYY.jpg&filename=IMG_6061.JPG)
![IMG_6065.jpg](/proxy/?url=https://content.instructables.com/F64/45DU/KTYDMH1V/F6445DUKTYDMH1V.jpg&filename=IMG_6065.jpg)
![IMG_6063.JPG](/proxy/?url=https://content.instructables.com/FB8/X480/KTSXVS39/FB8X480KTSXVS39.jpg&filename=IMG_6063.JPG)

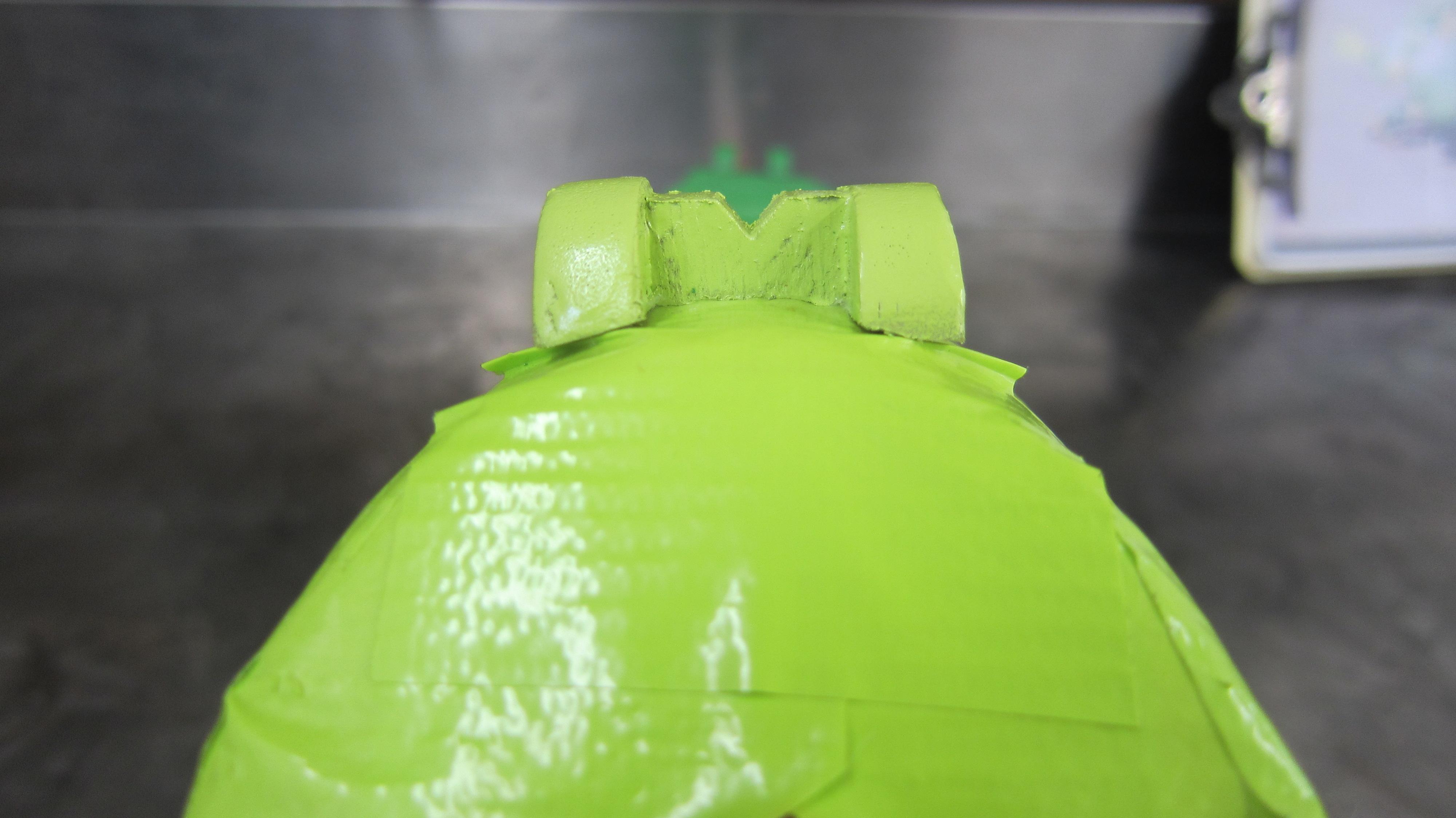

The GRIP had some missing material that was easier to cover with tape than refill with foam, hence the whole GRIP is covered in lime green duck tape;
- Sights fo the Grip side are also made from 1" dowwl 1/2 moons and shaped middle, painted lime green.
- Glue on the PVC caps.
Splat It Up!
![IMG_6010.JPG](/proxy/?url=https://content.instructables.com/FBB/HRW7/KTSXVRQ6/FBBHRW7KTSXVRQ6.jpg&filename=IMG_6010.JPG)
![IMG_6012.JPG](/proxy/?url=https://content.instructables.com/FWV/J0IN/KTSXVRQB/FWVJ0INKTSXVRQB.jpg&filename=IMG_6012.JPG)
![IMG_6015.JPG](/proxy/?url=https://content.instructables.com/F4U/BP6U/KTSXVRQC/F4UBP6UKTSXVRQC.jpg&filename=IMG_6015.JPG)
The colors make these props really pop out!
These were fun builds and the kids had fun being Inklings!
