Speaking T-shirt
![20211006_151051.jpg](/proxy/?url=https://content.instructables.com/FQY/NT7B/L0TKS2DW/FQYNT7BL0TKS2DW.jpg&filename=20211006_151051.jpg)
A t-shirt with conductive ink, that can make a sound when you push it.
This instructable focuses on making the box that you carry inside the t-shirt, not on the silk screening part.
Supplies
![20211006_153801.jpg](/proxy/?url=https://content.instructables.com/FC6/ZS4Z/KUFIU9IN/FC6ZS4ZKUFIU9IN.jpg&filename=20211006_153801.jpg)
![20211006_153653.jpg](/proxy/?url=https://content.instructables.com/FVM/FIA3/KUFIU9IM/FVMFIA3KUFIU9IM.jpg&filename=20211006_153653.jpg)
![20211006_153634.jpg](/proxy/?url=https://content.instructables.com/F33/O1FG/KUFIU9IL/F33O1FGKUFIU9IL.jpg&filename=20211006_153634.jpg)
![bison.jpg](/proxy/?url=https://content.instructables.com/F91/5CDV/L0TKRU3U/F915CDVL0TKRU3U.jpg&filename=bison.jpg)
![textiel.jpg](/proxy/?url=https://content.instructables.com/FIL/XJZK/L0TKRU7P/FILXJZKL0TKRU7P.jpg&filename=textiel.jpg)
Stuff needed:
Laser cut box from dxf file (below) from 4 mm plywood.
CR2023 Battery
ISD1820 Voice Record module
Conductive Velcro
BC547 tranistor
1 MOhm resistor
Renata 701106 Button cell holder
3 male-female dupont jumper wires
some elastics
Tools needed:
Soldering Iron, Third hand, Solder, Hot glue, Scissors, Conductive thread, Marker, Needle, Silk Screened t-shirt with conductive ink, some pliers, textile glue. everything-glue
Downloads
Screen Print a Button Design
![20211006_151206.jpg](/proxy/?url=https://content.instructables.com/FJR/TXEJ/KUFIU9C7/FJRTXEJKUFIU9C7.jpg&filename=20211006_151206.jpg)
Make a design for a button that you can screen print
It consists of two parts, both connecting to a black circle of about 20 mm radius and 20 mm apart, located in the side area of the t-shirt. (This is where the sound box will be placed.)
You press your finger to connect the two parts and make electricity flow.
Make Velcro Round
![20211006_141529.jpg](/proxy/?url=https://content.instructables.com/FPX/MXSW/KUFIU99P/FPXMXSWKUFIU99P.jpg&filename=20211006_141529.jpg)
![20211006_141657.jpg](/proxy/?url=https://content.instructables.com/FBF/GYGT/KUFIU99W/FBFGYGTKUFIU99W.jpg&filename=20211006_141657.jpg)
![download.jpg](/proxy/?url=https://content.instructables.com/F62/5UC5/L0TKRVED/F625UC5L0TKRVED.jpg&filename=download.jpg)
![20211006_141851.jpg](/proxy/?url=https://content.instructables.com/FY7/PTNS/KUFIU99Z/FY7PTNSKUFIU99Z.jpg&filename=20211006_141851.jpg)
Create some round parts of conductive velcro, about 20mm, you can use a 10 euro cent coin for this
![20211006_151226.jpg](/proxy/?url=https://content.instructables.com/FEE/6WZX/KUFIU9CA/FEE6WZXKUFIU9CA.jpg&filename=20211006_151226.jpg)
![20211006_151301.jpg](/proxy/?url=https://content.instructables.com/FRI/JCK4/KUFIU9CD/FRIJCK4KUFIU9CD.jpg&filename=20211006_151301.jpg)

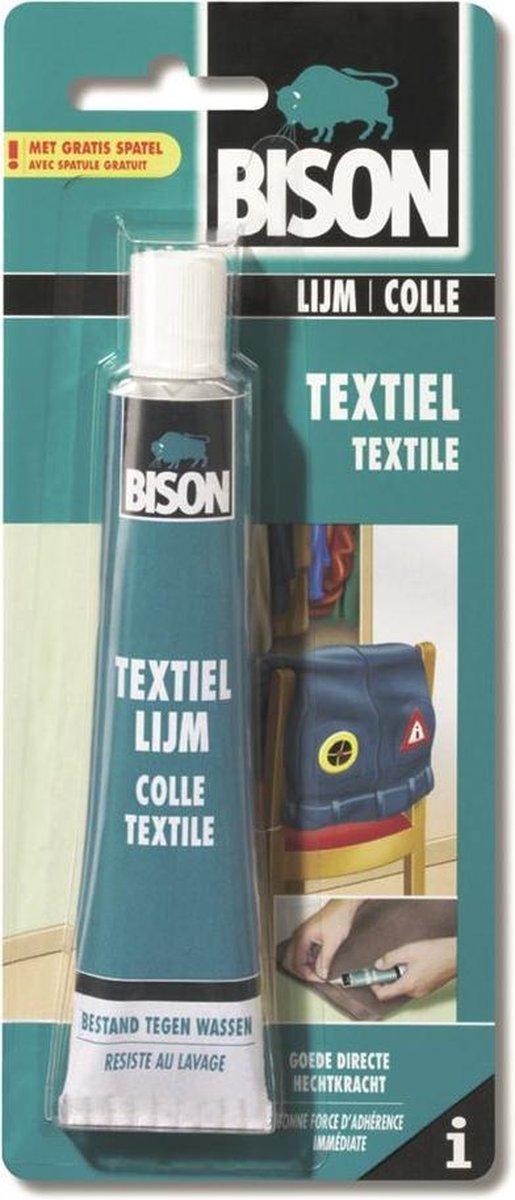

Glue the conductive velcro to the back of the black circles with textile glue, connect them by going back and forth with some conductive thread.
![20220316_150616.jpg](/proxy/?url=https://content.instructables.com/FTW/U9PA/L0TKS59I/FTWU9PAL0TKS59I.jpg&filename=20220316_150616.jpg)

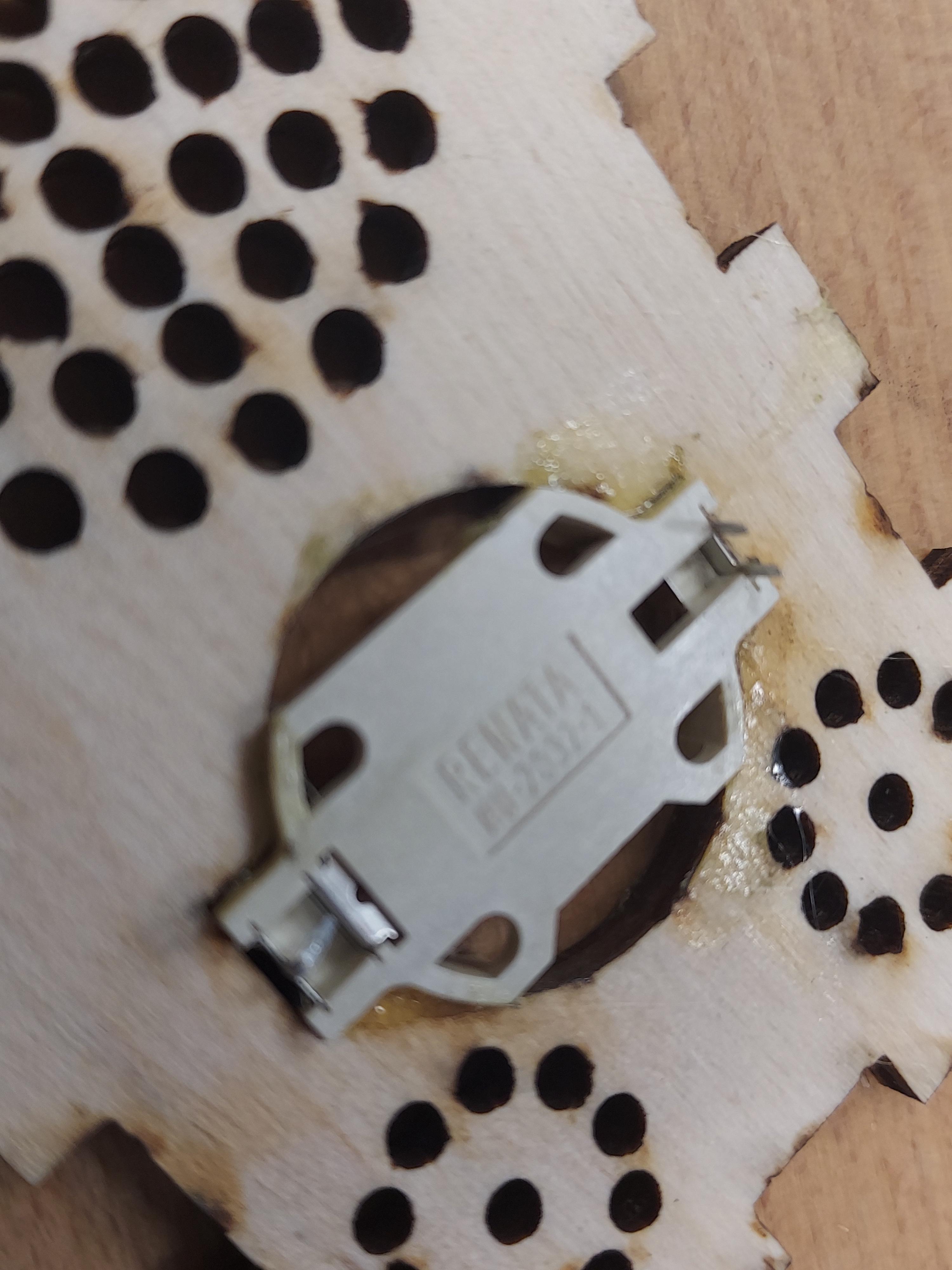

Glue the battery holder to the front of the box with some general purpose everything-glue
Cut the Wires
![20211006_121716.jpg](/proxy/?url=https://content.instructables.com/FAB/RS1X/KUFIU9CV/FABRS1XKUFIU9CV.jpg&filename=20211006_121716.jpg)
![20211006_121443.jpg](/proxy/?url=https://content.instructables.com/F8P/ZMSS/KUFIU9CT/F8PZMSSKUFIU9CT.jpg&filename=20211006_121443.jpg)
![20211006_121510.jpg](/proxy/?url=https://content.instructables.com/FTU/G72X/KUFIU9CU/FTUG72XKUFIU9CU.jpg&filename=20211006_121510.jpg)
Cut the three jumper wires in half.
Bend the Pins
![20211006_124439.jpg](/proxy/?url=https://content.instructables.com/FRT/1SXZ/KUFIU97T/FRT1SXZKUFIU97T.jpg&filename=20211006_124439.jpg)
![20211006_124521.jpg](/proxy/?url=https://content.instructables.com/FFB/VFB6/KUFIU97Z/FFBVFB6KUFIU97Z.jpg&filename=20211006_124521.jpg)
We now have six half jumper wires. Bend two of the male ones into little loops. The third one you don't need anymore.
Solder the Speaker
![20211006_130155.jpg](/proxy/?url=https://content.instructables.com/FUW/NIZL/KUFIU98K/FUWNIZLKUFIU98K.jpg&filename=20211006_130155.jpg)
![20211006_130217.jpg](/proxy/?url=https://content.instructables.com/F3I/1X9G/KUFIU98Q/F3I1X9GKUFIU98Q.jpg&filename=20211006_130217.jpg)
Solder the wires that came with the speaker
Tin the Wires
![20211006_122831.jpg](/proxy/?url=https://content.instructables.com/FPC/MNUP/KUFIU9D5/FPCMNUPKUFIU9D5.jpg&filename=20211006_122831.jpg)
![20211006_122417.jpg](/proxy/?url=https://content.instructables.com/FSU/OJ42/KUFIU9CX/FSUOJ42KUFIU9CX.jpg&filename=20211006_122417.jpg)
![20211006_122711.jpg](/proxy/?url=https://content.instructables.com/FLP/BRD4/KUFIU9CY/FLPBRD4KUFIU9CY.jpg&filename=20211006_122711.jpg)
One male and one female go together, the other ones separate.
Bend & Cut the Transistor
![20211006_123123.jpg](/proxy/?url=https://content.instructables.com/FZL/EE3R/KUFIU9D6/FZLEE3RKUFIU9D6.jpg&filename=20211006_123123.jpg)
![20211006_123258.jpg](/proxy/?url=https://content.instructables.com/F8A/AENO/KUFIU9D9/F8AAENOKUFIU9D9.jpg&filename=20211006_123258.jpg)
Cut the Resistor
![20211006_123404.jpg](/proxy/?url=https://content.instructables.com/F1P/14G4/KUFIU9DJ/F1P14G4KUFIU9DJ.jpg&filename=20211006_123404.jpg)
![20211006_123426.jpg](/proxy/?url=https://content.instructables.com/F4X/W5P5/KUFIU97I/F4XW5P5KUFIU97I.jpg&filename=20211006_123426.jpg)
Solder Parts Together
![inked 20211006_123738 copy.jpg](/proxy/?url=https://content.instructables.com/FJJ/182Q/L0TKRTNC/FJJ182QL0TKRTNC.jpg&filename=inked 20211006_123738 copy.jpg)
![Inked20211006_124206_LI.jpg](/proxy/?url=https://content.instructables.com/FGJ/JN96/L0TKSCV2/FGJJN96L0TKSCV2.jpg&filename=Inked20211006_124206_LI.jpg)
Sodler the transistor to the resistor as shown in the picture. Then solder 1 female, and 1 male hook to this part (had to photoshop this a bit)
Hot Glue to the Back of the Battery Holder
![20211006_124714.jpg](/proxy/?url=https://content.instructables.com/FBV/5A5U/KUFIU982/FBV5A5UKUFIU982.jpg&filename=20211006_124714.jpg)
![inked20211006_124831.jpg](/proxy/?url=https://content.instructables.com/FTL/YZ5Q/L0TKSD1R/FTLYZ5QL0TKSD1R.jpg&filename=inked20211006_124831.jpg)
Glue it to the back so the sides will be touching the plus and minus of the battery holder.

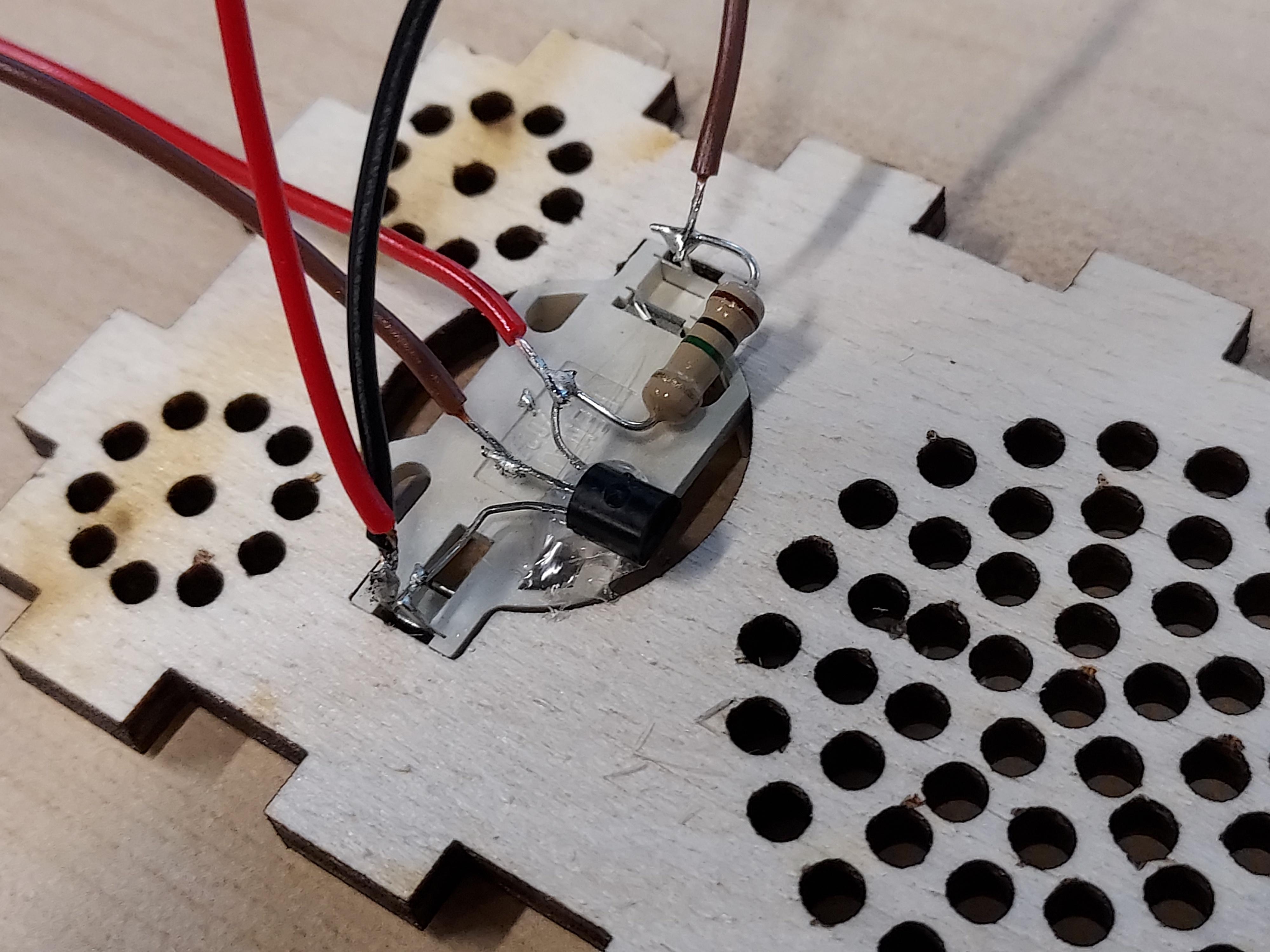

Solder to the Battery Holder, and Add the Other Wires
![20211006_125228.jpg](/proxy/?url=https://content.instructables.com/F95/GK7C/KUFIU987/F95GK7CKUFIU987.jpg&filename=20211006_125228.jpg)
![20211006_125341.jpg](/proxy/?url=https://content.instructables.com/FTR/BGST/KUFIU988/FTRBGSTKUFIU988.jpg&filename=20211006_125341.jpg)
![20211006_125616.jpg](/proxy/?url=https://content.instructables.com/F4X/RZ77/KUFIU98A/F4XRZ77KUFIU98A.jpg&filename=20211006_125616.jpg)
![20211006_125658.jpg](/proxy/?url=https://content.instructables.com/FPY/ZOBH/KUFIU98B/FPYZOBHKUFIU98B.jpg&filename=20211006_125658.jpg)
Hot Glue the Hooks
![20211006_125750.jpg](/proxy/?url=https://content.instructables.com/FA1/UKWB/KUFIU98C/FA1UKWBKUFIU98C.jpg&filename=20211006_125750.jpg)
![20211006_125848.jpg](/proxy/?url=https://content.instructables.com/FYC/WSKG/KUFIU98E/FYCWSKGKUFIU98E.jpg&filename=20211006_125848.jpg)
![20211006_125935.jpg](/proxy/?url=https://content.instructables.com/FTG/2CDC/KUFIU98I/FTG2CDCKUFIU98I.jpg&filename=20211006_125935.jpg)
We glue the little hooks above the holes, so we can later connect them with coductive threa
Do a Test!

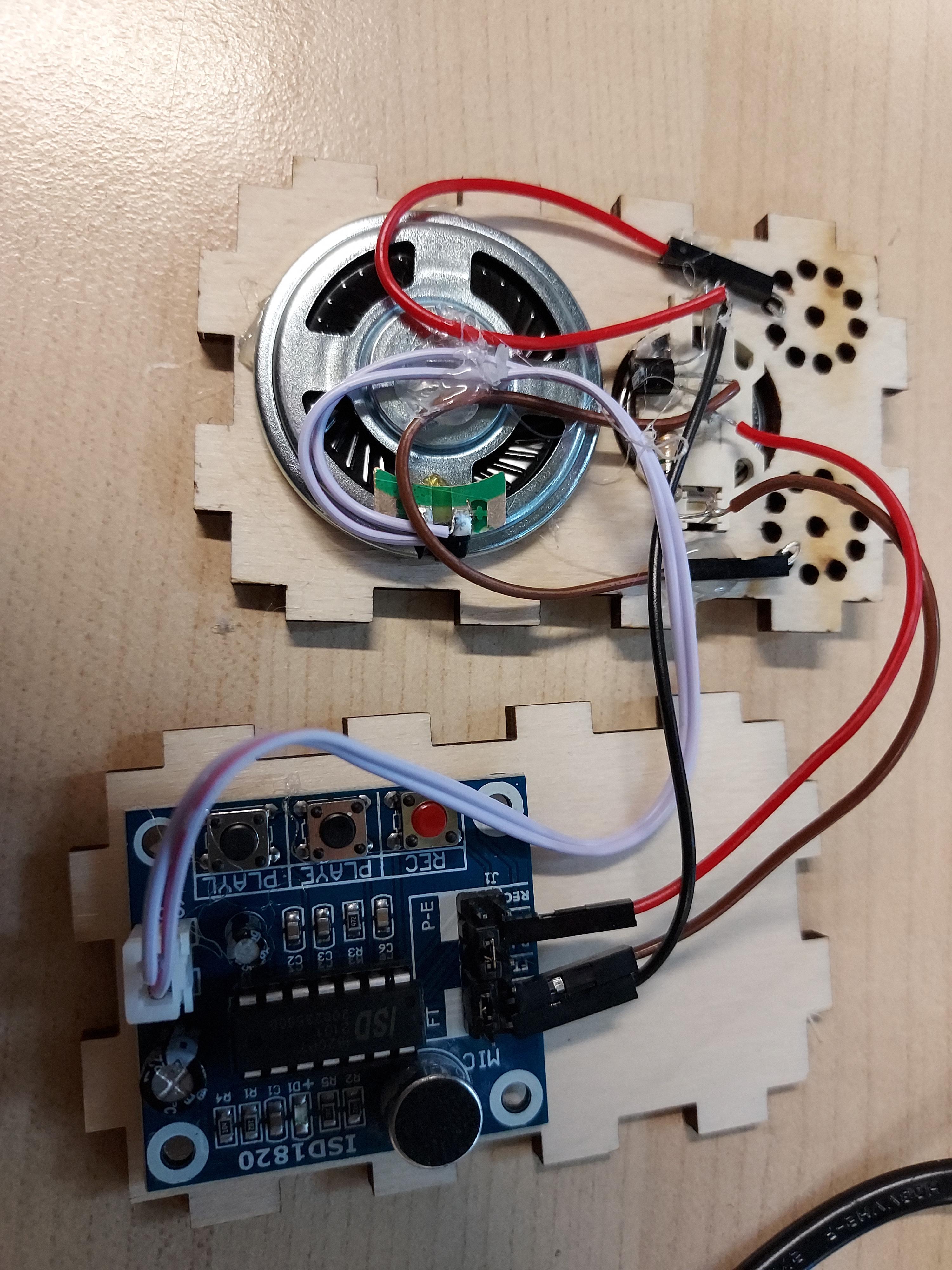

![20211006_130538.jpg](/proxy/?url=https://content.instructables.com/F0E/P1KM/KUFIU98W/F0EP1KMKUFIU98W.jpg&filename=20211006_130538.jpg)
Connect the different female connectors to VCC, GND and P-E as shown in the picture. Insert the battery. Record a sound and play it back. Use P-E to play back, entire sound, or P-L to play only as long as you hold it.
Glue the Speaker & the Wires
![20211006_135936.jpg](/proxy/?url=https://content.instructables.com/FWK/KBDD/KUFIU98Z/FWKKBDDKUFIU98Z.jpg&filename=20211006_135936.jpg)
![20211006_140215.jpg](/proxy/?url=https://content.instructables.com/FJC/NIKY/KUFIU996/FJCNIKYKUFIU996.jpg&filename=20211006_140215.jpg)
Use some hot glue to put the speaker. Make sure the sides will still fit. Put some hot glue on top, and use this to give the long wires a nice smooth path

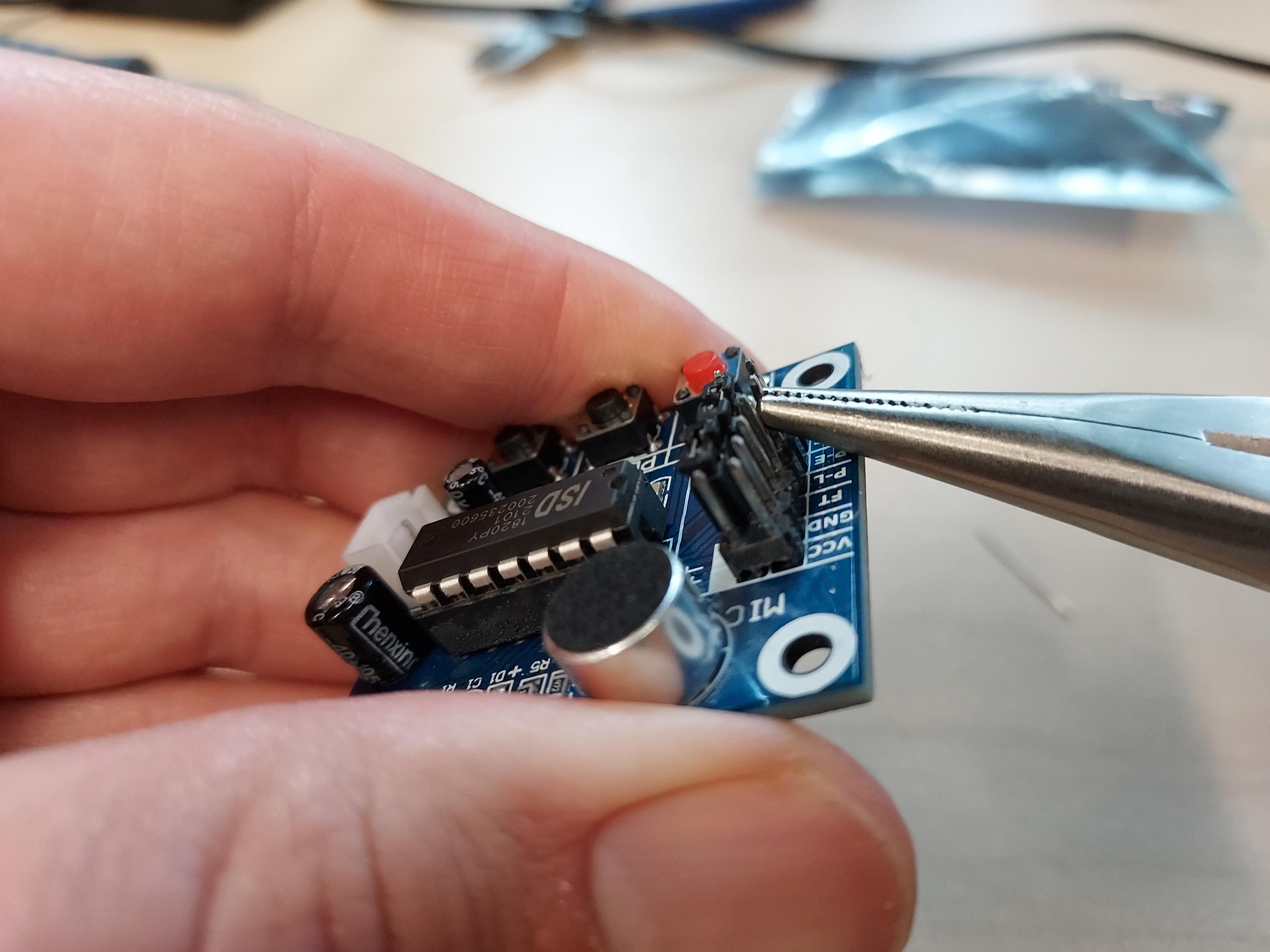

Bend the Pins
![20211006_140955.jpg](/proxy/?url=https://content.instructables.com/FQY/ZATO/KUFIU99I/FQYZATOKUFIU99I.jpg&filename=20211006_140955.jpg)
![20211006_141051.jpg](/proxy/?url=https://content.instructables.com/FST/400O/KUFIU99M/FST400OKUFIU99M.jpg&filename=20211006_141051.jpg)
We have to do this to save some space. You can also do this by having the connectors still connected, and slowly bending them.
Glue the Soundboard
![20211006_143634.jpg](/proxy/?url=https://content.instructables.com/FOO/N2SB/KUFIU9AG/FOON2SBKUFIU9AG.jpg&filename=20211006_143634.jpg)
![20211006_143736.jpg](/proxy/?url=https://content.instructables.com/F69/0EAW/KUFIU9AK/F690EAWKUFIU9AK.jpg&filename=20211006_143736.jpg)
Test Again & Glue the Connections
![20211006_143949.jpg](/proxy/?url=https://content.instructables.com/FTM/5IW2/KUFIU9AM/FTM5IW2KUFIU9AM.jpg&filename=20211006_143949.jpg)
![20211006_144019.jpg](/proxy/?url=https://content.instructables.com/FHX/LT6N/KUFIU9AP/FHXLT6NKUFIU9AP.jpg&filename=20211006_144019.jpg)
![20211006_144028.jpg](/proxy/?url=https://content.instructables.com/FKB/88N8/KUFIU9AR/FKB88N8KUFIU9AR.jpg&filename=20211006_144028.jpg)
![20211006_144111.jpg](/proxy/?url=https://content.instructables.com/FEC/9TOI/KUFIU9AU/FEC9TOIKUFIU9AU.jpg&filename=20211006_144111.jpg)
If everything works, got glue the connectors so they can't get off anymore.
Glue the Velcro
![20211006_142033.jpg](/proxy/?url=https://content.instructables.com/F2K/2UMO/KUFIU9A8/F2K2UMOKUFIU9A8.jpg&filename=20211006_142033.jpg)
![20211006_142023.jpg](/proxy/?url=https://content.instructables.com/F3D/3BL4/KUFIU9A4/F3D3BL4KUFIU9A4.jpg&filename=20211006_142023.jpg)
Tie Conductive Thread to First Hook
![20211006_145445.jpg](/proxy/?url=https://content.instructables.com/FCP/ONL4/KUFIU9B4/FCPONL4KUFIU9B4.jpg&filename=20211006_145445.jpg)
![20211006_145525.jpg](/proxy/?url=https://content.instructables.com/FNX/6V83/KUFIU9B5/FNX6V83KUFIU9B5.jpg&filename=20211006_145525.jpg)
![20211006_145656.jpg](/proxy/?url=https://content.instructables.com/FDK/C5DN/KUFIU9B9/FDKC5DNKUFIU9B9.jpg&filename=20211006_145656.jpg)
Make a Stitch Back and Forth
![20211006_144923.jpg](/proxy/?url=https://content.instructables.com/FM3/4ZI6/KUFIU9AZ/FM34ZI6KUFIU9AZ.jpg&filename=20211006_144923.jpg)
![20211006_145120.jpg](/proxy/?url=https://content.instructables.com/FJM/NSE8/KUFIU9B0/FJMNSE8KUFIU9B0.jpg&filename=20211006_145120.jpg)
![20211006_145215.jpg](/proxy/?url=https://content.instructables.com/FLD/ANHV/KUFIU9B3/FLDANHVKUFIU9B3.jpg&filename=20211006_145215.jpg)
![20211006_145751.jpg](/proxy/?url=https://content.instructables.com/F97/5Q9W/KUFIU9BD/F975Q9WKUFIU9BD.jpg&filename=20211006_145751.jpg)
![20211006_150313.jpg](/proxy/?url=https://content.instructables.com/F1U/DCT4/KUFIU9BK/F1UDCT4KUFIU9BK.jpg&filename=20211006_150313.jpg)
Make a Knot
![20211006_150025.jpg](/proxy/?url=https://content.instructables.com/FI8/7Q5G/KUFIU9BG/FI87Q5GKUFIU9BG.jpg&filename=20211006_150025.jpg)
![20211006_145952.jpg](/proxy/?url=https://content.instructables.com/FJX/QBNQ/KUFIU9BF/FJXQBNQKUFIU9BF.jpg&filename=20211006_145952.jpg)
![20211006_150421.jpg](/proxy/?url=https://content.instructables.com/FJ6/DFEY/KUFIU9BM/FJ6DFEYKUFIU9BM.jpg&filename=20211006_150421.jpg)
![20211006_150547.jpg](/proxy/?url=https://content.instructables.com/FGQ/UTDF/KUFIU9BV/FGQUTDFKUFIU9BV.jpg&filename=20211006_150547.jpg)
Put Box Together
![20211006_150703.jpg](/proxy/?url=https://content.instructables.com/F4D/5DNX/KUFIU9BY/F4D5DNXKUFIU9BY.jpg&filename=20211006_150703.jpg)
![20211006_151051.jpg](/proxy/?url=https://content.instructables.com/FJD/R4XU/KUFIU9C3/FJDR4XUKUFIU9C3.jpg&filename=20211006_151051.jpg)
Put Everything Together
Connect the velcro and put on the t-shirt. Impress your friends!
