Speaker Stand Using Spray Cans

by sandilya.anisetty in Workshop > Home Theater

1929 Views, 5 Favorites, 0 Comments

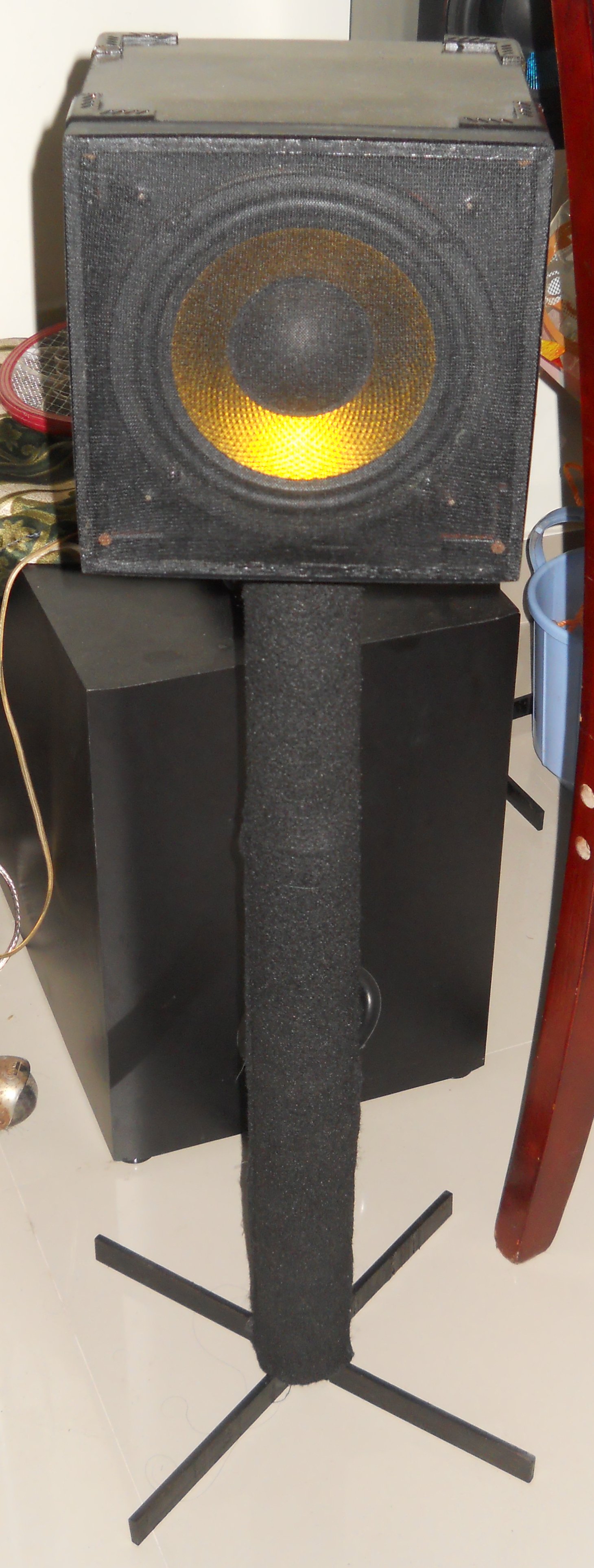

Speaker Stand Using Spray Cans


Make speaker stand with spray cans.

Materials....


1. Spray cans

2. Old Chopping board

3. Speaker cloth

4. Brown tape

5. Hook and loop tape

6. Strong thread

7. Screws

8. Synthetic rubber based fevicol

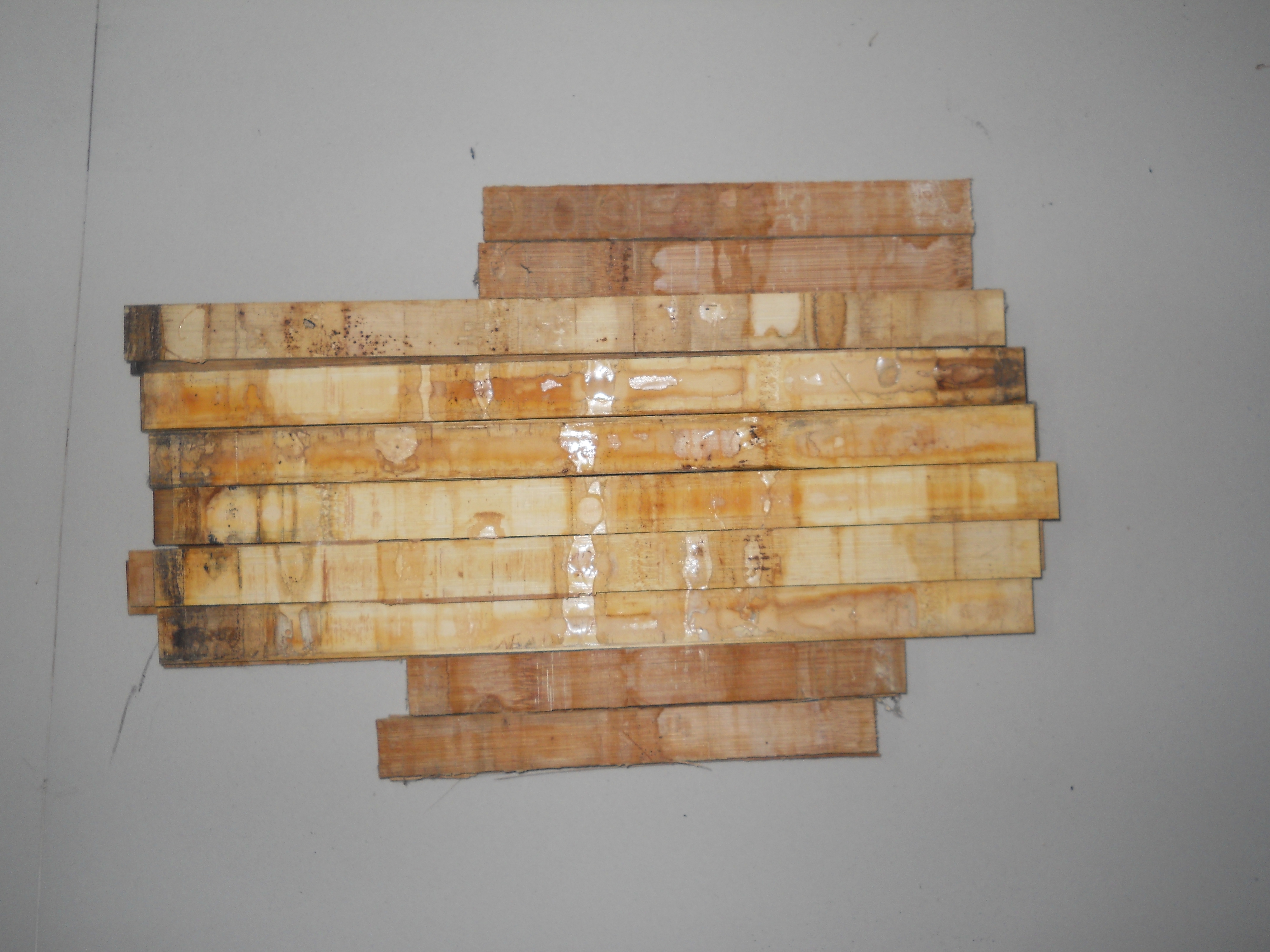

Disassemble the chopping board. The large ones are used for the base.

Tools Needed

1. Drill Machine

2. Screw Driver

3. Scissor

4. Sewing machine

5. Ruler and marker

Making the Base

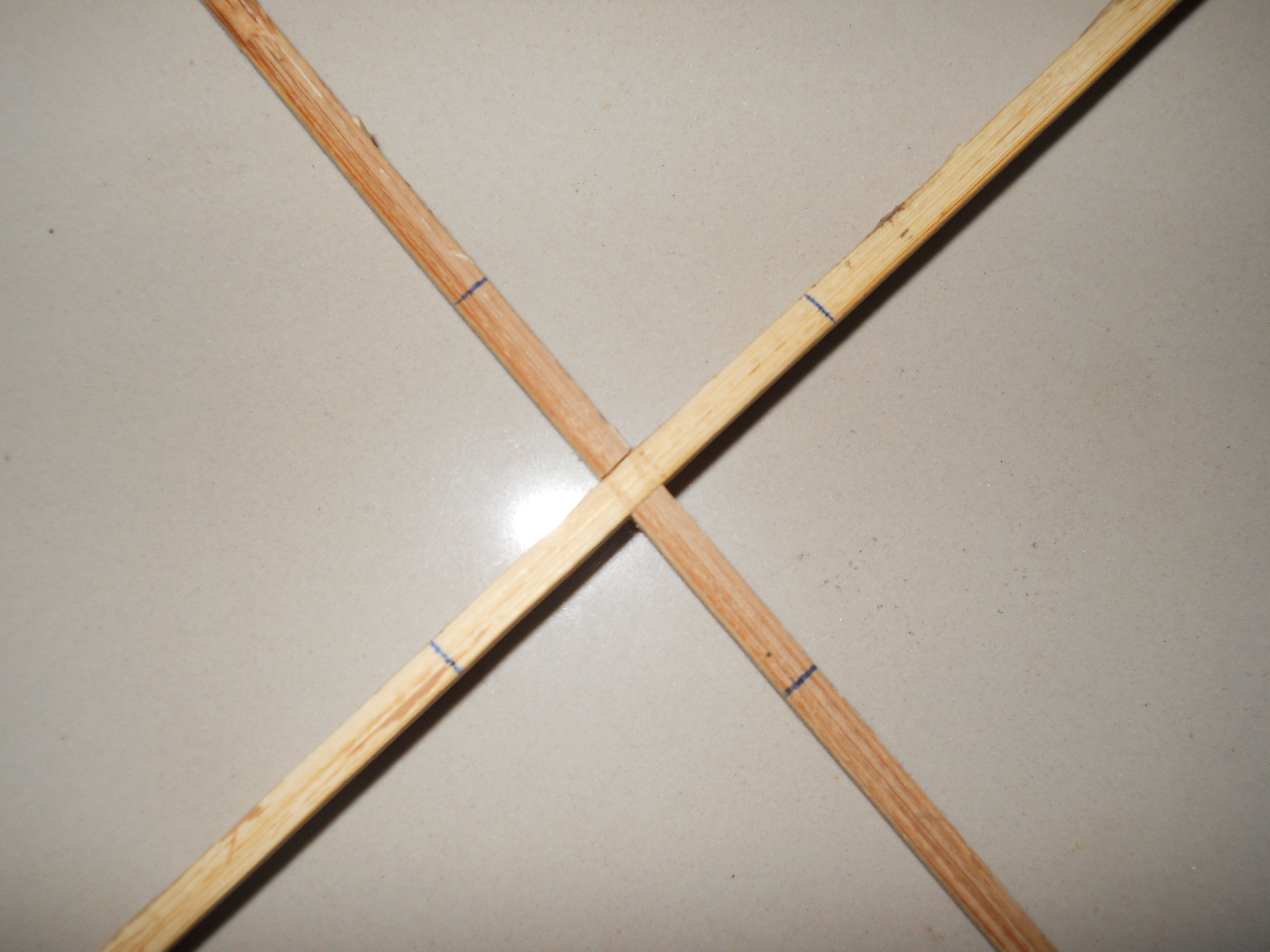

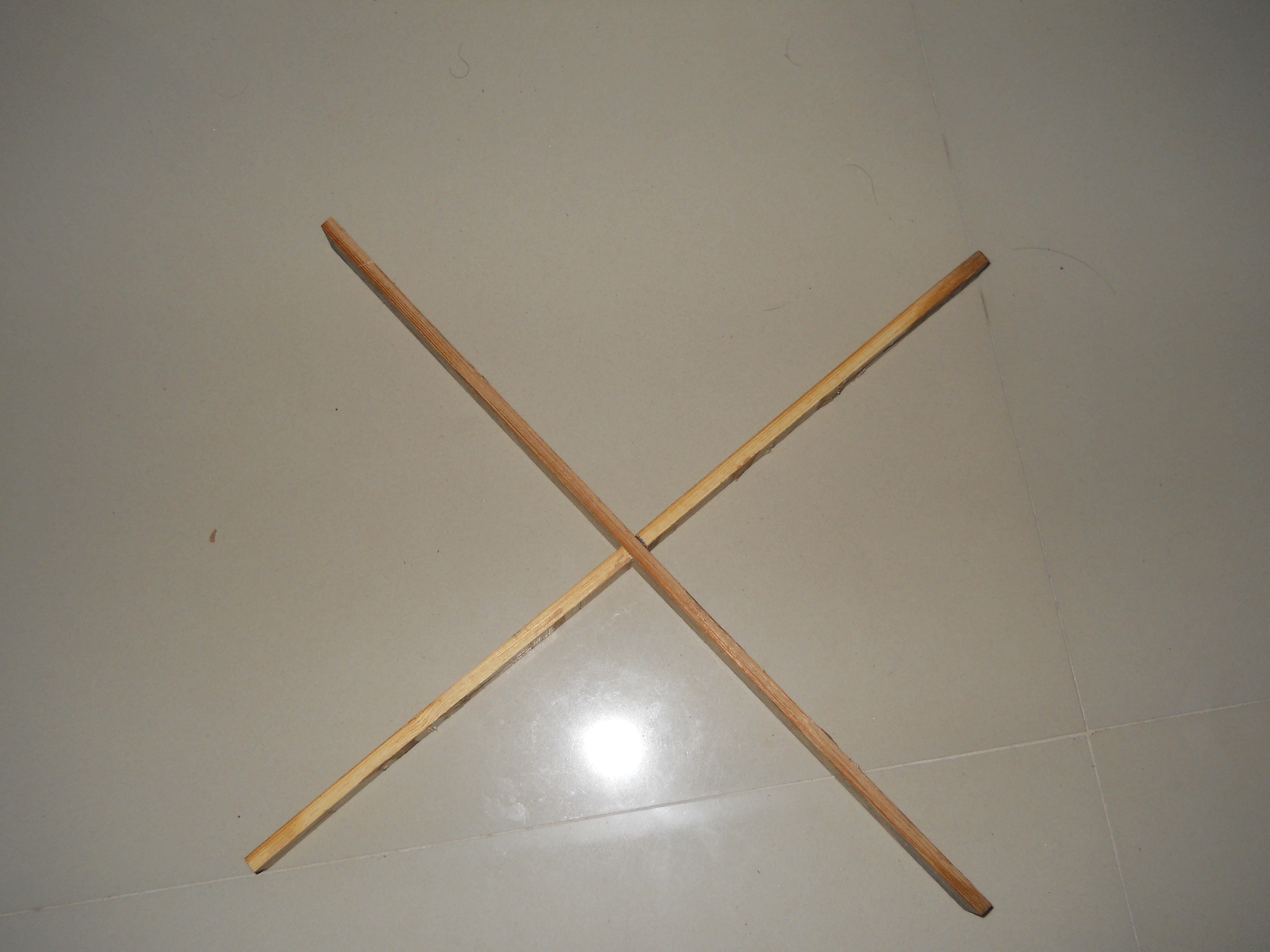

1. Take two large wooden sticks and mark at the center.

2. Cut the marked one so that it will sit on each other as shown in the pic.

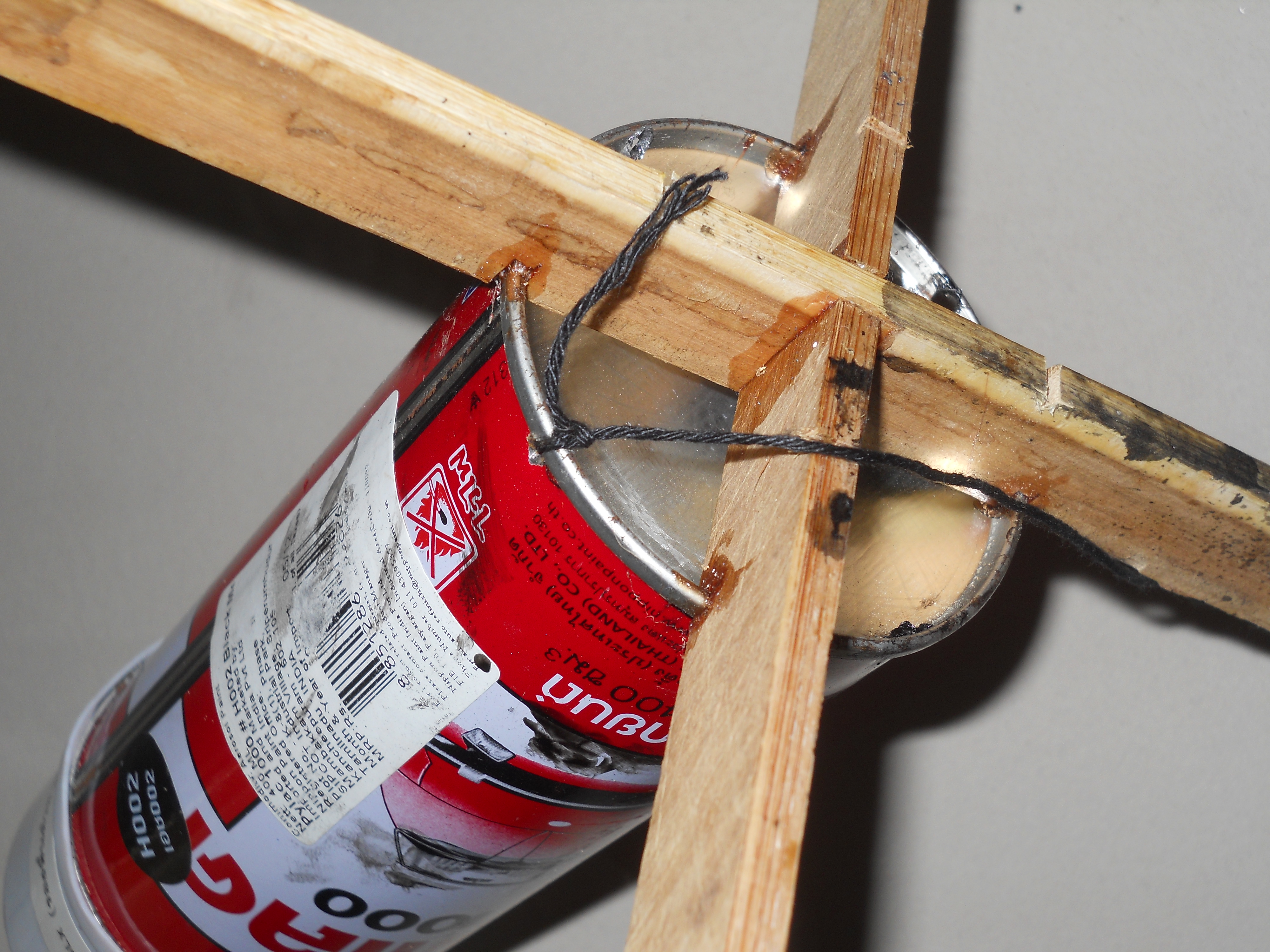

3. Keep the sticks on the spray can and then mark for the cuttings as shown.

4. Cut the marked.

5. Apply rubber based gum and stick it.

6. Now cut the bottom of the base at four points.

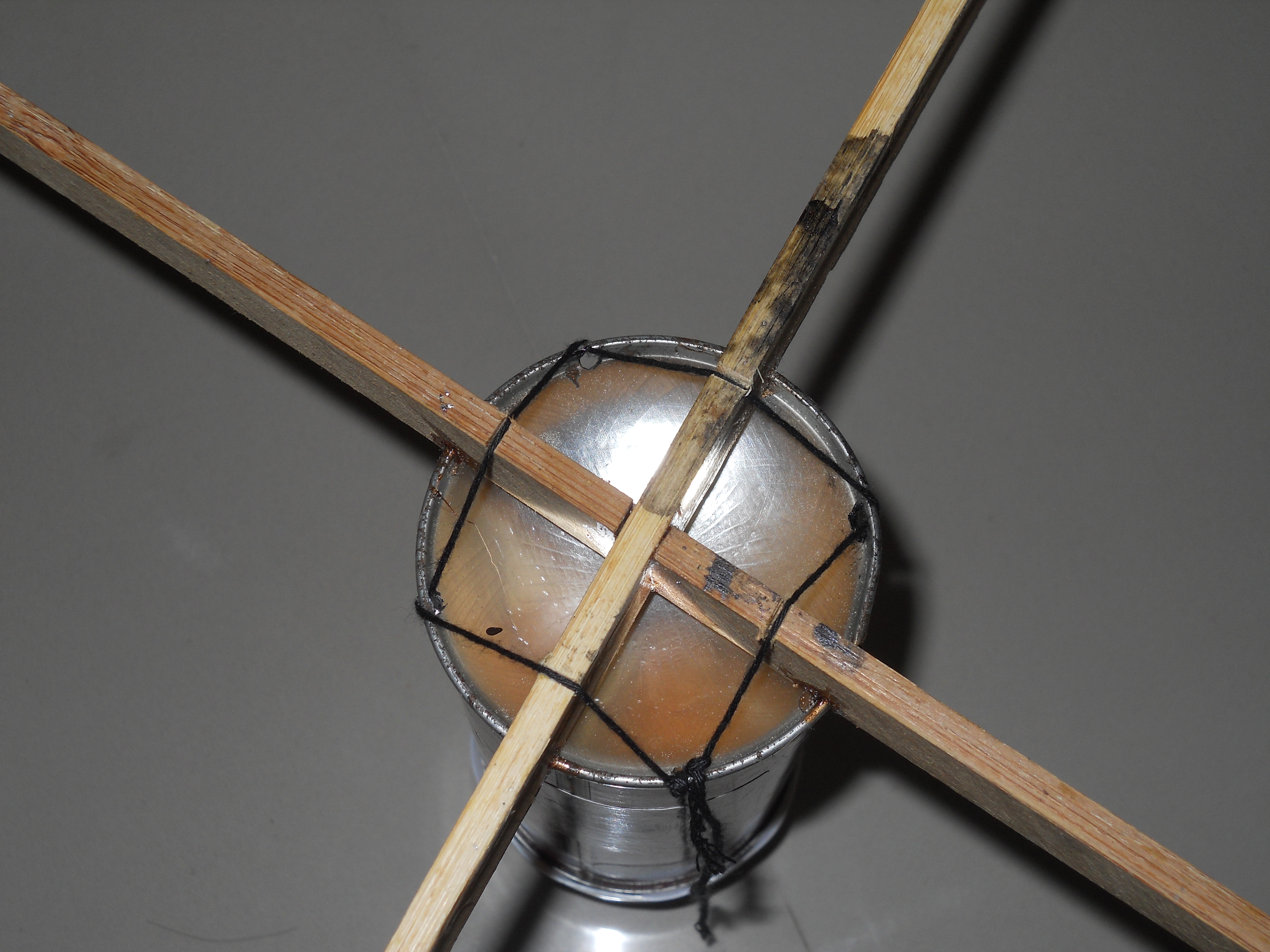

7. Take the thread and then tie as shown in the pic.

8. Paint the base.

Making the Stand

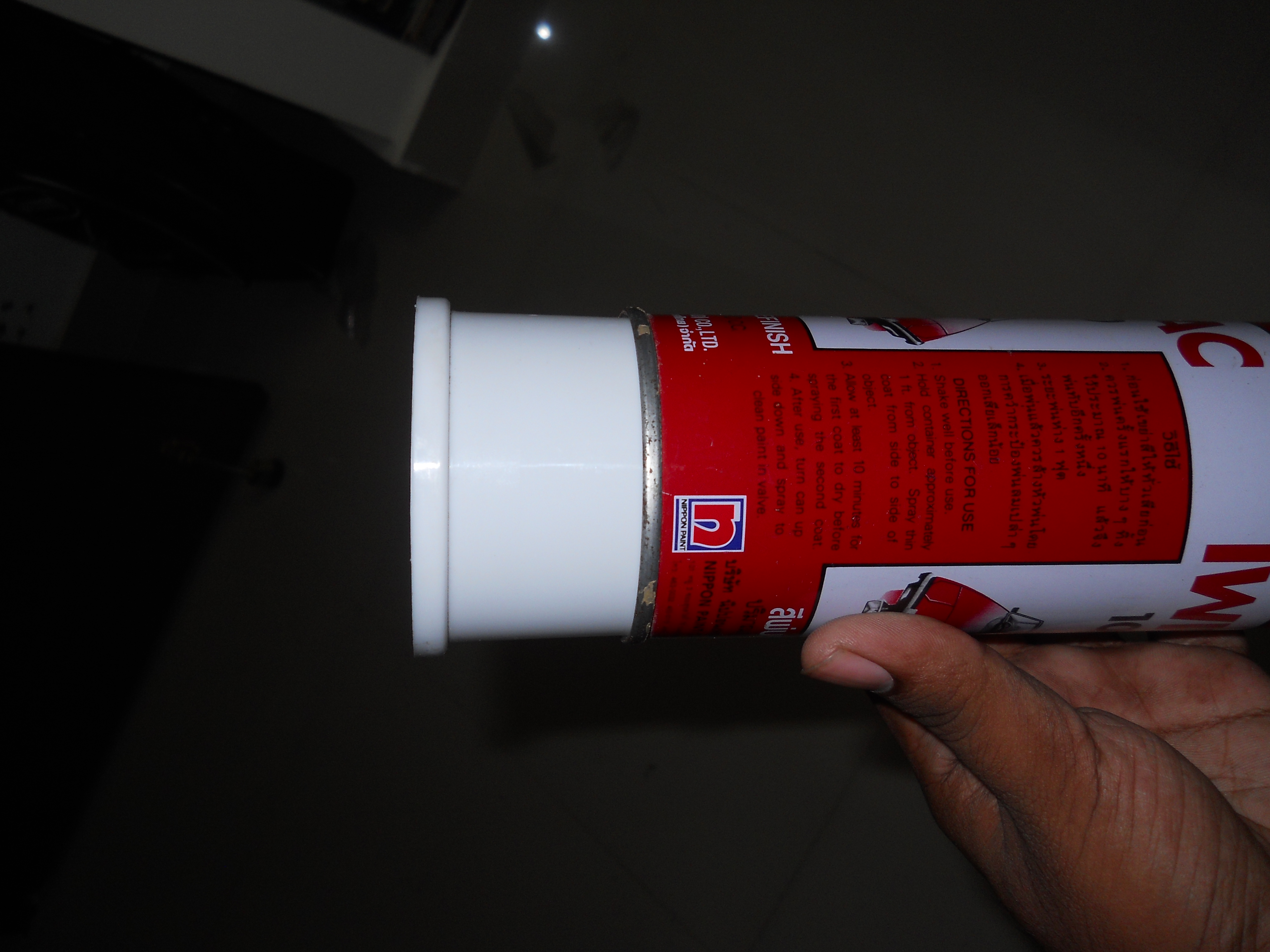

1. The cap of the spray can sits tight at the bottom of another spray can.

2. Apply the glue to both the cap and the can.

3. Then attach it.

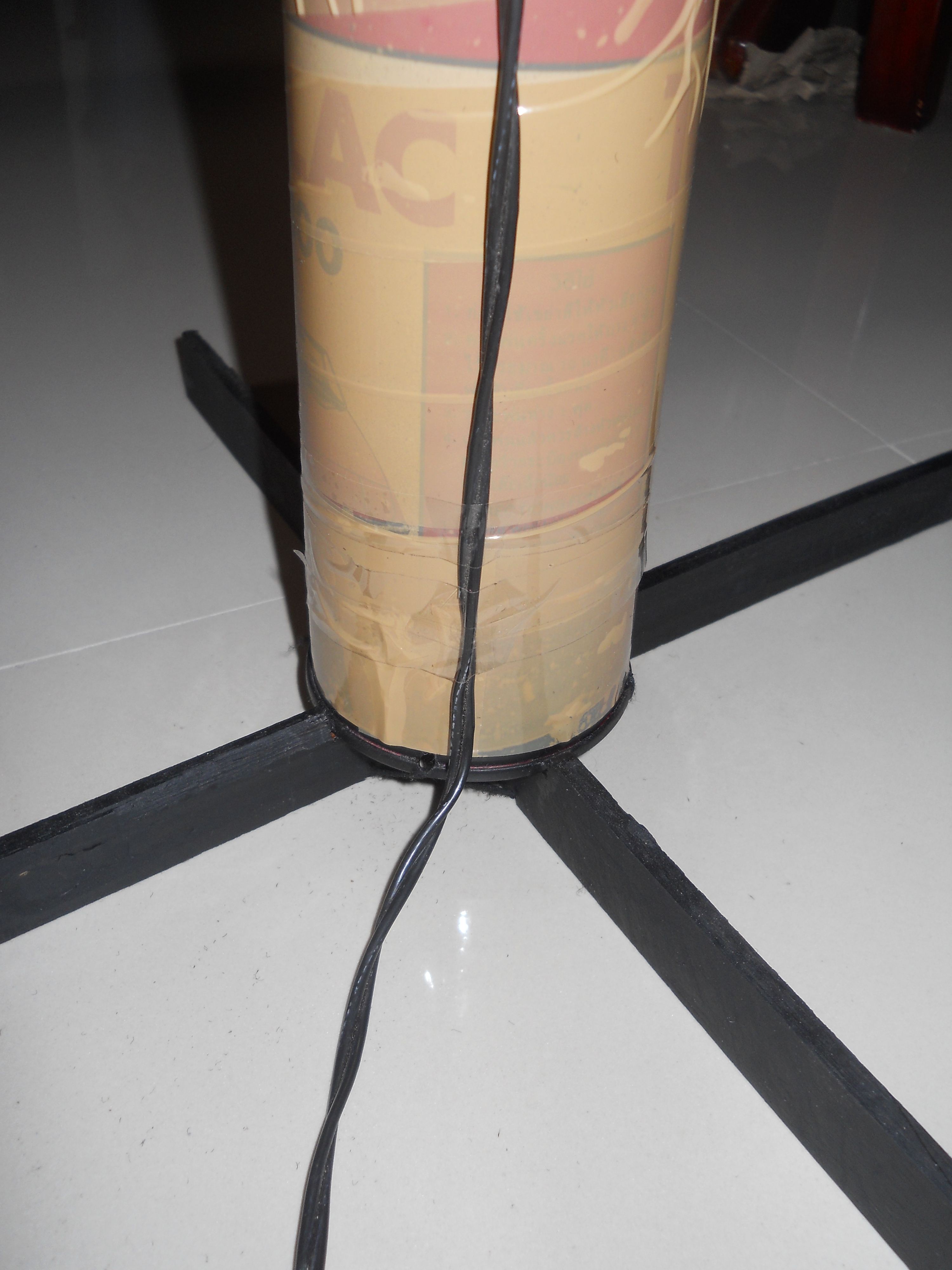

4. Finally wrap the brown tape to the entire stand.

Speaker Box


Screw the spray can cap to the speaker box.

Stiching


1. Cut the speaker box cloth to your desired stand size.

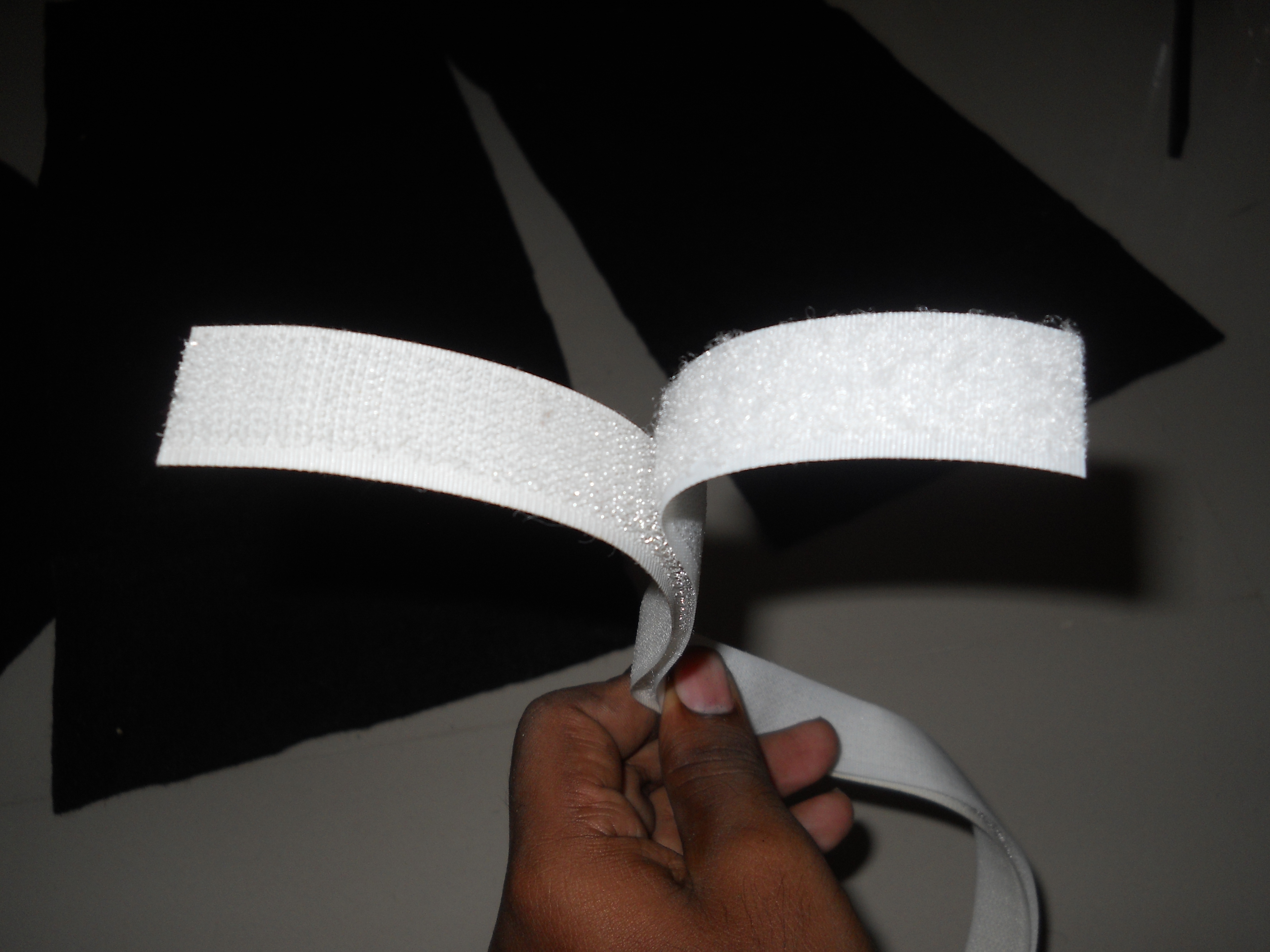

2. Sew hook and loop tape to the cloth one at the top side and another at the bottom.

Assembly

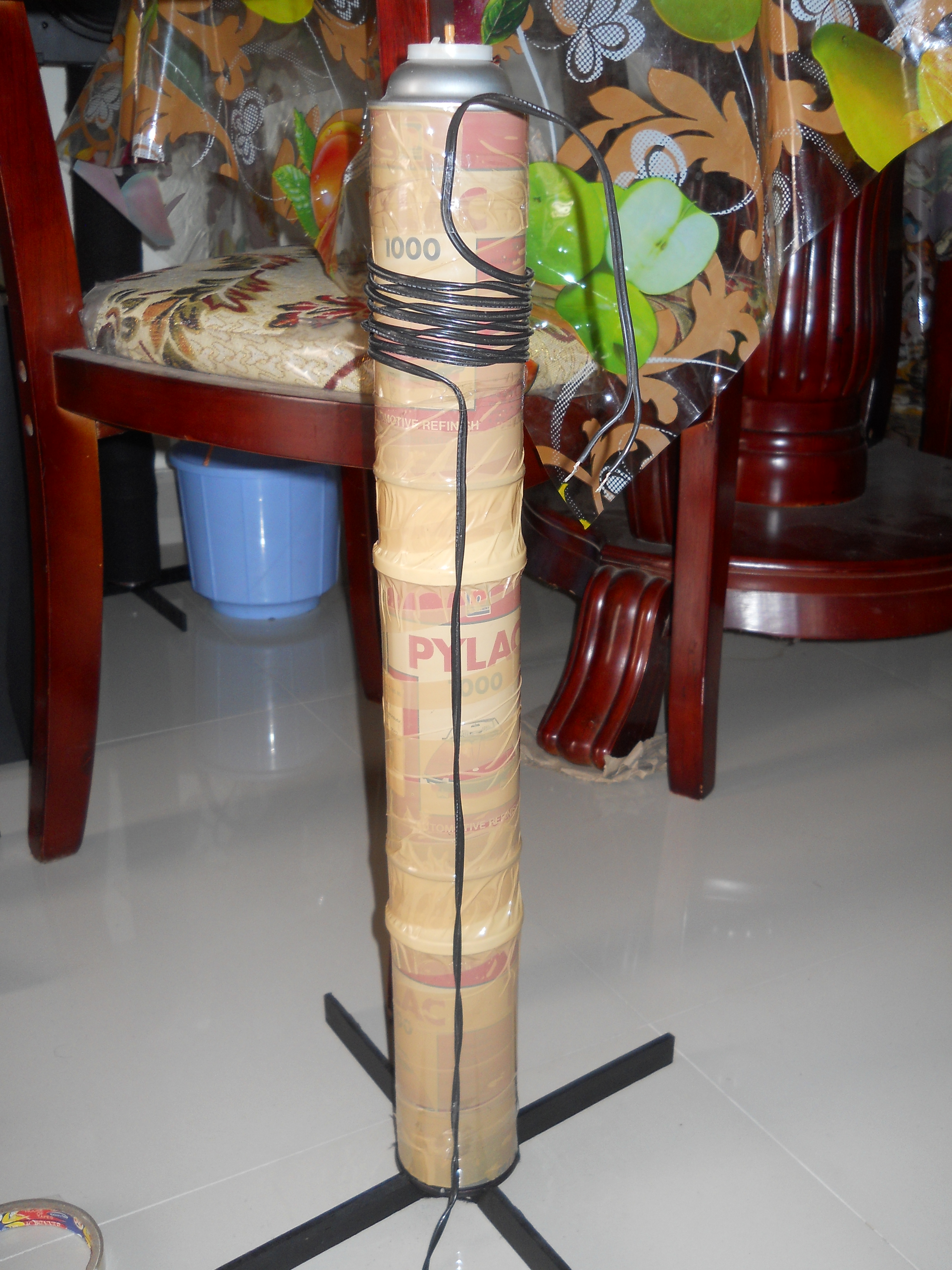

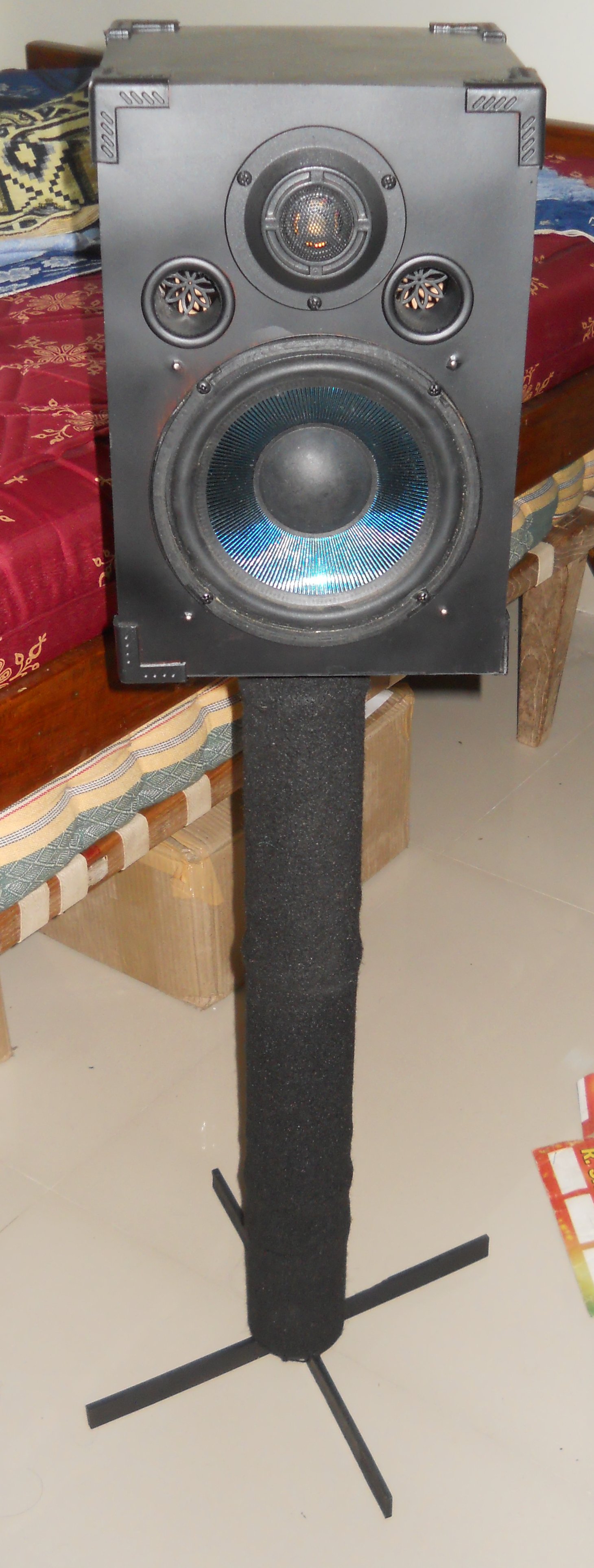

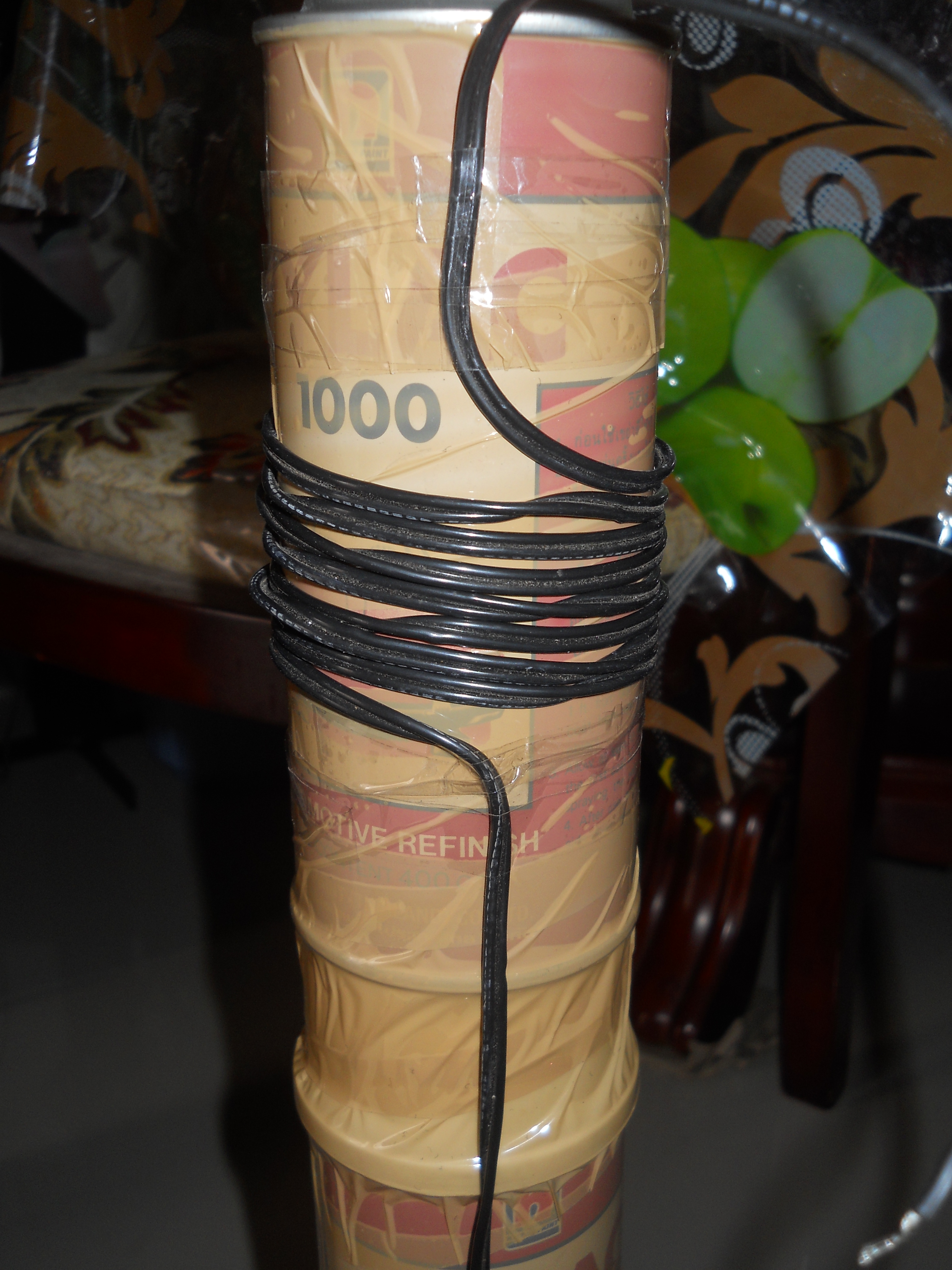

Wind the extra wire to the stand and then tape it with cello tape. Finally attach the cloth to the stand.

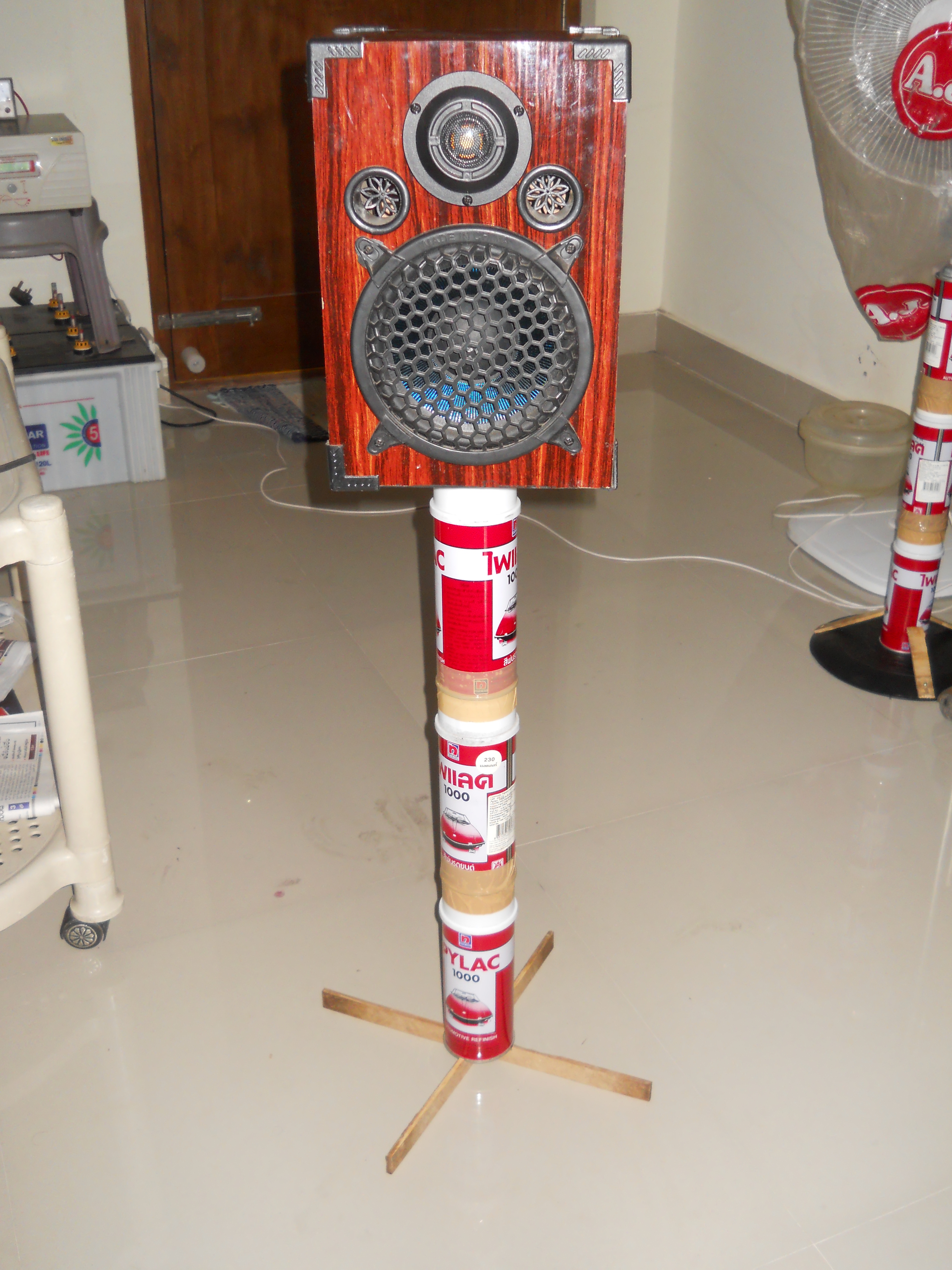

Another Way

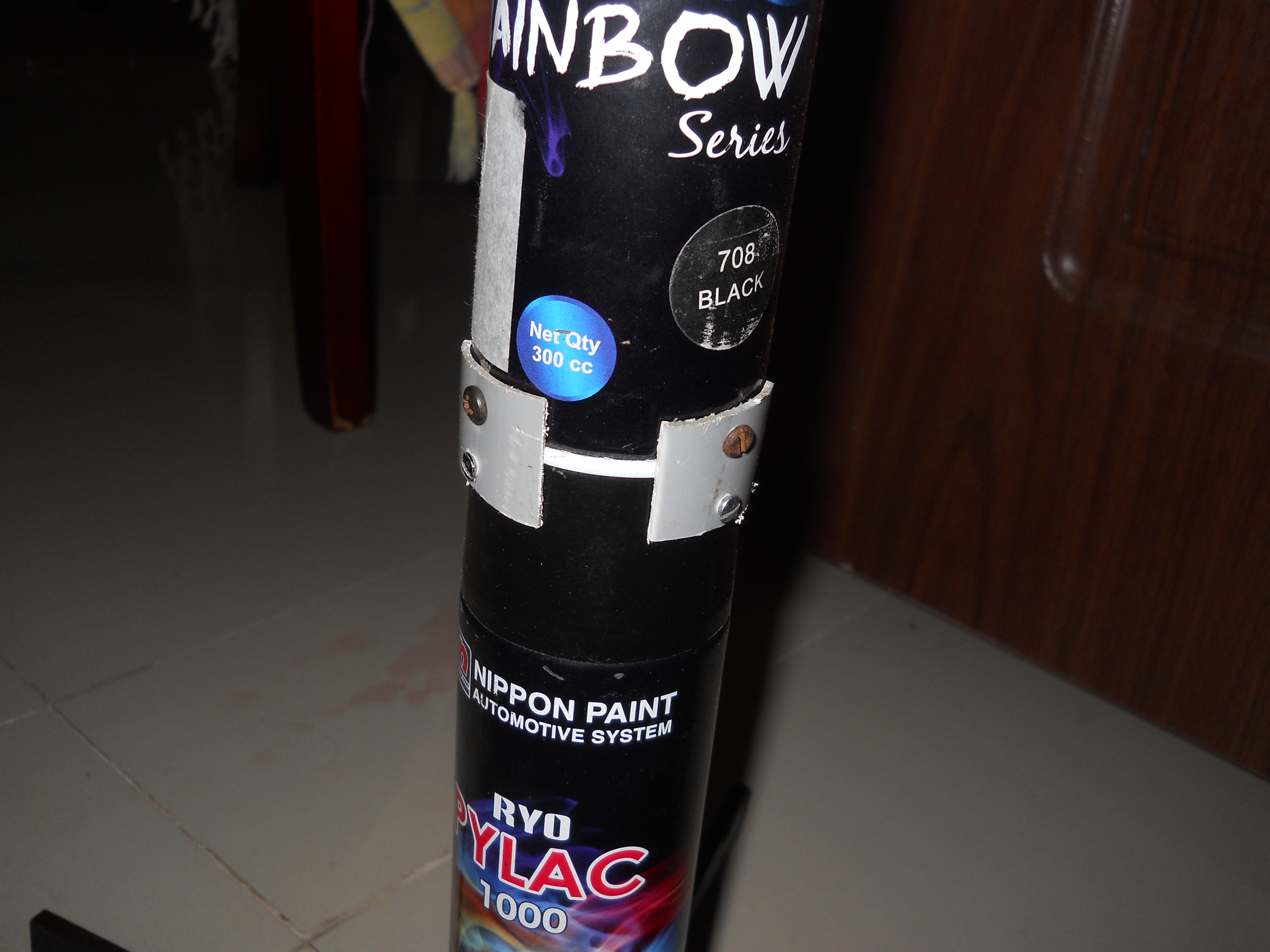

This is another way to attach the spray cans with the screws...
