Sparkling Night Light

by KellyWu031 in Circuits > Arduino

285 Views, 2 Favorites, 0 Comments

Sparkling Night Light

檔案_000 (10).jpeg
檔案_000 (9).jpeg
檔案_000 (8).jpeg

https://www.instructables.com/Glass-Jar-Firefly-Be...

This is a simple Arduino project that uses PWM signals to makes LED flickering, the way the LED is flickering it's just like the firefly's body. This project was originated by ardystal gysr ( the link above), based on his ideas, I changed some of the parts. I used different colors of LED light (red, yellow, green, and blue), to make it more colorful. Also, I changed parts of the code, I made its "breathe" effects faster than before, it takes about 3 seconds when the light glows up and goes off. This is an easy way to design a night light at home, let's get started!

Supplies

  • 4 Wires
  • 1 9v battery
  • 1 Mini Breadboard
  • 1 Arduino Micro Pro
  • 4 LED light (red, blue, green, yellow)
  • 3 Resistor 220 Ohm
  • 1 9v battery clip
  • 1 Matte glass jar
  • 1 Data transfer cable

Connect the Circuits

截圖 2021-04-05 下午7.21.14.png
檔案_000 (5).jpeg

Use the pictures above, follow how to connect the circuits.

Upload the Code

檔案_000 (14).jpeg
截圖 2021-04-18 下午4.06.36.png
檔案_000 (13).jpeg

Add Battery On

檔案_000 (7).jpeg

As your code has been sent to the Arduino Micro Pro, you can add battery on for powered, so it can able to work. Remember, connecting the ground to GND, and the positive terminal to Vin.

Stick the Device on the Lid

檔案_000 (4).jpeg

Use the foam tape to fixed the device properly on the lid, make sure it won't fall down! You may close the lid to test is the tape strong enough to hold the device.

You're Done!

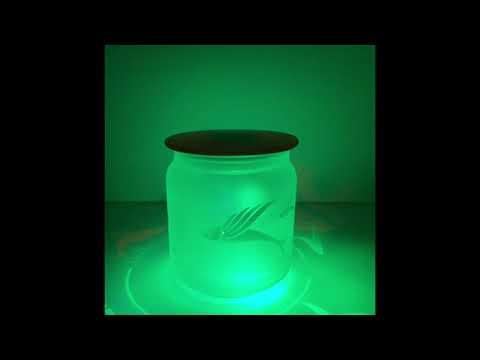

Arduino project- Sparkling Night Light

The reason why I choose the matte glass jar is that your eye won't feel too shiny when you look at it. By using the matte material, it will have a softer light, and it looks better in the dark.
