Sound Reactive LED's for Art Installation: PROTOTYPE

by saracat422 in Circuits > Art

313 Views, 1 Favorites, 0 Comments

Sound Reactive LED's for Art Installation: PROTOTYPE


I wanted to add a lighting and sound element to a digital display of my artwork. Using a sound sensor for input, an Arduino Uno, and some addressable LED's as an output I was able to create a display of lights to accent my artwork that reacted to whatever music I chose for the piece. With the lights being addressable LED's, I'm able to chose the colors fairly quickly if I decide to display a different piece.

This tutorial gives a step-by-step walk through and demonstration oh how I constructed it. I've also includes the code I used for this project with my customizations on it.

Supplies

All parts used (with the exception of the sound sensor and LED's) were included in the ELEGOO Super Starter Kit. I will also link where to purchase these parts individually for those not wanting to get the full kit:

1 x Arduino Uno (I used the Elegoo Uno R3)

1 x Sound Microphone Sensor

1x Strip of addressable LED's (There are several to chose from, but the specific one's used in this project can be found here)

3 x Male to male dupont jumper wires

3 x Male to female Dupont jumper wires

1 x Breadboard

Set Up Your Board

Arduino Project_bb.jpg

There are several effects that can be made, but the basic setup requires an input of the sound sensor into the Arduino and an output to the LED through a digital pin. I set up my breadboard as follows:

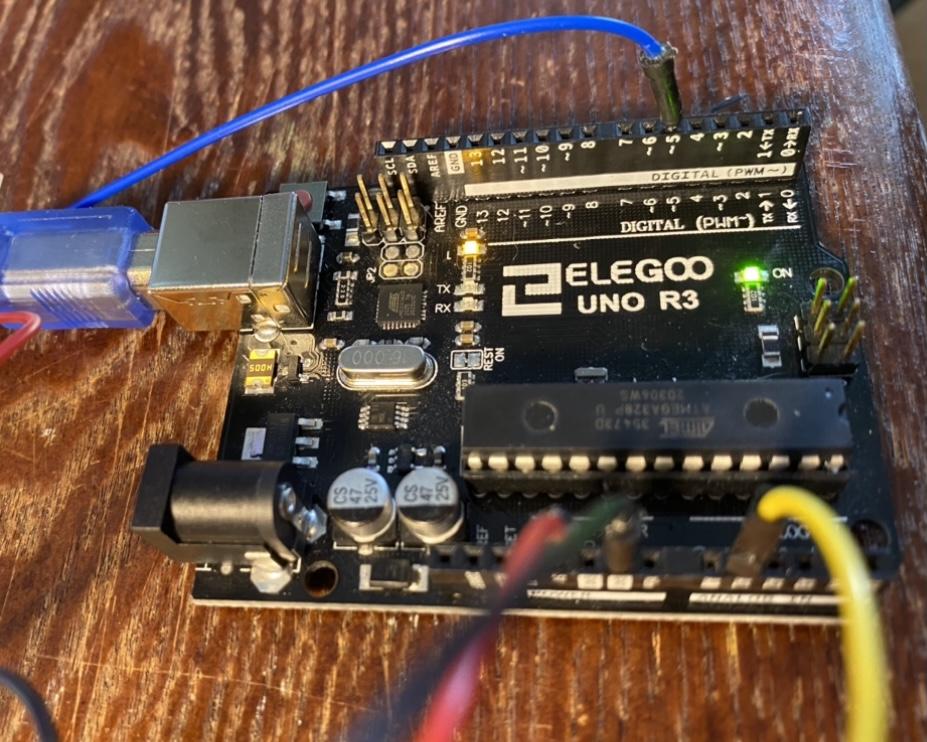

  • Arduino
    • GND (to '-' on breadboard)
    • 5V (to '+' on breadboard)

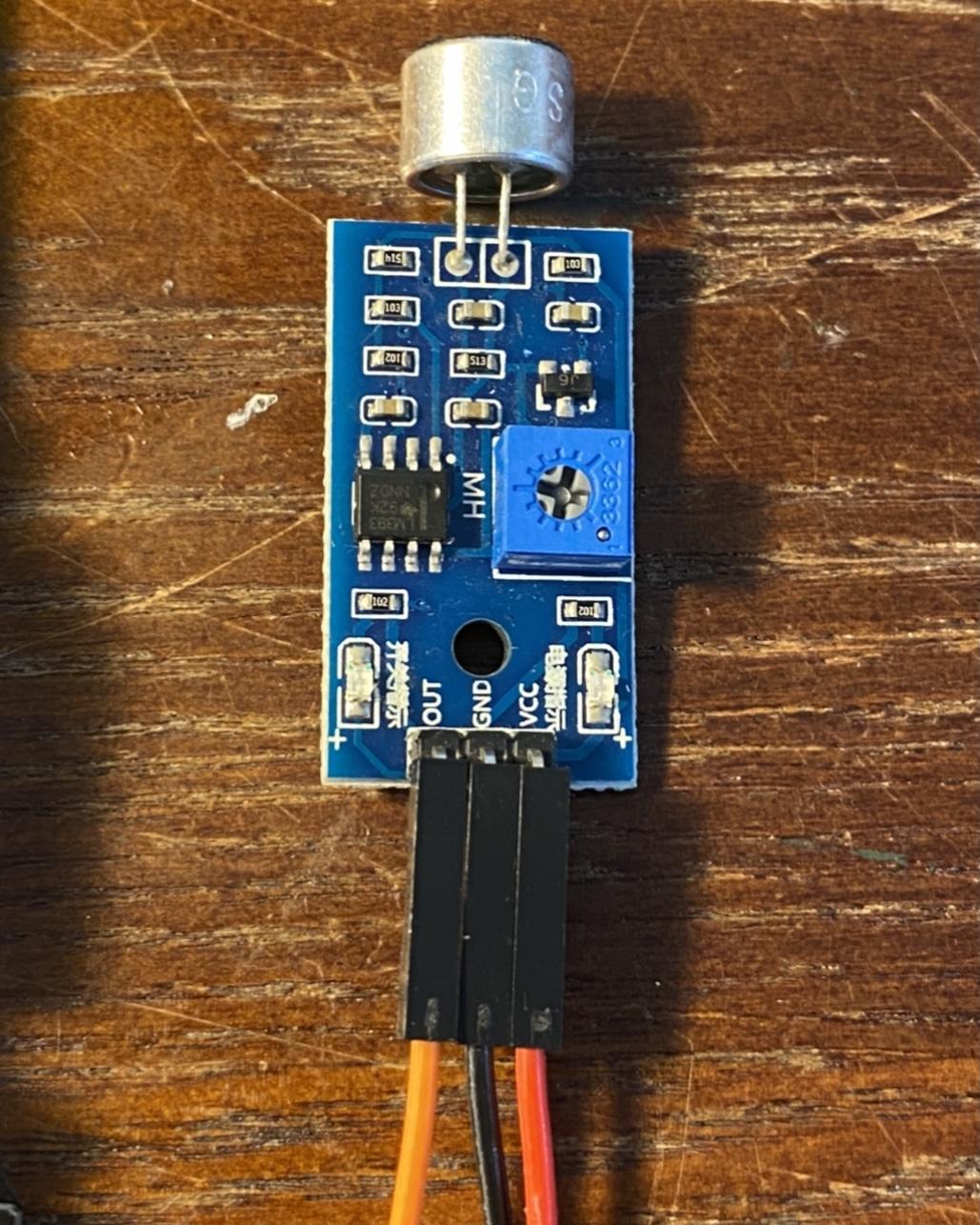

  • Sensor
    • GND ('-' on breadboard)
    • VCC ('+' on breadboard)
    • A0 (on Arduino)
  • LED strip
  • GND (to '-' on breadboard)
  • Power ('+' on breadboard)
  • Data Output (Digital pin ~5 on Arduino)

Please see the diagram and pictures for further visual reference.

*Note: Make sure all GND and power hookups are on the same line as the Arduino.

*Note: The order in which the LED hookups are depends on the kind you buy. The component in Fritzing diagram has them in order of DIN, 5V, GND and the ones I used in order by GND, DIN, 5V. check your specific part for the order.

Code: Adjusting

Screen Shot 2021-04-18 at 2.41.49 PM.png
Screen Shot 2021-04-18 at 2.45.35 PM.png

Once I found a code that produced the visual effect I wanted, I downloaded the code and made a few adjustments to tailor them to my specific needs. For example, the number of LEDs used and the colors to be produced by the lights.

Code: Uploading


After downloading the code and the initial tweaks, I uploaded the code to the Arduino. If everything uploads ok, I go through this process a few times until I'm satisfied with the results.

Code below:

Finished Look

Sound Reactive LED Art

The finished product should look something like the following video, depending on the colors chosen. Being just a prototype, it still needs finishing touches to the display.

Example audio used:

Song to The Siren - Rose Betts

Digital Painting:

"Weightless" By Sara Thompson
