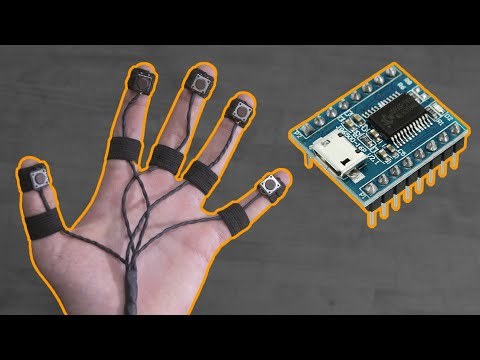

Sound Glove JQ6500
Components:
micro button 12x12mm DTS 21N
crimp contact
Shrink tubing Glue - E6000 and super glue
Control cable - LIYCY 7X0.14
Control cable - LIYCY 6X0.14
Module - JQ6500
Output audio - JACK 3,5 stereo ST-3092
Terminal blocks - PTR AKZ700/2-5.08-V-GREEN
4x - 4 female header pins
Plastic box 43x33x22mm - KM1 ABS BLACK ST Circuit Board
Circuit Scheme
Module - JQ6500
JQ6500 Mp3 Player Module Software: https://sparks.gogo.co.nz/jq6500/index.html
Prepare Cable for Buttons
I used control cable - LIYCY 6X0.14

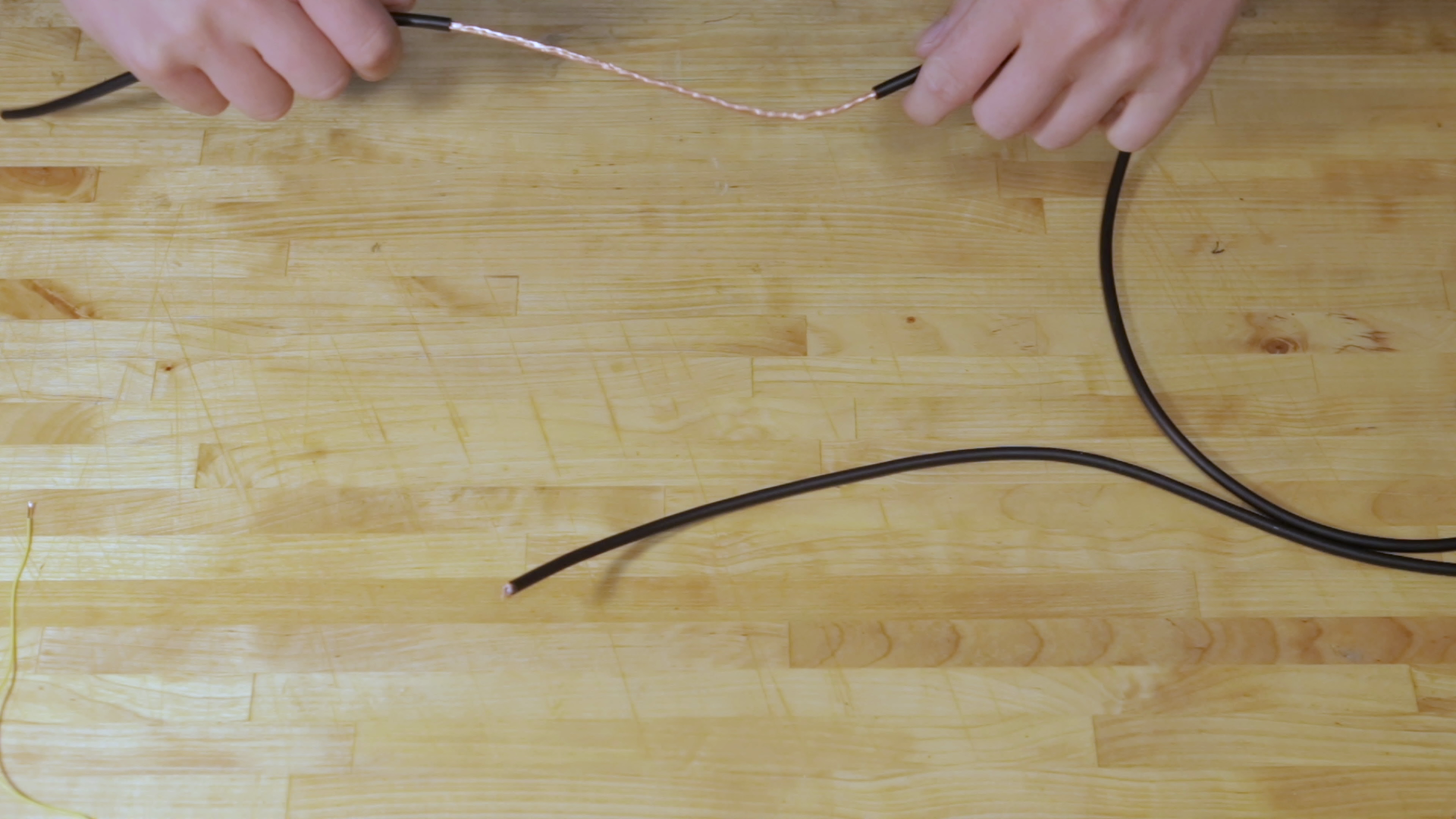

- Remove the rubber protection
- Divide the cable into data and ground
- Solder 5 wire to the ground
Remove the Rubber Protection of Each Wire
Buttons
- Stretch cord glued to the button
-
Put crimp contacts to the buttons and bend it
Solder the Wire to the Button
Sew Stretchy Finger Sleeves and Glue It to the Buttons.
Glue: E6000
Finishing the Glove
- Stretch cord carefully glued to the stretchy finger sleeves
Painted to the black
External 5V Power Supply
- Remove the rubber protection
- Solder two-wire cable for external 5V power supply
- Solder other wires
Dock
- Cut circuit Board
- Solder 8x terminal blocks
- Solder 4x4 female header pin
Output Audio
JACK 3,5 stereo ST-3092
Solder 3 wire and cover it with shrink tubing.

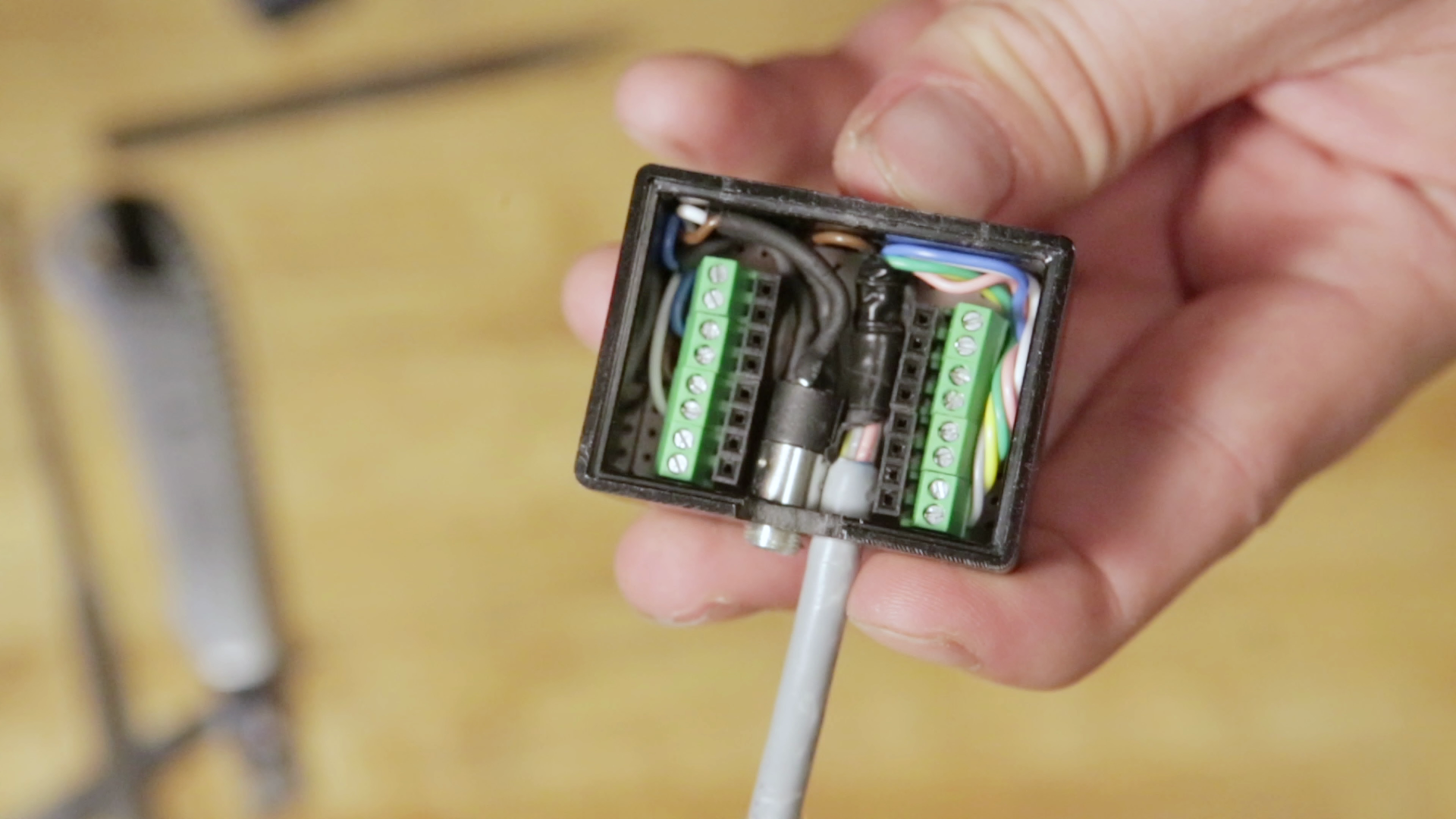

Box
Abs plastic box 43x33x22mm
Drill two holes for cable and audio jack.
Final Completion
