Something From Nothing - DIY Solar Heater From Scrap Bottles
by NewAge-2014 in Workshop > Solar
40249 Views, 360 Favorites, 0 Comments
Something From Nothing - DIY Solar Heater From Scrap Bottles
![pic1.jpg](/proxy/?url=https://content.instructables.com/FL0/MSS8/I8VGN2Y1/FL0MSS8I8VGN2Y1.jpg&filename=pic1.jpg)
One day, while walking I stumbled upon illegal dumping ground in the outskirts of the village - a familiar scene in Bulgaria: green meadows, blue sky and... piles of garbage dumped by fellow villagers. "One's trash is another's treasure", I said to myself and started collecting empty plastic bottles. This is to be my experimental environmentally friendly solar heater.
Here's My Treasure
![pic2.jpg](/proxy/?url=https://content.instructables.com/FPA/3CWQ/I8VGN250/FPA3CWQI8VGN250.jpg&filename=pic2.jpg)
About 100 empty bottles are required. The more - the better.
This Is the Wood Drill Bit
![pic3.jpg](/proxy/?url=https://content.instructables.com/FT6/FSS9/I8VGN26L/FT6FSS9I8VGN26L.jpg&filename=pic3.jpg)
This is the wood drill bit I used to drill the bottles. You can buy it from any hardware store. This particular one is 18mm.
Drilling the Holes
![pic4.jpg](/proxy/?url=https://content.instructables.com/FGW/T5Y1/I8VGN27Z/FGWT5Y1I8VGN27Z.jpg&filename=pic4.jpg)
![pic5.jpg](/proxy/?url=https://content.instructables.com/FVJ/KAOZ/I8VGN288/FVJKAOZI8VGN288.jpg&filename=pic5.jpg)
I drill a hole at the bottom of the bottle and in the cap
Passing the Hose
![pic7.jpg](/proxy/?url=https://content.instructables.com/FTG/ODEI/I8VGN29V/FTGODEII8VGN29V.jpg&filename=pic7.jpg)
![pic6.jpg](/proxy/?url=https://content.instructables.com/F5A/OWFT/I8VGN29X/F5AOWFTI8VGN29X.jpg&filename=pic6.jpg)
![pic8.jpg](/proxy/?url=https://content.instructables.com/FO1/7P2B/I8VGN2CC/FO17P2BI8VGN2CC.jpg&filename=pic8.jpg)

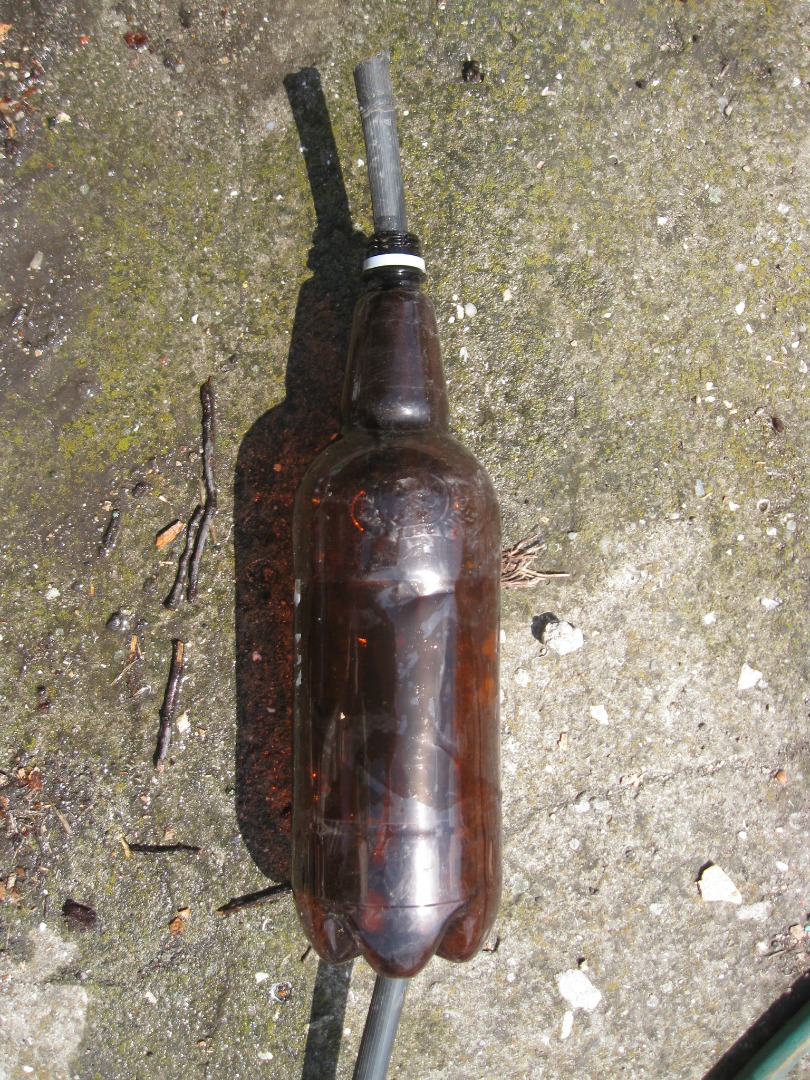

For heating the water I used old garden hose. The bottles are strung together like this.
The bottle creates a greenhouse effect - the heat from the sun is trapped inside the bottle and is warming up the water that runs through the hose.
The Pump
![IMG_8509 copy.jpg](/proxy/?url=https://content.instructables.com/F8V/TSW5/I8VGN2H7/F8VTSW5I8VGN2H7.jpg&filename=IMG_8509 copy.jpg)
![IMG_8508 copy.jpg](/proxy/?url=https://content.instructables.com/FLO/WWEF/I8VGN2H9/FLOWWEFI8VGN2H9.jpg&filename=IMG_8508 copy.jpg)
For circulating the water I used a 12V DC Hot Water Brushless Circulation Pump. Got it from Ebay for about $14 with free shipping. It consumes just half an amper, so it can be connected to a 10W solar panel and make the solar heater self-running.
The Heater
![Untitled-1 copy.jpg](/proxy/?url=https://content.instructables.com/FY8/UOZX/I8VGN2OX/FY8UOZXI8VGN2OX.jpg&filename=Untitled-1 copy.jpg)
Here's the finished heater. An old barrel was used to keep the water. The pump circulates the water from the bottom, through the black hose to the top of the barrel.
On a sunny day it makes hot water. It would be more efficient, I presume, if the barrel is insulated to keep the heat in.
