Solid State Relay (Raspberry Pi)

Basic tutorial of how to setup a Solid State Relay with the Raspberry Pi.

RPI 3 B+ – https://amzn.to/2DcfywB

4 Amp Power Adapter – https://amzn.to/2Q77KPL

16GB Micro SD – https://amzn.to/2DaPZMF

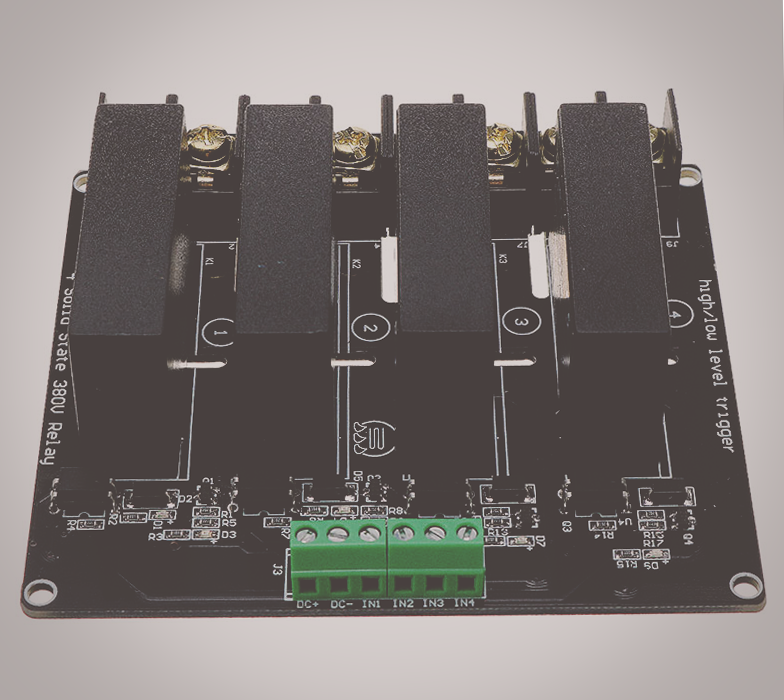

4 Channel SSR – https://ebay.to/2zwpD3Z

Jumper Cables – https://ebay.to/2KF6GAr

DC wire – https://ebay.to/2Skv1y3

*Optional*

DC variable power supply – https://ebay.to/2E5XDYQ

Yellow DC motors – https://ebay.to/2SoJcCD

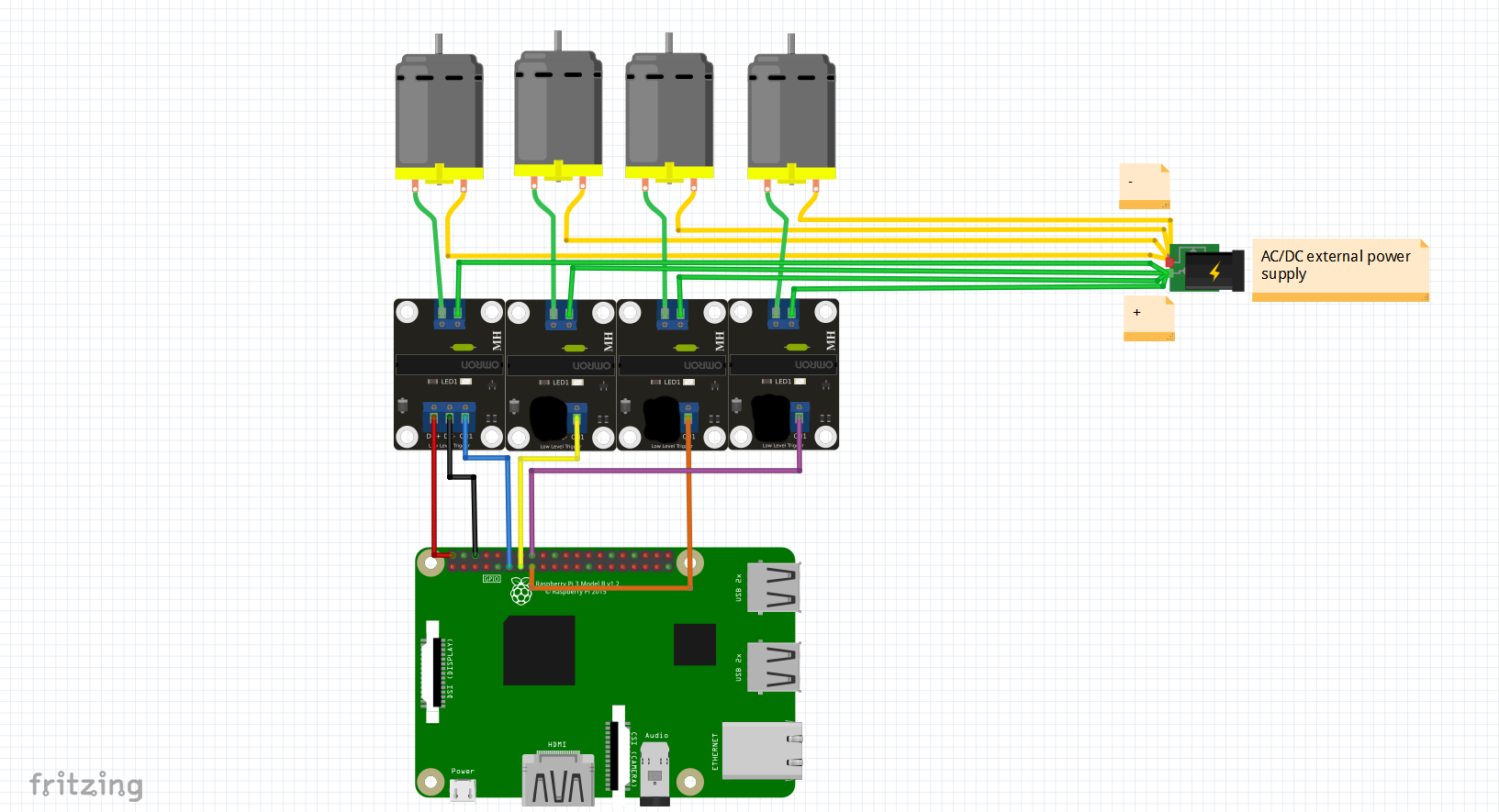

VCC >> 5V

GND >> GND

CH1 >> GPIO17

CH2 >> GPIO27

CH3 >> GPIO22

CH4 >> GPIO23

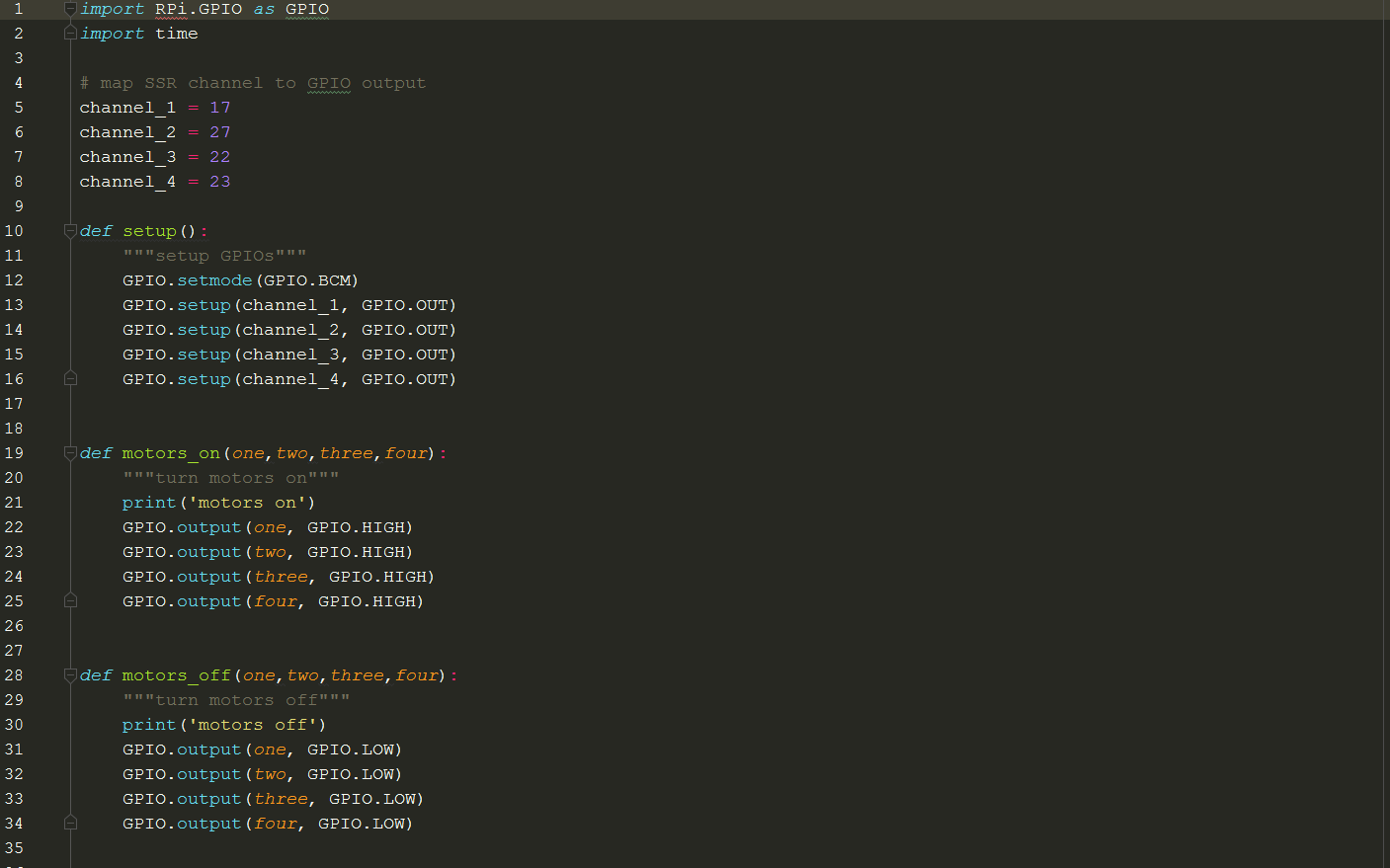

Run Script:

"python3 ssr.py"

Online Guide: https://www.piddlerintheroot.com/solid-state-relay...
