Soldering Stand Upgrade With Fan and Light
by Umair Workshop in Craft > Reuse
704 Views, 10 Favorites, 0 Comments
Soldering Stand Upgrade With Fan and Light
![Soldering stand upgrade with fan and light](/proxy/?url=https://content.instructables.com/FVF/15MX/K6G5XW7F/FVF15MXK6G5XW7F.jpg&filename=Soldering stand upgrade with fan and light)
![IMG_20200211_114811.jpg](/proxy/?url=https://content.instructables.com/FB5/7NPB/K6FNZVIV/FB57NPBK6FNZVIV.jpg&filename=IMG_20200211_114811.jpg)
![IMG_20200210_131811.jpg](/proxy/?url=https://content.instructables.com/FH5/4EUV/K6FNZVHT/FH54EUVK6FNZVHT.jpg&filename=IMG_20200210_131811.jpg)
I am making this soldering station by reusing the material and upgrading so it will take away the harmful fumes and give me better lighting and zooming so I can do the soldering worry free .
If you like this tutorial please vote for this tutorial and watch the video if you don't understand something
Supplies
Magnifying Glass
Soldering iron stand
Mobile flexible stand
Cpu fan
Alligator clips
Mdf piece
Mdf piece for magnifying glass
Led strip
Placing Fan and Stand
![IMG_20200210_154502.jpg](/proxy/?url=https://content.instructables.com/F2X/558R/K6FNZVHU/F2X558RK6FNZVHU.jpg&filename=IMG_20200210_154502.jpg)
![IMG_20200210_154617.jpg](/proxy/?url=https://content.instructables.com/F5I/3Y0H/K6FNZVHW/F5I3Y0HK6FNZVHW.jpg&filename=IMG_20200210_154617.jpg)
![IMG_20200210_154508.jpg](/proxy/?url=https://content.instructables.com/F3H/9D38/K6FNZVHV/F3H9D38K6FNZVHV.jpg&filename=IMG_20200210_154508.jpg)
![IMG_20200210_154819.jpg](/proxy/?url=https://content.instructables.com/FFL/P880/K6FNZVHX/FFLP880K6FNZVHX.jpg&filename=IMG_20200210_154819.jpg)
![IMG_20200210_154823.jpg](/proxy/?url=https://content.instructables.com/FNT/GNB3/K6FNZVHY/FNTGNB3K6FNZVHY.jpg&filename=IMG_20200210_154823.jpg)
![IMG_20200210_154904.jpg](/proxy/?url=https://content.instructables.com/FR1/19OL/K6FNZVHZ/FR119OLK6FNZVHZ.jpg&filename=IMG_20200210_154904.jpg)
![IMG_20200210_154908.jpg](/proxy/?url=https://content.instructables.com/FL3/2QZQ/K6FNZVI0/FL32QZQK6FNZVI0.jpg&filename=IMG_20200210_154908.jpg)
![IMG_20200210_154914.jpg](/proxy/?url=https://content.instructables.com/FDI/RNTM/K6FNZVI1/FDIRNTMK6FNZVI1.jpg&filename=IMG_20200210_154914.jpg)
![IMG_20200210_155221.jpg](/proxy/?url=https://content.instructables.com/FAG/OD6K/K6FNZVI2/FAGOD6KK6FNZVI2.jpg&filename=IMG_20200210_155221.jpg)
![IMG_20200210_155315.jpg](/proxy/?url=https://content.instructables.com/FHU/PWP7/K6FNZVI3/FHUPWP7K6FNZVI3.jpg&filename=IMG_20200210_155315.jpg)
![IMG_20200211_113109.jpg](/proxy/?url=https://content.instructables.com/FA6/DGO2/K6FNZVIA/FA6DGO2K6FNZVIA.jpg&filename=IMG_20200211_113109.jpg)

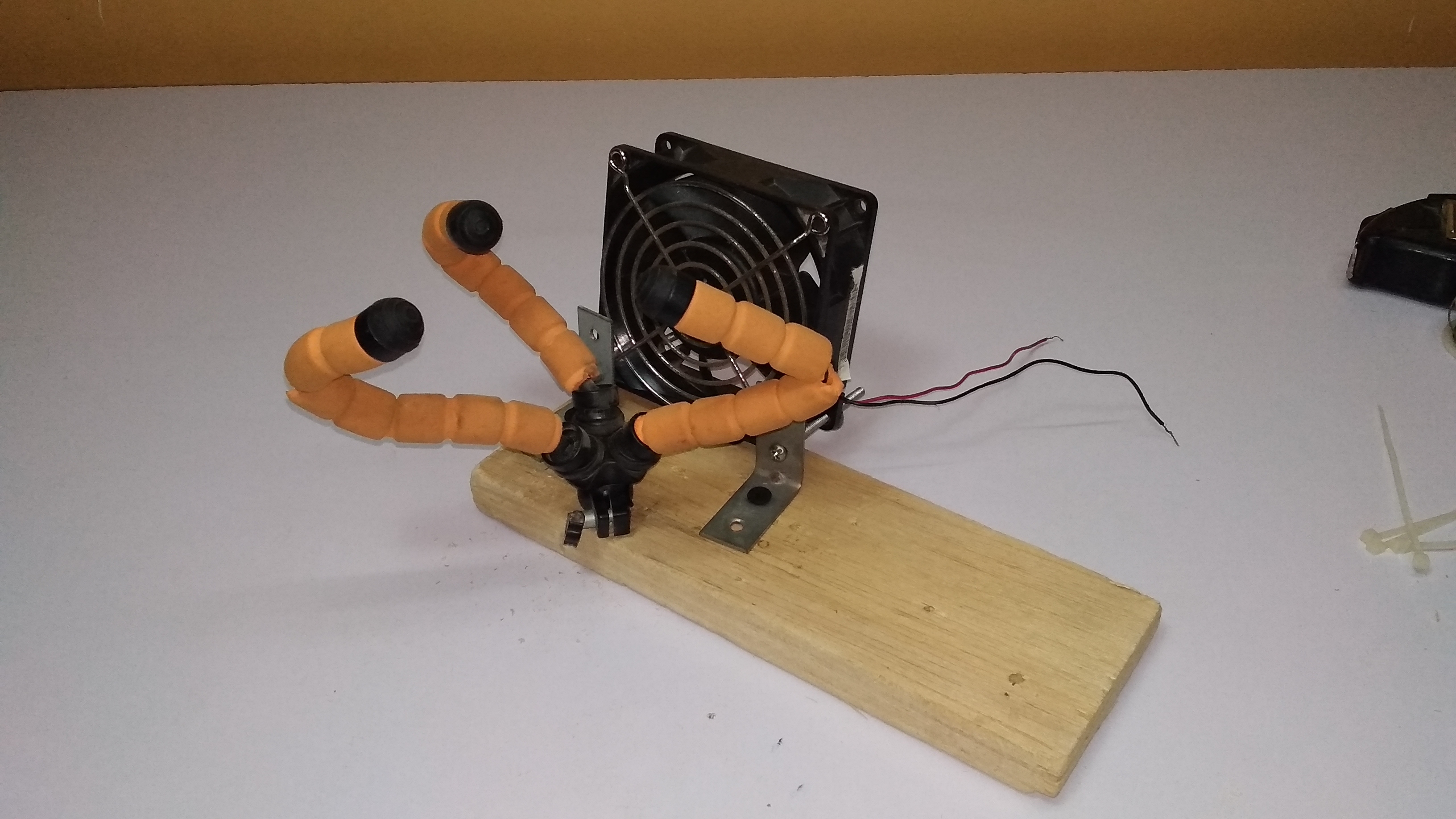

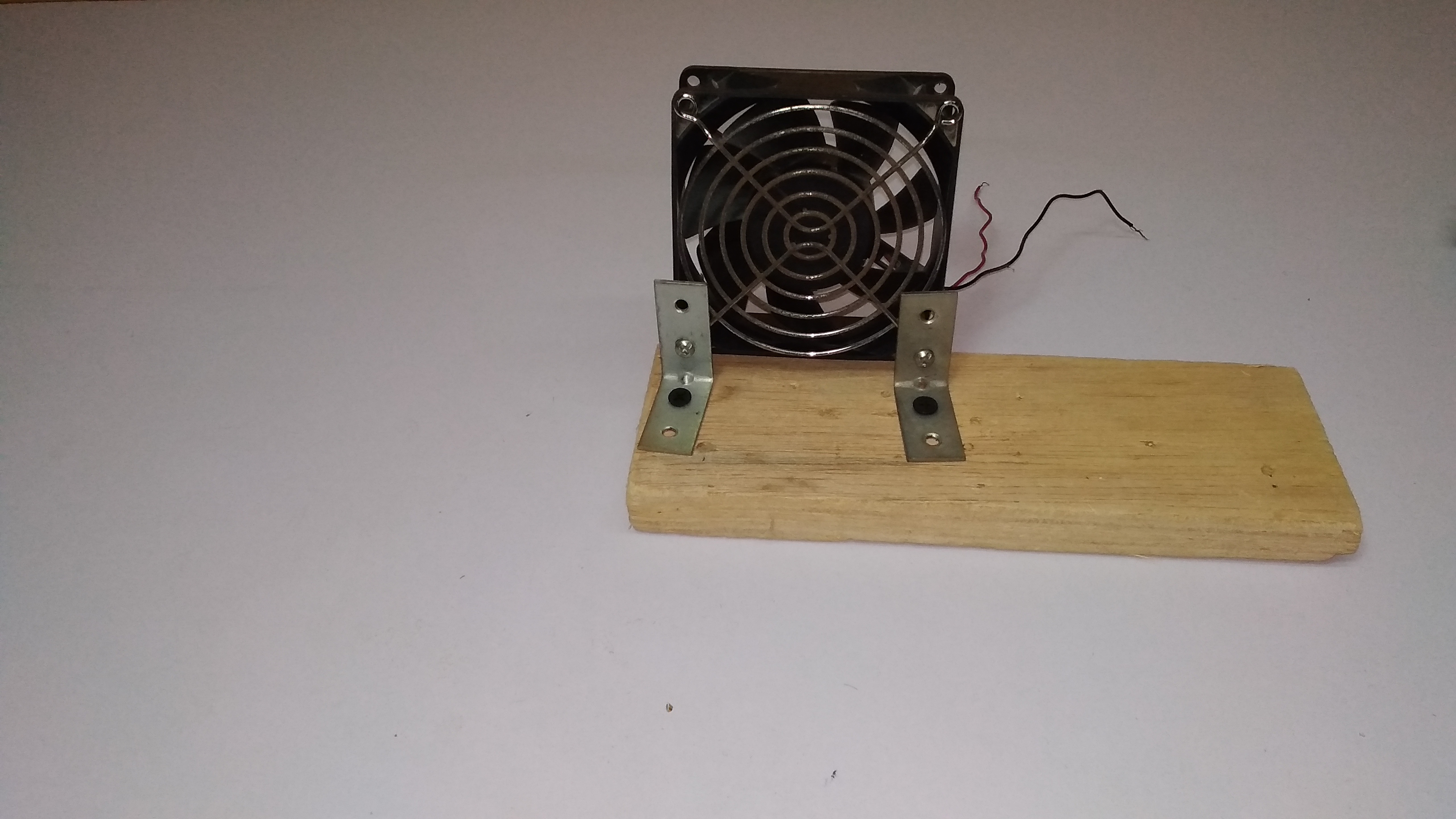

Place the fan over the mdf board and secure it with the screws

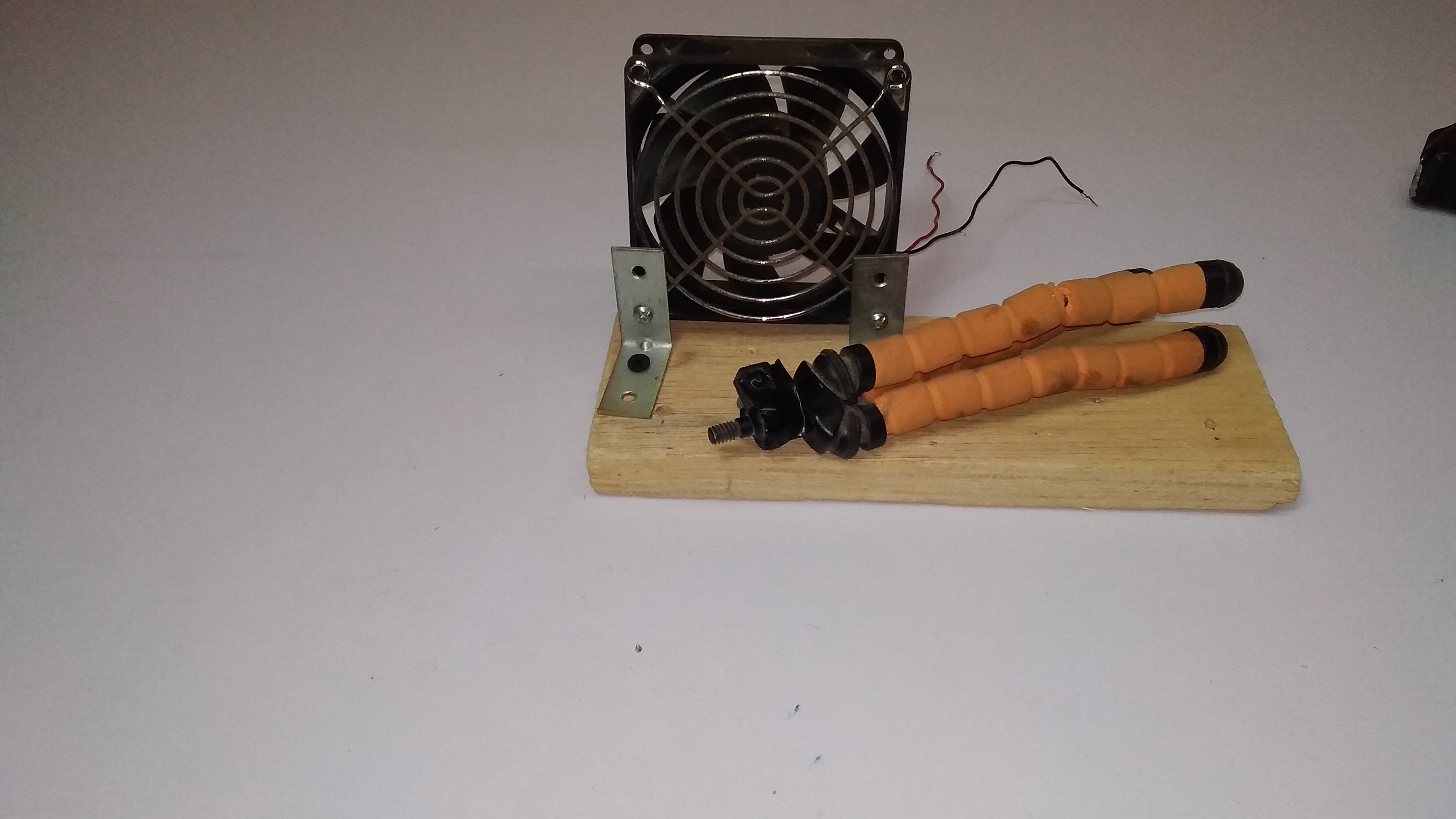

place the mobile stand just after it by leaving 2 inches gap and make a hole on the point and rotate the screw of the stand in that hole ,it can be bend and rotate easily by turning them with hand,
place alligator clip on the 2 of it's legs and secure them with the zip tie it will be use to grab the module or soldering part
Magnifying and Light
![IMG_20200210_155609.jpg](/proxy/?url=https://content.instructables.com/F1E/3GGP/K6FNZVI4/F1E3GGPK6FNZVI4.jpg&filename=IMG_20200210_155609.jpg)
![IMG_20200211_112200.jpg](/proxy/?url=https://content.instructables.com/FL9/NRPE/K6FNZVI5/FL9NRPEK6FNZVI5.jpg&filename=IMG_20200211_112200.jpg)
![IMG_20200211_112530.jpg](/proxy/?url=https://content.instructables.com/FLD/M9IT/K6FNZVI6/FLDM9ITK6FNZVI6.jpg&filename=IMG_20200211_112530.jpg)
![IMG_20200211_112718.jpg](/proxy/?url=https://content.instructables.com/FZT/RA21/K6FNZVI7/FZTRA21K6FNZVI7.jpg&filename=IMG_20200211_112718.jpg)
![IMG_20200211_112917.jpg](/proxy/?url=https://content.instructables.com/FDS/7SHZ/K6FNZVI8/FDS7SHZK6FNZVI8.jpg&filename=IMG_20200211_112917.jpg)
![IMG_20200211_113029.jpg](/proxy/?url=https://content.instructables.com/FC9/ER1K/K6FNZVI9/FC9ER1KK6FNZVI9.jpg&filename=IMG_20200211_113029.jpg)
Place the magnifying glass over the mdf pice and mark it with pen and cut out the inner circle where can see the opposite side easily ,cut out the part with mini saw or jigsaw,put the led around the magnifying glass as placing it with the hot glue.
Final Steps
![IMG_20200211_113438.jpg](/proxy/?url=https://content.instructables.com/F37/8HS3/K6FNZVIB/F378HS3K6FNZVIB.jpg&filename=IMG_20200211_113438.jpg)
![IMG_20200211_113524.jpg](/proxy/?url=https://content.instructables.com/FT7/QVAH/K6FNZVID/FT7QVAHK6FNZVID.jpg&filename=IMG_20200211_113524.jpg)
![IMG_20200211_113530.jpg](/proxy/?url=https://content.instructables.com/F3I/TMEZ/K6FNZVIE/F3ITMEZK6FNZVIE.jpg&filename=IMG_20200211_113530.jpg)
![IMG_20200211_114256.jpg](/proxy/?url=https://content.instructables.com/F14/WCKM/K6FNZVIF/F14WCKMK6FNZVIF.jpg&filename=IMG_20200211_114256.jpg)
![IMG_20200211_114301.jpg](/proxy/?url=https://content.instructables.com/F5X/OPJJ/K6FNZVIG/F5XOPJJK6FNZVIG.jpg&filename=IMG_20200211_114301.jpg)
![IMG_20200211_113520.jpg](/proxy/?url=https://content.instructables.com/FIV/5VC7/K6FNZVIC/FIV5VC7K6FNZVIC.jpg&filename=IMG_20200211_113520.jpg)
![IMG_20200211_114808.jpg](/proxy/?url=https://content.instructables.com/F72/8MPB/K6FNZVIN/F728MPBK6FNZVIN.jpg&filename=IMG_20200211_114808.jpg)

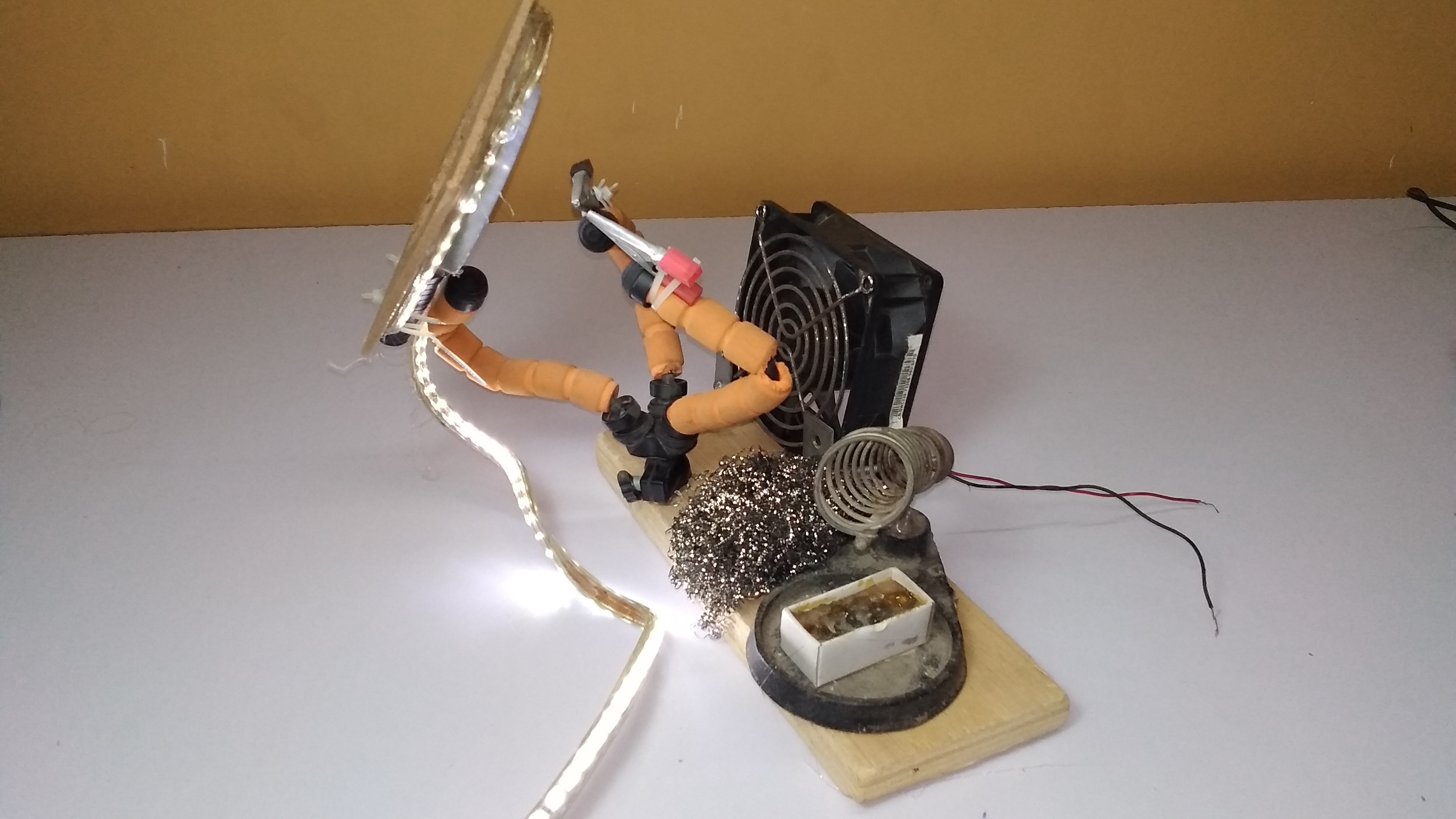

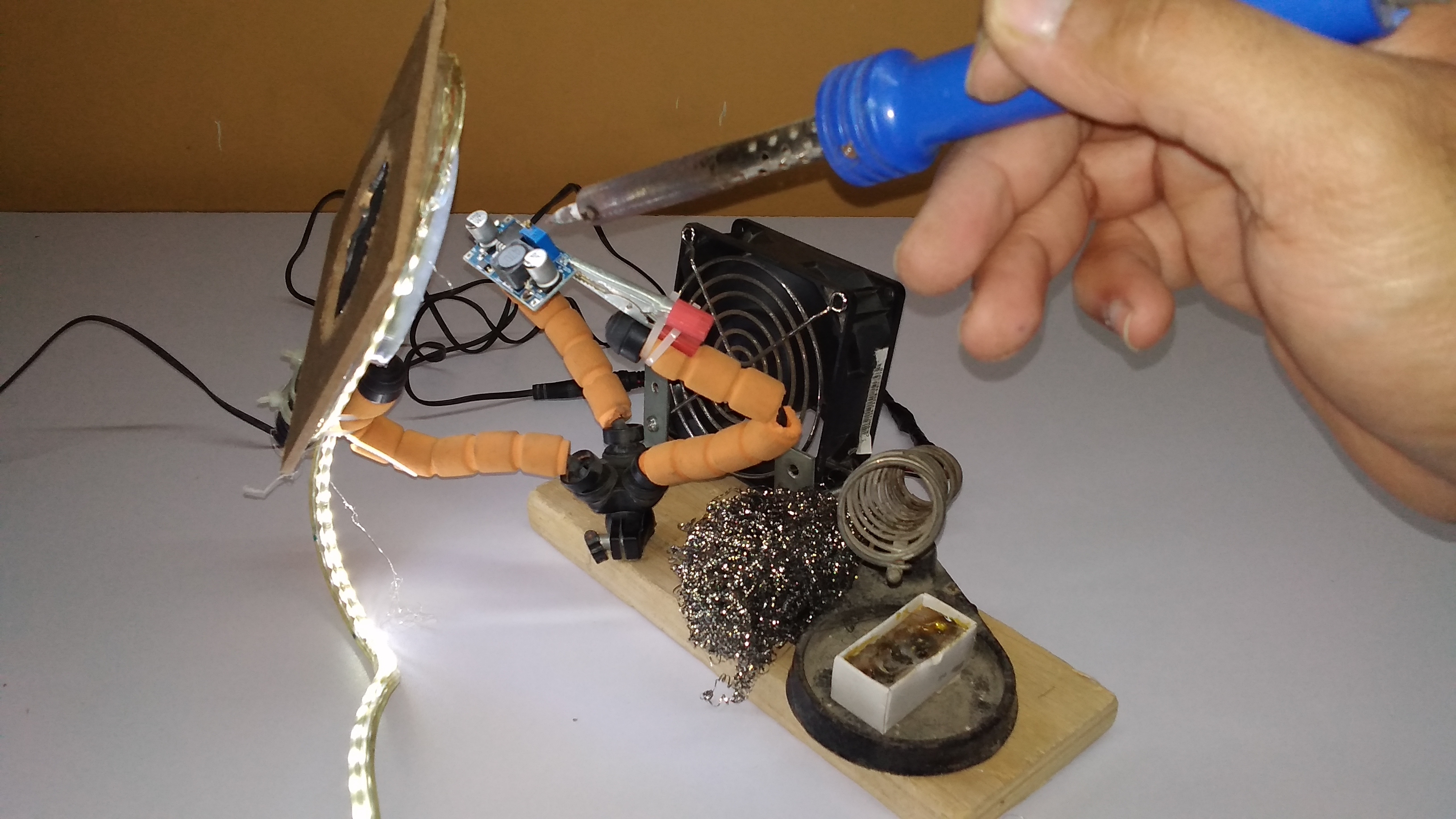

Place the stand and it's accessories right next to the fan and By turning on the fan and led light now it is ready to use upgraded soldering station which will take away the harmful fumes and gives maximum visibility and lighting so can only worry on soldering
So if you like this instructables please vote for this tutorial and if you don't understand something please watch the video.
