Soldering Stand ONLY 3 Joints

by Ansif in Workshop > Tools

2169 Views, 35 Favorites, 0 Comments

Soldering Stand ONLY 3 Joints


While soldering the smoke from solder is very irritating and not good to health and handling the PCB is difficult hence I decide to make a 'Soldering Stand with Exhaust fan'. This is a simple and easy way to make Soldering stand.In this i am using some cheep and very use full items,it's widely available.I hope you are interested ................................................Let's make it...................................................

TOOLS & PARTS

  • Tools we needed
  1. Glue Gun(60w)
  2. Screw Driver
  • Parts to make it
  1. CPU Heat-sink (got from old motherboard)

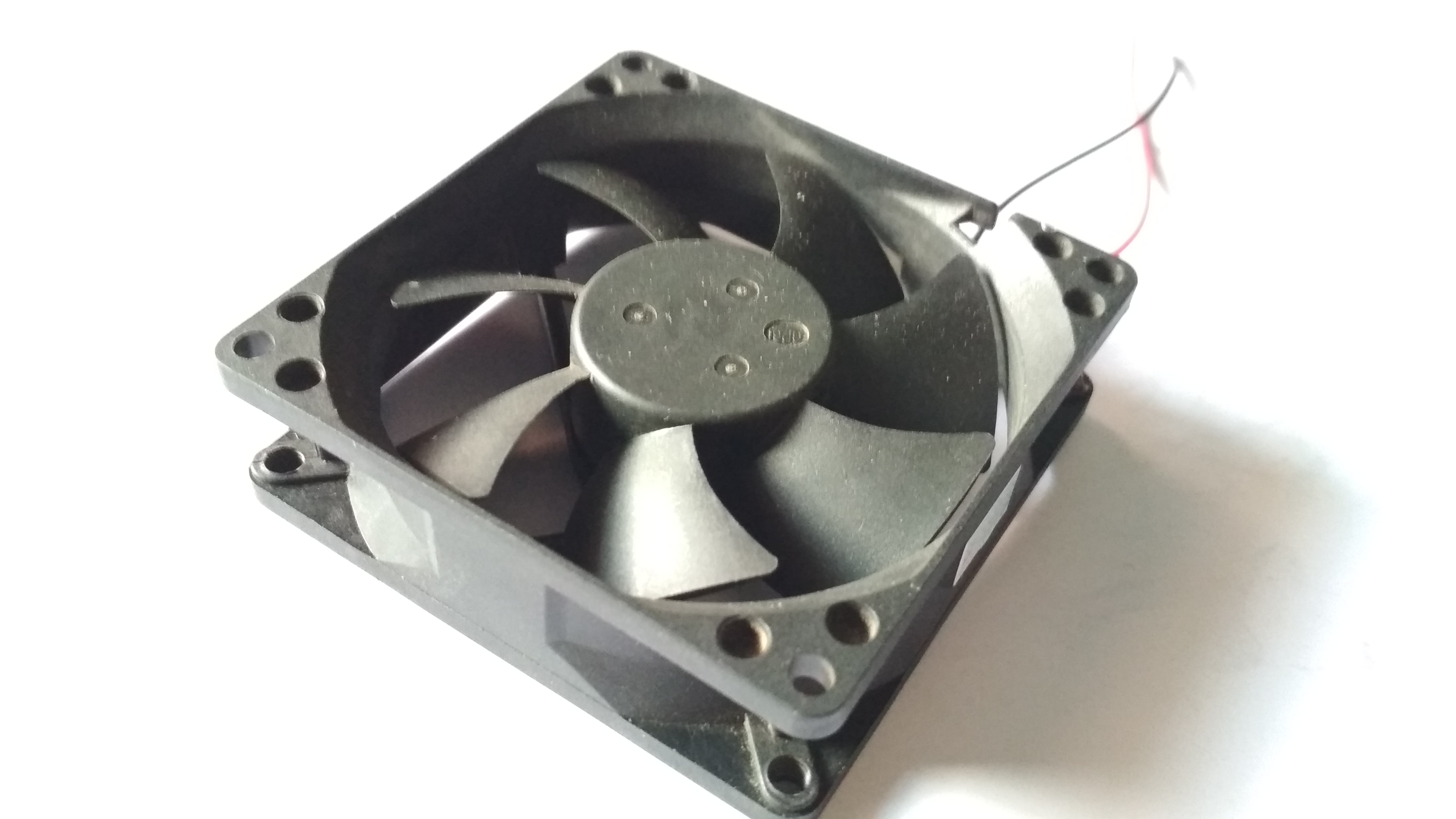

  2. Exhaust Fan 12v ( got from old SMPS)

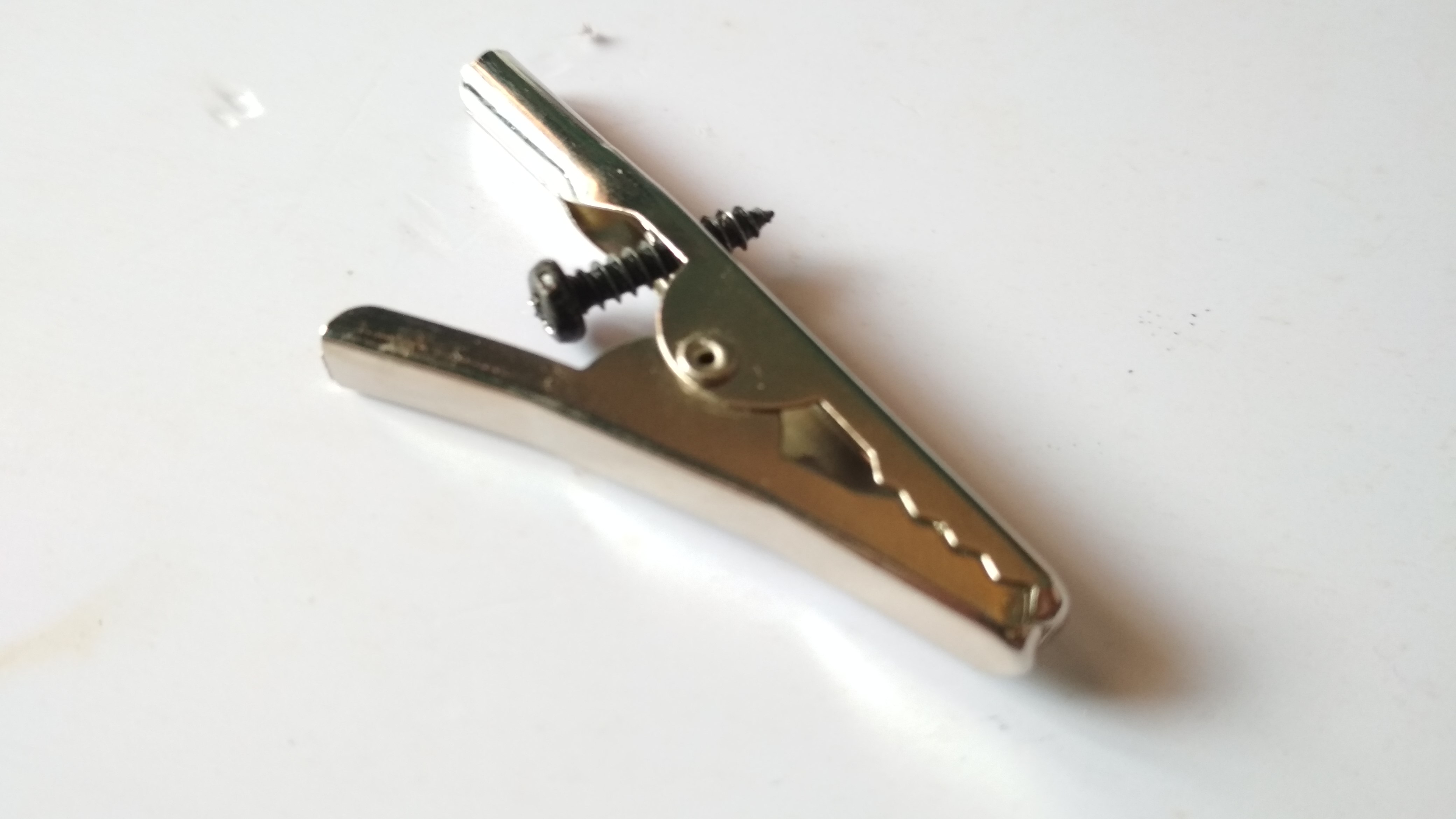

  3. Battery Clip
  4. Two Screws

We are doing it with Only 3 joints

1st JOINT ; Screw the First Clip


Take the heat sink and the one battery clip to joining

  • Screw the Battery clip in heat-sink slot

2nd JOINT ; Screw the Second Clip


Take another battery clip and screw in the heat-sink like shown in that picture.

3rd JOINT ; Stick the Exhaust Fan


In here i am used 12v Exhaust Fan got from old SMPS.take the fan and heat-sink,I am used Glue gun to joining together .

Advantages


  • Widely available parts
  • Simple construction
  • Portable
