Soldering Iron Stand

Making a Soldering Iron Stand

A few years back my grandfather gave me a gift of his old soldering iron. I've gotten a lot of use out of it and decided that it's finally time to build my own stand for it!

Preparing the Form

Screen Shot 2016-07-02 at 14.50.57.png

We're going to be using a coat hanger for the coil that the iron sits in. To make this coil, I drilled a hole the same width as my coat hanger in an old broom.

Making the Coil

Screen Shot 2016-07-02 at 14.51.14.png
Screen Shot 2016-07-02 at 14.51.39.png

I cut the coat hanger down and inserted it into the hole I had just drilled. Once it was secured, I began to wrap it around the broom handle, producing the coil that we need.

Safety First!

Screen Shot 2016-07-02 at 14.51.59.png
Screen Shot 2016-07-02 at 14.52.10.png

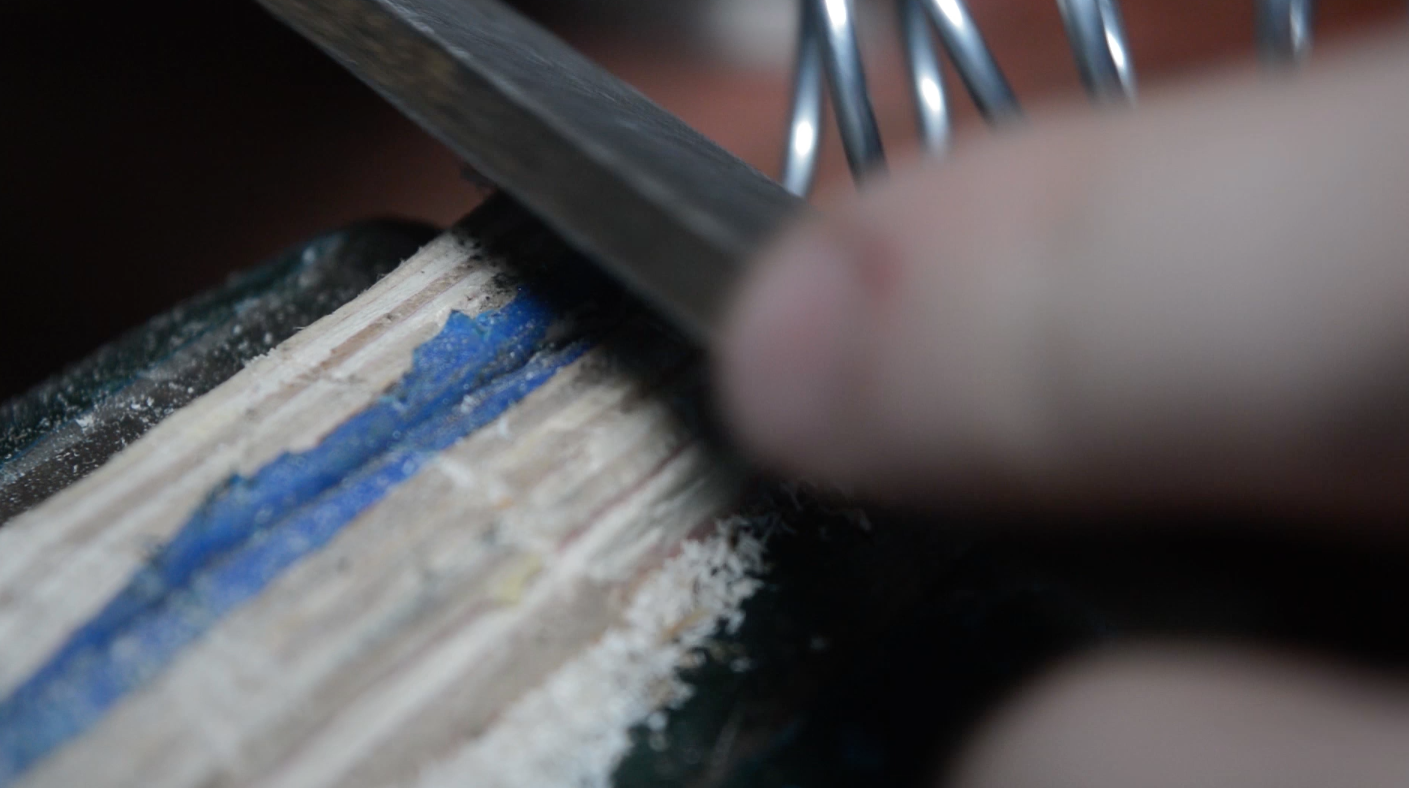

With the coil removed, I straightened the piece of wire that would raise it up from the base. After that, I filed the ends to make them less dangerous and pointy (which I should have done before I wound it!)

Test!

Screen Shot 2016-07-02 at 14.52.21.png

I clamped the wire in a vice and saw that it did indeed support my soldering iron! Now on to the base!

The Base

Screen Shot 2016-07-02 at 14.52.31.png
Screen Shot 2016-07-02 at 14.52.54.png

I chose to make the base out of 18mm thick plywood, which should provide plenty of stability. I cut it to size and then sanded it smooth.

Assembly

Screen Shot 2016-07-02 at 14.53.08.png

I drilled a hole in the base for the coil to sit in and then secured it using CA glue.

Sponge Holder

Screen Shot 2016-07-02 at 14.53.22.png
Screen Shot 2016-07-02 at 14.53.37.png

Using some odd scraps, I made a small space in which I could place a cut sponge to dab the tip of my iron. I secured these pieces with CA glue and sanded it all smooth by hand.

Paint!

Screen Shot 2016-07-02 at 14.53.45.png

With everything assembled, I gave the piece a coat of black paint to make it look a bit more professional.

Done!

Screen Shot 2016-07-02 at 14.53.54.png
Screen Shot 2016-07-02 at 14.54.02.png

With that, the project is finished! I cut a small sponge to fit in the holder and I am absolutely delighted with how it looks and works! I hope you found this instructable useful and if you make one of these, I would love to see it!

-Shaun
