Soldering Fume Extractor

I've made an extractor for soldering fume.

Material used:

• Plastic Bottle
• Fan
• Plastic tube
• Power supply
• Iron bars and angle
• Bolts and nuts

Tools:

• Cutter
• Glue gun
• Driling machine

Use the cutter to cut the bottom of the plastic bottle.

Please take care to air flow direction

Cut the side of the bottle to allow the cables to enter

Connect the power supply to the fan. Check voltage and current supply.

Seal the edge of the fan with the glue gun.

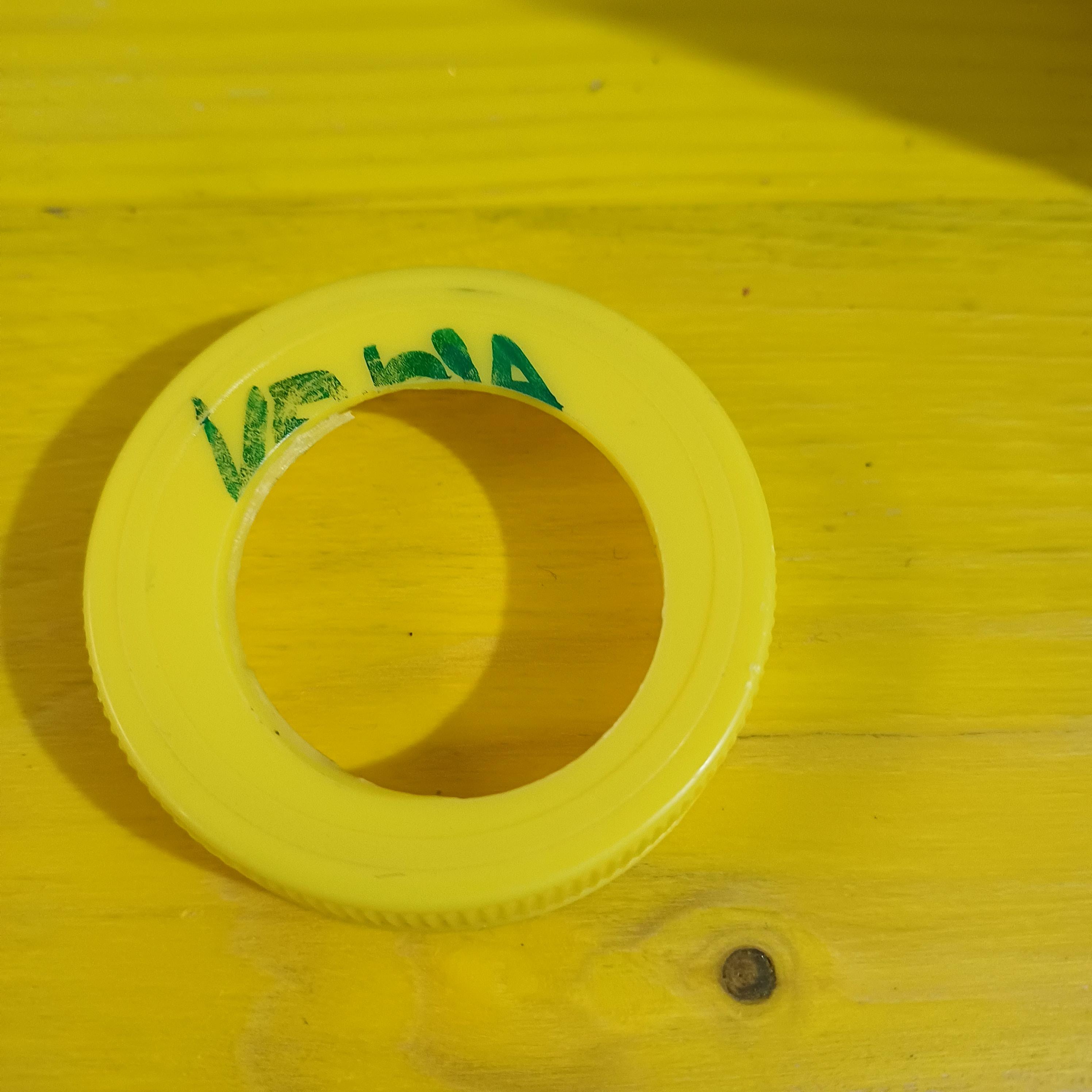

Measure tube diameter, cut the cap and insert the tube.

Assembly some iron bars to provide a stable support to the the fan, or use the bottle handle.

The soldering station is ready to be used, free of smoke.
