Soldering Assistant
by foxxtrotalpha in Workshop > 3D Printing
25247 Views, 300 Favorites, 0 Comments
Soldering Assistant

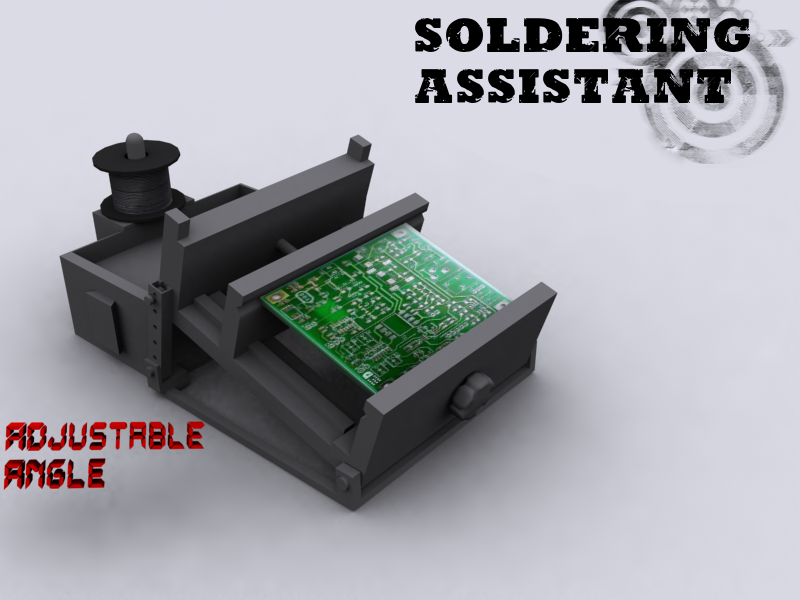

NEW!: I have added the adjustable base, so whether you're fine soldering on surface parallel to your bench top, or you prefer to have your board at an angle, this can accommodate your needs! stay tuned, fume extra will be done soon!
The soldering assistant is a project idea I had to have my soldering supplies conveniently in one spot. The Solder spool holder is close to the work area to have a read supply of solder to feed directly from the spool. The soldering assistant also features and adjustable vise to hold your projects securely as you assemble them. Just behind the work area is a parts bin, to put your resistors, capacitors, IC's tweezers or other supplies. Side "fins" make it possible to make custom add-ons that can just snap into place. The only part that isn't printable through a 3d printer is the center threaded rod that moves the base, this is a 1/4" threaded rod that can be purchased at any local hardware store. 2 hex nuts are also required, one that fits into the moving side of the platform, and one on the stationary side. This is an entry for the "Make it real Challenge" contest. If you like the design, please vote, Thanks.
**UPDATE**

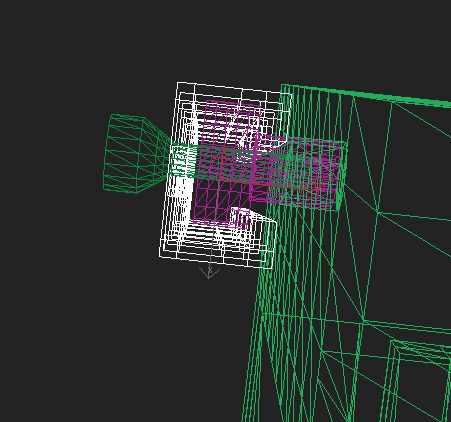

The angled platform can be added as an accessory, or use the Soldering assistant without this accessory as shown in the gallery pictures. The adjustable platform pivots on a pin at the front of the base. At the rear of the base is a "C" shaped channel that also pivots, and there is a T-shaped cylinder the rides the inside of this channel. To adjust the height, the user would simply have to tilt the platform forward, lining up the position holes on the C channel, then insert the pin through the C channel and into the T cylinder. There is one on each side of the platform for stability. No more hunching over to work on your PCB's! This allows you to work in a more comfortable position. Special thanks to those who commented and suggested an angled platform!
