Solar Pop Can Heater
![DSCN8761.JPG](/proxy/?url=https://content.instructables.com/FGG/YAVU/I5THV6LU/FGGYAVUI5THV6LU.jpg&filename=DSCN8761.JPG)
![DSCN8847.JPG](/proxy/?url=https://content.instructables.com/FQS/W31G/I5THUMSH/FQSW31GI5THUMSH.jpg&filename=DSCN8847.JPG)
![DSCN8761.JPG](/proxy/?url=https://content.instructables.com/FSK/451G/I5THUMFQ/FSK451GI5THUMFQ.jpg&filename=DSCN8761.JPG)
![DSCN1956.JPG](/proxy/?url=https://content.instructables.com/FP6/6U6S/I5THUM0U/FP66U6SI5THUM0U.jpg&filename=DSCN1956.JPG)
![DSCN0224.JPG](/proxy/?url=https://content.instructables.com/FDJ/APJY/I5THULTT/FDJAPJYI5THULTT.jpg&filename=DSCN0224.JPG)
![DSCN0141.JPG](/proxy/?url=https://content.instructables.com/FKF/VD18/I5THULH2/FKFVD18I5THULH2.jpg&filename=DSCN0141.JPG)
![DSCN0140.JPG](/proxy/?url=https://content.instructables.com/F8C/WT9V/I5THULAU/F8CWT9VI5THULAU.jpg&filename=DSCN0140.JPG)
![DSCN0138.JPG](/proxy/?url=https://content.instructables.com/FJY/GU2L/I5THUJQF/FJYGU2LI5THUJQF.jpg&filename=DSCN0138.JPG)
Instructable on a pop can heater.
![DSCN0136.JPG](/proxy/?url=https://content.instructables.com/FOV/UI1E/I5THUJJO/FOVUI1EI5THUJJO.jpg&filename=DSCN0136.JPG)
![DSCN0185.JPG](/proxy/?url=https://content.instructables.com/FGR/V549/I5THULLI/FGRV549I5THULLI.jpg&filename=DSCN0185.JPG)
![DSCN1957.JPG](/proxy/?url=https://content.instructables.com/FMB/V60A/I5THUM2Y/FMBV60AI5THUM2Y.jpg&filename=DSCN1957.JPG)

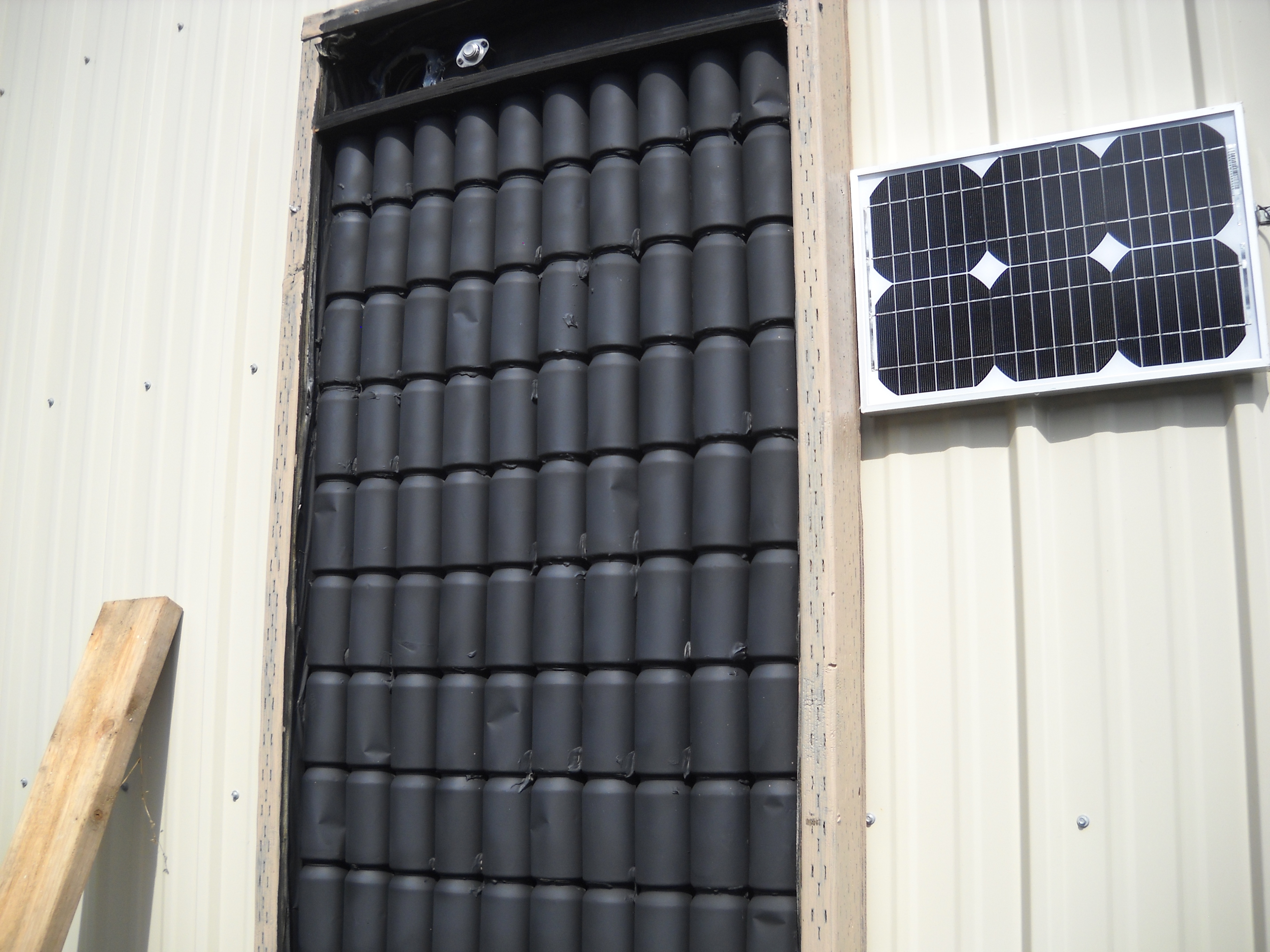

This instructable is about a solar pop can heater I made a few years ago. I take no credit for the design as I found a bunch of instructables and online videos on how to do it. This one is made out of 144 pop cans, a sliding glass door, a plywood and 2x4 box insulated with 1/2 inch insulation, a 15 watt solar panel, a 12 volt computer fan and a snap switch that clicks on at 100 degrees.
![DSCN8866.JPG](/proxy/?url=https://content.instructables.com/FHB/ZTIL/I5THV6UO/FHBZTILI5THV6UO.jpg&filename=DSCN8866.JPG)
![DSCN8867.JPG](/proxy/?url=https://content.instructables.com/FE0/XHZY/I5THV6V2/FE0XHZYI5THV6V2.jpg&filename=DSCN8867.JPG)
![DSCN8847.JPG](/proxy/?url=https://content.instructables.com/FXZ/HJ0G/I5THV6U8/FXZHJ0GI5THV6U8.jpg&filename=DSCN8847.JPG)
![DSCN0139.JPG](/proxy/?url=https://content.instructables.com/F5F/NJPA/I5THUJR7/F5FNJPAI5THUJR7.jpg&filename=DSCN0139.JPG)

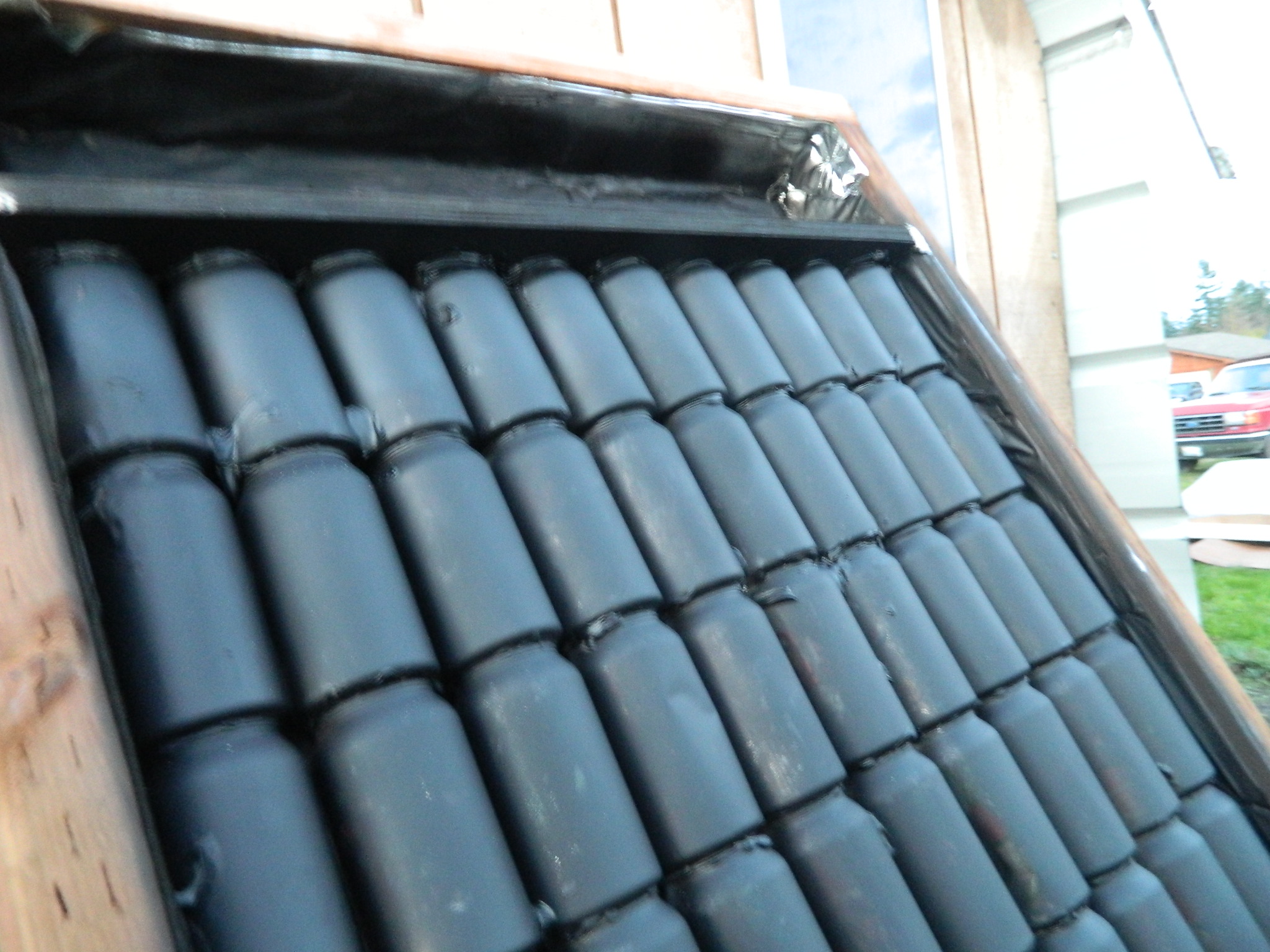

I cut holes in top and bottom of the cans and glued them together with liquid nail. made a manifold top and bottom for air in and out.
![DSCN1959.JPG](/proxy/?url=https://content.instructables.com/FZ9/5KO9/I5THUM59/FZ95KO9I5THUM59.jpg&filename=DSCN1959.JPG)
![DSCN1960.JPG](/proxy/?url=https://content.instructables.com/FUF/S6VZ/I5THUM6F/FUFS6VZI5THUM6F.jpg&filename=DSCN1960.JPG)
![DSCN1958.JPG](/proxy/?url=https://content.instructables.com/FSJ/XEXK/I5THUM4H/FSJXEXKI5THUM4H.jpg&filename=DSCN1958.JPG)

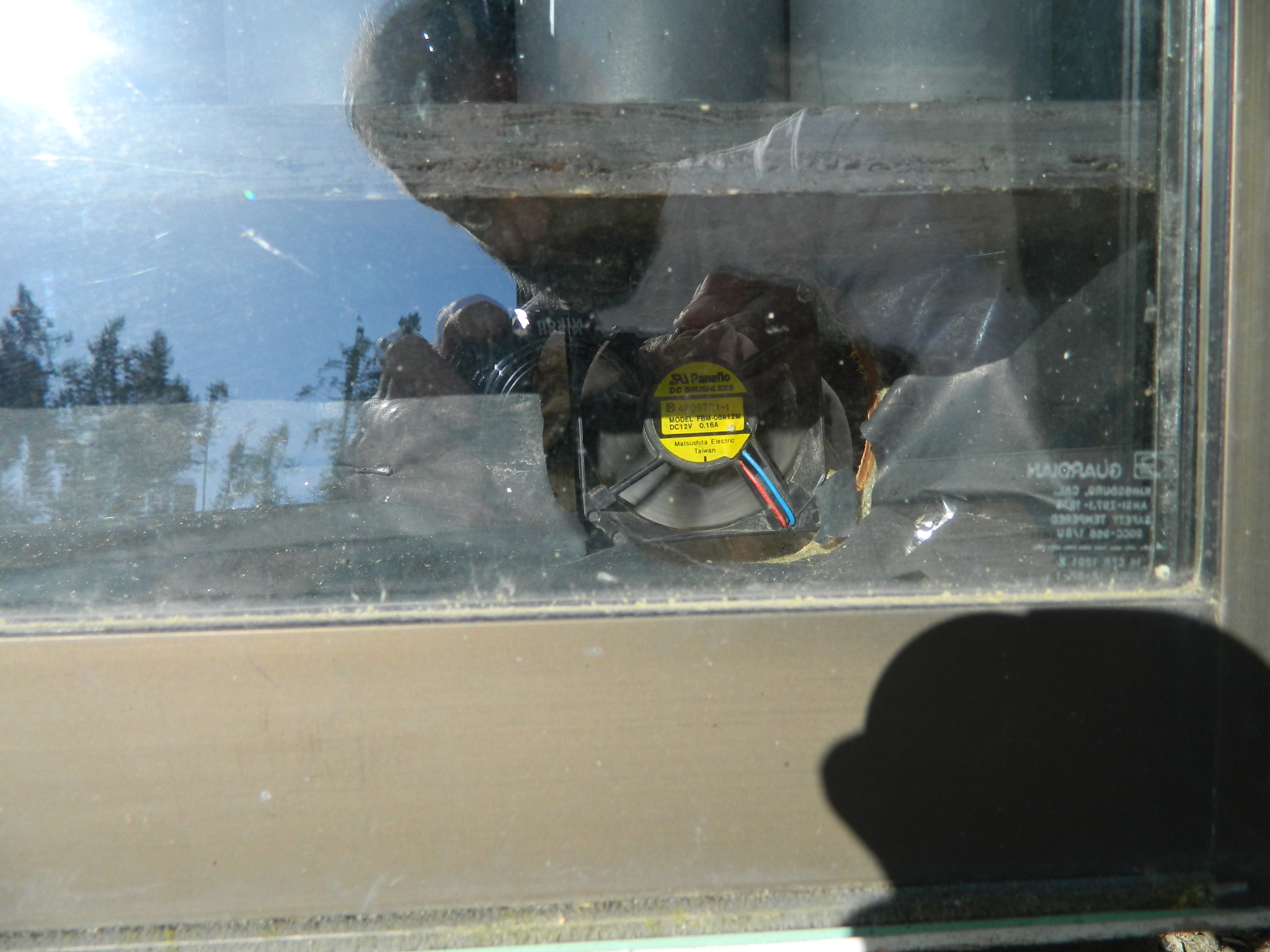

The fan is mounted in the bottom intake hole, The wiring is simple. solar panel to snap switch and to fan.
![DSCN0135.JPG](/proxy/?url=https://content.instructables.com/FQH/YPE8/I5THUJ8L/FQHYPE8I5THUJ8L.jpg&filename=DSCN0135.JPG)
![DSCN8762.JPG](/proxy/?url=https://content.instructables.com/F3J/X678/I5THV6SQ/F3JX678I5THV6SQ.jpg&filename=DSCN8762.JPG)
![DSCN8760.JPG](/proxy/?url=https://content.instructables.com/FHN/EG9Y/I5THUMAD/FHNEG9YI5THUMAD.jpg&filename=DSCN8760.JPG)
![DSCN0137.JPG](/proxy/?url=https://content.instructables.com/F2D/F5SZ/I5THUJNS/F2DF5SZI5THUJNS.jpg&filename=DSCN0137.JPG)
![DSCN8771.JPG](/proxy/?url=https://content.instructables.com/FA5/GPGS/I5THV6U5/FA5GPGSI5THV6U5.jpg&filename=DSCN8771.JPG)
![DSCN0223.JPG](/proxy/?url=https://content.instructables.com/FDW/2CVA/I5THULNH/FDW2CVAI5THULNH.jpg&filename=DSCN0223.JPG)

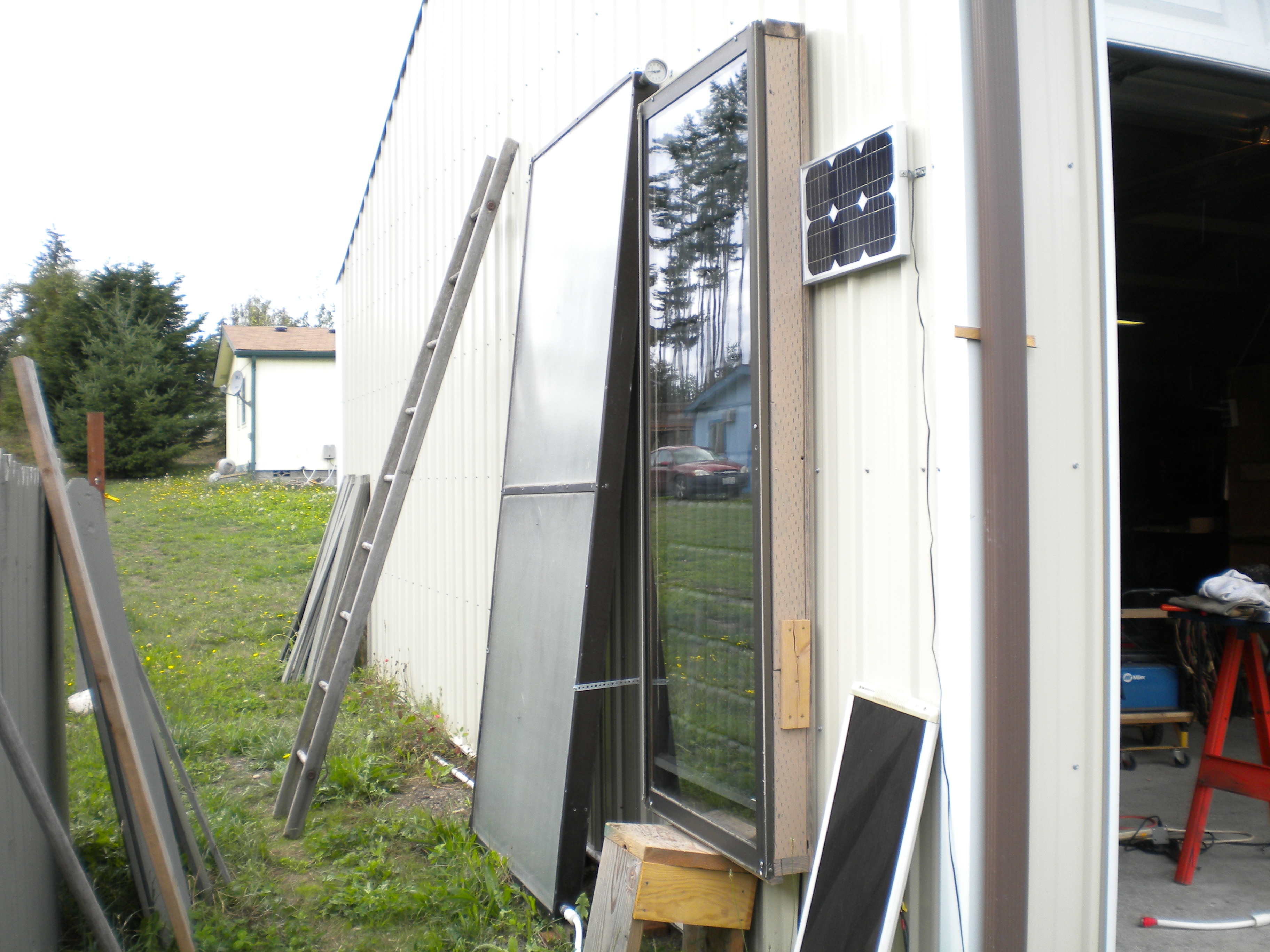

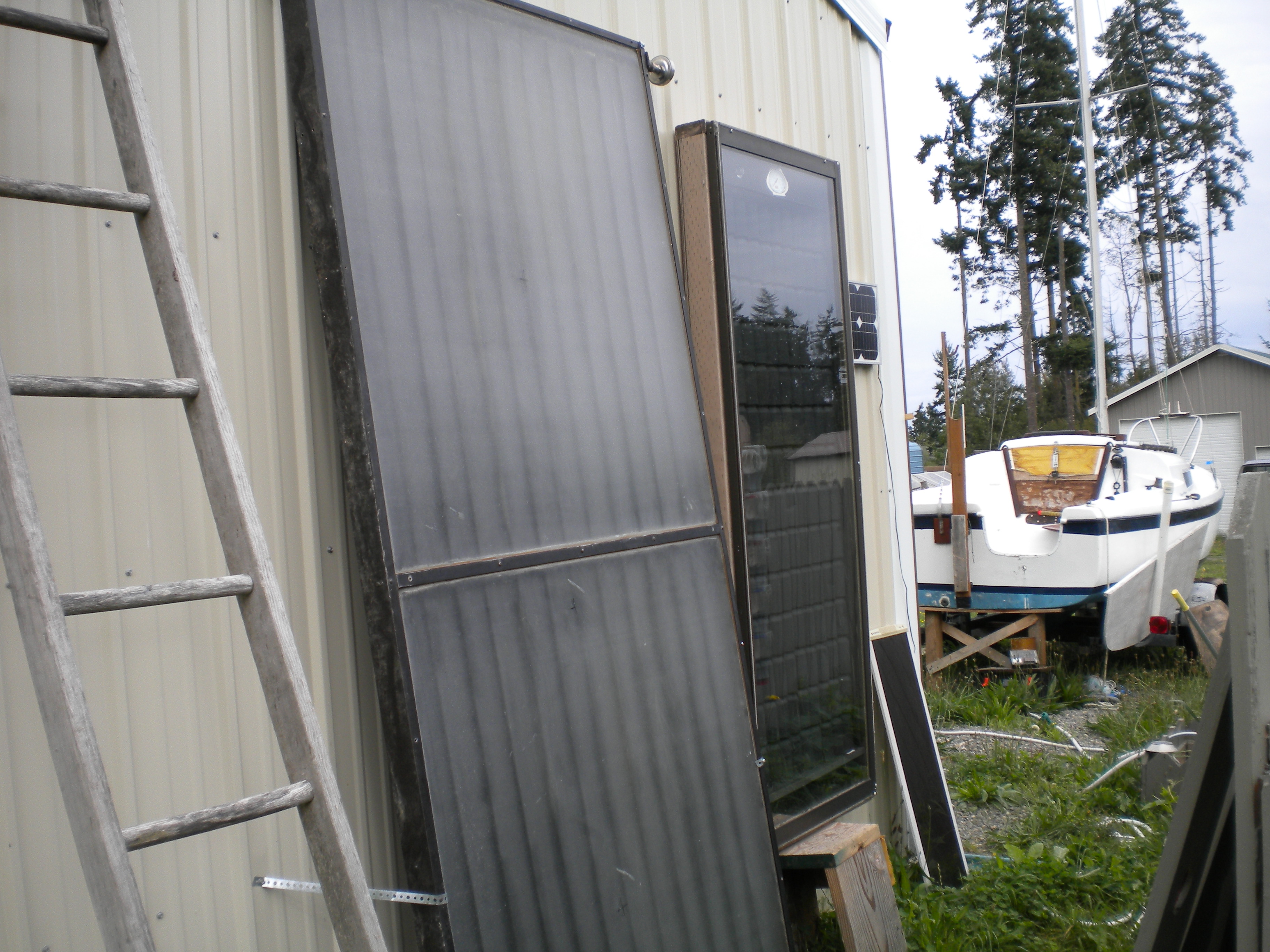

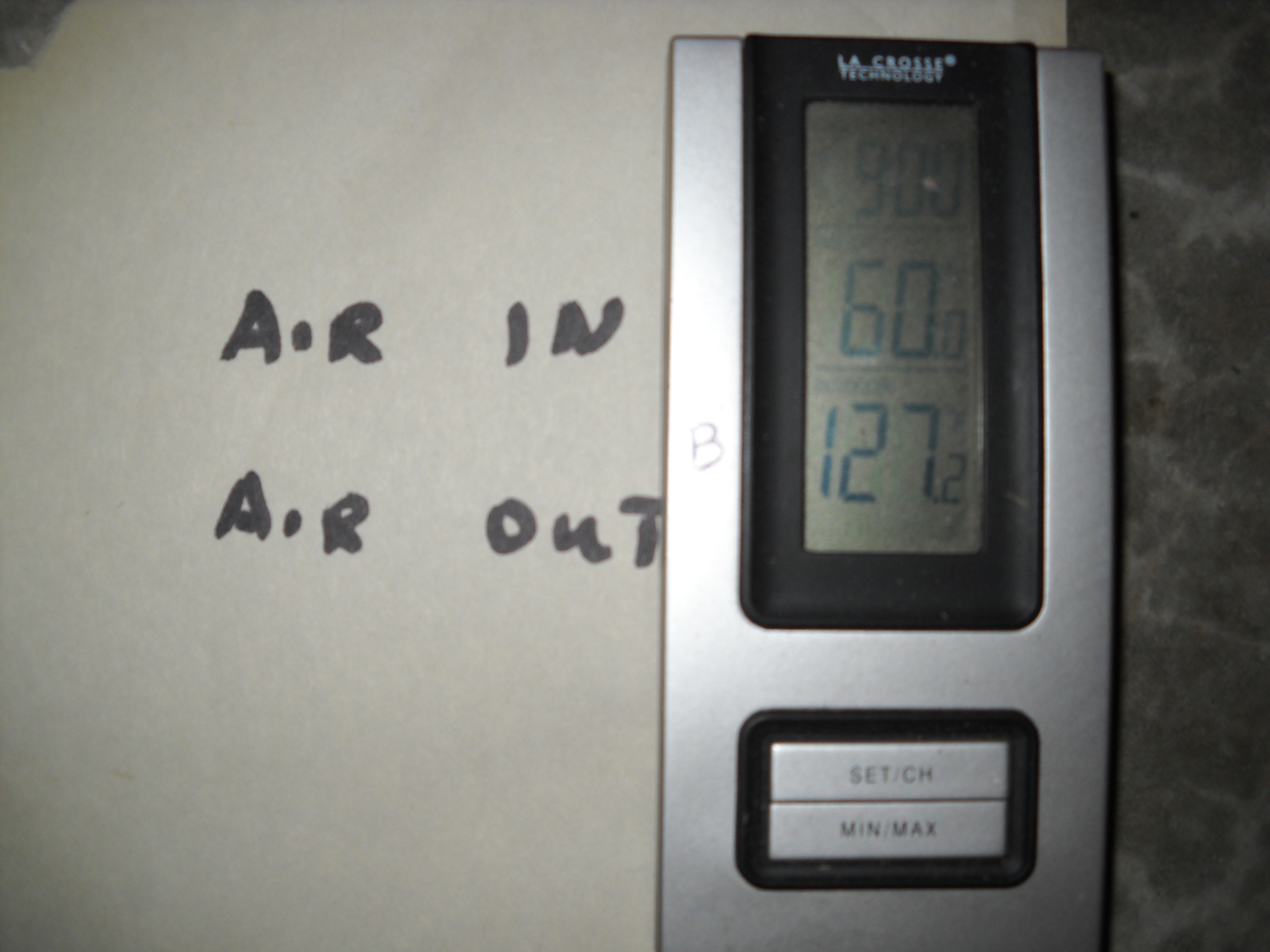

I cut 2 holes in the wall for air flow and mounted it a few feet off the ground. I used dryer duct inside the shop. It was taking 60 degree air in and putting out 127 degree air when I left. It is not big to heat the shop, it just keeps the chill off.
