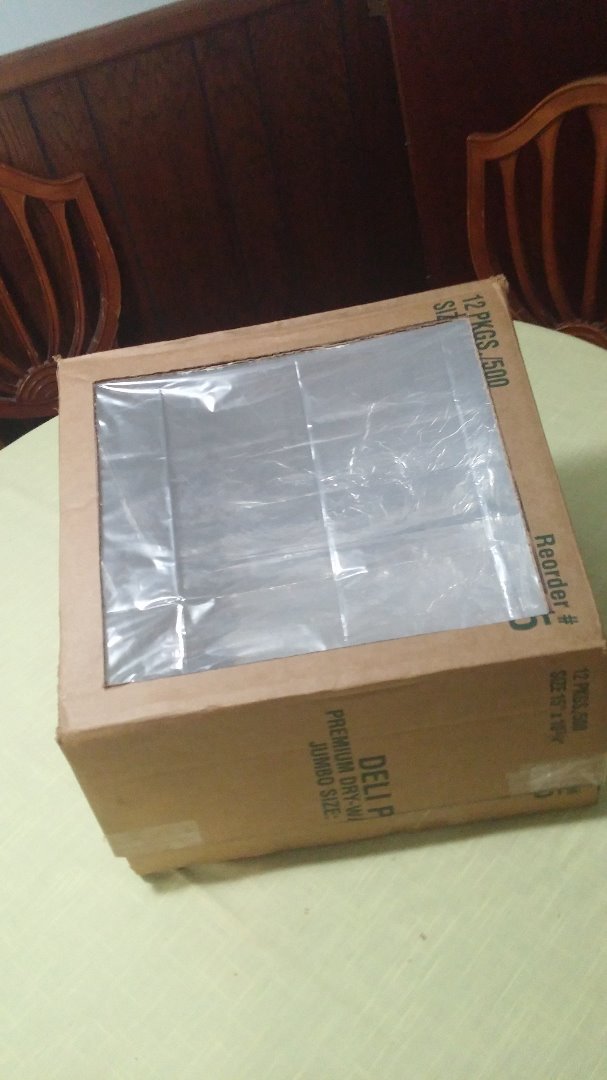

Solar Cooker (cardboard Box)


Solar Cooker - using a cardboard box construction lined with aluminum foil to harness the sun's energy for cooking your meals, dehydrating foods, and even purifying water!

Recipes can be found at: http://solarcooking.wikia.com/wiki/Recipes

or http://www.sunoven.com/sun-cooking-usa/how-to-use

Materials Needed


Cardboard box (large enough to for cooking pan or pot to fit in)

Aluminum foil

Oven bag (large enough to cover opening on side of box)

Box cutter

White glue

Straight edge

Pen or marker

Draw Line on Box Top


With the box top closed, using the straight edge and pen draw a line from the upper right corner to the midline of the box.

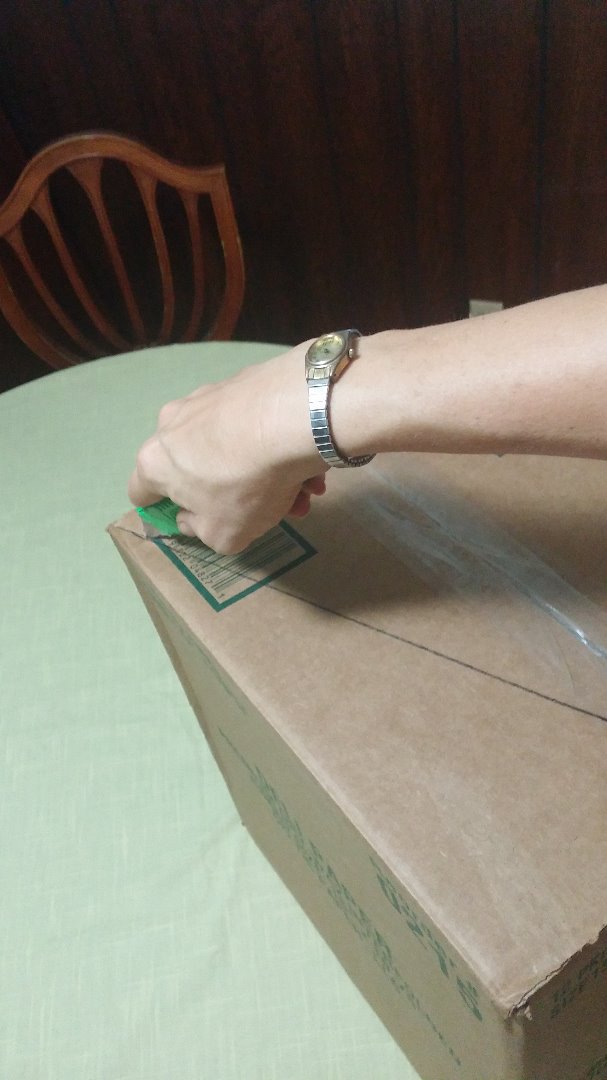

Cut the Box Top


Using the box cutter cut the box top along line.

Draw Line on Box Side


Using the straight edge draw a line down the midline on the side of the box to meet the cut made in the top of the box.

Cut Side of Box


Cut down the side of the box along the line.

Draw and Cut Bottom of Box


On the bottom of the box, again using the straight edge, draw a line from the upper left corner to the midline of the box to meet the cut made on the side of the box.

Cut along the line.

Open the Box Up


Open the box up along the newly cut lid. Glue the flaps inside the sides of the box together using the white glue.

Draw Window


Close the newly formed lid and draw a window leaving approx. 1 inch border.

Cut Window


Cut along the line to create the window in the lid of the box.

Apply Glue to Lid Window


Open the box lid and apply glue around the edges of the window.

Apply Oven Bag


Place the oven bag over the window and press down along the glue edges.

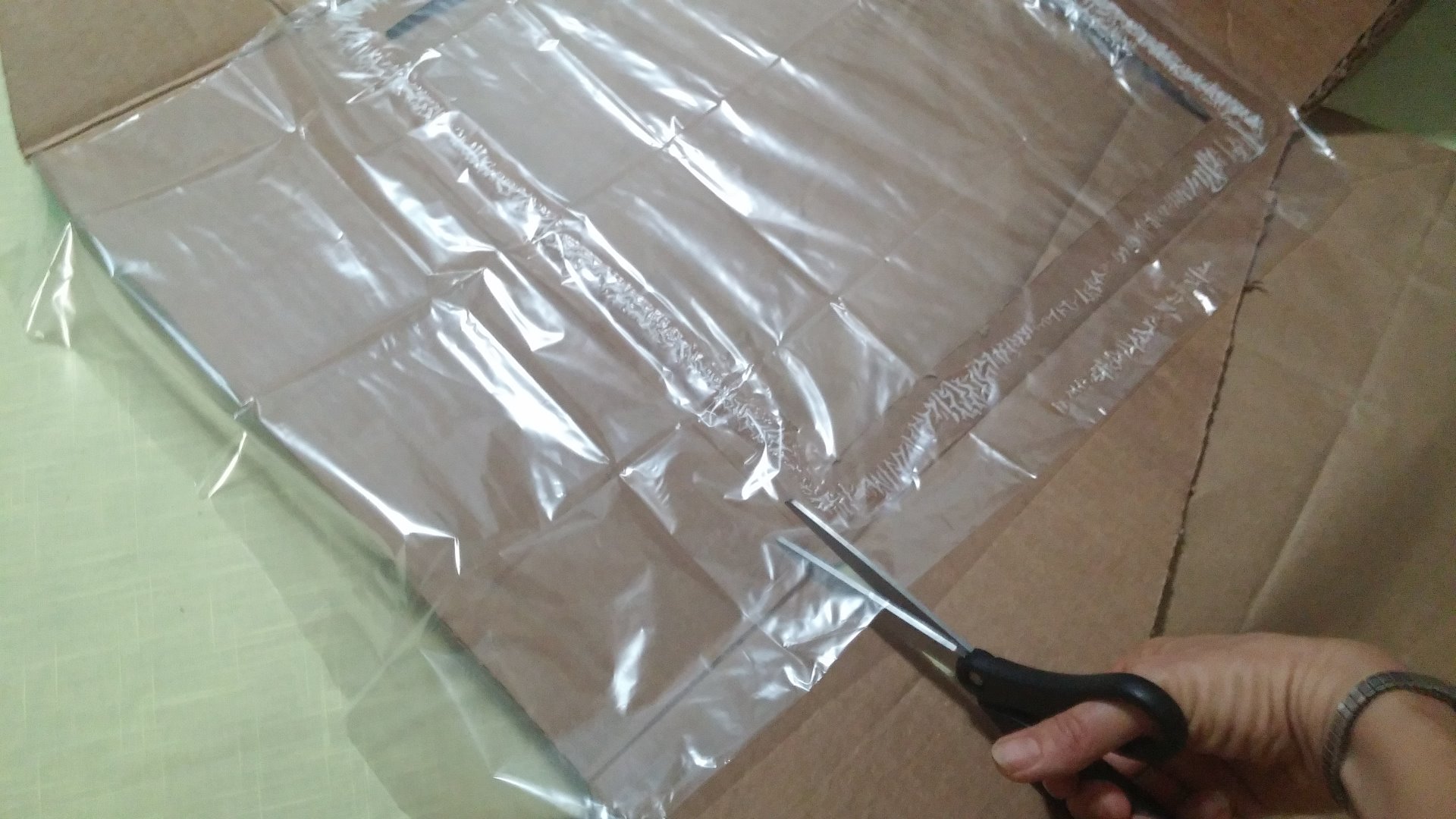

Trim Over Bag


Trim along the edges of the oven bag. You will need to glue the second layer of the oven bag down to the first to keep it doubly thick.

Glue Inside of Box


Apply glue to all the interior box surfaces.

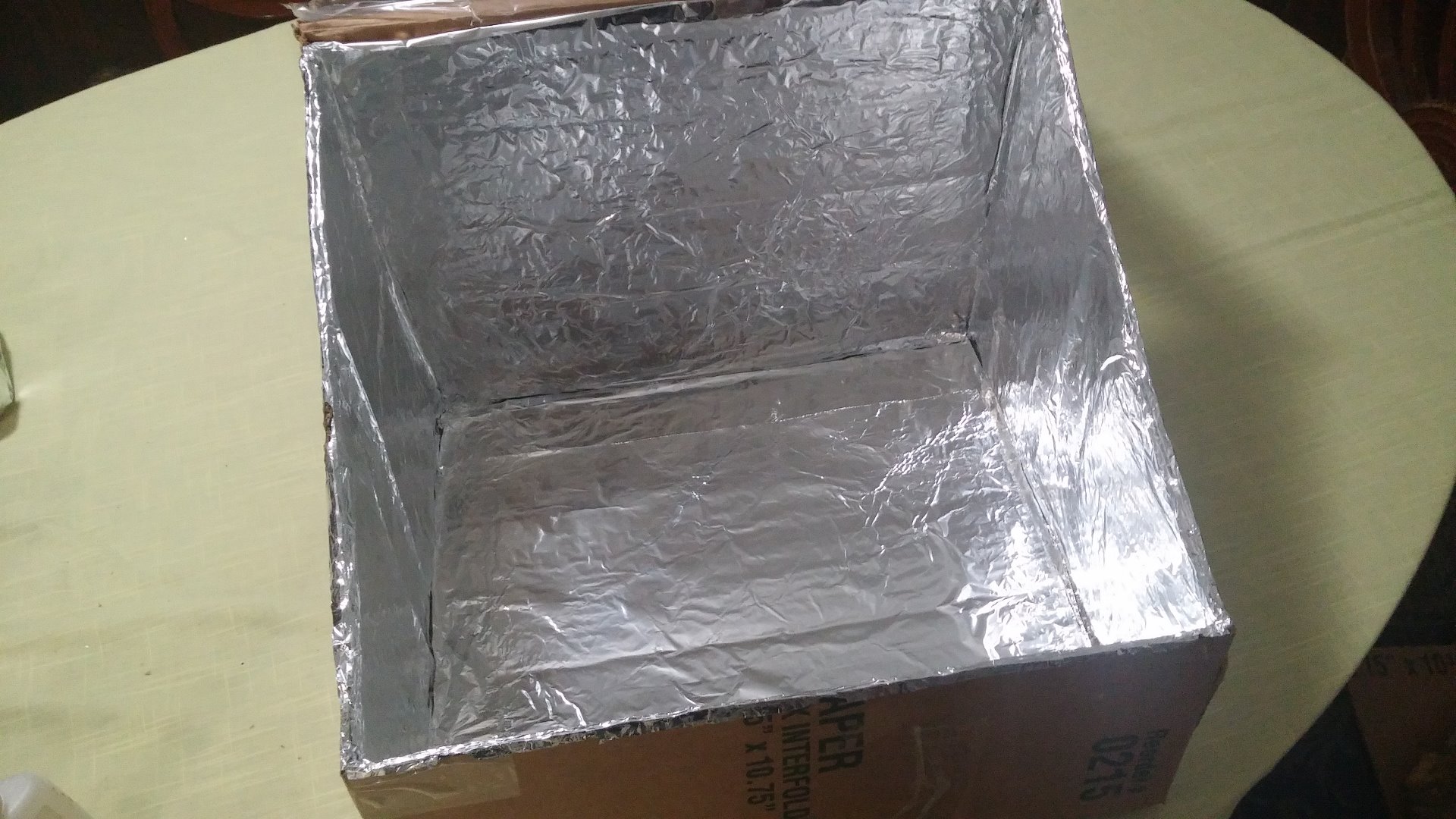

Apply Foil to Inside of Box


Place the aluminum foil to line the interior surfaces of the box.

Glue the Lid Flap


Close the lid and measure where to create the corners using the flaps. Apply the glue to both flaps and seal to create the corner.
