Solar Tracker

by monusuthar2016 in Circuits > Arduino

2443 Views, 18 Favorites, 0 Comments

Solar Tracker

SOLAR TRACKER PROJECT

Solar energy is the biggest renewable energy and it is available almost everywhere in the world, purpose of making this project is that solar plates are stationary so plates can not use 100% solar power.

by using solar tracker energy production can be increased by 20 to 30 %

Componsnts

  • Arduino Nano 1pc
  • USB CableFor Programming 1pc
  • SwitchSPDT 1pc
  • SwitchMomentary 1pc
  • Resistors10K Ohm 3pcs
  • LDR Sensor 2 pcs
  • Servo Motor9g 1pc
  • Power Source9 or 12 Volt 1pc

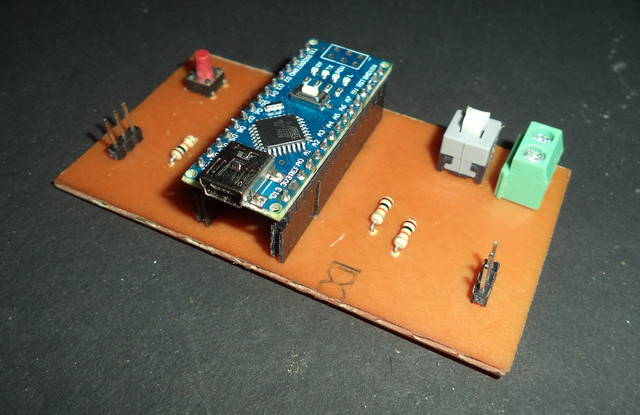

  • PCBCopper Clad/Zero PCB 1pc

Circuit


Video

SOLAR TRACKER PROJECT

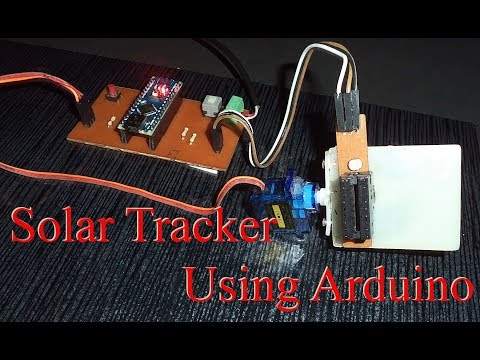

Watch My Video

https://youtu.be/dzY0IrvXBTk
