Solar Terminal - Upgrade Stage 1

Following a few suggestions on my first instructable, I have made a few upgrades and improvements.

First on the list, replacing the panel cabling and adding a fuse.

I set about replacing the cabling with 30amp rated cabling in parallel to add current.

I have added a 15w fuse to the 'Flora'  junction box and remounting on the pallet.

Stripping out the control box and refurbishment.

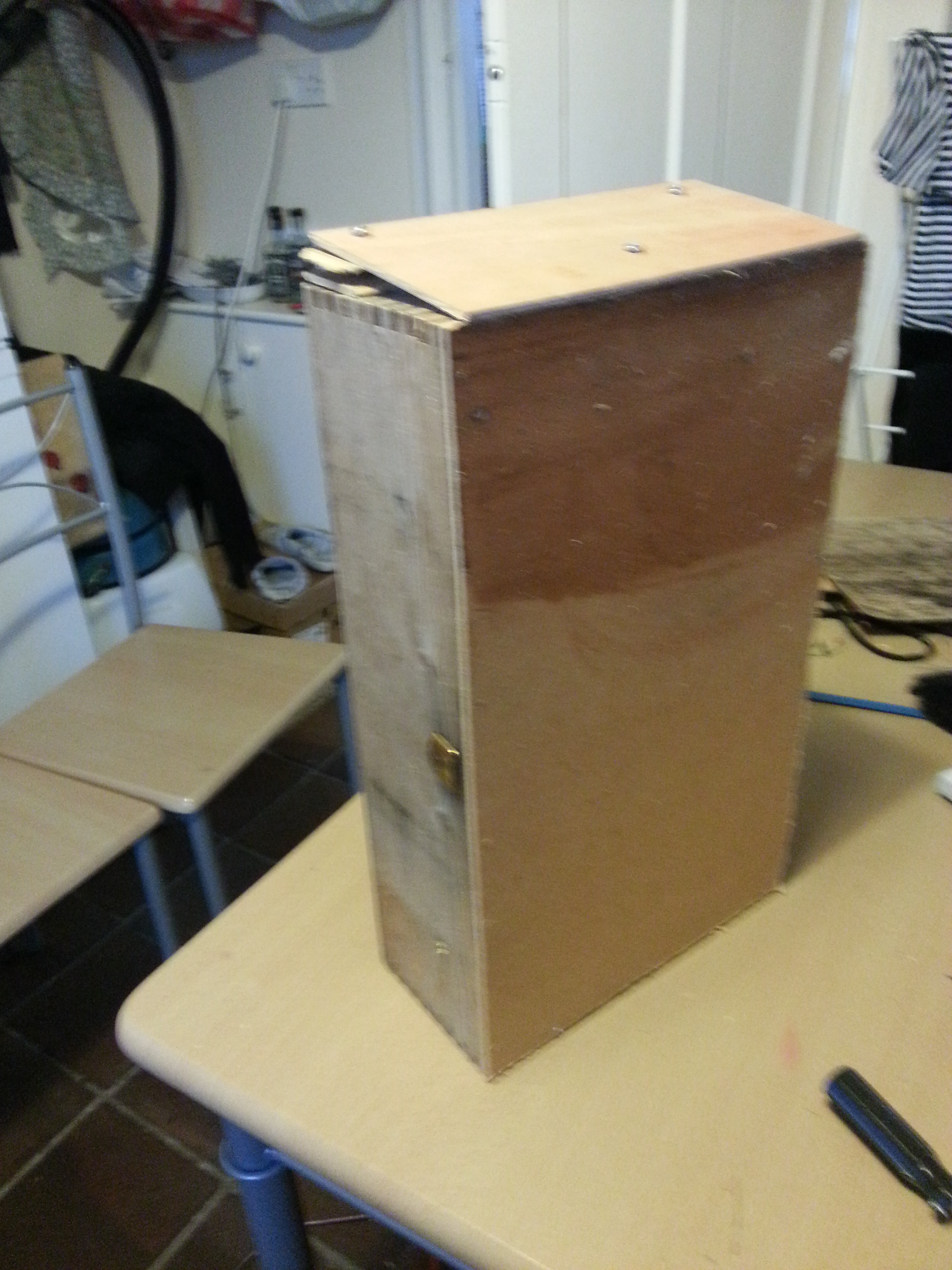

The box, now empty, ready for repair, staining and varnishing.

To save on water seeping into the box

The front of the box needed replacing.

Now to stain, varnish and refit the electrical equipment.
