DIY Solar System Night Lamp

Solar System Lamp one of the better choices for a grand piece on your Desk and in Bedroom. In Night it looks more attractive when LED glow. It is very simple to make.

1. Diffused Red or Yellow LED 5mm - 4

2. Diffused White LED 5mm - 4

3. Diffused Blue LED 5mm - 4

4. 3mm X 7mm screw - 4

5. 2.7k ohm resistor - 1

6. DC Female 12v Jack - 1

7. 12v 1Amp Power Adapter - 1

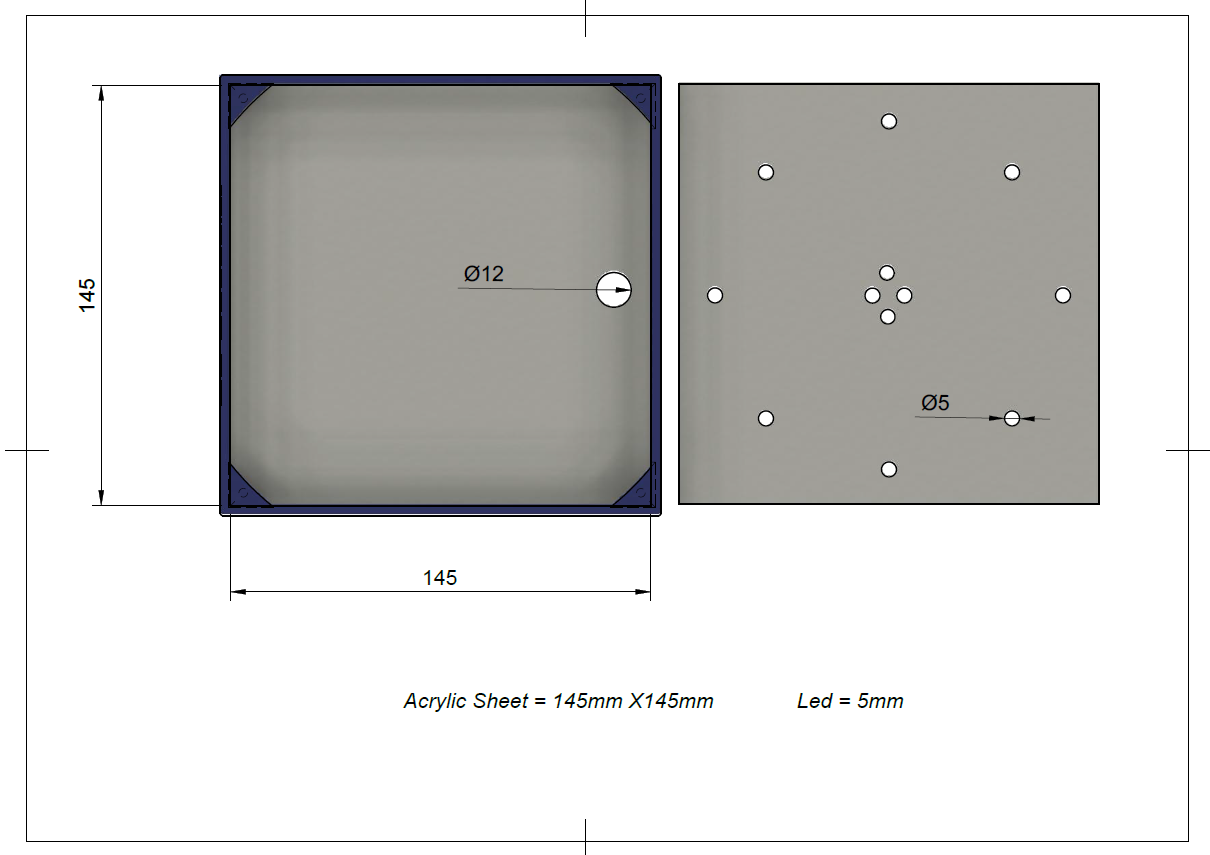

8. 3mm Acrylic sheet - 145mm X 145mm - 1

9. Wire - 2 colours each of 50cm

10. Black Acrylic colour - 1

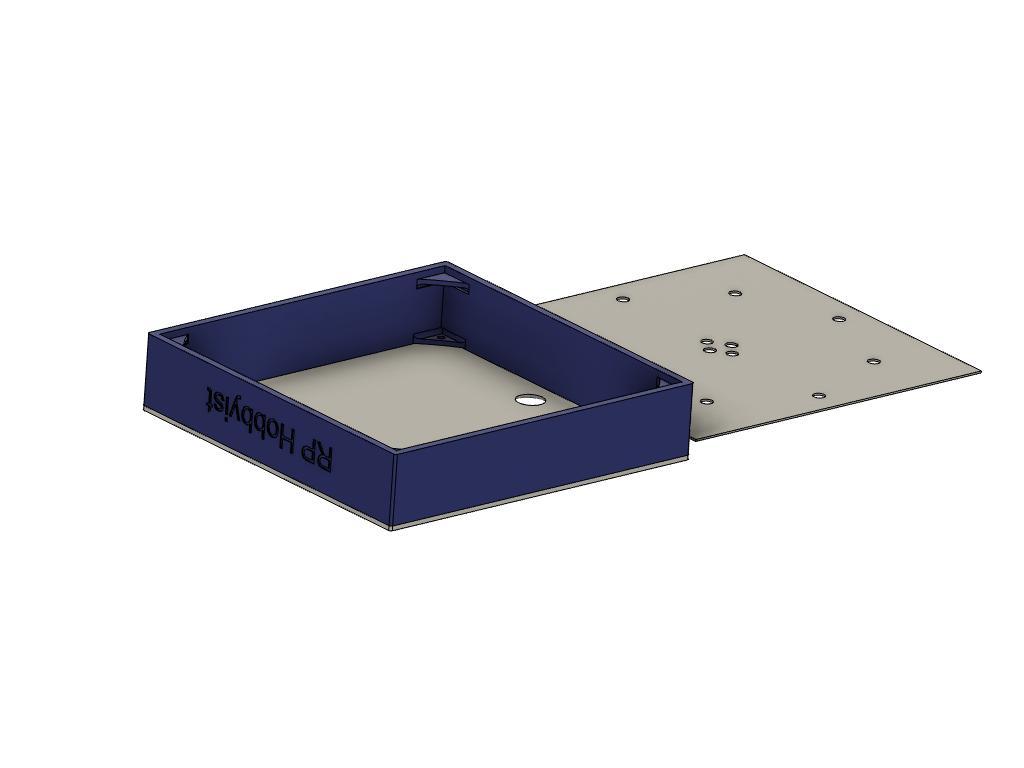

11. 3D Printed Parts

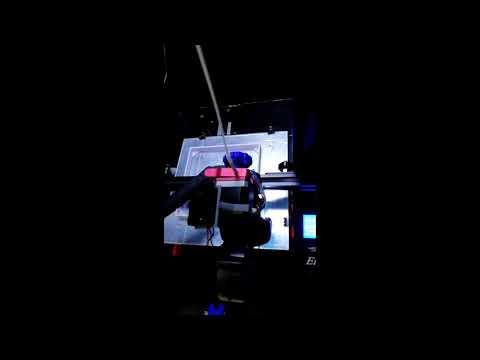

12. CNC Machine for engraving

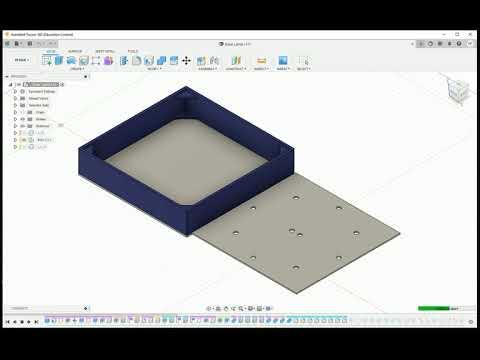

Designed in Fusion360 Software.

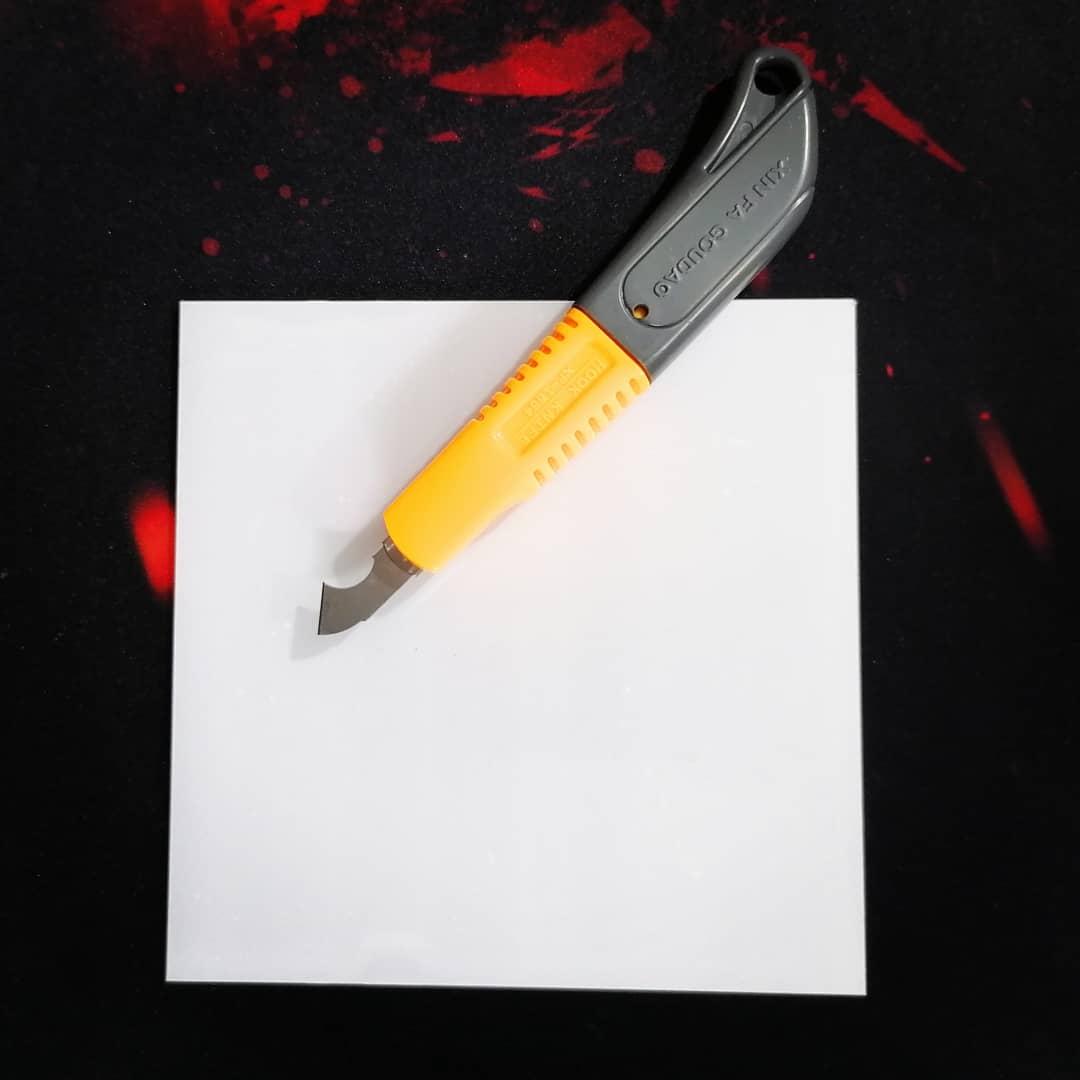

1. Cut the 3mm Acrylic Sheet to the size of 145mm X 145mm.

2. Use Black acrylic colour for Painting the one side of acrylic sheet.

Here I am providing files.

1. Solar System Image

2. SVG Image

3. DFX Image

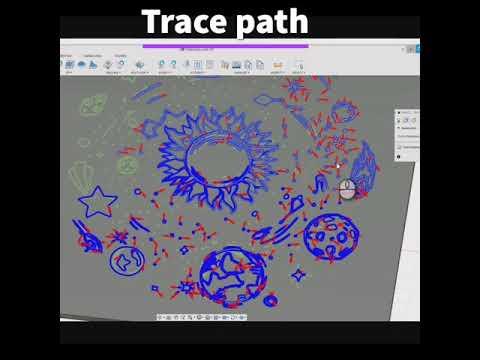

4. G-code

Note 1: Engrave on the side where you have painted the sheet. Don't remove the protection film on other side until you completes all things.

Note 2: If you know how to edit G-code then only use it otherwise not.

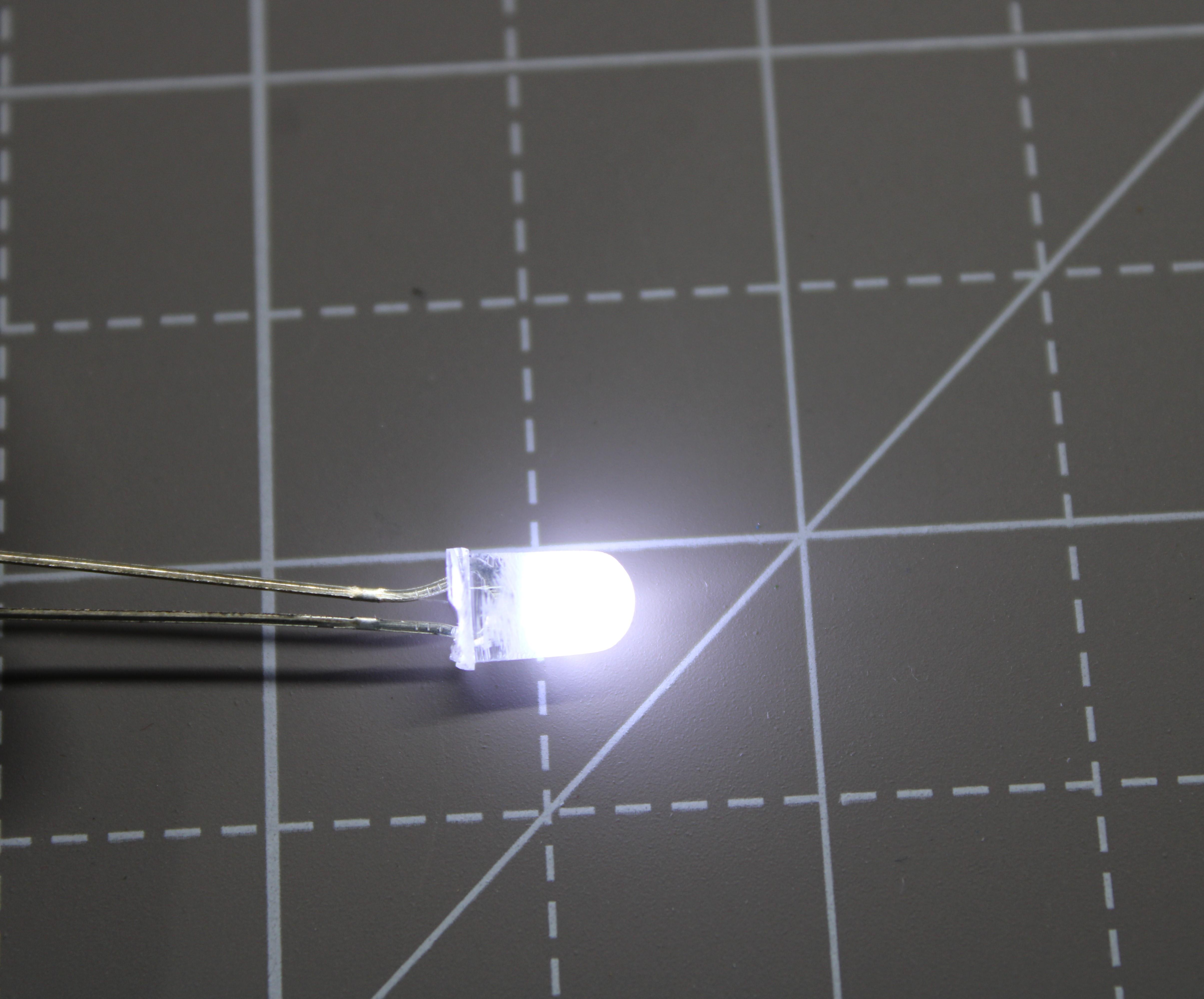

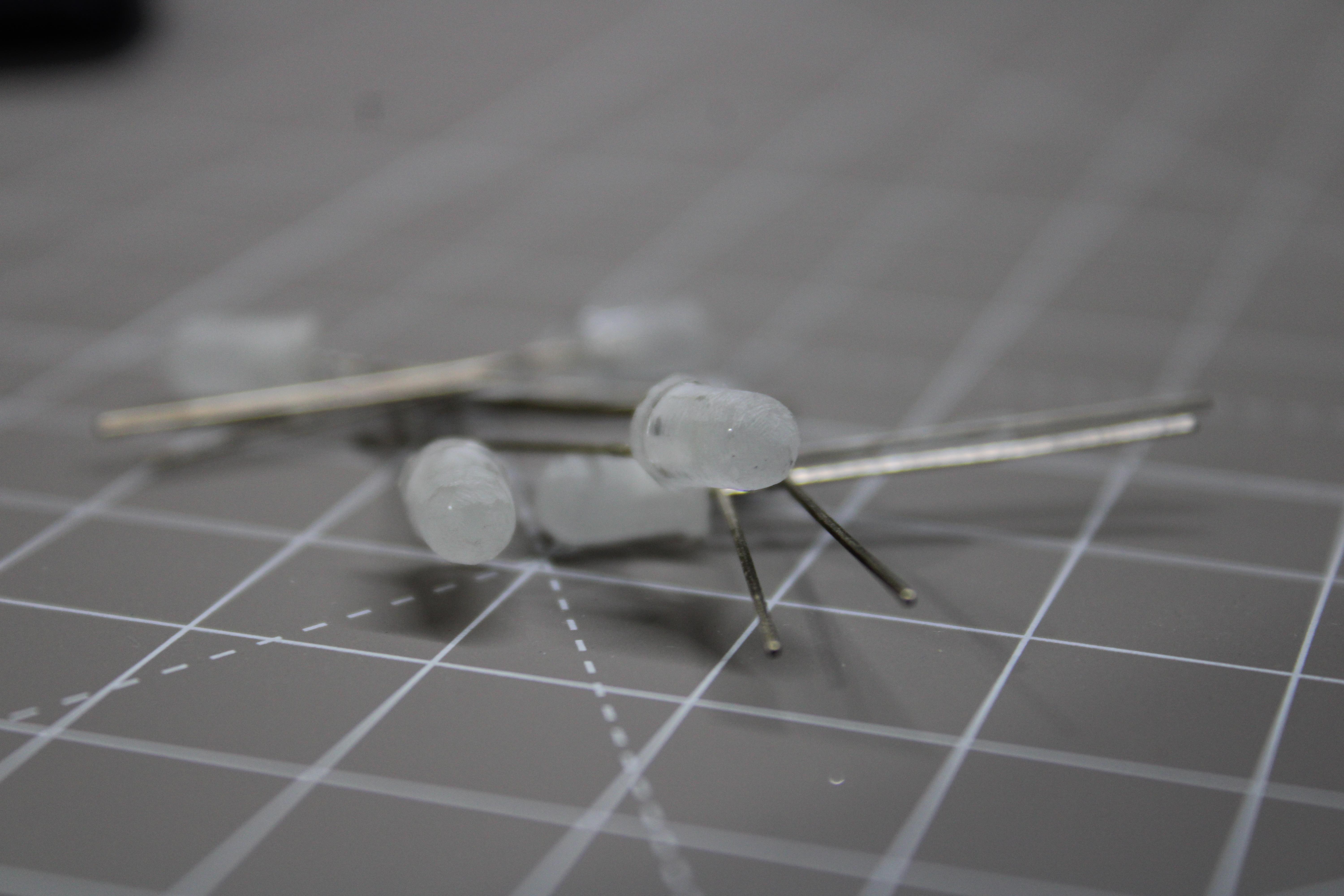

Note 1: Please check working voltage of your LEDs and it must be diffused LEDs. Here I am using White and Blue LEDs which works on 3 volts and Red LEDs which works on 2 volts.

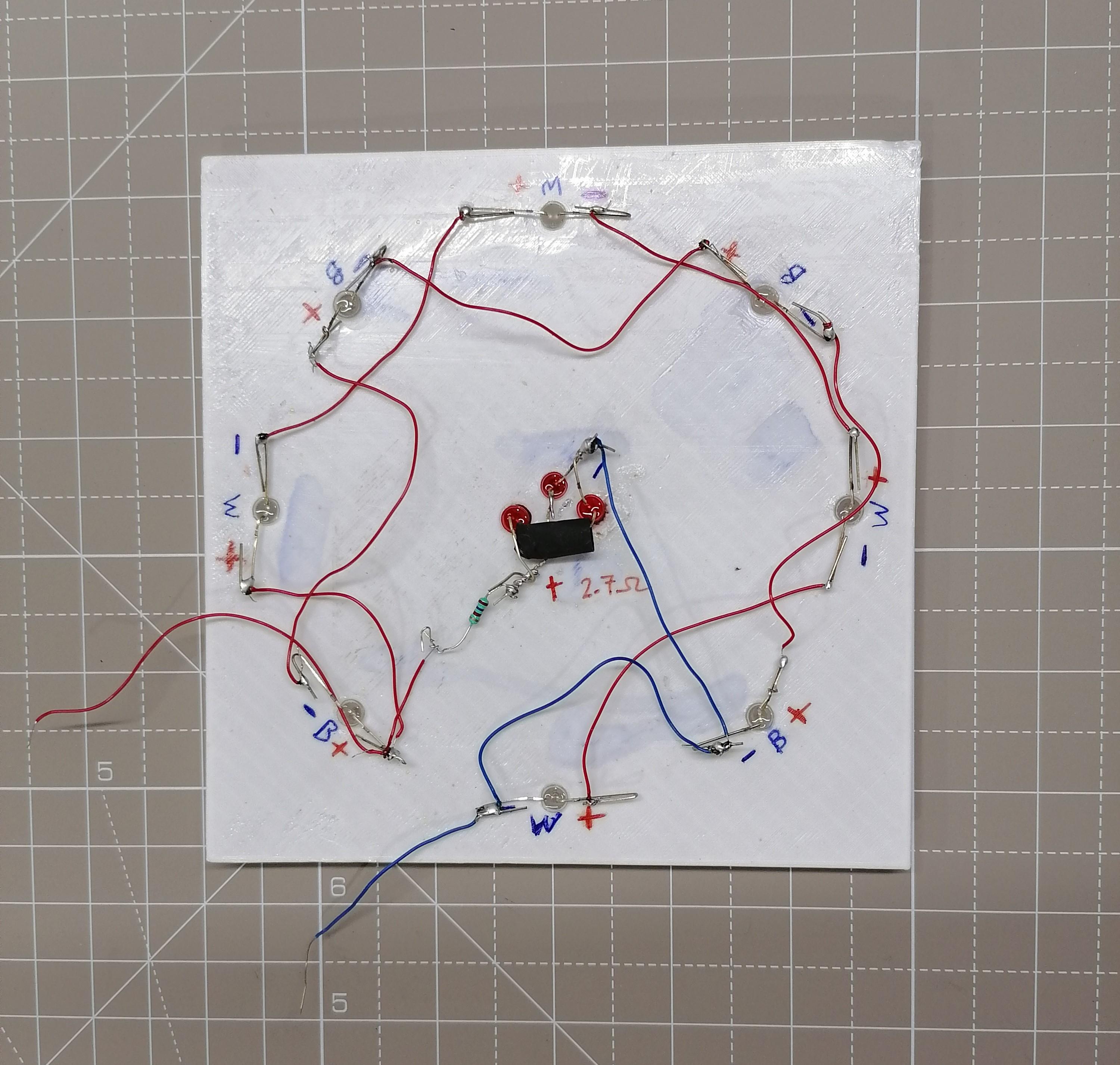

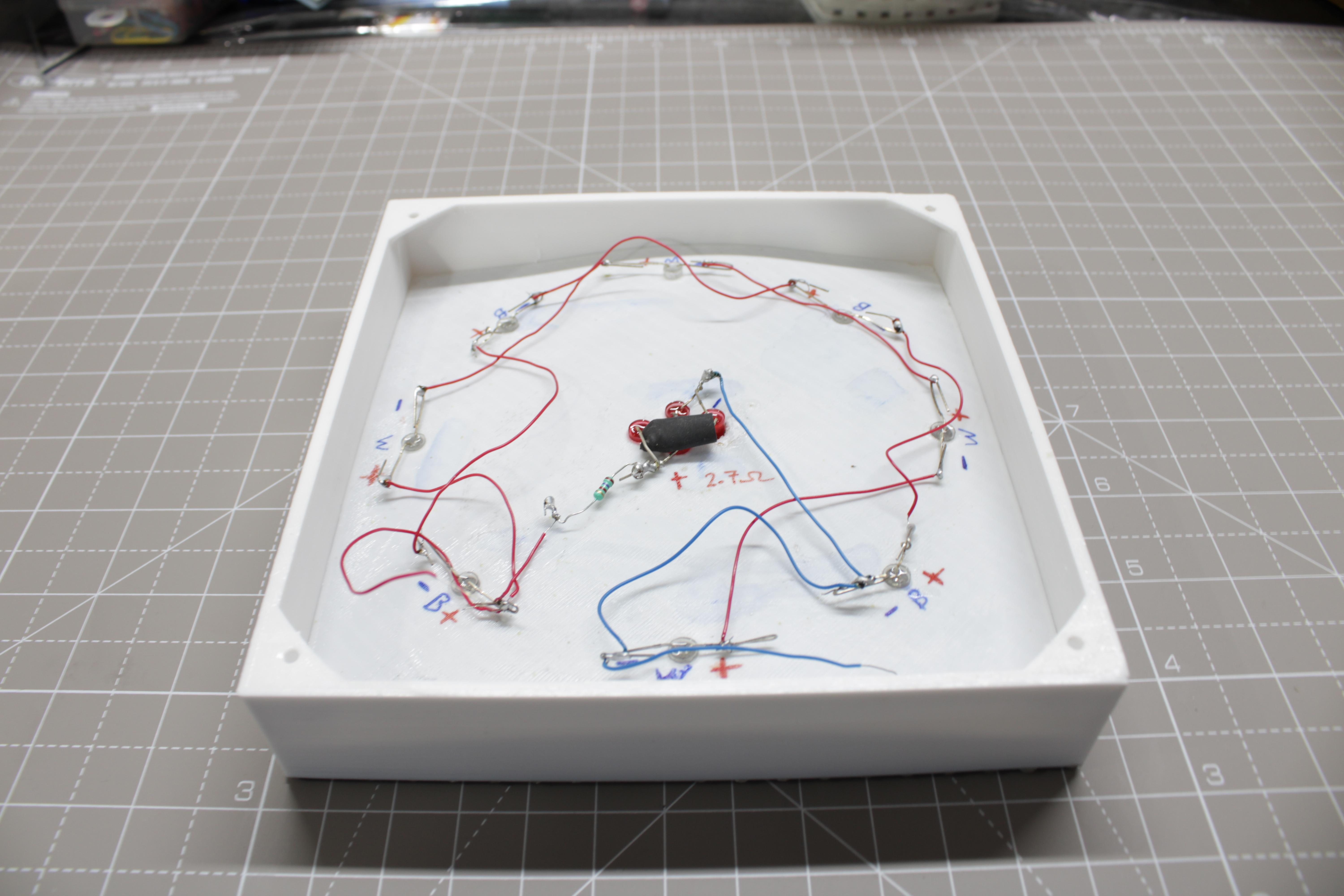

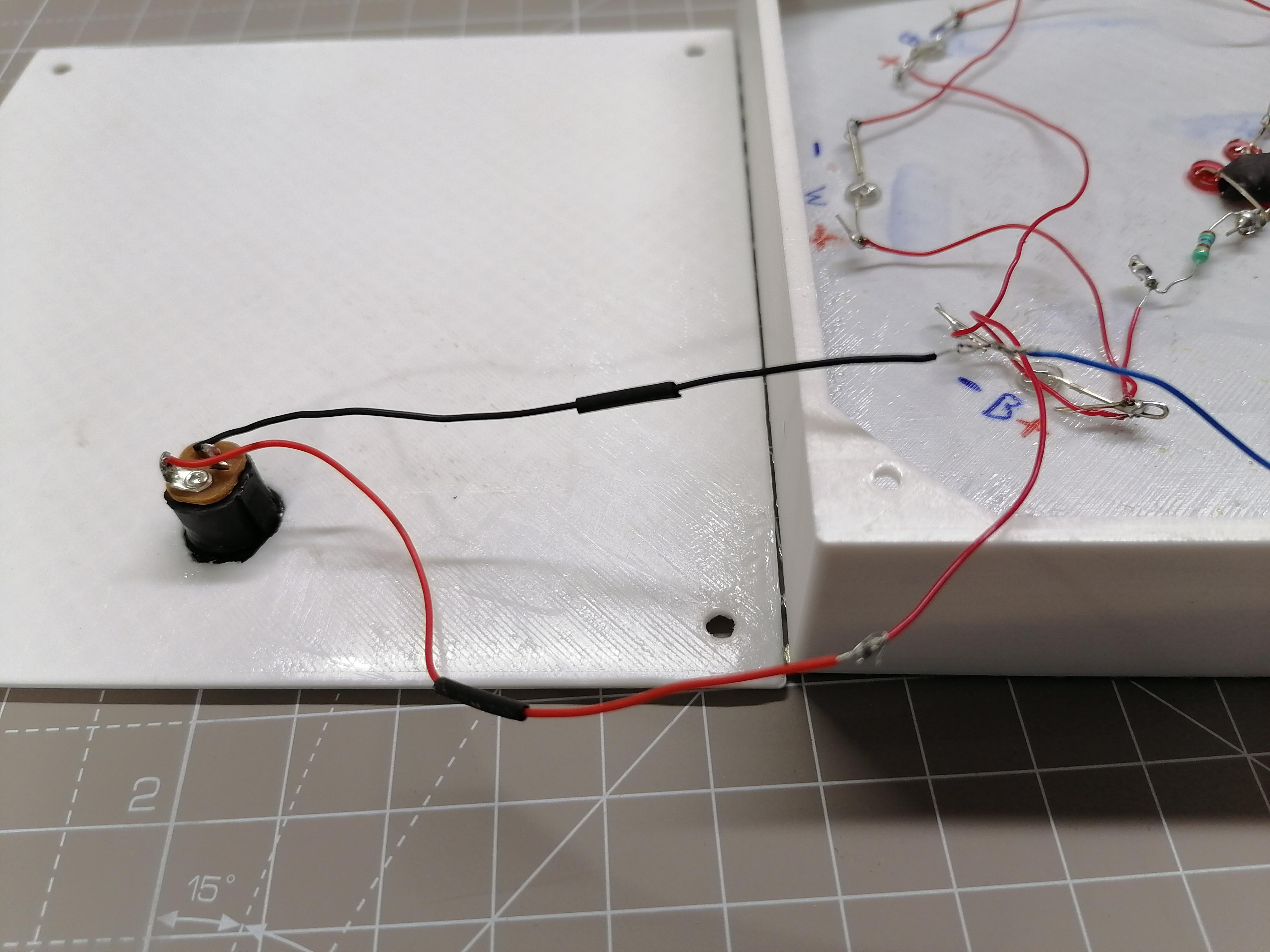

1. Connect LEDs as show in figure.

2. White LEDs are in series and Parallel with other LEDs.

3. Blue LEDs are in series and Parallel with other LEDs.

4. Red LEDs are in series with 2.7k ohm resistor and Parallel with other LEDs.

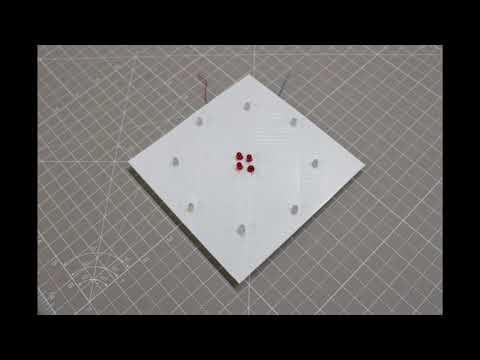

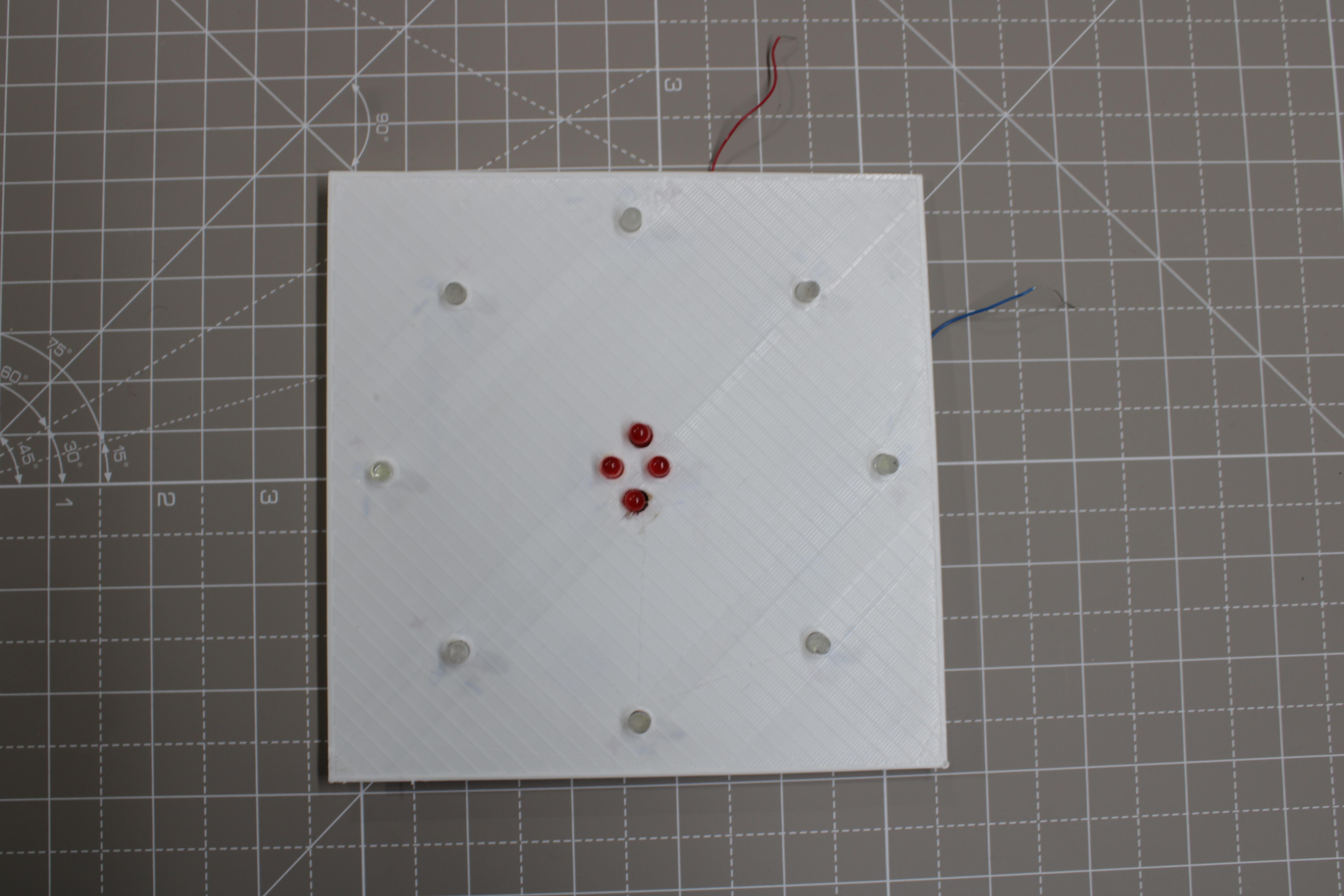

Note 2: Alternate the LEDs as shown in Image ...

Blue=B and White=W.

Use this config for LEDs B-W-B-W-B-W

Refer the above Images.

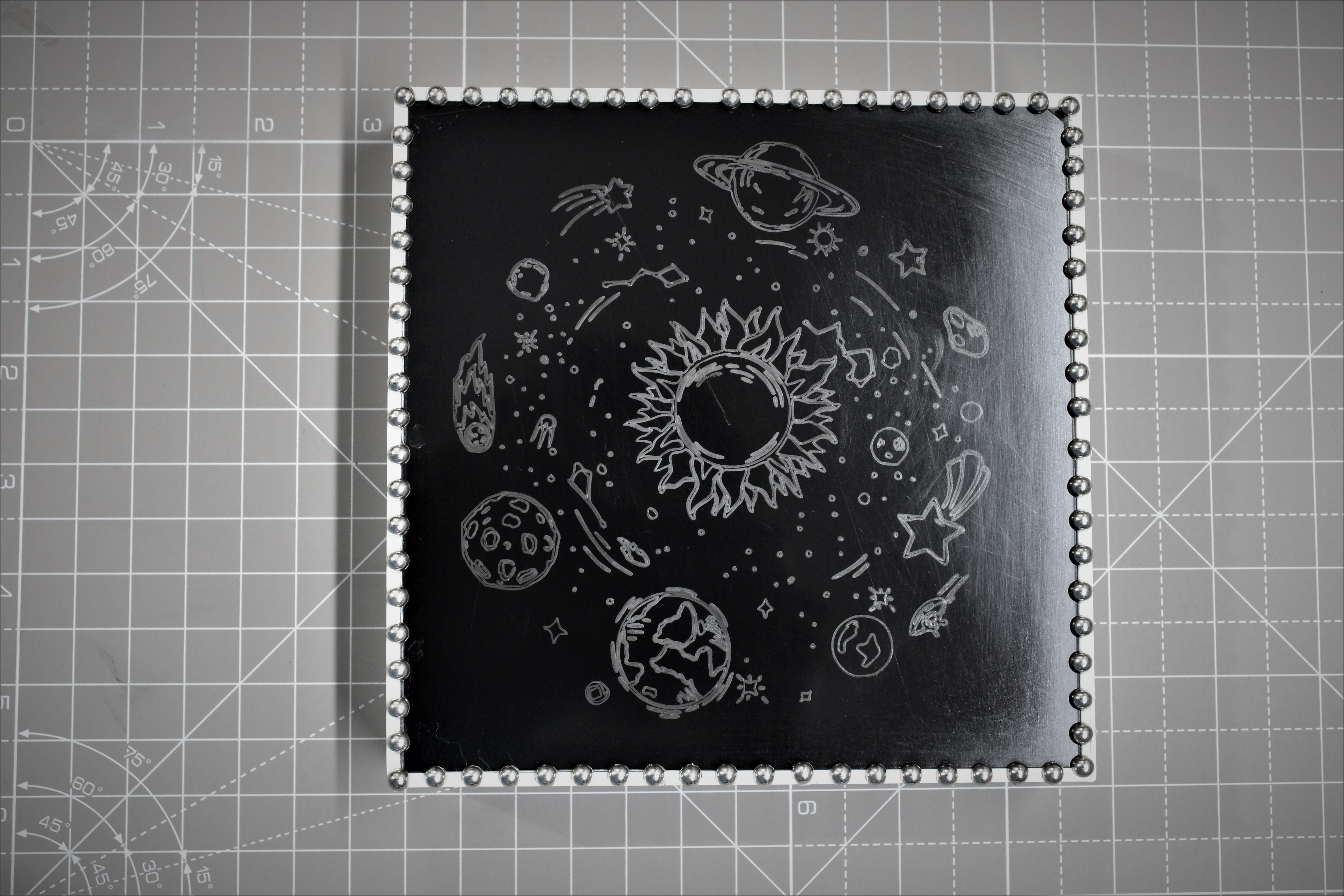

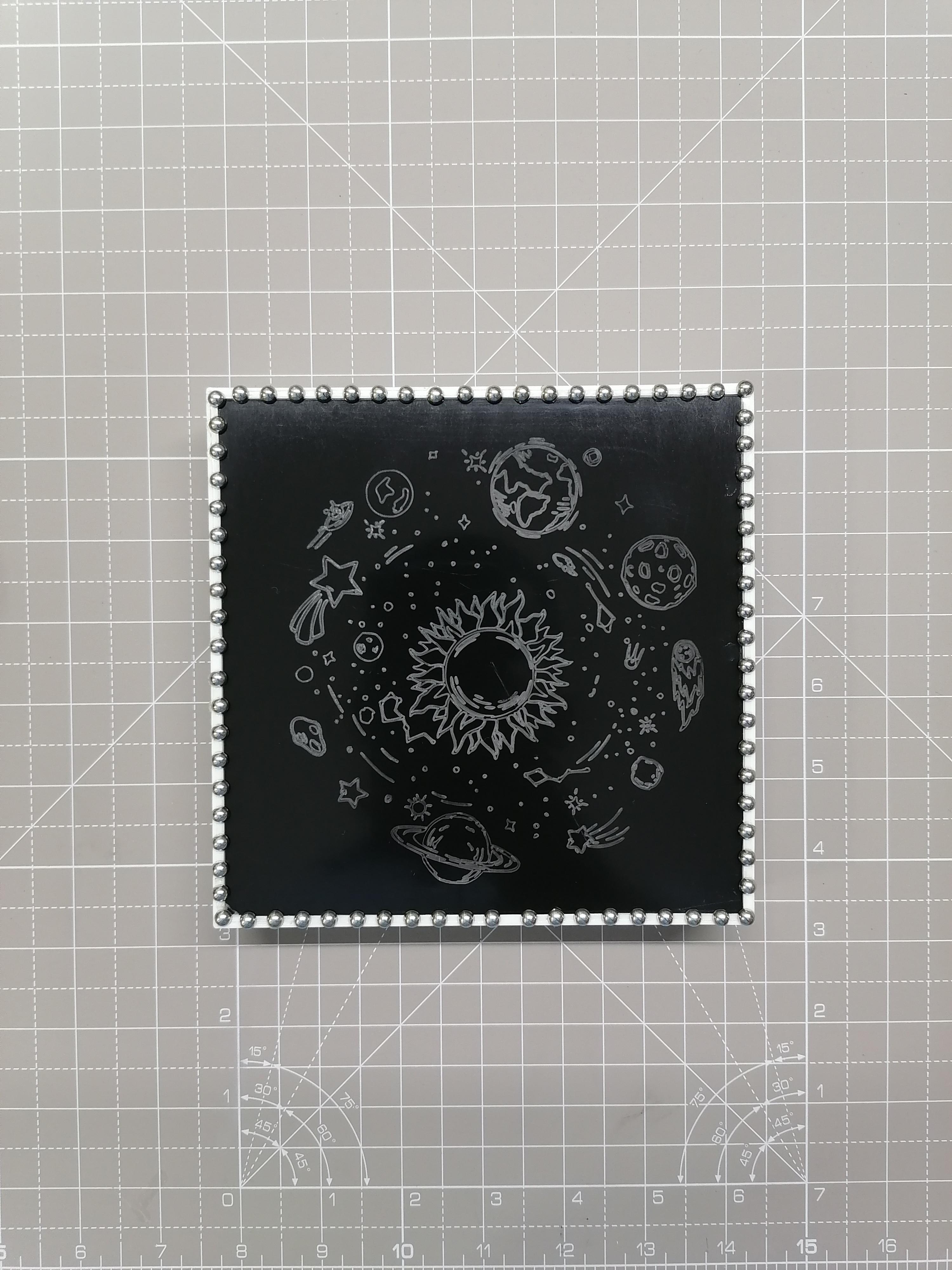

Decorate as per your choice. I use beads strips on the boundary.

Now remove the protection film from Acrylic sheet.

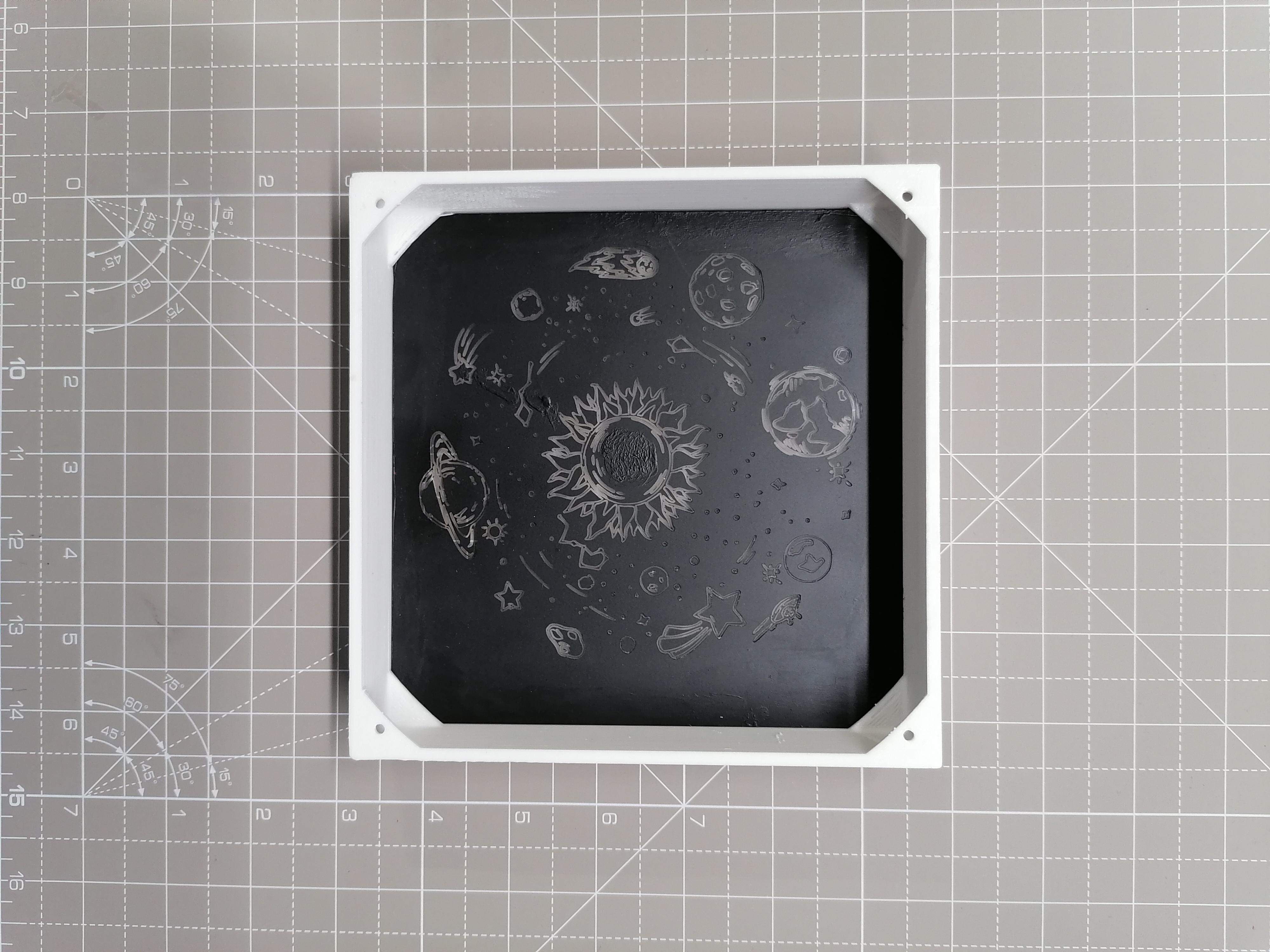

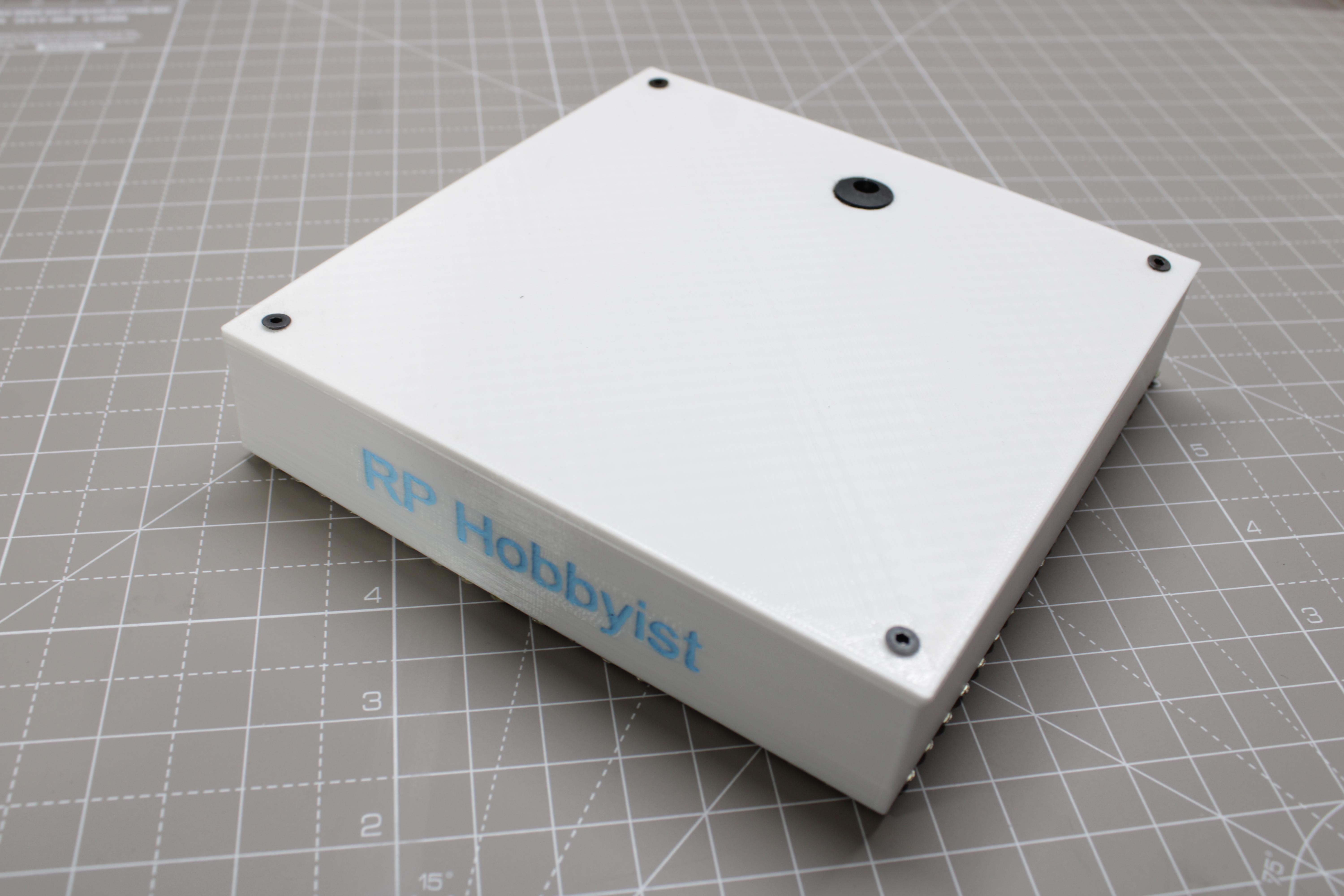

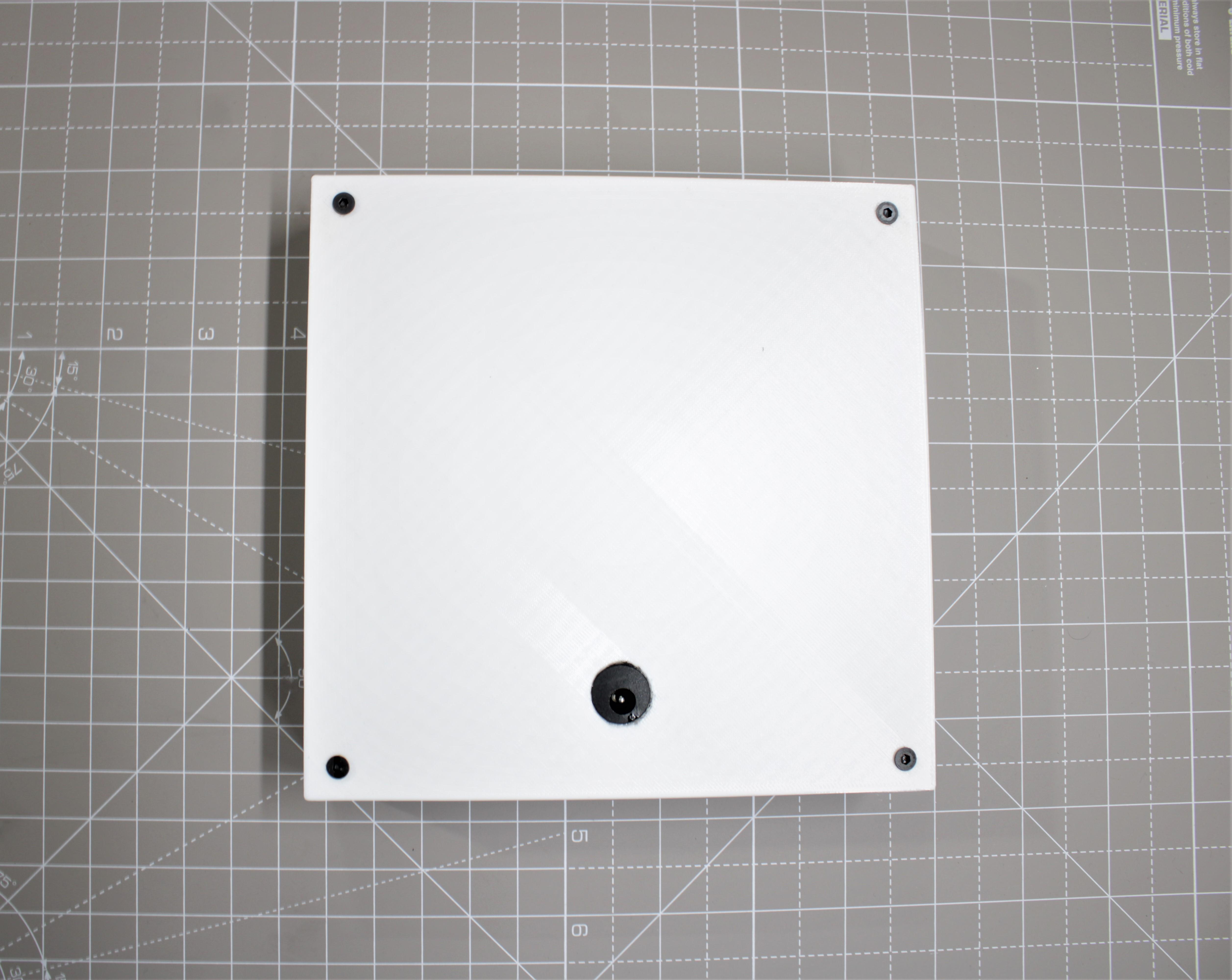

Close back side using 4 screws with Back Lid

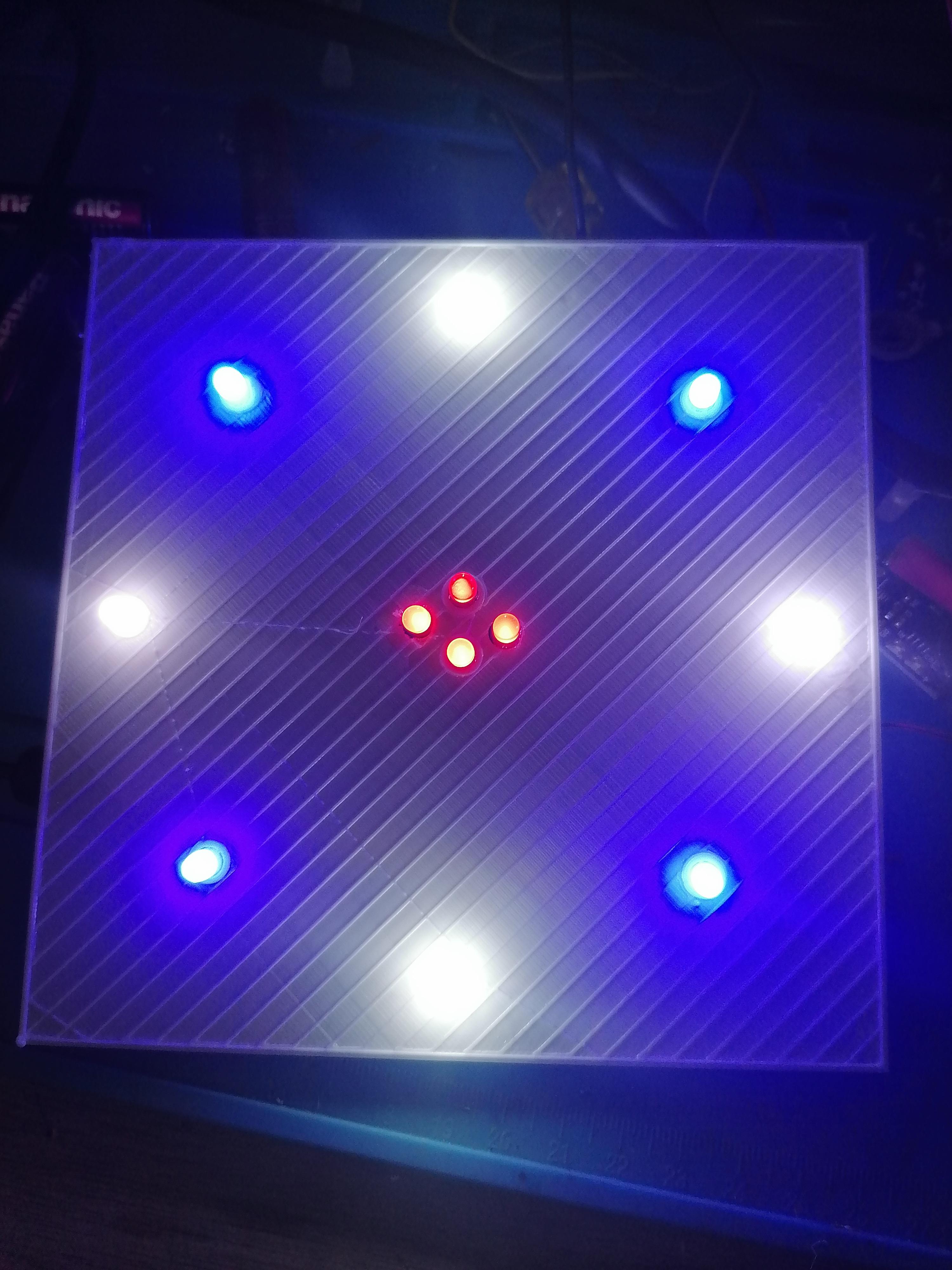

Connect the 12v power adapter....
